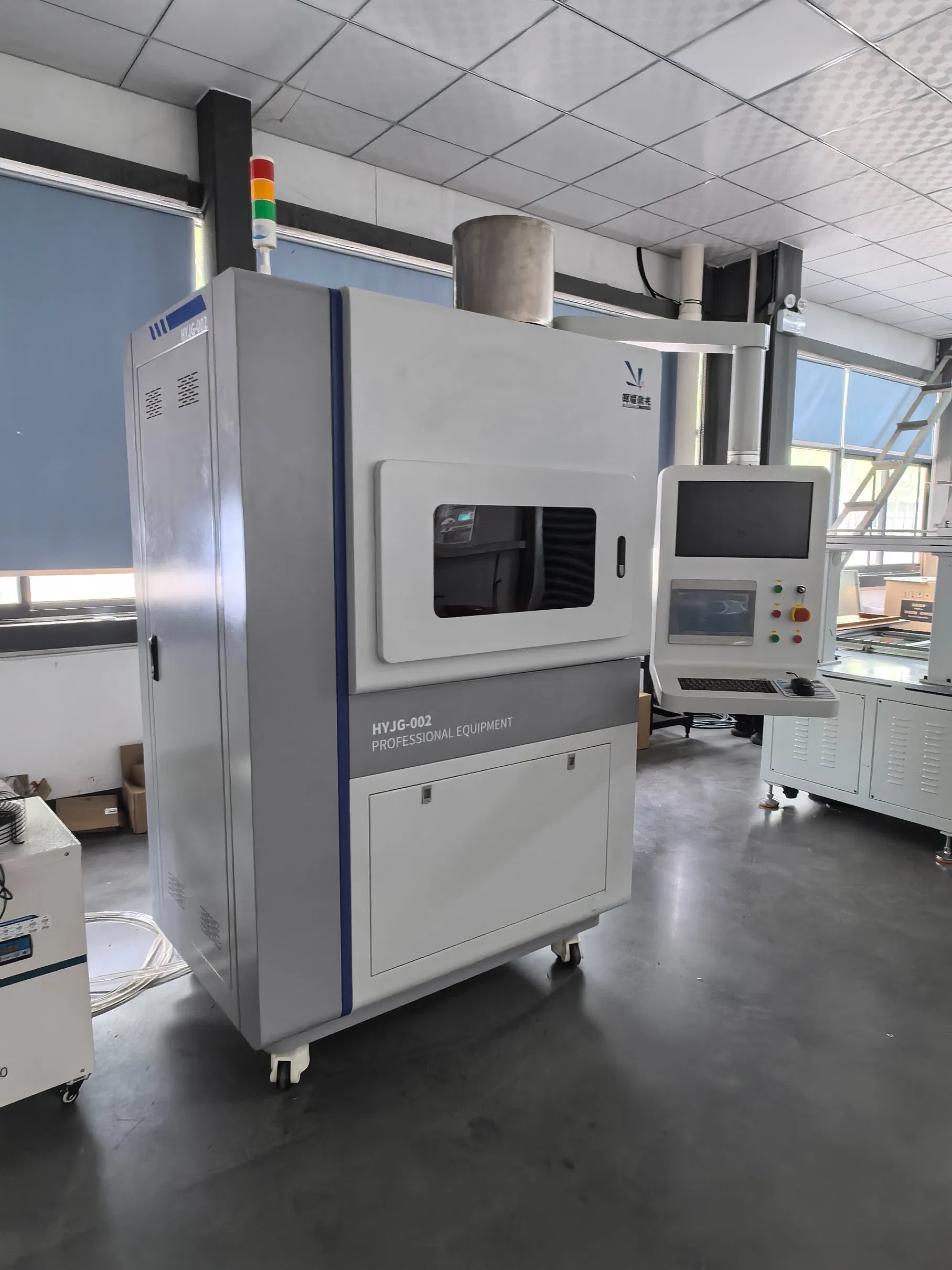

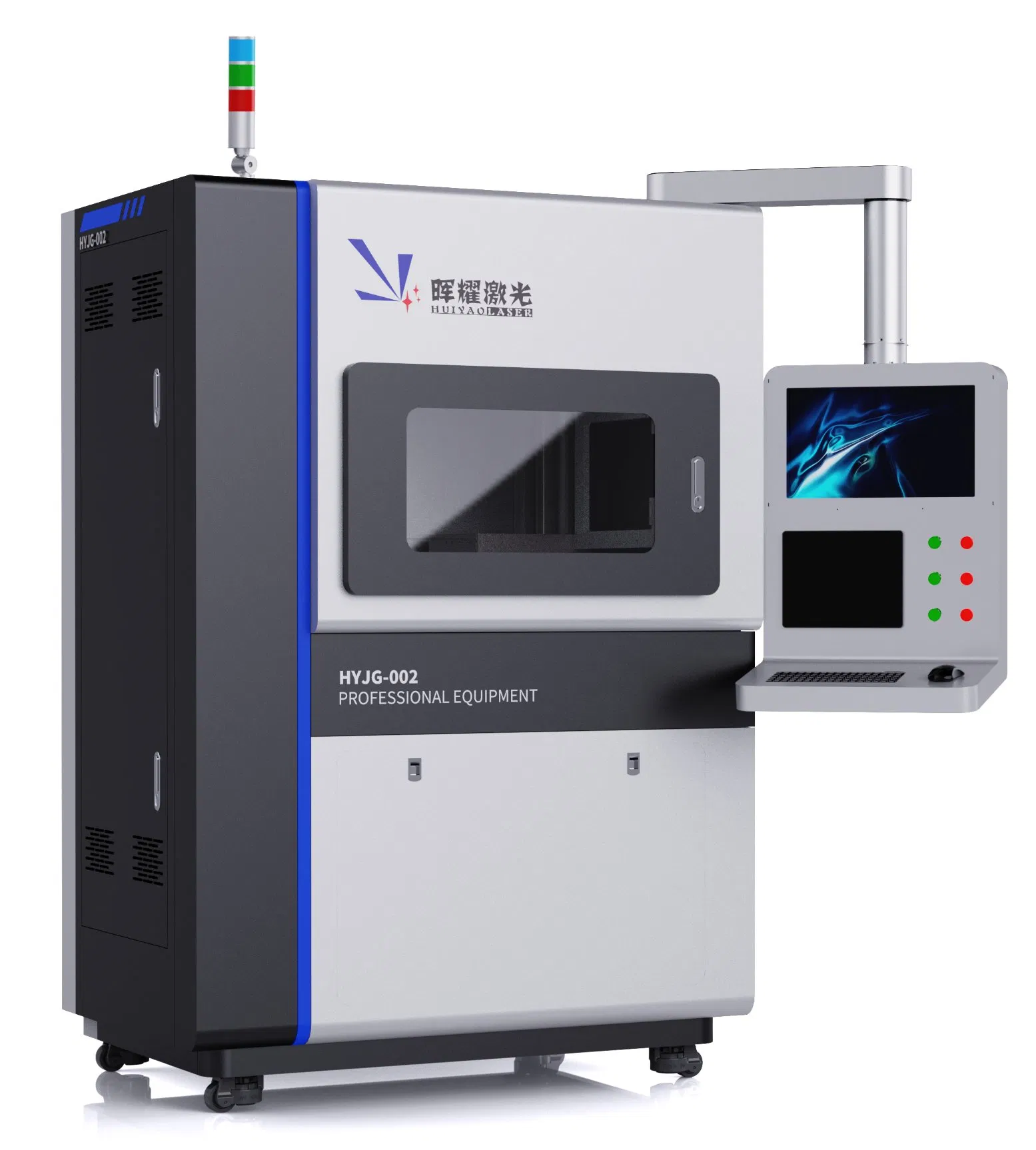

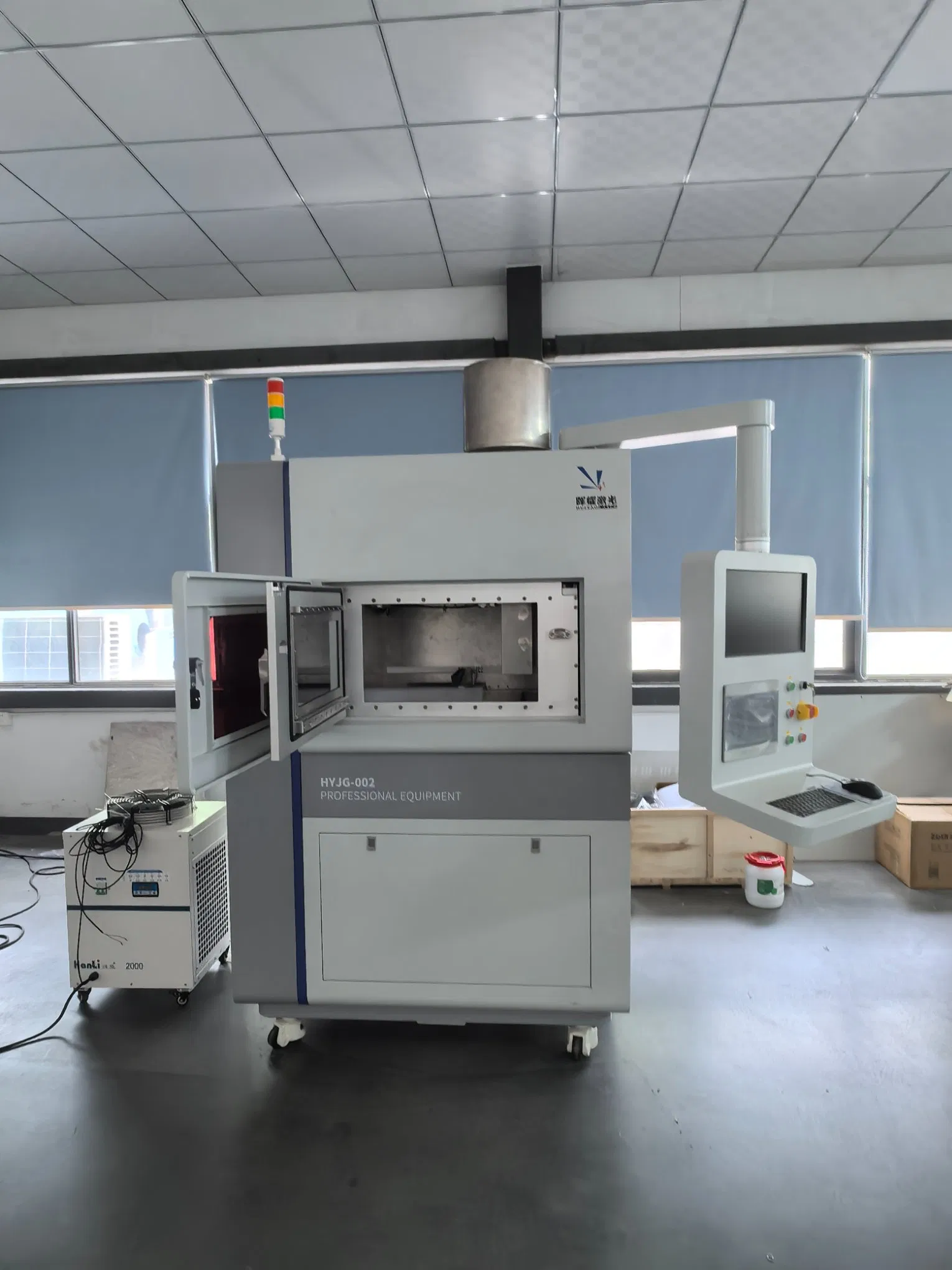

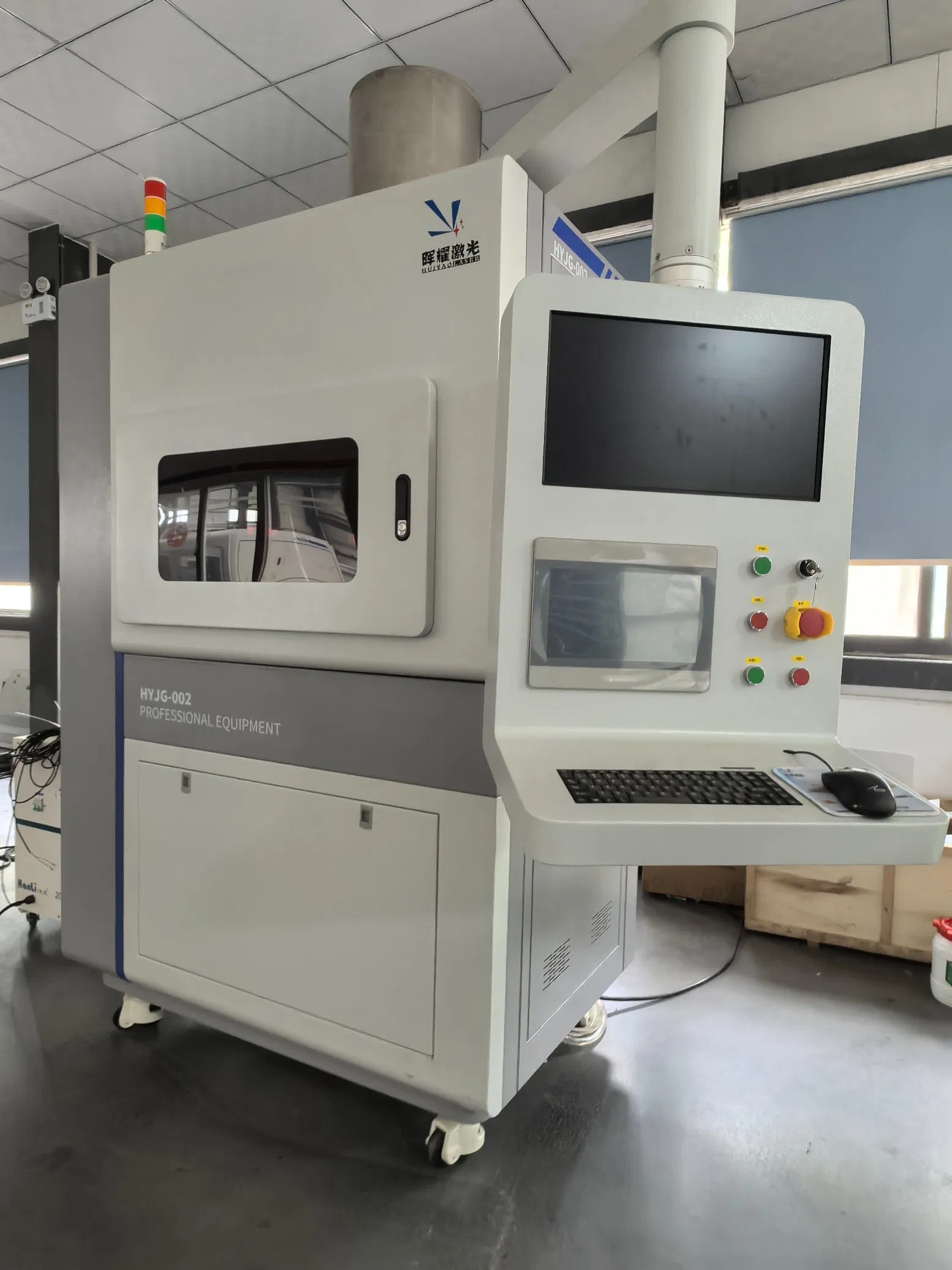

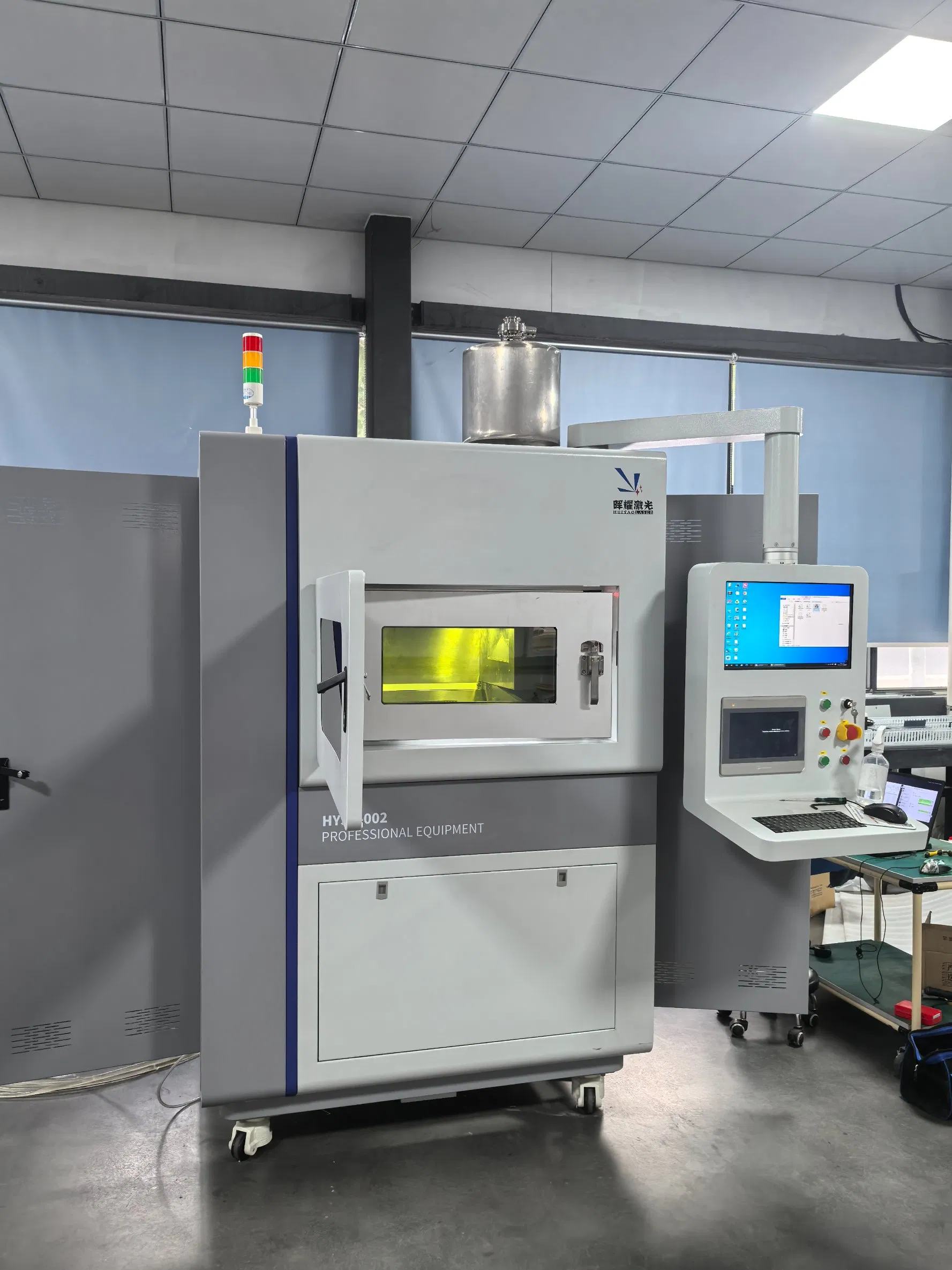

The SLM Dual-Laser Metal 3D Printer is a high-efficiency, intelligent, and customized industrial-grade additive manufacturing system specifically designed for aerospace, medical implants, and precision tooling. By integrating dual-laser dynamic coupling technology (500W primary laser + 200W secondary laser), closed-loop powder management (powder utilization rate ≥95.7%), and intelligent quality monitoring (melt pool spectral analysis ±10ºC), the system reliably produces titanium alloy orthopedic implants with 50-200μm porous structures, nickel-based superalloy turbine blades featuring 0.3mm internal cooling channels, and conformal cooling injection molds, complying with ISO/ASTM 52900 additive manufacturing standards and NADCAP aerospace certification requirements.

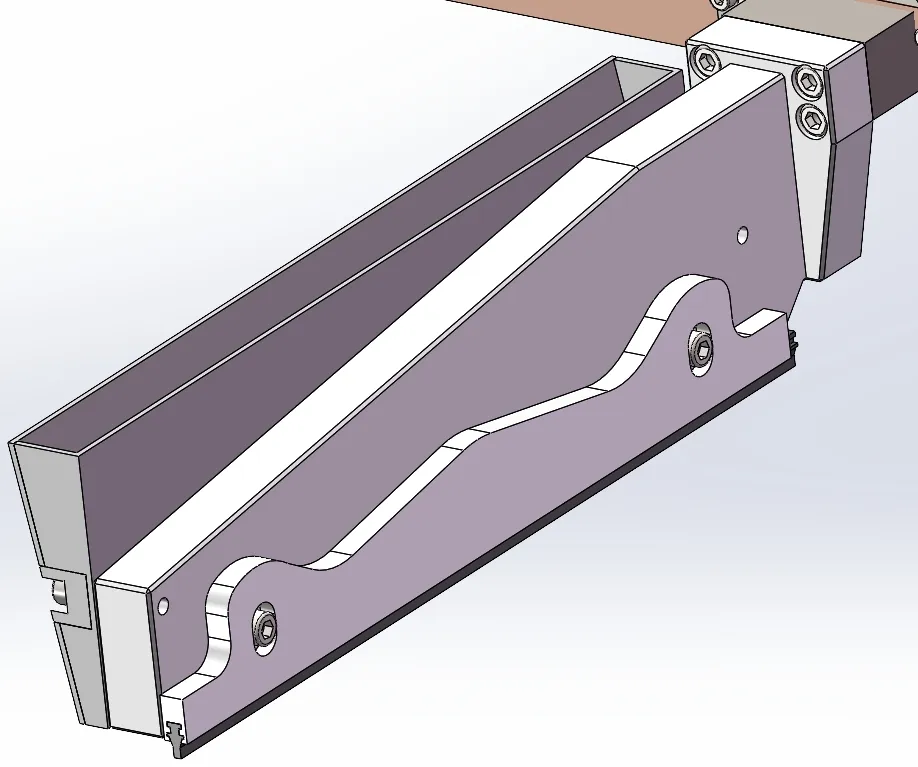

Equipped with soft/hard dual scrapers to ensure printing accuracy and prevent thin-walled part jamming.
Layer thickness 0.02-0.05mm, density up to 99%-100%, surface roughness Ra6-15 μm.
| Parameter | Specification |
|---|---|
| Model | SLM Dual-Laser |
| Laser | IPG 500W / Domestic Laser |
| Build Size | Diameter 252mm |
| Spot Size | ≈40μm |
| Scanning System | ScanLab |
| Layer Thickness | 0.02-0.05mm |
| Part Density | 99%-100% |
| Accuracy | ±0.1mm |
| Surface Roughness | Ra 6-15μm |
| Total Power | 8KW/9KW |
| Compatible Materials | Stainless Steel, High-Temperature Alloys, Titanium Alloys, Aluminum Alloys, High-Entropy Alloys |

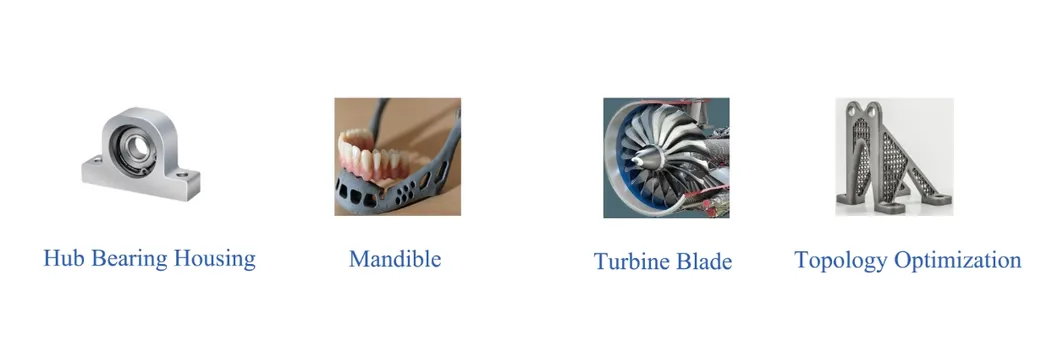

Medical Implants (Porous titanium alloy), Aerospace Components (Turbine blades), Industrial Molds (Conformal cooling).

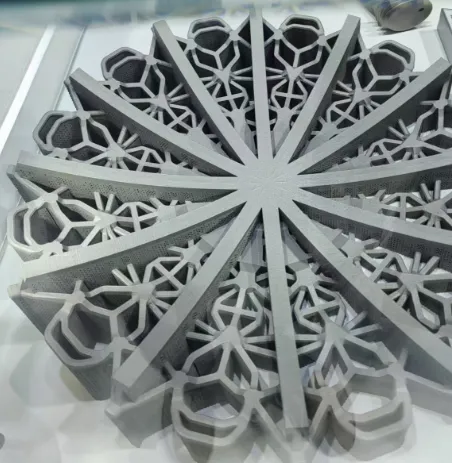

Research Prototypes (Lattice structures), Functional Test Pieces (Microchannel validation).
Racing Components (Lightweight brackets), High-End Equipment (Vacuum chambers).

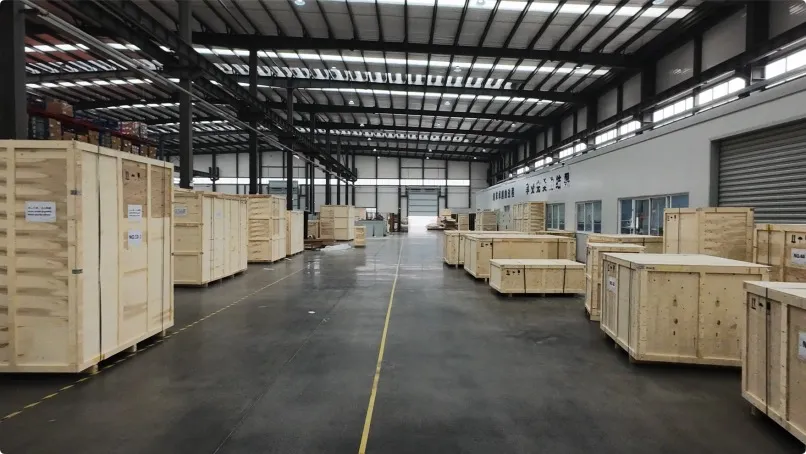

Every system is meticulously packaged in heavy-duty wooden crates with anti-vibration reinforcement, certified to withstand extreme transit conditions. Our logistics network ensures 99.9% damage-free delivery to 50+ countries.
