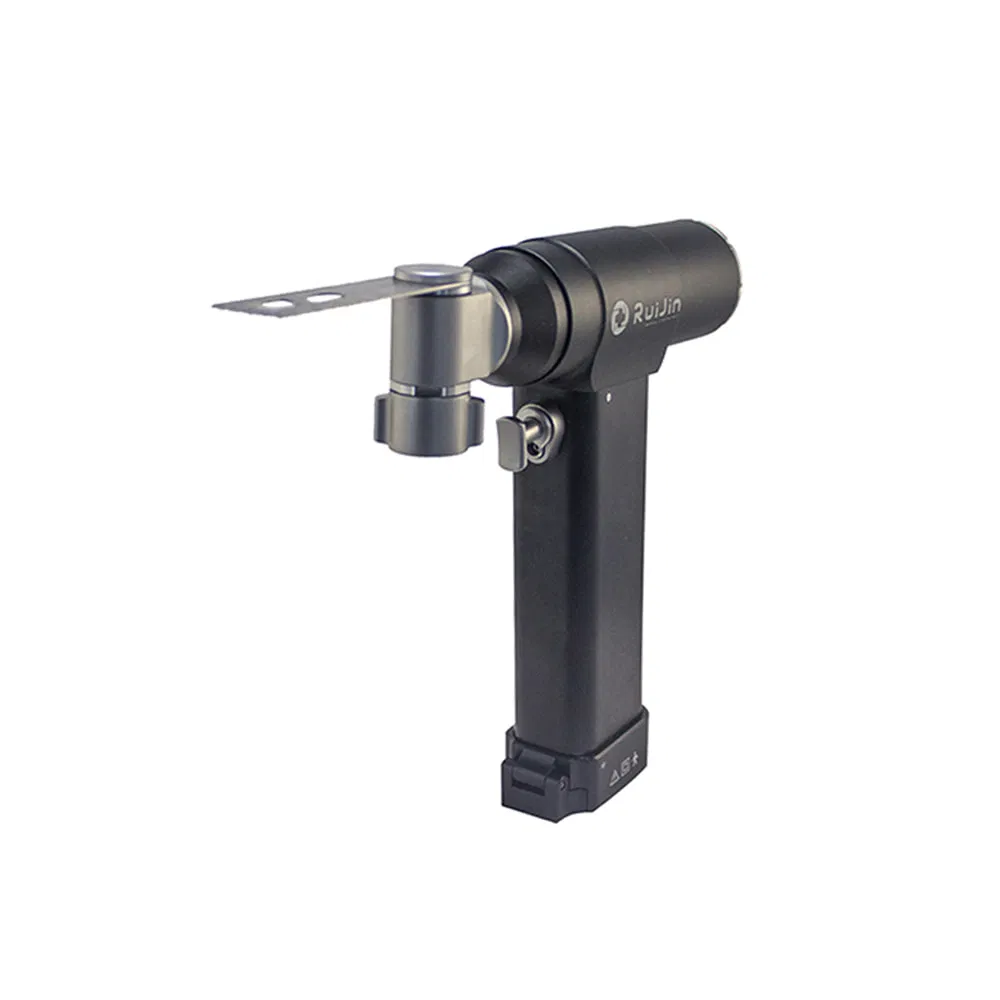

Advanced Surgical Battery Driven Orthopedic Electric Oscillating Saw

Customization: Available
Type: Medical Electric Saw
Application: Orthopedic, Microsurgery

Product Description

Basic Specifications

Model NO.
NS-1011
Material
Stainless Steel
Feature
Reusable
Certification
CE, ISO13485
Group
Adult
Color
Black/Silver
Weight
1700g
Transport Package
Aluminium Box & Carton
Specification
38*29*12 CM
Production Capacity
100000 PCS/Year
Advanced Surgical Battery Driven Orthopedic Electric Oscillating Saw

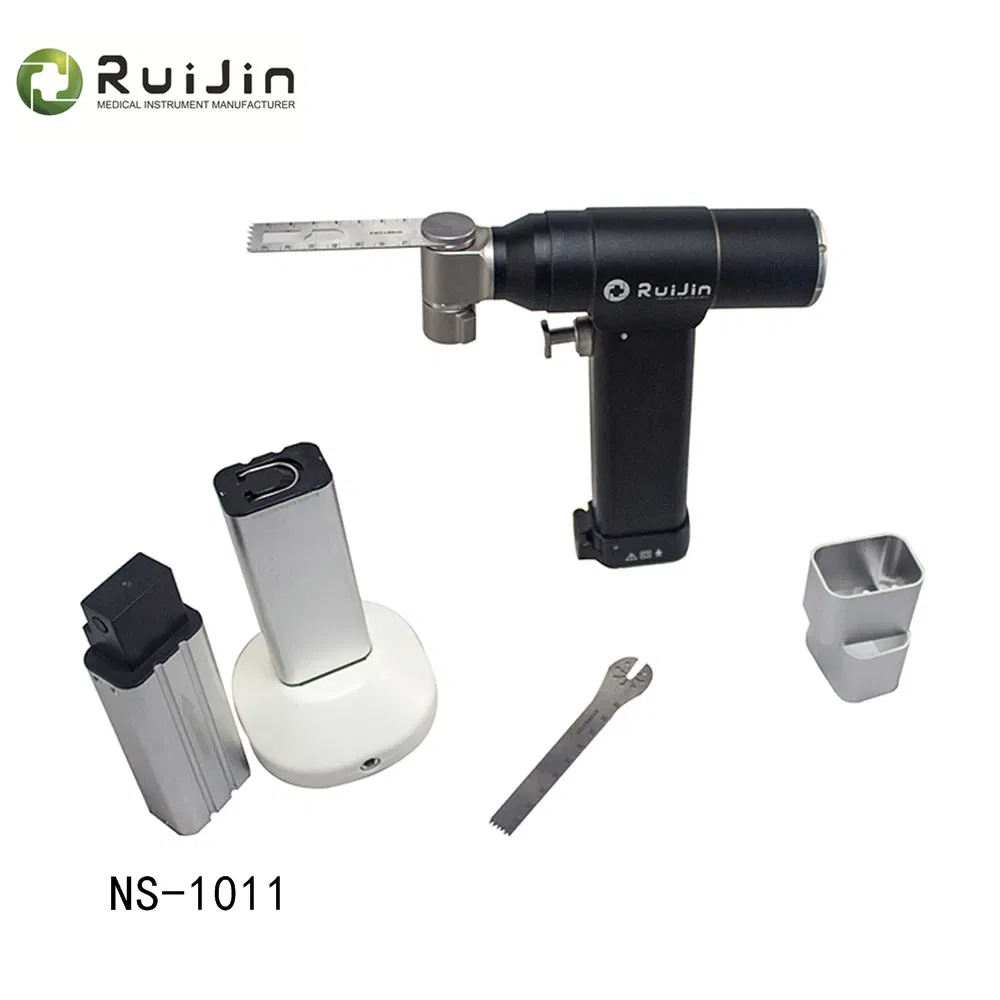

Advanced Surgical Oscillating Saw

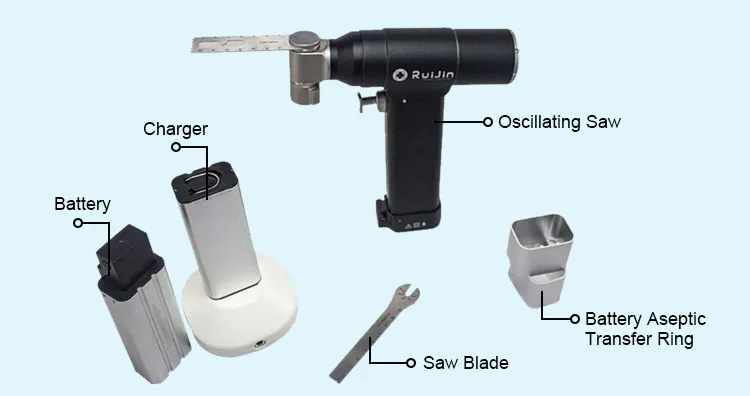

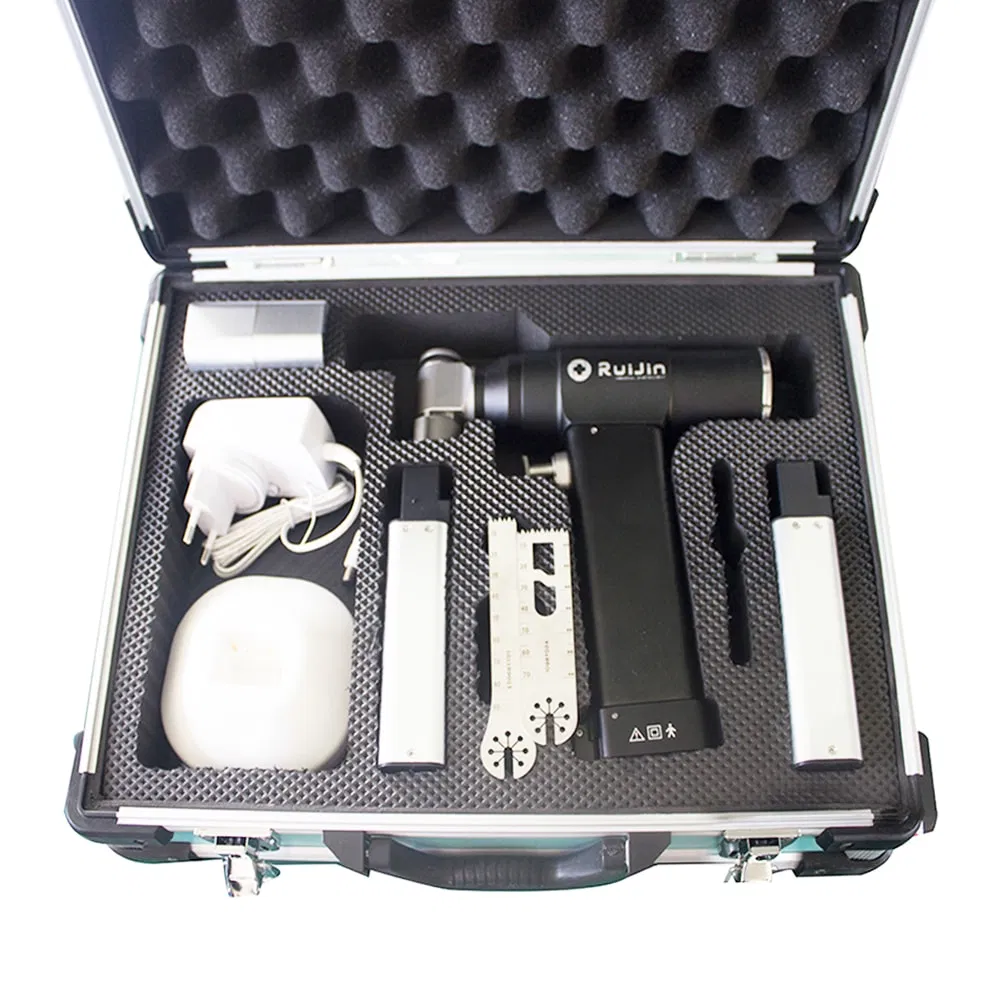

Standard Configuration

  • One mainframe
  • One charger
  • One battery
  • One sterilizing channel
  • Two saw blades (70mm and 90mm)
  • One aluminum alloy box

Product Features

  • Autoclavable up to 135ºC
  • German-imported motor
  • Strong power, low noise, minimal vibration
  • Reduced surgical risk
  • Variable speed and lightweight design

Product Display

Product View 1
Product View 2

Order Process

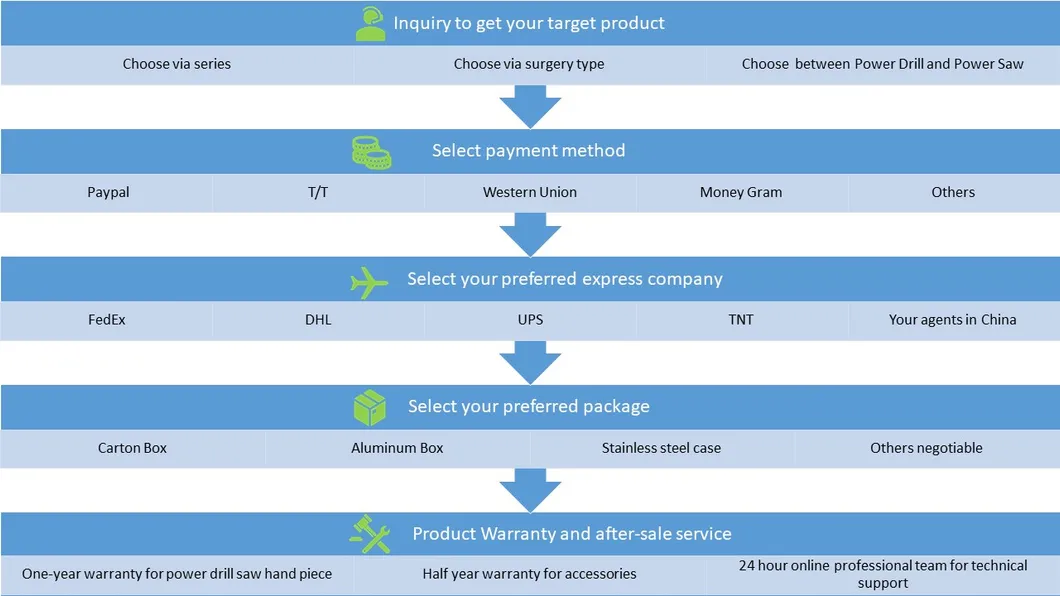

Ordering Process Map

Payment & Logistics

Price
FOB USD480~550 / Set
MOQ
1 Set
Payment
T/T in Advance or Western Union
Delivery
Within 3 days after payment

Technical Data

Hand Piece Working Voltage14.4V
Output Power130W
Unit Rise In Temperature≤ 25° C
Charger Input VoltageAC 220V, 50Hz
Charger Output Power14.4V, 700mA
Battery Charging TimeAbout Three Hours
No-load speed≤ 18000r/min
Noise Level≤ 63dB
Saw TypeAutoclavable
Battery TypeNI-MH

Operational Notes

  • Professional disassembly only.
  • The battery cannot be disinfected.
  • Remove battery when not in use to avoid automatic discharge.
  • The battery compartment must be dry after sterilization.
  • Sterilization temperature must not exceed 135°C to protect the motor.
  • Saw blades and drill bits should be cleaned and kept dry post-operation.
Component Details 1
Component Details 2

Frequently Asked Questions

Q1: Can the entire oscillating saw unit be sterilized? A: The handpiece and saw type are autoclavable up to 135ºC, but the battery must be removed as it cannot be disinfected.
Q2: What is the origin of the motor used in this device? A: The motor is imported from Germany, ensuring high power, low noise, and minimal vibration.
Q3: How long does it take to fully charge the battery? A: It takes approximately three hours for a full charge.
Q4: What saw blade sizes are included in the standard kit? A: The standard configuration includes two saw blades: 70mm and 90mm.
Q5: What is the no-load speed of the NS-1011 model? A: The no-load speed is less than or equal to 18,000 r/min.
Q6: Does the product have international quality certifications? A: Yes, the product is CE marked and the manufacturer is ISO13485 certified.
