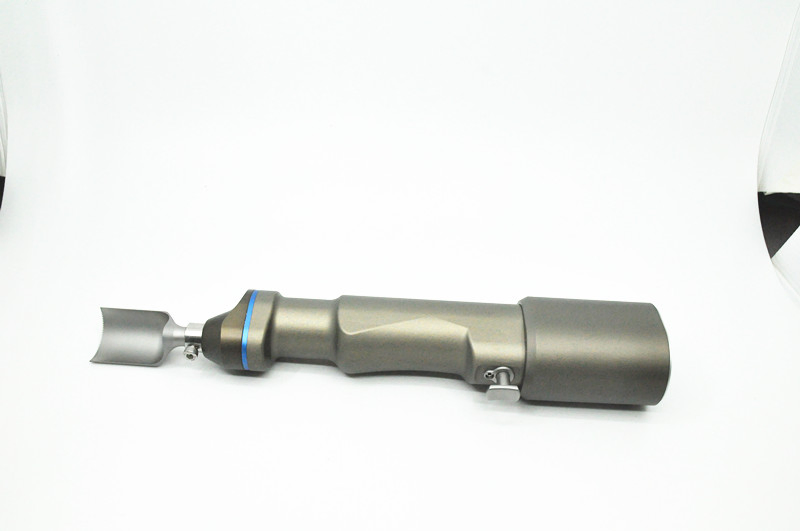

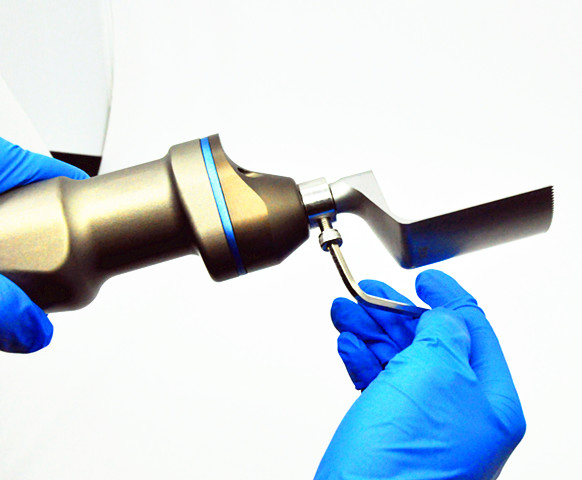

Animals Surgical Electric Orthopedic Medical Tplo Saw (NS-6072)

Customization: Available
Type: Orthopedic Saw
Kind: Orthopedics

Product Description

Basic Information
Model NO.
NS-6072
Certification
Animals
Properties
Vet Surgery
Warranty
2 Years
Certificate
CE and ISO
Electric Type
Battery Operated
Voltage
110V-240V Available
Charging Time
3 Hours
Advantage
Multifunctional Type
HS Code
9018909000

Animals Surgical Electric Orthopedic Medical TPLO Saw (NS-6072)

Key Advantages:
No Minimum Order Quantity (MOQ).
Timely and reliable delivery.
Comprehensive after-sales service system.
24-hour online professional support team.
Patented technologies with guaranteed quality.
Two years free technical support for handpiece and six months for accessories.
Technical Specifications
Output Power130W
Speed0-16000rpm
Noise≤75 dB
Sterilization≤135ºC
Operation Voltage12 V
Unit Rise in Temperature≤25ºC
Charging TimeAbout 2 hours
Net Weight1.5KG
Radial Run-out≤ 0.5mm
Battery TypeNi-MH
Charger Input VoltageAC 100-240V, 50/60Hz
Product Technical Merits
Autoclavable: Can be sterilized up to 135ºC.
Durable Material: Hard oxidized aluminum alloy case.
Precision Control: Simple operation saw blade for perfect cutting, light weight, and low heat production.
Standard Interface: Triangular interface saw head for repeated and gentle cutting.
Ergonomic Design: Step-less speed regulation with minimal vibration for operator safety.
Eco-friendly Battery: Ni-MH battery without memory effect.

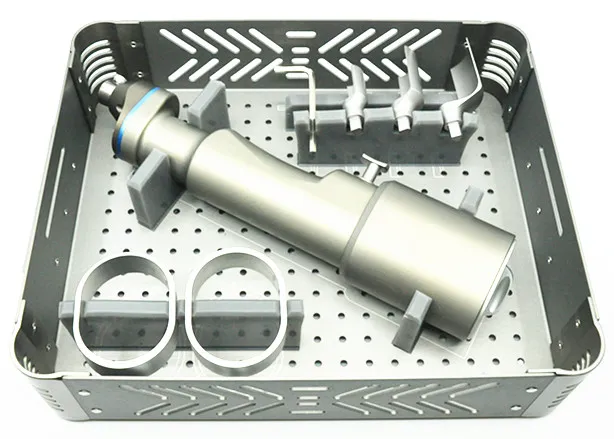

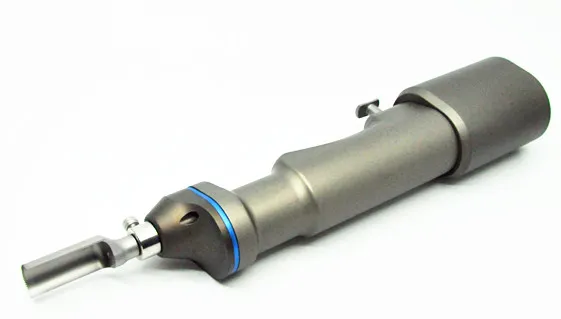

Product Display & Configuration

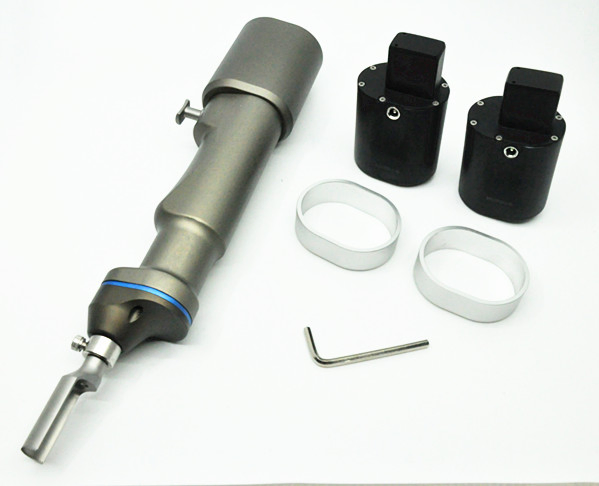

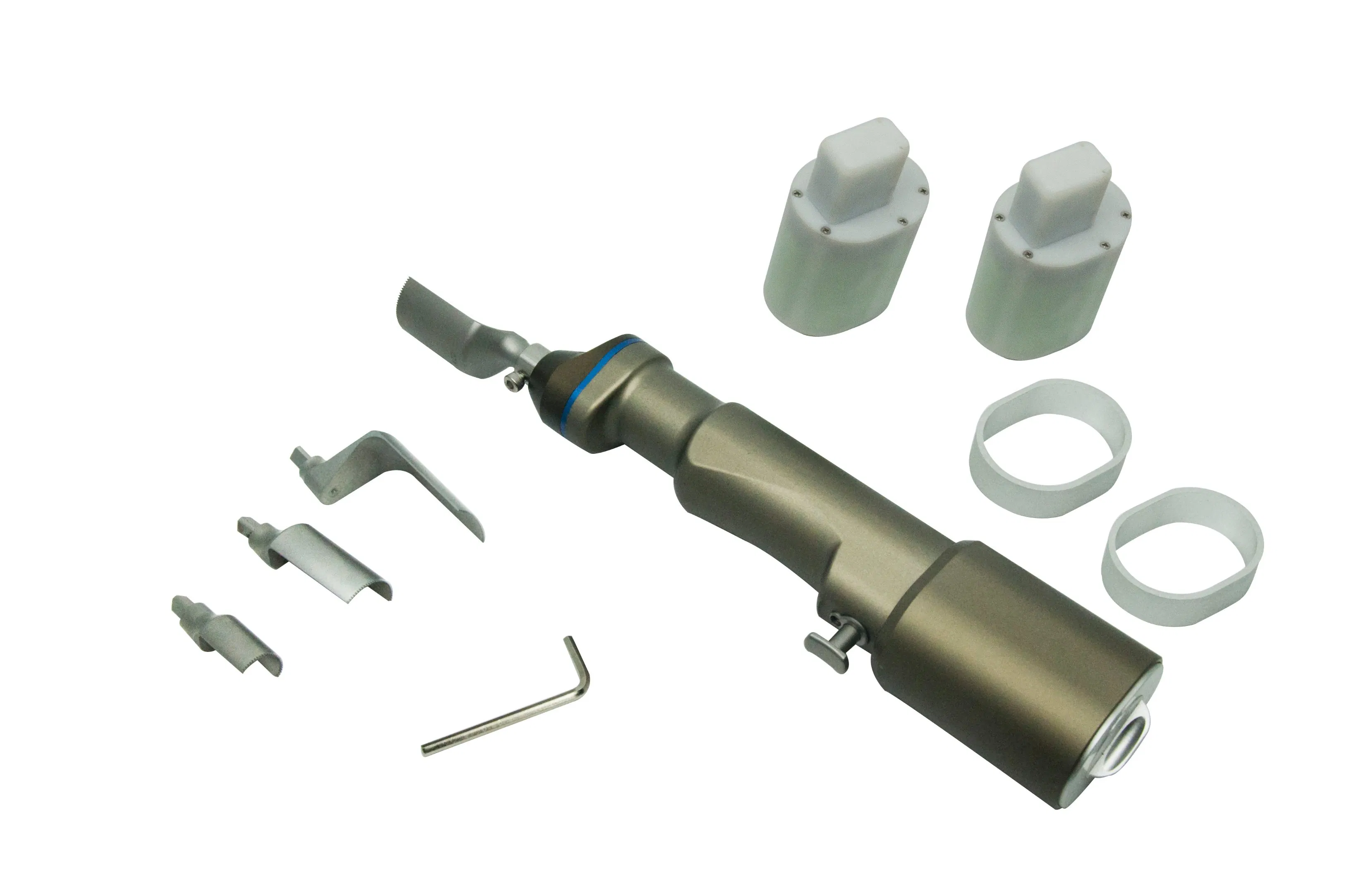

Standard Configuration:
- 1x Internal Hexagonal Wrench | - 2x Batteries | - 1x Charger | - 1x Handpiece | - 2x Sterilizing Channels | - 1x Sterilizing Case | - 1x Aluminium Box

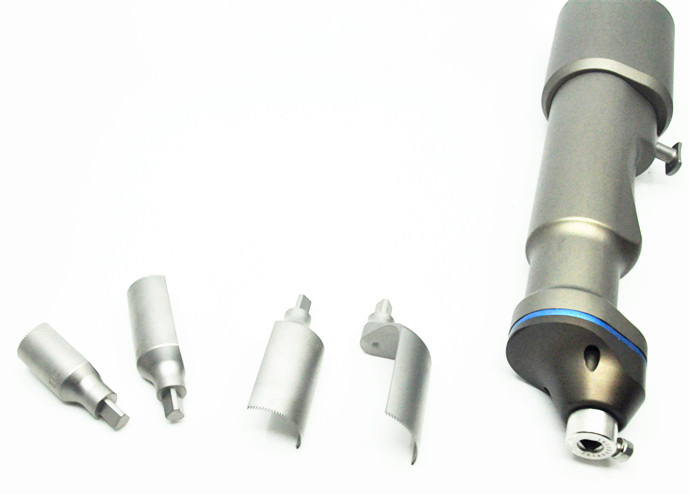

Optional: 8 different sizes of saw blades available.

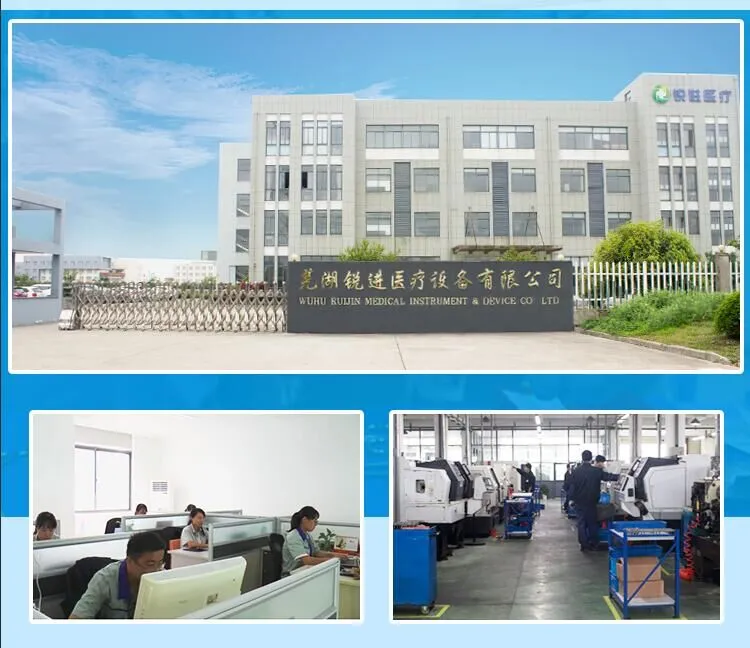

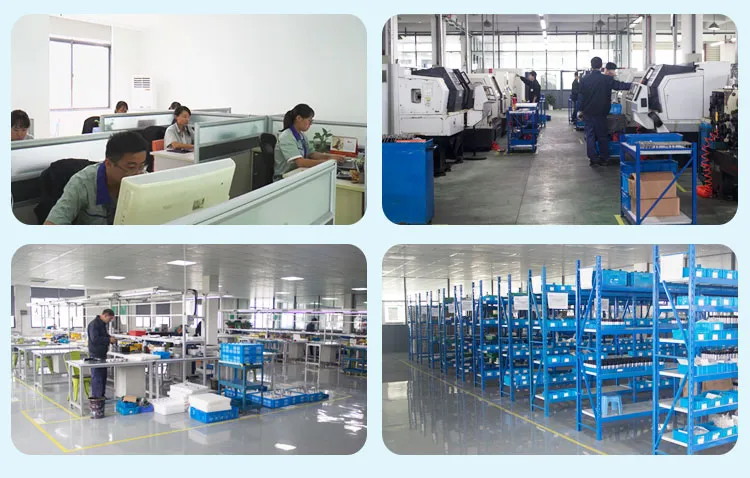

Certificates & Manufacturing
We are a medical device manufacturer integrated with R&D, production, and sales, focusing on medical drill series and micro medical electric drill series. Our products include medical bone drills, multi-functional cannulated drills, oscillating saws, and reciprocating saws, widely used in Trauma Surgery, Thoracic Surgery, Joint Operation, and Veterinary Orthopedic Surgery.
Ordering Process & Attention

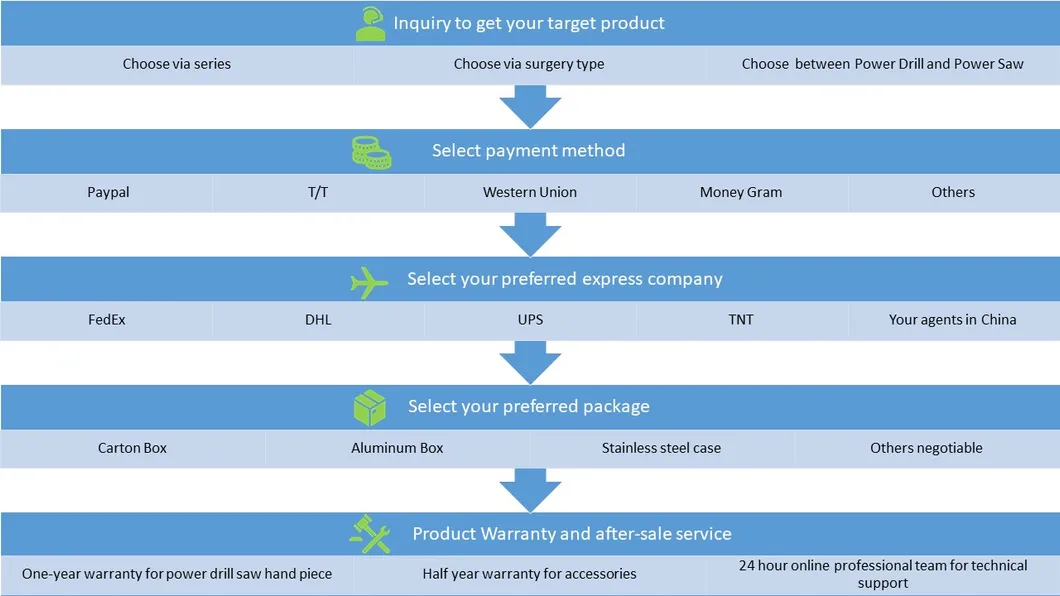

Ordering Process
1. MaintenanceDevice must be handled by professionals. Contact after-sales for any issues.
2. Power SourceCompatible with 110V/60Hz - 220V/50Hz.
3. Battery CareRemove battery from handpiece when not in use to prevent discharge.
4. SterilizationBattery cannot be disinfected. Keep battery space dry after sterilization.
5. CleaningSaw blades and drill bits should be cleaned and dried immediately after operation.
6. Temperature LimitSterilization temperature must be below 135°C to avoid motor damage.
Frequently Asked Questions
What is the maximum sterilization temperature for the TPLO saw?
The handpiece can be sterilized at temperatures up to 135°C. Exceeding this temperature may damage the internal motor.
How long does the battery last and what is the charging time?
The device uses a Ni-MH battery. It takes approximately 2 to 3 hours to reach a full charge.
What is the warranty period for this surgical saw?
We provide a 2-year warranty for the power drill saw handpiece and 6 months of free support for accessories.
Is there a minimum order quantity (MOQ) for international orders?
No, there is no MOQ. You can order as little as 1 set.
Can the saw blades be customized?
The standard configuration includes a set of tools, and we offer 8 different sizes of saw blades as optional attachments to suit various surgical needs.
What surgical applications is this saw suitable for?
This TPLO saw is specifically designed for Veterinary Orthopedic Surgery, but the series is also applicable in Trauma, Thoracic, and Joint surgeries.
