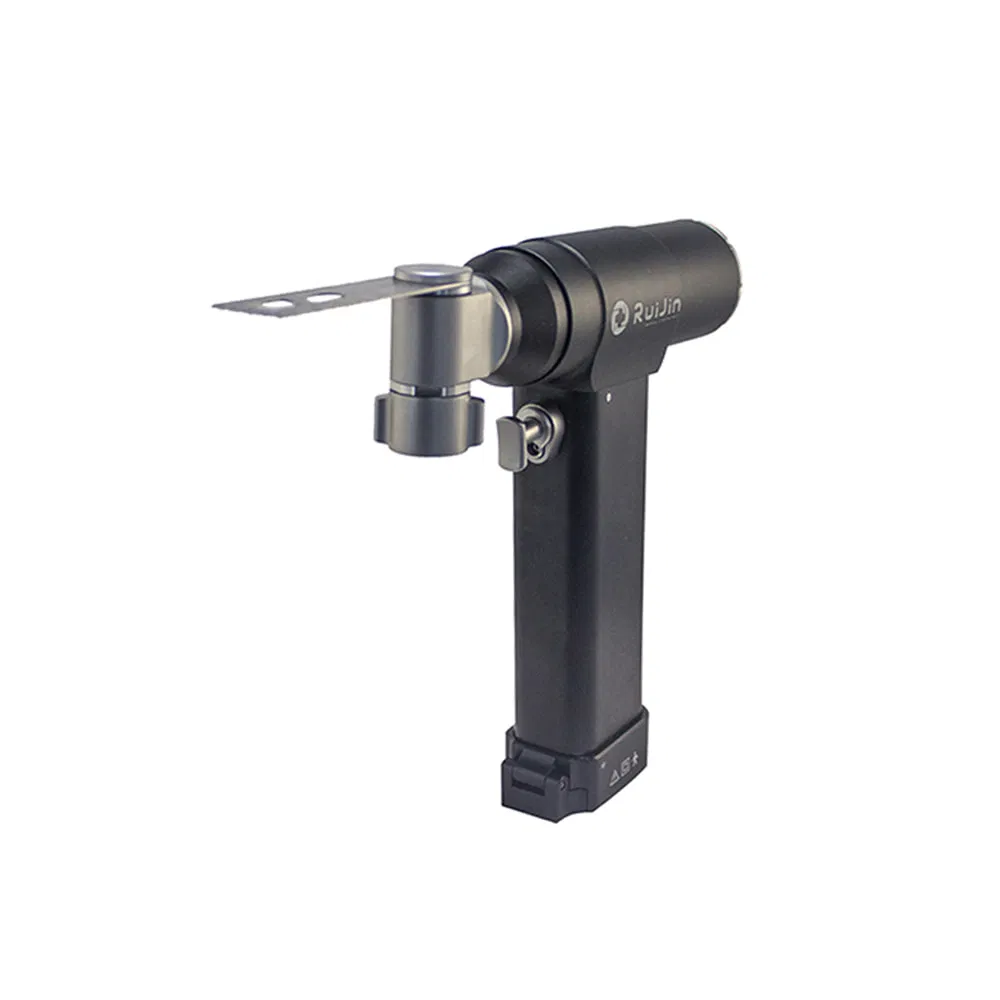

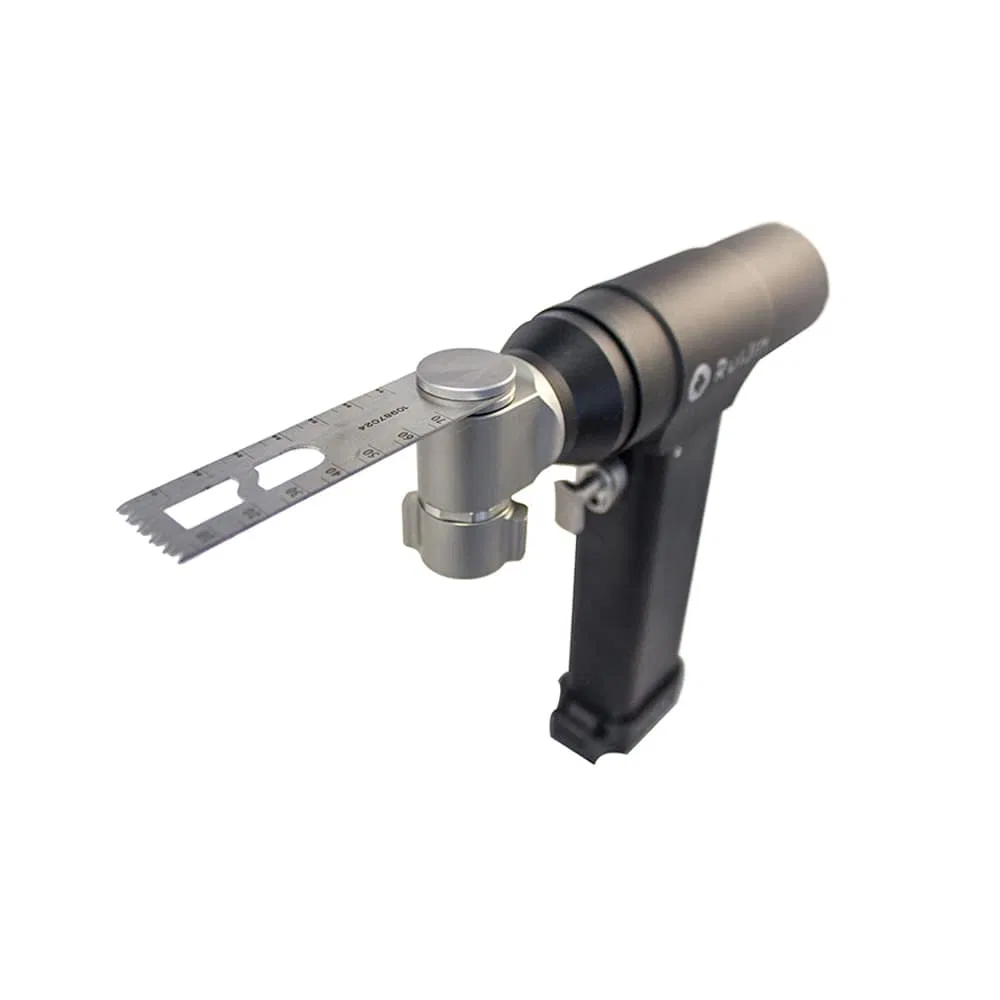

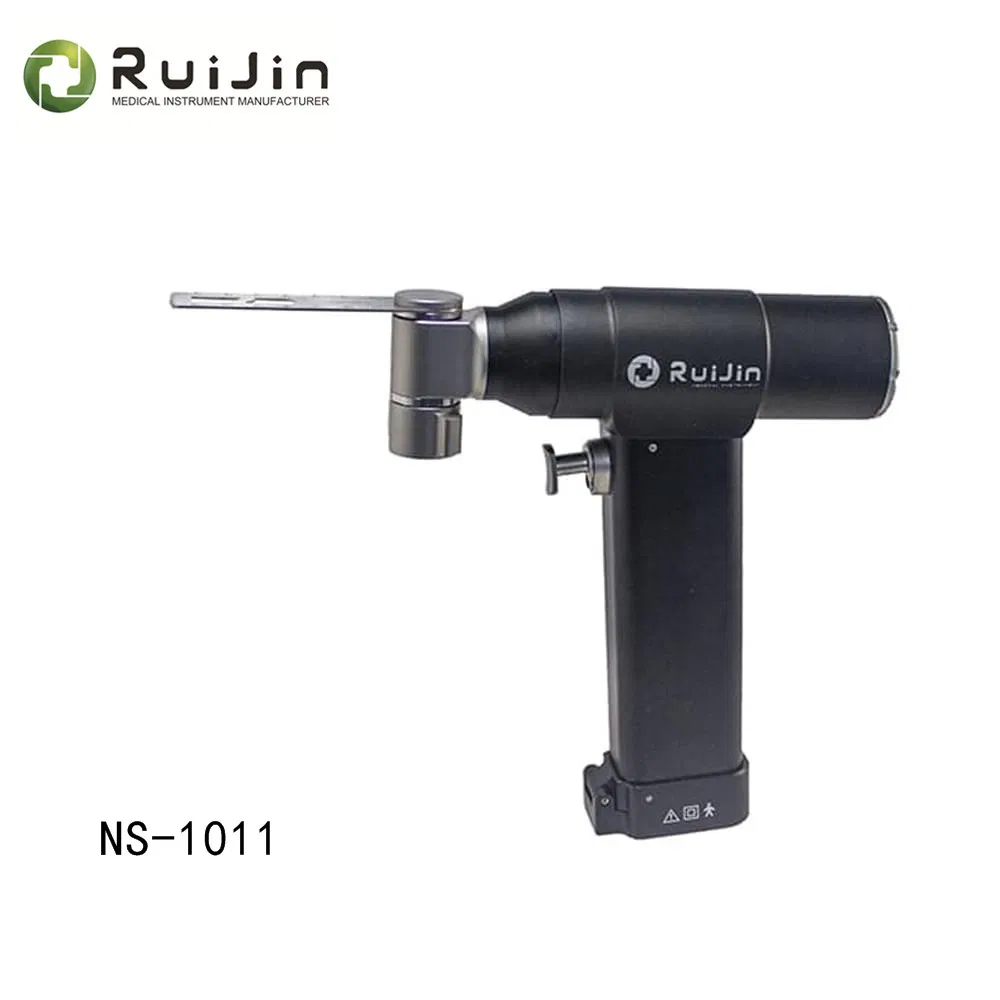

Autoclavable Orthopedic Bone Saw (NS-1011)

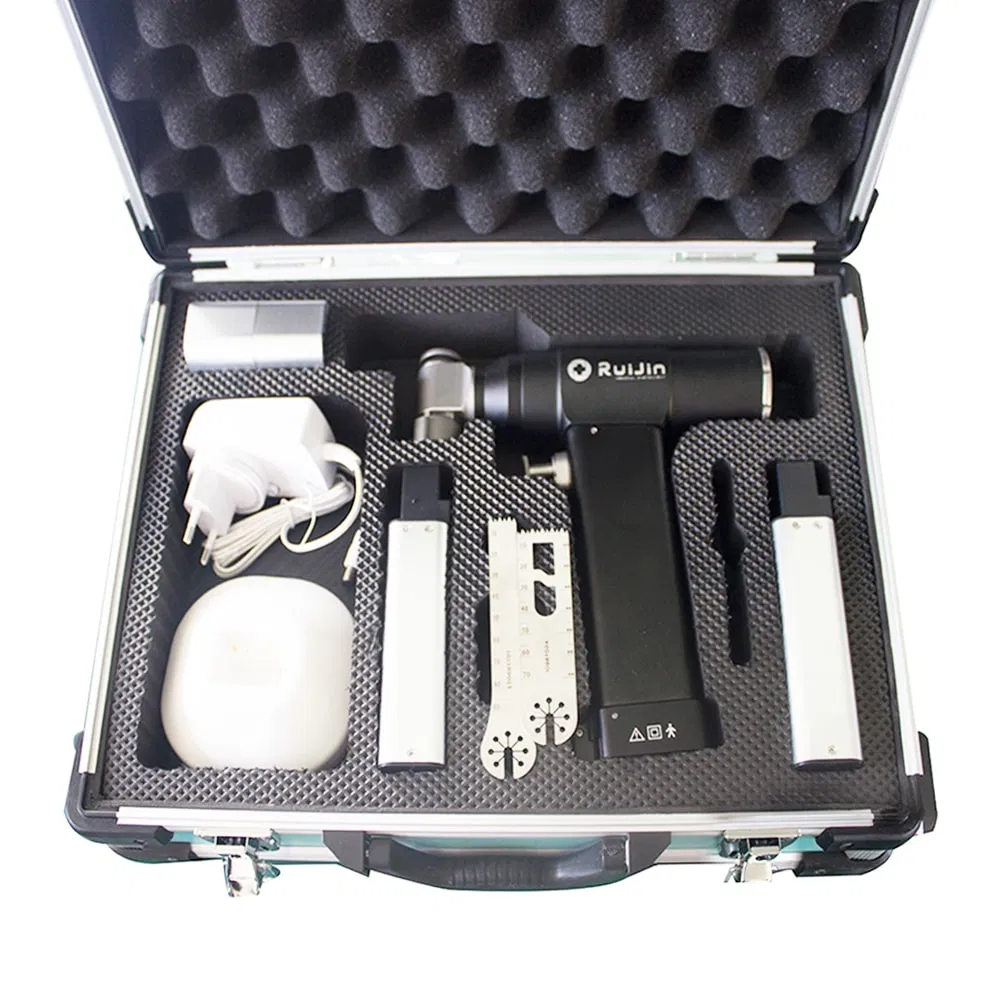

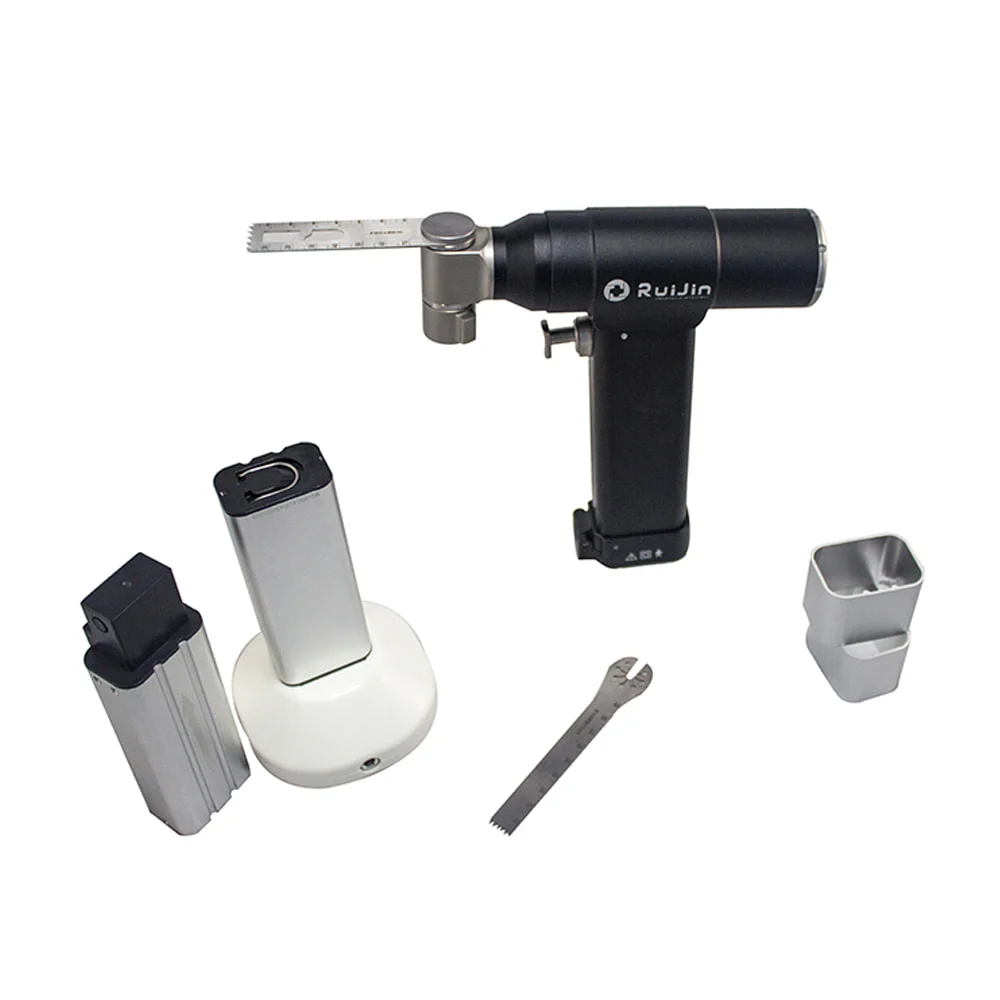

Standard Configuration
- One Hand piece
- One Battery
- One Charger
- Two saw blades
- One Sterilizing channel
- One Aluminium box
Product Features
- Can be sterilized up to 135ºC
- Motor is imported from Germany
- Strong power, low noise, small vibration
- Reduced the risk of surgery
- Variable speed and lightweight for better accuracy

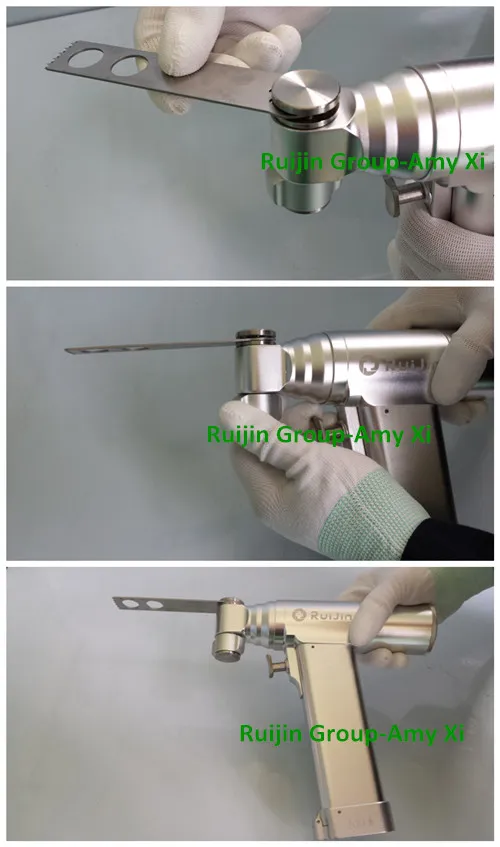

Product Display

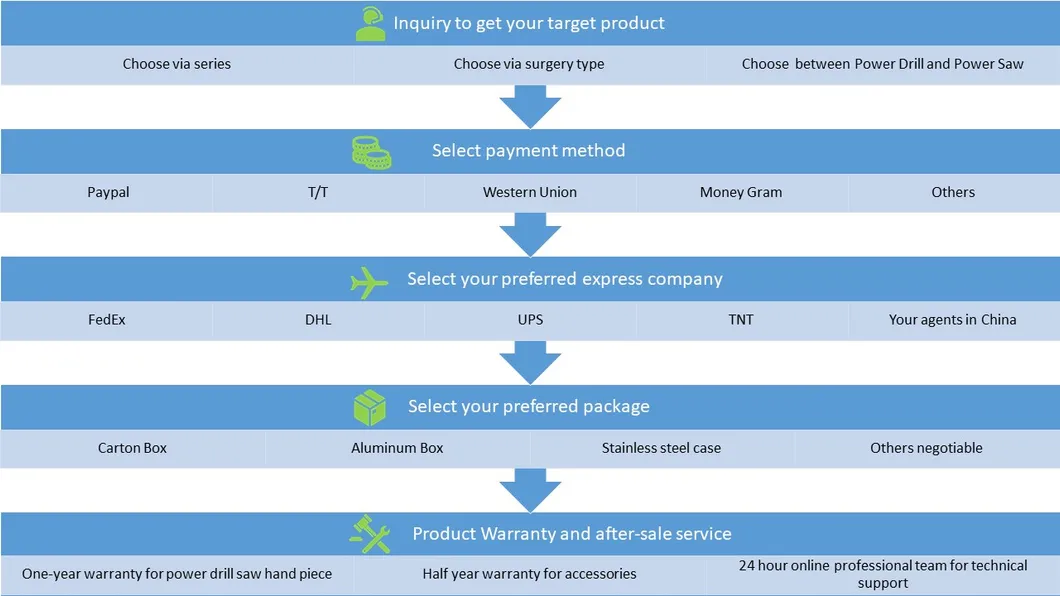

Process Introduction
Payment and Package Details
- MOQ: 1 piece
- Delivery time: Immediately after payment
- Payment Terms: 100% T/T in advance or Western Union
- Package: One set packed in aluminium box then in one carton
- Weight: 4.9kg with package
- Size of aluminium box: 38cm*28cm*13cm
Technical Data
| Hand Piece Working Voltage | 14.4V |
| Hand Piece Output Power | 20W |
| Hand Piece Unit rise in temperature | 25 degree |
| Charger Input Power | AC 220V, 50Hz / 30VA |
| Charger Output Power | 14.4V, 700mA |
| Battery Voltage | 14.4V |
| Battery Charging time | About 3 hours |
| Non-loaded speed | 18000r/min |
| Non-loaded noise | 75dB(A) |
| Radial run-out | 0.5mm |
Technical Merits
- For application in hand surgery
- Ingenious technological skill, high quality
- Perfect ergonomic design, widely compatibility, used in a variety of surgery
- Main unit can be sterilized by high temperature and high pressure
- Lightweight allows for optional maneuverability, minimizing joint fatigue
- Ni-MH battery without memory environment friendly
- Full Autoclavable design
Operational Notes
1. The device is forbidden to be demolished by non-professionals.
2. The battery cannot be disinfected.
3. The battery needs to be taken out of the machine when not in use to avoid discharge.
4. The battery space should be kept dry after sterilization.
5. Saw blades should be cleaned with a purifier and kept dry after operation.
6. The sterilization temperature must be lower than 135°C to avoid motor damage.
Frequently Asked Questions
What is the maximum sterilization temperature for this bone saw?
The main unit can be sterilized up to 135ºC. Exceeding this temperature may damage the motor.
Is the battery autoclavable?
No, the battery cannot be disinfected or autoclaved. It must be removed before the sterilization process.
What kind of motor does the NS-1011 use?
The device is equipped with a high-quality motor imported from Germany, ensuring strong power and low noise.
How long does it take to fully charge the battery?
The standard charging time for the 14.4V battery is approximately 3 hours.
What surgeries is this oscillating saw suitable for?
It is designed for hand surgery, trauma surgery, joint operations, and veterinary orthopedic surgeries.
What is the warranty period for this product?
We provide a 2-year warranty for the product, supported by professional online technical service.
