Medical Biocompatible Alloy Precision Additive Manufacturing System

Customization:	Available
Warranty:	2 Year
File Format:	STEP, IGES, SLC, CLI, STL

i

Product Overview

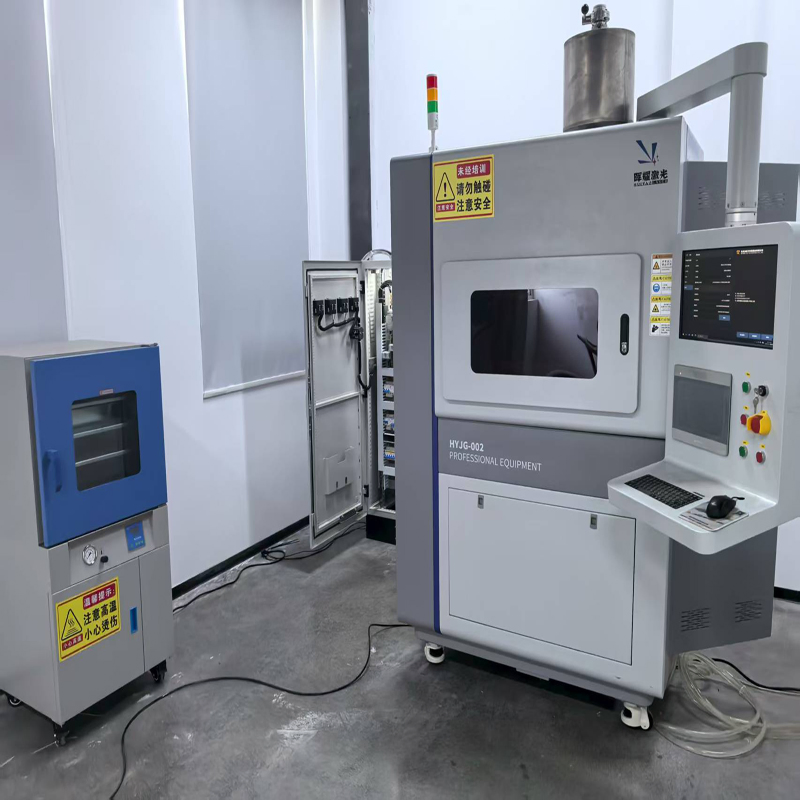

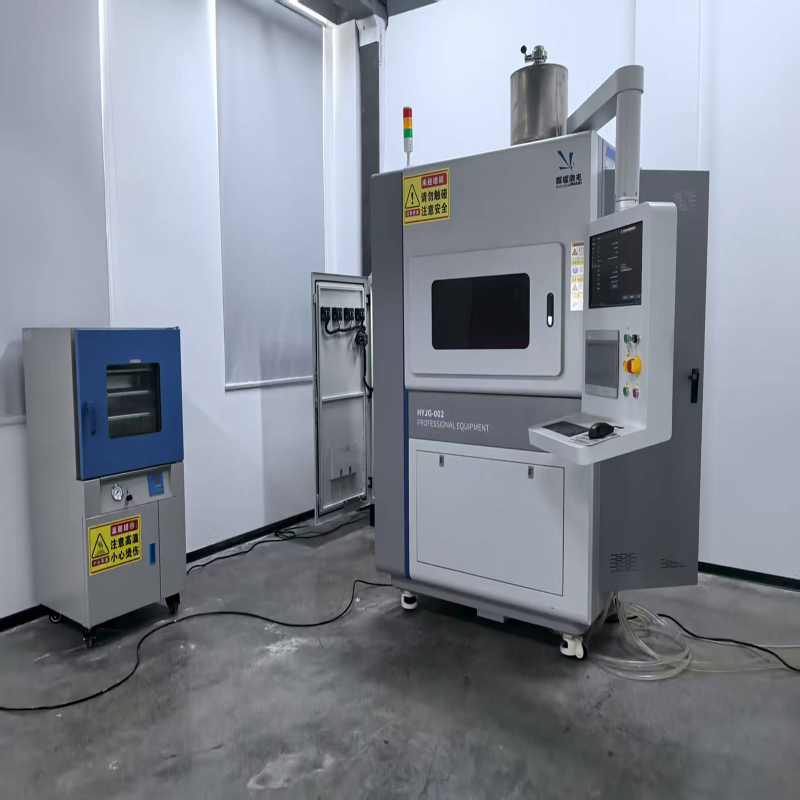

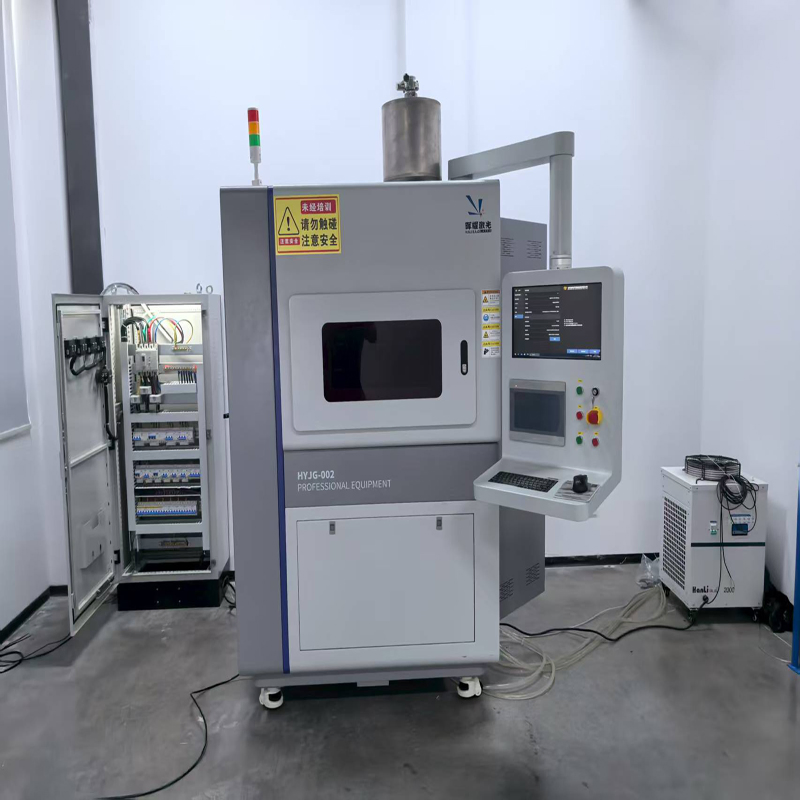

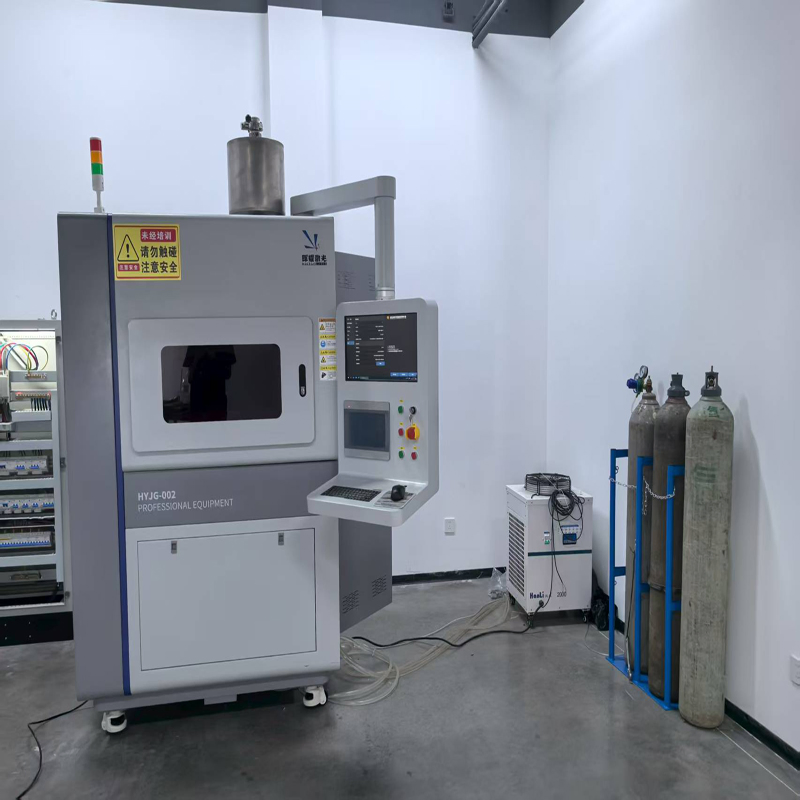

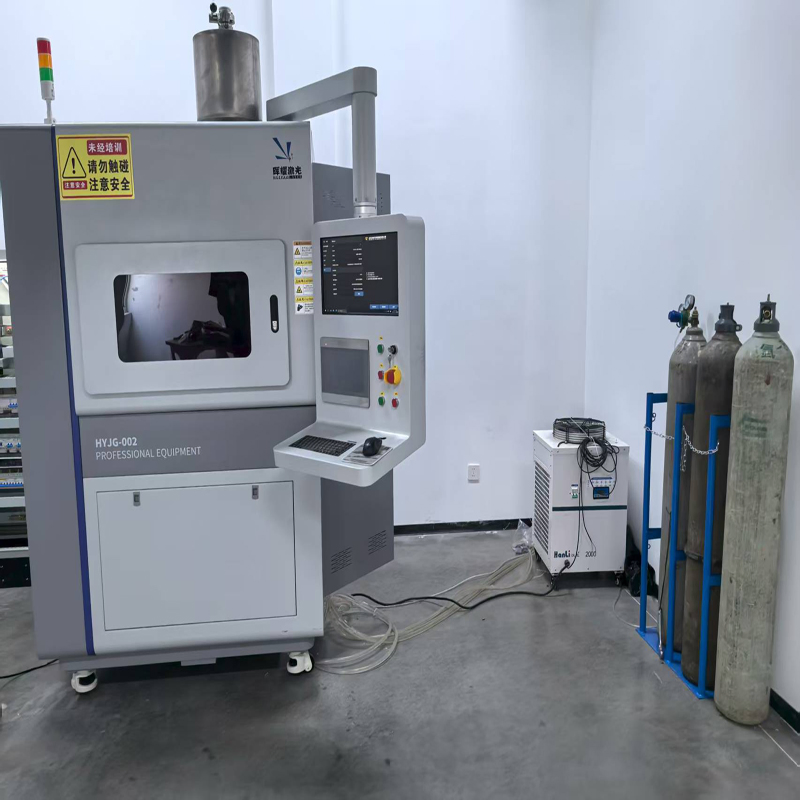

The SLM Dual-Laser Metal 3D Printer is a high-efficiency, intelligent, and customized industrial-grade additive manufacturing system specifically designed for aerospace, medical implants, and precision tooling. By integrating dual-laser dynamic coupling technology (500W primary laser + 200W secondary laser), closed-loop powder management, and intelligent quality monitoring, the system reliably produces complex components such as titanium alloy orthopedic implants and nickel-based superalloy turbine blades, complying with ISO/ASTM 52900 standards.

Model NO.002

Nozzle NumberDual-Laser

ConnectionWiFi

Precision<100μm

Layer Thickness20-80μm

Forming TechSLM

MaterialsPlastic, Metal, Ti6al4V, Inconel 718

Operating SystemWindows 10

Oxygen Control≤500ppm

PackingWooden Box

★

Key Features

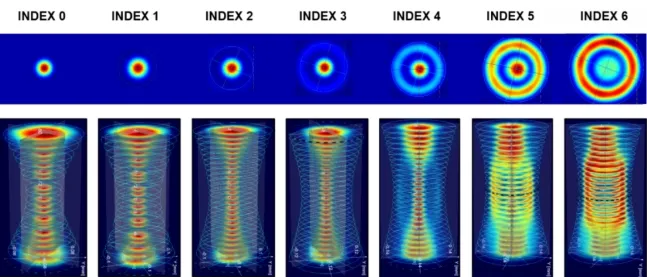

Adjustable Laser Spot

Adjust the laser spot from 35-80μm to optimize energy distribution for diverse materials.
Small spots (35-50μm) for ultra-fine details and microstructures.
Large spots (60-80μm) to boost efficiency for bulk components.

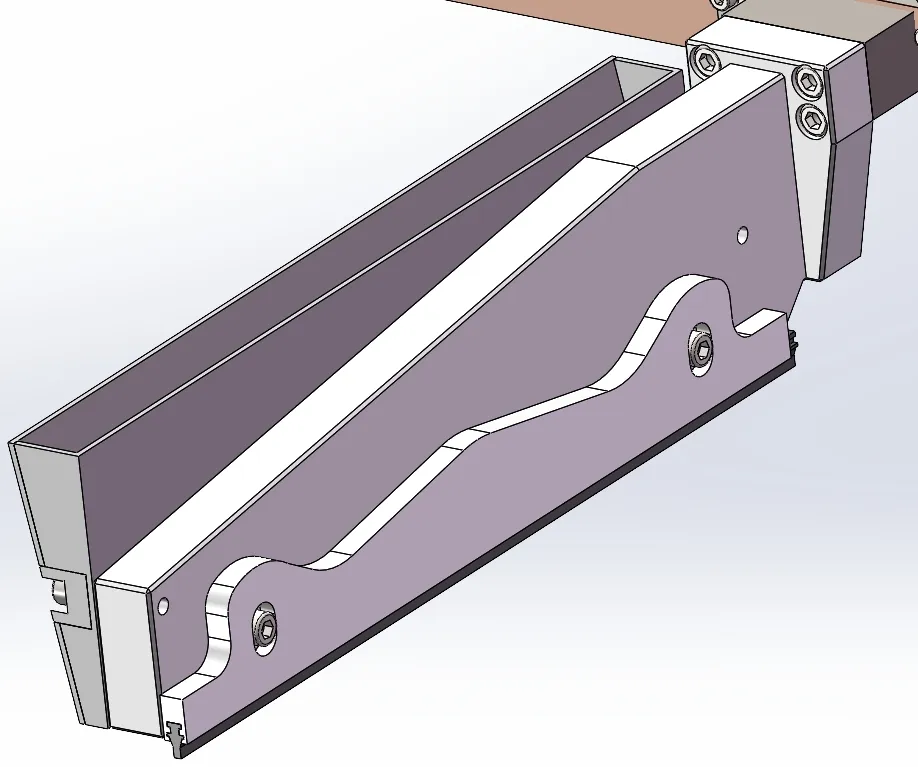

Dual Scraper System

Equipped with soft/hard dual scrapers to ensure printing accuracy and prevent thin-walled part jamming during the additive process.

High Precision & Density

Achieves layer thickness of 0.02-0.05mm, density up to 99%-100%, and surface roughness Ra6-15 μm for industrial-grade parts.

⚙

Technical Specifications

Parameter	Specification
Laser Source	IPG 500W / Domestic Options
Build Size	Diameter 252mm
Spot Size	≈40μm (Adjustable)
Scanning System	ScanLab
Accuracy	±0.1mm
Surface Roughness	Ra 6-15μm
Total Power	8KW / 9KW
Materials	Stainless Steel, Titanium Alloys, Aluminum, High-Entropy Alloys

➔

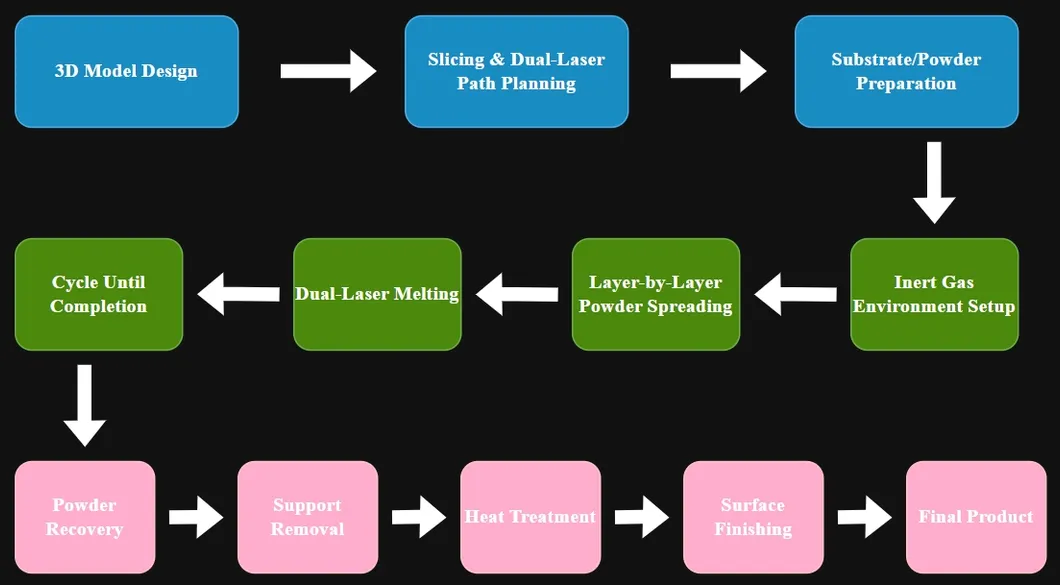

Process Flow & Applications

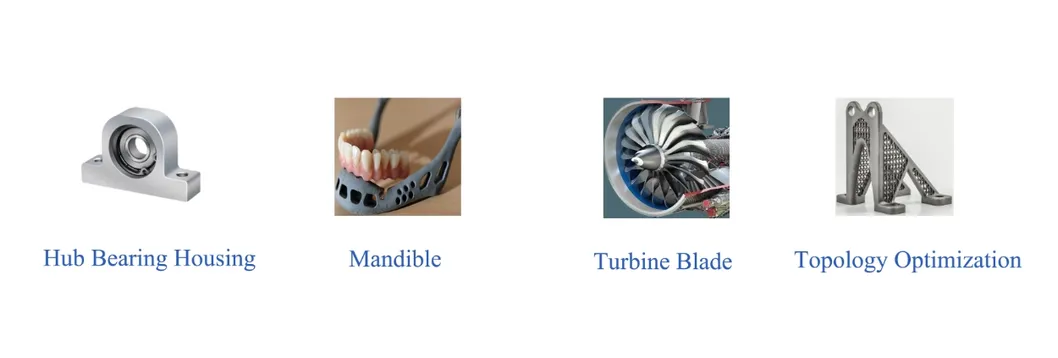

Application Fields

Medical: Porous titanium implants for osseointegration.
Aerospace: Turbine blades with internal cooling channels.
Industrial: Conformal cooling injection molds.
Research: Acoustic metamaterial lattice structures.

📦

Packaging & Shipping

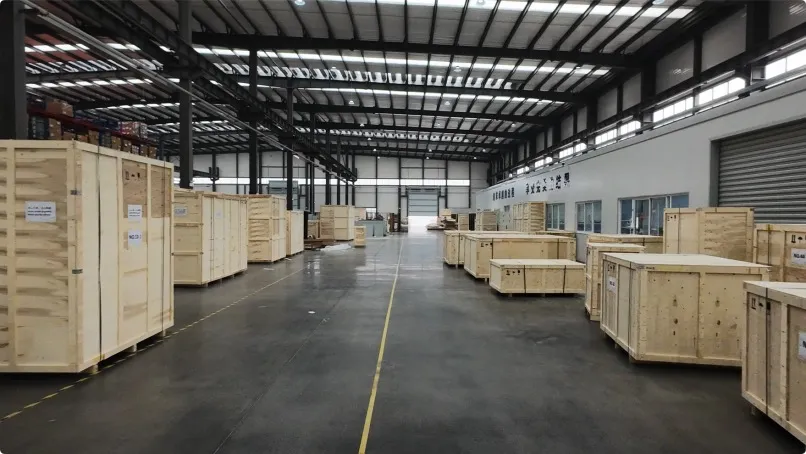

Systems are meticulously packaged in heavy-duty wooden crates with anti-vibration reinforcement, certified to withstand extreme transit conditions. Our logistics network ensures damage-free delivery to 50+ countries.

🏢

Manufacturing Excellence

As an industry-leading manufacturer of new energy intelligent equipment and SLM dual-laser 3D printing systems, we provide innovative turnkey solutions for battery production and metal additive manufacturing. We focus on precision, efficiency, and Industry 4.0 integration.

?

Frequently Asked Questions

Q1. What checks are required before starting the equipment?

Ensure sufficient inert gas supply (oxygen <100ppm), verify powder filling meets minimum requirements (30% of build chamber), and calibrate scraper leveling (±0.01mm).

Q2. How to extend the lifespan of the laser system?

Regularly clean laser optics every 200 hours, avoid prolonged full-power operation (keep below 80%), and maintain stable cooling at 20±2ºC.

Q3. How to maintain the powder recycling system?

Clean the sieve after each print to prevent clogging, inspect delivery pipes monthly, and replace powder filters every 500 hours or 200kg of powder.

Q4. How to handle abnormal alarms during operation?

Record the alarm code, check the status of sensors (oxygen, temperature, pressure), and contact technical support with equipment log files.

Q5. How to ensure consistent print quality?

Regularly calibrate the laser beam path every 100 hours, use standard test pieces for verification, and monitor melt pool stability via high-speed cameras.

Q6. What should be considered for long-term shutdown?

Empty and clean the build chamber, disconnect power, drain the cooling system, and perform a monthly self-check start.
