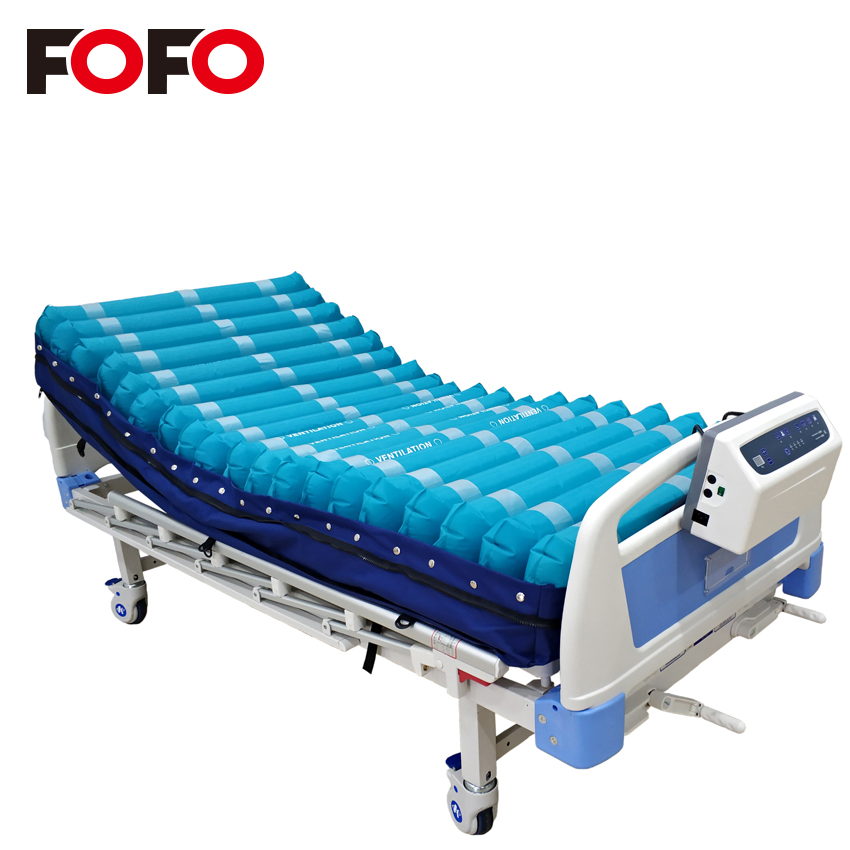

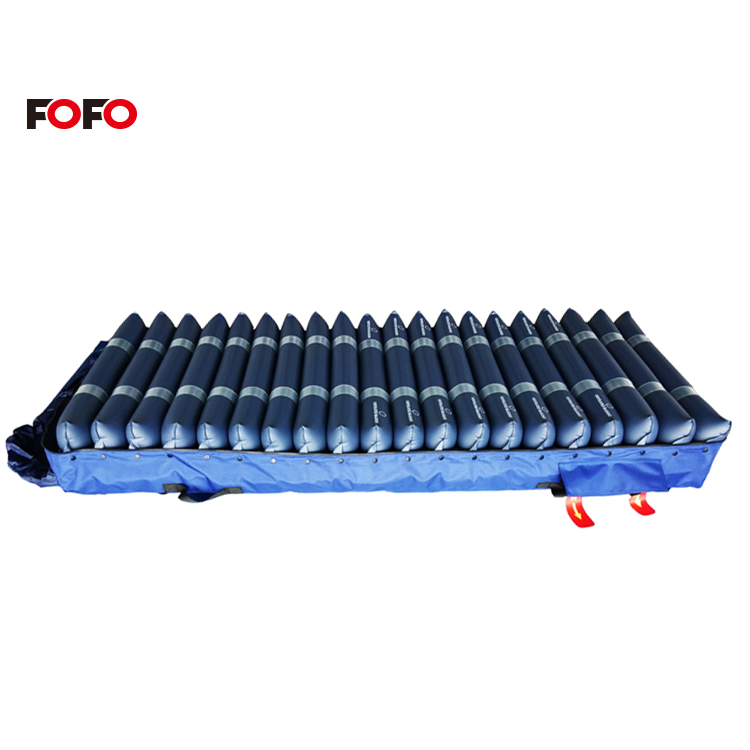

Cell on Cell 8'' Alternating Pressure Air Mattress System

1 / 5

Cell on Cell 8'' Alternating Pressure Air Mattress System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Condition

New

Tilted

Alternating

Folded

Folding

Using Ambient

Indoor

Using Site

Full Body Support

Power Supply

Electric-Powered

Material

Nylon/TPU

Function

Alternating Pressure

Warranty

24 Months

Weight Capacity

180 Kgs

Air Cells

8 Inch, 19 Cells

Pump

Auto-Weight Control

Product Description

Hospital medical bedsore tubular mattress anti-decubitus air mattress. It provides excellent pressure reduction through continuous movement.

This alternating system employs durable shaped air tubes and a control unit designed to achieve a superior massage effect and blood circulation in the body tissue. It is specifically engineered to help alleviate bed pressure sores for patients on long-term medical treatment or those with limited mobility.

Heavy-duty bubble style pads are uniformly heat-sealed for long-term durability. Our medical anti-decubitus mattress is made of high-quality PVC/TPU with one-time moulding. We offer a variety of wound care solutions for the treatment and healing of pressure ulcers.

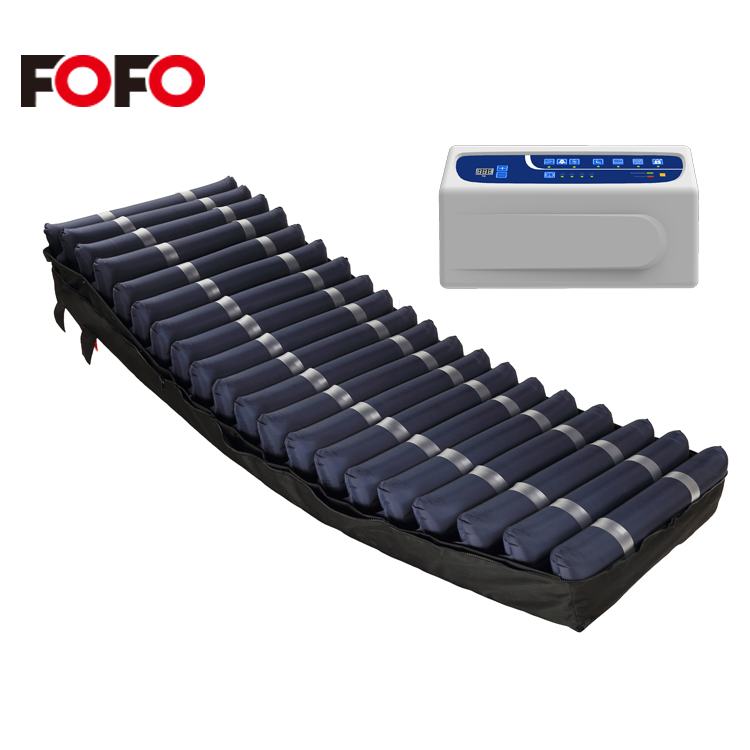

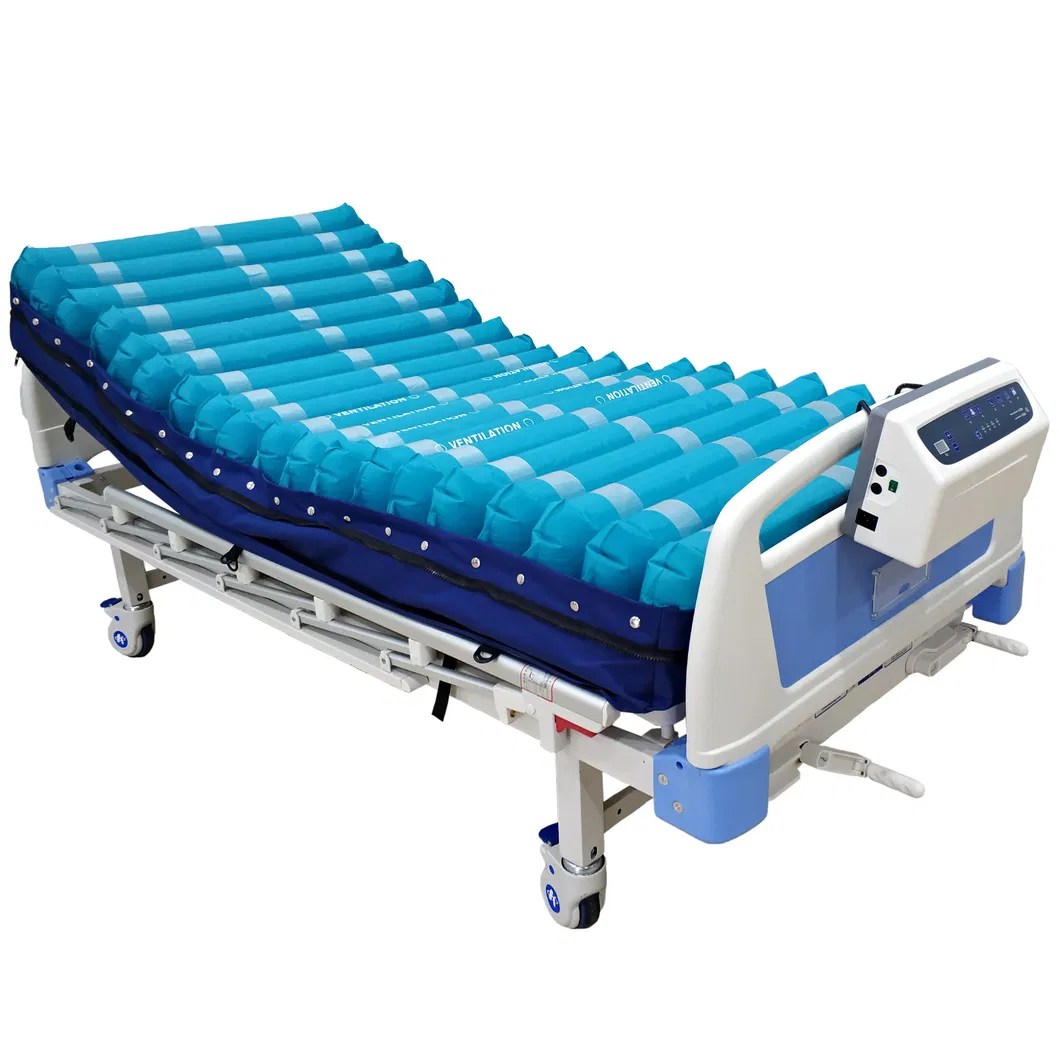

Alternating Pressure Air Mattress System

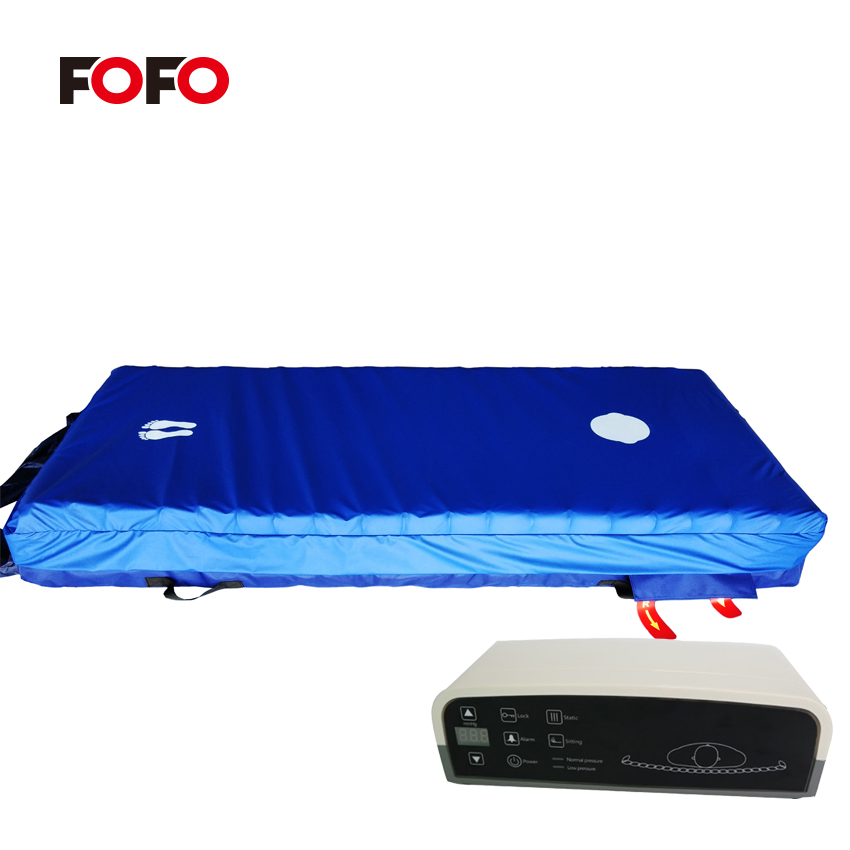

The system features a digital aluminum pump providing very silent and durable operation with high air output. Features like CPR, PU cover, static pillow, laser holes, and toilet hole replacement cells are optional for practical use.

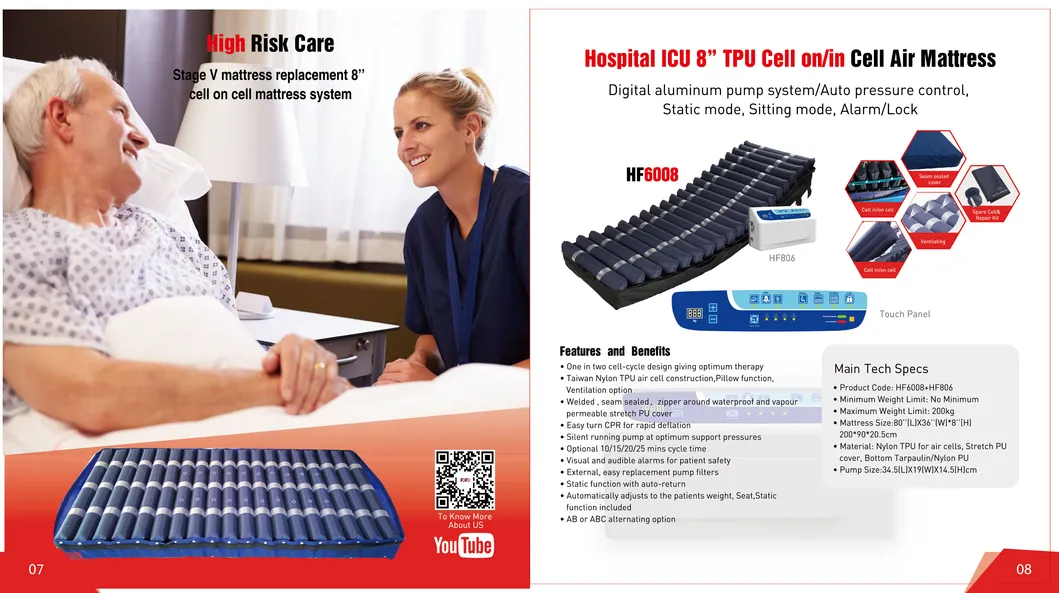

Technical Specifications

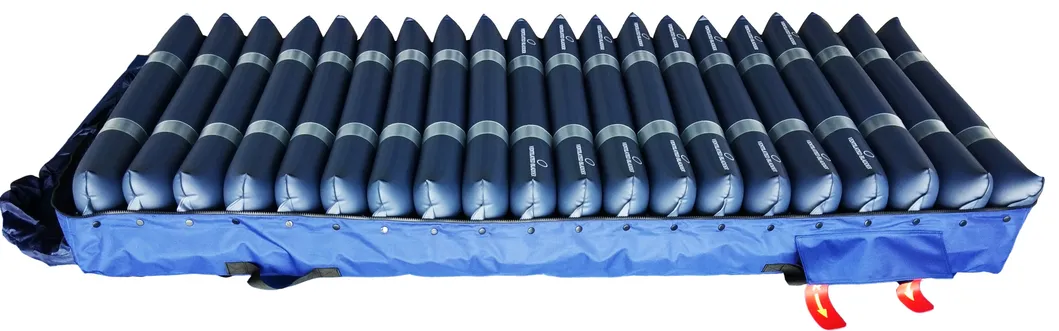

Pump Component (HF609)	Pad Component (HF6008)
Power supply: 110V/220V/50-60Hz	Standard Size: 80"(L) x 32-36"(W); 8" Height
Air output: 6-8 liter/min	8" cell on cell, 18/20 cells
Pressure range: 50mmHg - 120 mmHg	Top cover: Nylon PU / Strength
Cycle time: 12 min	Air cells: Nylon / PVC / TPU
Weight: 1.6 kg	Weight Capacity: 180kg
Features: Filter, fuse, hook, pillow, CPR, ventilate option, zipper; Aluminum pump system; AB, ABC alternating option.

Frequently Asked Questions

How does the alternating pressure system prevent bedsores?

The system uses a digital pump to inflate and deflate air cells in cycles. This continuous movement changes the pressure points against the patient's body, promoting blood circulation and preventing tissue breakdown.

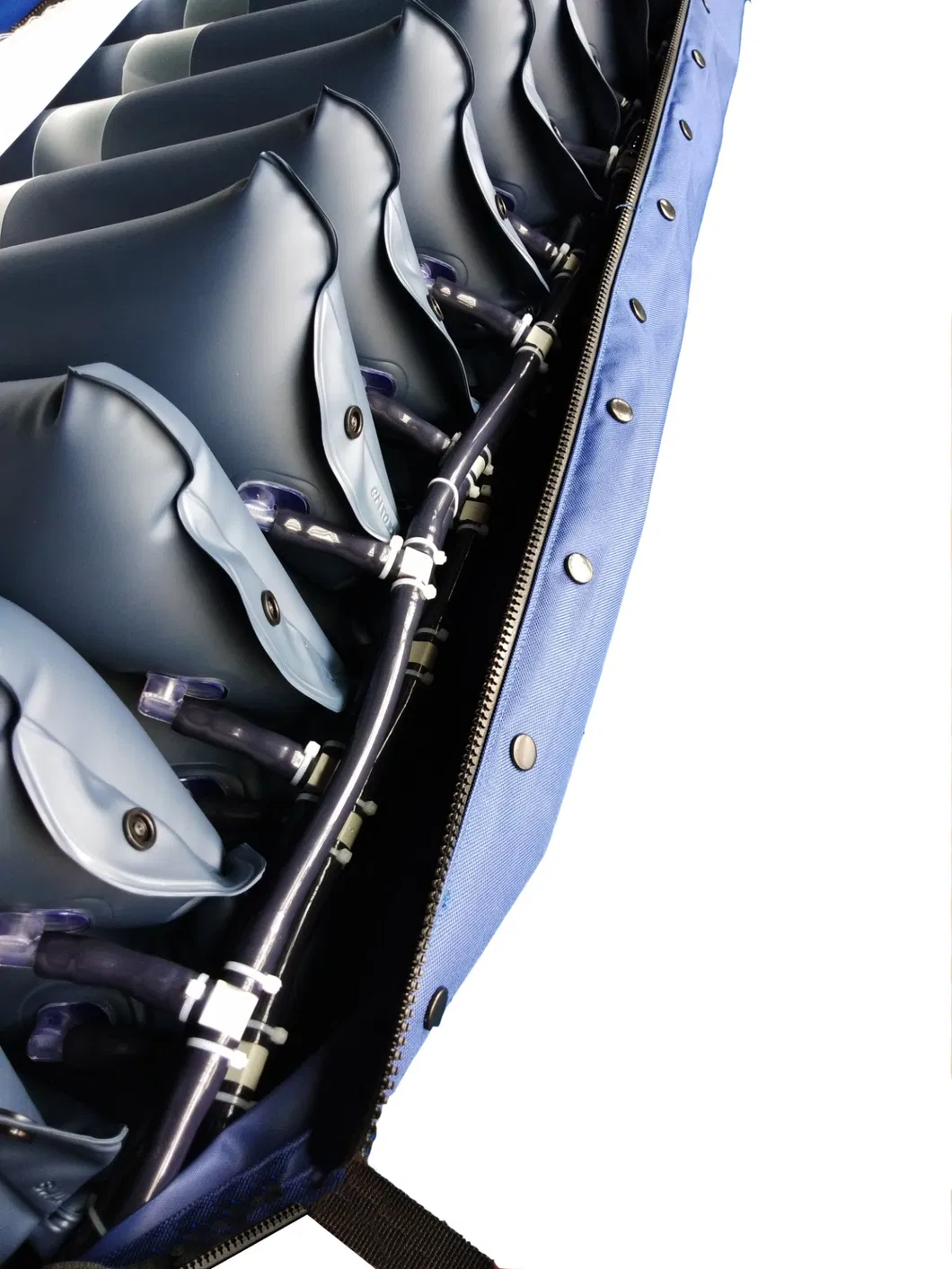

What is the "Cell on Cell" design?

The "Cell on Cell" design features a static bottom layer that remains inflated even during power failures. This prevents the patient from "bottoming out" and hitting the bed frame, ensuring constant support.

Is the air pump noisy during operation?

No, the system utilizes a high-quality digital aluminum pump designed for silent operation, making it suitable for both hospital and quiet home environments.

What is the maximum weight capacity of this mattress?

The 8-inch cell-on-cell mattress system is designed to support a maximum weight capacity of 180 Kgs (approx. 396 lbs).

What kind of warranty is provided?

The product comes with a comprehensive warranty: 12 to 24 months for the mattress and 18 months for the compressor/pump system.

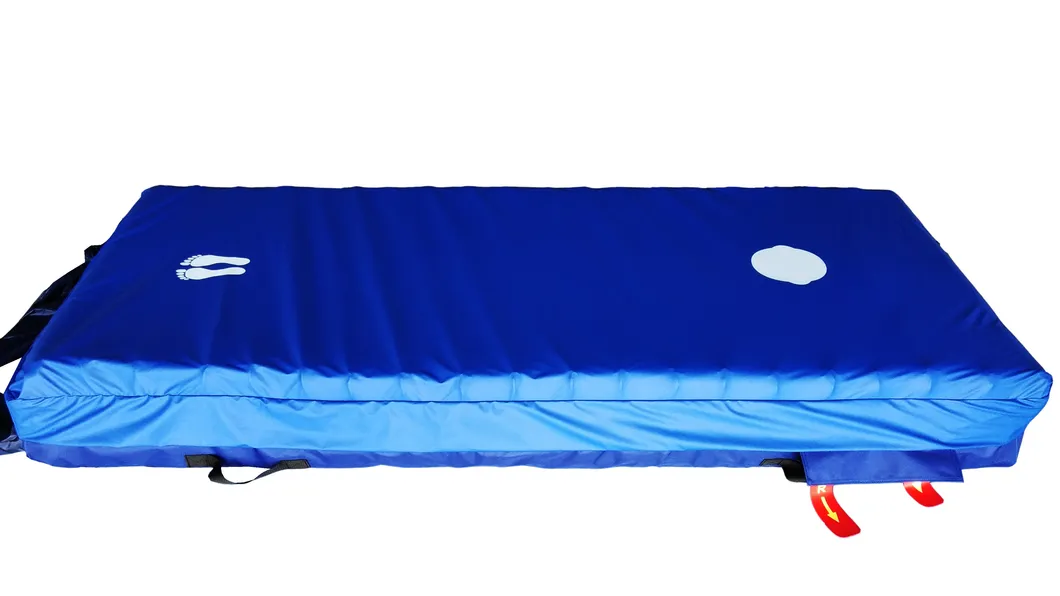

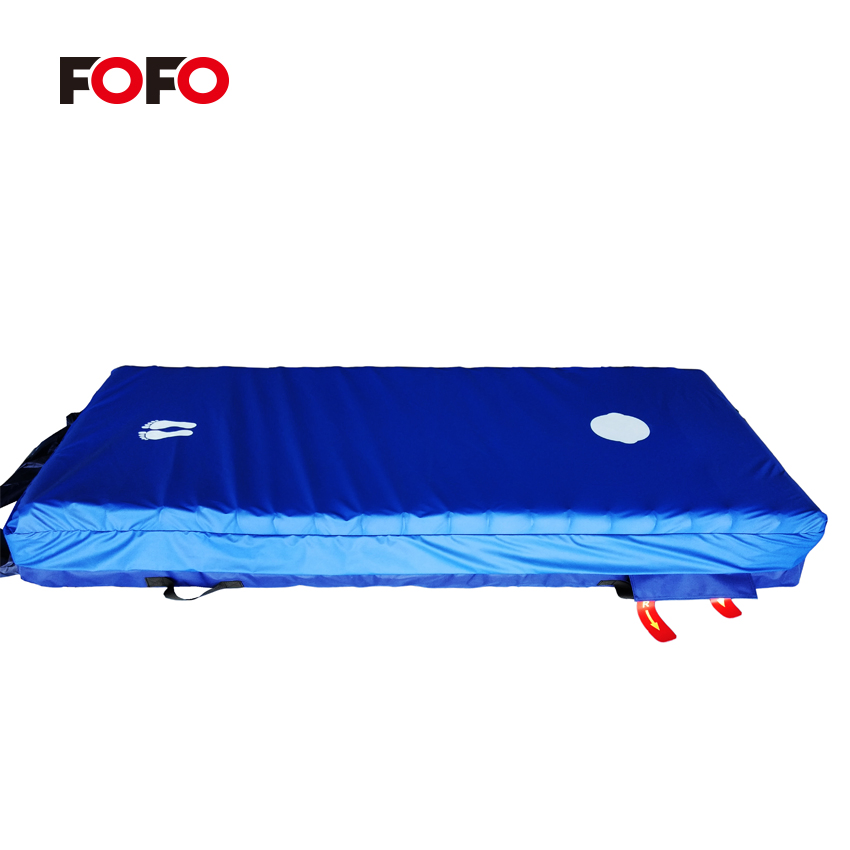

Is the cover waterproof and easy to clean?

Yes, the mattress features a Nylon PU strength cover that is designed for durability and can be easily wiped clean for infection control.
