Customization: Available
Type: Power Drill
Kind: Orthopedics
Send Inquiry

Product Description

China Medical Instruments Surgical Power Drill Acetabular Reamer for Joint Replacement Orthopaedic Surgery

All medical instruments and devices are broadly applied in traumatic surgery, joint surgery, orthopedic surgery, neurosurgery operations. K wires or be used in intermediary interlocking nail surgery or arthroscopic surgery. Whole unit is autoclavable, imported motor ensure low noise, high speed, high proper alignment, long service life. Can adopt various flexible reamer, chuck easily during the process of surgery.

📋

Basic Information

Model NO.
ND-3511
Certification
CE, ISO13485
Group
Adult
Operating Principle
Total Hip Replacement
Product Name
Surgical Power Drill
MOQ
1 Set
Advantage
Professional Manufacture
Warranty
2 Years
Motor
Brushless Motor
Classification
Class II
Package
Aluminum Box
Sterilizing Time
About 20 Mins
📊

Technical Data

Working Voltage14.4V
Output Power130W
Unit rise in Temperature≤ 25ºC
Input VoltageAC 220V, 50Hz
Output Voltage14.4V, 900mA
Charger Input Power30VA
Charging time3 hours
Speed300r/min
Non-loaded noise63dB(A)
Radial run-out0.5mm
Torque33000gcm
⭐

Product Technical Merits

  • Designed specifically for joint operations.
  • Low speed, great torque, compatible with various acetabulum burnishing and medullary cavity expanding tools.
  • Main unit autoclavable up to 135 ºC.
  • Portable design with low noise and variable speed control.
  • Carbonless motor for increased power and easy selection during operation.
  • Scientific balance technics to reduce vibration and enhance handpiece control.
  • High concentricity ensures precision in HIP operations.
  • Large torsional moment for powerful polishing.
🖼️

Product Display

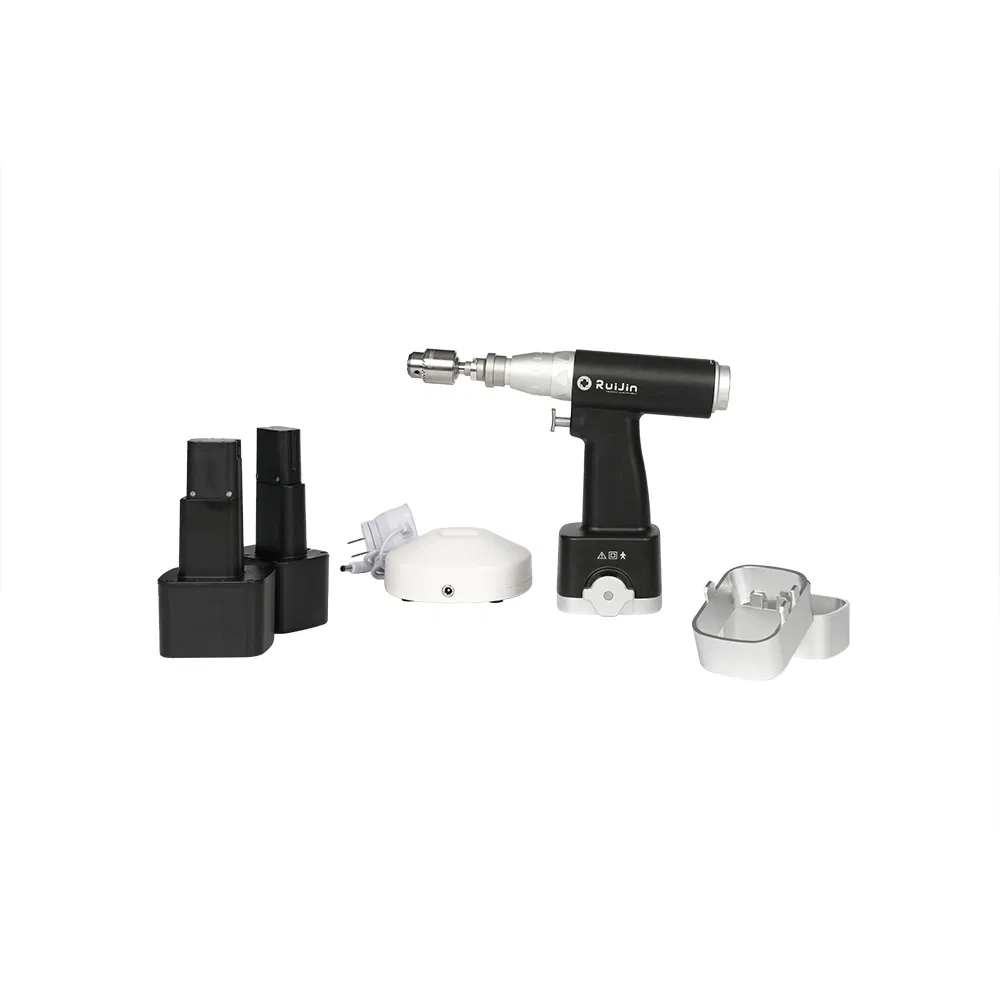

Standard Configuration:
  • One handpiece
  • One charger
  • Two batteries
  • One sterilizing channel
  • One drill chuck
  • One aluminum alloy box

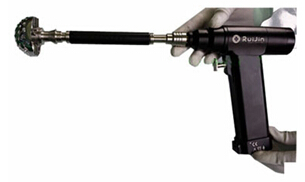

Hip joint drill with various adaptor options (Stryker, AO, Hudson, Synthes, etc.)

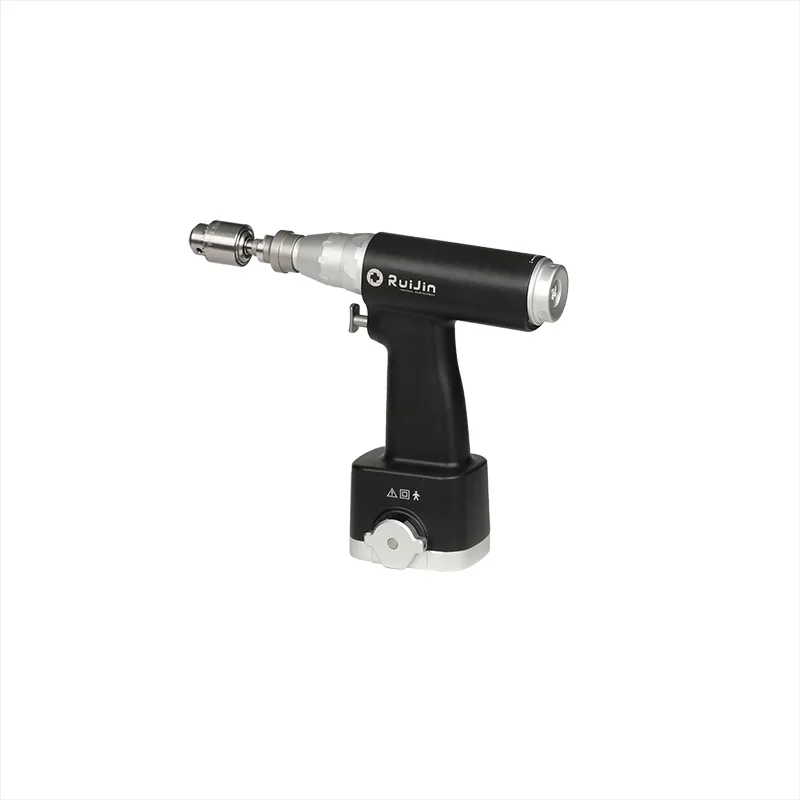

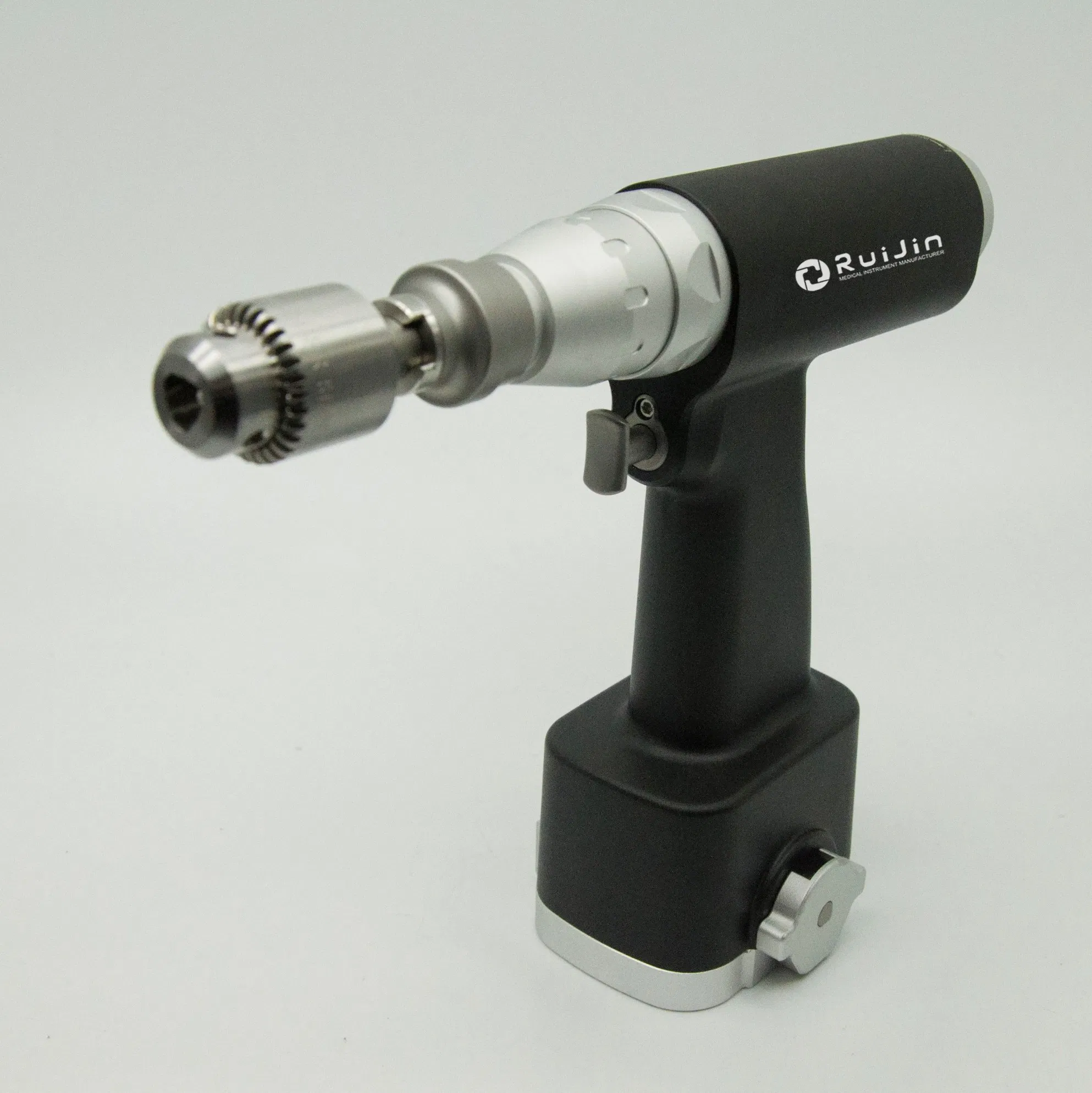

Surgical Power Drill
Batteries

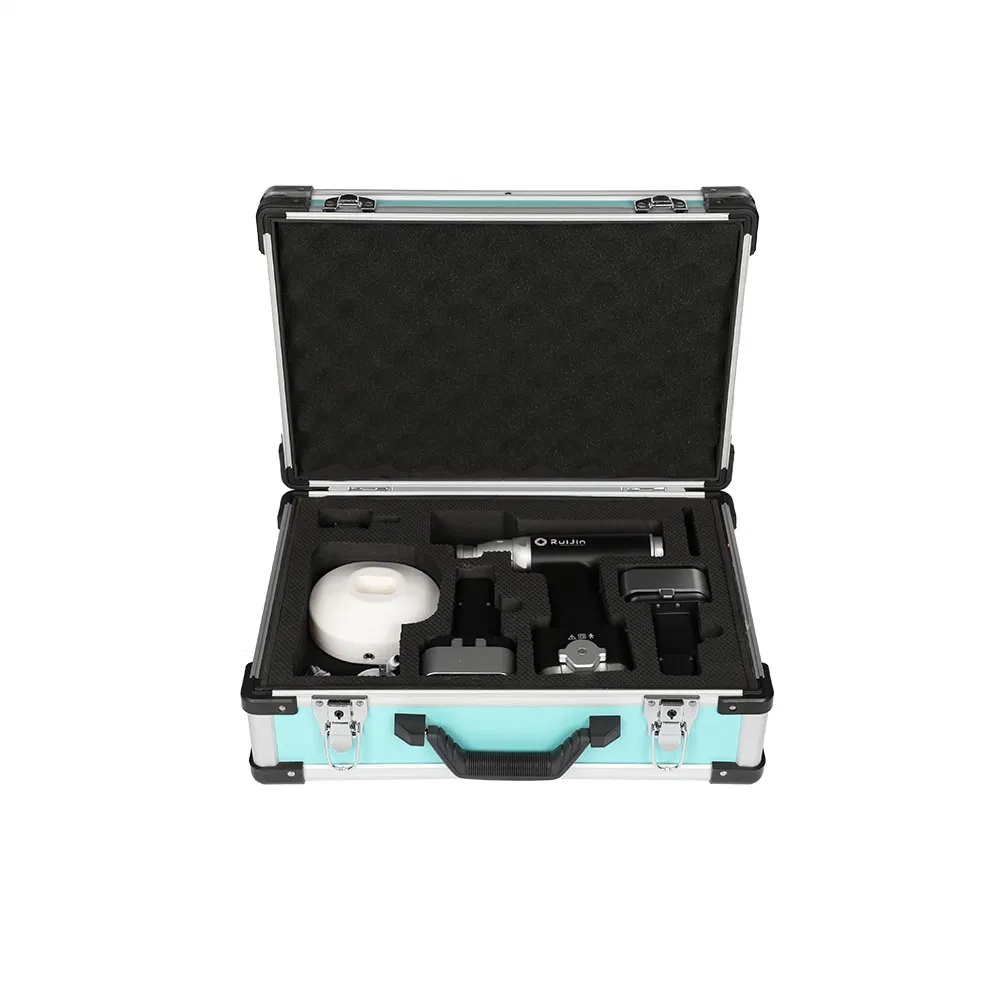

Aluminum Case

Specialized Sterilization Tray (Optional)

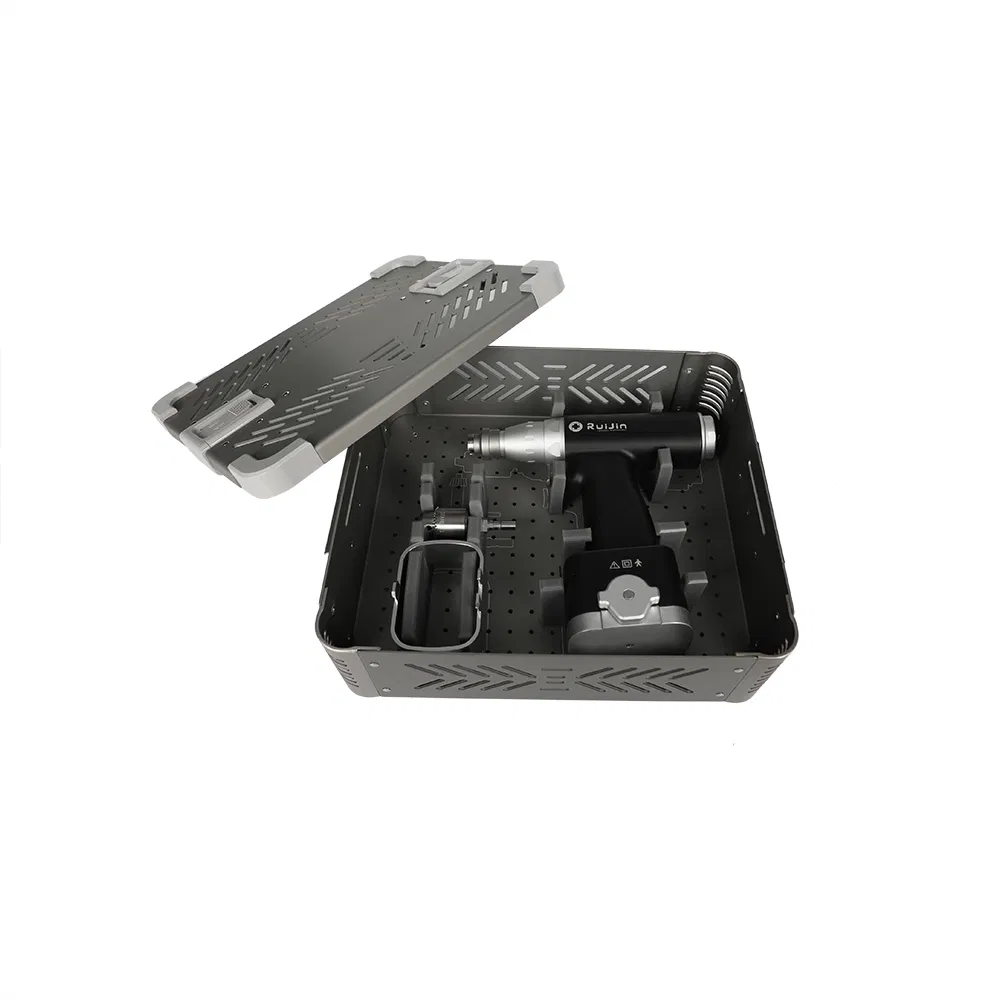

Sterilization Tray
📜

Certifications

Certificates
💳

Payment & Delivery

PriceFOB USD 450-500 / Set
MOQ1 Piece
Payment TermsT/T in advance or Western Union
Delivery TimeWithin 3 days after payment
PackagingAluminum alloy box (38x28x13cm) inside a carton (41x32x15cm)
🔄

Ordering Process

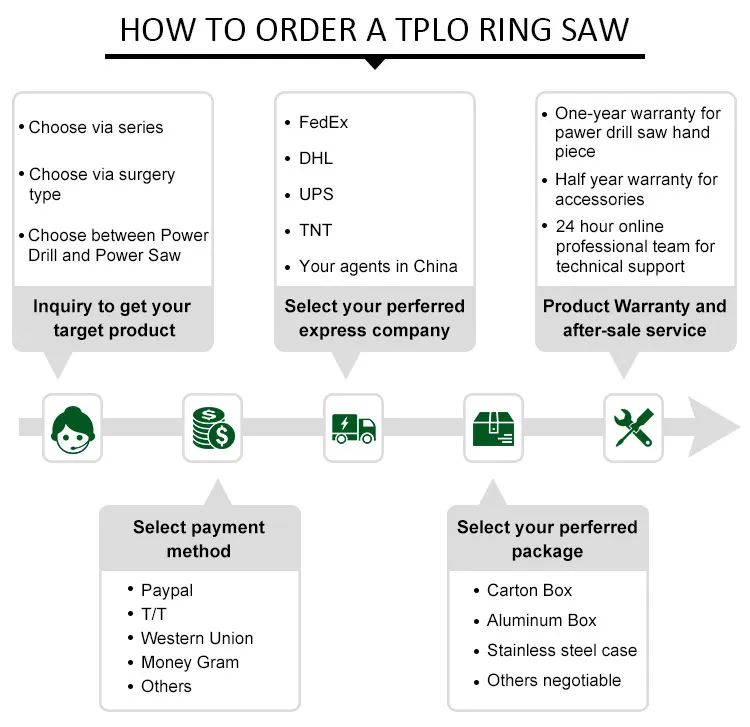

Ordering Process
⚠️

Attention & Notes

  • Device must not be dismantled by non-professionals.
  • Compatible with power sources 110V/60Hz - 220V/50Hz.
  • Remove battery when not in use to prevent automatic discharge and prolong life.
  • Important: Batteries cannot be disinfected. Ensure battery compartment is dry after sterilization.
  • Sterilization temperature must be below 135°C to avoid motor damage.
  • Clean saw blades and drill bits with purifier and keep dry after operation.
❓

Frequently Asked Questions

What is the warranty period for this surgical drill?
The product comes with a 2-year warranty, ensuring reliable performance and professional support.
Can the entire unit be sterilized in an autoclave?
Yes, the main unit is fully autoclavable at temperatures up to 135°C. However, please note that batteries cannot be disinfected.
How many batteries are included in the standard set?
Each standard set includes two high-capacity batteries to ensure continuous power during surgical procedures.
What is the charging time for the batteries?
The batteries require approximately 3 hours to reach a full charge.
Is this drill suitable for hip replacement surgery?
Yes, it is specifically designed for joint replacement surgeries, including total hip replacement, providing high torque and precision.
What kind of motor does the drill use?
It uses a high-quality brushless motor which provides low noise, high speed, and a longer service life compared to traditional motors.
