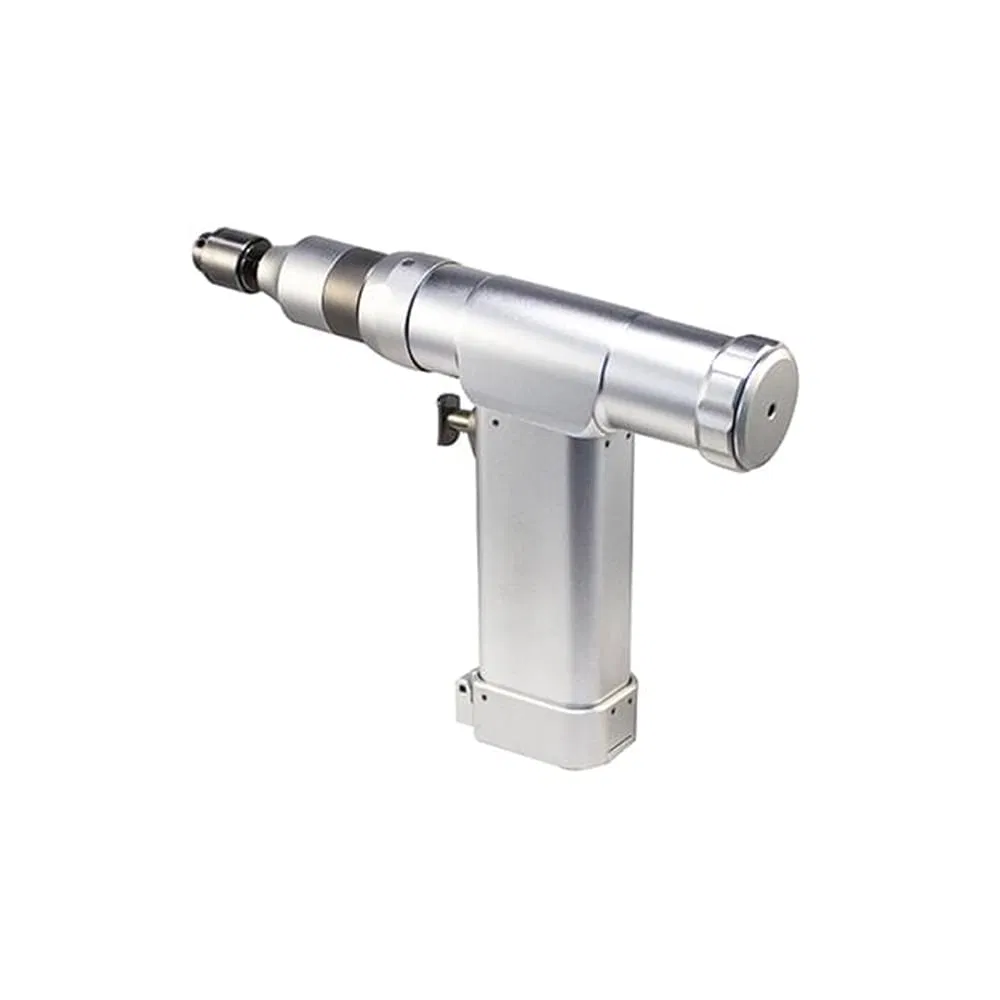

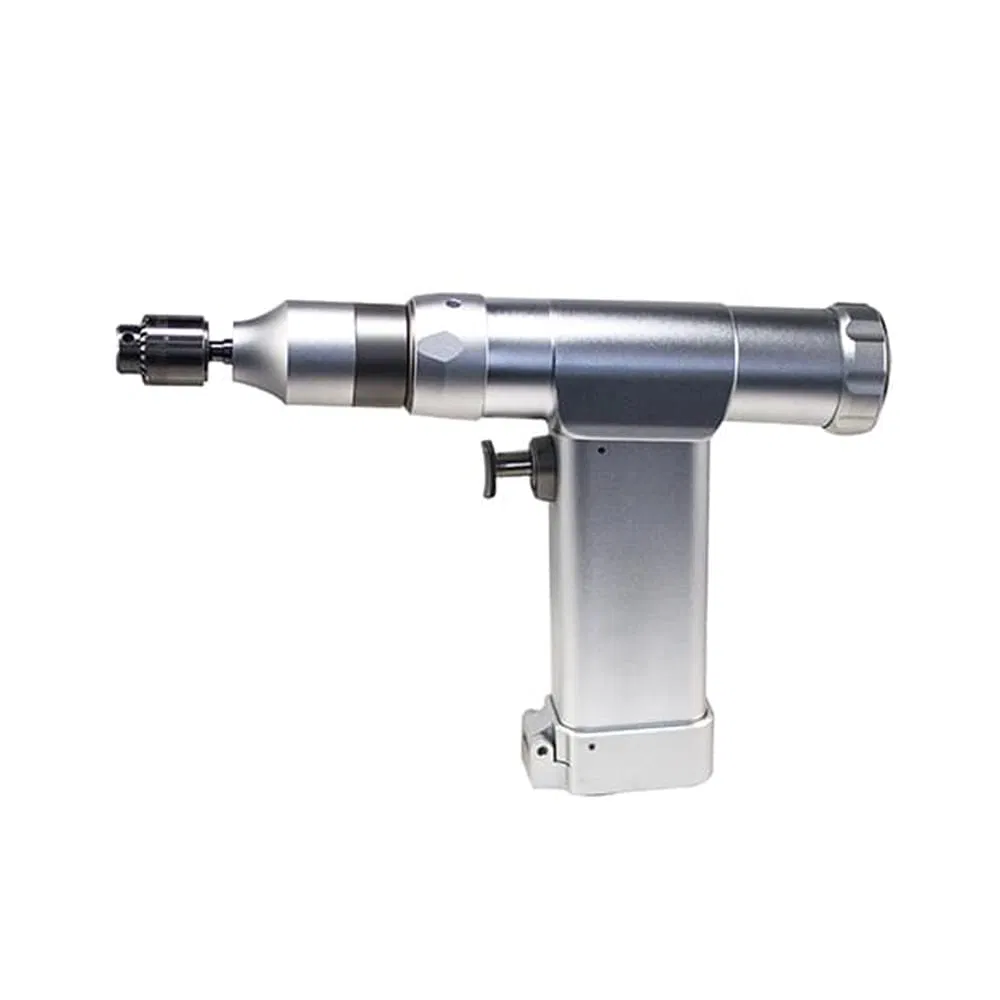

China Manufacture Surgical Supplier Orthopedic Multi-Functional Veterinary Medical Power Tool Drills Saws System Nm-300
China Manufacture Surgical Supplier Orthopedic Multi-Functional Veterinary Medical Power Tool Drills Saws System Nm-300
China Manufacture Surgical Supplier Orthopedic Multi-Functional Veterinary Medical Power Tool Drills Saws System Nm-300
China Manufacture Surgical Supplier Orthopedic Multi-Functional Veterinary Medical Power Tool Drills Saws System Nm-300
China Manufacture Surgical Supplier Orthopedic Multi-Functional Veterinary Medical Power Tool Drills Saws System Nm-300
1 / 5
China Manufacture Surgical Supplier Orthopedic Multi-Functional Veterinary Medical Power Tool Drills Saws System Nm-300
China Manufacture Surgical Supplier Orthopedic Multi-Functional Veterinary Medical Power Tool Drills Saws System Nm-300
China Manufacture Surgical Supplier Orthopedic Multi-Functional Veterinary Medical Power Tool Drills Saws System Nm-300
China Manufacture Surgical Supplier Orthopedic Multi-Functional Veterinary Medical Power Tool Drills Saws System Nm-300
China Manufacture Surgical Supplier Orthopedic Multi-Functional Veterinary Medical Power Tool Drills Saws System Nm-300

China Manufacture Surgical Supplier Orthopedic Multi-Functional Veterinary Medical Power Tool Drills Saws System Nm-300

Customization: Available
Type: Surgical Drill Saw System
Application: Orthopedic
Send Inquiry

Product Description

Basic Information
Model NO.
NM-300
Material
Medical Stainless Steel
Feature
Reusable
Certification
CE, ISO13485
Group
Adult
Properties
Orthopedic Surgical Instruments
Rated Voltage
220V/50Hz
Cannula Diameter
4.2mm
Wire and Pin Chuck Speed
600rpm
Working Voltage
14.4V
Saw Speed
16000
Bone Drill Speed
1100rpm
Non-Load Noise
63dB
Origin
Anhui, China
HS Code
9018909000
Our Advantages
✓Low MOQ: Minimum order is 1 set.
✓Timely Delivery: Efficient processing and shipping.
✓After-Sales: Comprehensive support system provided.
✓Professional Team: 24-hour online technical support.
✓Patented Tech: Guaranteed quality with multiple patents.
✓Warranty: 2-year handpiece support, 6-month accessory support.
Technical Data
ComponentParameterValue
Hand PieceWorking Voltage14.4V
Output Power20W
Unit rise in temperature≤25°C
ChargerInput PowerAC 220V, 50Hz
Output Power7.2V, 700mA
Input Power30VA
BatteryVoltage7.2V
Charging timeAbout 3 hours
Technical Merits
  • ▶ Axial run-out of concentricity is within 0.05mm.
  • ▶ Rotating speed of 1100 rpm suited for medical standards.
  • ▶ Rotated torque 3.3N/m.
  • ▶ Semi-luser surface treatment for comfortable operation.
  • ▶ Ni-MH battery without memory environment.
Product Display

Standard Configuration:

• One handpiece
• One charger
• One bone drill attachment
• One drill chuck
• One oscillating saw attachment
• One aluminum alloy box
• Two batteries
• Two sterilizing channels
• Two mini saw blades

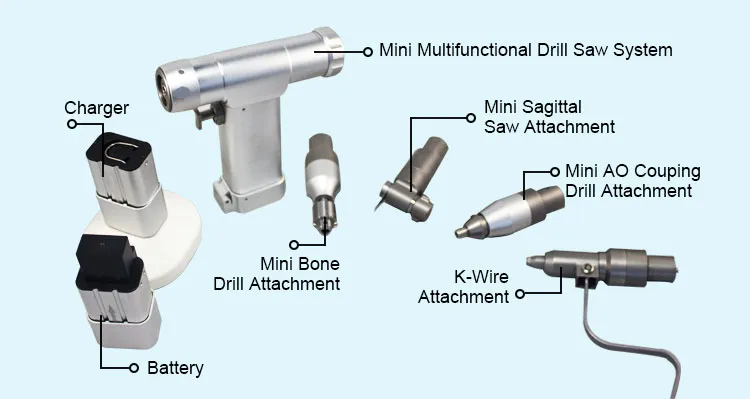

Product Overview

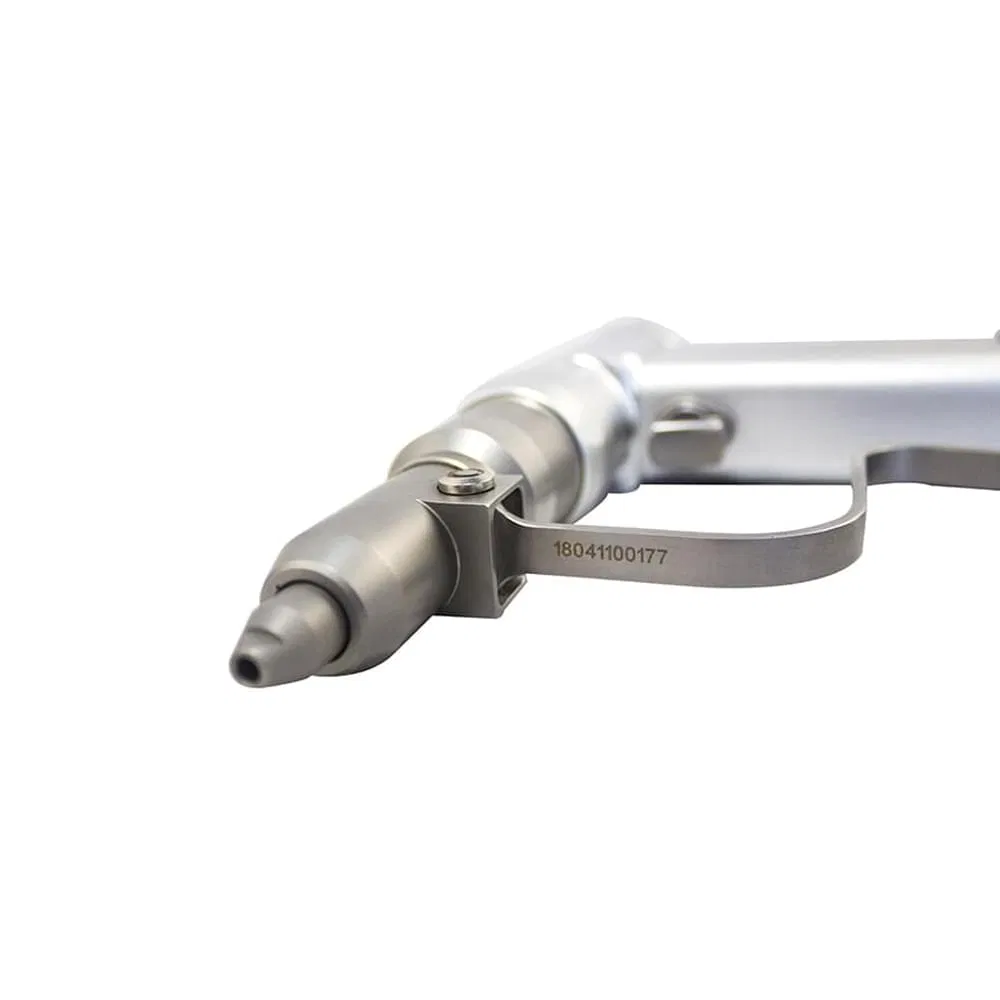

Drill Attachment

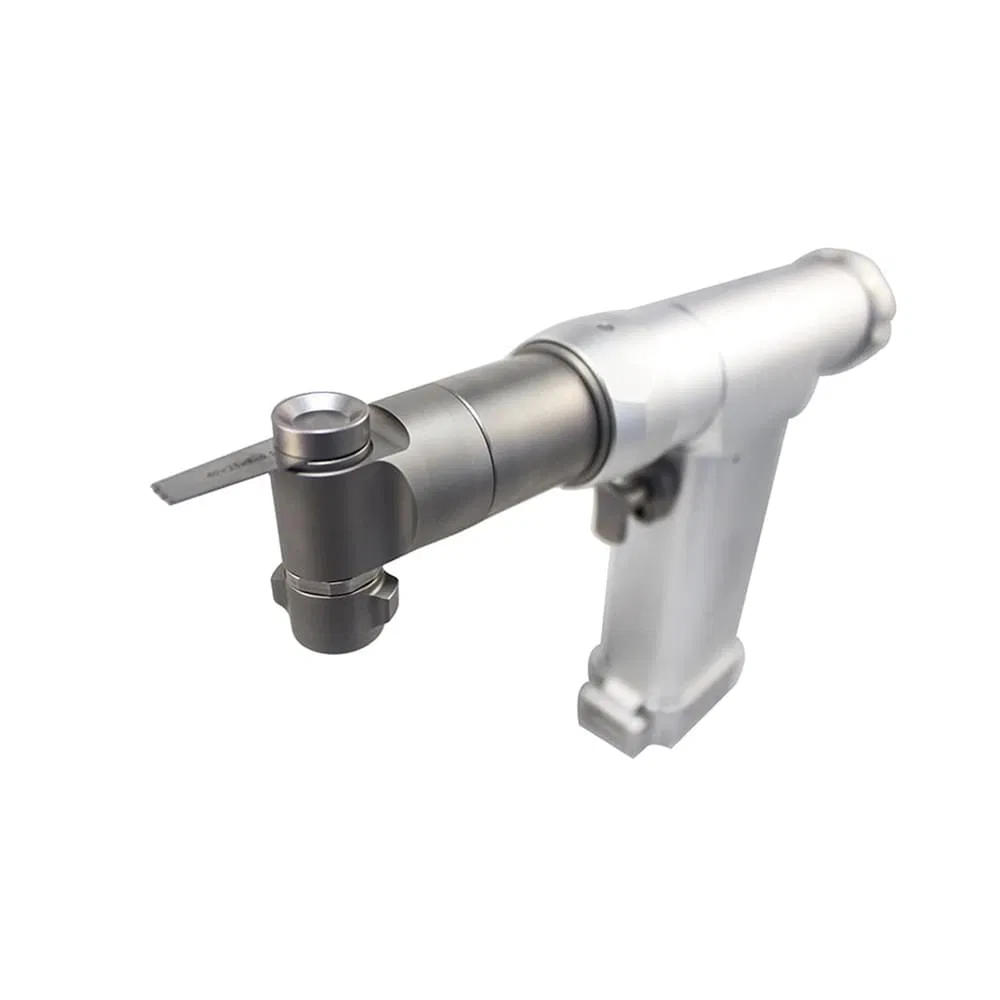

Saw Attachment

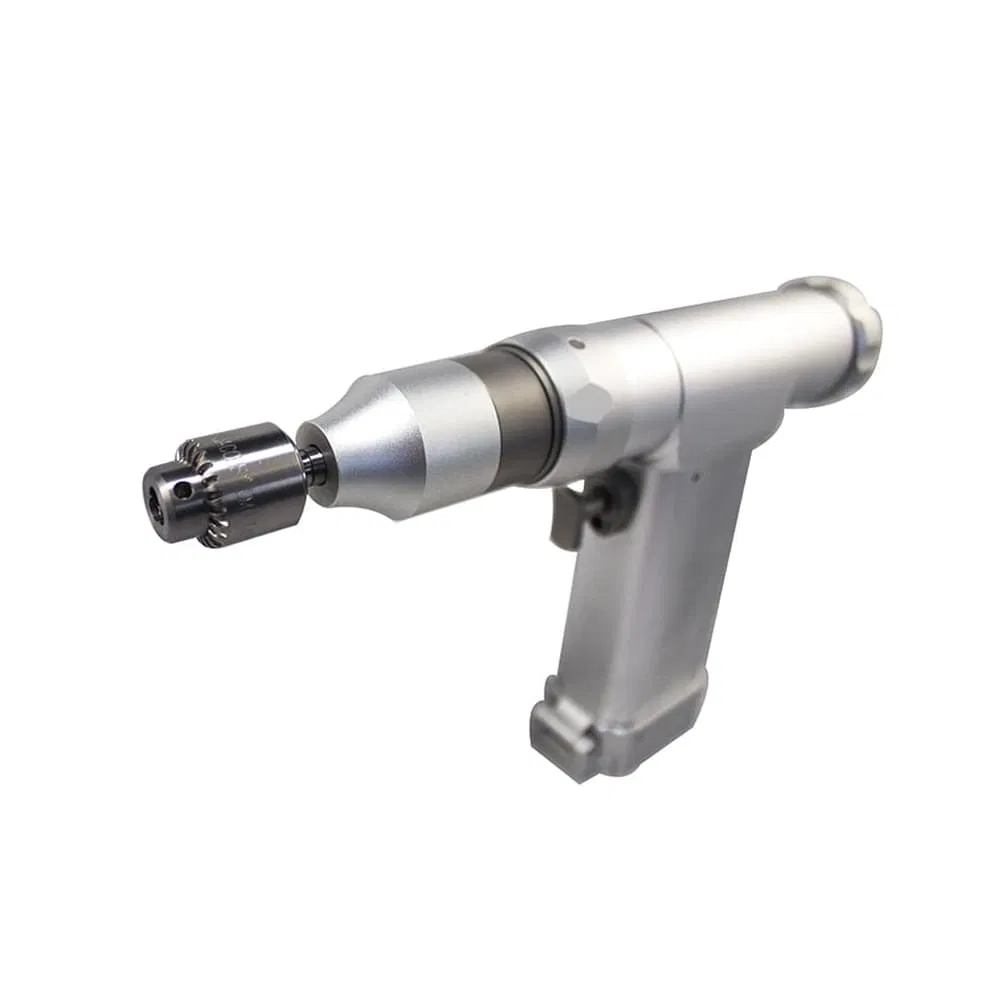

Handpiece Detail

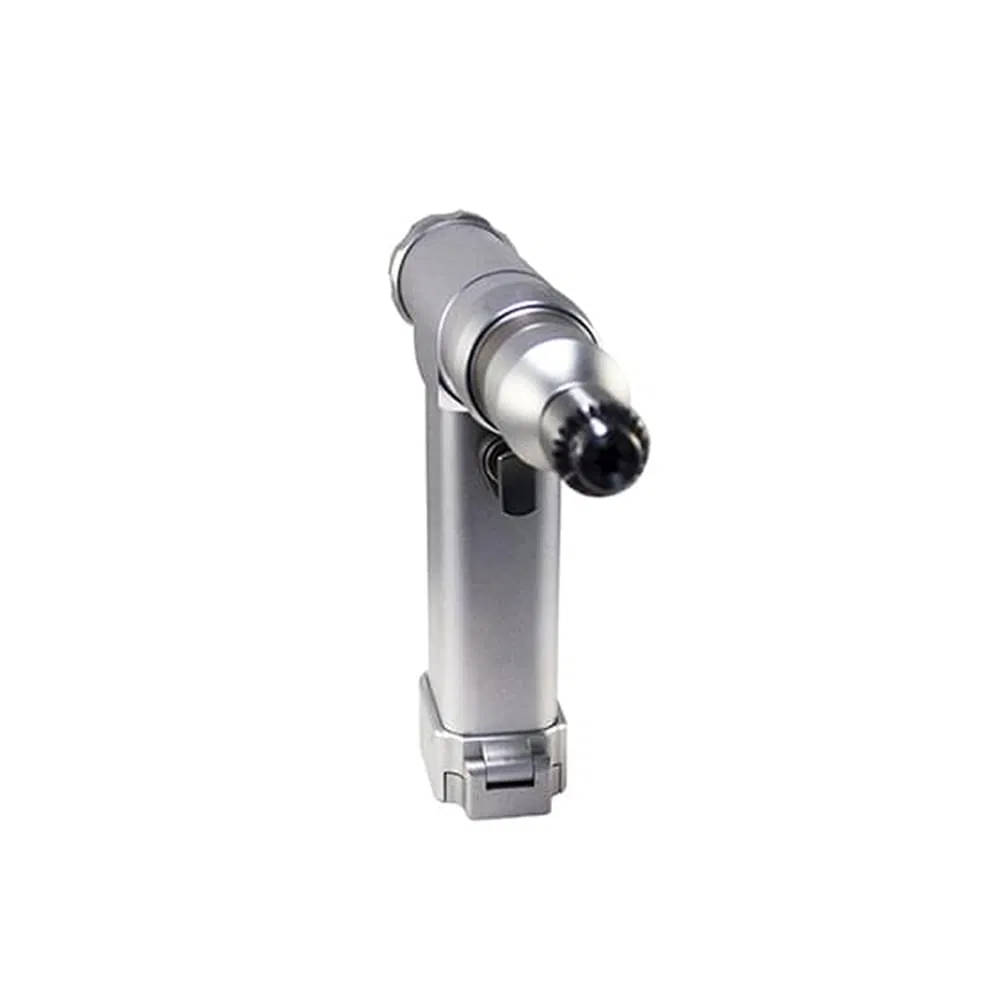

Battery and Charger

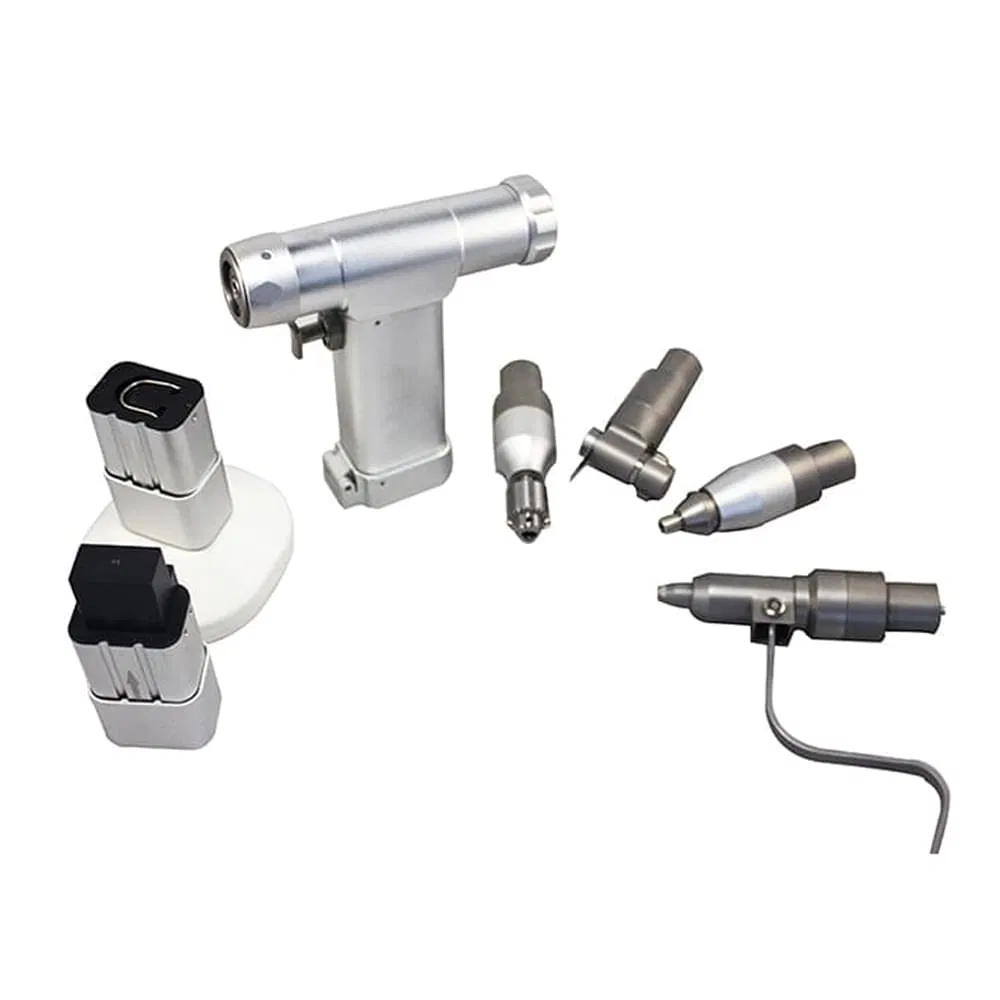

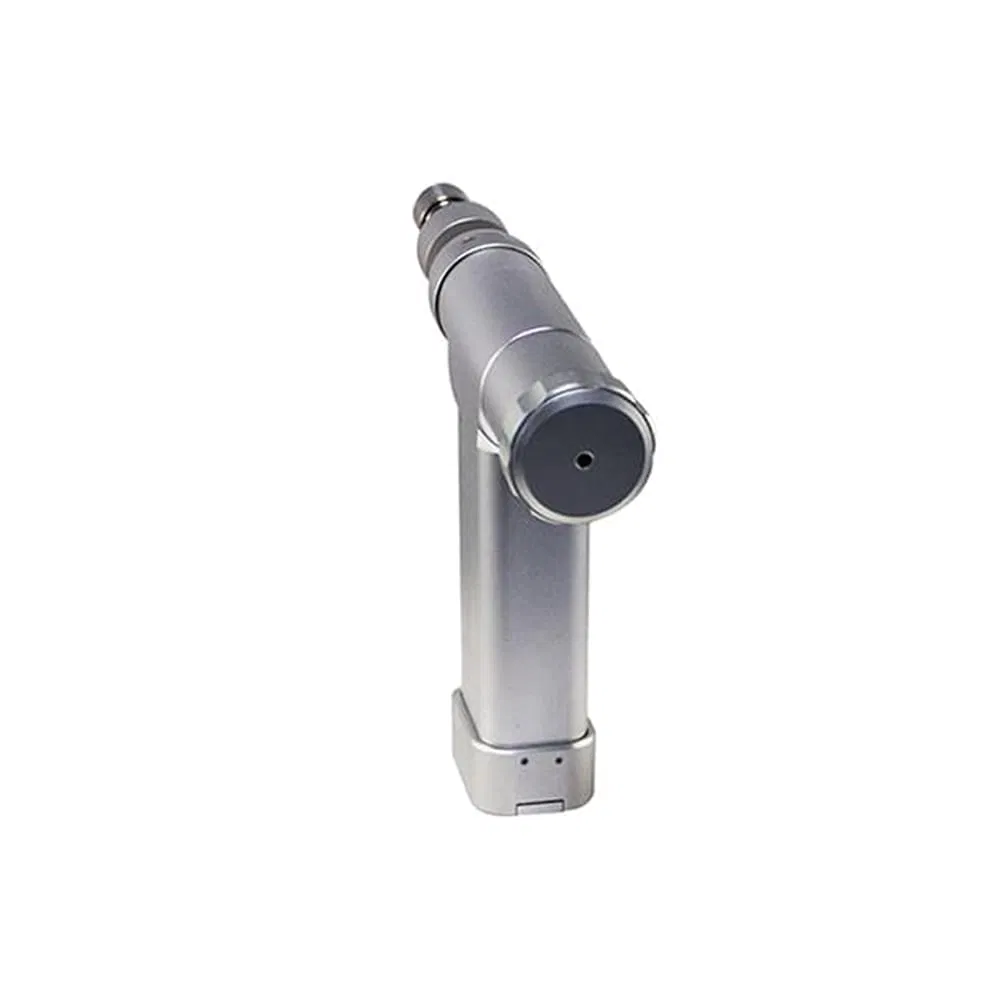

Full Set
Certifications
Certificates
About Us

Established in 2007, we are a medical device manufacturer integrated with R&D, production and sales, focusing on medical drill series and micro medical electric drill series. Our main products include medical bone drill, multi-functional cannulated drill, oscillating saw, reciprocating saw, and medical electric plaster saw, which can be used in many surgeries such as Trauma Surgery, Thoracic Surgery, Joint Operation and Veterinary Orthopedic Surgery, etc.

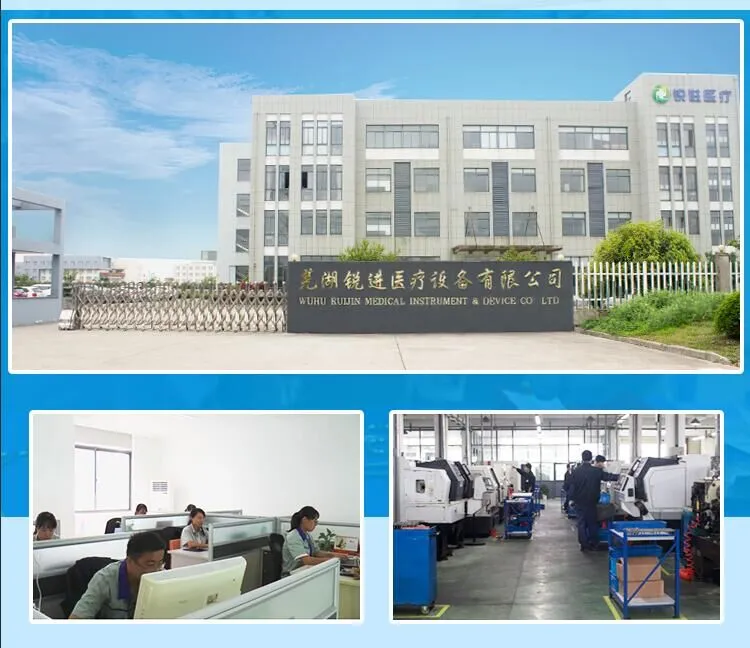

Factory Facility

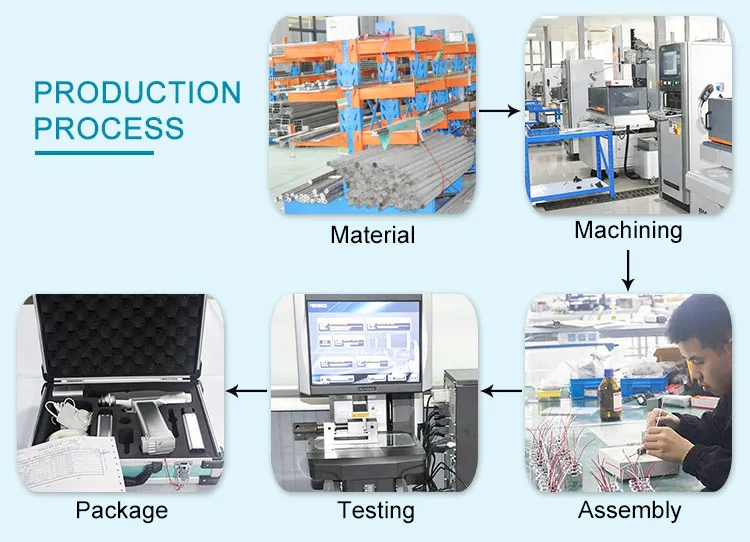

Production Line
Payment & Delivery
  • Price: FOB USD 800-2000 / Set
  • MOQ: 1 piece
  • Payment Terms: T/T in advance or Western Union
  • Delivery Time: Within 3 days after payment
  • Packaging: Aluminum alloy box (38x28x13cm) inside a carton (41x32x15cm)

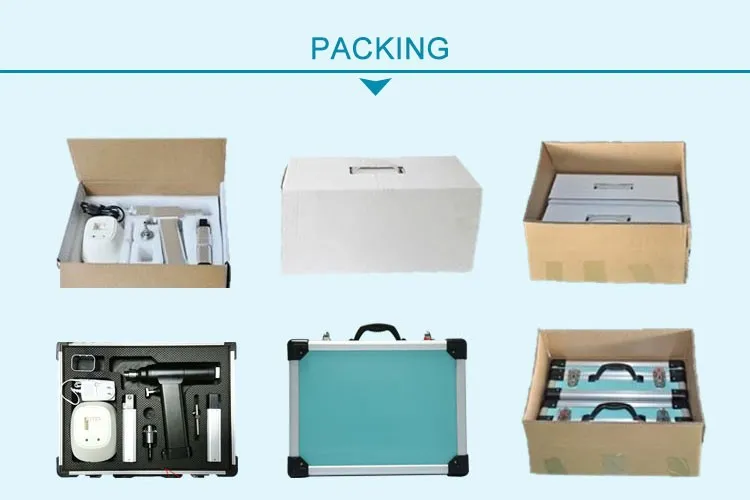

Packaging Box
Shipping Carton
Ordering Process

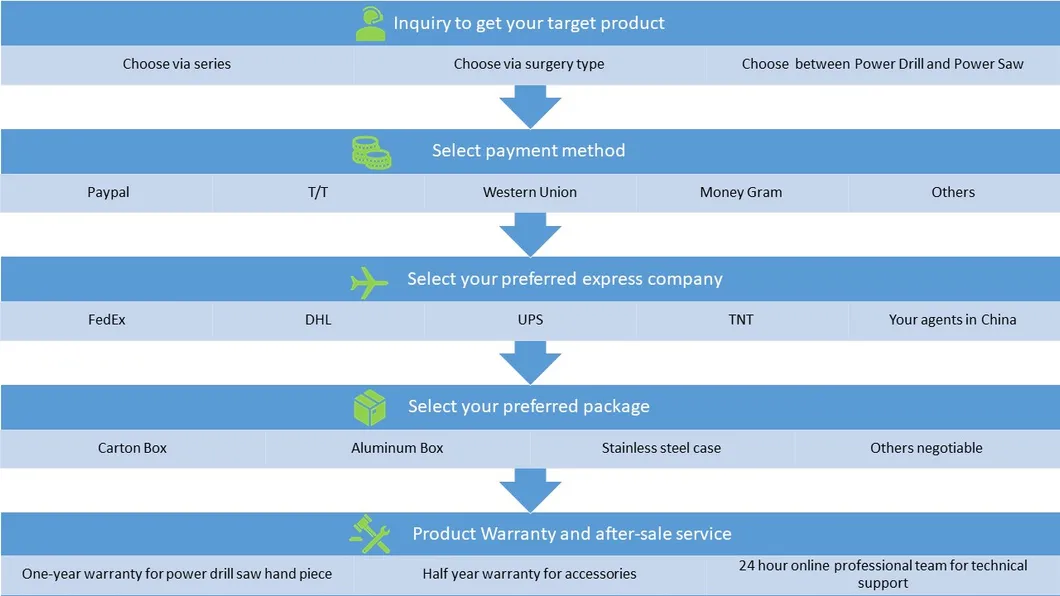

Ordering Process Flow
Attention & Notes
  1. The device must not be dismantled by non-professionals.
  2. Compatible with power sources 110V/60Hz - 220V/50Hz.
  3. Remove the battery when not in use to prevent automatic discharge and prolong life.
  4. The battery cannot be disinfected. Ensure the battery compartment is dry after sterilization.
  5. Clean saw blades and drill bits with a purifier and keep dry after operation.
  6. Sterilization temperature must be lower than 135°C. Exceeding this will damage the motor.
Frequently Asked Questions
What is the Minimum Order Quantity (MOQ)?
The minimum order quantity for the NM-300 system is 1 set.
What is the warranty period for this product?
We offer two years of free technical support for the power drill saw handpiece and six months of support for accessories.
Can the battery be sterilized?
No, the battery cannot be disinfected. Only the handpiece and attachments (excluding the battery) should undergo sterilization.
What is the maximum sterilization temperature?
The sterilization temperature must be kept below 135 degrees Celsius to prevent damage to the motor.
How long does it take to charge the battery?
A full charge typically takes about 3 hours.
What surgical procedures is this tool suitable for?
It is ideal for Trauma Surgery, Thoracic Surgery, Joint Operations, and Veterinary Orthopedic Surgery.
