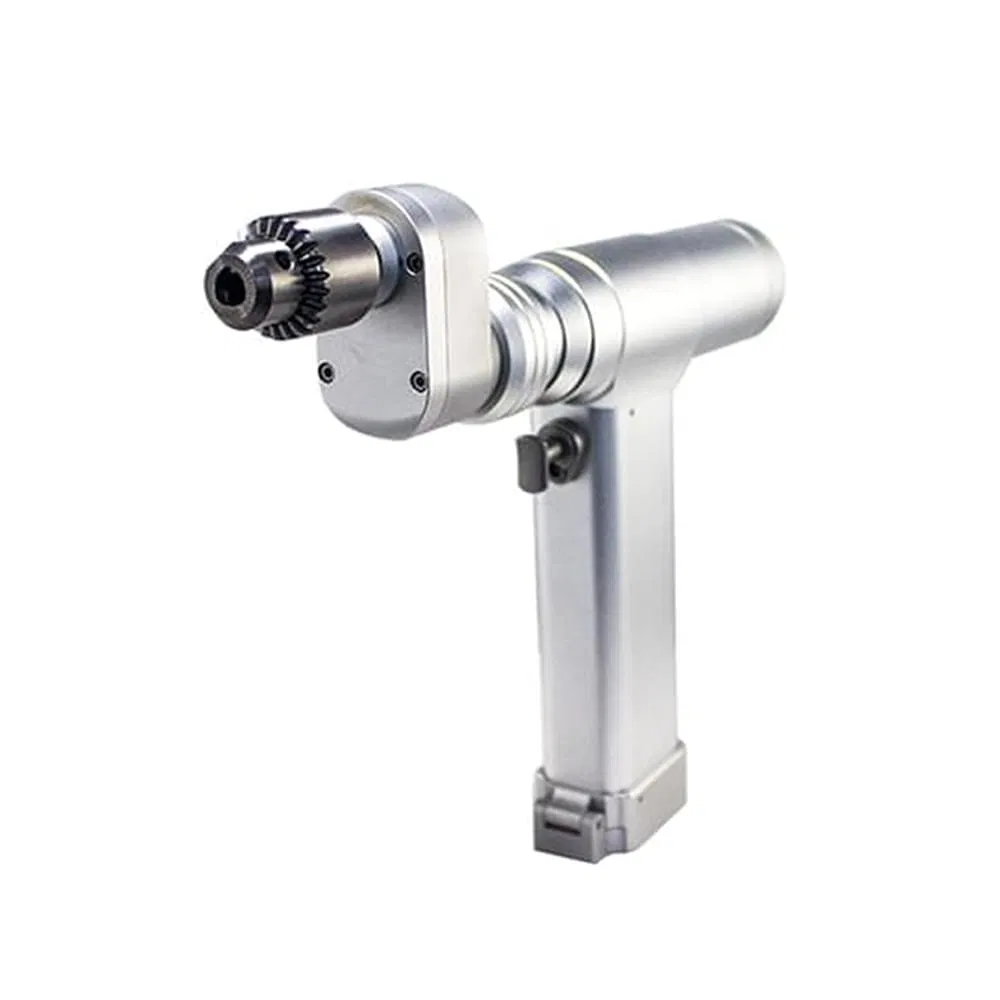

Cordless Battery Healthcare Autoclavble Orthopedic Multifuctional Bone Drill and Saw System (NM-100)

Customization:	Available
Type:	Traumatic Surgery
Kind:	Orthopedics

Basic Information

Model NO.

NM-100

Certification

CE, ISO13485

Battery

Ni-MH Environmentally Friendly

Color

Silver

Attachment

7 Attachments

Specification

44*28*17 cm

Material

Stainless Steel

HS Code

9018909000

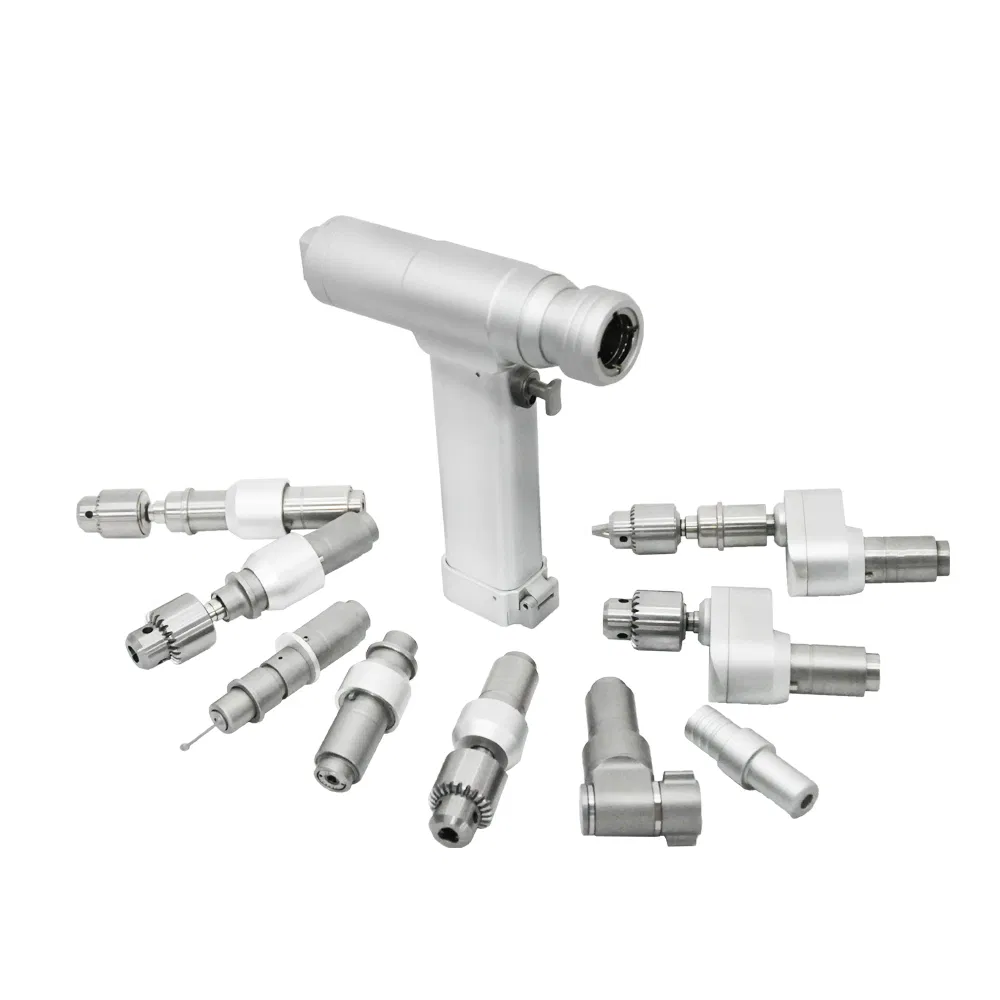

Cordless Battery Orthopedic Multifunctional Bone Drill and Saw System

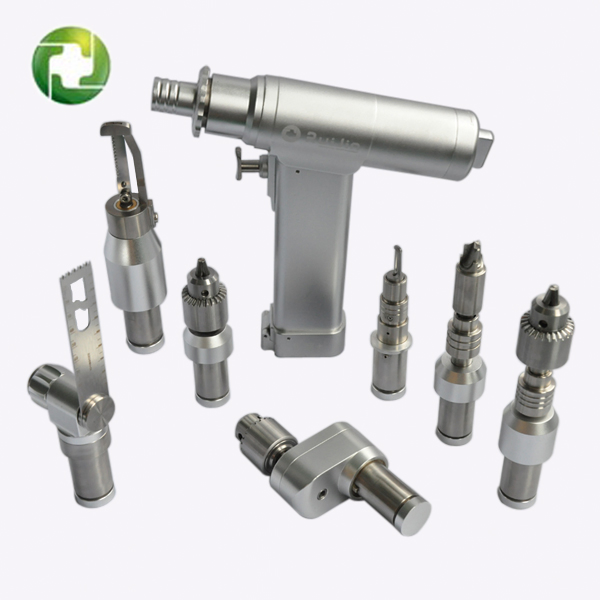

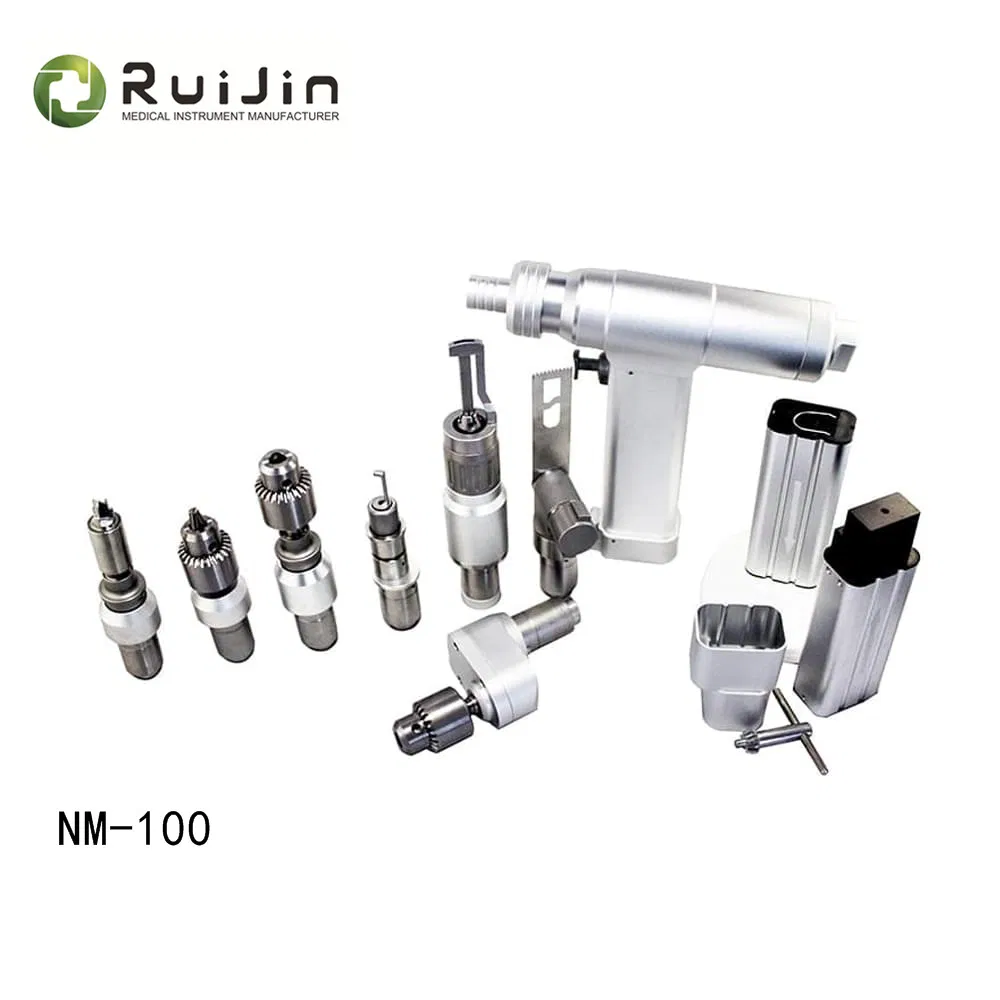

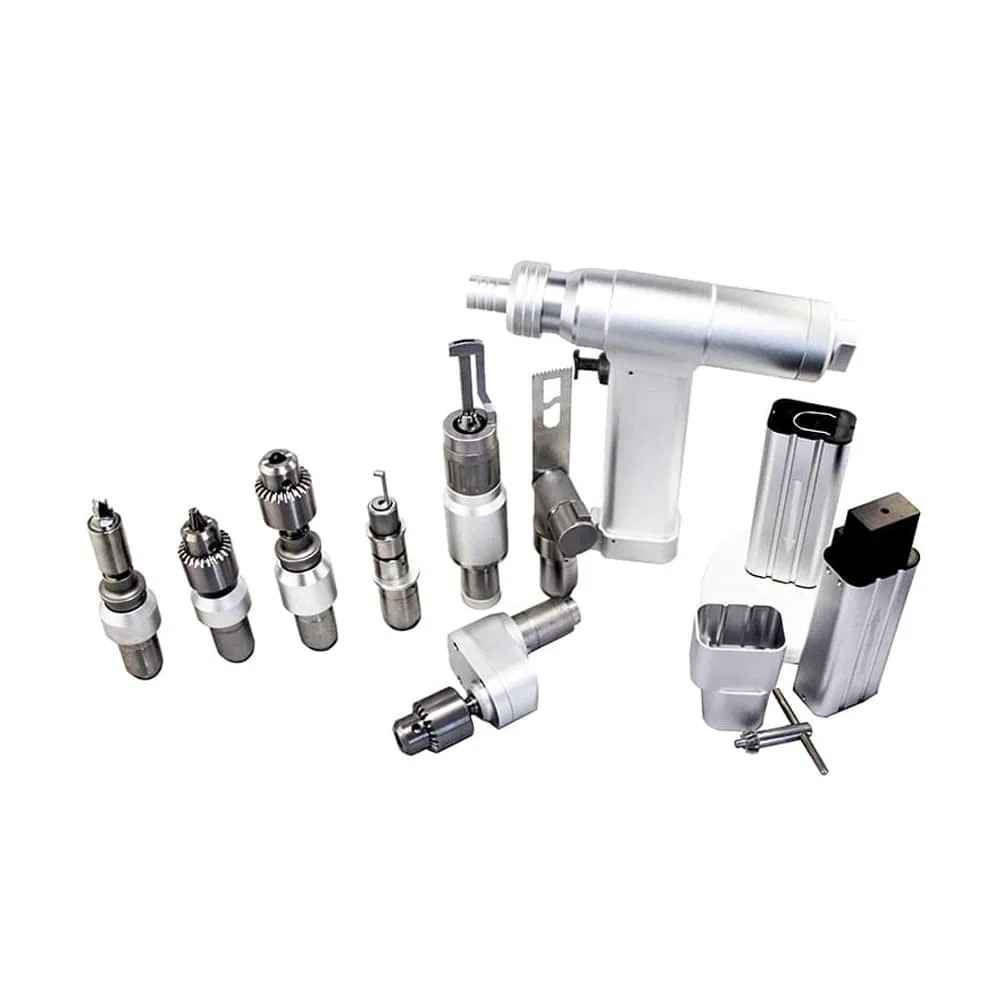

Main Components

One handpiece & One battery

One charger & One sterilizing channel

Quick chuck & Sternum saw

Craniotomy mill & Oscillating saw

Acetabulum reamer & Wire and pin chuck

Automatic-stopping cranial drill

One aluminum alloy case

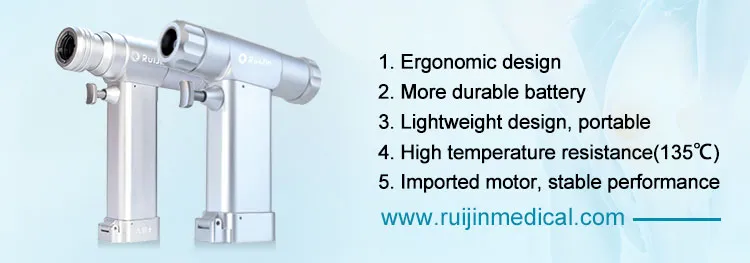

Key Product Features

The single trigger modular handpiece can be autoclaved.

Comprehensive range of quick-change attachments for versatile surgical use.

Powerful motor provides precise, stable, and ingenious performance.

Ergonomic design offers comfortable grip and convenient manipulation.

Meets various clinical requirements for trauma, thoracic, and joint surgeries.

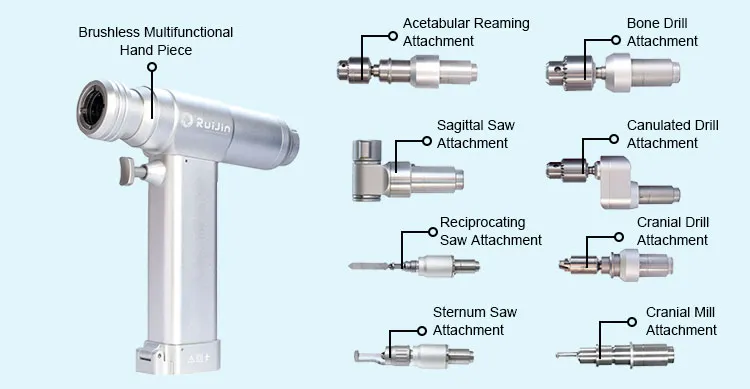

Product Display

Technical Specifications

Handpiece Working Voltage	14.4V
Charging Time	About 3 Hours
Output Power	14.4V, 900mA
Power Voltage	AC220V, 50Hz
Noise Level	63dB
Cannula Diameter	4.2mm
Drill Type	Autoclavable Type
Applying Scope	0.6-6mm, 0.6-8mm

No-load Speed of Attachments

Quick Chuck	1100 rpm
Sternum Saw	15000 rpm
Craniotomy Mill	40000 rpm
Oscillating Saw	16000 rpm
Acetabulum Reamer	300 rpm
Cranial Drill	900 rpm
Wire and Pin Chuck	600 rpm

Functional Highlights

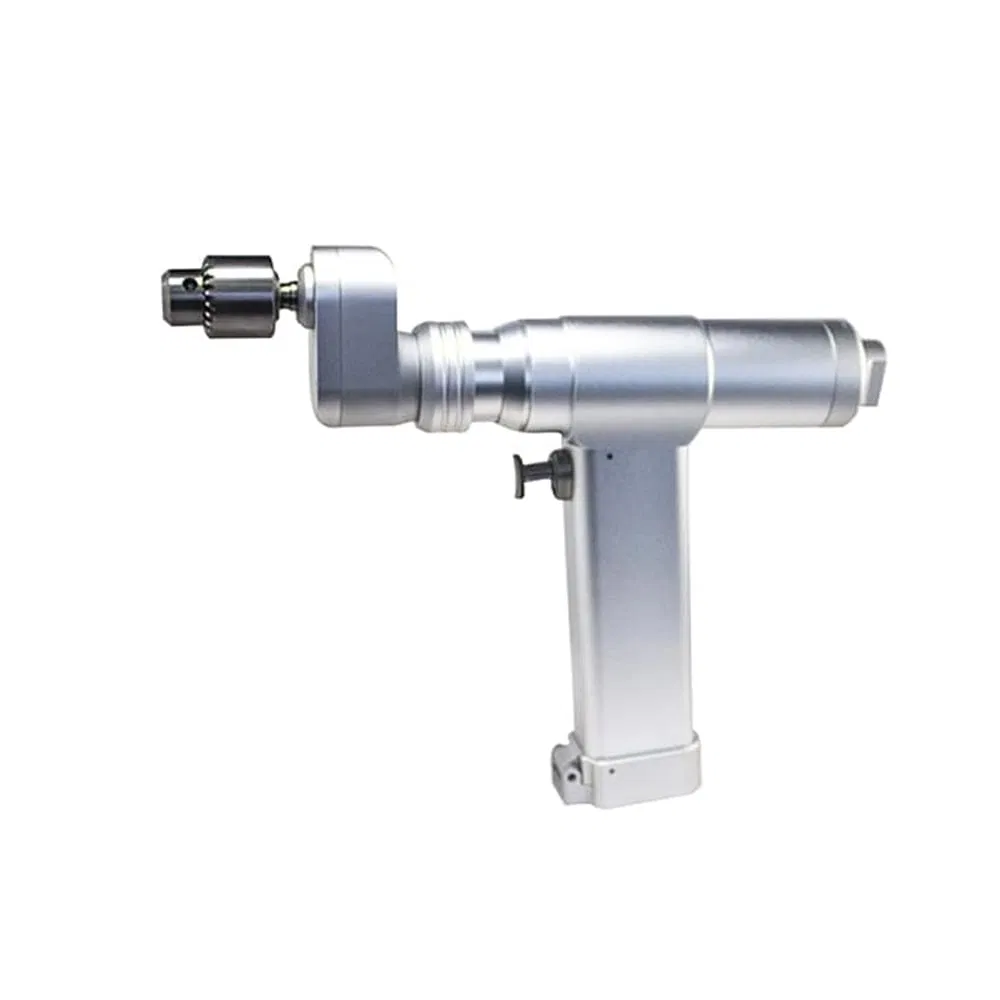

Quick Chuck

Imported chuck ensures outstanding performance during surgical operations.

Sternum Saw

360° Rotating head and blade guard protect soft tissue around the sternum.

Cranial Drill

Auto-pause feature after perforation ensures maximum safety in neurosurgery.

Oscillating Saw

360° rotating head applicable to any surgical site with easy blade loading.

Reamer

High-torque design, ideal for acetabulum or medullary operations.

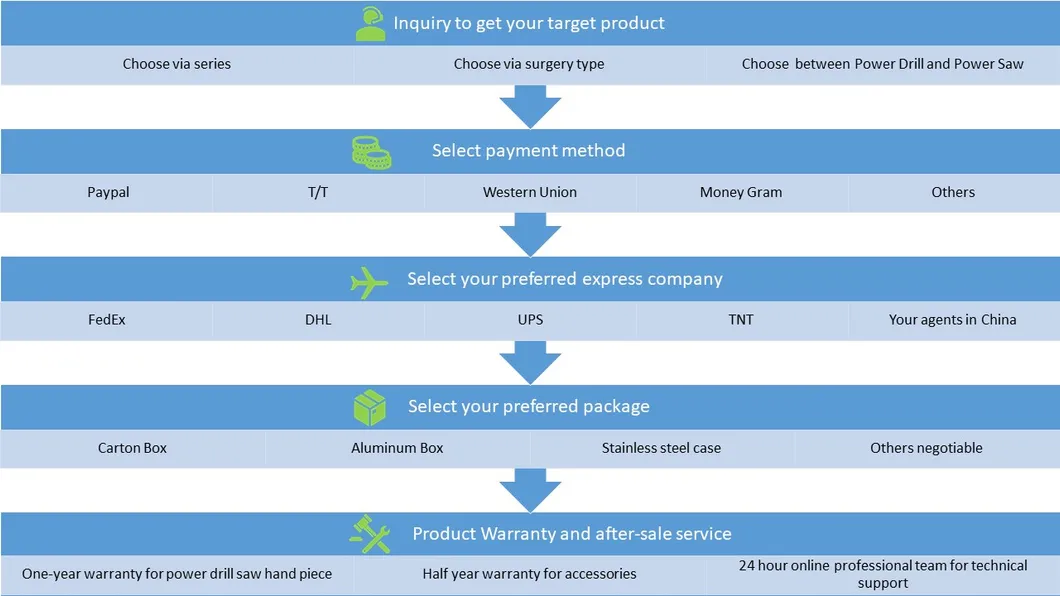

Ordering & Payment

MOQ: 1 Set

Payment: T/T in advance or Western Union

Delivery: 5 days after receiving deposit

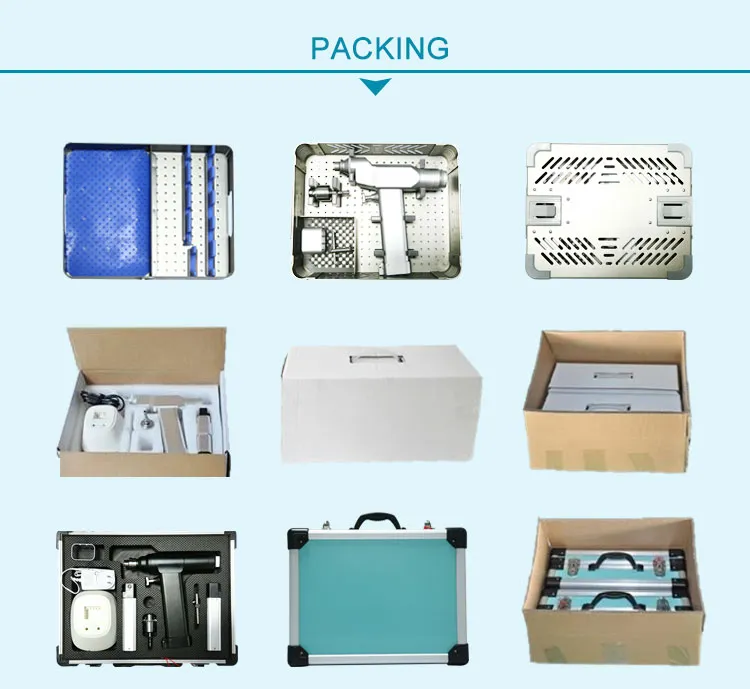

Packaging: Secure Aluminum Alloy Case

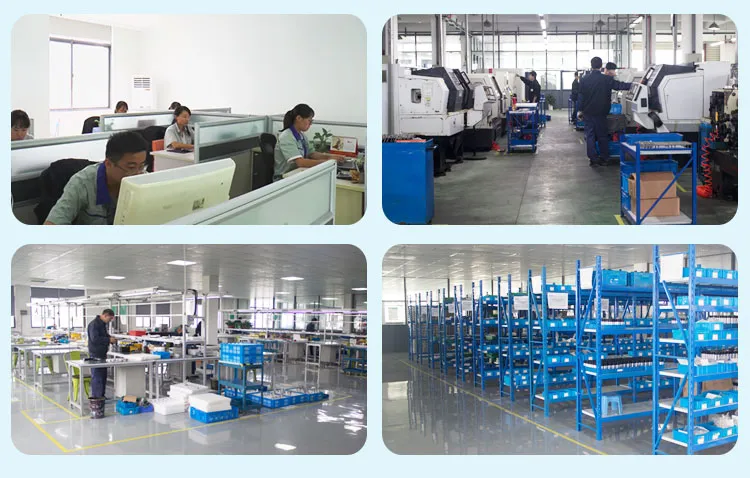

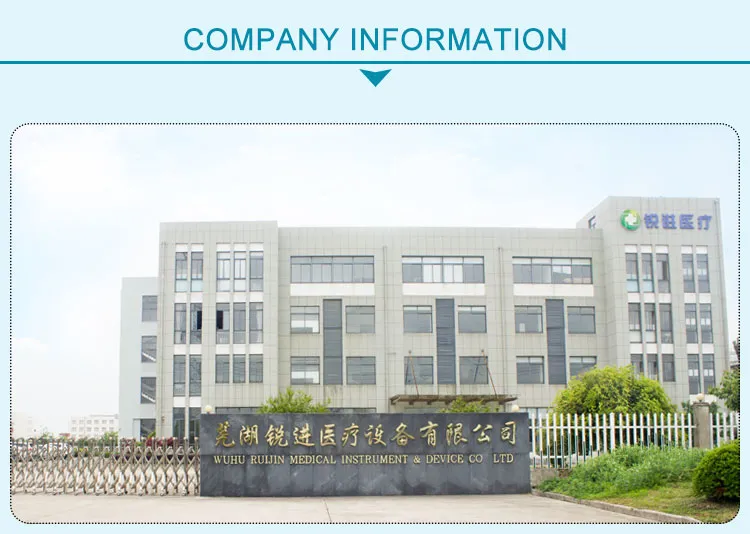

About Our Medical Solutions

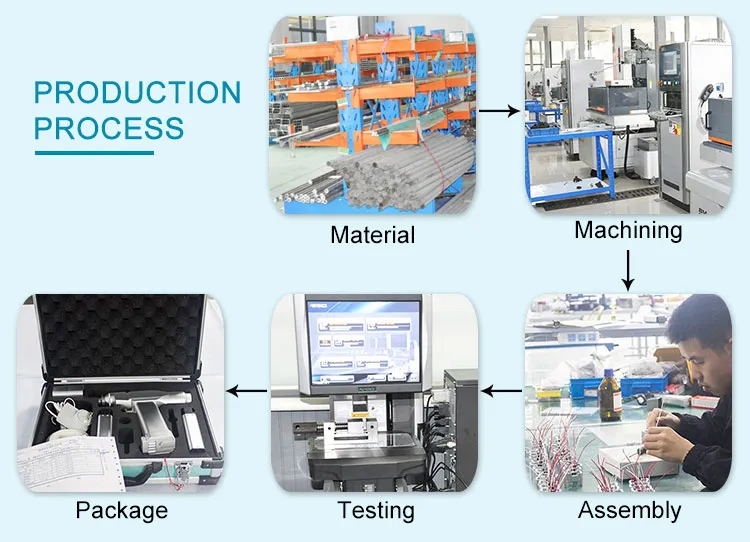

Specializing in the R&D and production of medical drill series and micro medical electric drill series. The product range includes medical bone drills, multi-functional cannulated drills, oscillating saws, and reciprocating saws. These instruments are widely utilized in Trauma Surgery, Thoracic Surgery, Joint Operations, and Veterinary Orthopedic Surgery.

Frequently Asked Questions

Q: Can the handpiece be sterilized?

A: Yes, the single trigger modular handpiece is designed to be fully autoclavable for sterile surgical environments.

Q: What type of battery does the NM-100 system use?

A: The system uses an environmentally friendly Ni-MH (Nickel-Metal Hydride) battery with a 14.4V working voltage.

Q: Is the cranial drill safe for neurosurgery?

A: Yes, the cranial drill features an automatic-stopping function after perforation to ensure patient safety during neurosurgical procedures.

Q: How many attachments are included in the multi-functional set?

A: The system includes 7 specialized attachments: quick chuck, sternum saw, craniotomy mill, oscillating saw, acetabulum reamer, wire and pin chuck, and a cranial drill.

Q: What is the typical lead time for an order?

A: Standard delivery time is approximately 5 days after the deposit is received.

Q: What are the primary surgical applications for this equipment?

A: It is suitable for a wide range of surgeries including Trauma, Thoracic, Joint operations, and Veterinary Orthopedic procedures.
