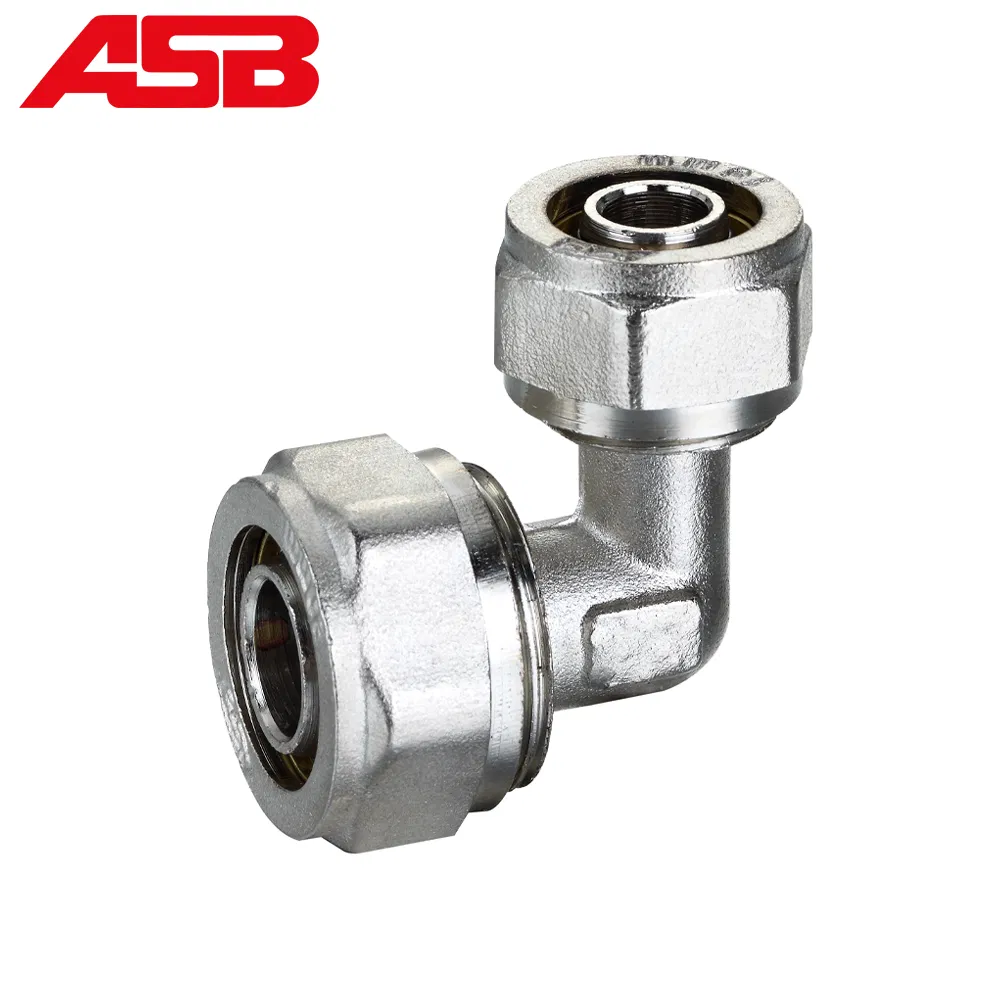

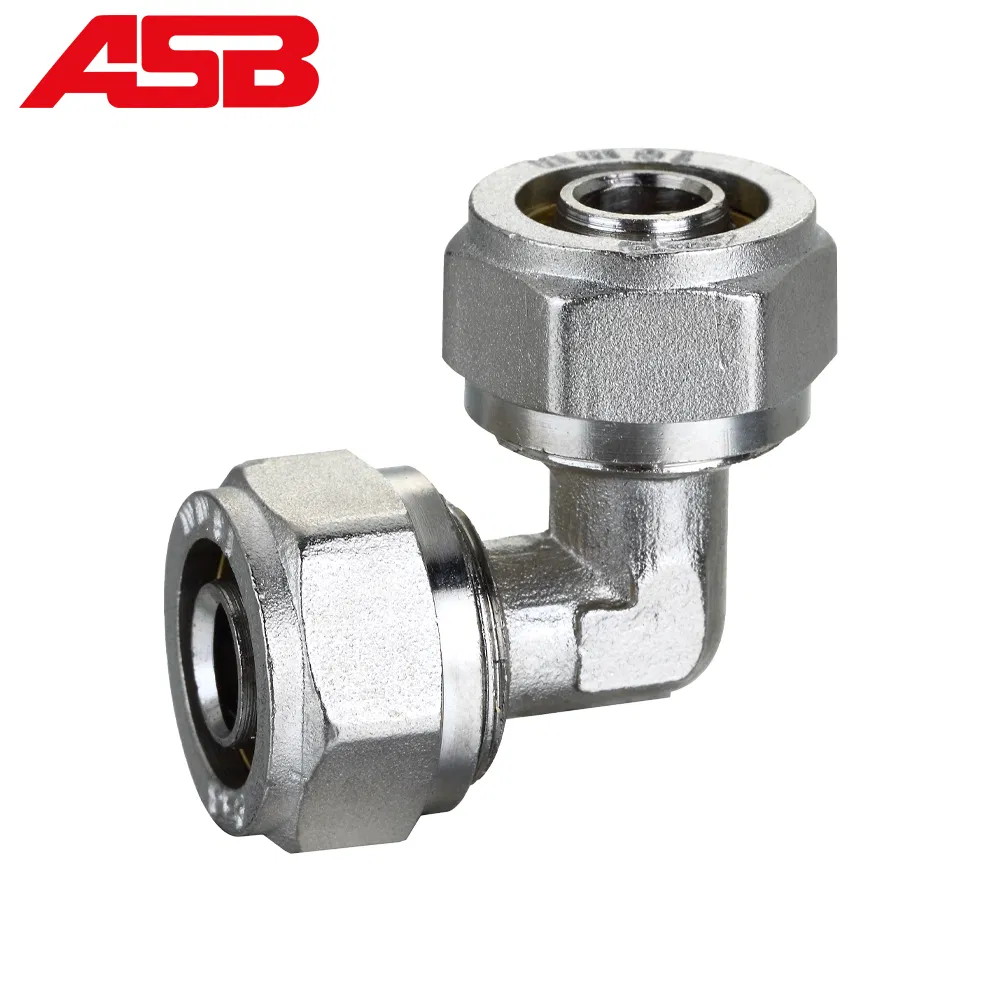

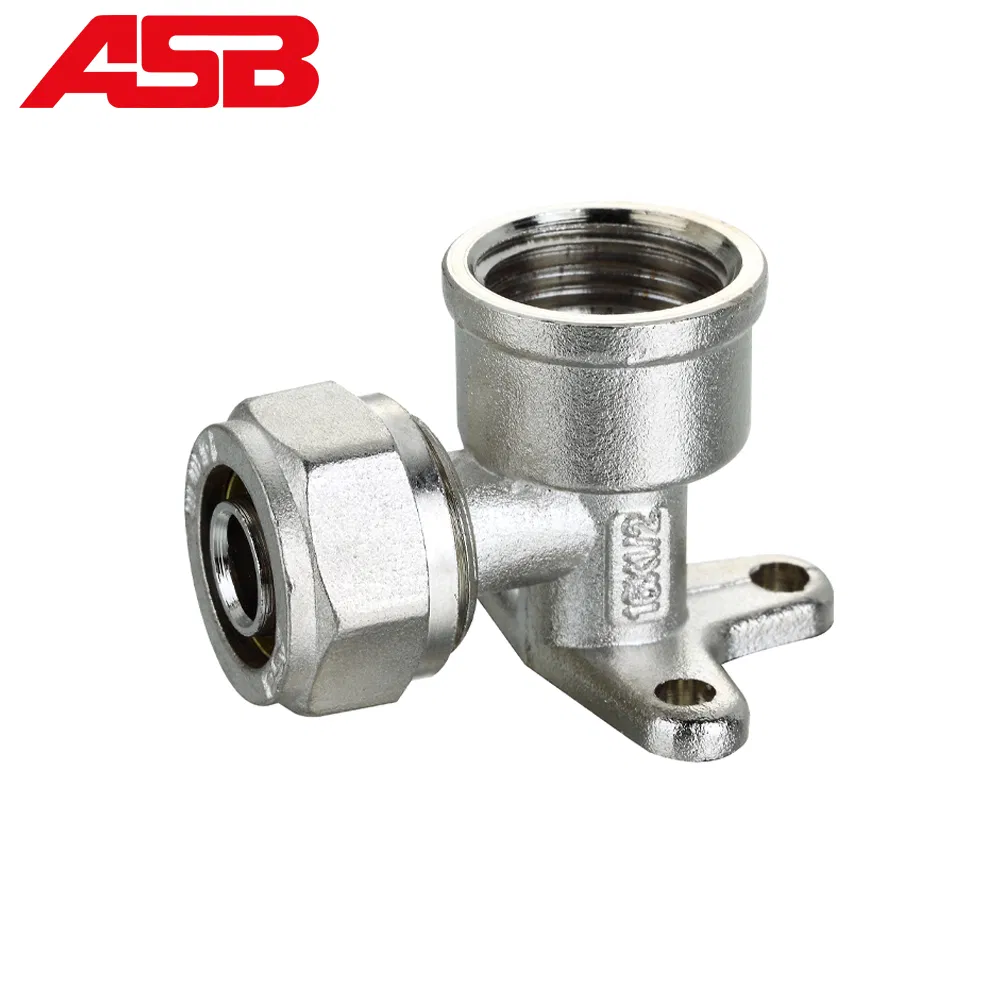

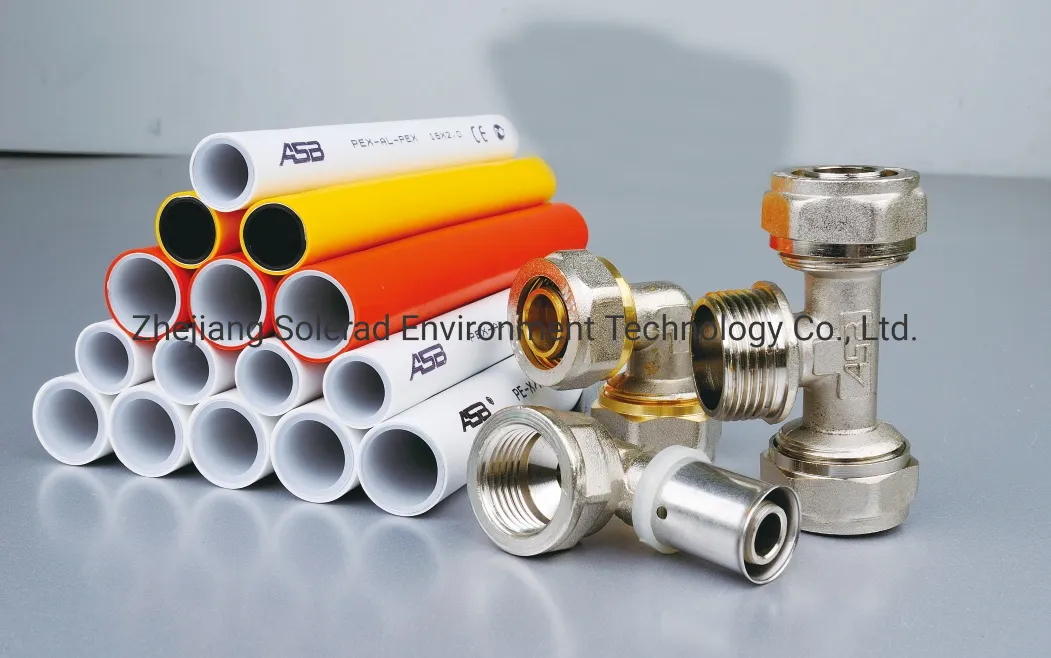

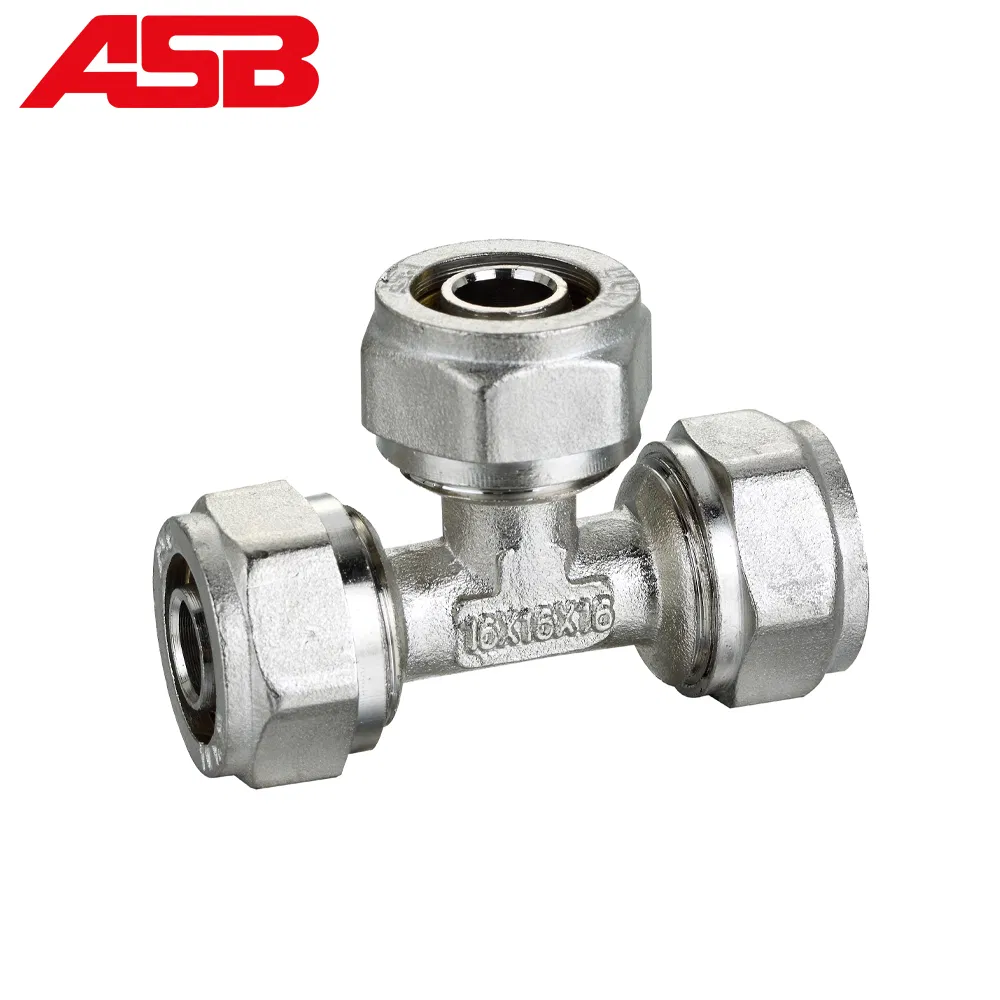

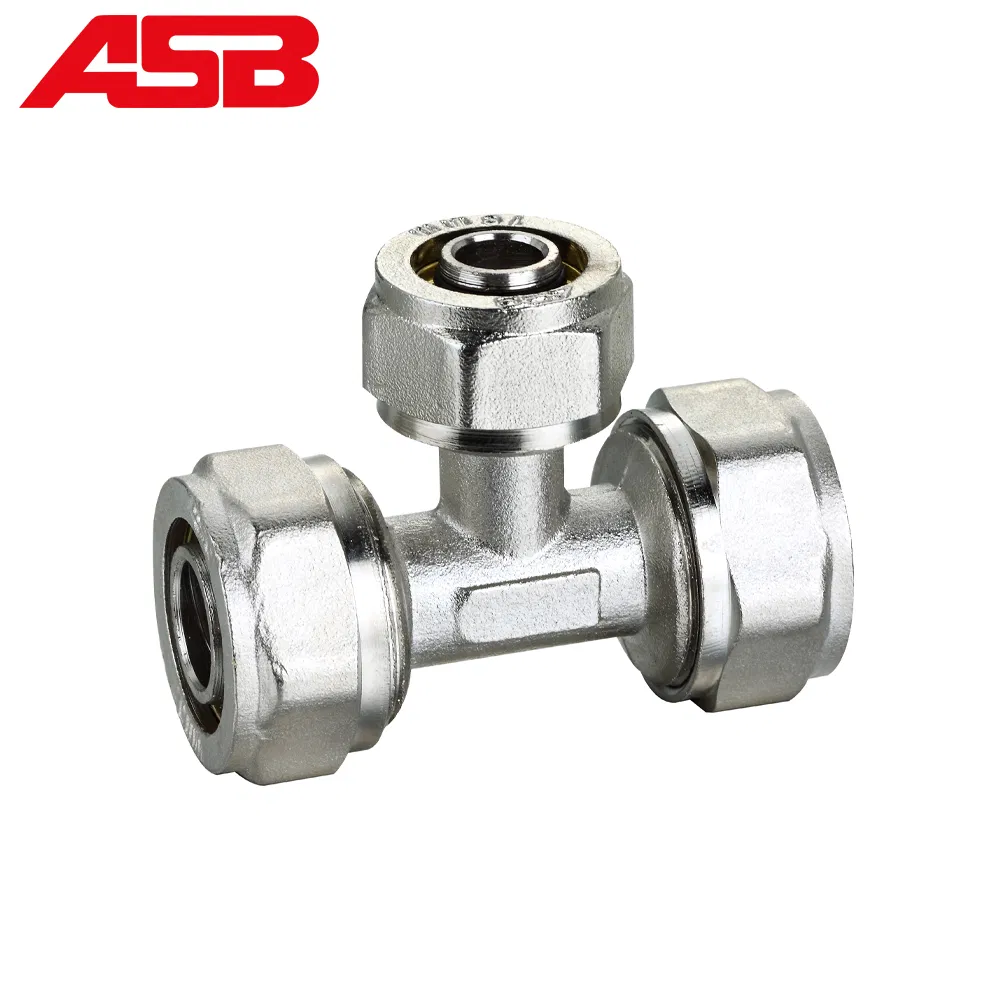

The compression fittings (brass pex fitting) are among the most popular fittings for PEX pipe or PEX-AL-PEX pipes. This tubing usually comes with two rubber O-rings positioned over the barbs. Each one comes with an insert that goes inside the tubing, a compression ring that is split diagonally, and a compression nut.

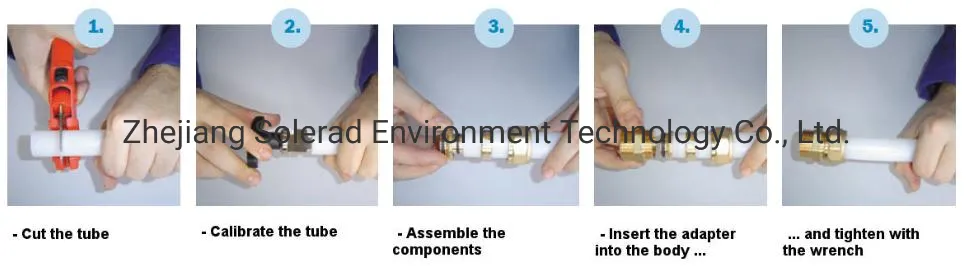

The insert goes inside the tubing and the compression ring on the outside with the compression nut over it. This is the only form of PEX fitting that does not require a special compression tool. All you have to do is use a wrench or pliers and tighten the nut over the compression ring. As the ring is tightened, the diagonal cut closes forming a compressed ring.
| Standard Specification | |
|---|---|
| Product Name | Brass Pex Fittings |
| Materials | Nut, Body, Cut-ring: CW617N or HPb 58-3A Brass; O-ring: EPDM |
| Color Options | Natural Brass / Nickle Plated / Part Nickle Plated |
| Available Sizes | 16mm, 18mm, 20mm, 25mm, 26mm, 32mm |
| Fitting Category | Type of Fittings |
|---|---|
| Brass PEX Series | Brass crimp style fittings |
| Poly or plastic crimp style fittings | |
| Push-fit fittings | |
| Press pex fittings | |
| Expansion pex fittings | |
| Pex compression fittings |
1. Exportation standard box in plain color
2. Customized per design requirements
