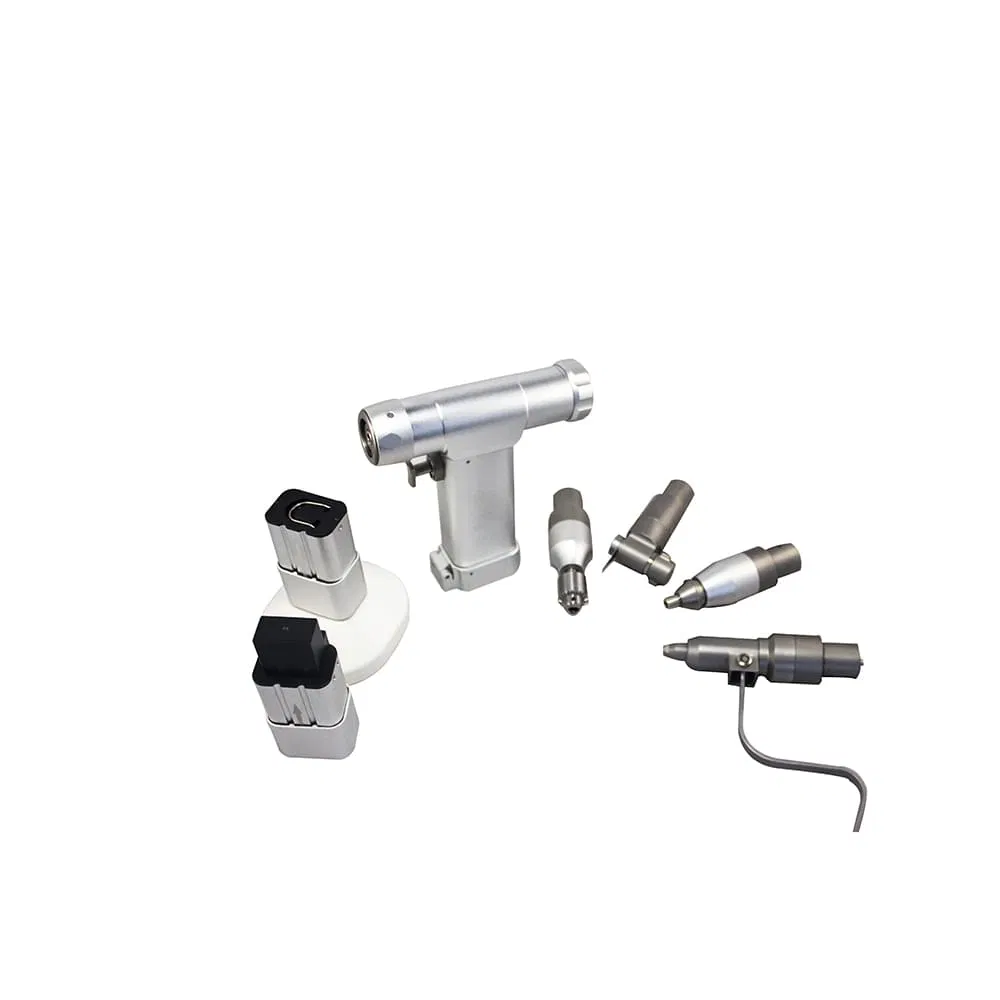

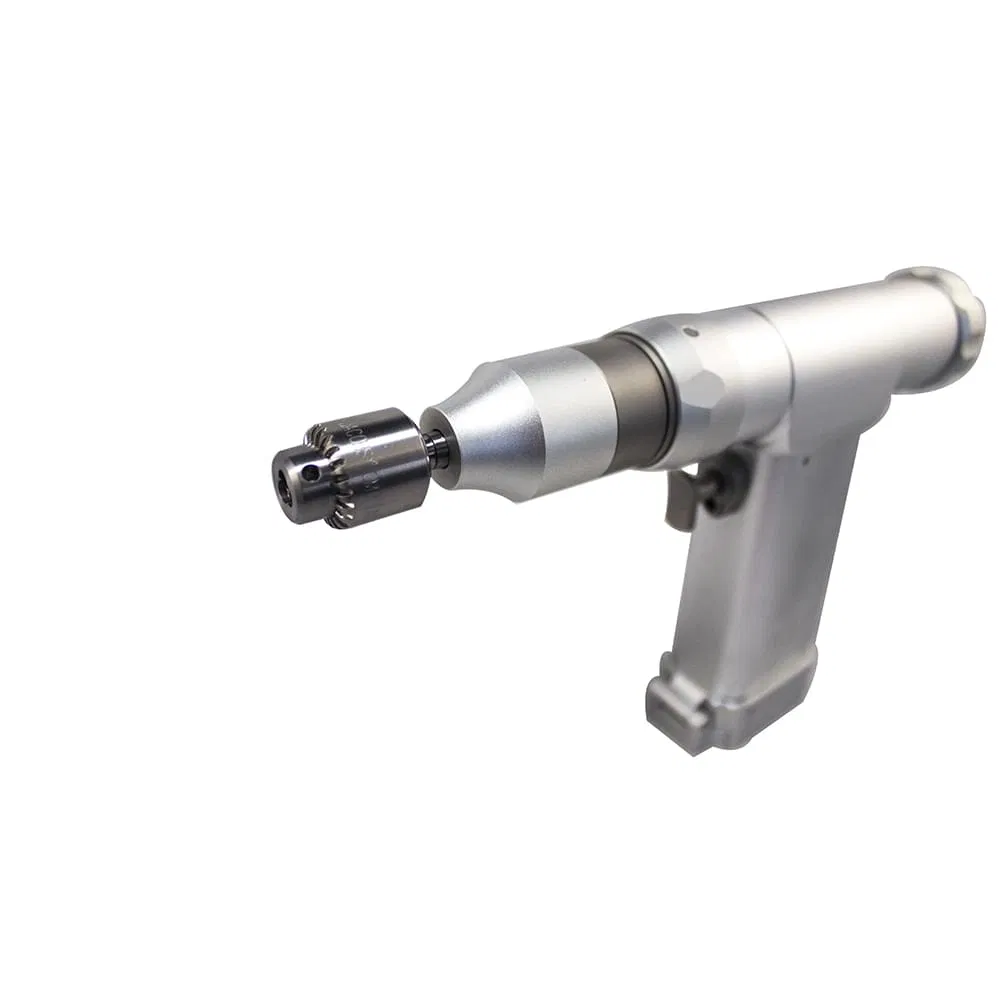

Electric Operated Medical Full Function Saws & Drill System for Orthopedic Surgery

Customization: Available
Type: Surgical Drill Saw System
Application: Orthopedic

Product Description

i

Basic Specifications

MaterialMedical Stainless Steel
FeatureReusable
CertificationCE, ISO13485
PropertiesOrthopedic Surgical Instruments
Model NumberNm-300
Rated Voltage220V/50Hz
Cannula Diameter4.2mm
Working Voltage14.4V
Saw Speed16000 rpm
Bone Drill Speed1100 rpm
Non-Load Noise63dB
Transport PackageAluminum Case

Key Advantages

  • Flexible ordering with no minimum MOQ requirements.
  • Reliable and timely delivery for urgent medical needs.
  • Comprehensive after-sales service and professional technical support.
  • Patented technologies ensuring high-quality surgical performance.
  • Two-year handpiece technical support and six-month accessory support.
T

Technical Parameters

Component Parameter Value
Hand PieceWorking Voltage14.4V
Output Power20W
Unit Rise in Temp≤25°C
ChargerInput PowerAC 220V, 50Hz
Output Power7.2V, 700mA
Input Power (VA)30VA
BatteryVoltage7.2V
Charging TimeAbout 3 hours

Technical Merits

  • 1. Axial run-out of concentricity within 0.05mm.
  • 2. 1100 rpm rotating speed optimized for medical operation standards.
  • 3. High rotated torque of 3.3N/m for efficient cutting.
  • 4. Semi-luster surface treatment for comfortable ergonomic handling.
  • 5. Environmentally friendly Ni-MH battery without memory effect.
P

Product Display & Components

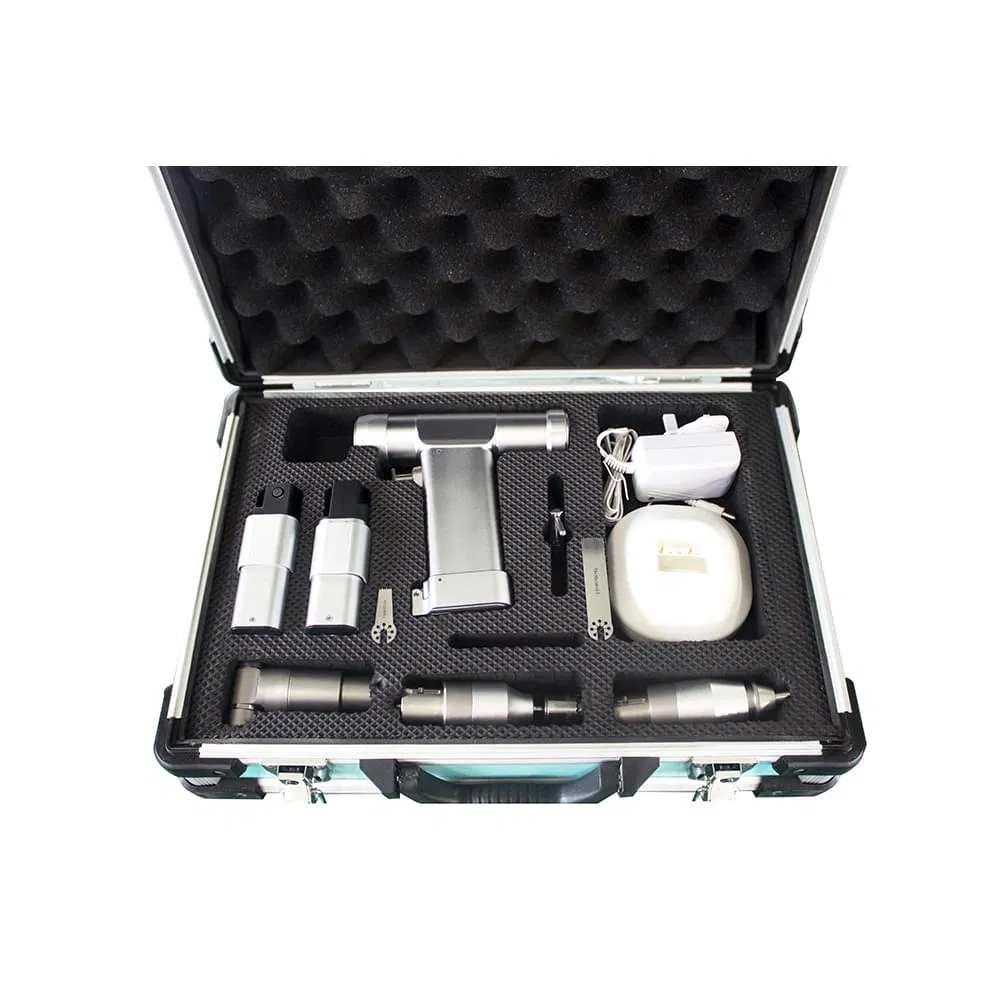

Standard Configuration Includes:

1x Handpiece1x Charger1x Bone Drill Attachment
1x Drill Chuck1x Oscillating Saw Attachment1x Aluminum Alloy Box
2x Batteries2x Sterilizing Channels2x Mini Saw Blades

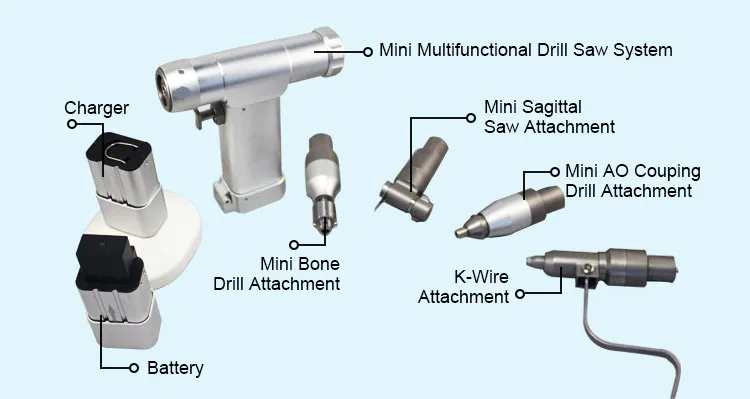

Medical Drill System

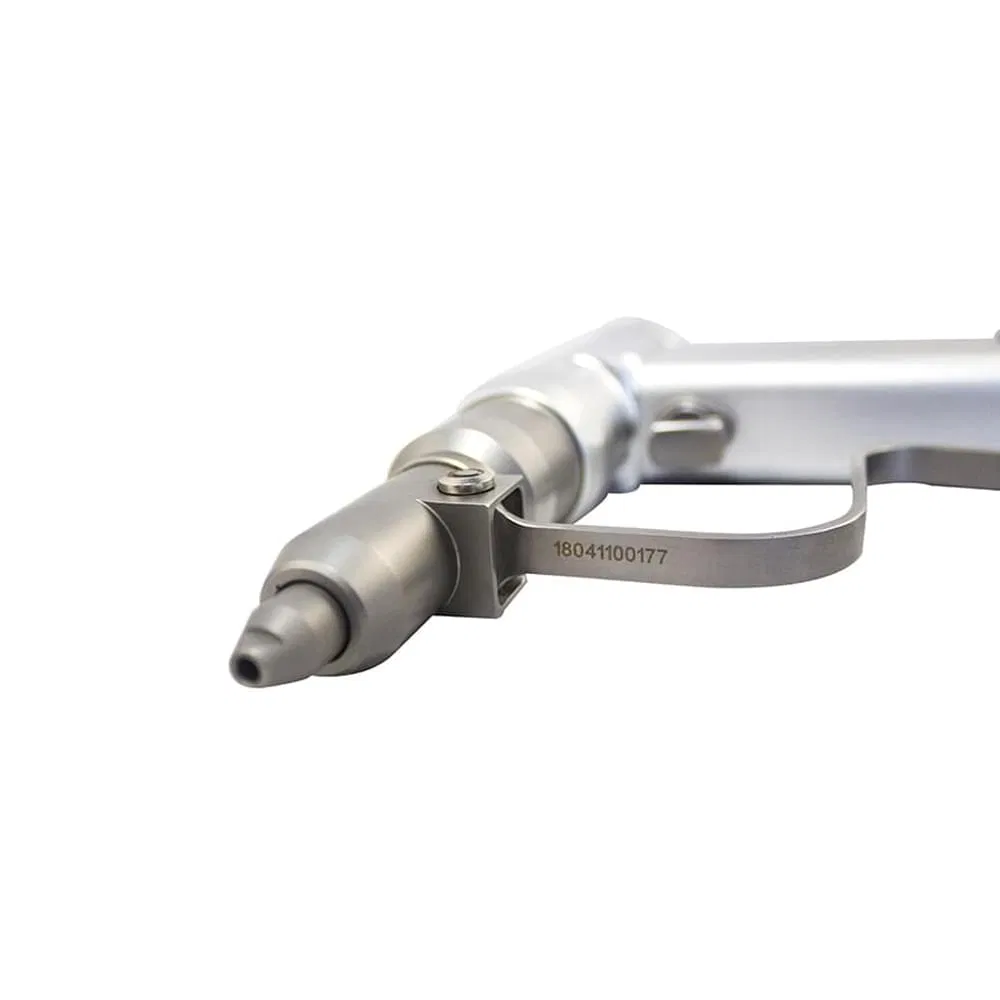

Product Detail

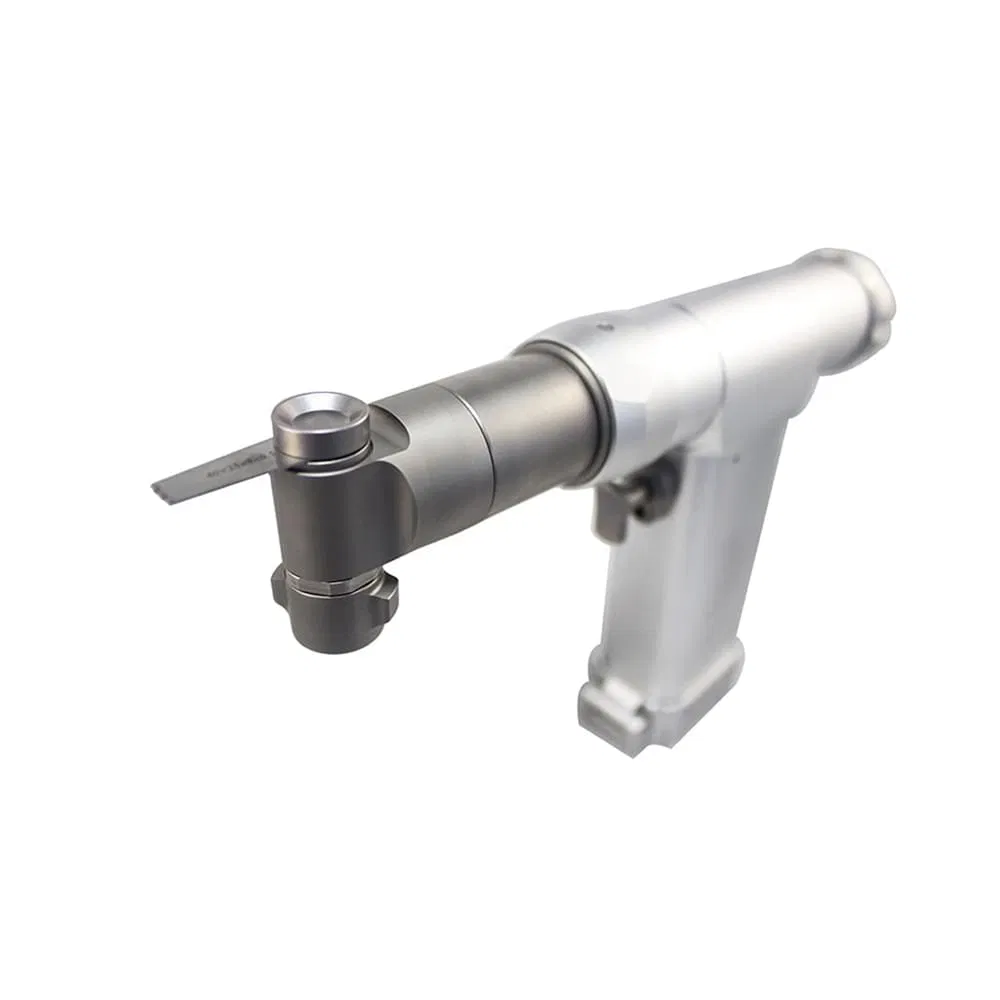

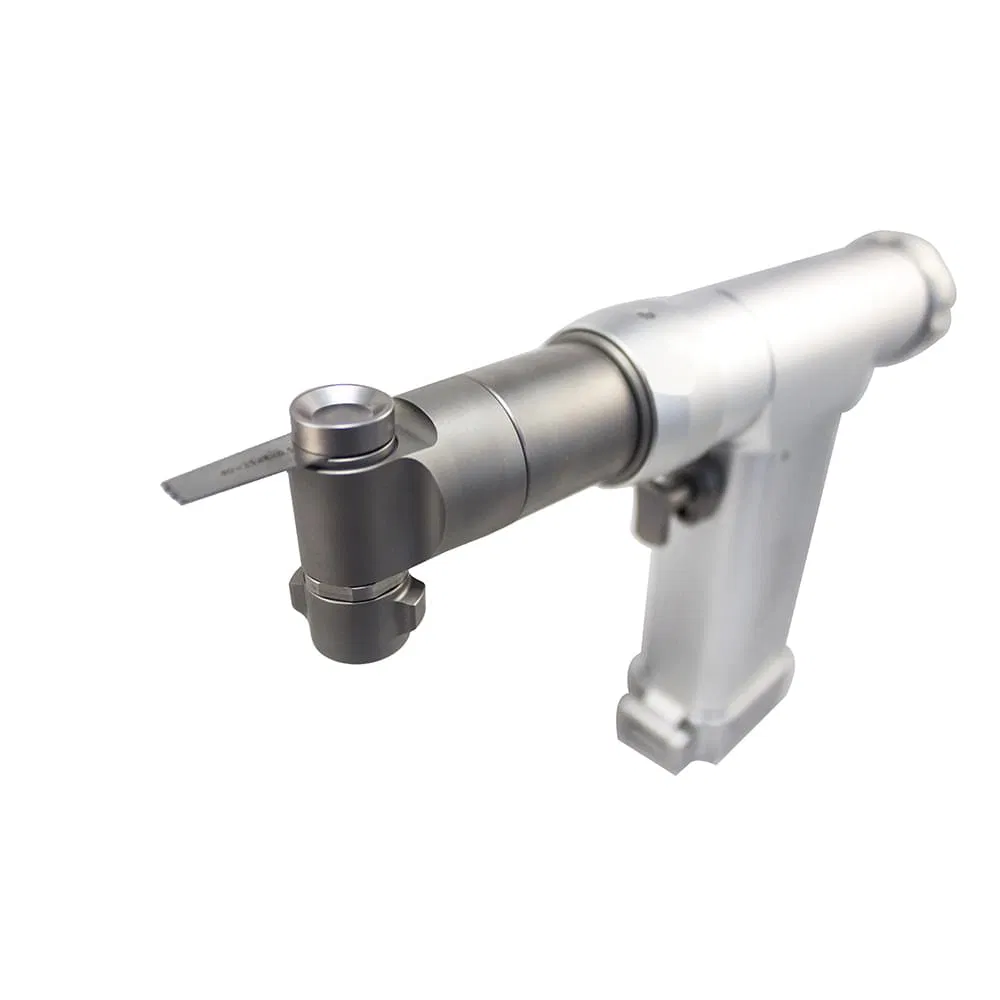

Saw Attachment
Battery Detail

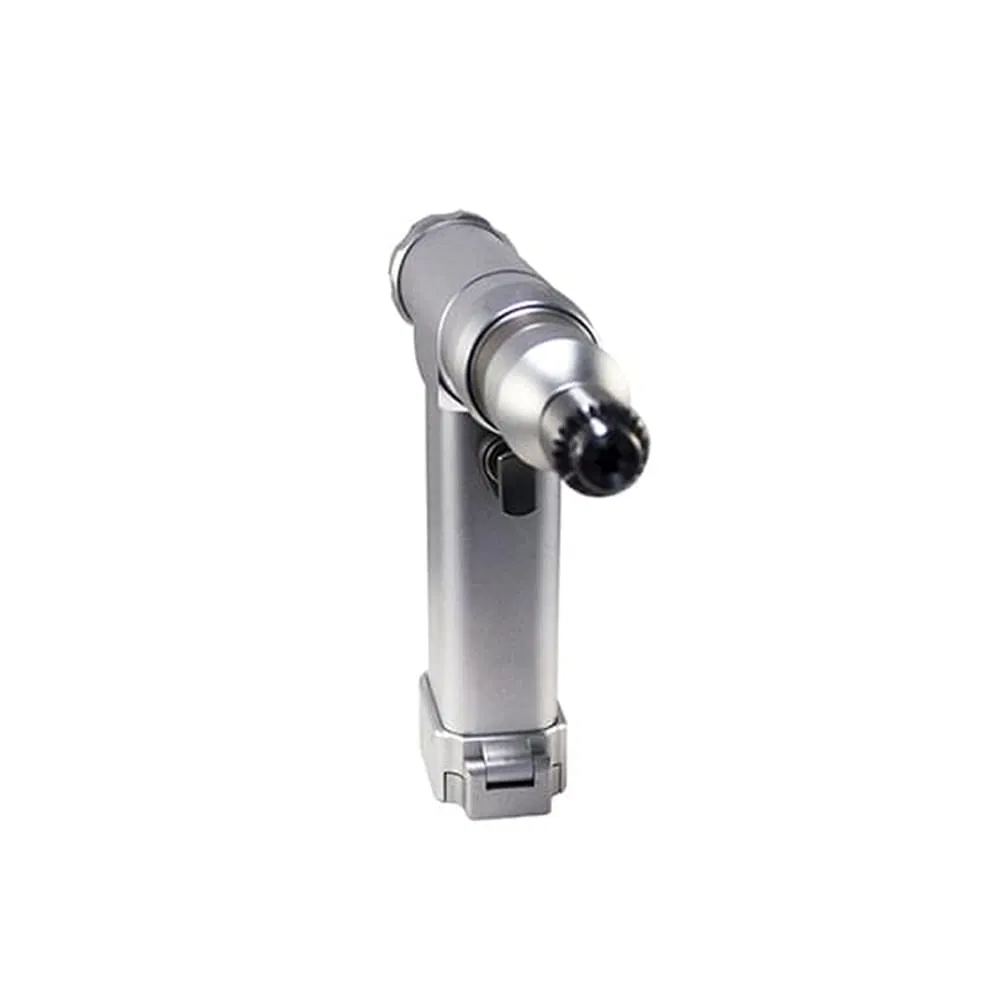

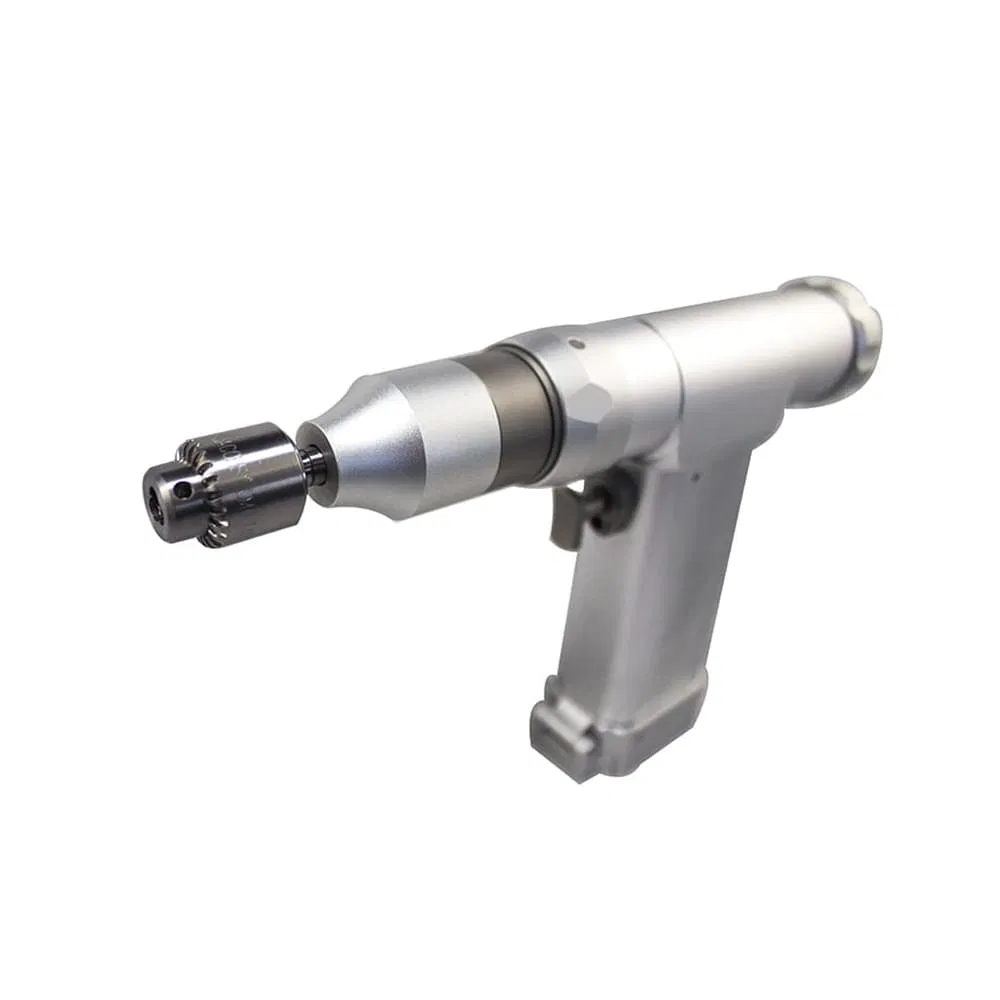

Drill Detail

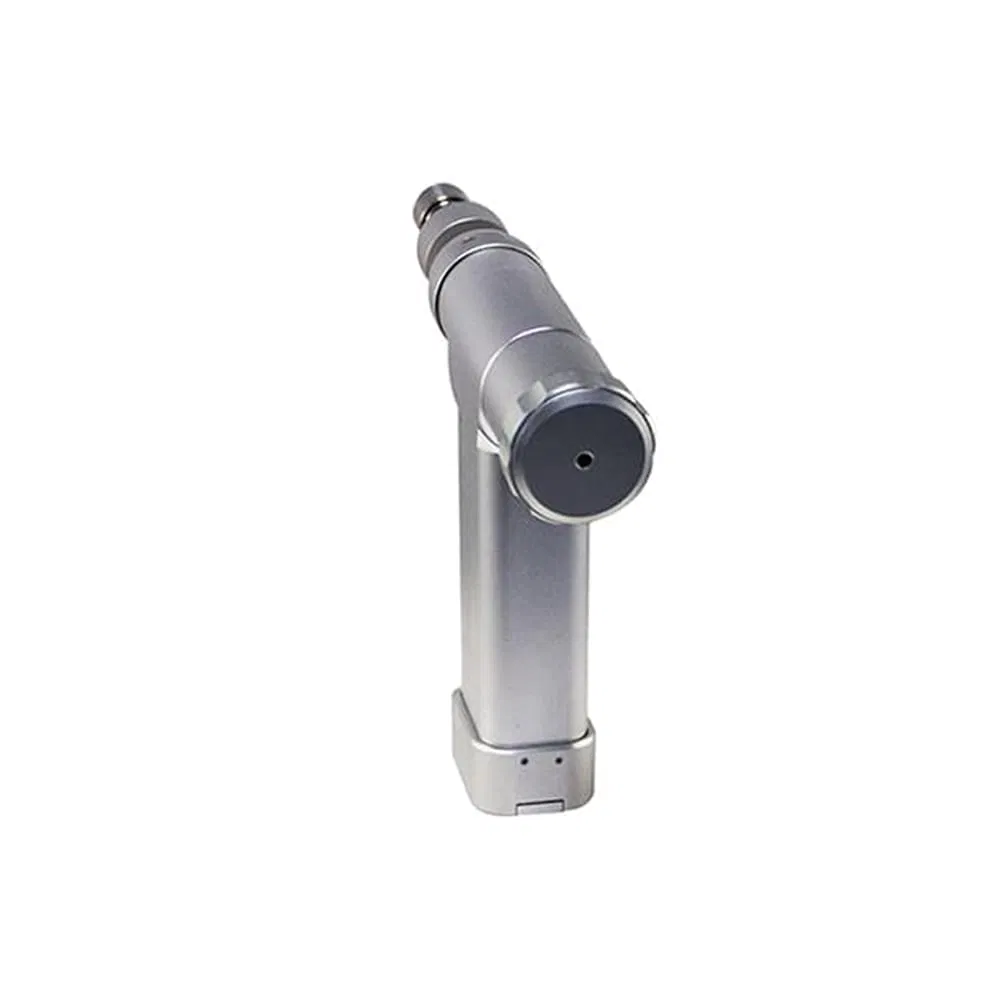

Case Detail
C

Certification & Delivery

Certification
MOQ1 Piece
PaymentT/T in advance or Western Union
Delivery TimeWithin 3 days after payment
PackagingAluminum Alloy Box (38x28x13cm) + Carton (41x32x15cm)
Packaging
Logistics
!

Operation Notes

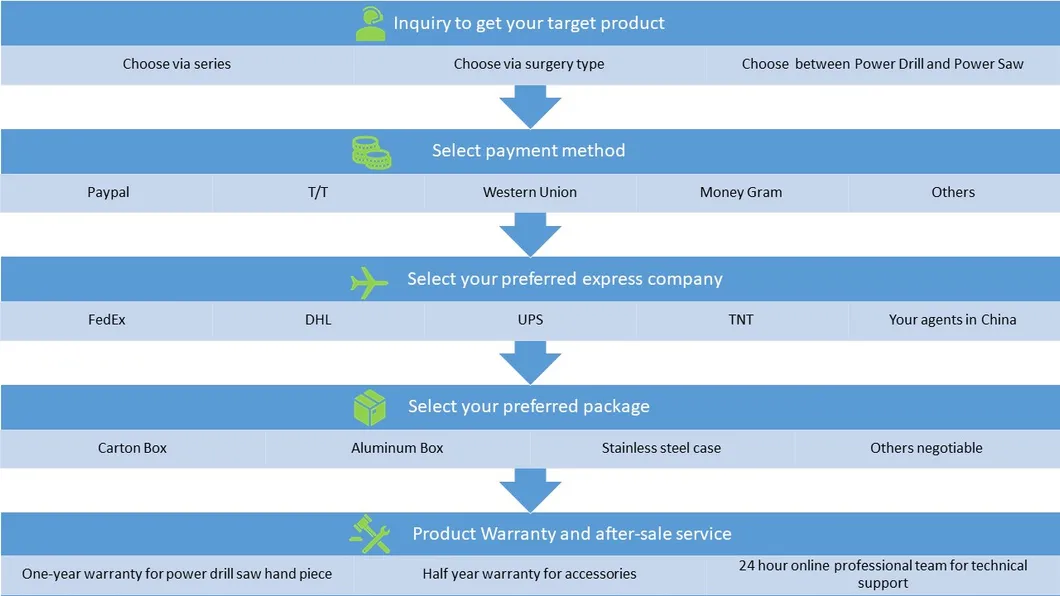

Ordering Process
1. Sterilization temperature must be lower than 135°C to protect the motor.
2. Battery must be removed from the handpiece during storage to prevent discharge.
3. The battery cannot be disinfected; ensure the battery compartment is dry after sterilization.
4. Clean saw blades and drill bits with a purifier and dry immediately after operation.
?

Frequently Asked Questions

Can the entire drill system be autoclaved?
The handpiece and attachments can be sterilized, but the sterilization temperature must not exceed 135 degrees Celsius. Note that the battery cannot be disinfected and must be removed before sterilization.
How long does it take to fully charge the battery?
The battery requires approximately 3 hours for a full charge using the provided charger.
What types of surgery is this system suitable for?
This multi-functional system is ideal for Trauma Surgery, Thoracic Surgery, Joint Operations, and Veterinary Orthopedic Surgery.
What is the warranty period for this medical drill?
We provide 2 years of free technical support for the power drill handpiece and 6 months of free support for accessories.
Does the battery have a "memory effect"?
No, the system uses Ni-MH batteries which do not have a memory effect, ensuring a longer and more reliable environmental life cycle.
What is the noise level during operation?
The non-load noise level is approximately 63dB, providing a relatively quiet environment for surgical procedures.
