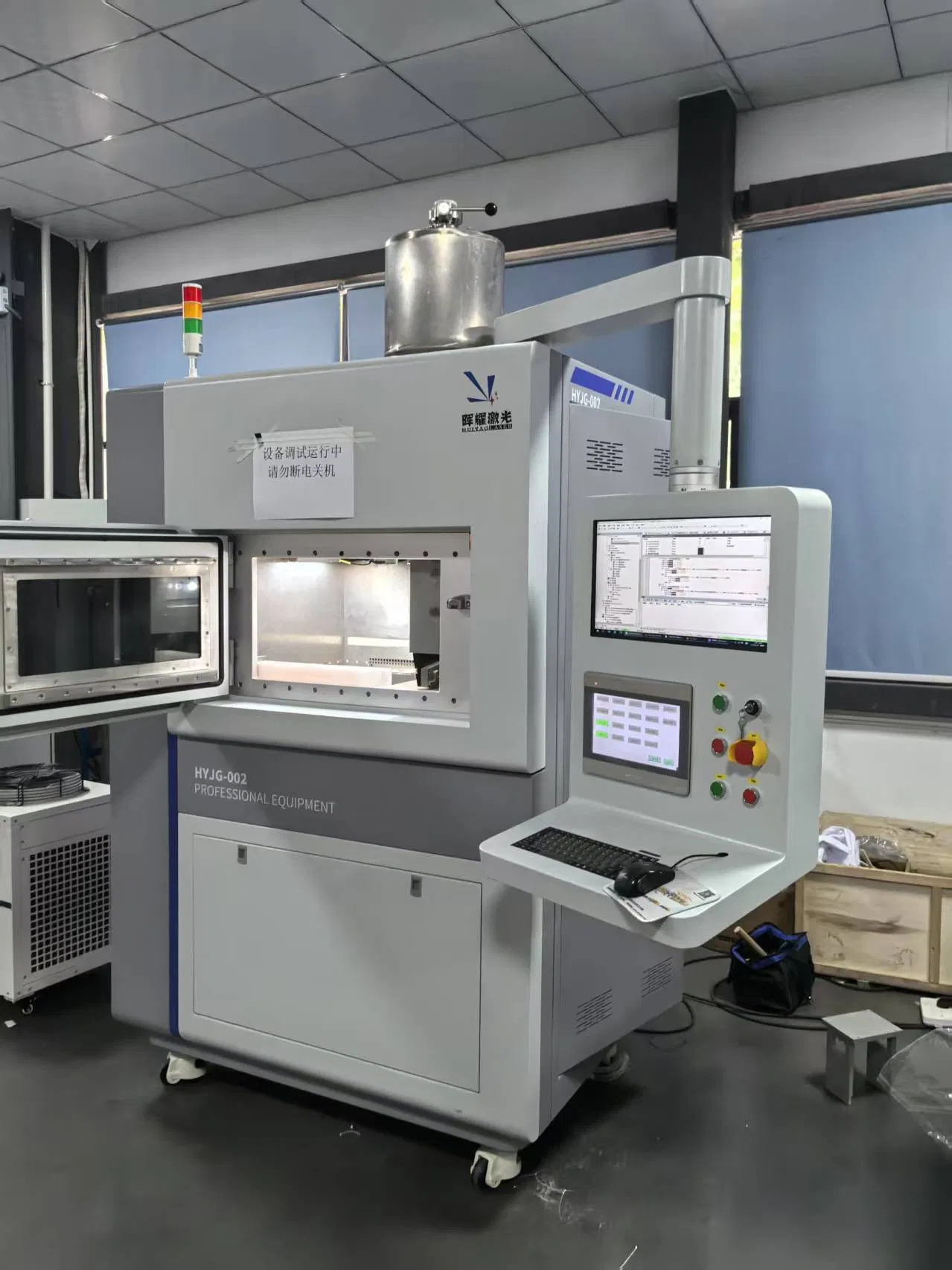

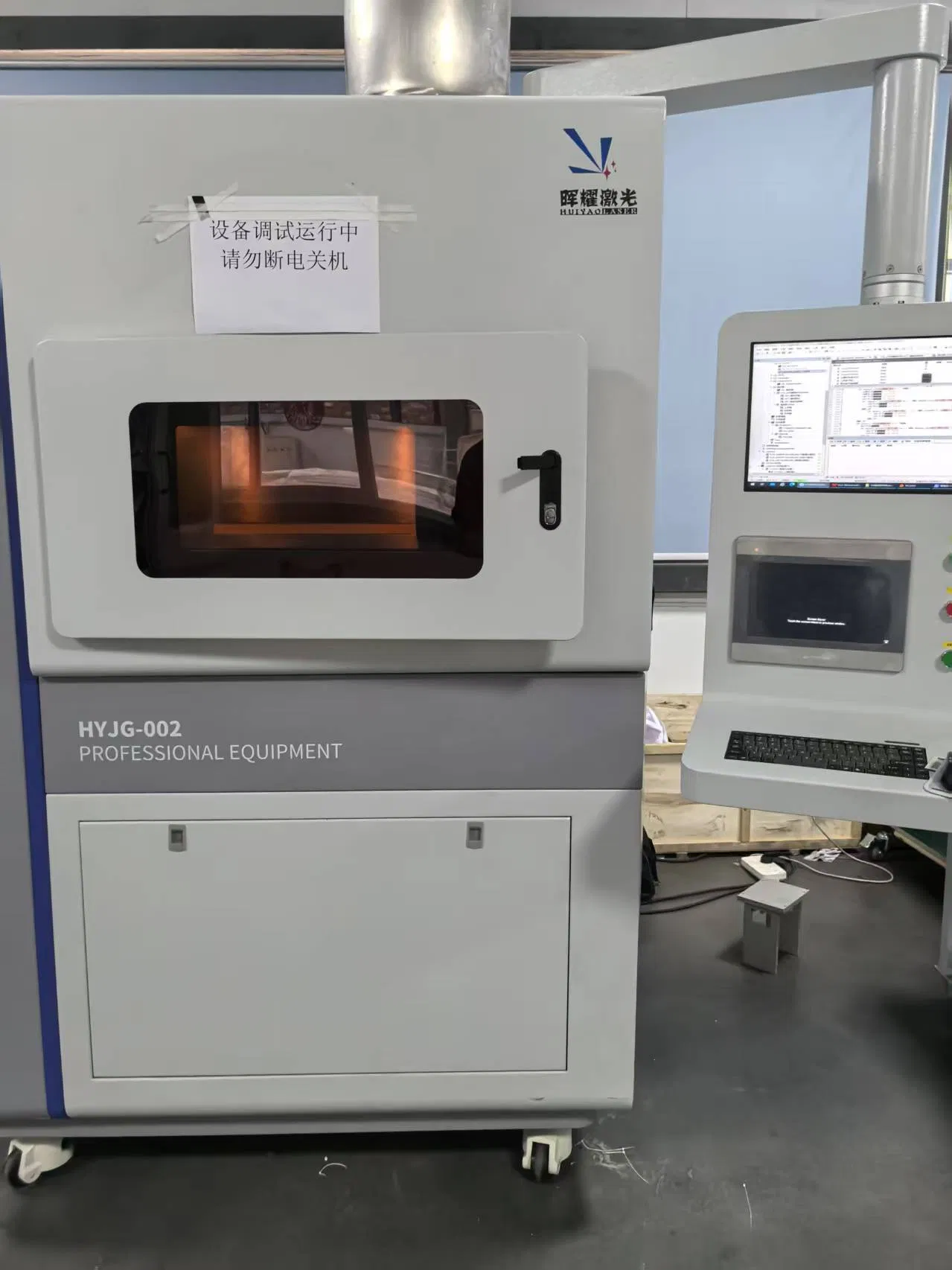

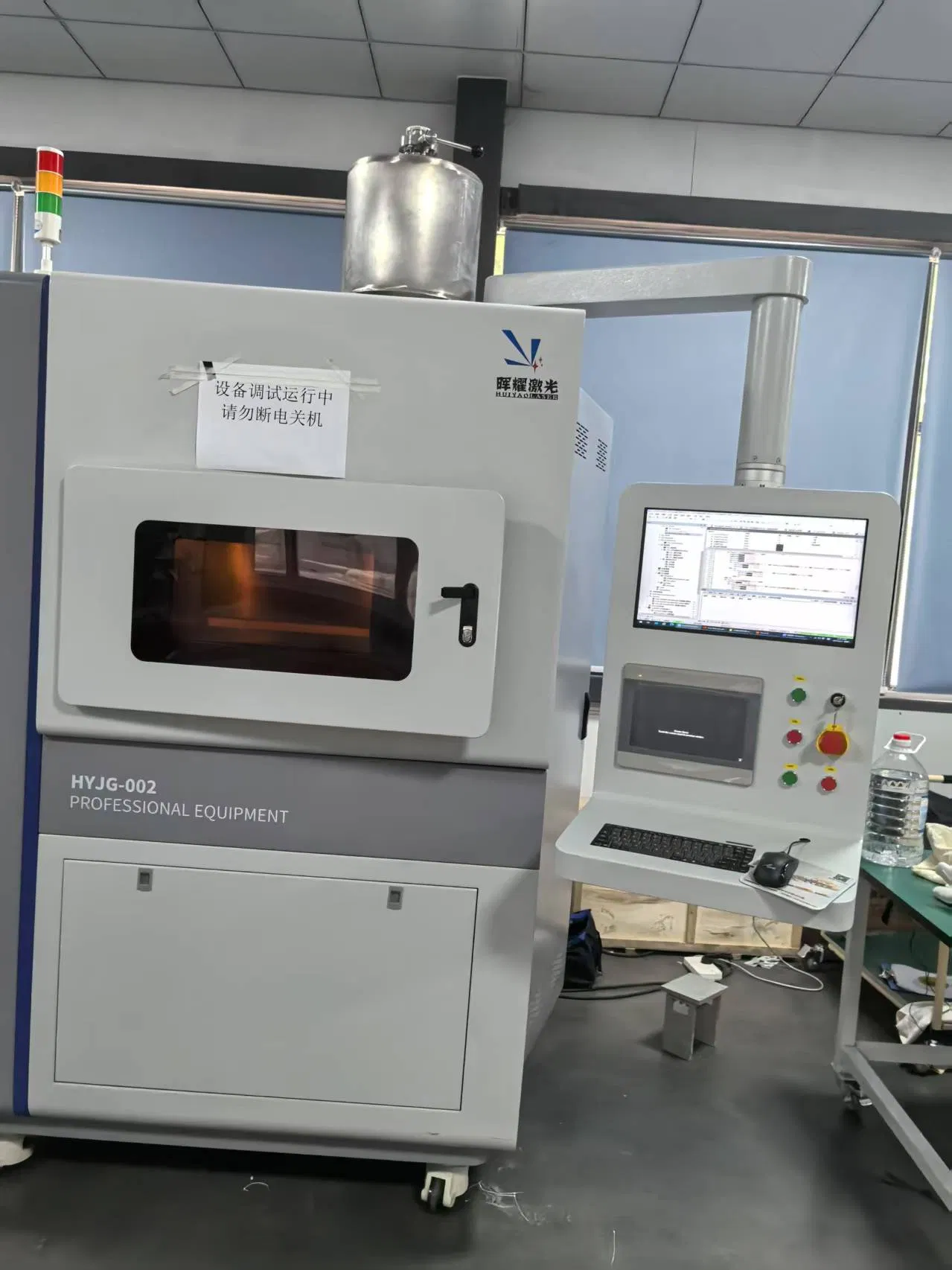

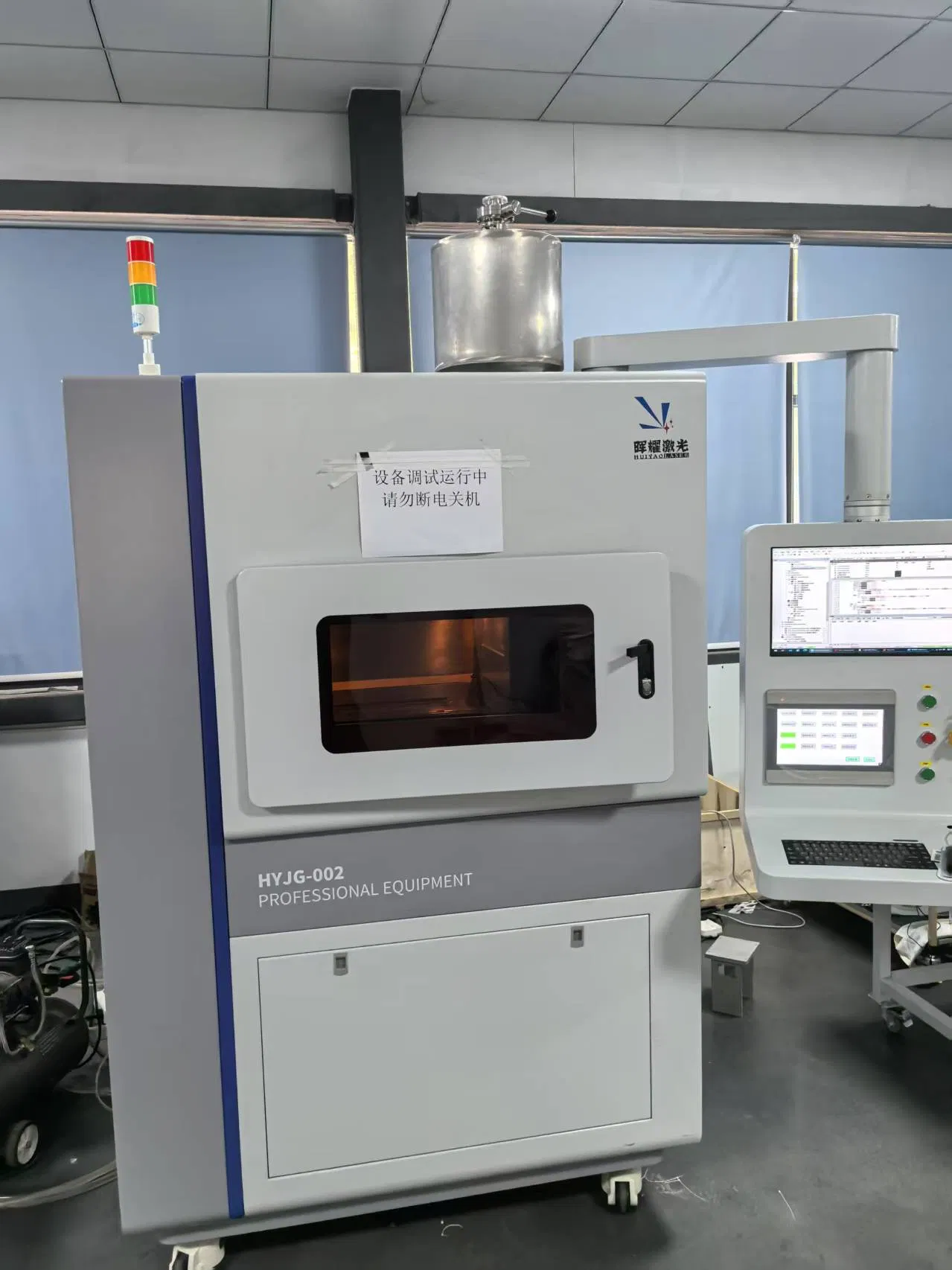

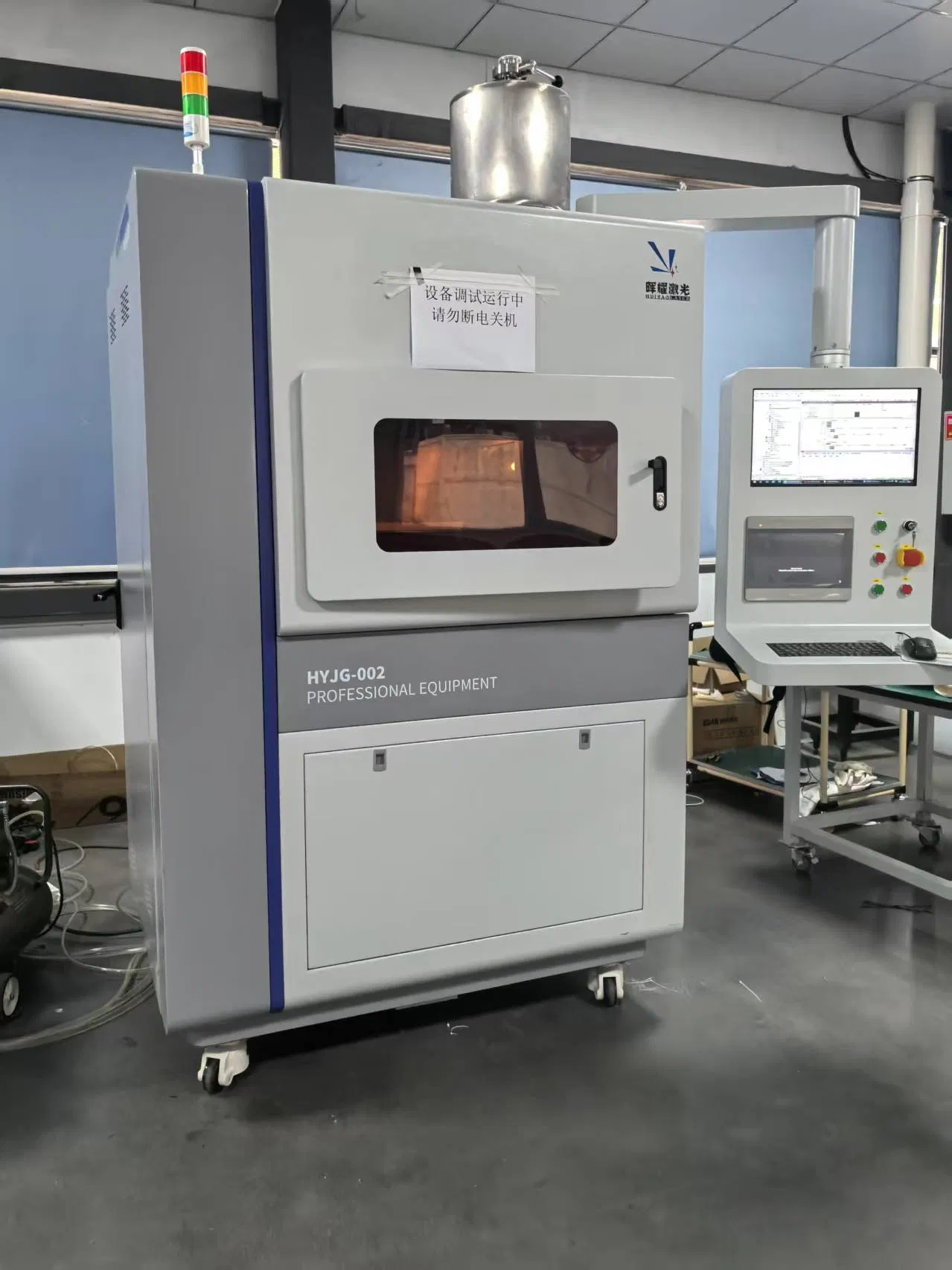

The SLM Dual-Laser Metal 3D Printer is a high-efficiency, intelligent, and customized industrial-grade additive manufacturing system specifically designed for aerospace, medical implants, and precision tooling. By integrating dual-laser dynamic coupling technology (500W primary laser + 200W secondary laser), closed-loop powder management (powder utilization rate ≥95.7%), and intelligent quality monitoring (melt pool spectral analysis ±10ºC), the system reliably produces titanium alloy orthopedic implants with 50-200μm porous structures, nickel-based superalloy turbine blades featuring 0.3mm internal cooling channels, and conformal cooling injection molds, complying with ISO/ASTM 52900 additive manufacturing standards and NADCAP aerospace certification requirements.
| Parameter | Specification |
|---|---|
| Model | SLM Dual-Laser |
| Laser | IPG 500W / Domestic Laser |
| Build Size | Diameter 252mm |

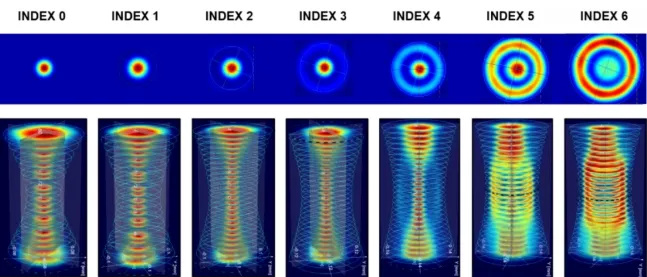

| Spot Size | ≈40μm |
| Scanning System | ScanLab |
| Layer Thickness | 0.02-0.05mm |
| Part Density | 99%-100% |
| Accuracy | ±0.1mm |
| Surface Roughness | Ra 6-15μm |
| Total Power | 8KW/9KW |
| Compatible Materials | Stainless Steel, High-Temperature Alloys, Titanium Alloys, Aluminum Alloys, etc. |

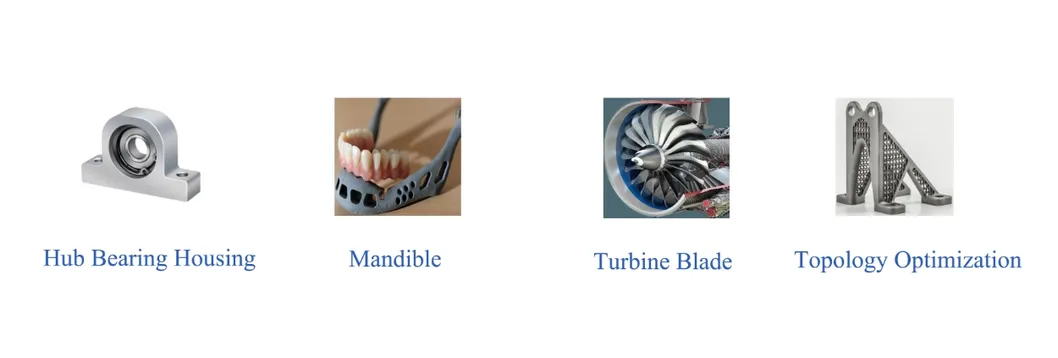

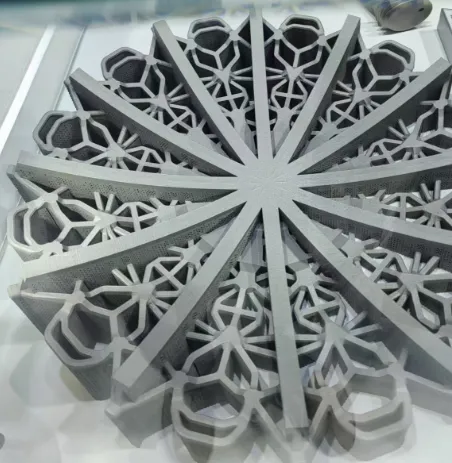

1. Complex Precision Manufacturing: Porous titanium alloy orthopedic implants, nickel-based superalloy turbine blades, and conformal cooling injection molds.
2. Rapid Prototyping: Acoustic metamaterial lattice structures and microchannel validation models for fuel cells.
3. Low-Volume Customization: Topology-optimized lightweight racing brackets and integrated vacuum chambers.

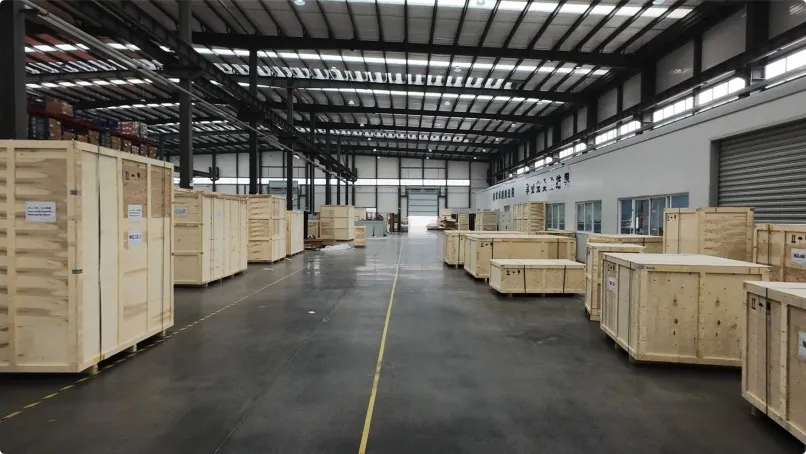

Every system is meticulously packaged in heavy-duty wooden crates with anti-vibration reinforcement, certified to withstand extreme transit conditions. Our ISO-certified logistics network ensures 99.9% damage-free delivery to 50+ countries.
This industry-leading manufacturer of intelligent equipment and SLM dual-laser 3D printing systems is dedicated to providing innovative turnkey solutions. Since its establishment in 2019, the company has continuously advanced the development of laser processing and automation technologies, delivering high-performance equipment to global industries with a focus on Industry 4.0 integration.
