Basic Information
Model NO.
Compression Type
Thread Distribution

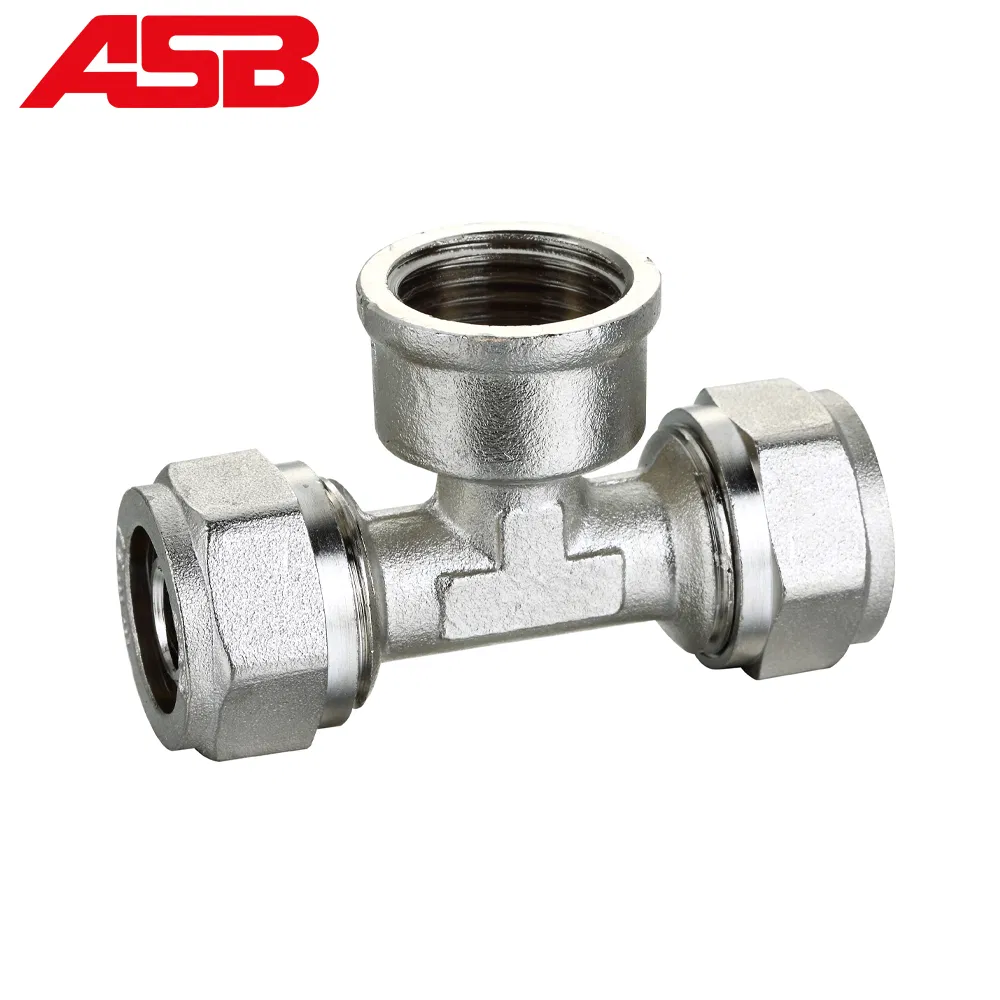

Internal Thread
Application
Water Heating-Gas
Colour
Brass/Nickle Plated
Main Market
Europe/Asia/American
Transport Package
Cartons by Sea or Air
Production Capacity
10ton/Day
Product Description

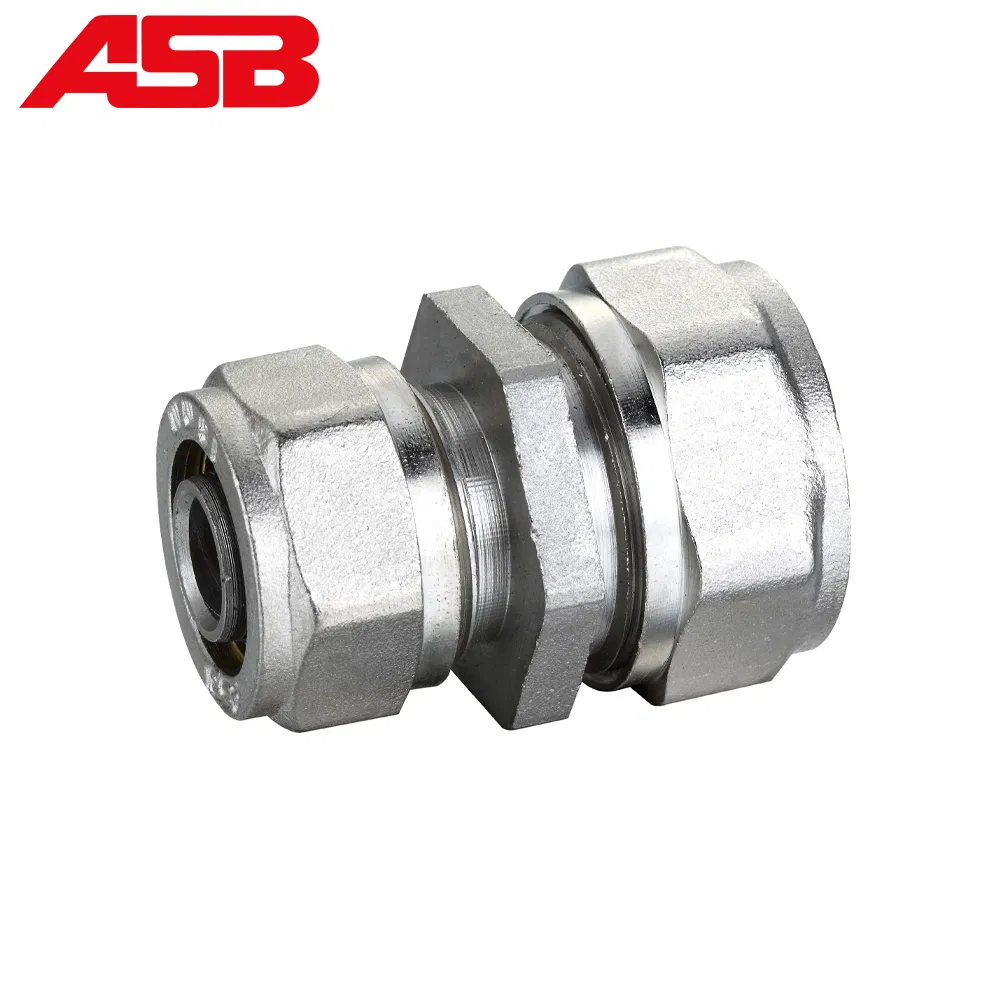

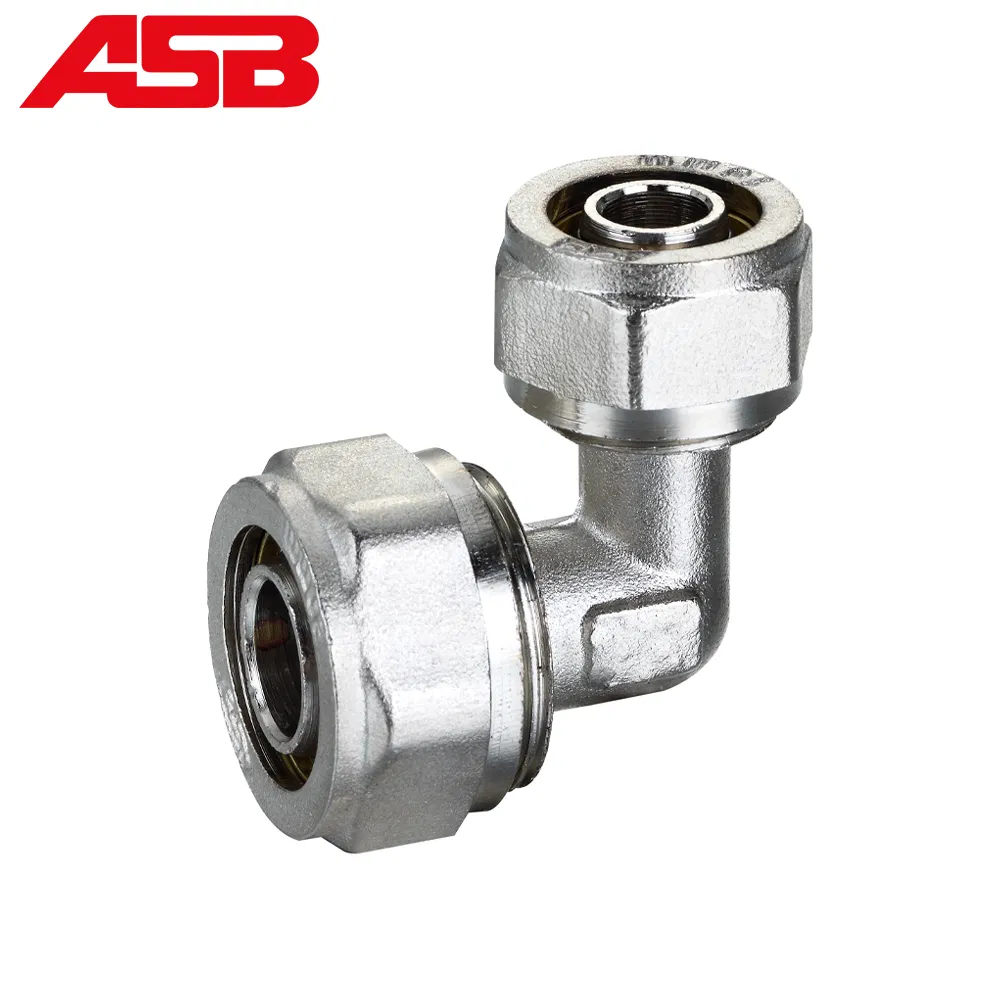

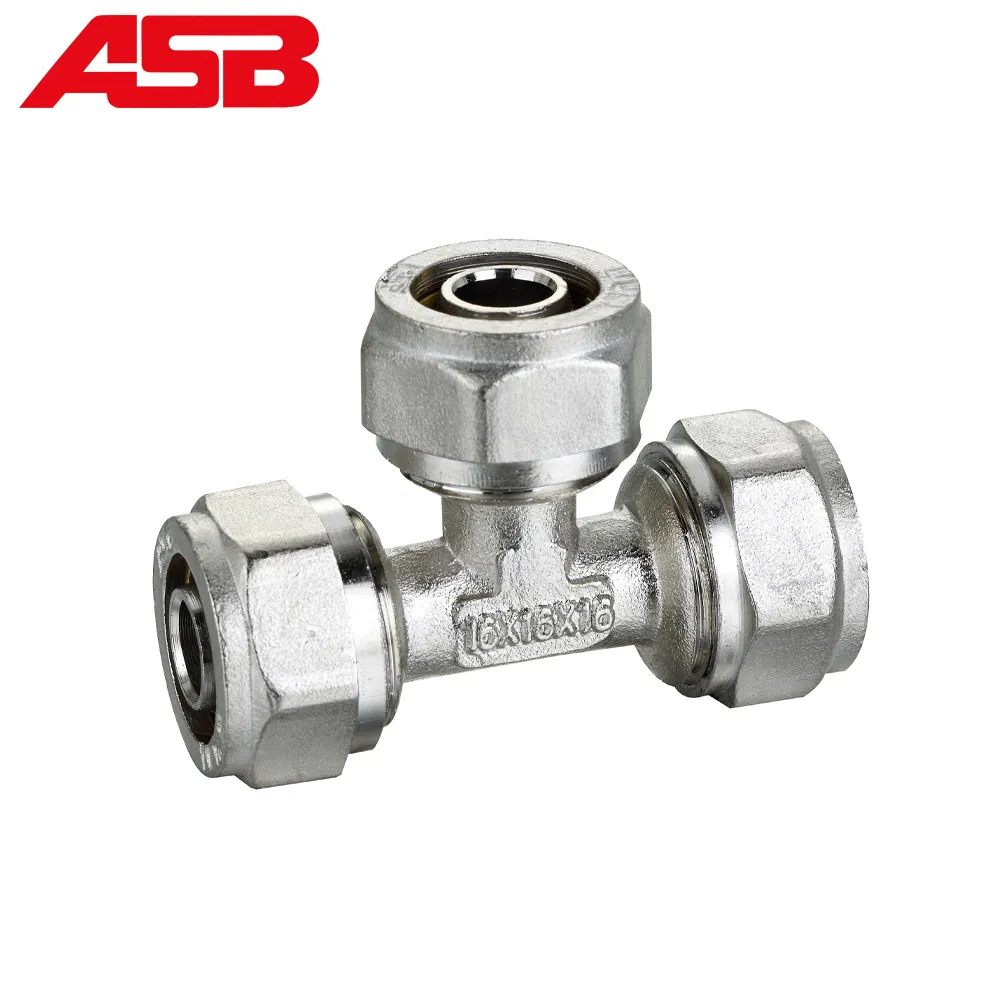

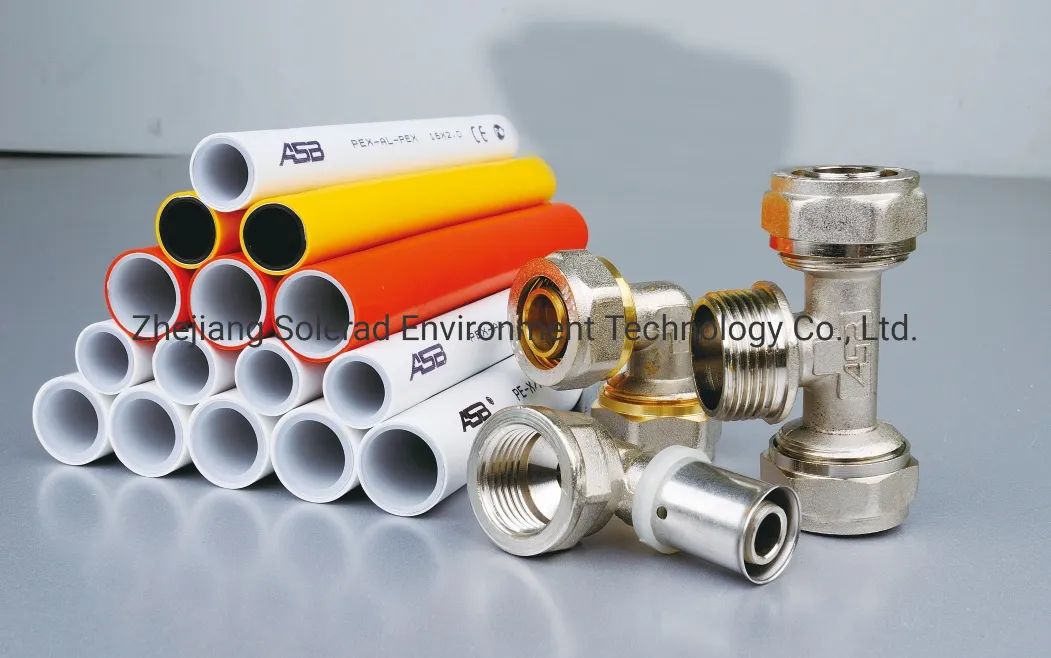

The compression fittings (brass pex fitting) are among the most popular fittings for PEX pipe or PEX-AL-PEX pipes. This tubing usually comes with two rubber O-rings positioned over the barbs. Each one includes an insert that goes inside the tubing, a compression ring that is split diagonally, and a compression nut. The insert goes inside the tubing and the compression ring on the outside with the compression nut over it. This is the only form of PEX fitting that does not require a special compression tool. All you have to do is use a wrench or pliers and tighten the nut over the compression ring. As the ring is tightened, the diagonal cut closes forming a compressed ring.
Product Specification
| Parameter |
Details |
| Product Name | Brass Pex Fittings |
| Materials | Nut, Body, Cut-ring: CW617N or HPb 58-3A Brass |
| O-ring | EPDM |
| Color | Natural Brass / Nickle Plated / Part Nickle Plated |
| Size | 16mm, 18mm, 20mm, 25mm, 26mm, 32mm |
| Name |
Type of Fittings |
| Brass Pex Fittings | Brass crimp style fittings |
| Poly or plastic crimp style fittings |
| Push-fit fittings |

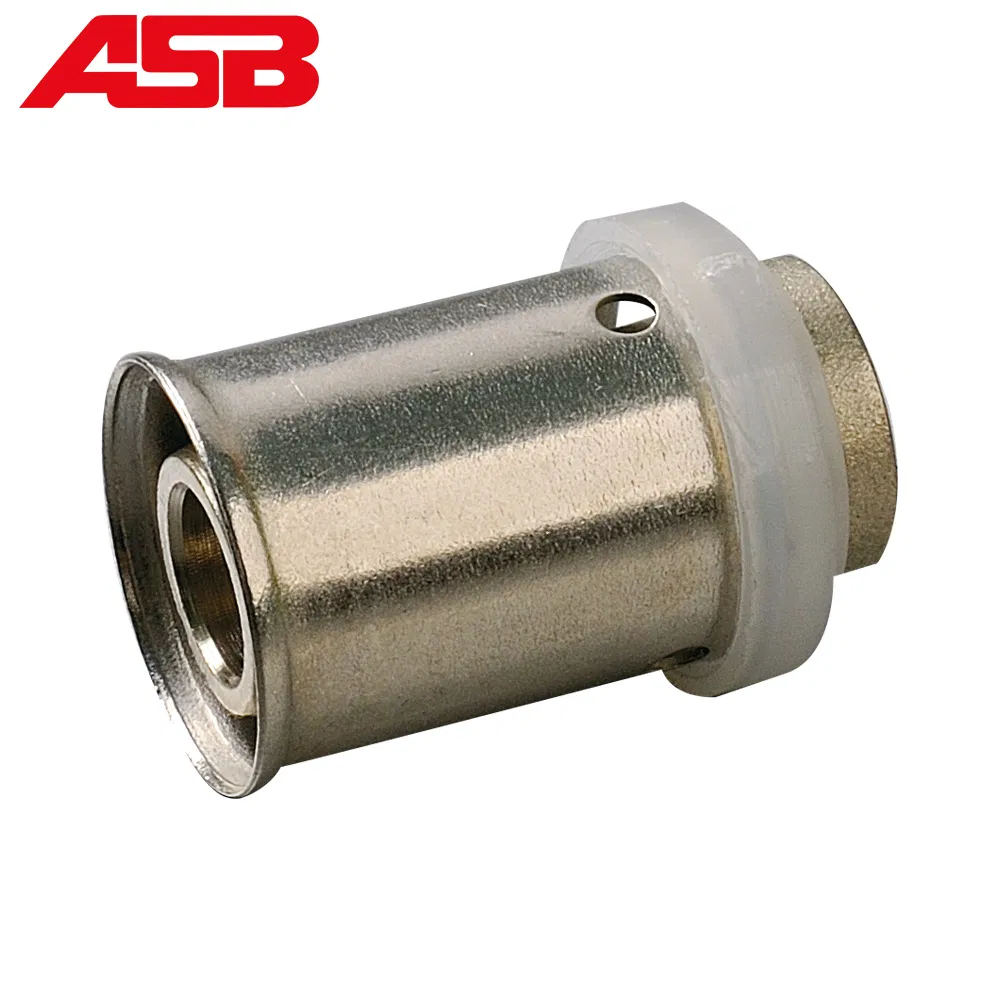

| Press pex fittings |
| Expansion pex fittings |
| Pex compression fittings |
Key Advantages
- Specially designed for multilayer pipe systems.
- Artistic design with high-pressure and corrosion resistance.
- High-quality EPDM O-ring for superior sealing.
- Easily installed and disassembled with a simple spanner.
- Effectively prevents liquid or gas leaking.
- Recyclable materials to save resources.
- Improved design nuts and wall thickness for a favorable quality-price ratio.
Installation Illustration
Packing and Shipping
1. Exportation standard box in plain color
2. Customized per clients' design
Frequently Asked Questions
What tools are required for installing compression fittings?
Unlike other PEX fittings, compression fittings do not require specialized crimping or expansion tools. You only need a standard wrench or pliers to tighten the compression nut.
Are these fittings suitable for both water and gas applications?
Yes, these brass compression fittings are designed for use in water heating and gas systems, providing a reliable and leak-proof connection.
What materials are used in the construction of these fittings?
The nut, body, and cut-ring are made from high-quality CW617N or HPb 58-3A brass, and the O-rings are made from durable EPDM for enhanced sealing.
Can these fittings be reused or recycled?
Yes, the design allows them to be easily disassembled with a spanner, and the brass material can be recycled, making them an environmentally friendly choice.
What sizes are available for these compression fittings?
We offer a wide range of sizes including 16mm, 18mm, 20mm, 25mm, 26mm, and 32mm to fit various piping requirements.
How does the compression mechanism work?
As the compression nut is tightened, it forces the diagonally split compression ring to close around the tubing, creating a secure, high-pressure resistant seal.
