High-Speed Dual Beam Metal Analysis System with Smart Thermal Control

Customization:	Available
Warranty:	2 Year
File Format:	STEP, IGES, SLC, CLI, STL

Send Inquiry

Product Description

Basic Information

Nozzle Number

Dual-Laser

Connection

WiFi

Precision

<100mu

Thickness

20-80mu

Printer Material

Plastic, Metal

Forming Technology

SLM

Operating System

Windows 10

Transport Package

Wooden Box Packing

Product Overview

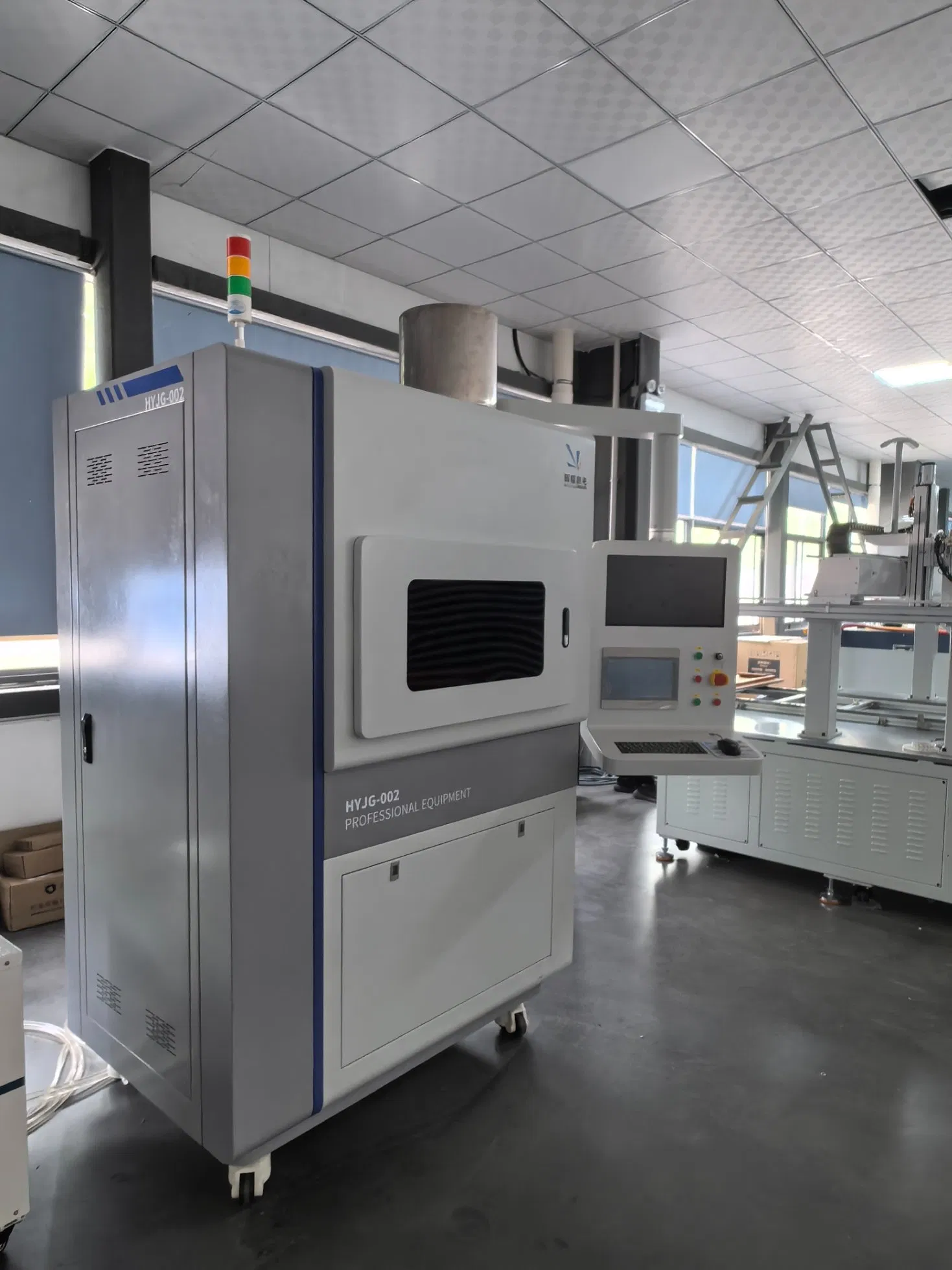

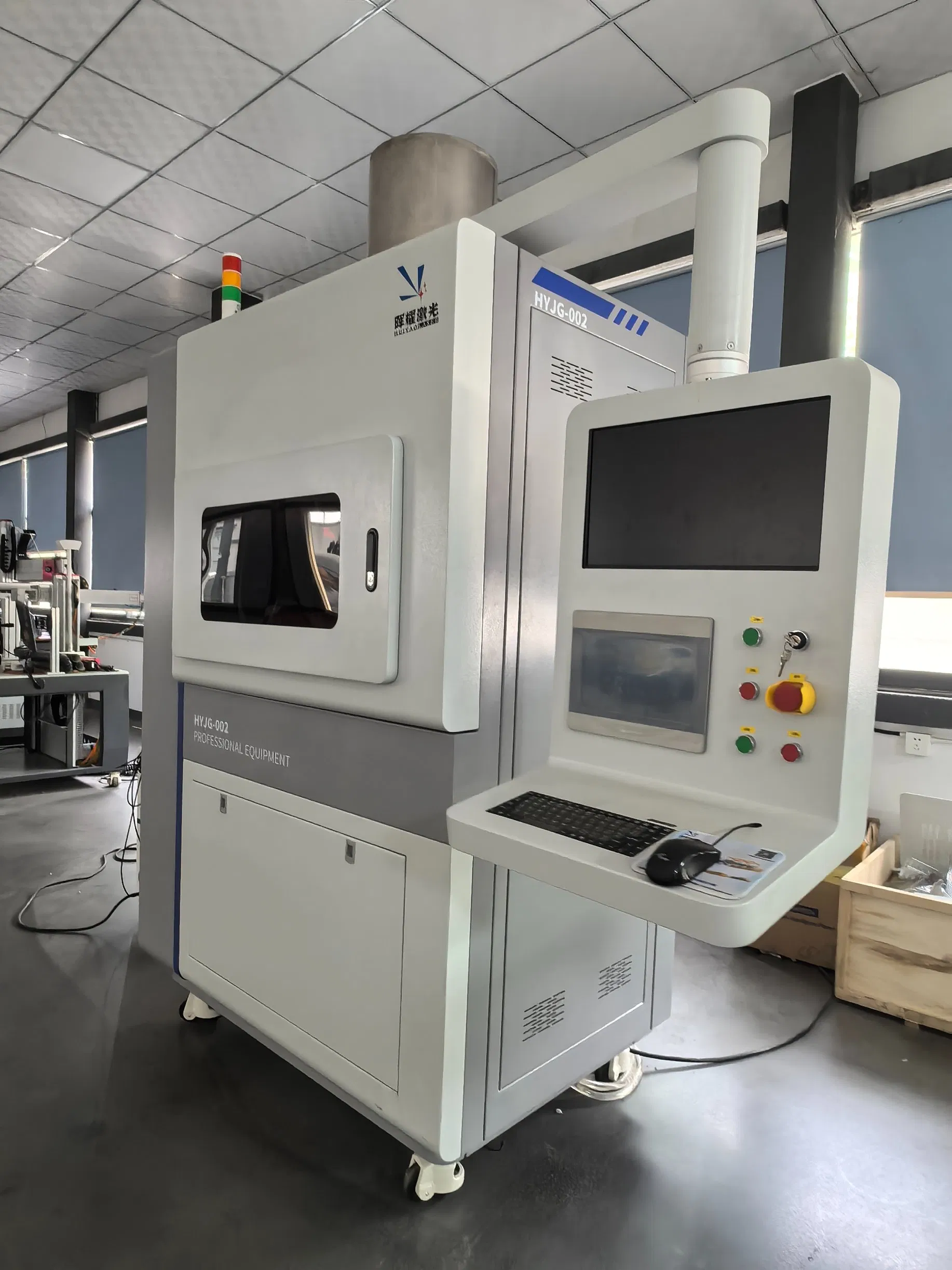

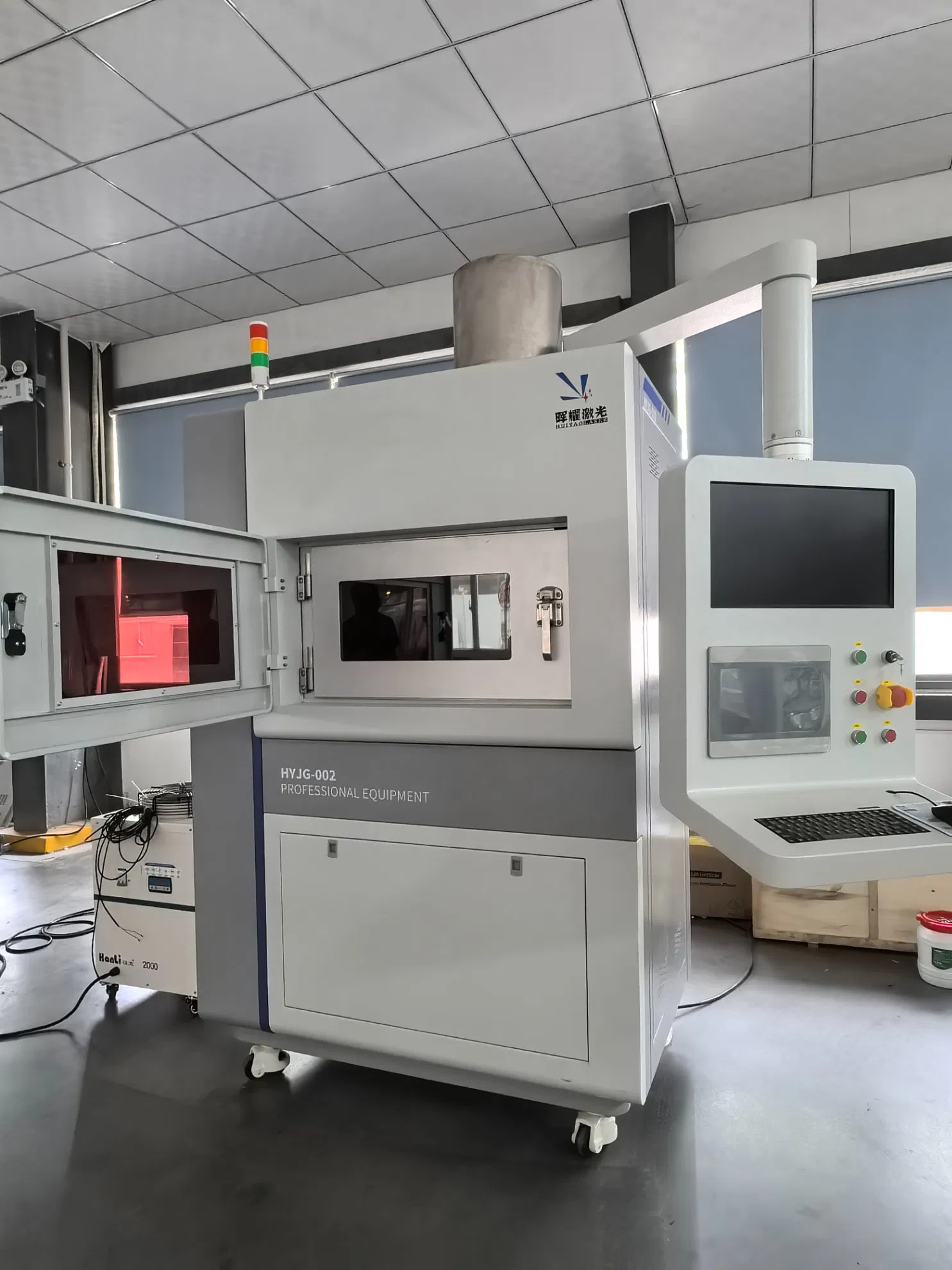

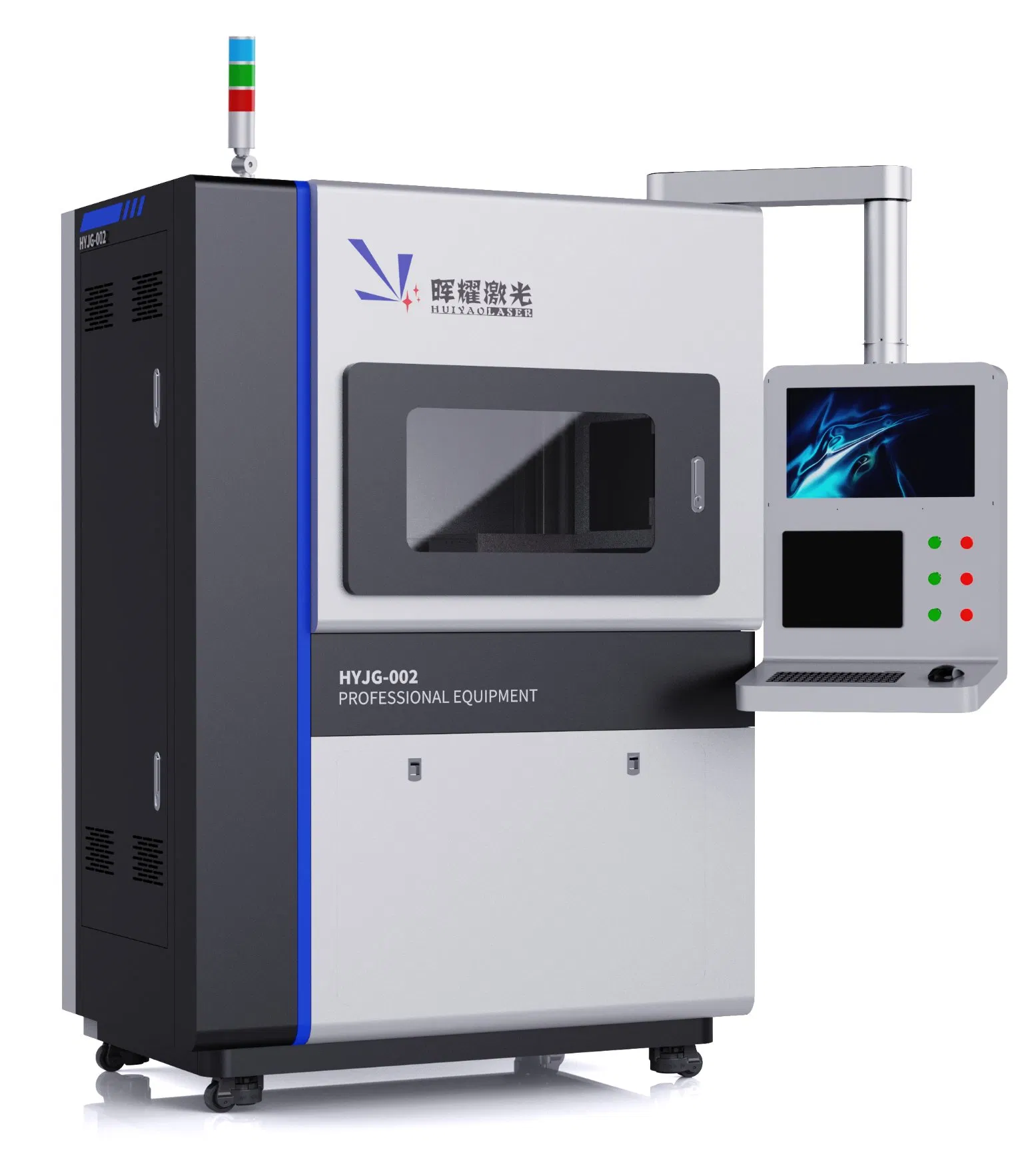

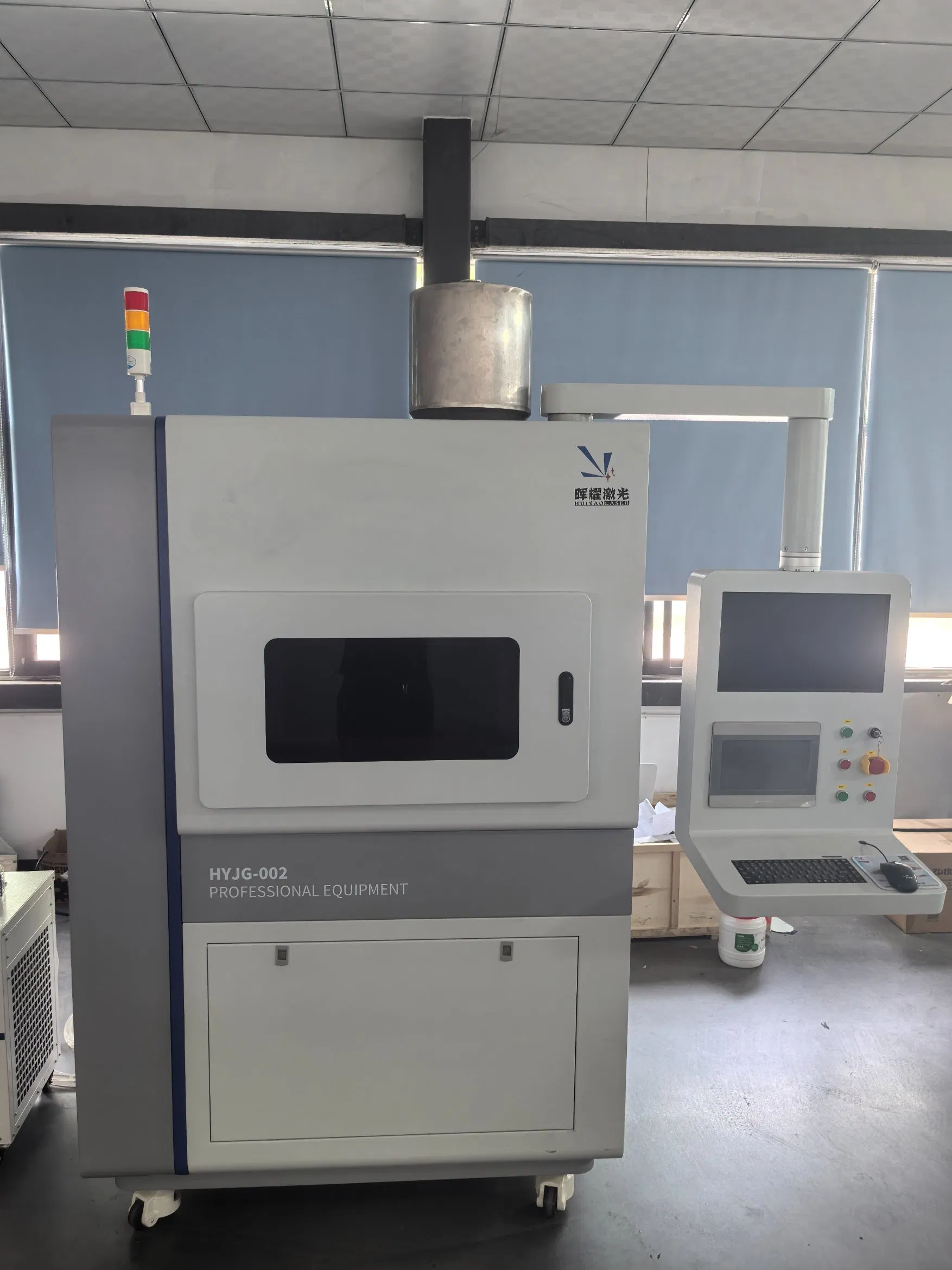

The SLM Dual-Laser Metal 3D Printer is a high-efficiency, intelligent, and customized industrial-grade additive manufacturing system specifically designed for aerospace, medical implants, and precision tooling. By integrating dual-laser dynamic coupling technology (500W primary laser + 200W secondary laser), closed-loop powder management (powder utilization rate ≥95.7%), and intelligent quality monitoring (melt pool spectral analysis ±10ºC), the system reliably produces titanium alloy orthopedic implants with 50-200μm porous structures, nickel-based superalloy turbine blades featuring 0.3mm internal cooling channels, and conformal cooling injection molds, complying with ISO/ASTM 52900 additive manufacturing standards and NADCAP aerospace certification requirements.

Key Features

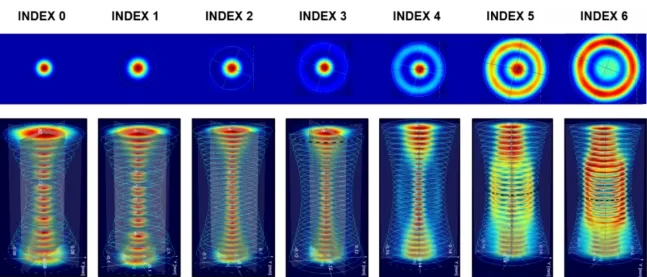

Adjustable Laser Spot

Adjust the laser spot from 35-80μm to optimize energy distribution for diverse materials.
Smaller spots (35-50μm) enable ultra-fine details for microstructures; larger spots (60-80μm) boost efficiency for bulk components.

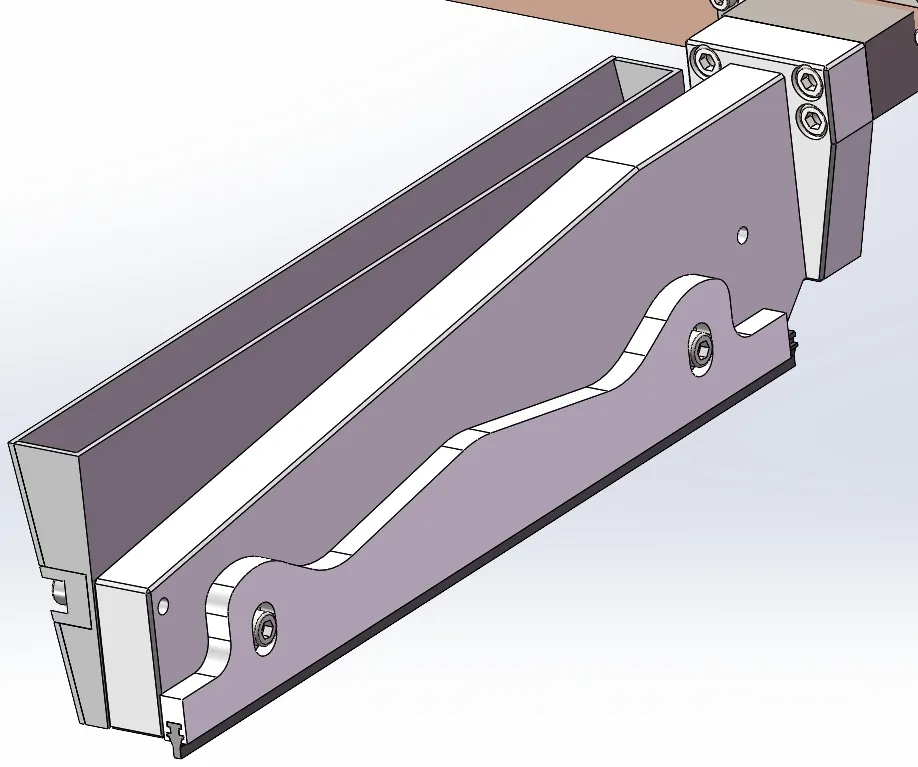

Dual Scraper System

Equipped with soft/hard dual scrapers to ensure printing accuracy and prevent thin-walled part jamming.

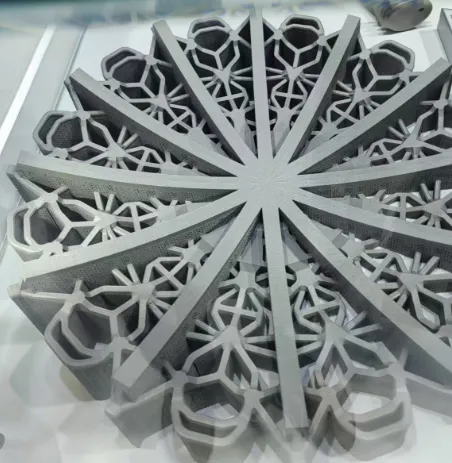

High Precision & Density: Layer thickness 0.02-0.05mm, density up to 99%-100%, surface roughness Ra6-15 μm.

Technical Specifications

Parameter	Specification
Model	SLM Dual-Laser
Laser	IPG 500W / Domestic Laser
Build Size	Diameter 252mm
Spot Size	≈40μm
Scanning System	ScanLab
Layer Thickness	0.02-0.05mm
Part Density	99%-100%
Accuracy	±0.1mm
Surface Roughness	Ra 6-15μm
Total Power	8KW / 9KW
Compatible Materials	Stainless Steel, High-Temperature Alloys, Titanium Alloys, Aluminum Alloys, High-Entropy Alloys

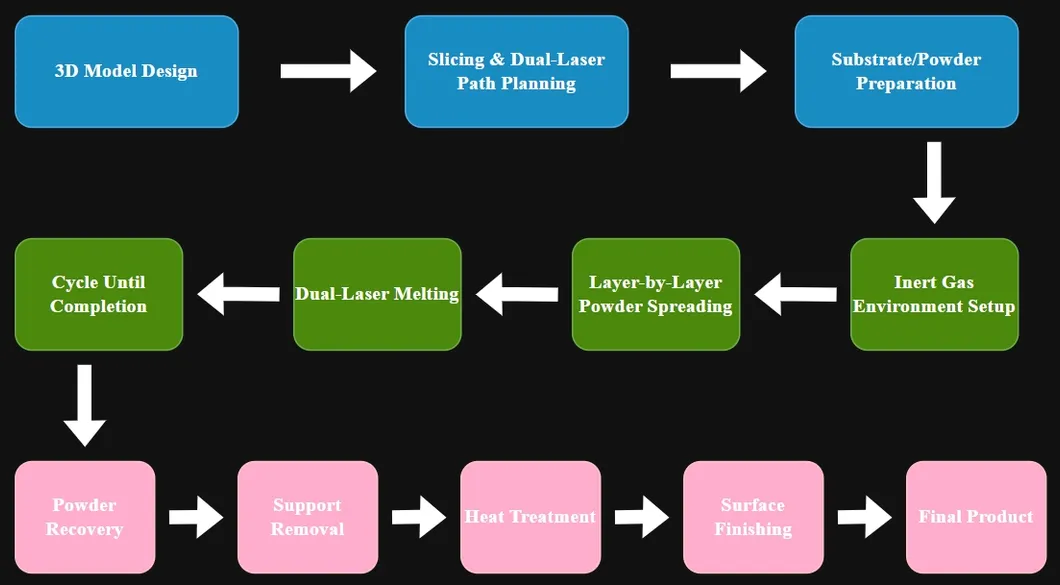

Technical Process Flow

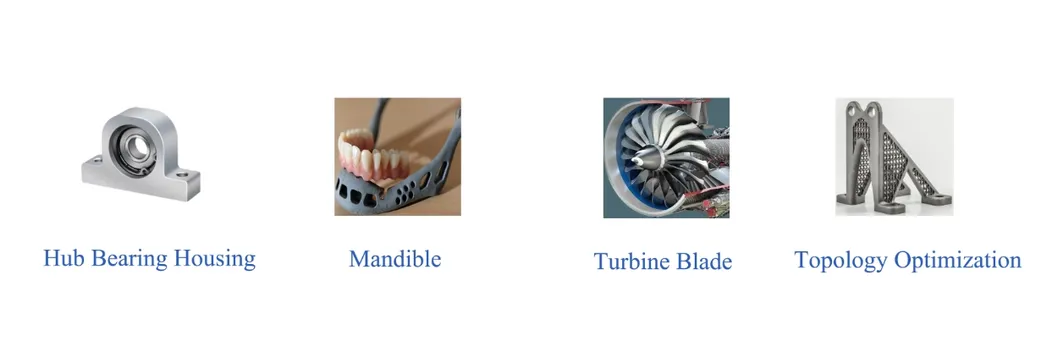

Application Fields

Medical Implants: Porous titanium alloy orthopedic implants (50-200μm pore structures).
Aerospace Components: Nickel-based superalloy turbine blades with 0.3mm internal cooling channels.
Industrial Molds: Conformal cooling injection molds (40% cooling efficiency improvement).
Low-Volume Customization: Topology-optimized lightweight suspension brackets (45% weight reduction).

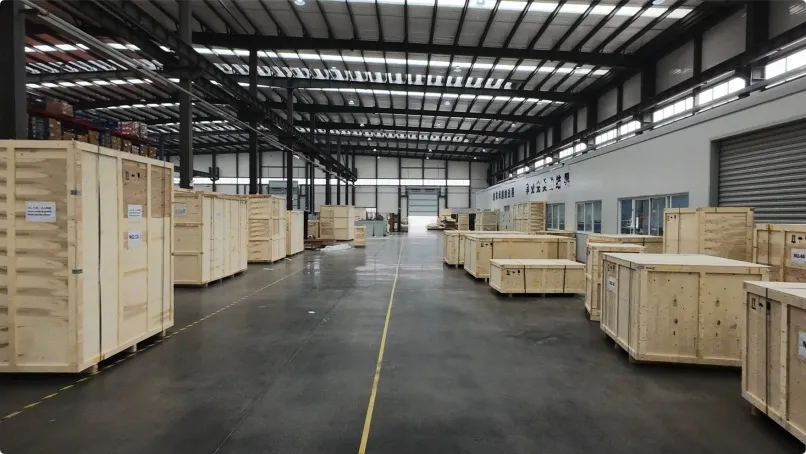

Packaging & Shipping

Precision Protection, Global Assurance: Every system is meticulously packaged in heavy-duty wooden crates with anti-vibration reinforcement, certified to withstand extreme transit conditions. Our logistics network ensures 99.9% damage-free delivery to 50+ countries.

Professional Manufacturing

The manufacturer is an industry-leading producer of new energy intelligent equipment and SLM dual-laser 3D printing systems, dedicated to providing innovative turnkey solutions for Battery Module PACK Production Lines, CCS Intelligent Manufacturing Lines, and metal additive manufacturing. Since 2019, the company has continuously advanced the development of laser processing and automation technologies, delivering high-performance equipment to global industries with a focus on precision, efficiency, and Industry 4.0 integration.

Global Presence & Certifications

Frequently Asked Questions

What checks are required before starting the equipment?

Ensure sufficient inert gas supply (oxygen level <100ppm); verify powder filling meets minimum requirements (30% of build chamber); calibrate scraper leveling (tolerance ±0.01mm).

How to extend the lifespan of the laser system?

Regularly clean laser optics every 200 hours; avoid prolonged full-power operation (recommended ≤80%); maintain stable cooling system (20±2ºC).

How to maintain the powder recycling system?

Clean the sieve after each print to prevent clogging; inspect powder delivery pipes monthly; replace powder filters every 500 hours or after 200kg of powder.

How to handle abnormal alarms during operation?

Record the alarm code and refer to the operation manual; check the status of related sensors like oxygen level and pressure; contact technical support with log files.

How to ensure consistent print quality?

Regularly calibrate the laser beam path (every 100 hours); use standard test pieces to verify equipment status; monitor melt pool stability via high-speed cameras.

What should be considered for long-term equipment shutdown?

Empty and clean the powder/build chambers; disconnect power and drain the cooling system; periodically start the equipment for a self-check monthly.
