Basic Information
Model NO.
FL1-20B, FL1-20C, FL1-20D, FL1-20E
Certification
CE, FDA, ISO13485
Port of Shipment
Shanghai Ningbo

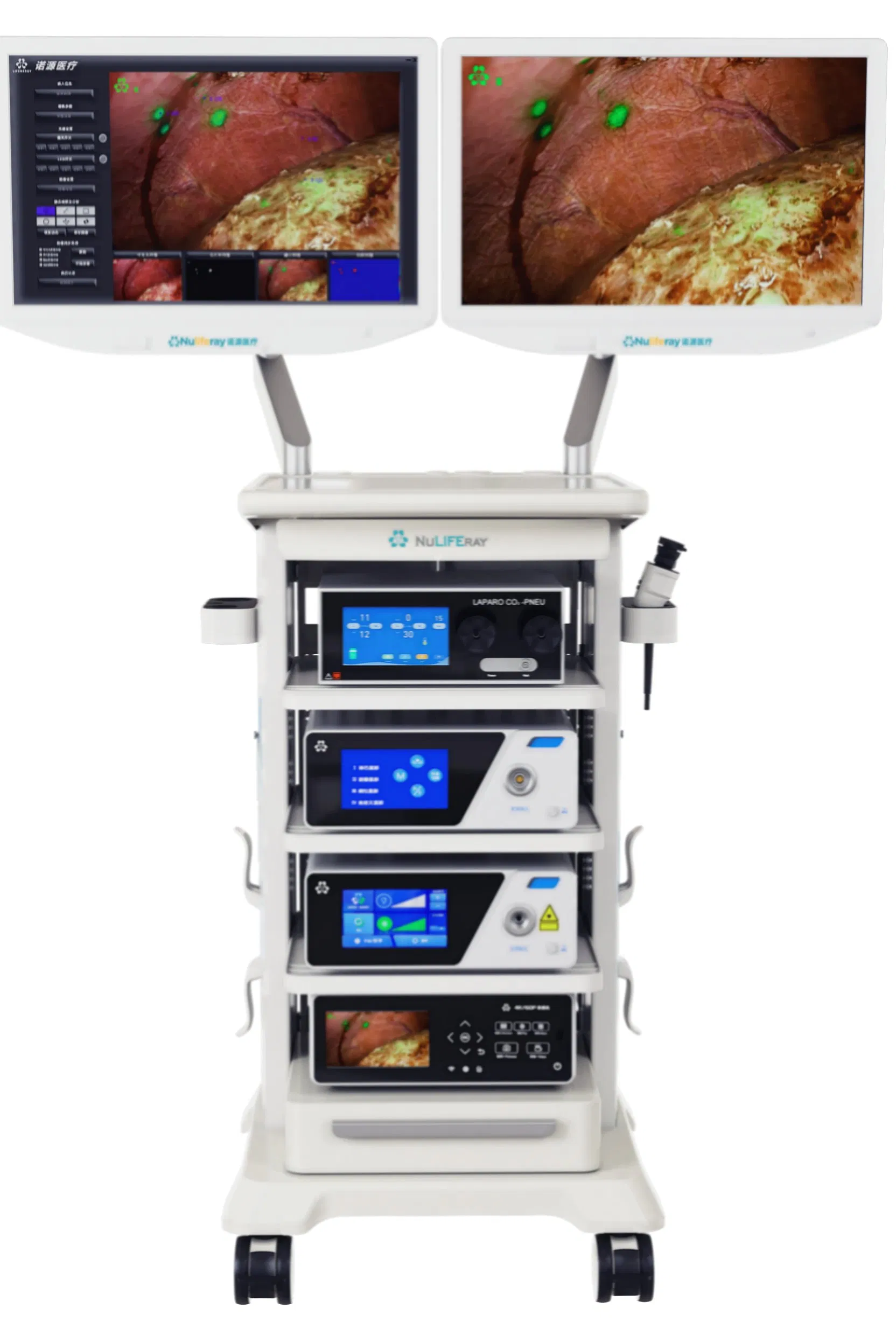

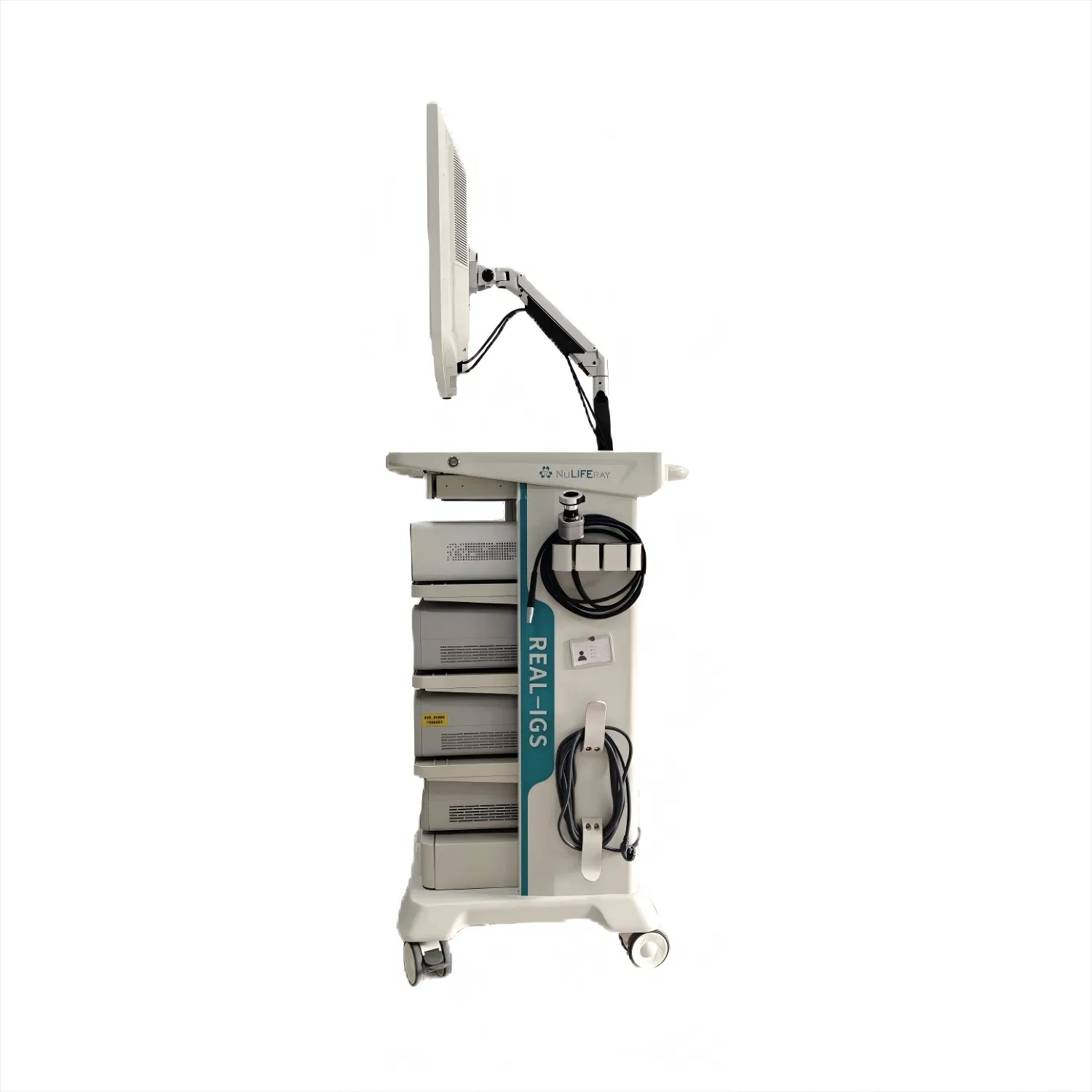

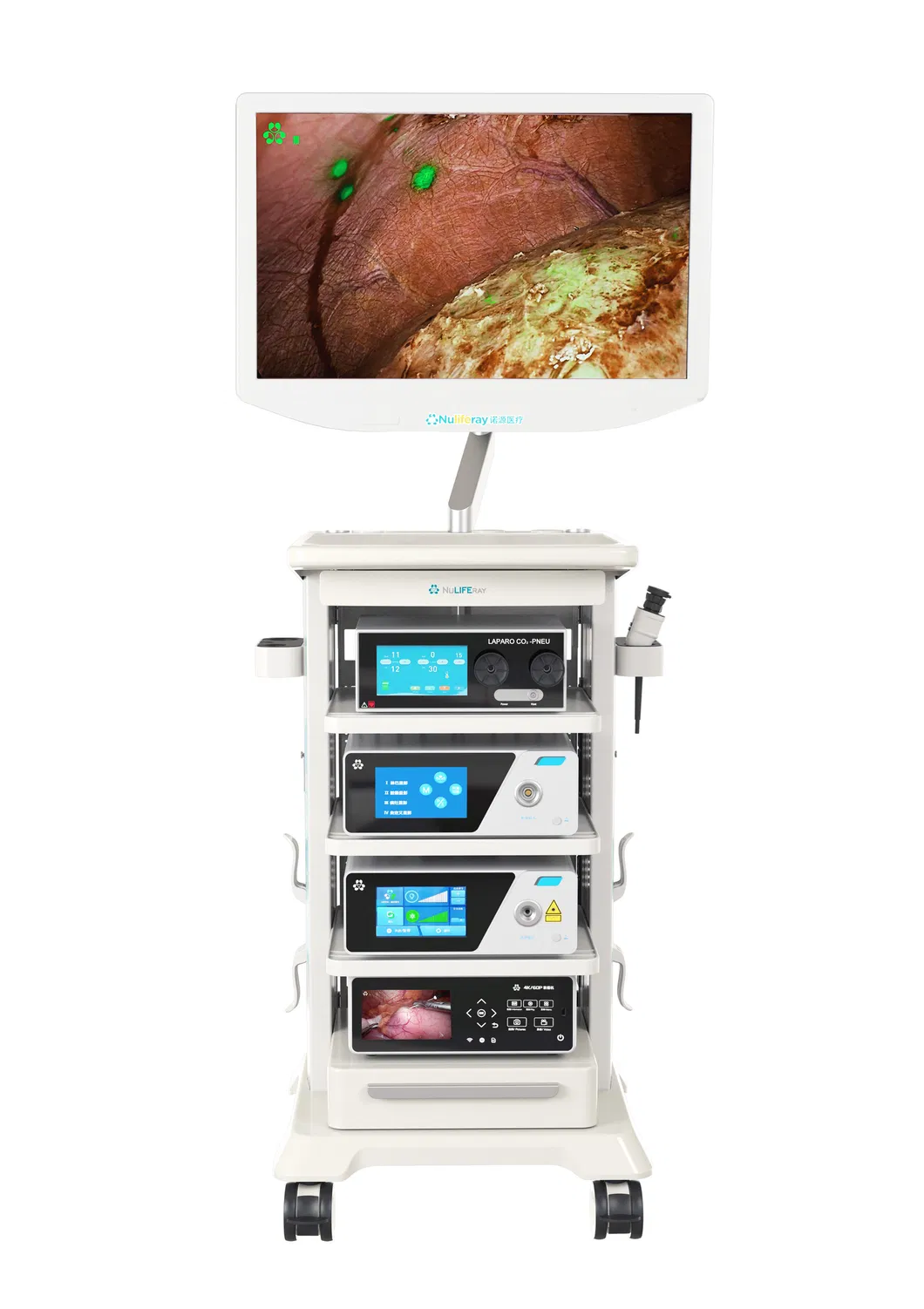

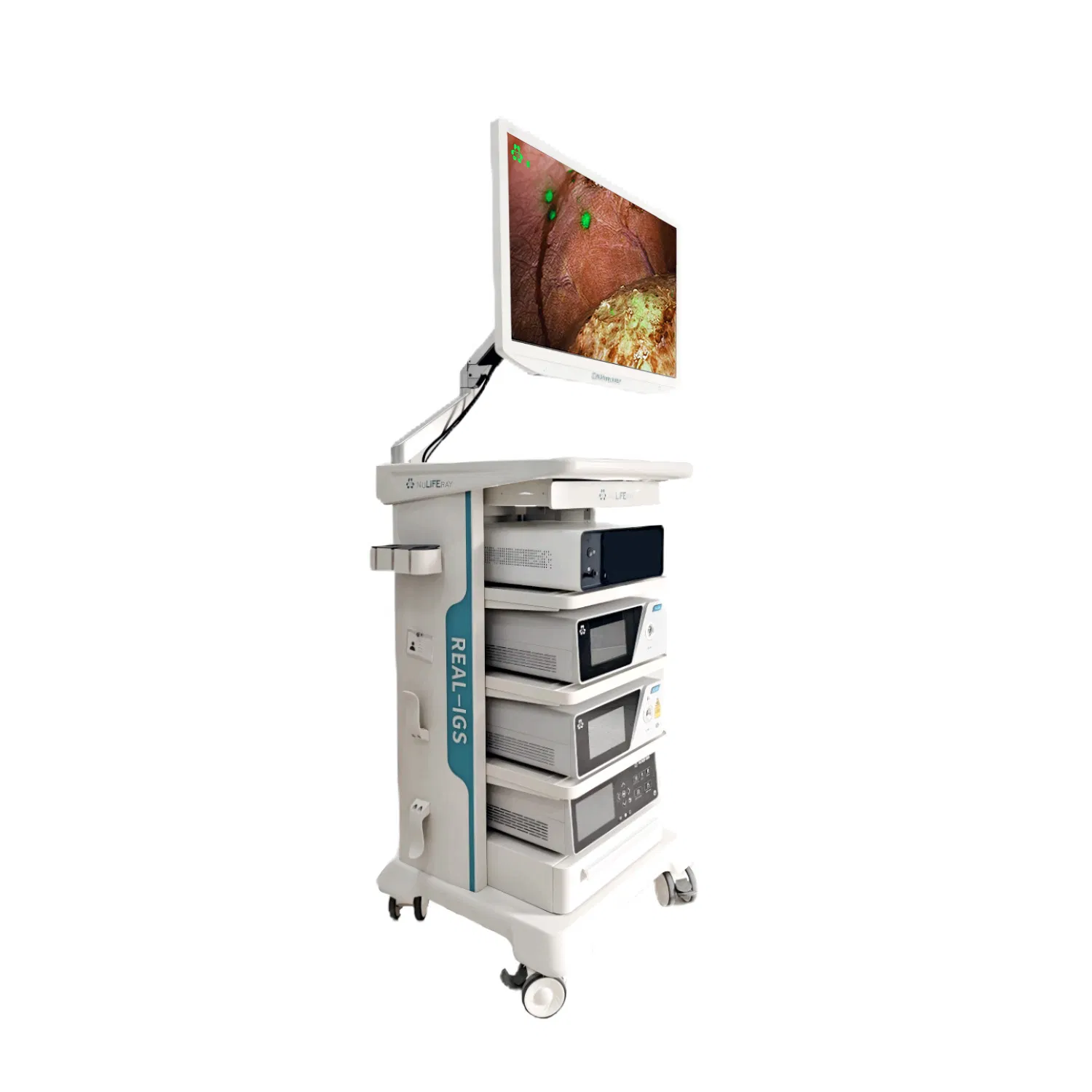

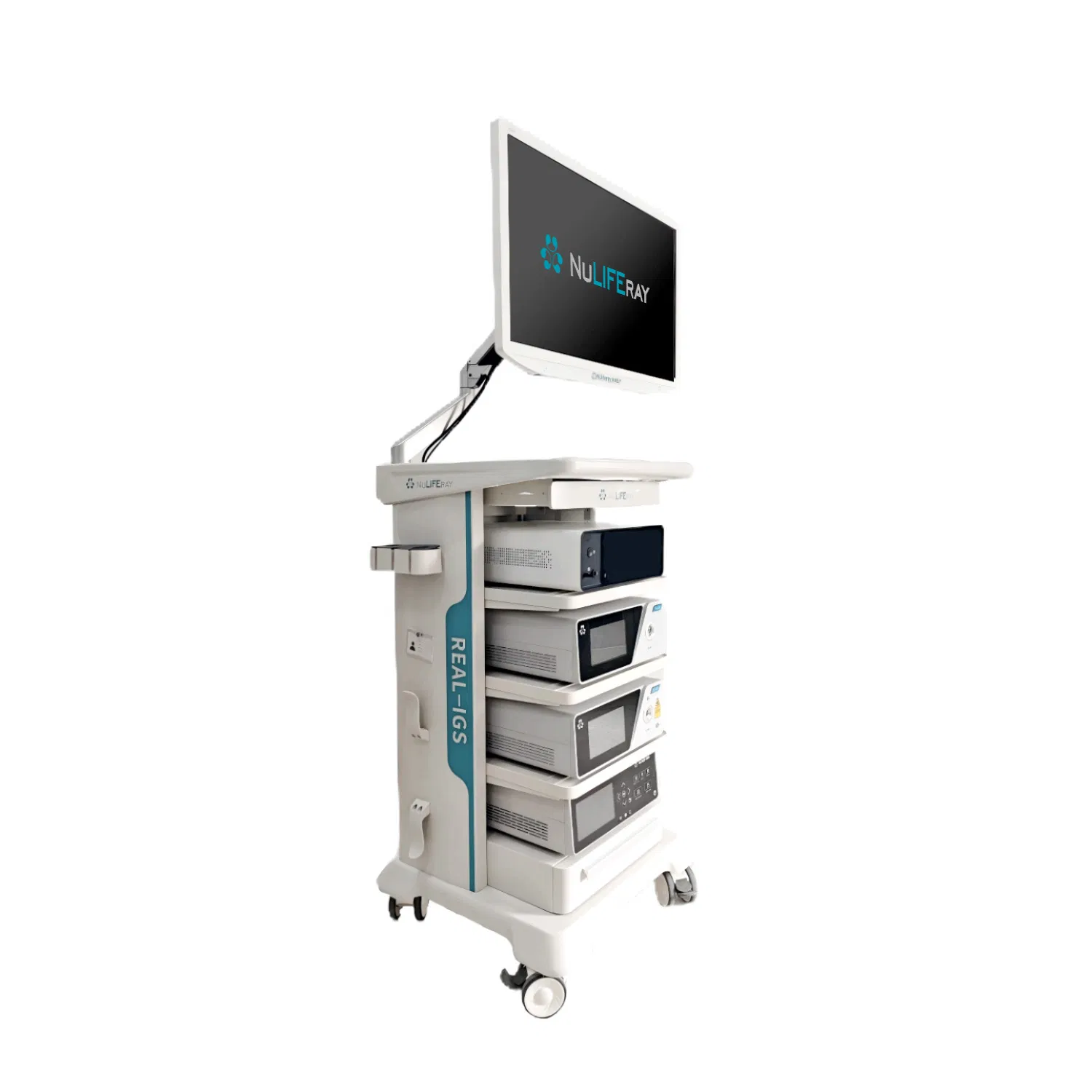

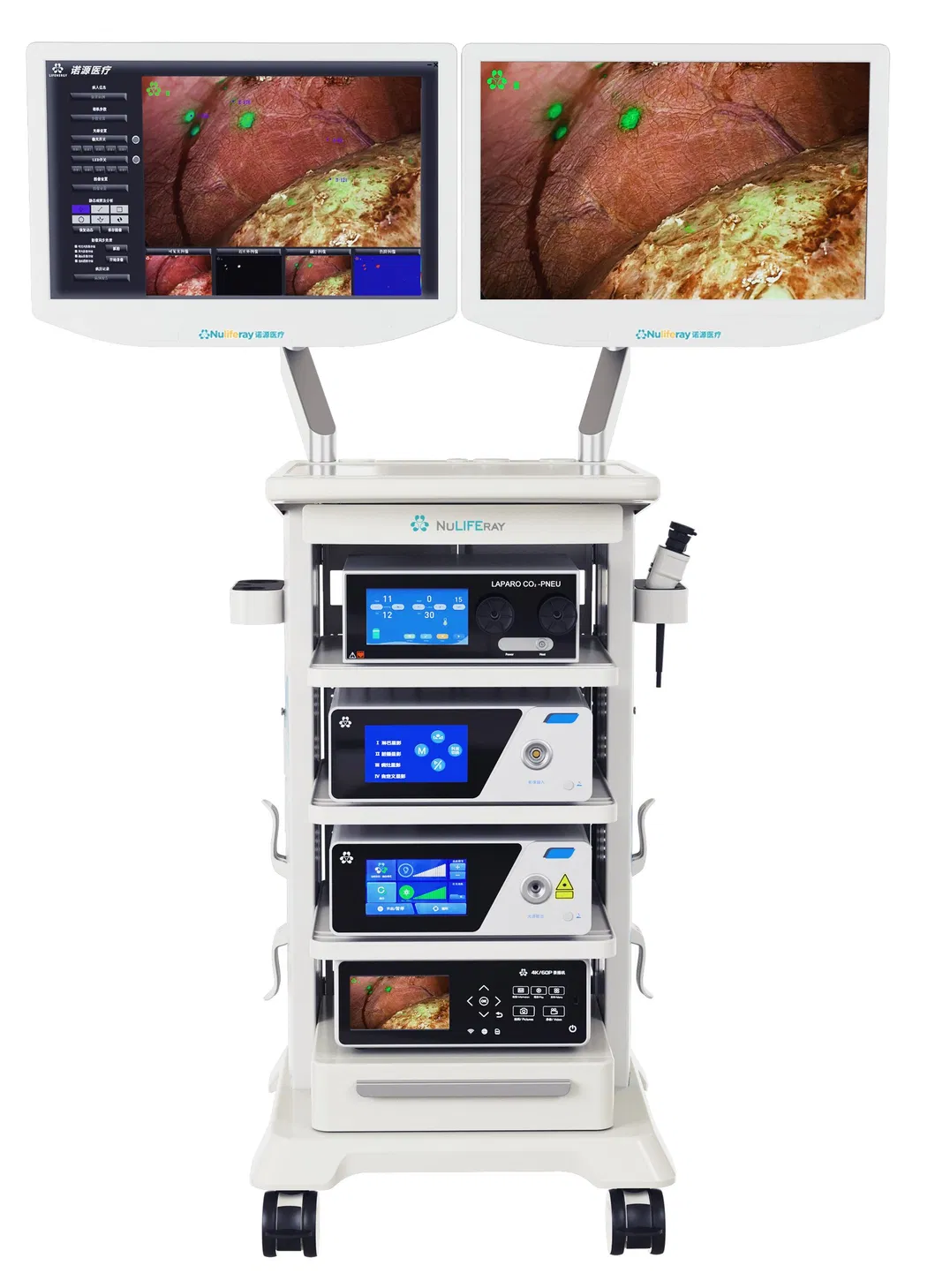

4K Endoscopic Fluorescent Imaging System
Technical Theory
The 4K endoscopic fluorescence imaging system can not only be used as a 4K white light endoscope system to meet the clinical needs of various departments for ultra-high-definition endoscopes, but also can be used in combination with the ICG fluorescent tracer. It provides one-click selection of color images, black and white fluorescent images, color fluorescent images, and multiple images in minimally invasive endoscopic surgery. It can also switch lymphatic imaging mode, organ imaging mode, and lesion imaging mode with one click, and reserve custom modes according to the needs of the operator.
The system can also be equipped with a data workstation to achieve quantitative analysis of color gamut images and fluorescence intensity. It is suitable for dynamic observation of lesions, anatomical structures, and blood flow and lymphatic flow in minimally invasive laparoscopic surgery. Its spatial resolution is significantly better than traditional imaging methods, allowing surgeons to observe lesions, blood flow, and anatomical structures in real-time.
Partial Parameters
| Parameter Item |
Specification Details |
| Laser source pulse width | N/A (continuous laser emission) |
| Chip structure | 4CMOS |
| Handle function keys | 4 remote control buttons |
| Optical adapter | Fixed focus/zoom |
| Monitor size | 32 inches and above |
| Monitor resolution | ≥3840×2160P/4096×2160P |
| Pixels and frame rate | ≥8.29 million pixels, 60 FPS |
| Endoscope | 0° or 30° field of view, 5mm or 10mm |
Product Accessories

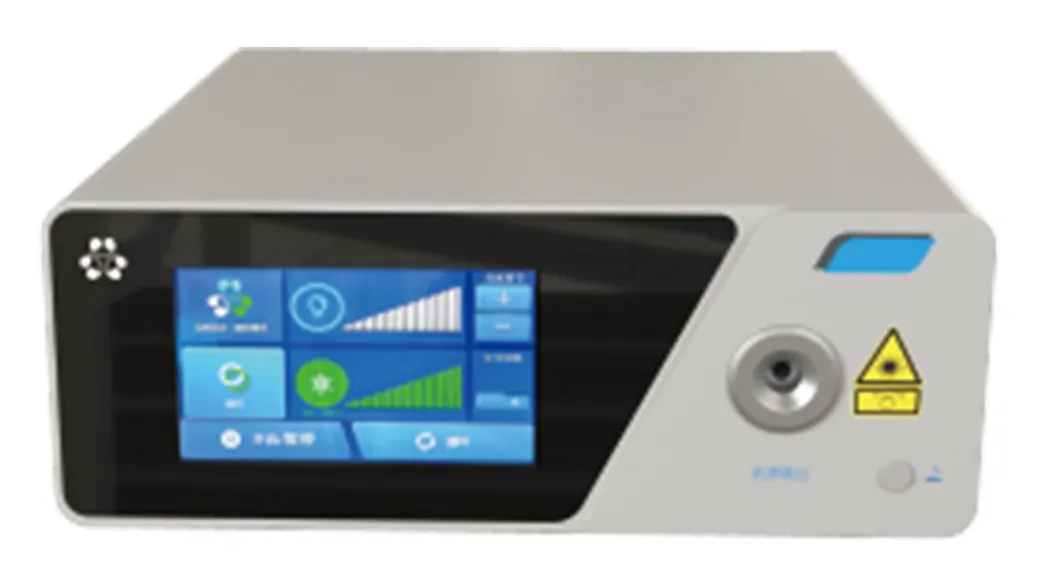

P1: Independent dual light source

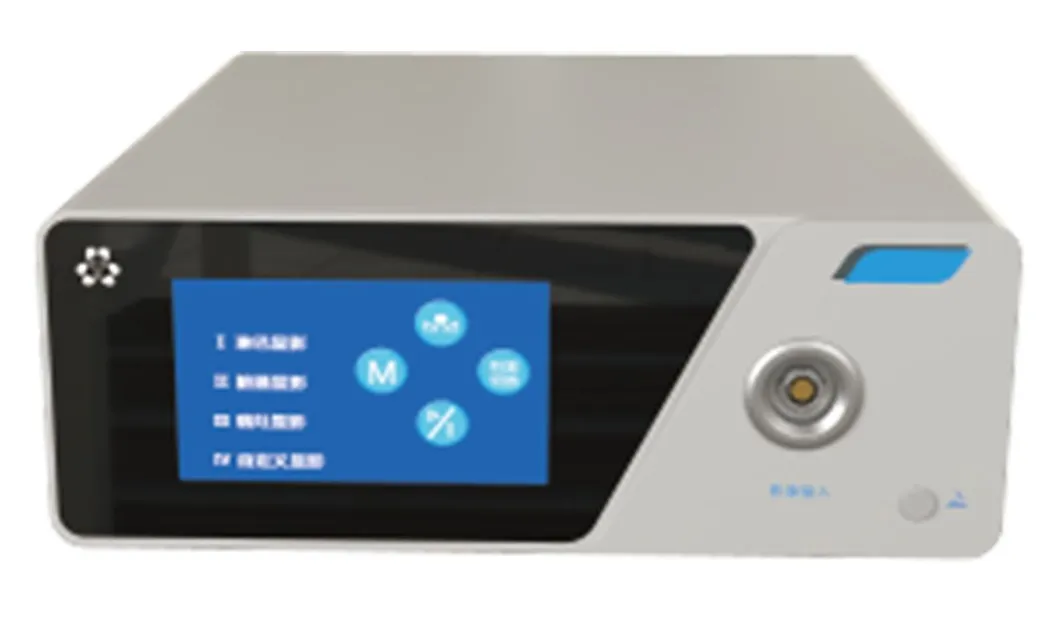

P2: Ultra HD Camera System

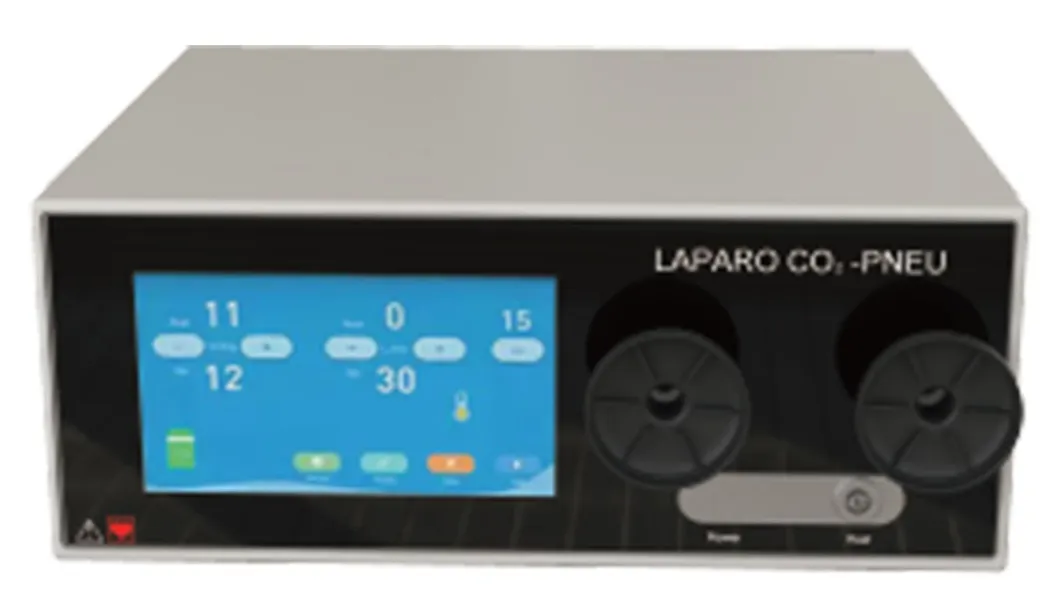

P3: Fully automatic insufflation system

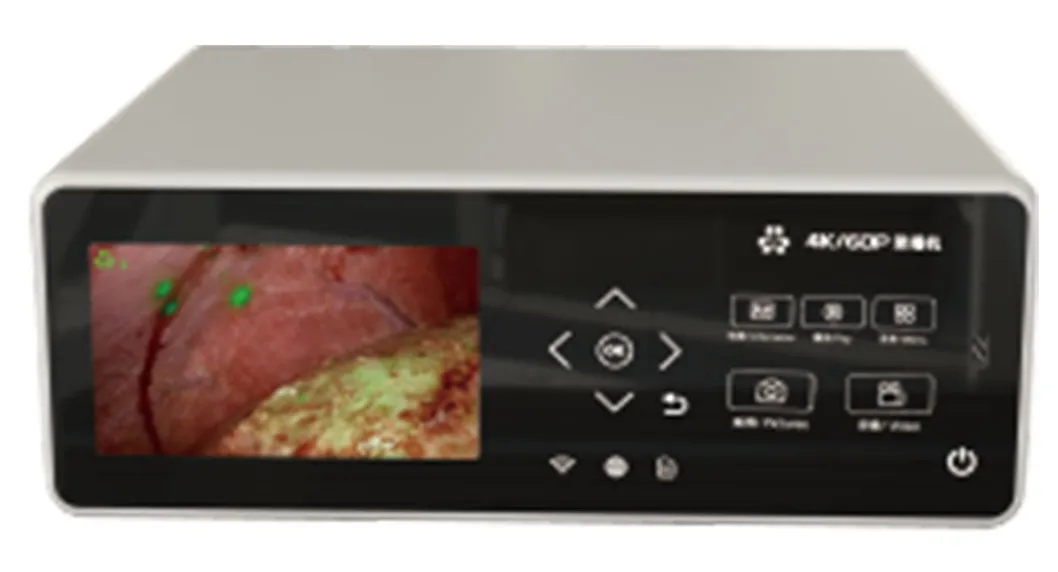

P4: True 4K recording and broadcasting system

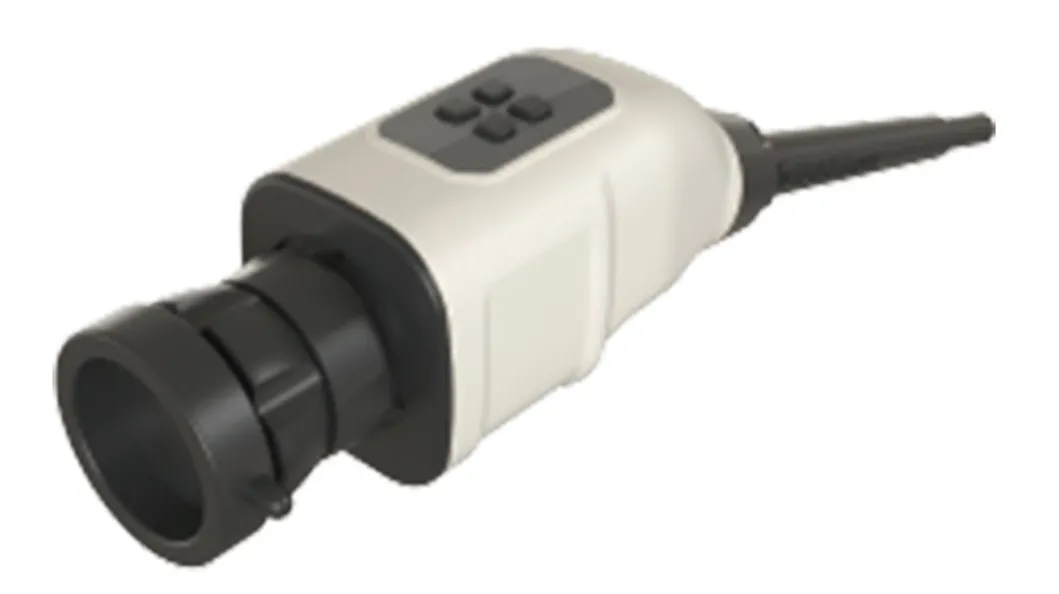

P5: 4CMOS 4K handheld camera

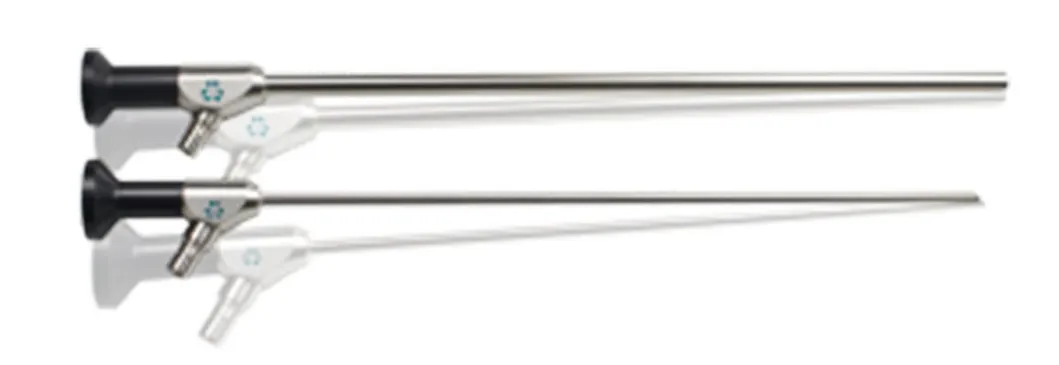

P6: Antireflective fluorescent endoscope

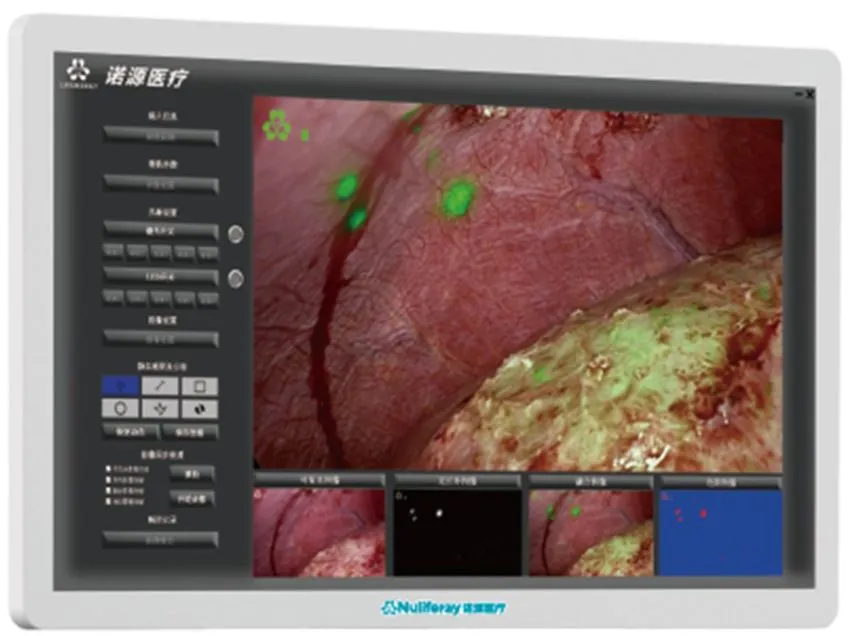

P7: Embedded software for workstation

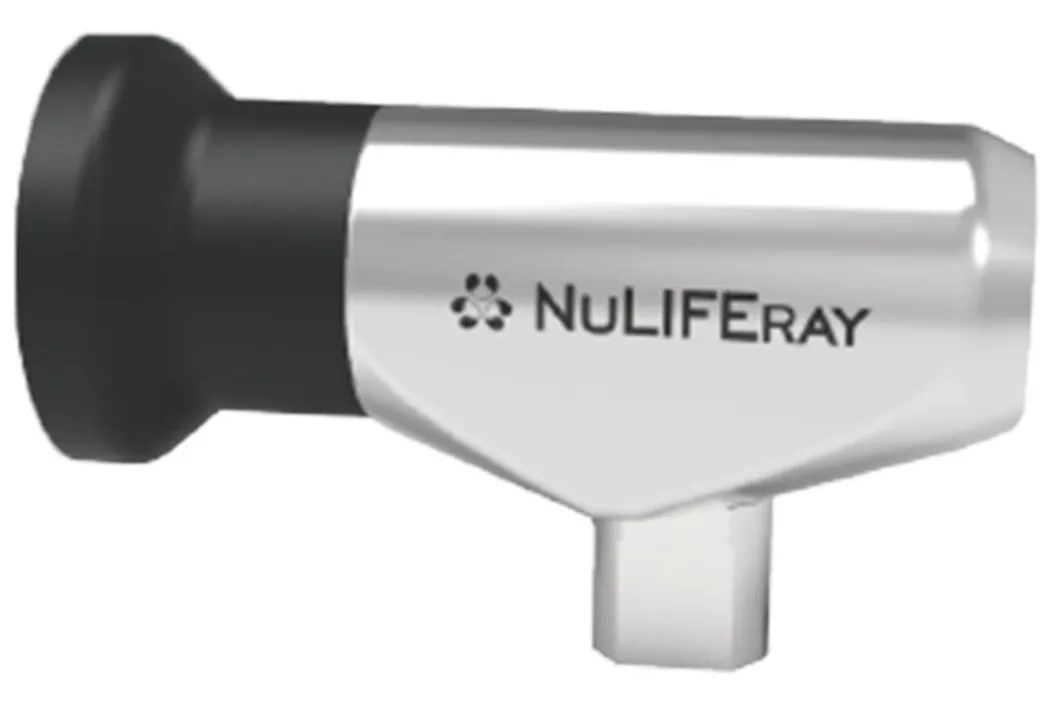

P8: 0° Highly sensitive fluorescence objective

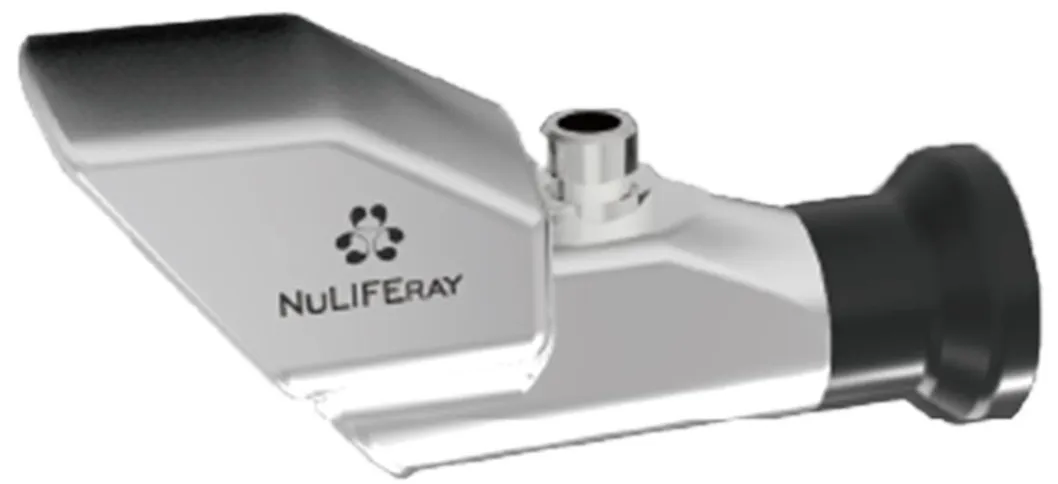

P9: 28° Highly sensitive fluorescence objective
Product Advantages
- Full-link 4k imaging: Acquisition to output (endoscope, camera, chip, transmission, display).
- Ultra sensitive molecular fluorescence: Detects tiny tumors as small as 0.288 mm.
- High-intelligence application experience: One-button switching and automatic exposure adjustment.

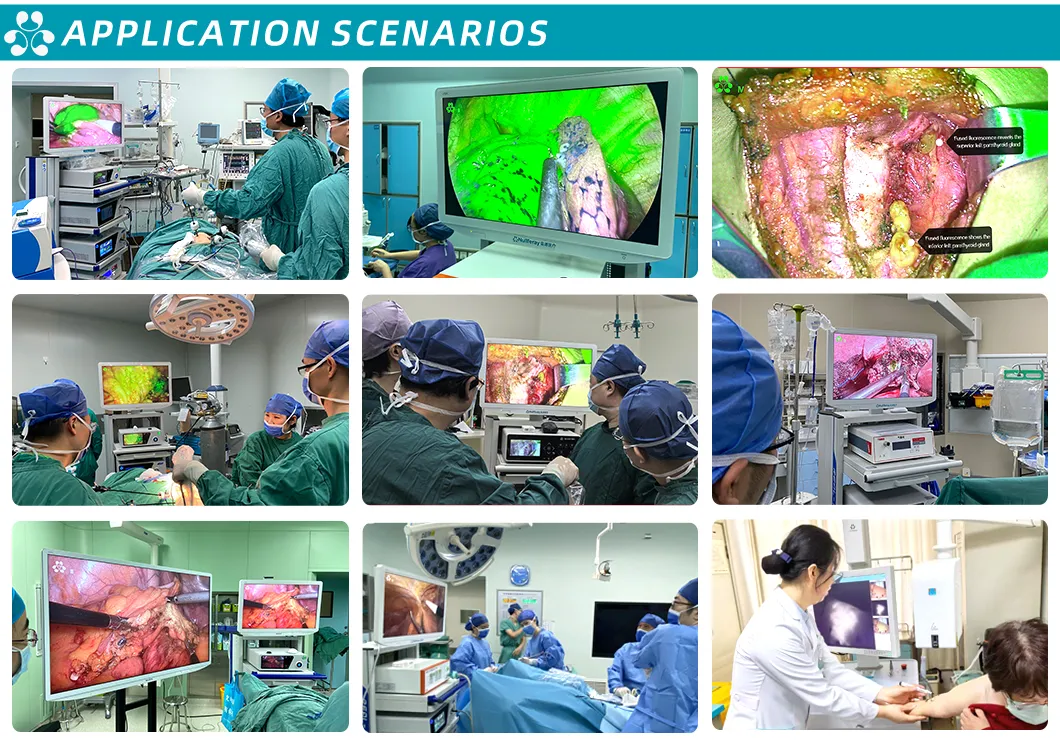

Specific Applications
Precision Hepatobiliary Surgery
Real-time imaging for liver cancer surgery, liver segment marking, and identification of complex biliary tracts.
Precision Gastrointestinal Surgery
Intraoperative localization of tumor location, evaluation of resection margin, and labeling of sentinel lymph nodes.
Precision Thoracic Surgery
Locate and trace lymph nodes, identify thoracic ducts, and mark inter-segmental borders during pulmonary resection.
Precision Gynecology/Urology
Real-time identification of ureter and urethra, and exploration of pelvic and abdominal cavity metastases.
Patent Certificates

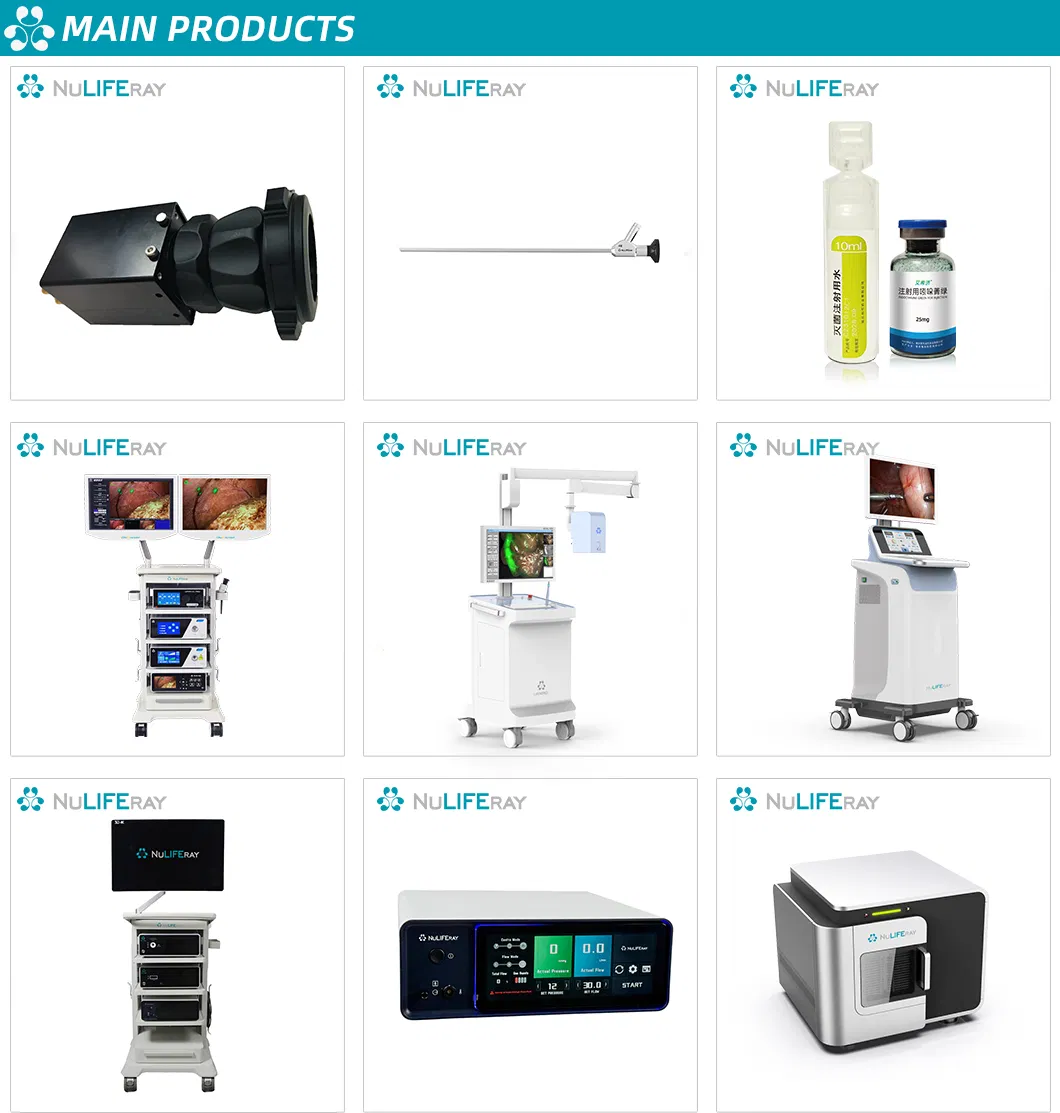

Main Products & Application
Our products include high-end medical devices (fluorescence imaging series), fluorescence contrast agent drugs (ICG, targeted series), and core components (CMOS camera modules, endoscopes), providing a full-chain solution.

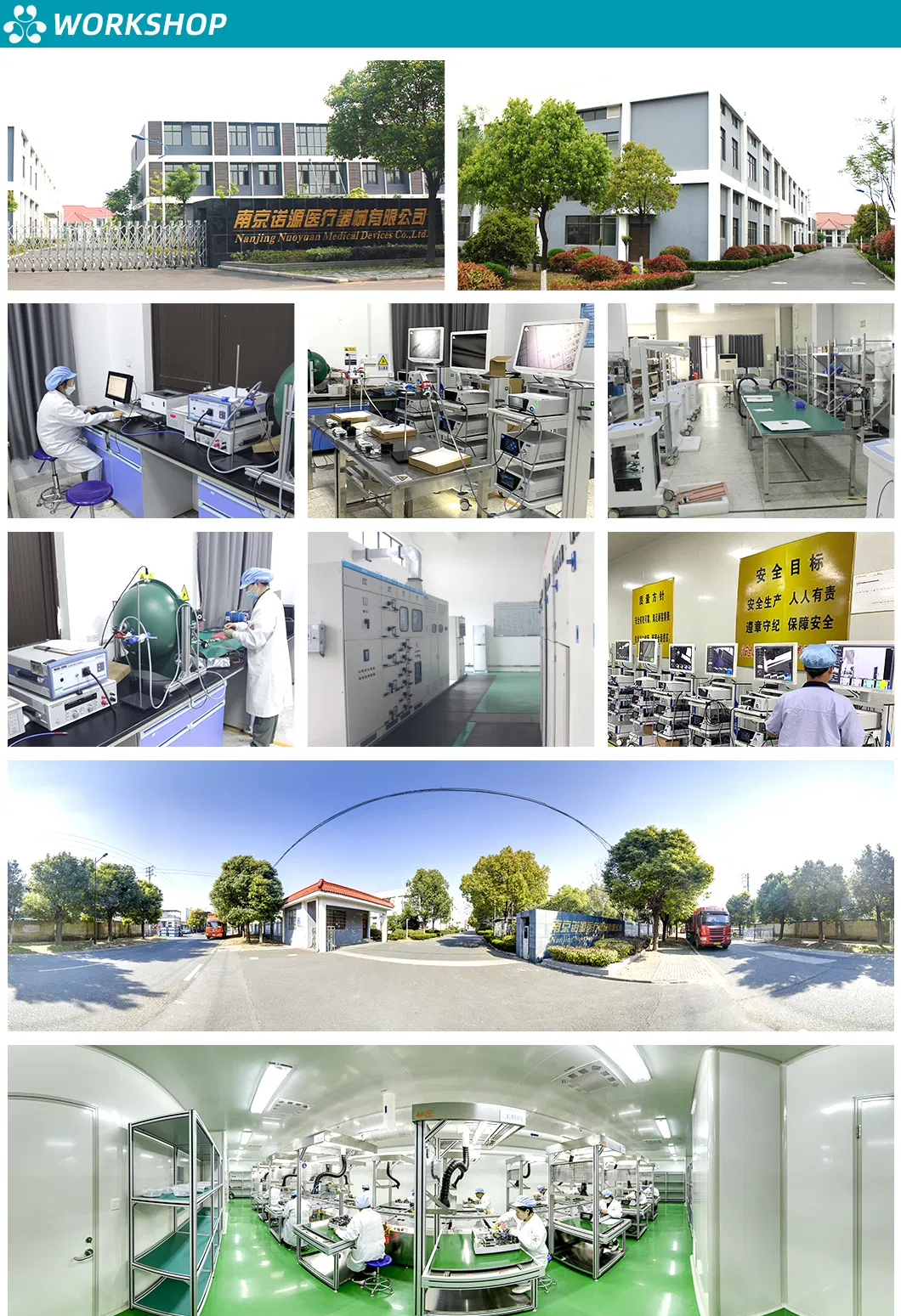

Company Profile
Founded in 2011, we focus on core technologies such as molecular fluorescence, Raman spectroscopy, AI, and computer-aided drug molecular design (CADD). Our mission is to become a global leader in molecular fluorescence technology through the synergy of medical devices and pharmaceuticals.
Global Exhibition
As a strategic partner of international leading companies in Germany and Japan, we have established cooperative businesses with more than 10 overseas countries.
Frequently Asked Questions
How do you buy your products?
You can order directly from our platform or contact our sales staff for help. They will confirm order details such as configuration and shipping, guiding you through the process.
What are the terms of payment?
We accept T/T bank transfer, Western Union, MoneyGram, Paypal, L/C, cash, and other payment methods.
What is the delivery time and method?
Usually 3-7 days. If in stock, we ship immediately. We cooperate with global freight forwarders for express, air, or sea delivery, providing advice based on your specific situation.
How about your after-sales service?
We provide a two-year warranty. Our trained engineers offer free replacement or maintenance within the warranty period and lifelong technical support thereafter.
How do we secure the transaction?
As a professional medical company with government certifications, we ensure all transactions are 100% guaranteed, providing quality products and secure payment methods.
