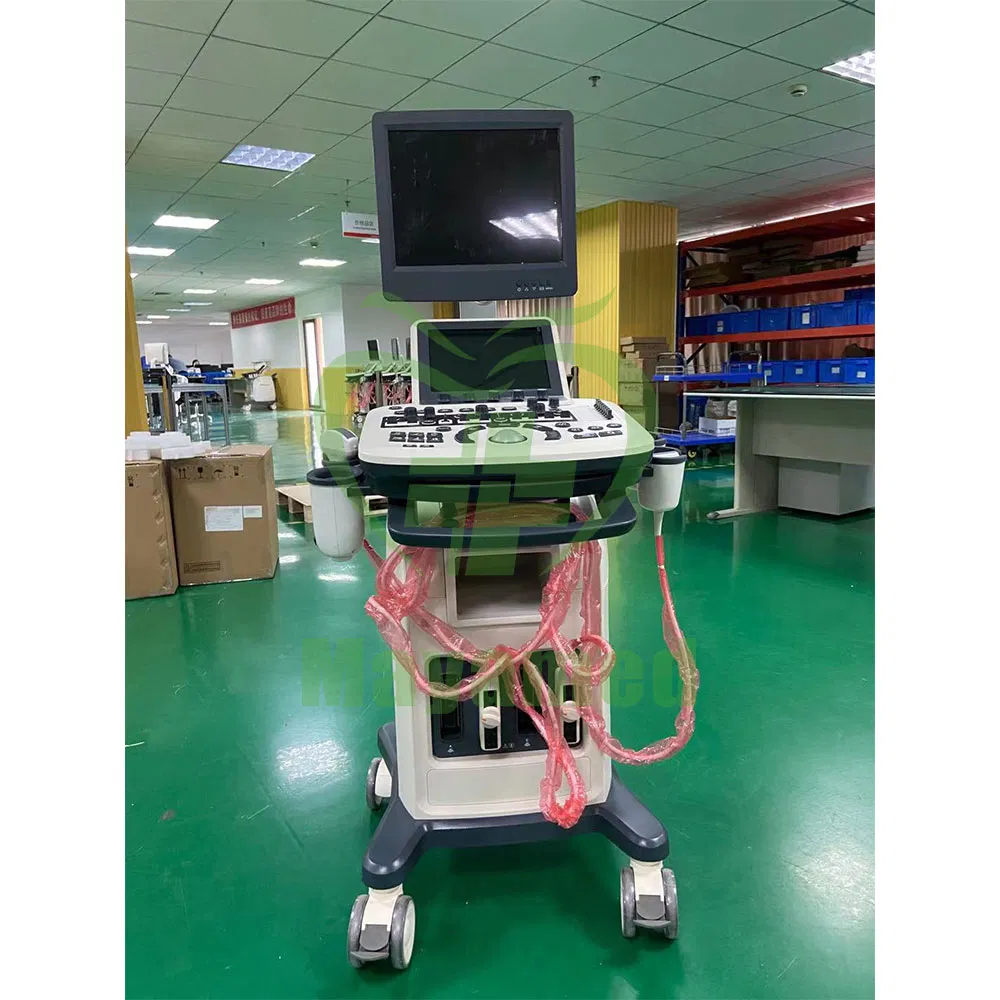

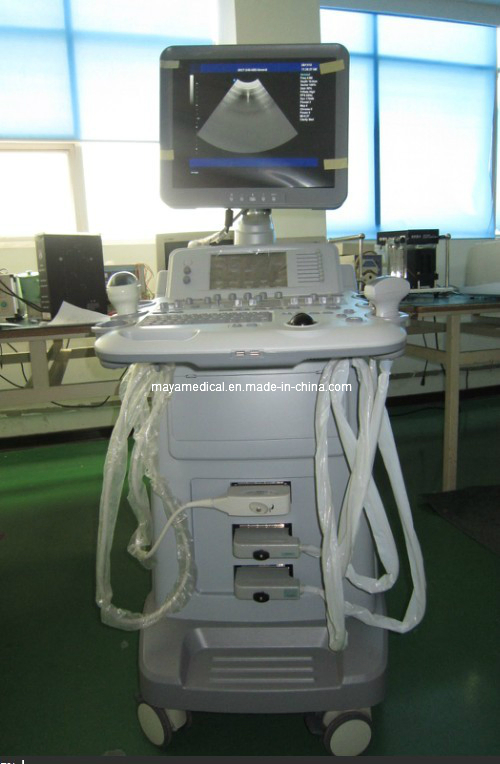

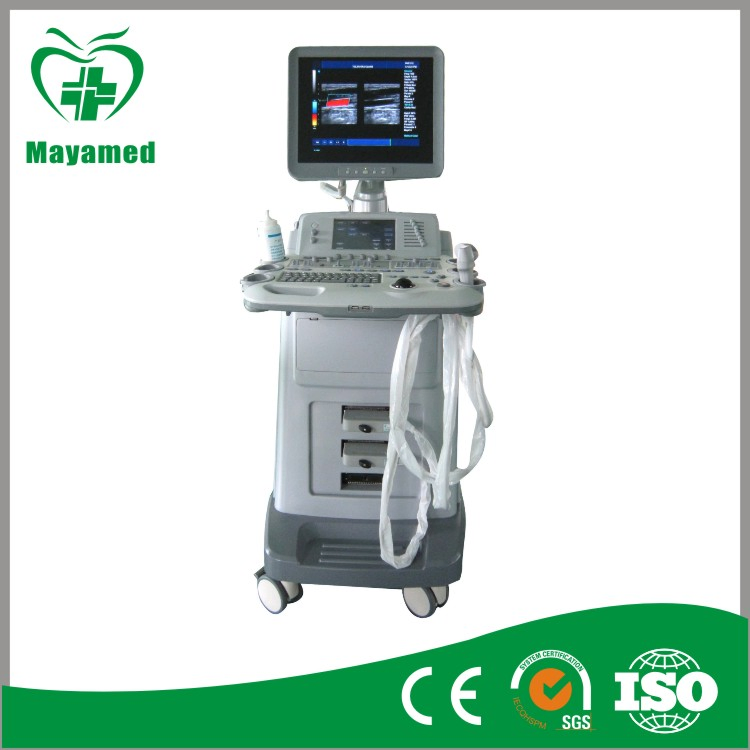

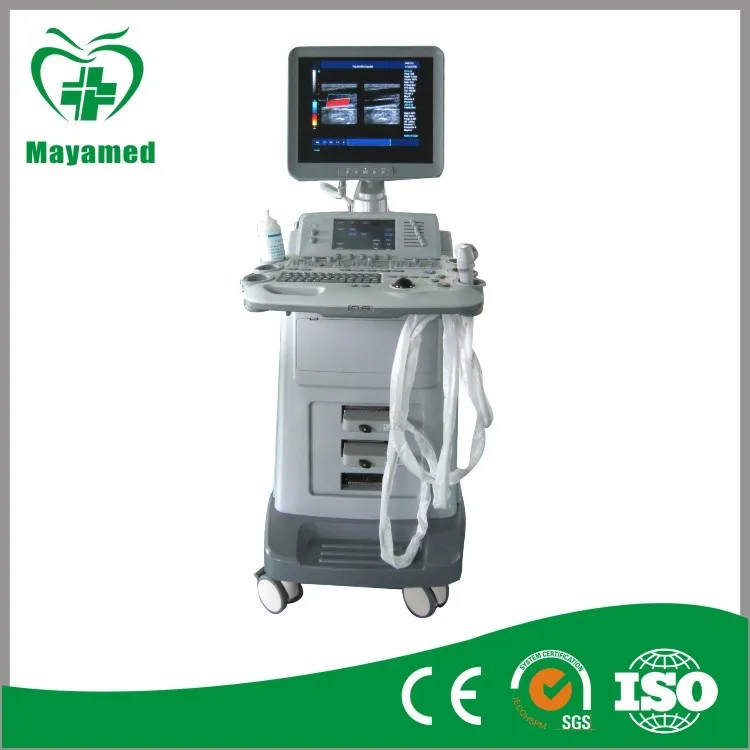

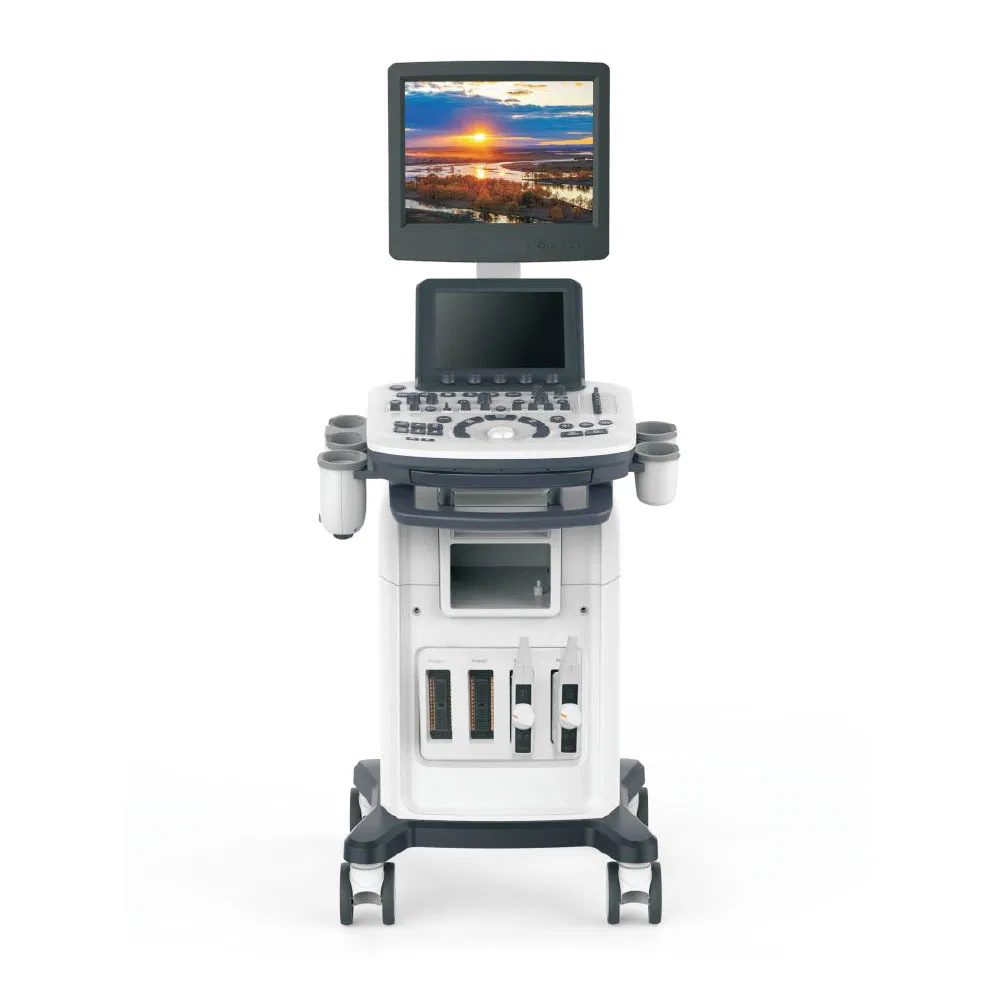

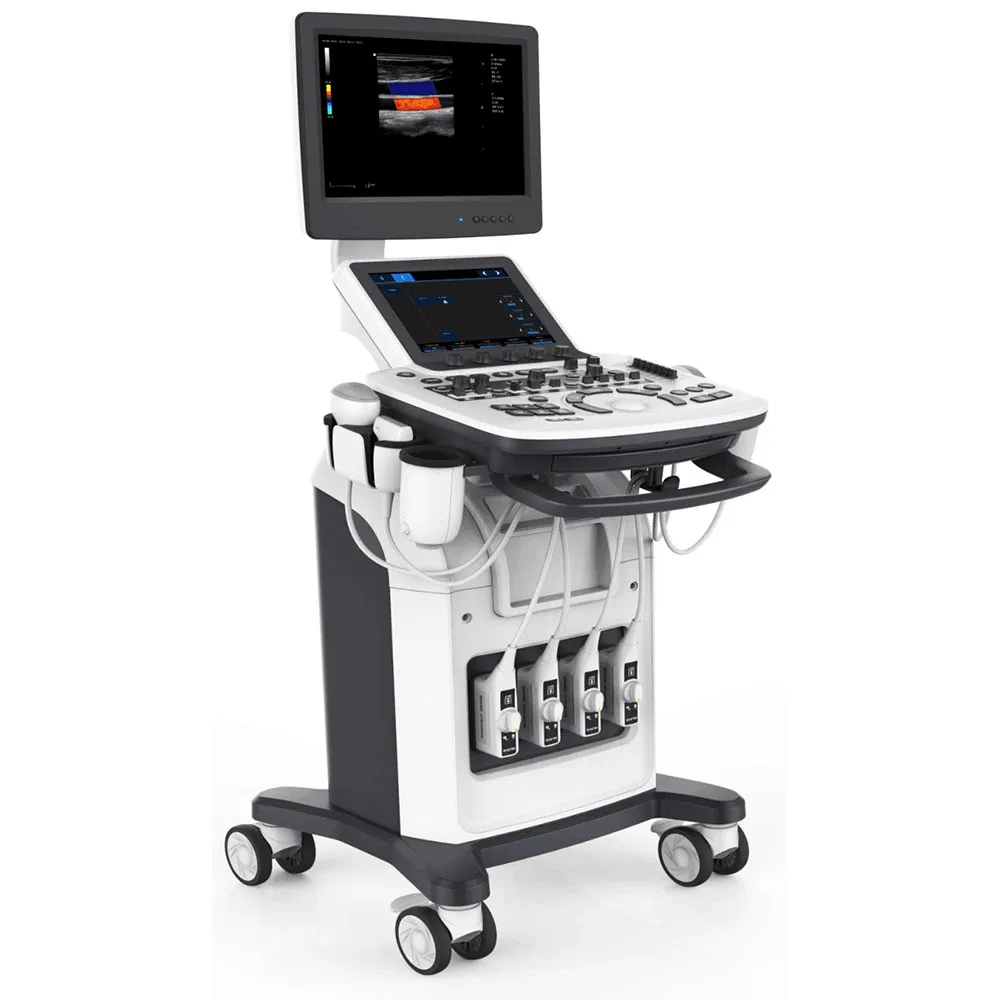

MAV480 (3D/ 4 D) Color Doppler Ultrasound Diagnosis System

1 / 5

MAV480 (3D/ 4 D) Color Doppler Ultrasound Diagnosis System

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	Ultrasound Scanner

Send Inquiry

Product Description

ℹ

Basic Specifications

Model NO.MAV480

CertificationCE

Size1045*655*1065 Mm

Movie Playback≥ 1000 Frame

Transvaginal Probe5.0-8.0 MHz

Position Chart≥ 60

Dynamic Range0-150db

Transport PackageWooden Carton

Production Capacity1000sets/Month

📋

Product Description

MAV480 (including 4 D) color Doppler Ultrasound diagnosis system parameters

1. The host system

Full-digital color Doppler ultrasonic diagnostic system
Ultrasound host operating system: Windows XP operating system
Monitor: ≥ 17-inch high-definition professional medical LED displays, with a 7-inch widescreen touch-navigation system
Probe connector (all effectively activate) ≥ 3
2D gray-scale imaging unit, PW pulse wave Doppler, Color Doppler ultrasound diagnostic unit
The THI tissue harmonic Imaging, Inverting pulse harmonic imaging
Real-time 3D/4D synchronization imaging
Professional packages: Abdomen, obstetrics and gynecology, small parts, urology, orthopedic surgery, cardiac

2. Probe configuration and specifications

Convex array probe: 2.5-5.0 MHz center frequency
Linear probe: 6.0-10.0 MHz center frequency
Transvaginal probe: 5.0-8.0 MHz (scan angle ≥ 130°)
Variable frequency phased array cardiac probe: 2 - 4MHz range

3. 2D Imaging & M Model

4B imaging mode; Grayscale: 256; Probing depth: ≥ 360mm
Pseudo-color display: ≥ 7 species
TGC segment gain adjustment ≥ 8 segments
M scanning speed is adjustable

4. Color Doppler Features

Color gain and PRF multi-level adjustable
Sampling frame: Size and position adjustable
Color Atlas: ≥ 7; Color afterglow: ≥ 4
Directional energy diagram and editable diagnostic reports

📦

Logistics & Packing Info

Gross Weight (GW)	100 kg
Net Weight (NW)	55 kg
Quantity per Carton	1 set
Dimension	1045 × 655 × 1065 mm
Shipment Port	By sea, DHL, or AIR
Delivery Time	5 days
Min. Order Qty	1 set
Package Material	Wooden

❓

Frequently Asked Questions

What type of display does the MAV480 use?

The system features a 17-inch high-definition professional medical LED display paired with a 7-inch widescreen touch-navigation system for intuitive operation.

Does this ultrasound system support 4D imaging?

Yes, the MAV480 includes real-time 3D/4D synchronization imaging capabilities, making it suitable for advanced obstetric and gynecological examinations.

How many probe connectors are active?

The host system is equipped with at least 3 probe connectors, all of which are effectively activated for seamless switching between different clinical applications.

What diagnostic packages are included?

The MAV480 comes with professional software packages for Abdomen, Obstetrics and Gynecology, Small Parts, Urology, Orthopedic Surgery, and Cardiac applications.

What is the scanning depth and frame rate?

The system supports a probing depth of ≥ 360mm. For a convex array probe at 18cm depth, it achieves a 2D frame rate of ≥ 30 frames per second.

What is the movie playback capacity?

The system provides extensive movie playback functionality with a capacity of ≥ 1000 frames for detailed post-exam review.
