Medical Electric Multi-Functional Power Tools Drill and Saw System

Customization:	Available
Type:	Surgical Drill Saw System
Application:	Orthopedic

Send Inquiry

Product Description

Basic Information

Model NO.

NM-300

Material

Medical Stainless Steel

Feature

Reusable

Certification

CE, ISO13485

Properties

Orthopedic Surgical Instruments

Cannula Diameter

4.2mm

Rated Voltage

220V/50Hz

Working Voltage

14.4V

Saw Speed

16000 opm

Noise Level

63dB

Transport Package

Aluminum Case

HS Code

9018909000

Medical Electric Multi-Functional Power Tools

✓

Timely delivery and comprehensive after-sales service system.

✓

24 hours online professional team for technical support.

✓

Patented technologies with guaranteed medical quality.

✓

Two years free technical support for power drill saw handpiece.

Technical Specifications

Hand Piece	Working Voltage	14.4V
	Output Power	20W
	Unit rise in temperature	≤25°C
Charger	Input Power	AC 220V, 50Hz
	Output Power	7.2V, 700mA
Battery	Voltage	7.2V
	Charging time	About 3 hours

Technical Merits

Axial run-out of concentricity is within 0.05mm.
Rotating speed of 1100 rpm suited for medical standards.
Rotated torque 3.3N/m for efficient performance.
Semi-luster surface treatment for comfortable operation.
Multipurpose interface for clinical versatility.
Ni-MH battery without environment memory.

Product Display & Configuration

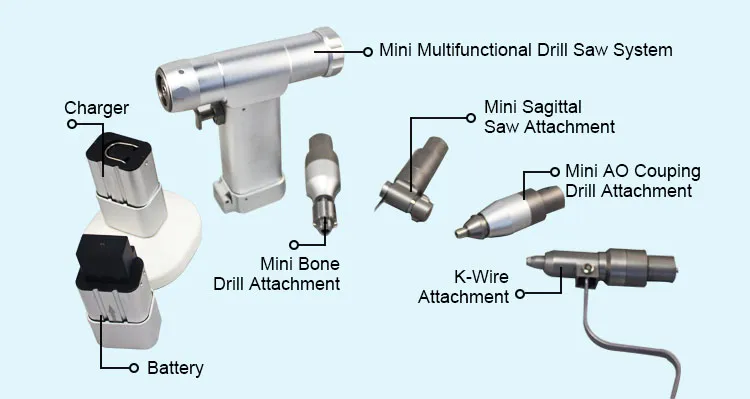

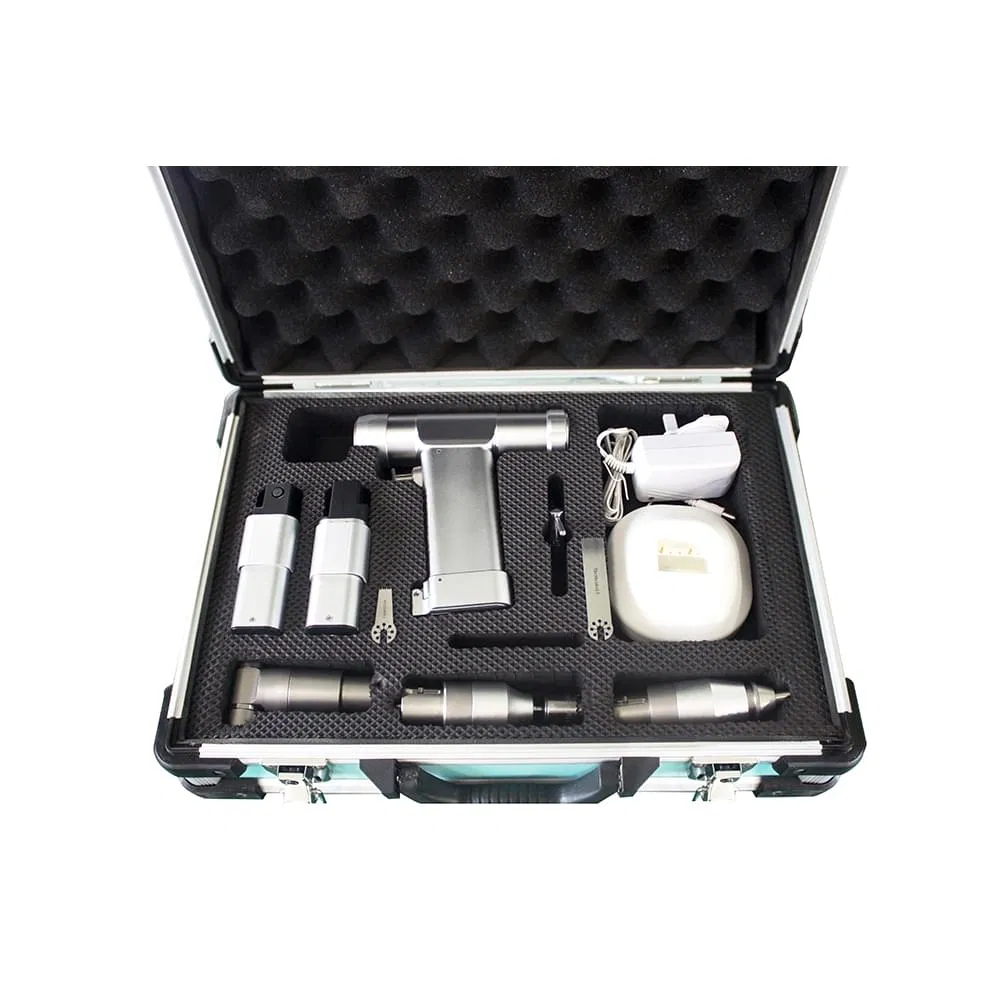

Standard Configuration:

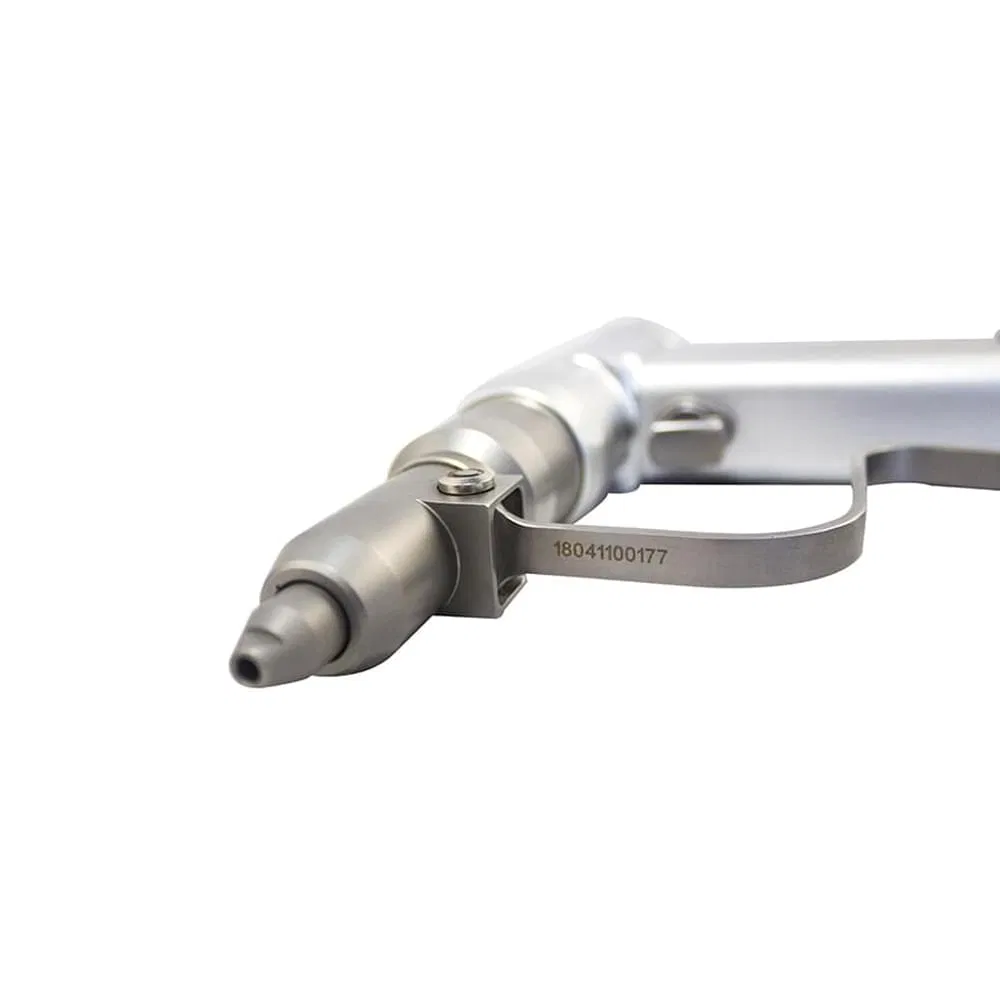

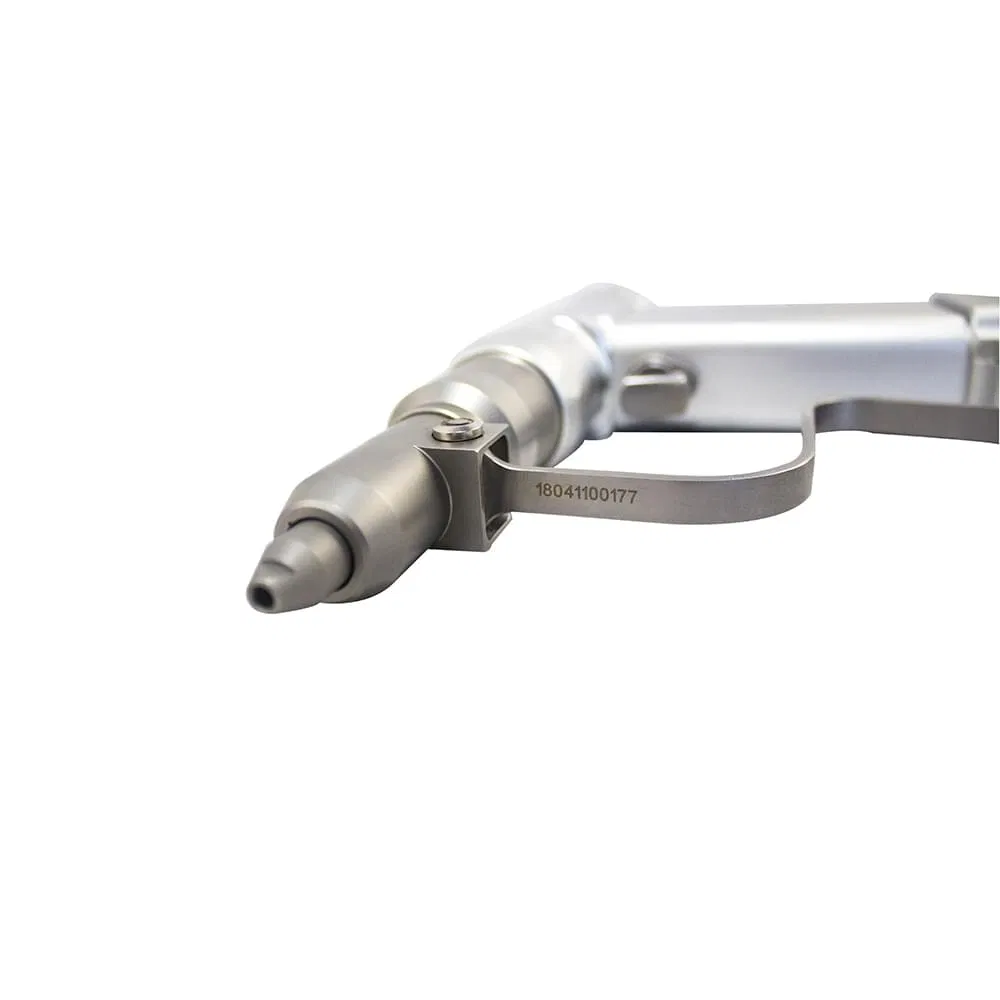

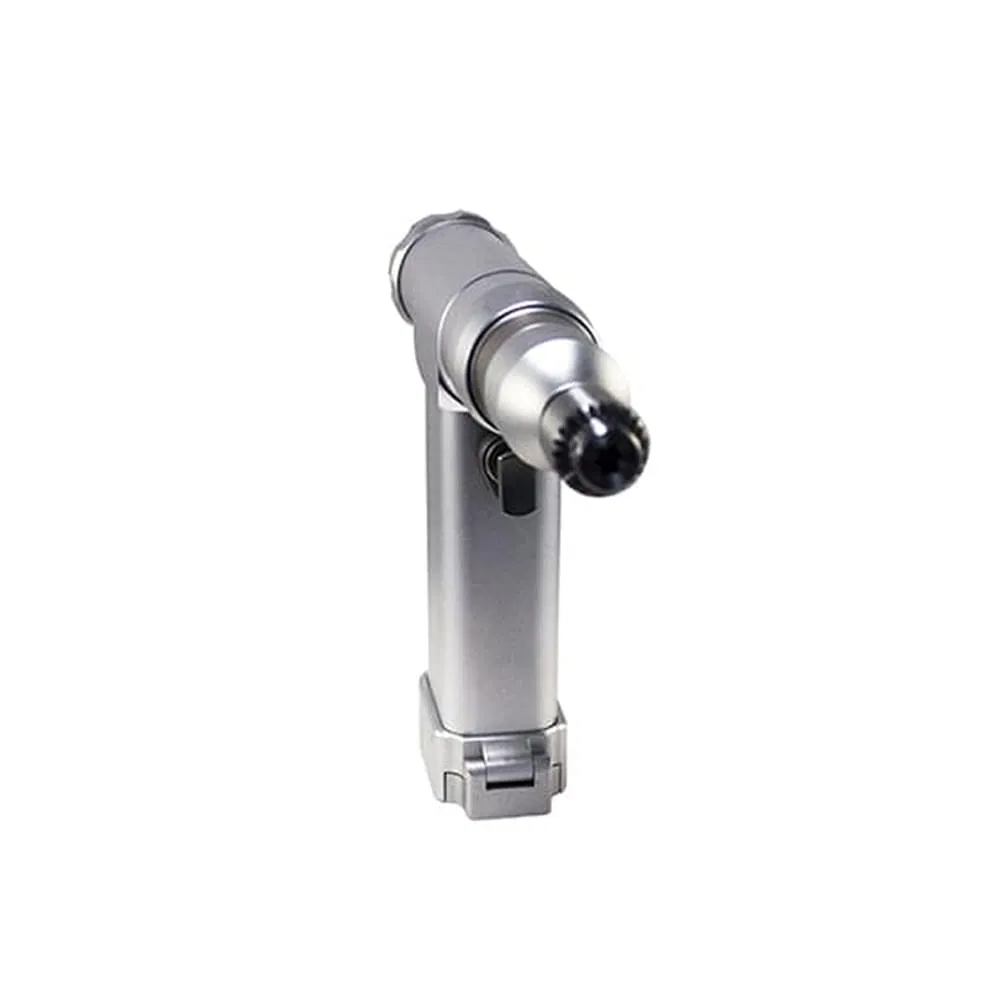

One handpiece

One charger

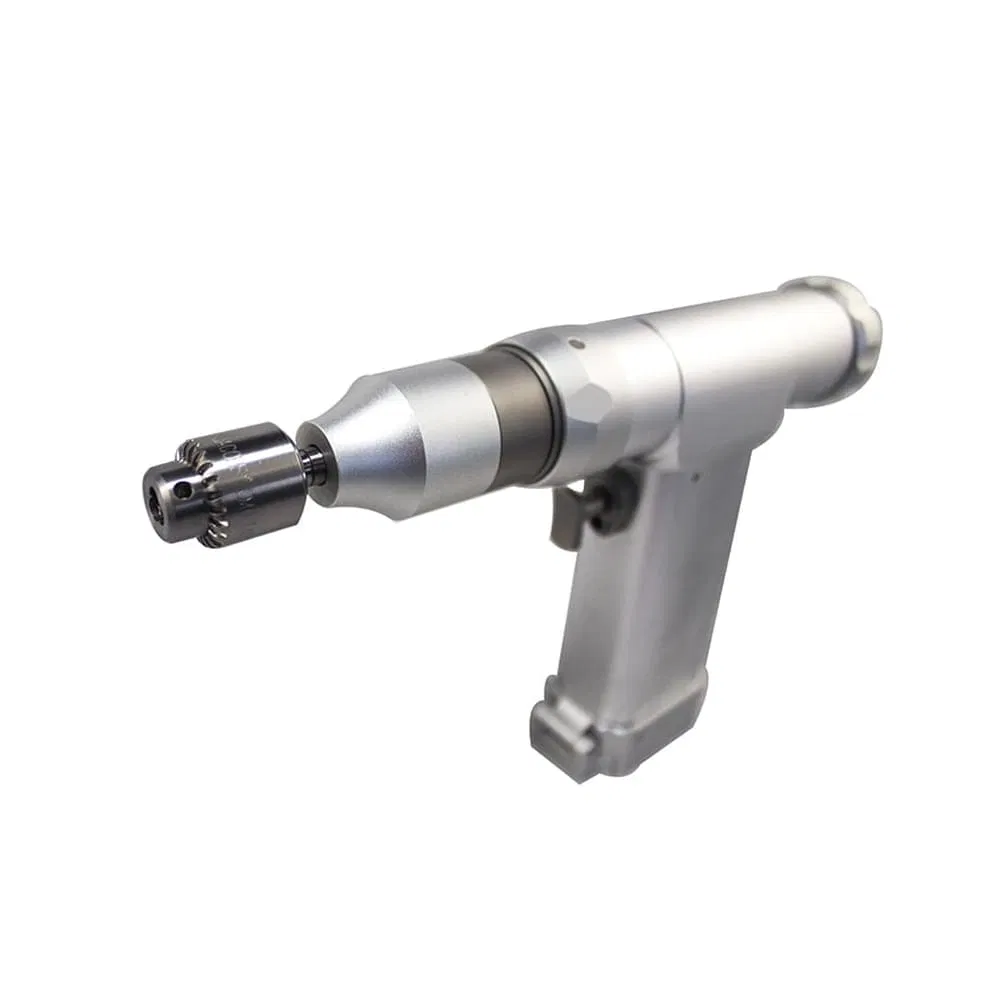

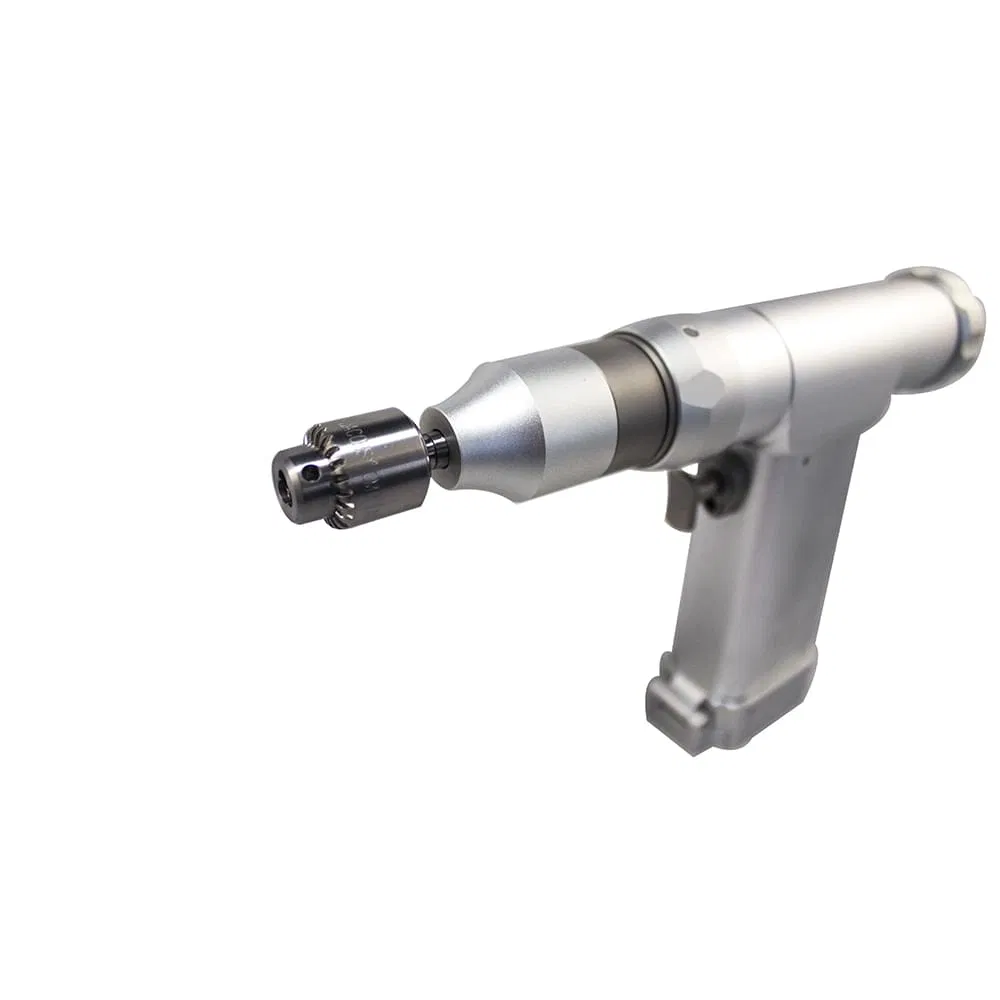

One bone drill attachment

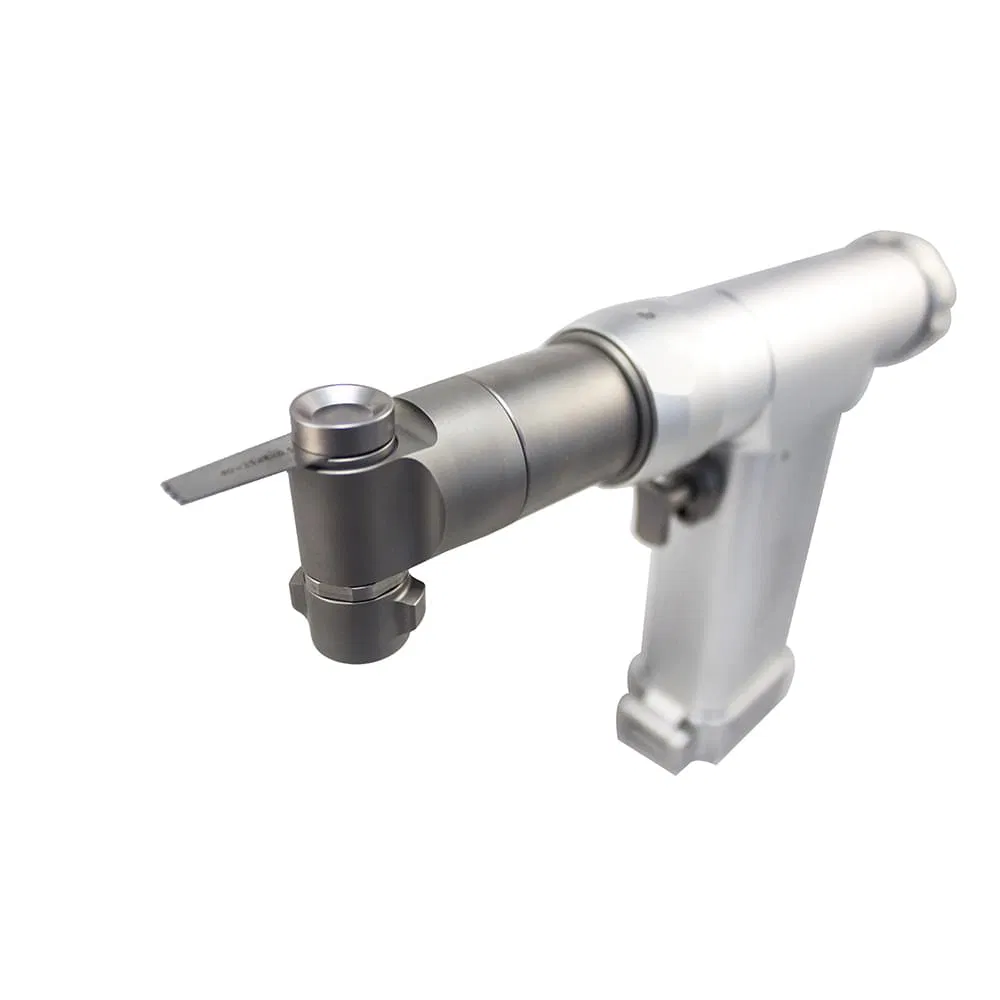

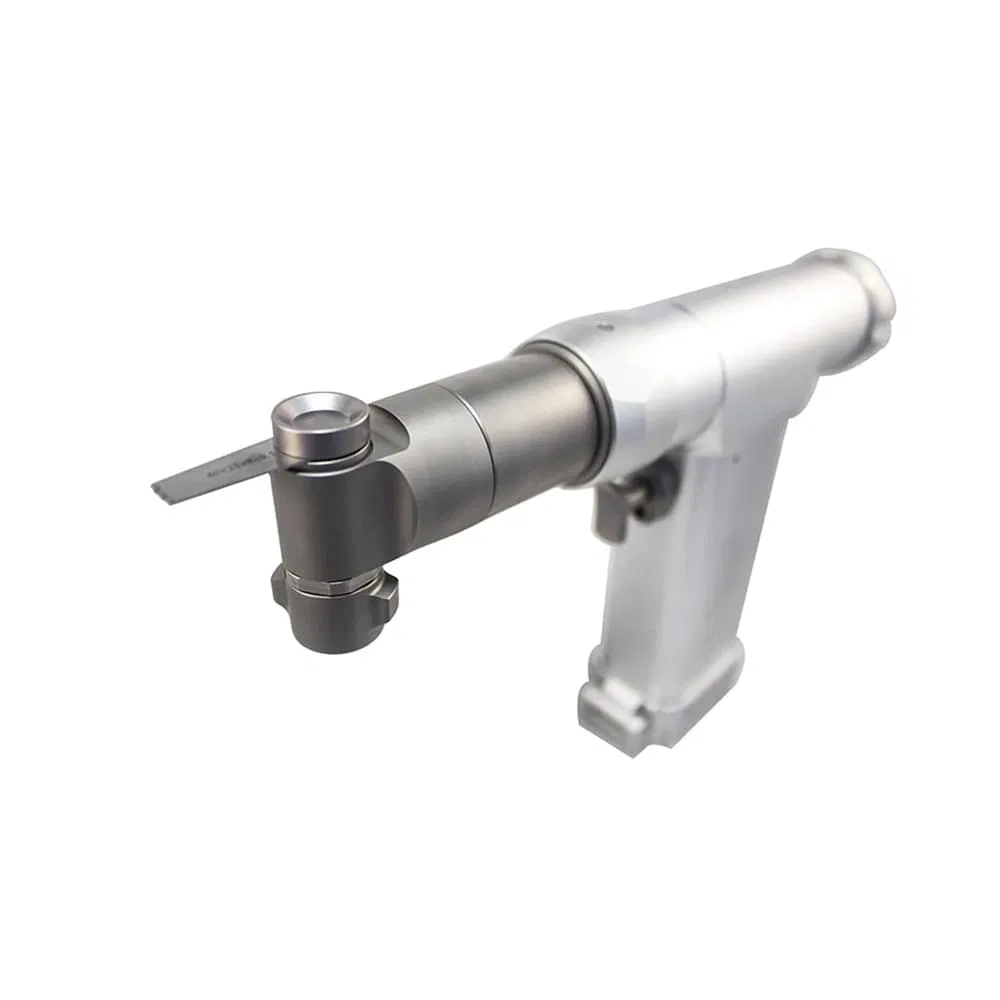

One oscillating saw attachment

One aluminum alloy box

Two batteries & Sterilizing channels

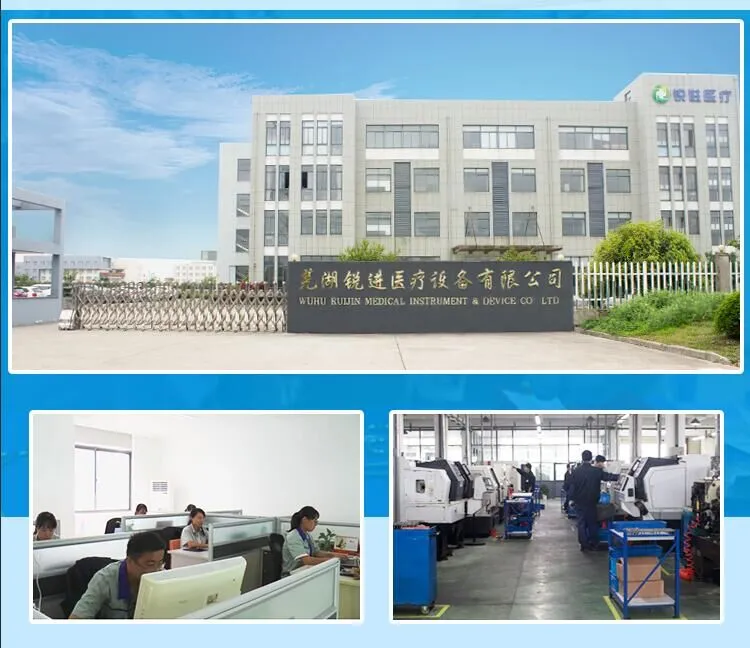

About the Manufacturer

Established in 2007, we are a specialized medical device manufacturer integrated with R&D, production, and sales. We focus on medical drill series and micro medical electric drill series. Our main products include medical bone drills, multi-functional cannulated drills, oscillating saws, and reciprocating saws. These instruments are widely utilized in Trauma Surgery, Thoracic Surgery, Joint Operation, and Veterinary Orthopedic Surgery.

Payment & Delivery

Items are typically delivered within 3 days after payment. Standard packaging includes an aluminum alloy box (38cmx28cmx13cm) placed within a protective carton (41cmx32cmx15cm).

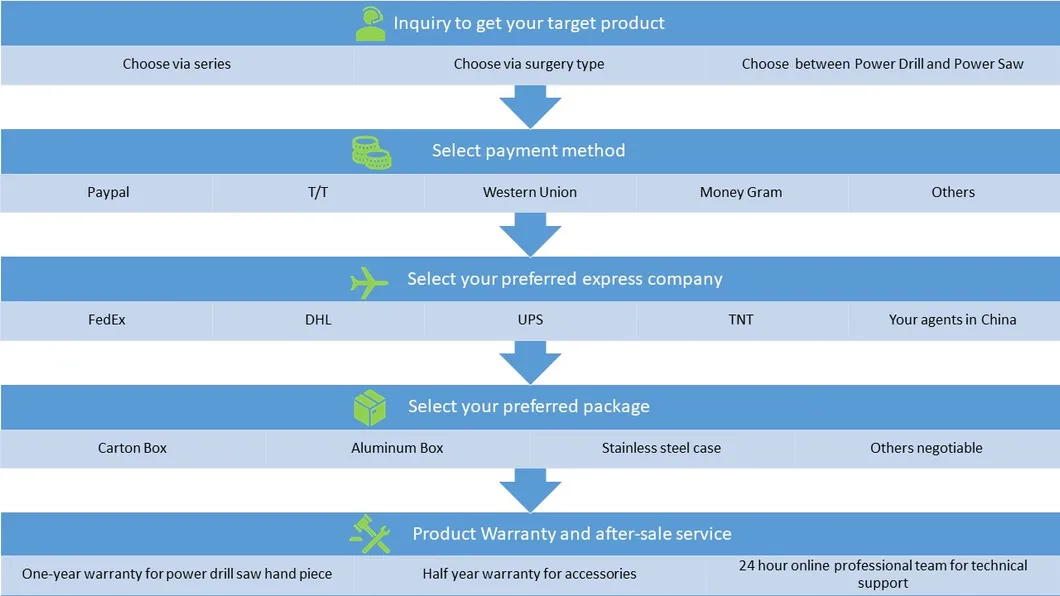

Ordering Process

Frequently Asked Questions

Q1: What is the maximum sterilization temperature for the tools? A: The sterilization temperature must be lower than 135 degrees Celsius. Exceeding this temperature may damage the motor.

Q2: Can the battery be sterilized? A: No, the battery cannot be disinfected. Always remove the battery before sterilization and ensure the battery compartment is dry before reinsertion.

Q3: How should the battery be stored when not in use? A: The battery should be removed from the handpiece when not in use to prevent automatic discharge and shorten its life.

Q4: What is the warranty period for this system? A: We offer 2 years of free technical support for the handpiece and 6 months of free support for accessories.

Q5: Is this system compatible with different power sources? A: Yes, the charger is compatible with electricity sources ranging from 110V/60Hz to 220V/50Hz.

Q6: What surgical procedures is this tool suitable for? A: It is ideal for Trauma Surgery, Thoracic Surgery, Joint Operations, and Veterinary Orthopedic Surgery.
