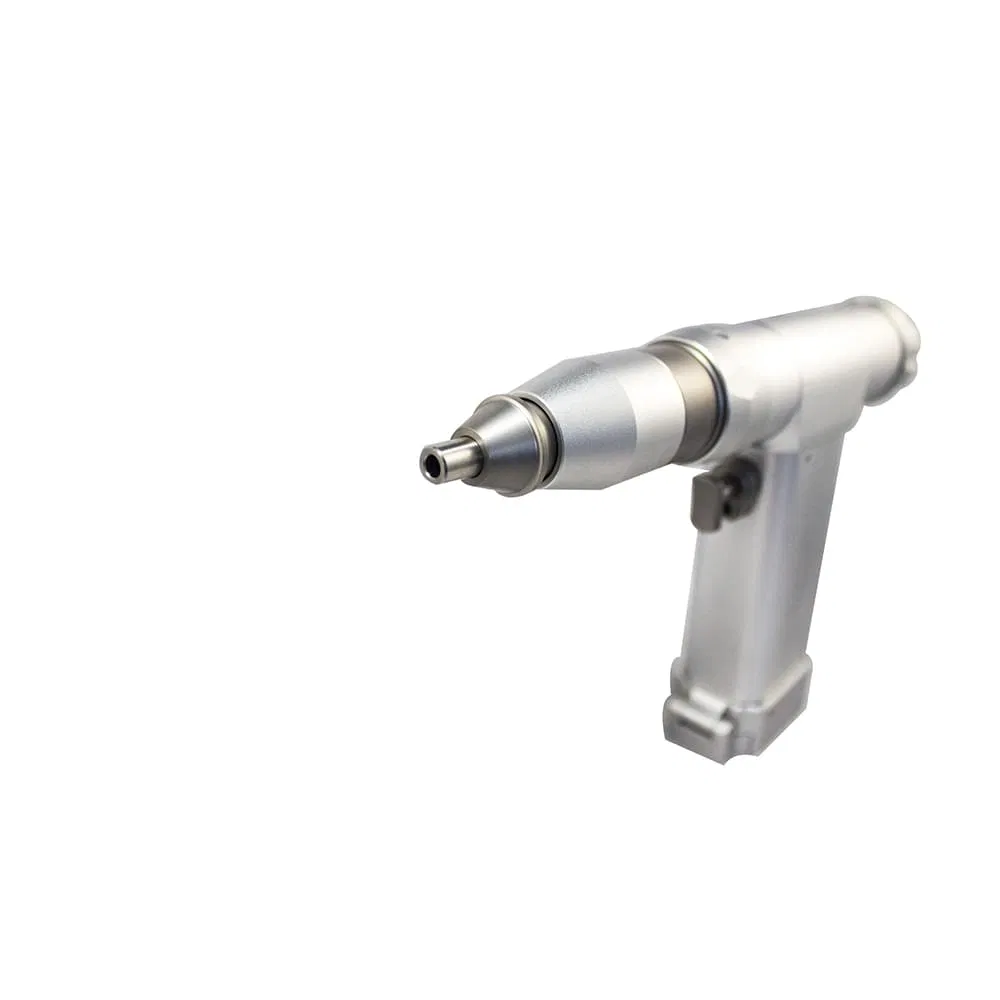

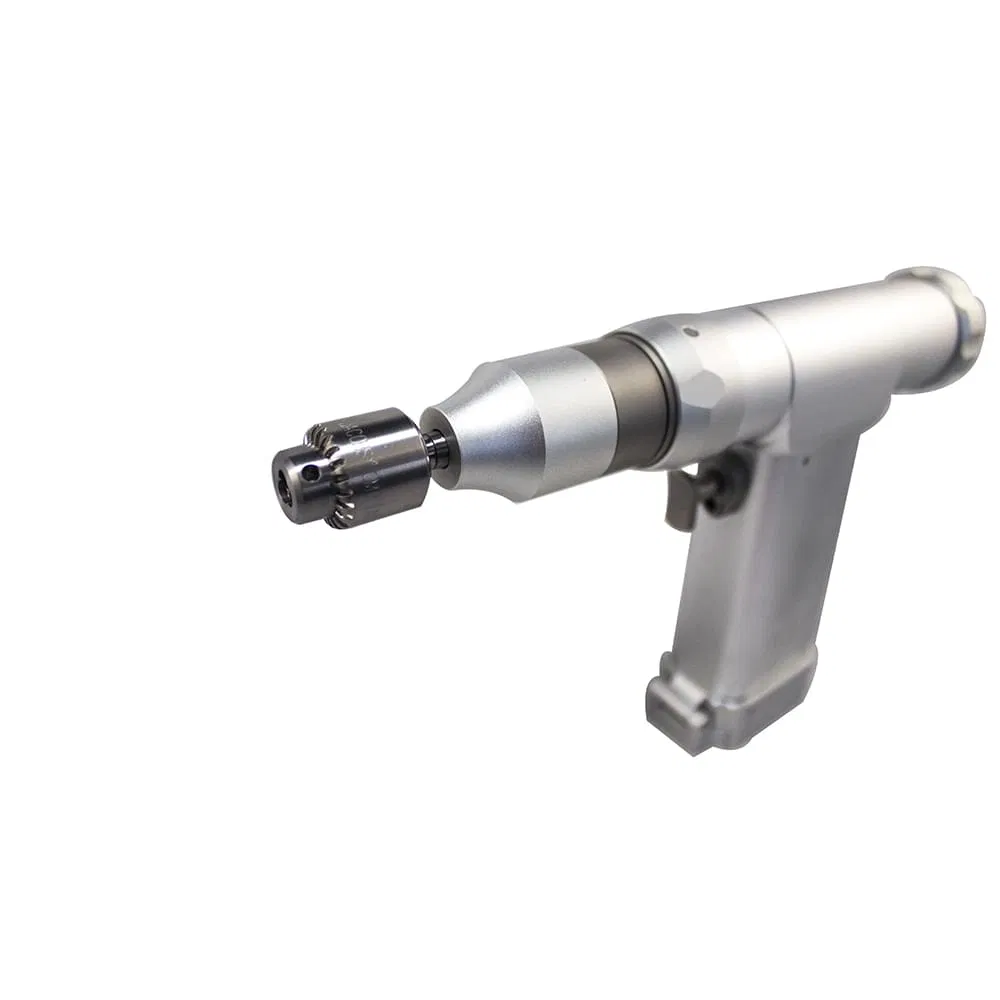

Medical Electric Power Systems for Orthopedic Surgery

Customization: Available
Type: Surgical Drill Saw System
Application: Orthopedic

Product Description

Basic Specifications

Model NO.
NM-300
Material
Medical Stainless Steel
Feature
Reusable
Certification
CE, ISO13485
Properties
Orthopedic Surgical Instruments
Rated Voltage
220V/50Hz
Cannula Diameter
4.2mm
Wire & Pin Chuck Speed
600rpm
Working Voltage
14.4V
Saw Speed
16000 osc/min
Bone Drill Speed
1100rpm
Non-Load Noise
63dB
Transport Package
Aluminum Case
HS Code
9018909000
Origin
China

Key Advantages

  • No minimum order quantity (MOQ) required.
  • Timely delivery for all clinical requirements.
  • Comprehensive after-sales service system.
  • 24-hour online professional technical support.
  • Patented technologies ensuring guaranteed quality.
  • Two years free technical support for handpiece and six months for accessories.

Technical Data

Component Parameter Value
Hand PieceWorking Voltage14.4V
Output Power20W
Unit Rise in Temperature≤25°C
ChargerInput PowerAC 220V, 50Hz
Output Power7.2V, 700mA
Input Power (Total)30VA
BatteryVoltage7.2V
Charging TimeAbout 3 hours

Technical Merits

  • Axial run-out of concentricity is within 0.05mm.
  • Rotating speed of 1100 rpm is optimized for standard medical operations.
  • High rotated torque of 3.3N/m.
  • Semi-luster surface treatment for comfortable ergonomic operation.
  • Multipurpose interface designed for high clinical efficiency.
  • Environmental friendly Ni-MH battery without memory effect.

Product Gallery & Configuration

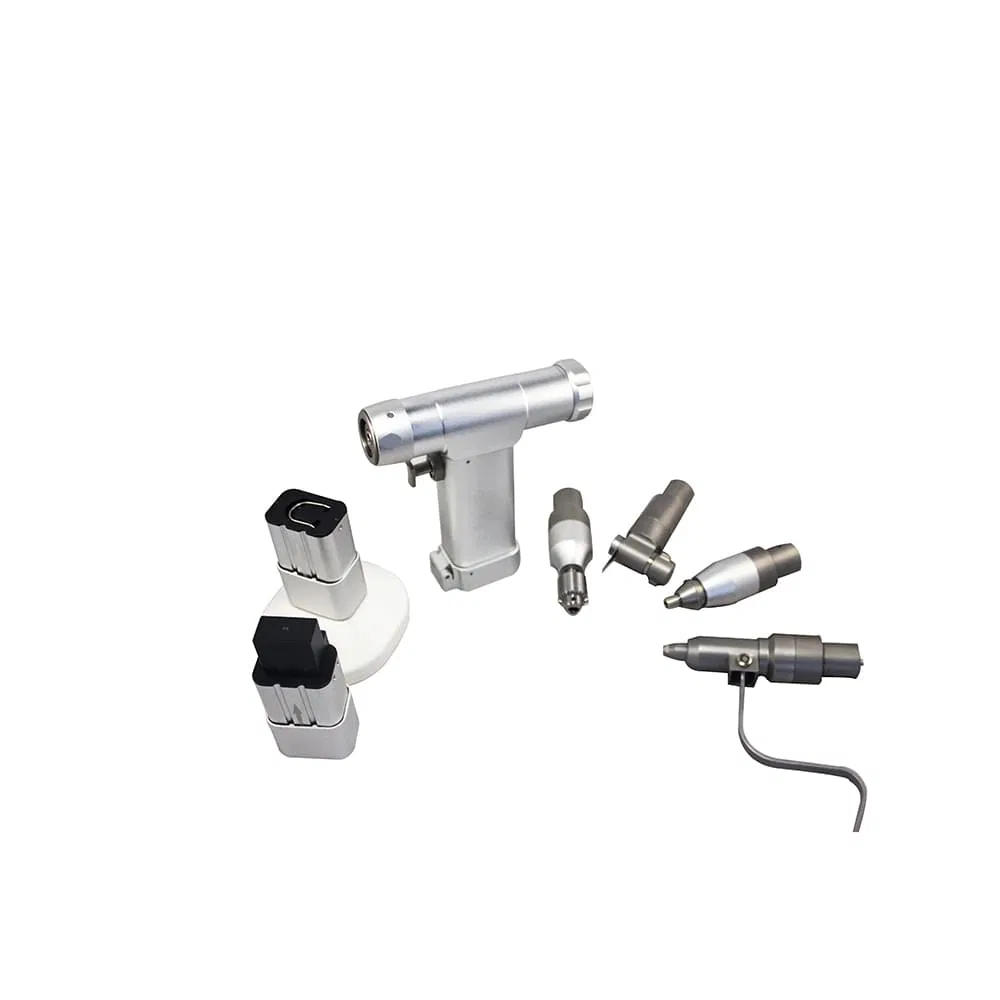

Standard Configuration: Handpiece, Charger, Bone Drill Attachment, Drill Chuck, Oscillating Saw Attachment, Aluminum Alloy Box, Two Batteries, Two Sterilizing Channels, Two Mini Saw Blades.

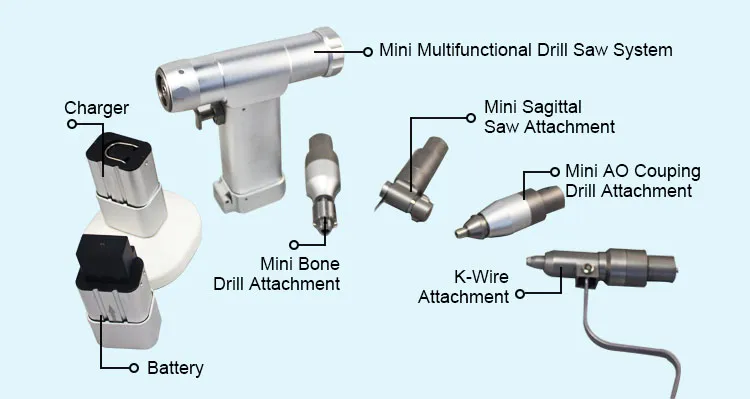

Medical Power System Set

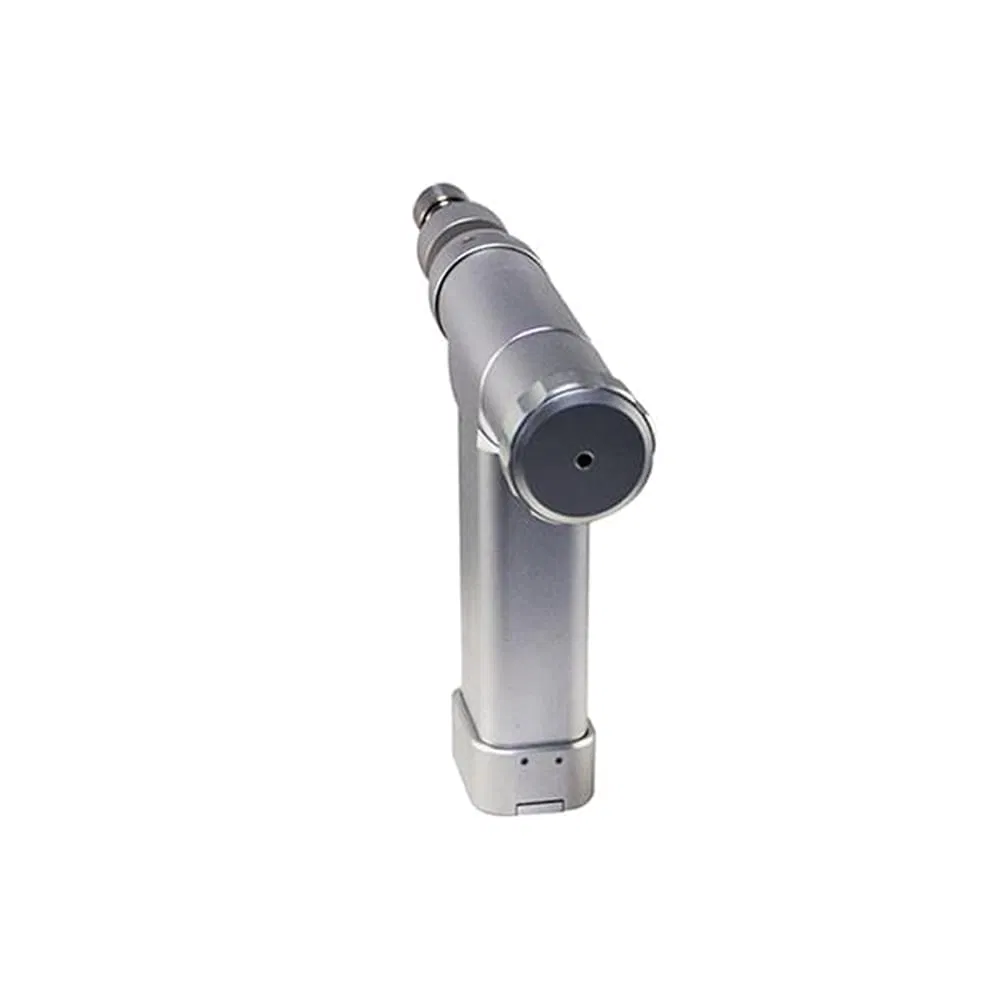

Surgical Handpiece

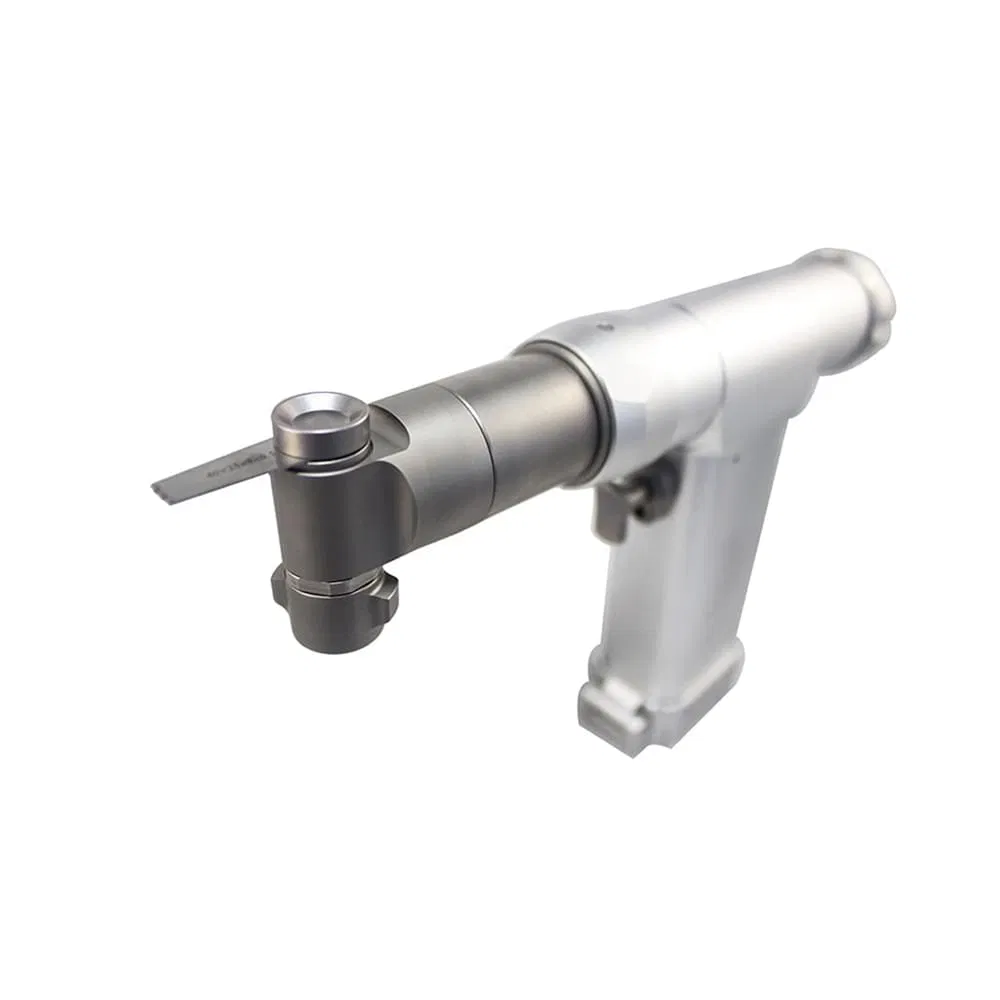

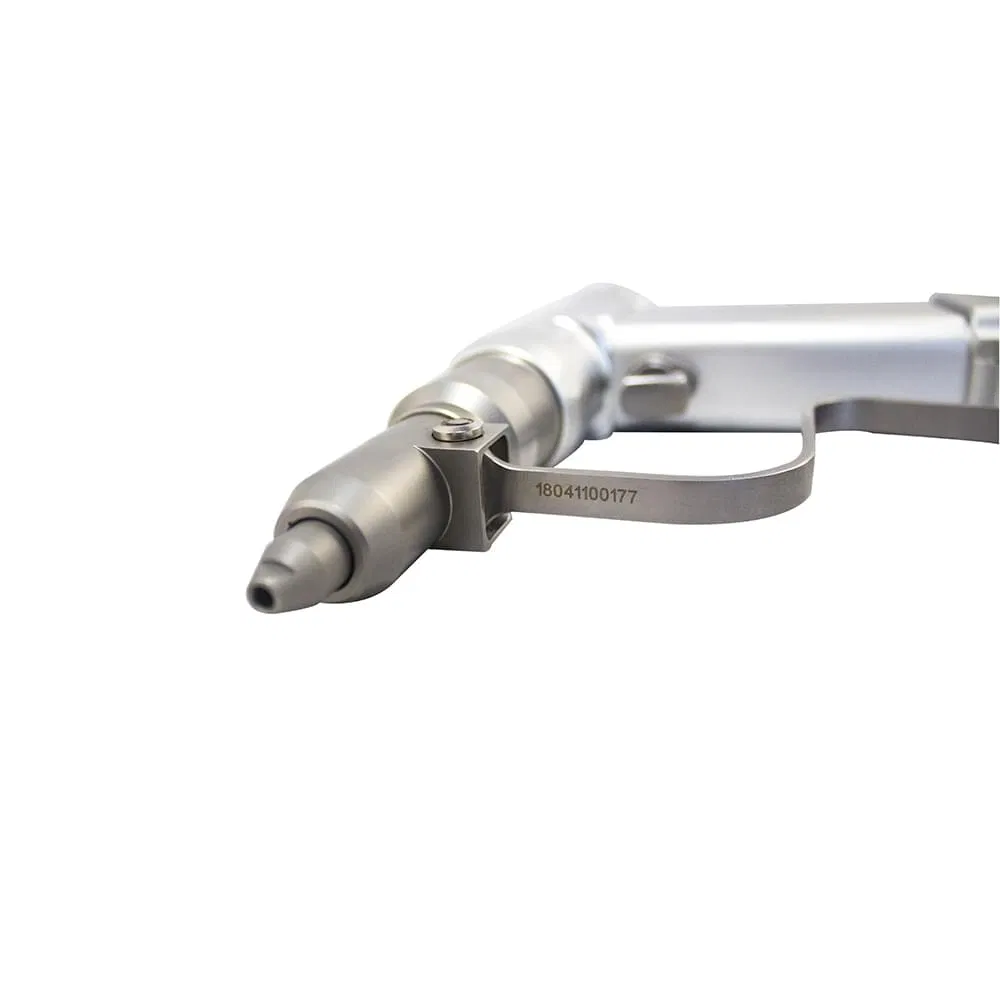

Bone Drill Attachment

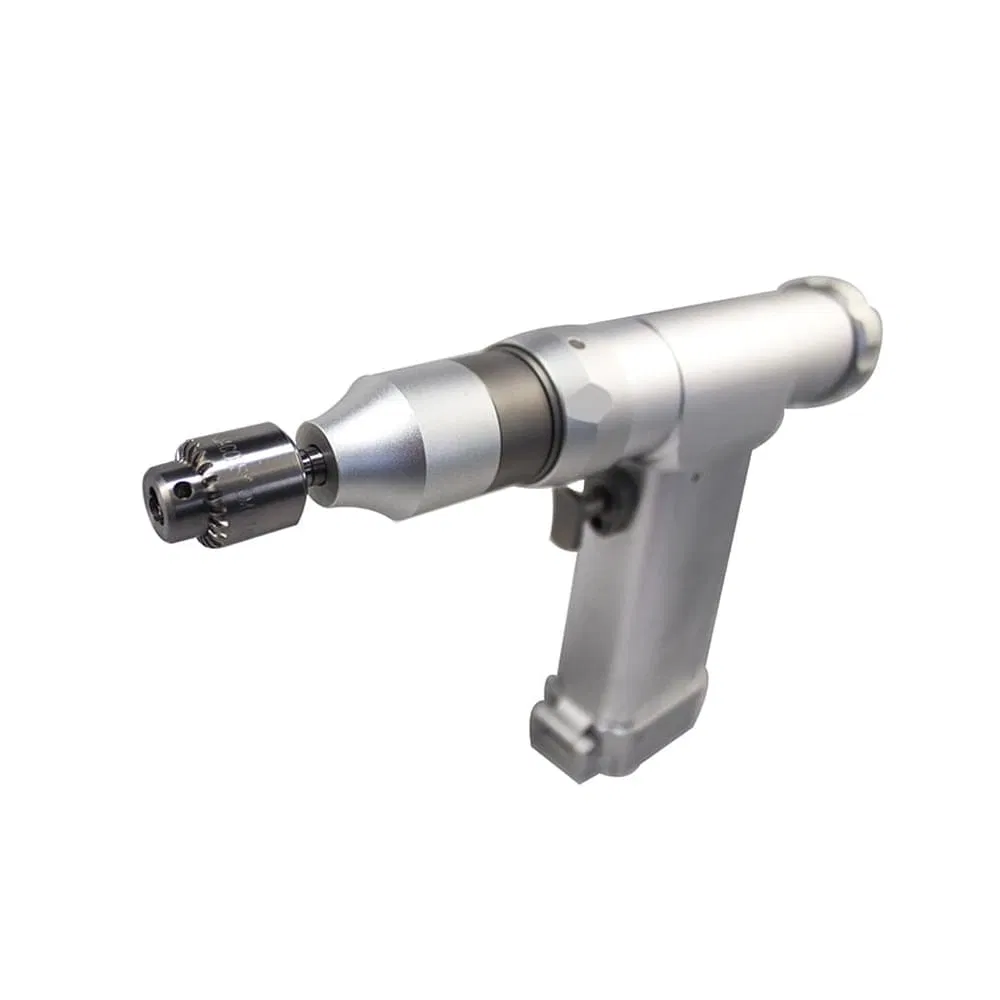

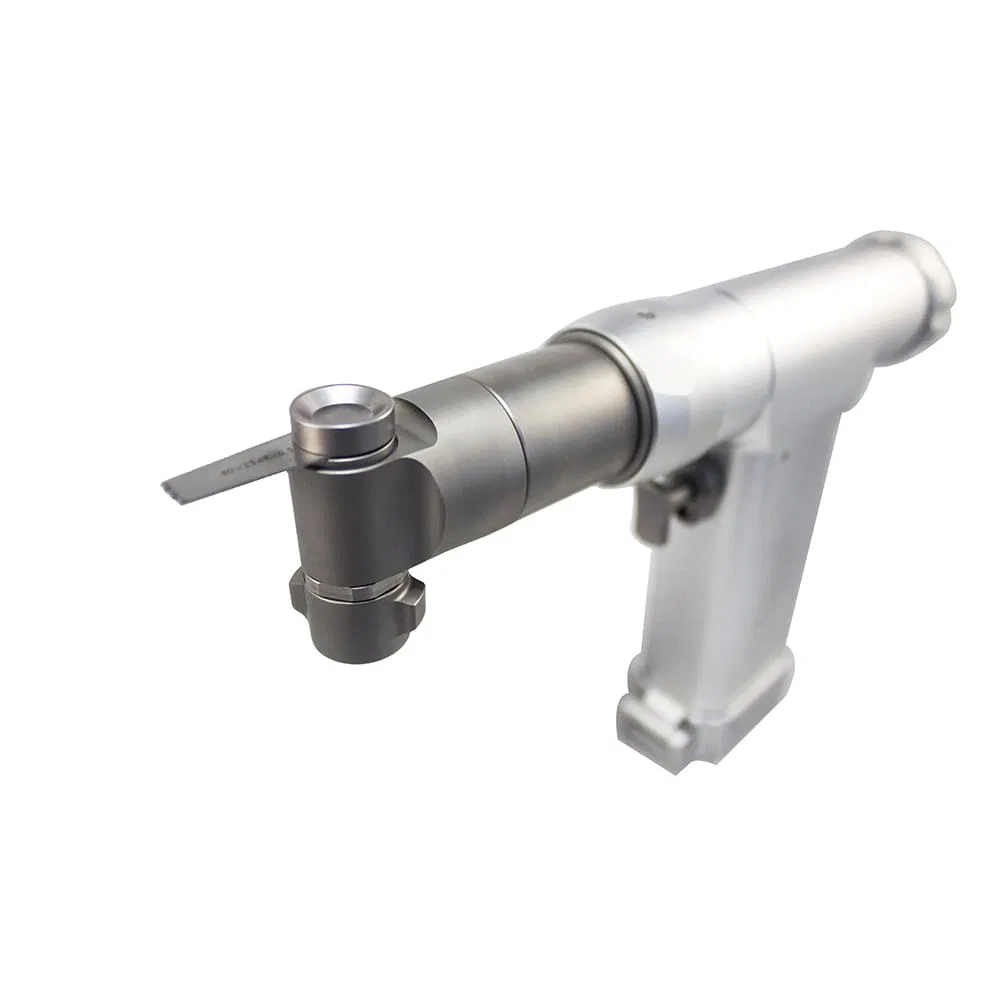

Saw Attachment

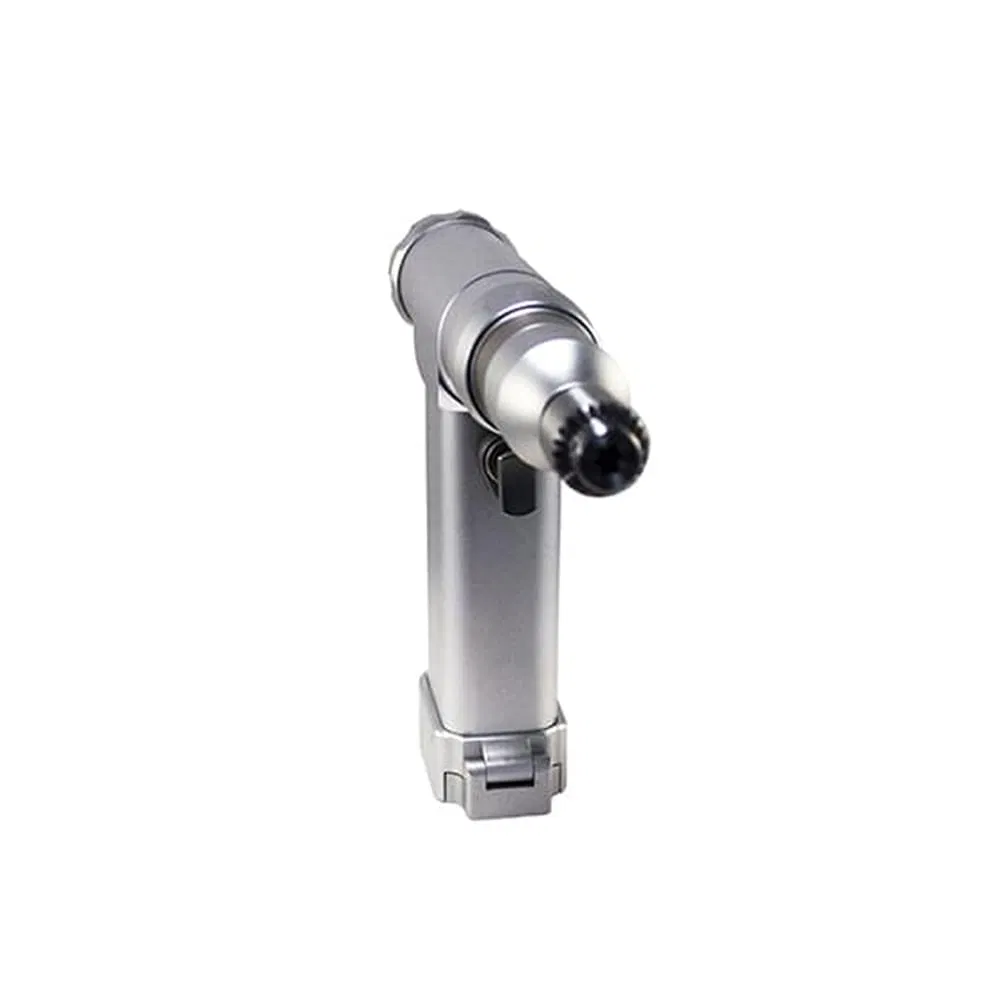

Medical Power Drill Details
Orthopedic Tool Accessories

Certificates

Medical Certification

Payment & Delivery

MOQ
1 piece
Payment Terms
T/T in advance or Western Union
Delivery Time
Within 3 days after payment
Packaging
Aluminum Alloy Box (38x28x13cm) in Carton (41x32x15cm)
Product Packaging
Delivery Box

Ordering Process

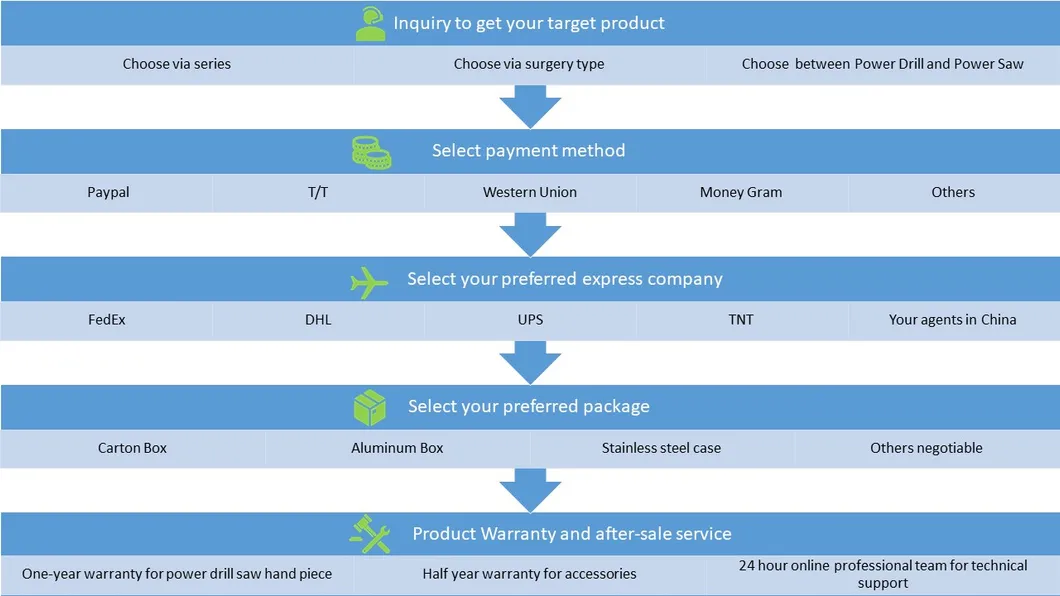

Standard Ordering Workflow

Operation Notes & Maintenance

  • Sterilization temperature must be lower than 135°C to prevent motor damage.
  • Batteries cannot be disinfected and must be kept in a dry space after sterilization of the unit.
  • Remove the battery when the device is not in use to prevent automatic discharge.
  • Clean saw blades and drill bits with a purifier and dry immediately after operation.
  • The device should only be serviced by professionals.

Frequently Asked Questions

What is the maximum sterilization temperature for these instruments?
The maximum sterilization temperature is 135 degrees Celsius. Exceeding this temperature may cause damage to the internal motor.
How long does it take to fully charge the battery?
The Ni-MH battery requires approximately 3 hours to reach a full charge.
Is there a Minimum Order Quantity (MOQ)?
No, there is no MOQ. We support orders starting from a single piece.
Can the battery be sterilized?
No, the battery cannot be disinfected or sterilized. Only the handpiece and attachments (excluding the motor area beyond 135°C) are sterilizable.
What materials are the surgical instruments made of?
The instruments are manufactured using high-quality Medical Stainless Steel for durability and reusability.
What is the rotation speed of the bone drill attachment?
The bone drill attachment operates at a speed of 1100rpm, which meets domestic medical standards for surgical power.
