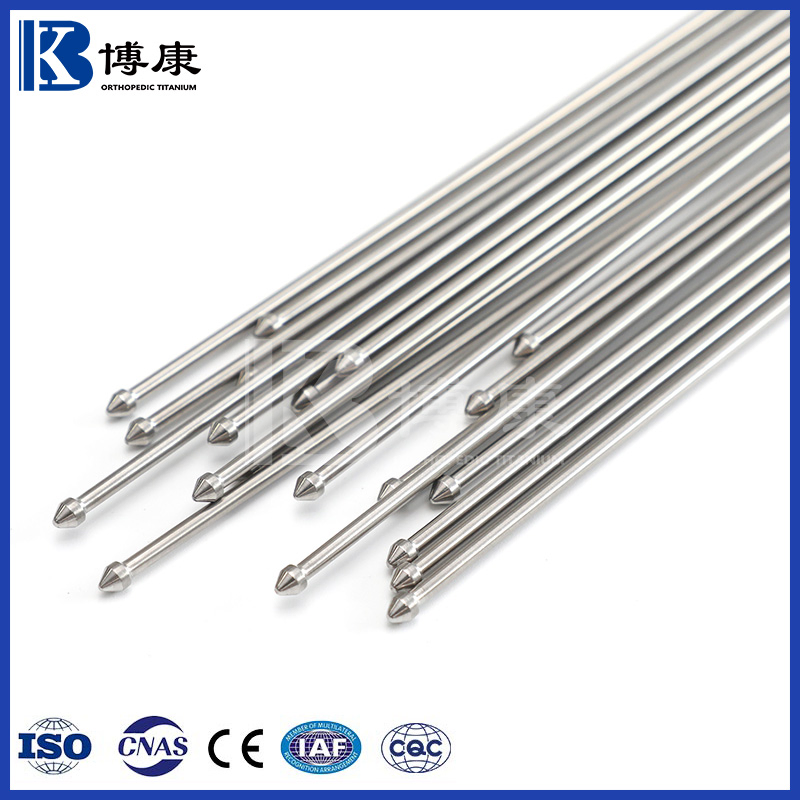

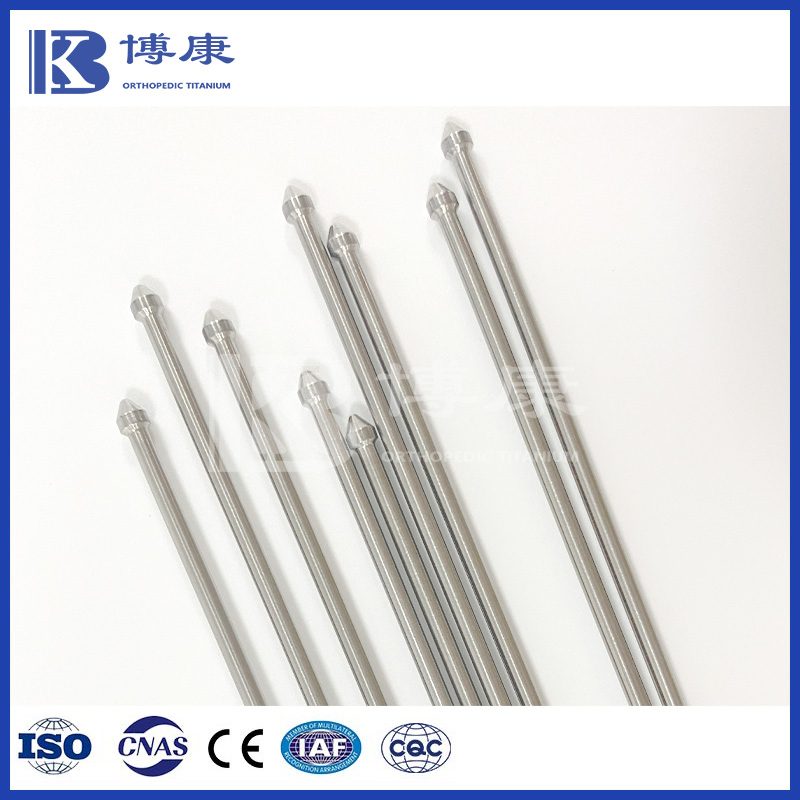

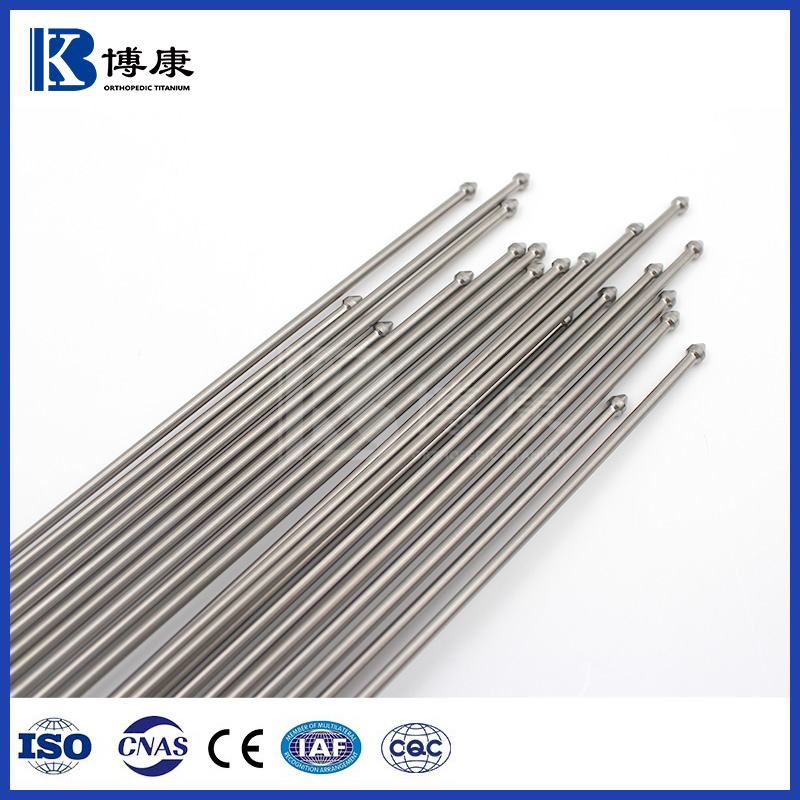

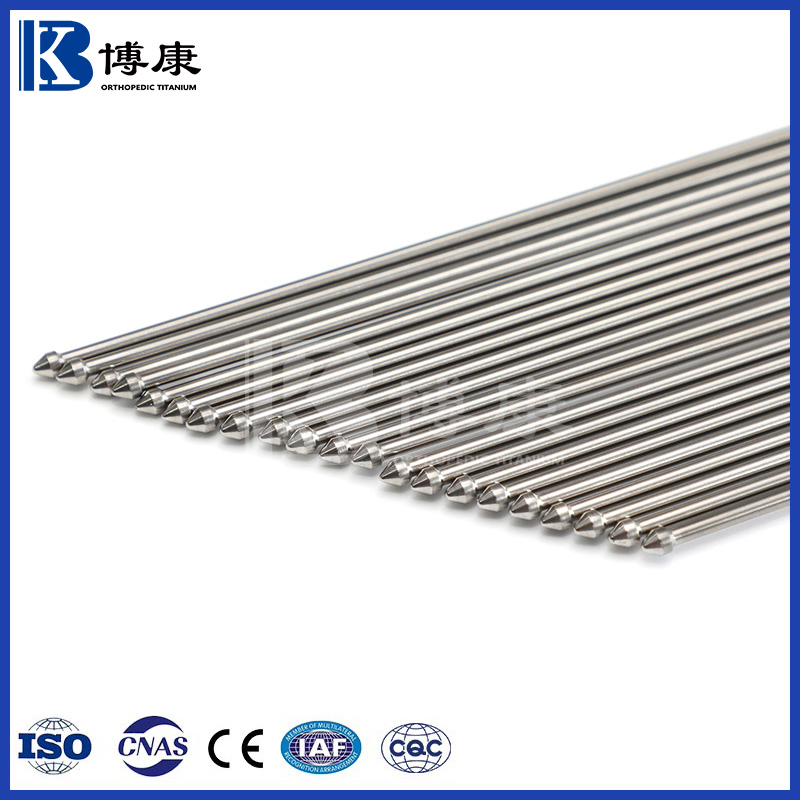

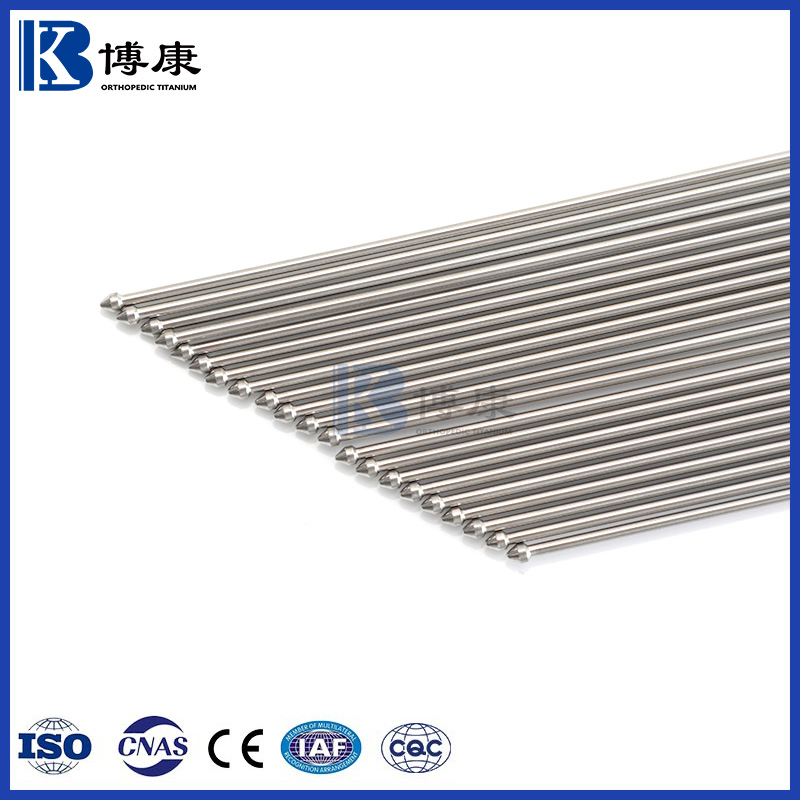

Medical Nitinol Guide Pin High-Precision for Orthopedic Surgery Bone Fixation

Basic Specifications

Model NO.	BKNTGW-M
Technique	Cold Rolled
Grade	Niti
Shape	Ball Tip
Standard	ASTM F2063, Customized
Sample	Available
ODM & OEM	Acceptable
MOQ	1 Psc
Diameter	2.5mm
Tolerance	H6, H7, H8
Surface Finish	Bright
Transport Package	Wood Case
Production Capacity	500000 pieces/Year

Product Description

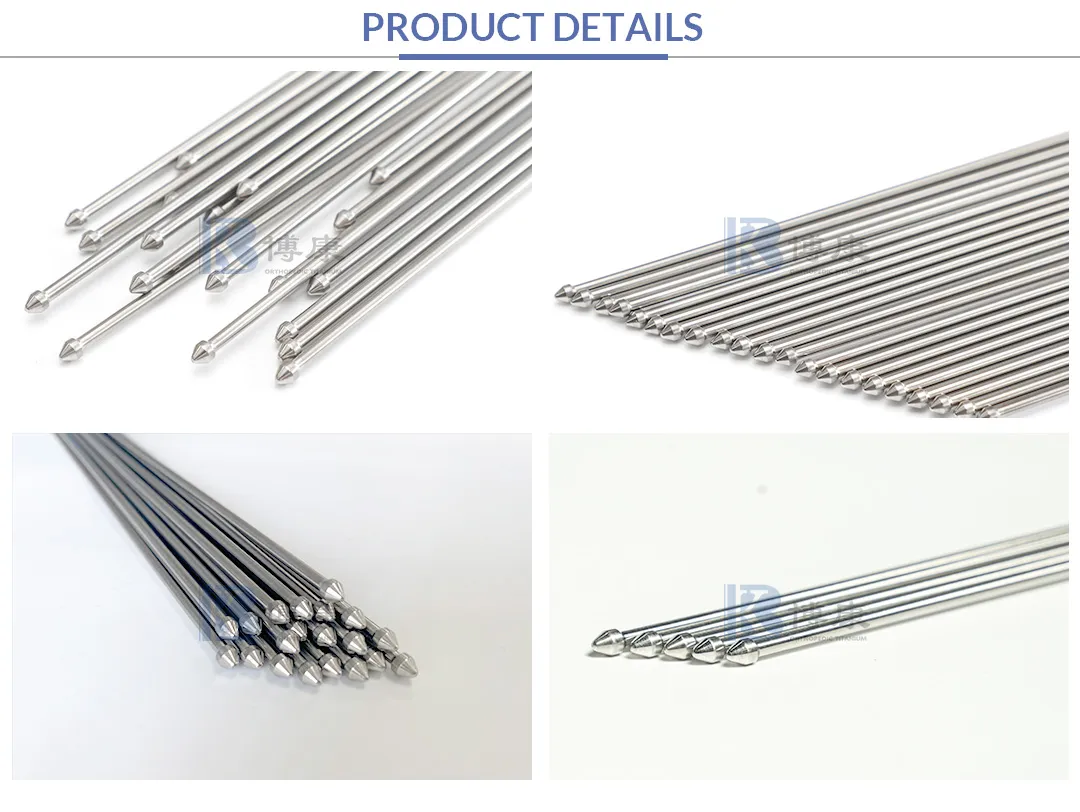

Nitinol Guide Pins Descriptions

The Integrated Nitinol Guide Pin is a high-performance surgical instrument designed for orthopedic implant procedures. Manufactured with precision and reliability in mind, this guide pin is essential for accurate guidance and positioning during minimally invasive surgeries. With advanced processing, strict standards, and customizable specifications, it provides surgeons with superior control and patients with safer, less painful treatment.

Key Advantages

Fully Independent Processing – Complete in-house production ensures consistent quality and precision at every stage.
Integrated Design – One-piece manufacturing enhances durability and eliminates weak points.
High Pull-Out Resistance – Tested with resistance greater than 1200 MPa, offering stability and security during procedures.

Material Features

Excellent Flexibility – Allows smooth navigation and reduces the risk of breakage.
High Precision Positioning – Ensures accurate guidance for drilling and implant placement.
Clear Radiopacity – Provides sharp imaging for real-time surgical monitoring.

Technical Specifications

Grade	NiTi
Standard	ASTM F2063-18, Customized
Common Sizes (mm)	φ2.5×660, φ2.5×900, φ2.5×1000, φ2.5×1200, others customizable
Diameter Tolerance	h6, h7, h8
Surface Finish	Bright
Chemical Composition	Nickel (54.5 to 57.0%), Titanium (Balance), Carbon (≤0.050%), Cobalt (≤0.050%)
Tensile Strength	Minimum 551 MPa (79.9 KSI)
Product Form	Customizable according to requirements

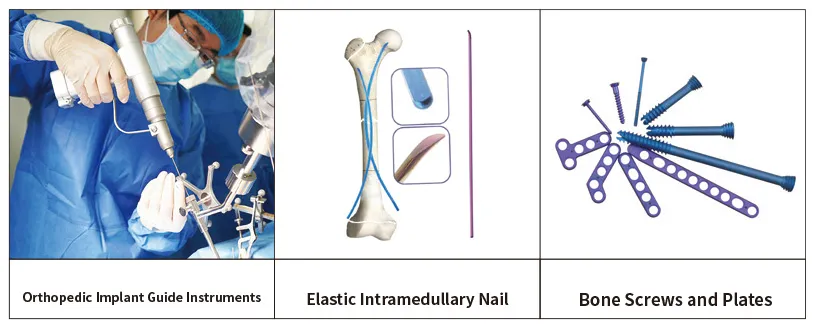

Applications

Orthopedic implant surgeries
Minimally invasive surgical procedures
Guide and positioning tools for drilling or implant insertion

Quality Certifications

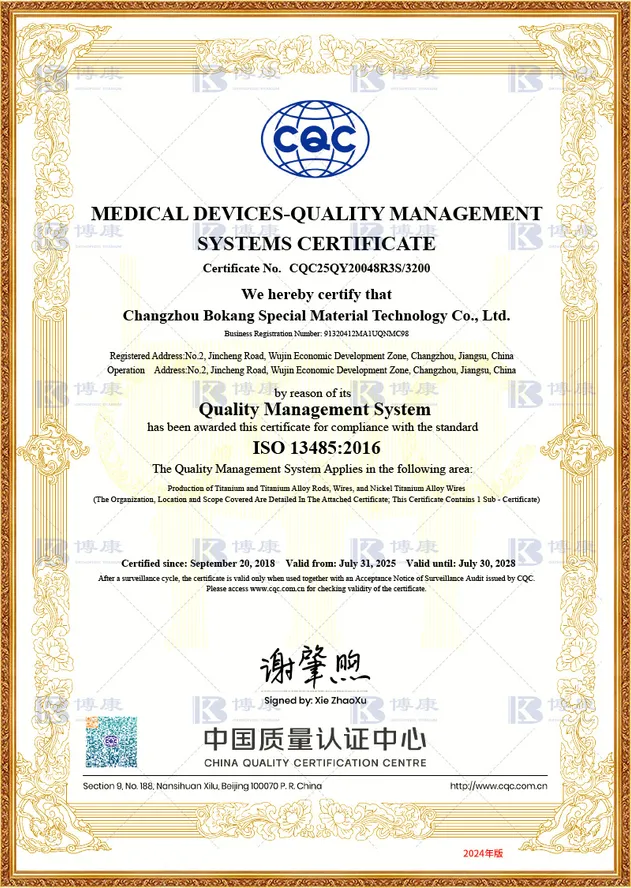

ISO 13485

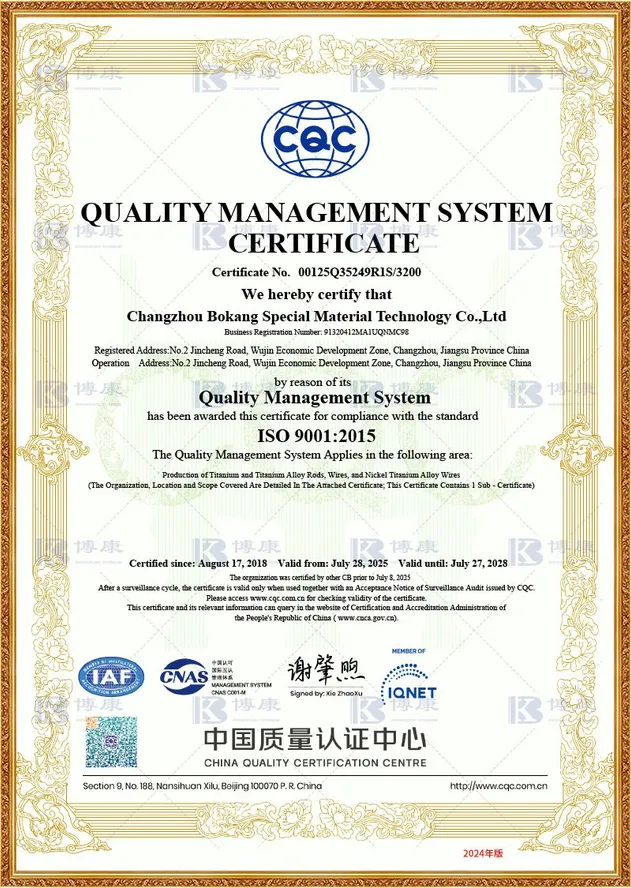

ISO 9001

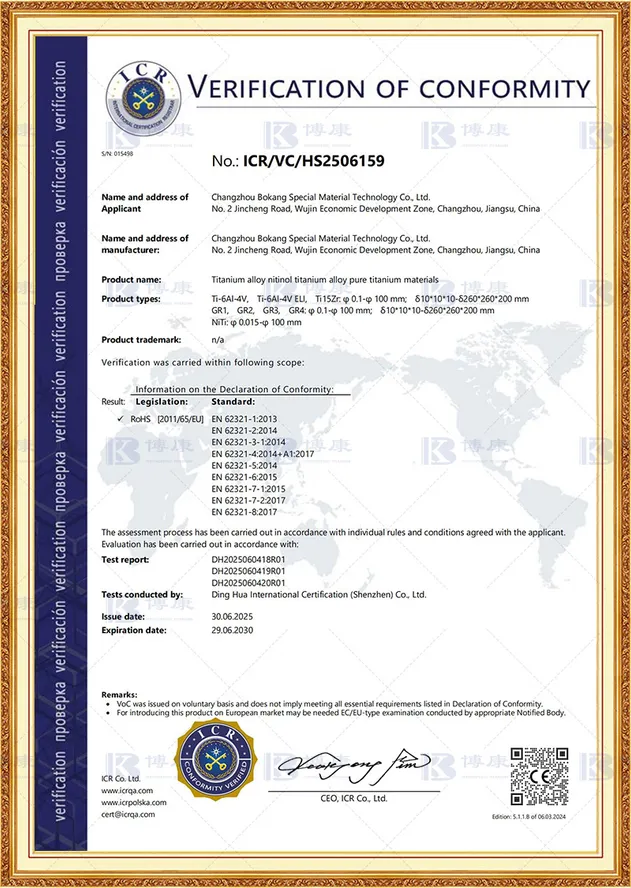

CE

Product Category

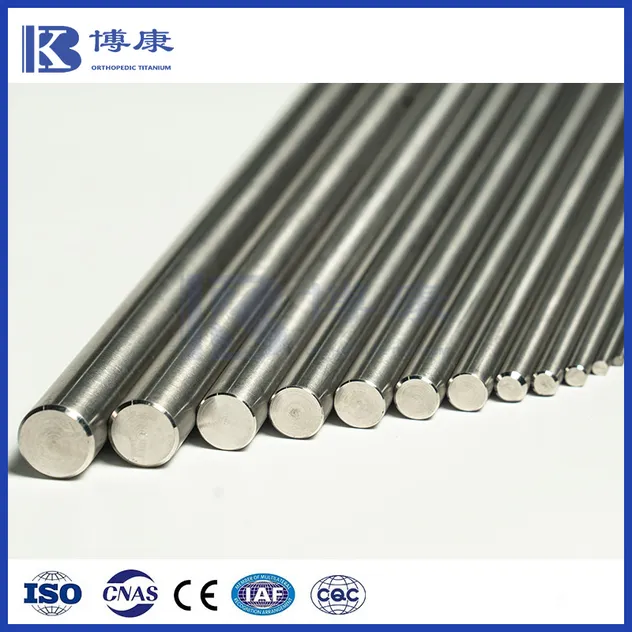

Titanium Bars Rods

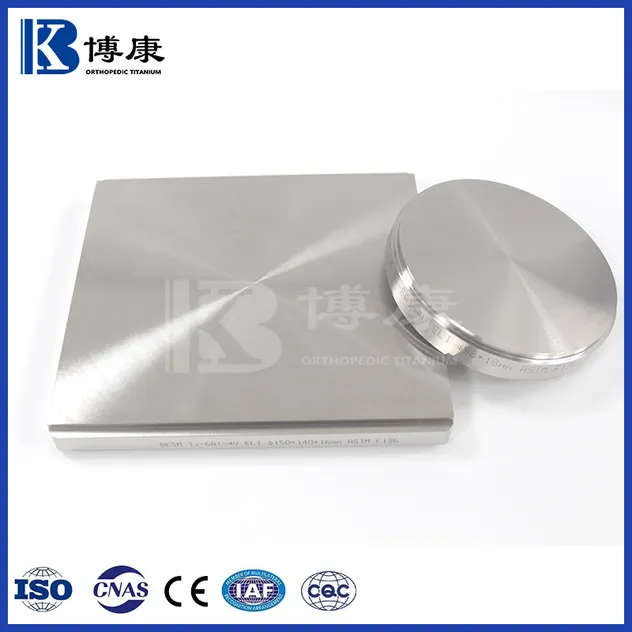

Titanium Disc

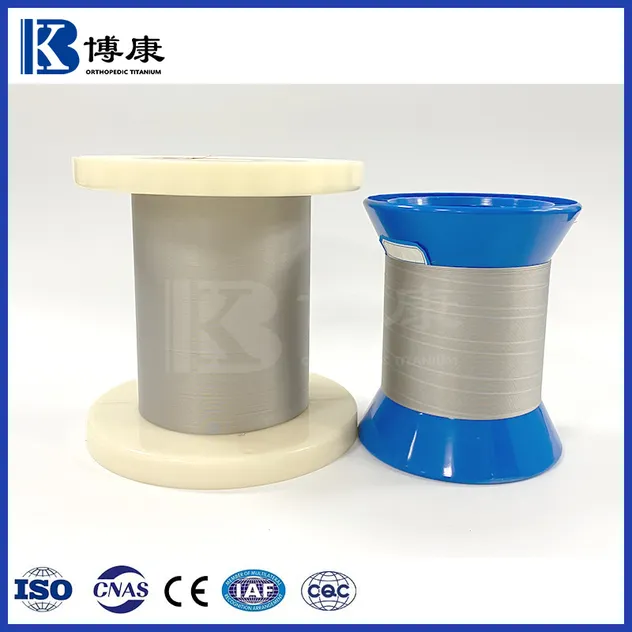

Titanium Wire

Production & Quality Control

Frequently Asked Questions

Q1: What are the main benefits of using Nitinol for guide pins?

A: Nitinol offers excellent flexibility and shape memory, allowing for smooth navigation in complex orthopedic procedures without the risk of permanent deformation or breakage.

Q2: Can the diameter and length of the guide pins be customized?

A: Yes, we provide full customization services. While standard diameters like 2.5mm are common, we can manufacture pins to your specific dimensions and tolerances (H6, H7, H8).

Q3: Do these guide pins comply with international medical standards?

A: Absolutely. Our materials meet ASTM F2063-18 standards for medical-grade Nickel-Titanium alloys, and our production process is ISO 13485 certified.

Q4: Are samples available for testing?

A: Yes, samples are available for quality evaluation. Please reach out with your specific requirements to arrange for a sample.

Q5: What is the pull-out resistance of the integrated design?

A: Our integrated one-piece guide pins are tested to have a pull-out strength greater than 1200 MPa, ensuring maximum stability during surgical procedures.

Q6: How is the radiopacity of the Nitinol pins?

A: Our Nitinol guide pins provide clear radiopacity, allowing for precise real-time imaging and positioning during surgery.
