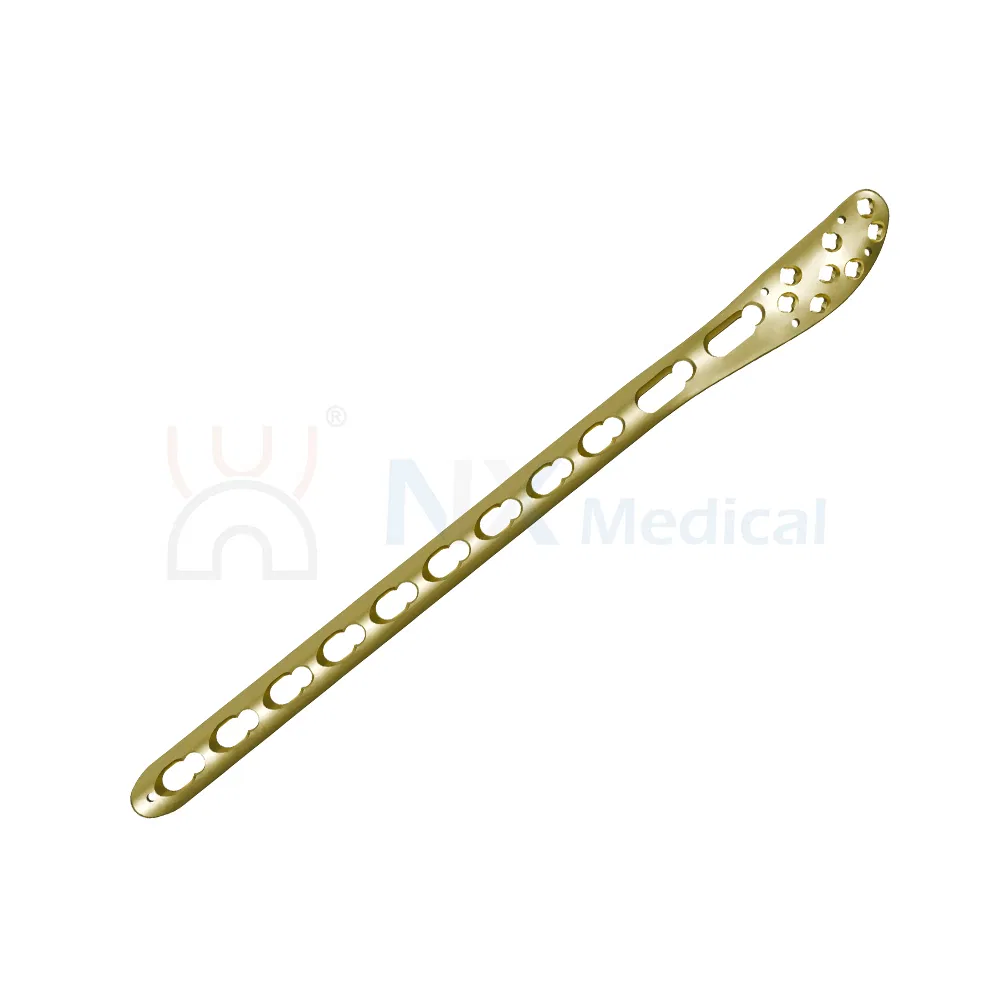

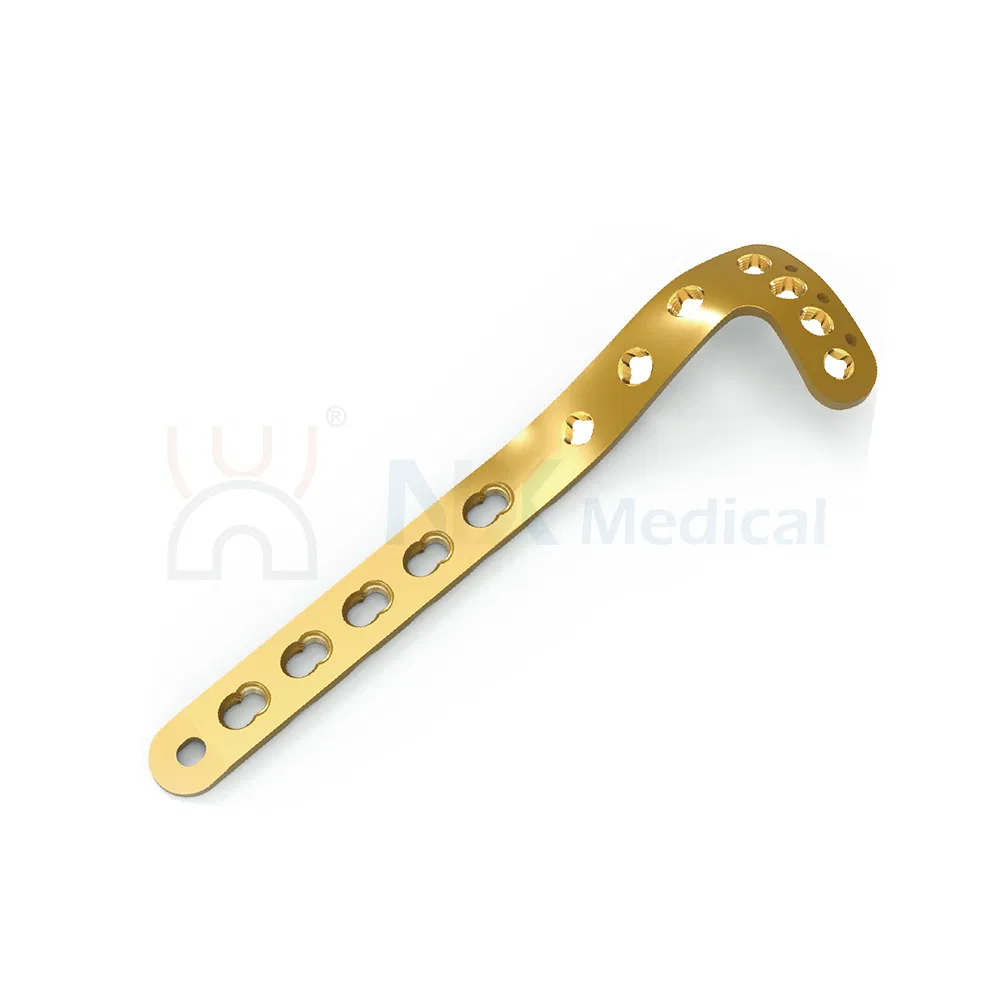

Nx Medical Variable Angle Locking System Bone Fixation Plate Orthopedic Trauma Implant
Nx Medical Variable Angle Locking System Bone Fixation Plate Orthopedic Trauma Implant
Nx Medical Variable Angle Locking System Bone Fixation Plate Orthopedic Trauma Implant
Nx Medical Variable Angle Locking System Bone Fixation Plate Orthopedic Trauma Implant
Nx Medical Variable Angle Locking System Bone Fixation Plate Orthopedic Trauma Implant
1 / 5
Nx Medical Variable Angle Locking System Bone Fixation Plate Orthopedic Trauma Implant
Nx Medical Variable Angle Locking System Bone Fixation Plate Orthopedic Trauma Implant
Nx Medical Variable Angle Locking System Bone Fixation Plate Orthopedic Trauma Implant
Nx Medical Variable Angle Locking System Bone Fixation Plate Orthopedic Trauma Implant
Nx Medical Variable Angle Locking System Bone Fixation Plate Orthopedic Trauma Implant

Nx Medical Variable Angle Locking System Bone Fixation Plate Orthopedic Trauma Implant

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
YSW17-03
Guarantee Period
Two Years
Group
Adult
Logo Printing
Available
Certification
ISO, CE
Condition
New
Usage
Fracture Fixation
Using Site
Fibula & Tibia
Properties
Implant Materials
Capacity
50,000 PCS/Year
Variable Angle Locking System
Key Features & Benefits
1
Color coding to easily differentiate Small or Large Fragment Plates.
2
VAS locking hole provides variable angulation within at least 25° cone.
3
Various variable angle cortical and cancellous locking screws are available for different fracture needs.
4
Four points of thread locking between plate and variable angle screw creates a fixed-angle construct.
5
Three distal divergent locking screws provide effective support and fixation.
6
Advanced instruments facilitate precise screw angulation creation.

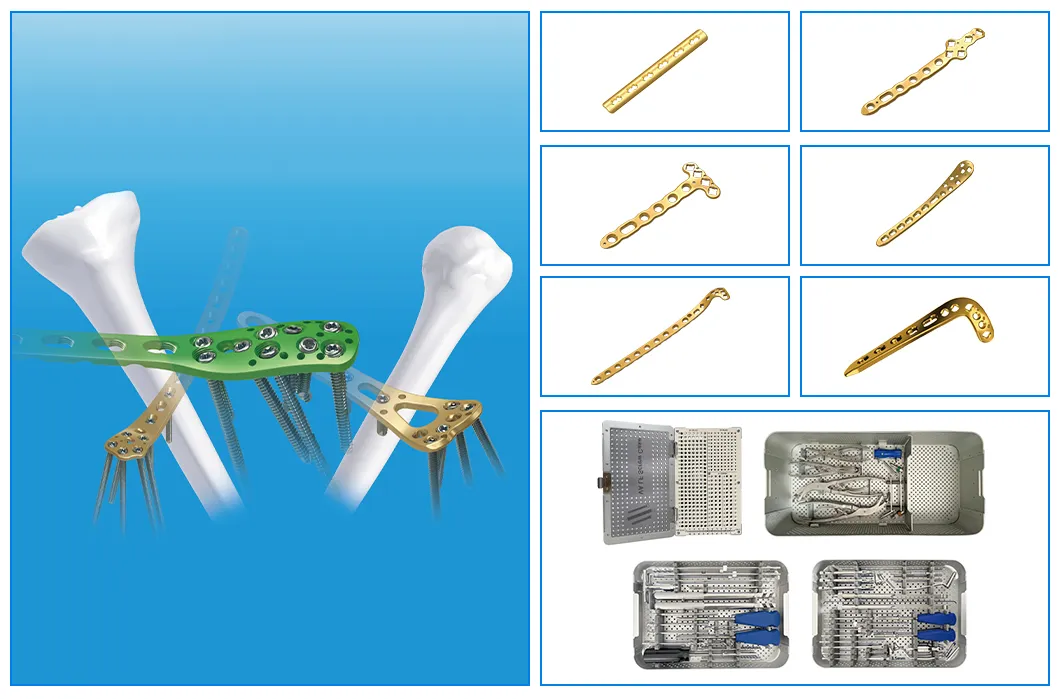

Product Detail
Product Detail View

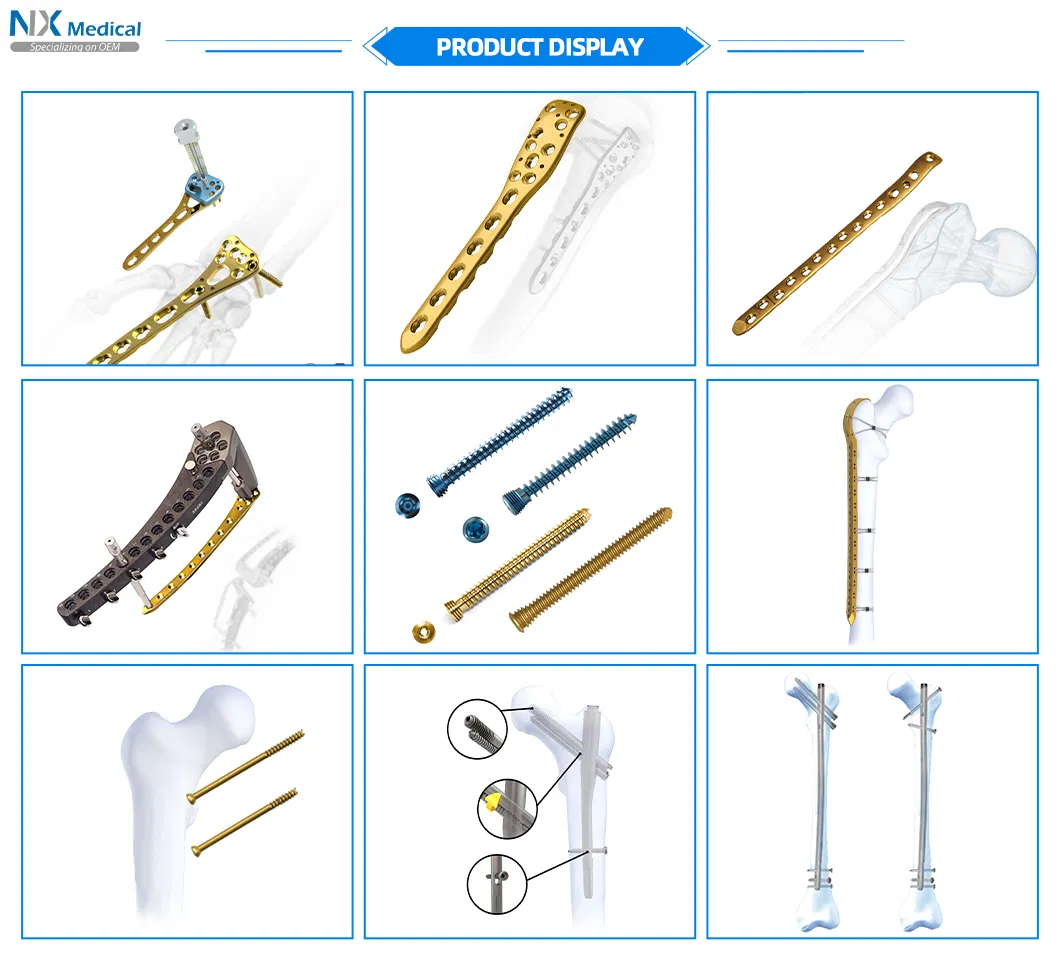

Clinical Application
Product Specifications
Product Name Holes Direction Material Length(mm)

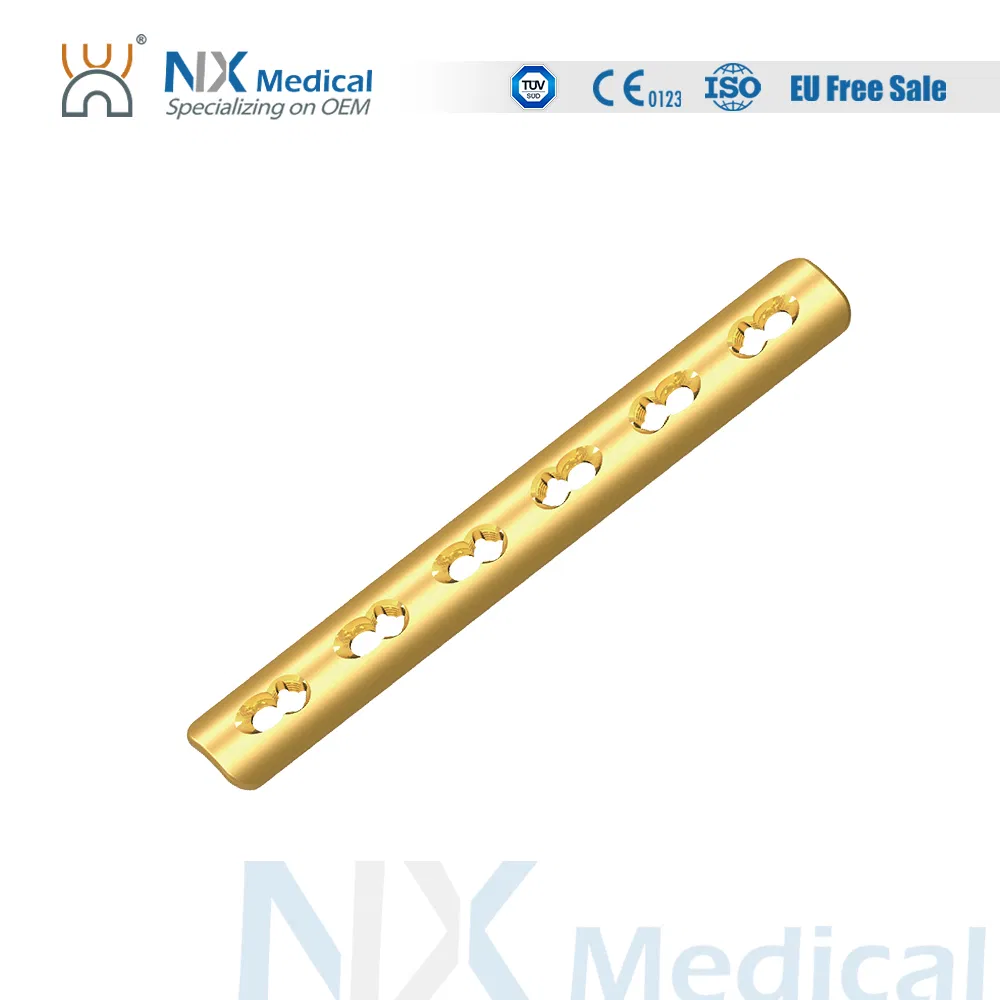

VAS 1/3 Tube Locking Plate 4H - PT 53
6H - PT 77
12H - PT 149

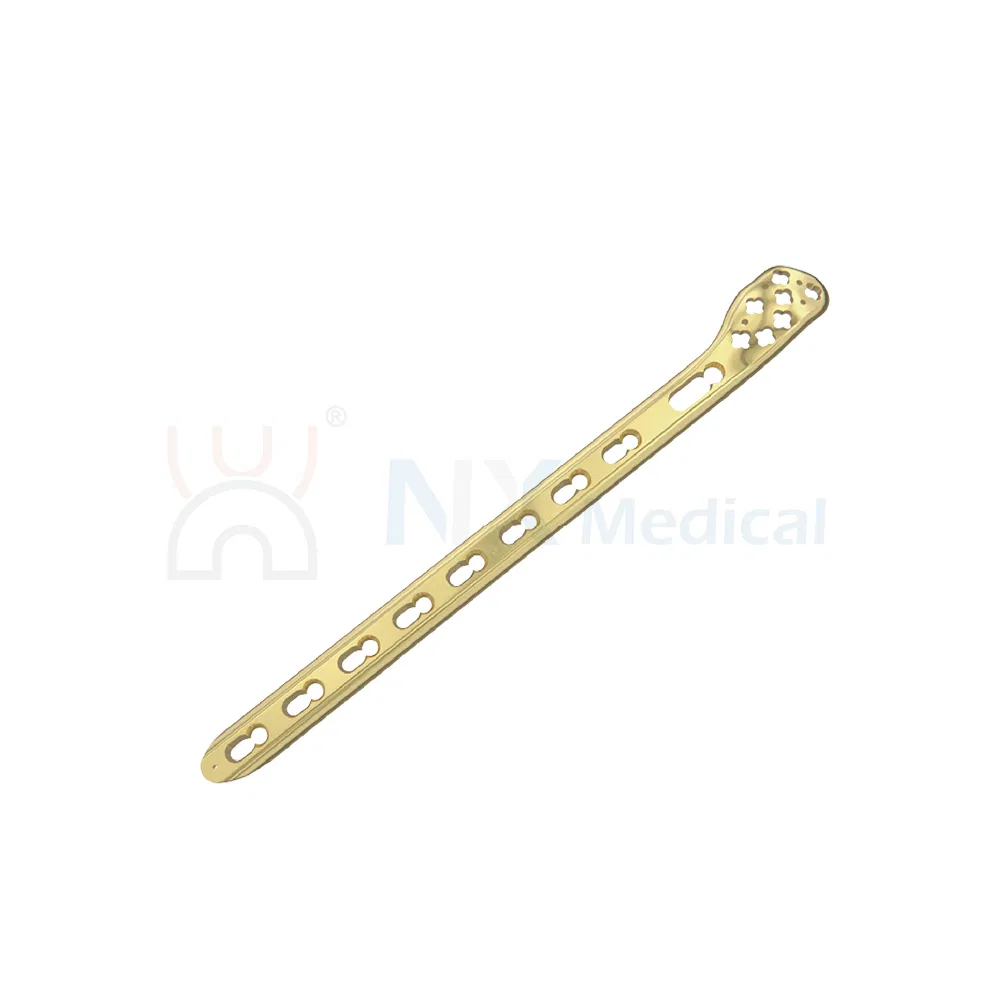

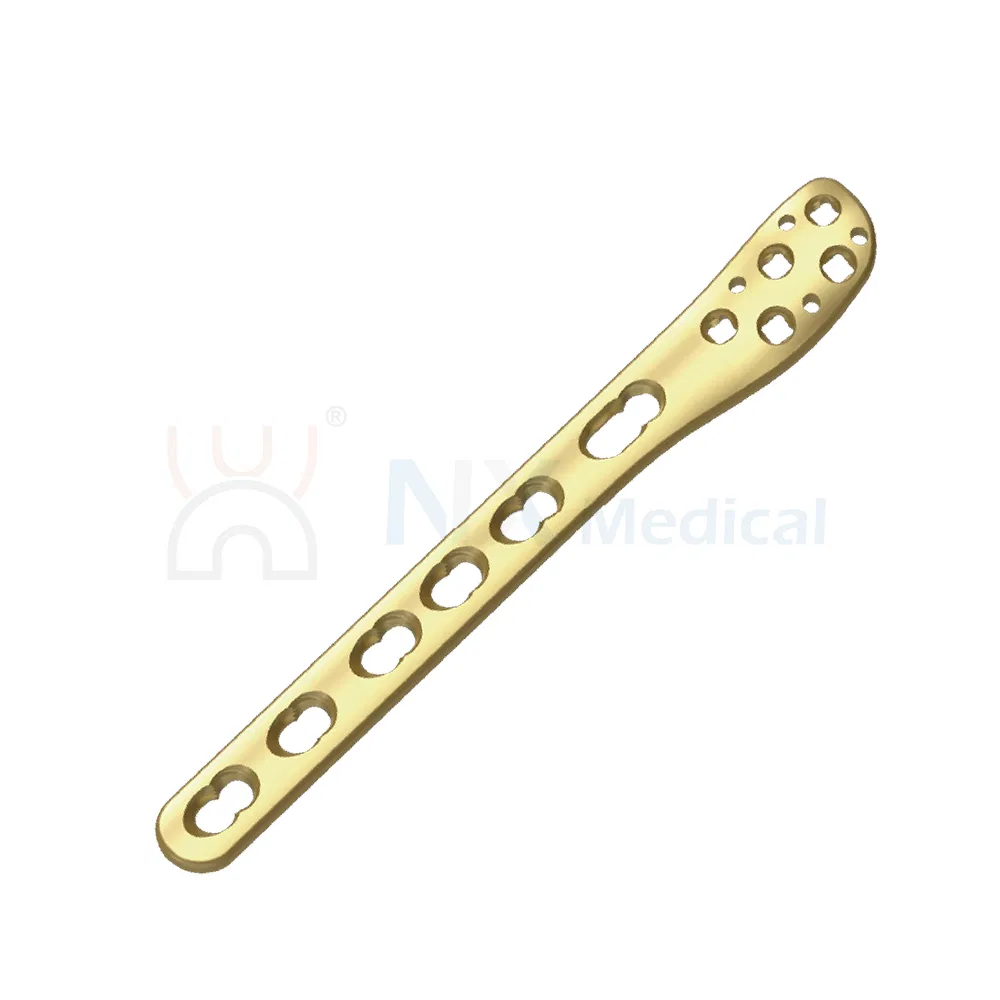

VAS Distal Lateral Fibular LCP 5+3H L/R PT 78
5+13H L/R PT 208
VAS Proximal Lateral Tibial Plateau 4+4H L/R PT 85
4+14H L/R PT 215
Production Capability

Our facility is one of the leading Orthopedic product manufacturers located in the East of China. We provide a comprehensive range of cost-effective surgical and reliable therapeutic solutions to Orthopedic surgeons and patients. We offer superior and various kinds of Orthopedic trauma implants, spinal implants, and surgical instruments worldwide.

We believe superior quality is the key for patients. Internally we have established a strict quality system to fulfill our frequent self-audits. Externally, we comply with ISO13485, and all our products are certified by TUV CE0123 and NMPA.

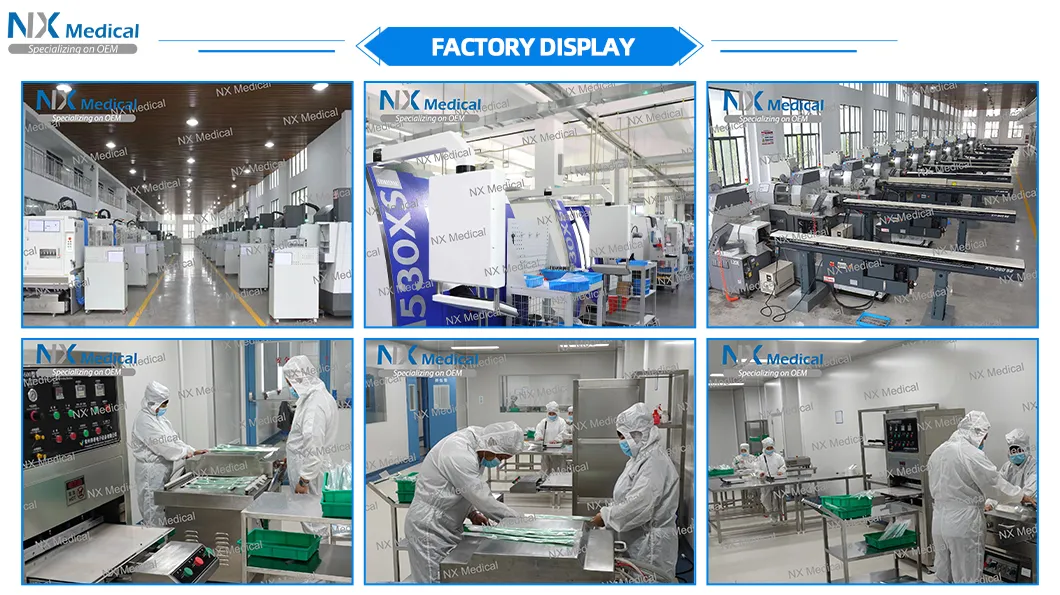

Workshop
Production Line

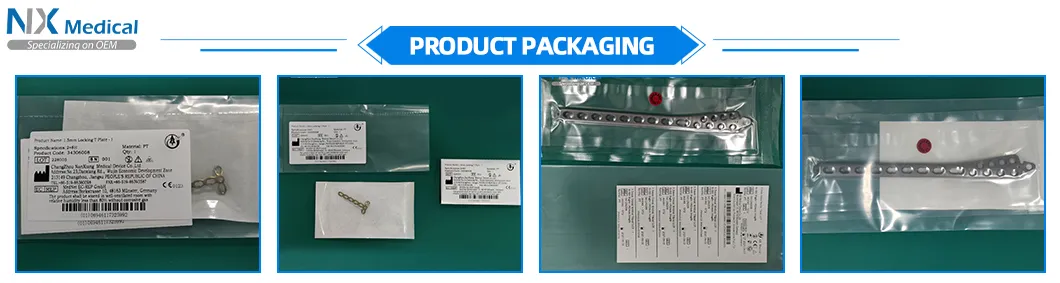

Testing Equipment
Certifications
ISO CE Certifications
Frequently Asked Questions
Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Can you accept customized products?
Yes, we have a complete design and drawing department and CNC machines to provide high-precision customized services.
How do you ensure the quality of your products?
We conduct strict sampling inspections on products before shipment and ensure intact product packaging.
What is the lead time for samples?
For existing items, within 3 days. For OEM products, it typically takes approximately 2 weeks.
Can you brand products with our logo?
Yes, we can print your logo on both the products and the packaging if our MOQ requirements are met.
How do I proceed with a formal order?
Firstly, let us know your requirements. Secondly, we quote based on those needs. Thirdly, the customer confirms samples and places a deposit. Fourthly, we arrange production.
