Our latest modular table platform offers enhanced safety features, improved setup workflows, and increased weight capacity.
Enhanced patient positioning for spine, imaging, and orthopedic trauma

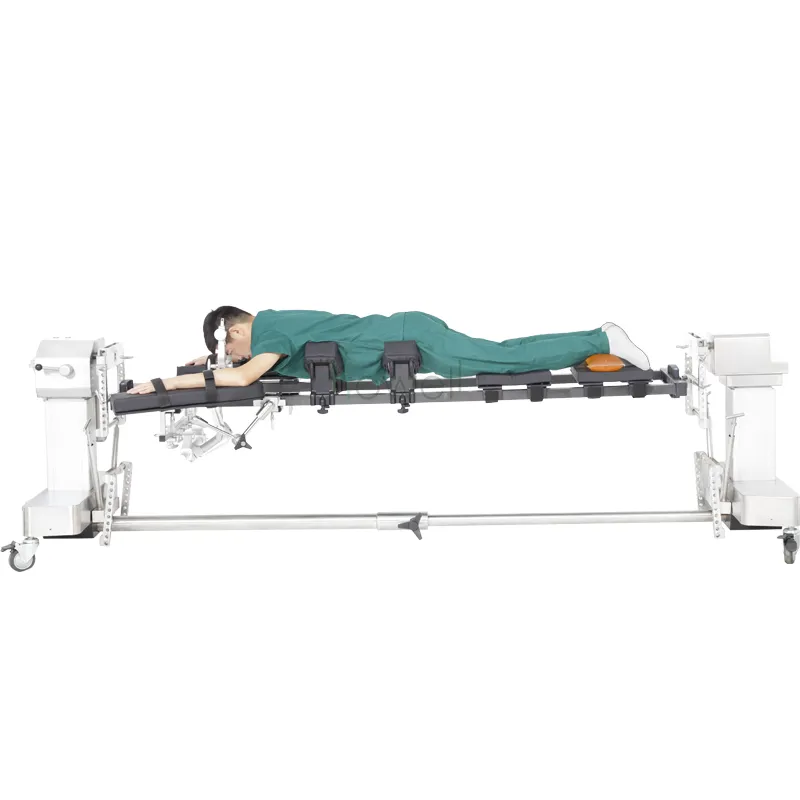

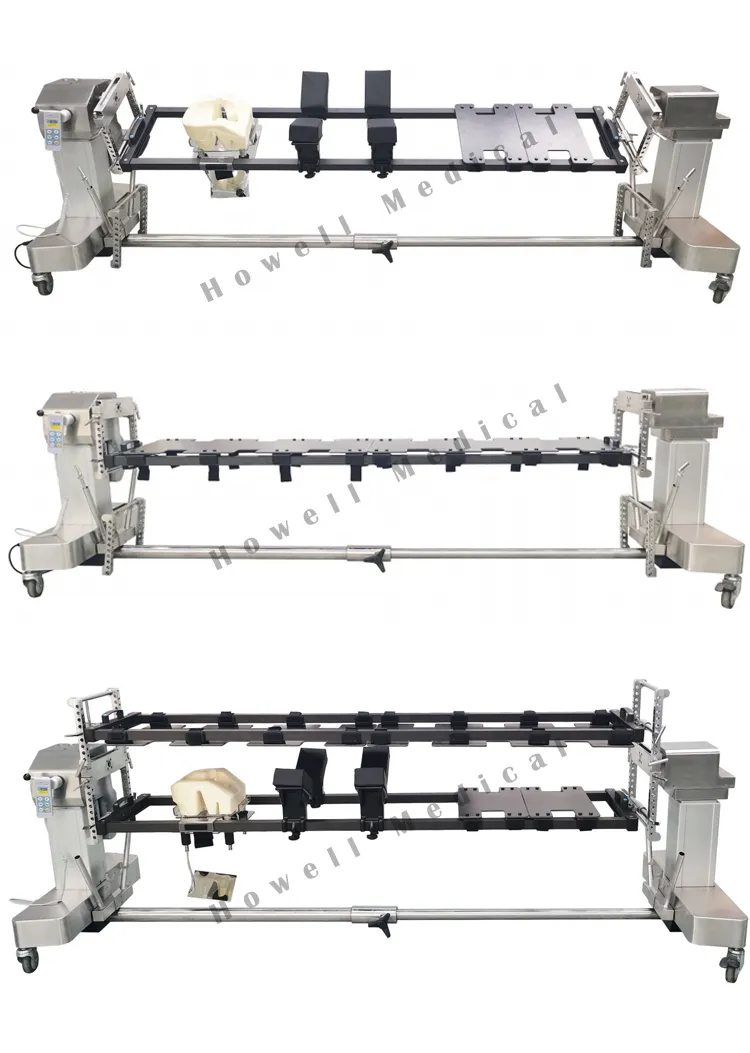

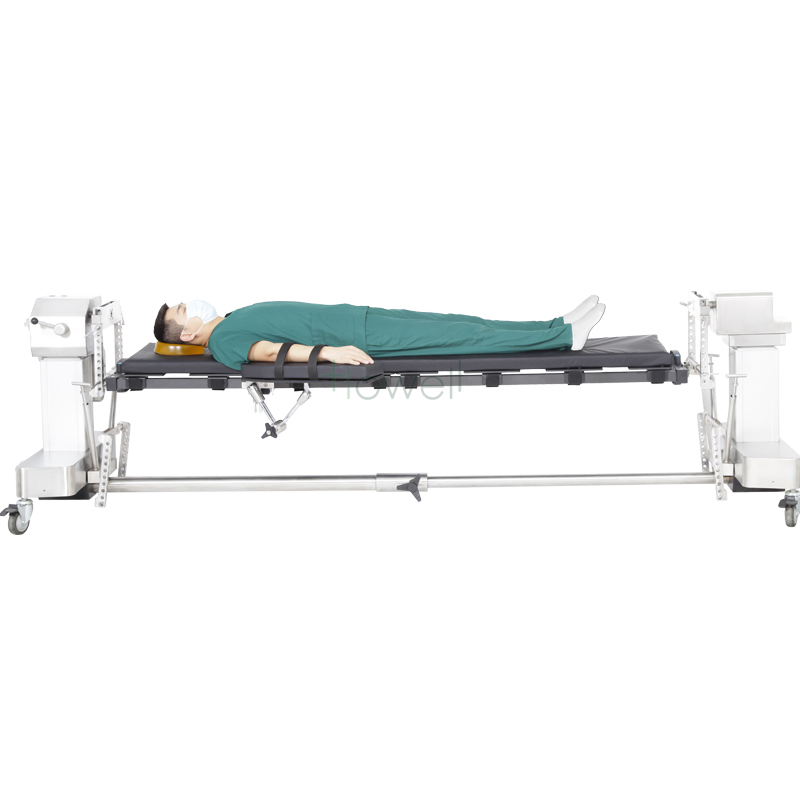

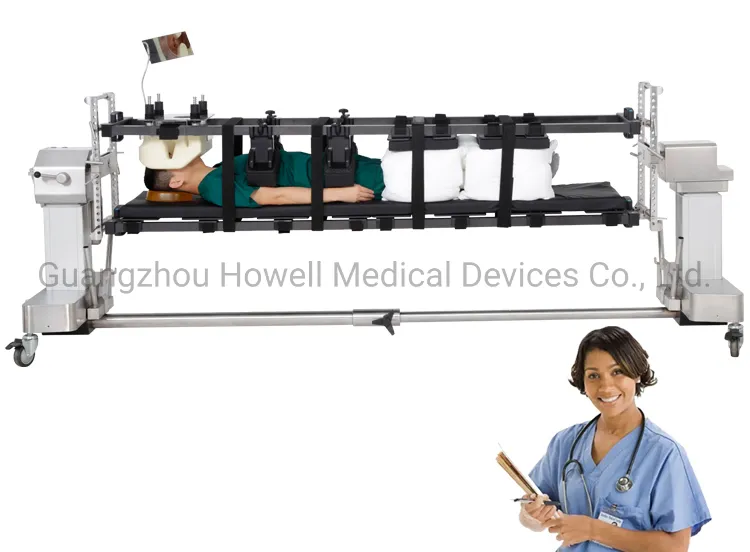

This modern system features a dual-column modular platform known for its interchangeable patient positioning for the spine, imaging, and orthopedic trauma procedures. It features a unique tabletop mounting interface that keeps the tabletop locked in place, single push electronic floor locks and a streamlined 180° patient rotation mechanism. Simple to set up and intuitive to use, it simplifies your workflow and minimizes the possibility of human error.
Product Features:

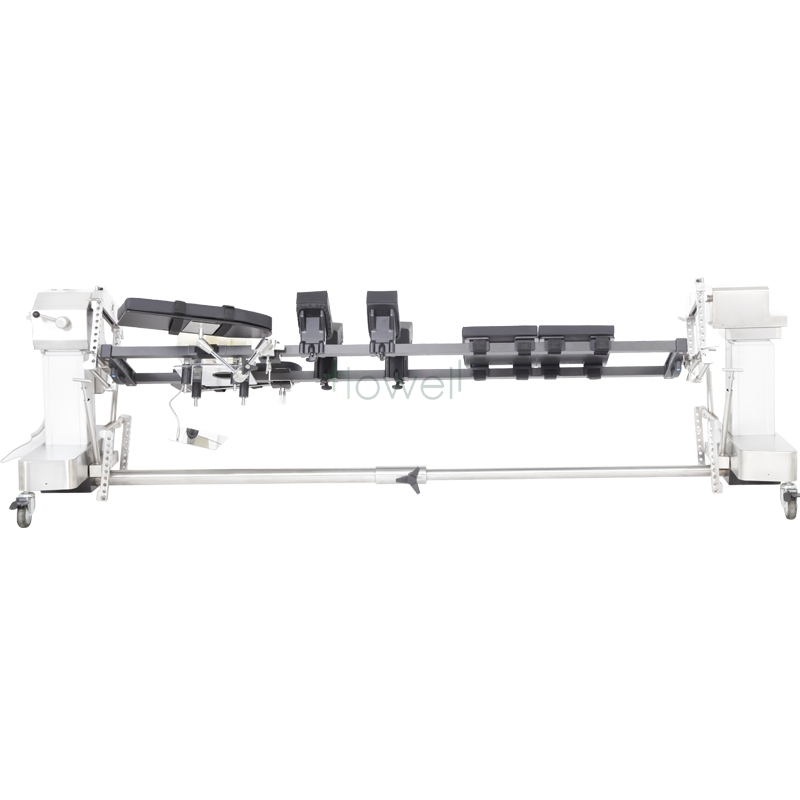

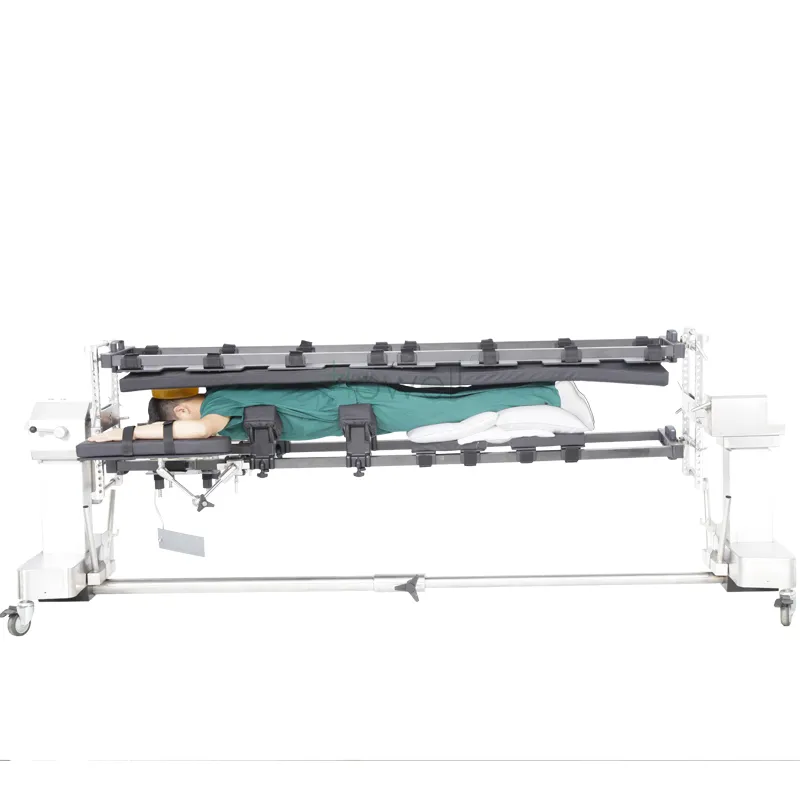

Spinal Surgery Top: Open spine frame reduces vena cava compression, minimizes epidural venous bleeding and improves visualization at the surgical site.

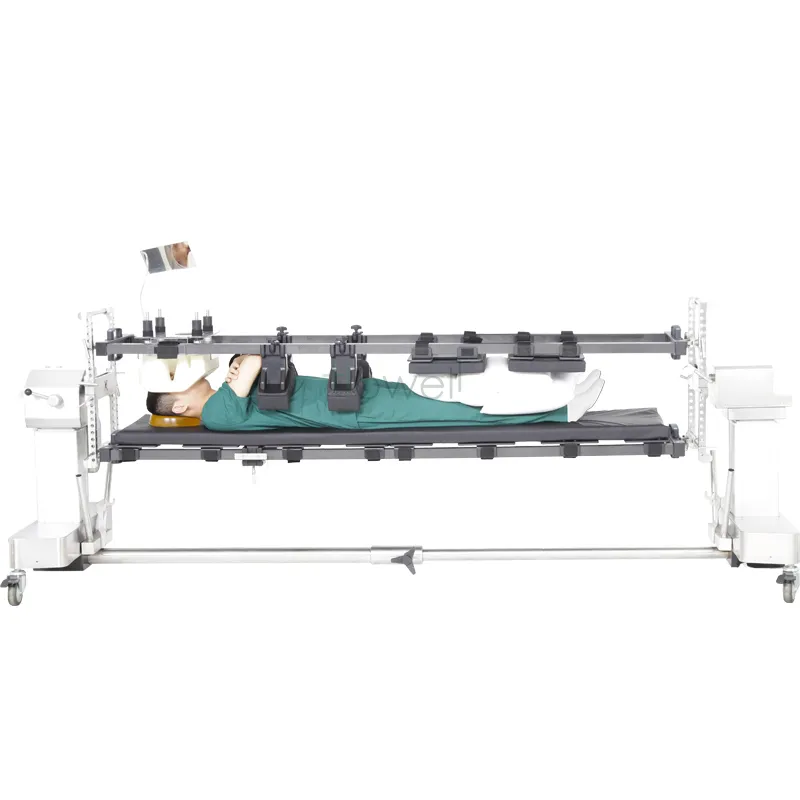

Radiolucent Imaging Top: Supports supine or lateral positions. Fully radiolucent, carbon fiber table top with pressure equalization pad.
Orthopedic Trauma Top: Modern table top with Traction Arc attachment features. Provides constant and anatomically correct traction for various trauma procedures.
| Technical Parameters | Specifications (Spinal Surgery Top) |
|---|---|
| Table Total Length | 3120mm |
| Table Total Width | 850mm |
| Tabletop size | 2250*450mm |
| Tabletop Height adjustment | 510-1234mm |
| Table lift stroke(electric) | 500mm |
| Table lift stroke (manual) | 224mm |
| Trendelenburg/Reverse Trendelenburg | 15º/15º |
| Left/Right tilt | 25º/25º |
| Patient Weight Capacity | 260kg |

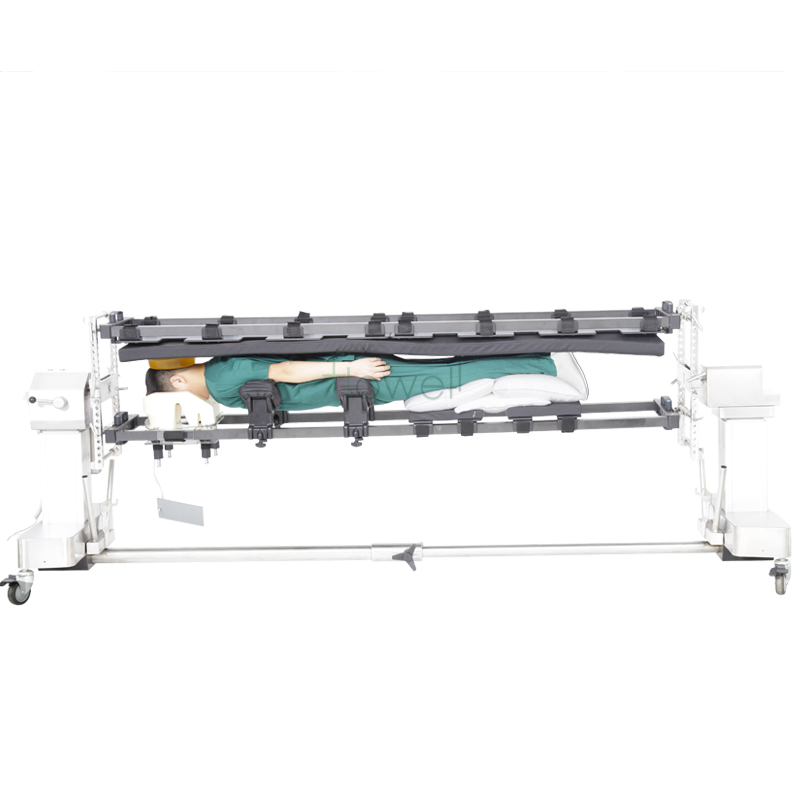

| Table Top Rotation | 180 ° |
