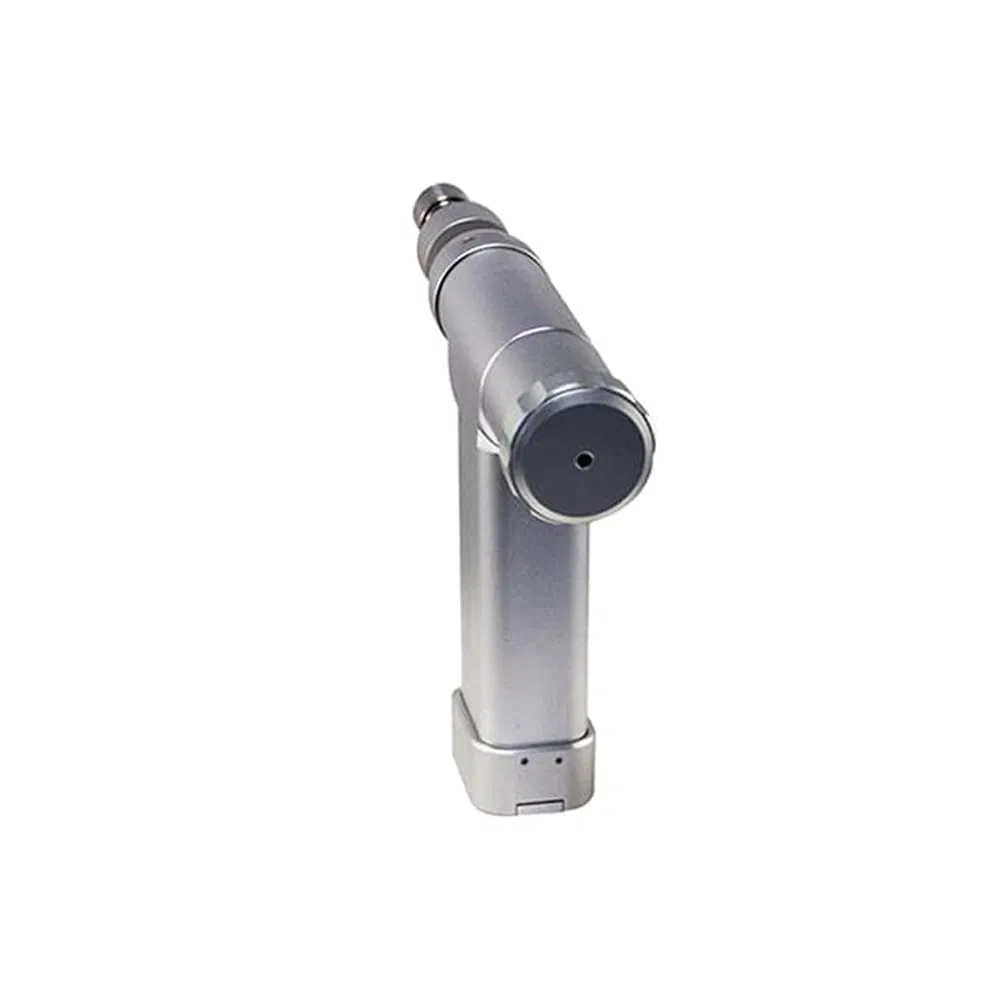

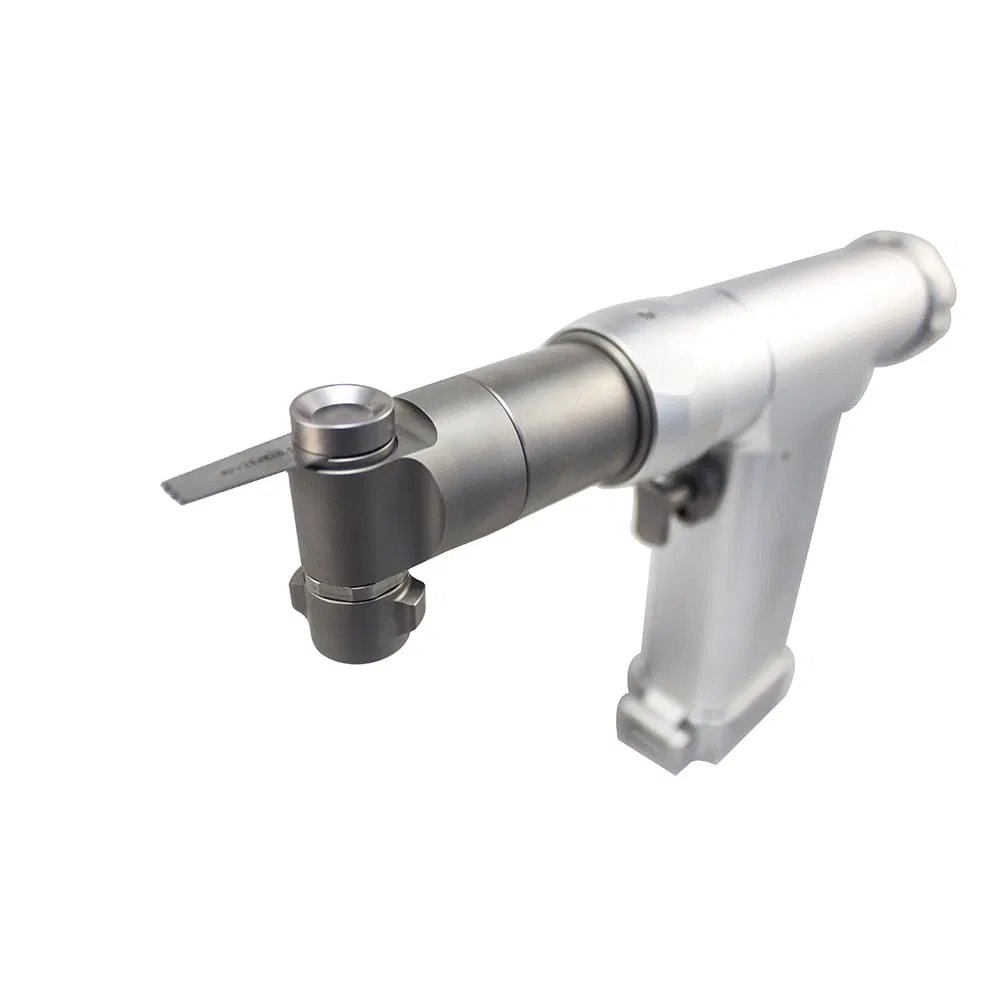

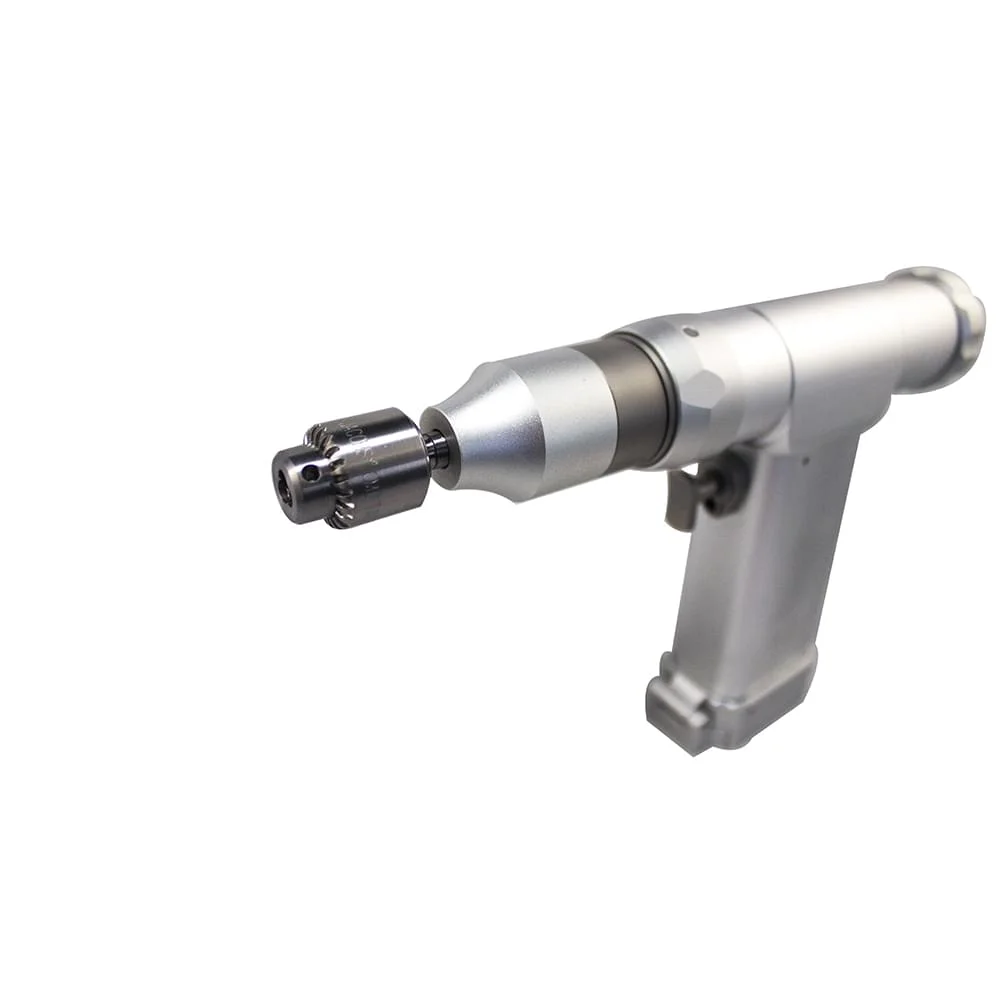

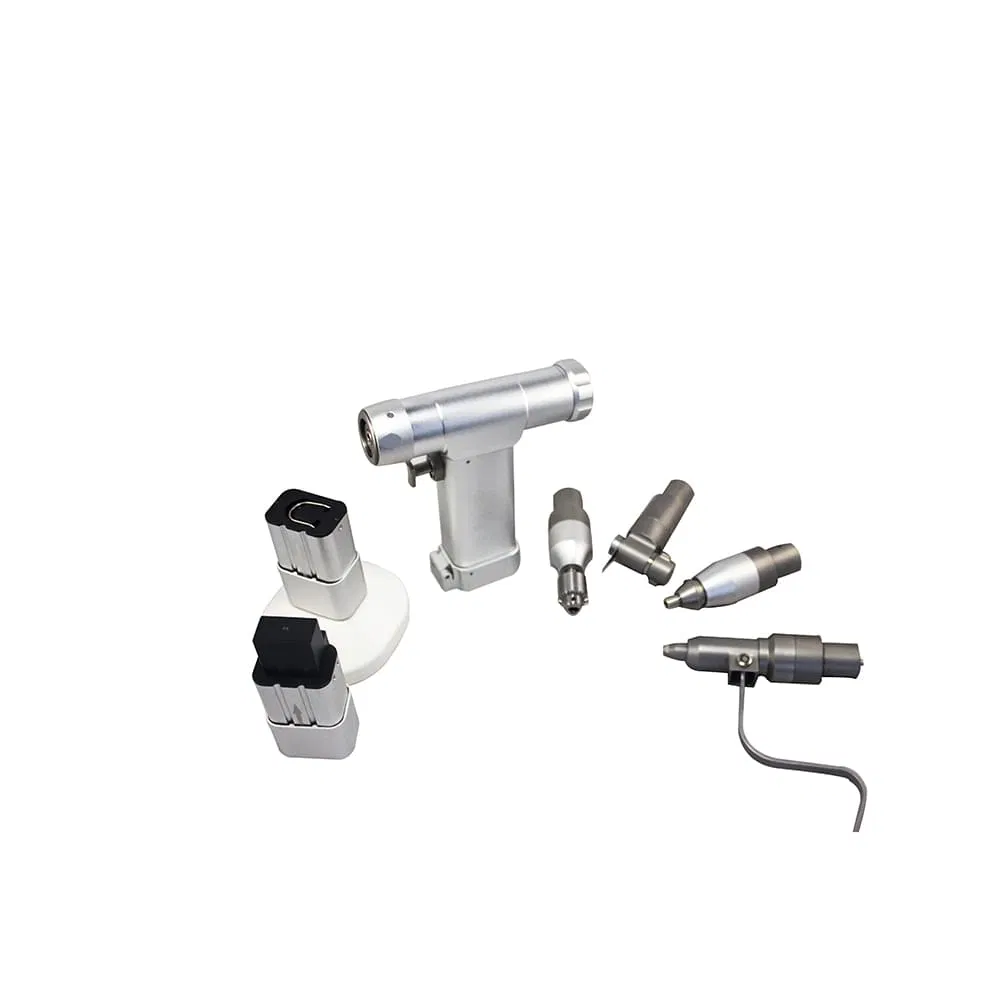

Orthopedic Power System Micro Multi-Function with K Wire/Ao Adapter/Drill Chuck/Sagittal Saw Connector

1 / 5

Orthopedic Power System Micro Multi-Function with K Wire/Ao Adapter/Drill Chuck/Sagittal Saw Connector

Customization:	Available
Type:	Surgical Drill Saw System
Application:	Orthopedic

Send Inquiry

Product Description

Basic Specifications

Material

Medical Stainless Steel

Feature

Reusable

Certification

CE, ISO13485

Properties

Orthopedic Surgical Instruments

Model Number

Nm-300

Rated Voltage

220V/50Hz

Cannula Diameter

4.2mm

Wire/Pin Chuck Speed

600rpm

Working Voltage

14.4V

Saw Speed

16000

Bone Drill Speed

1100rpm

Non-Load Noise

63dB

Transport Package

Aluminum Case

HS Code

9018909000

Production Capacity

10000 Pieces Per Month

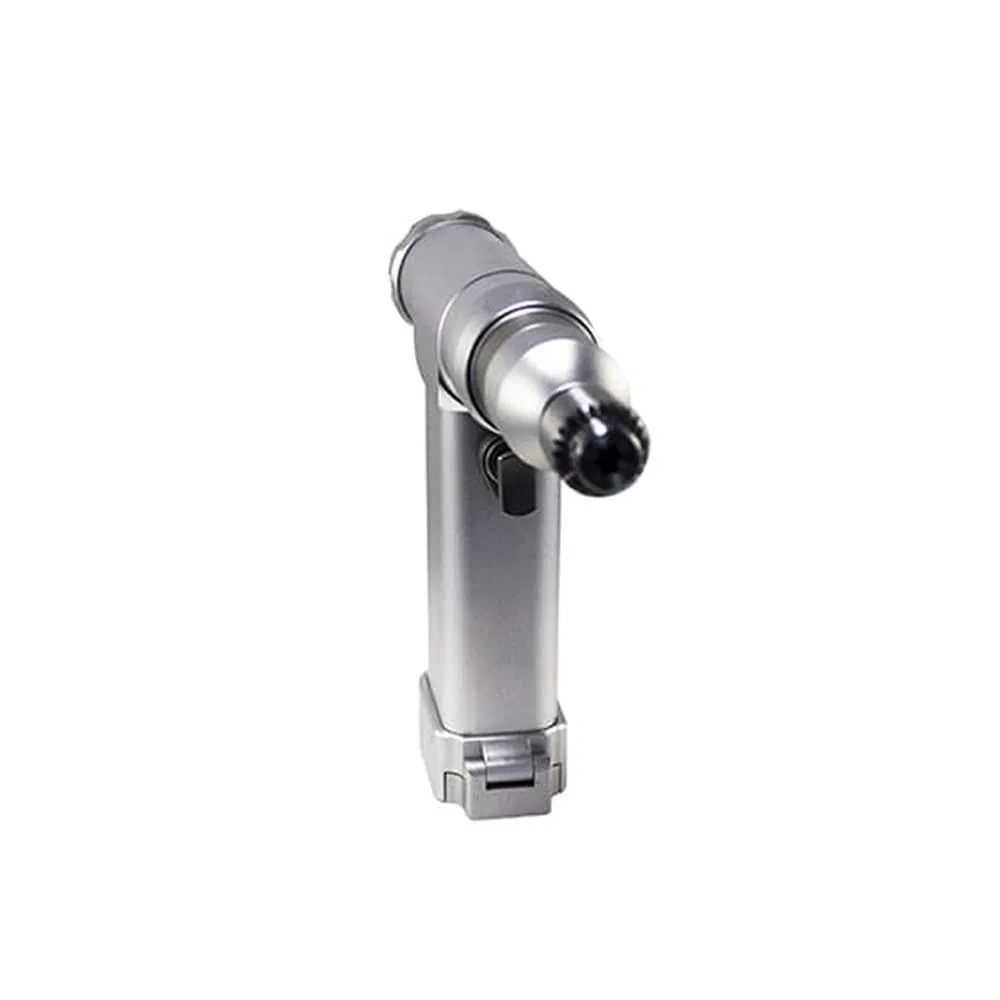

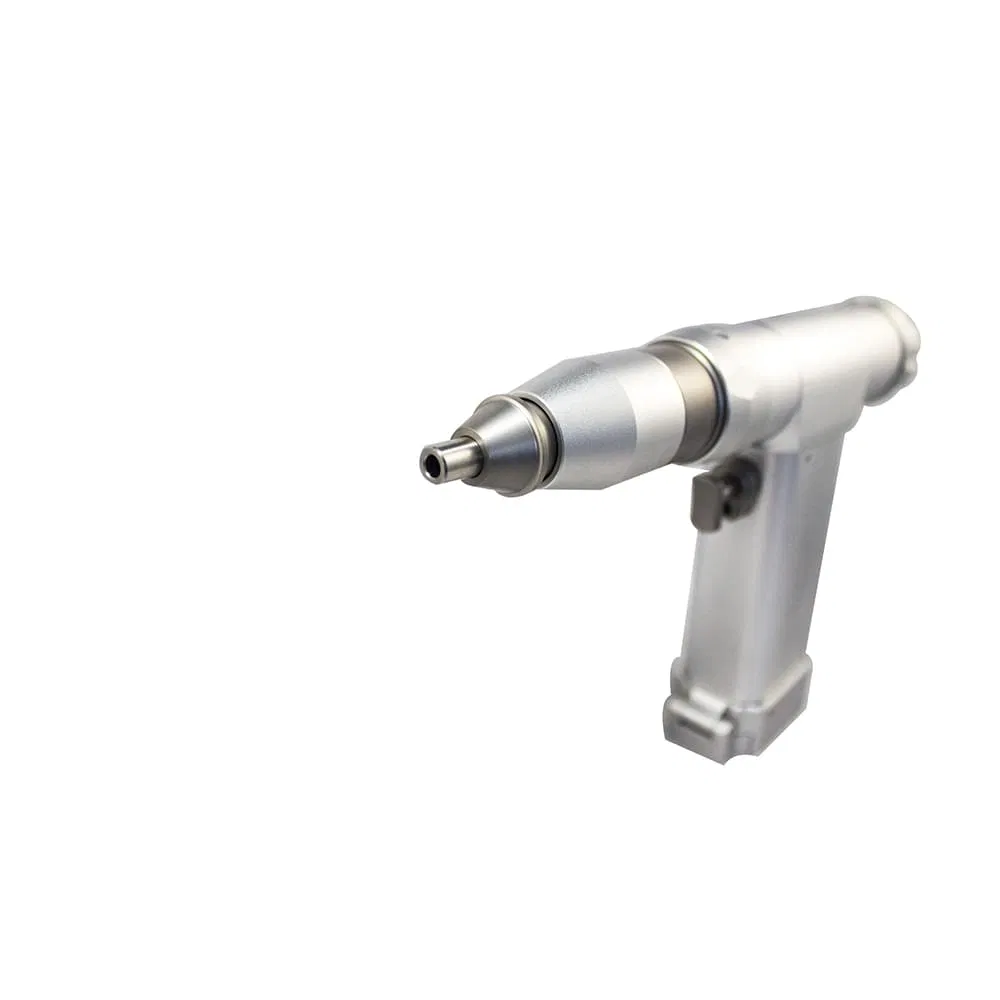

Orthopedic Power System Micro Multi-Function

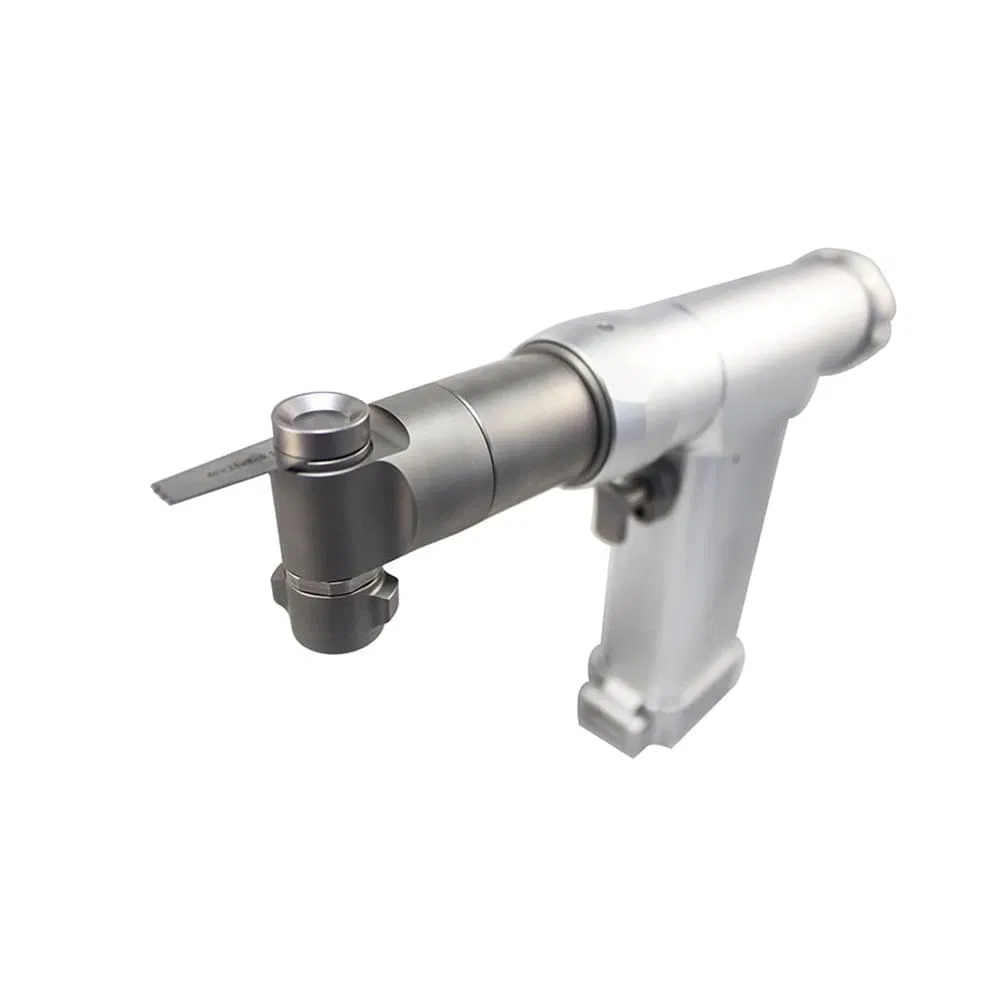

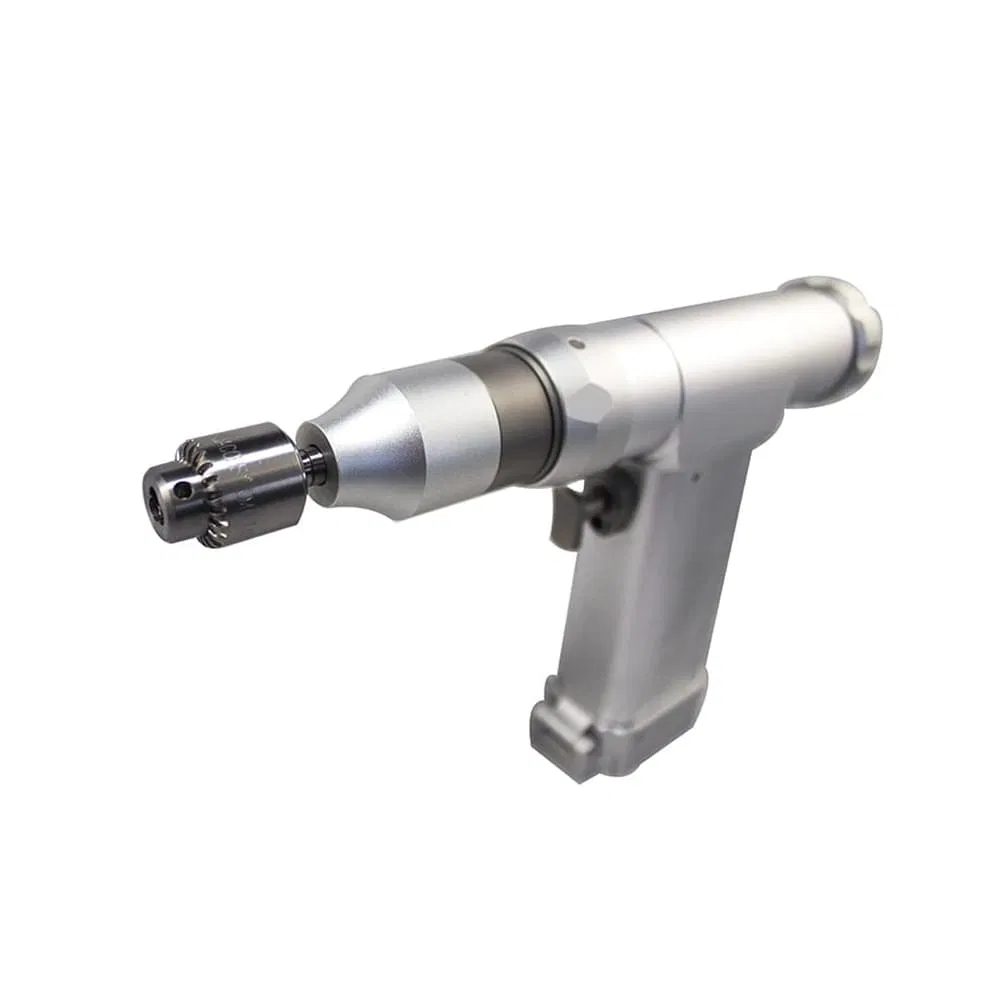

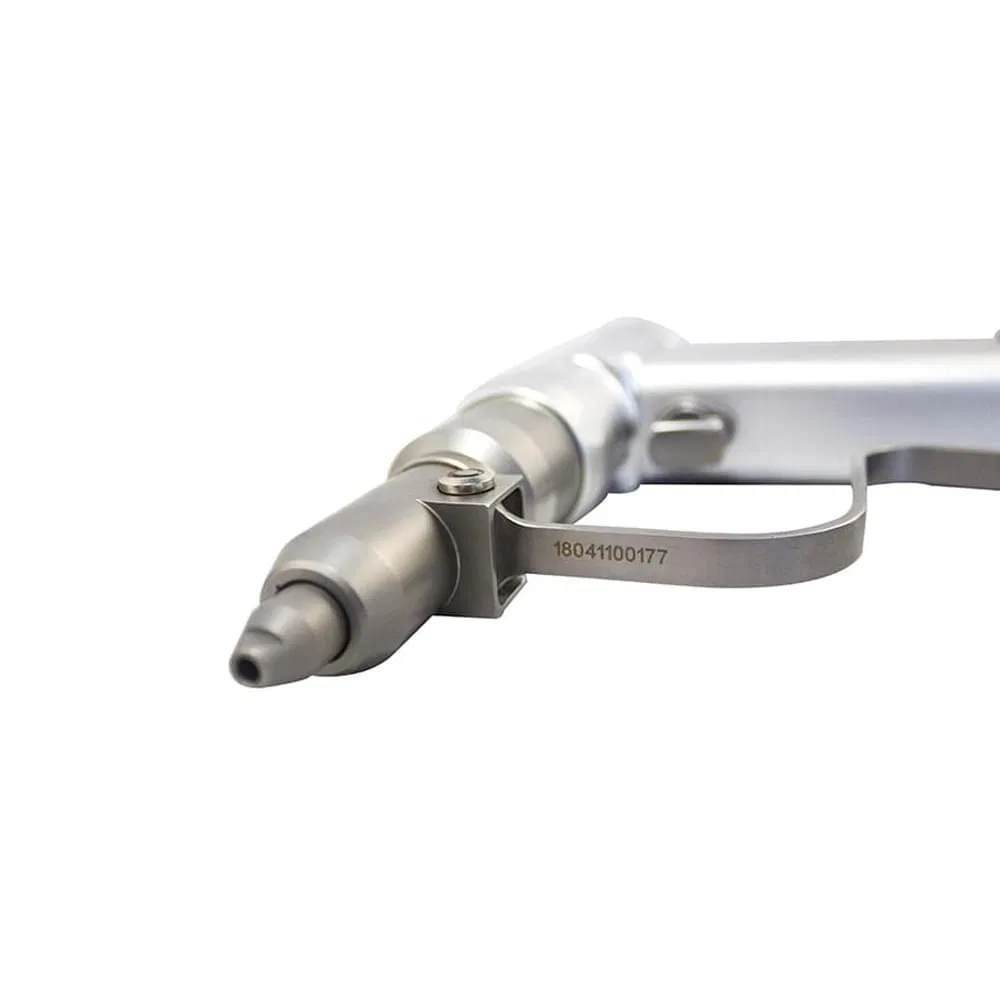

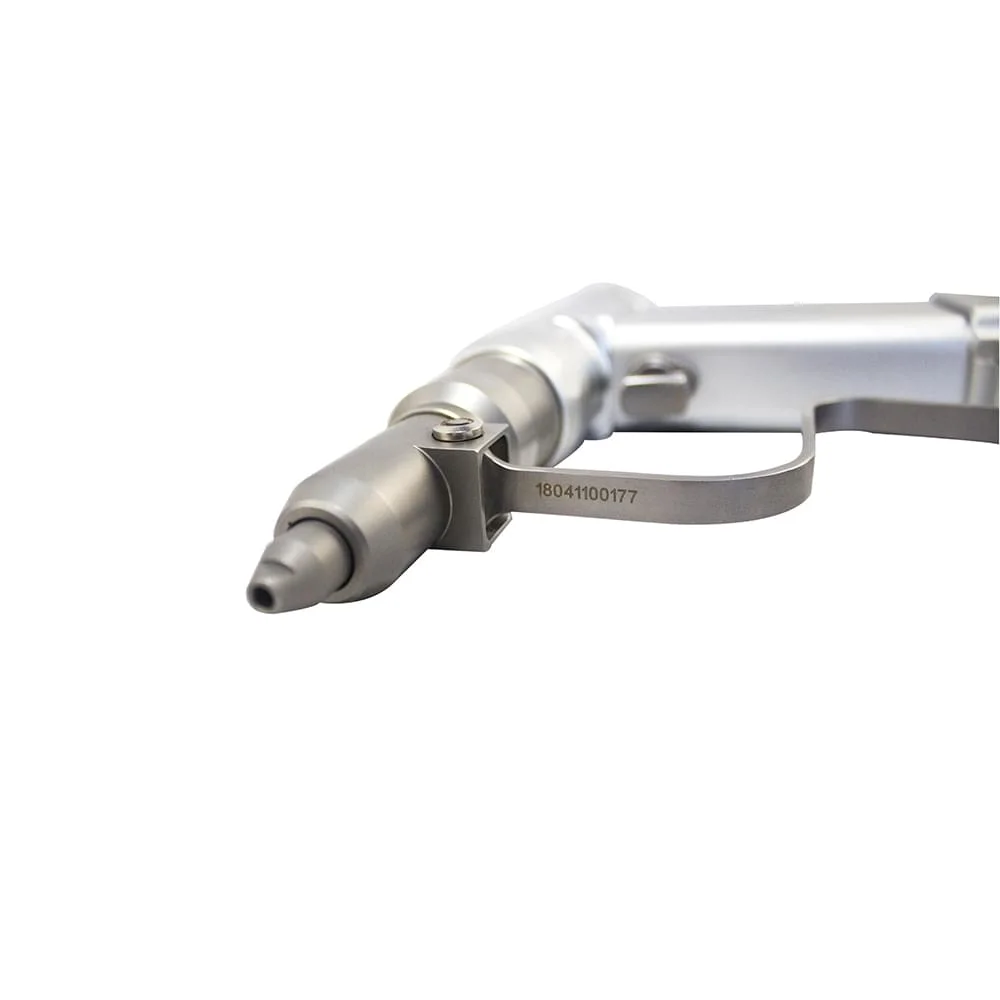

Micro Multi-Function with K Wire / Ao Adapter / Drill Chuck / Sagittal Saw Connector

Key Advantages

No Minimum Order Quantity (MOQ) required.

Timely and efficient delivery schedules.

Comprehensive after-sales service system.

24-hour professional online technical support.

Quality guaranteed by multiple patented technologies.

Two years free technical support for handpiece and six months for accessories.

Technical Data

Hand Piece	Working Voltage	14.4V
	Output Power	20W
	Unit rise in temperature	≤25°C
Charger	Input Power	AC 220V, 50Hz
	Output Power	7.2V, 700mA
	Input Power	30VA
Battery	Voltage	7.2V
Battery	Charging time	About 3 hours

Technical Merits

✓
Axial run-out of concentricity is within 0.05mm.
✓
Rotating speed of 1100 rpm suited to medical standards.
✓
Rotated torque 3.3N/m.
✓
Supporting the interface of major brand products.
✓
Semi-luster surface treatment for comfortable operation.
✓
Multipurpose interface for versatile clinical use.
✓
Ni-MH battery without memory environment.

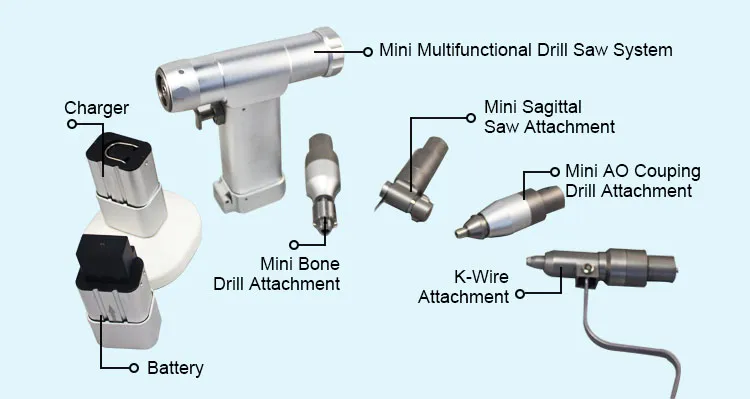

Standard Configuration

1x Handpiece	1x Charger	1x Bone drill attachment
1x Drill chuck	1x Oscillating saw attachment	1x Aluminum alloy box
2x Batteries	2x Sterilizing channels	2x Mini saw blades

Quality Certification

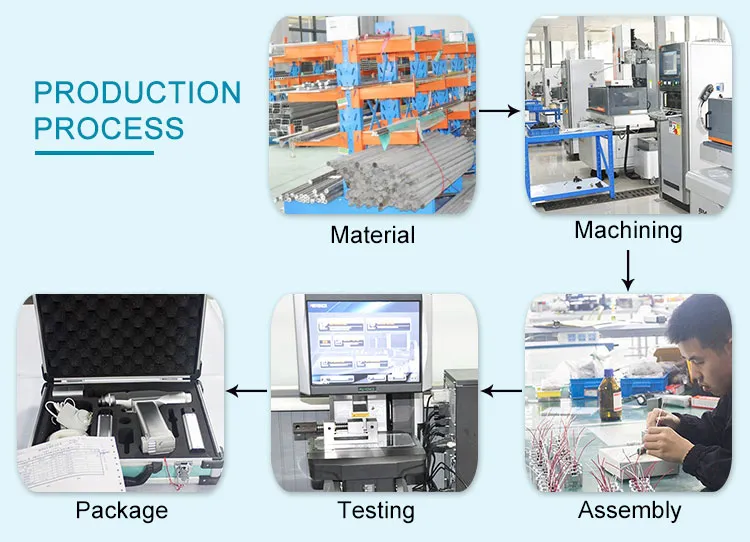

Professional Manufacturing

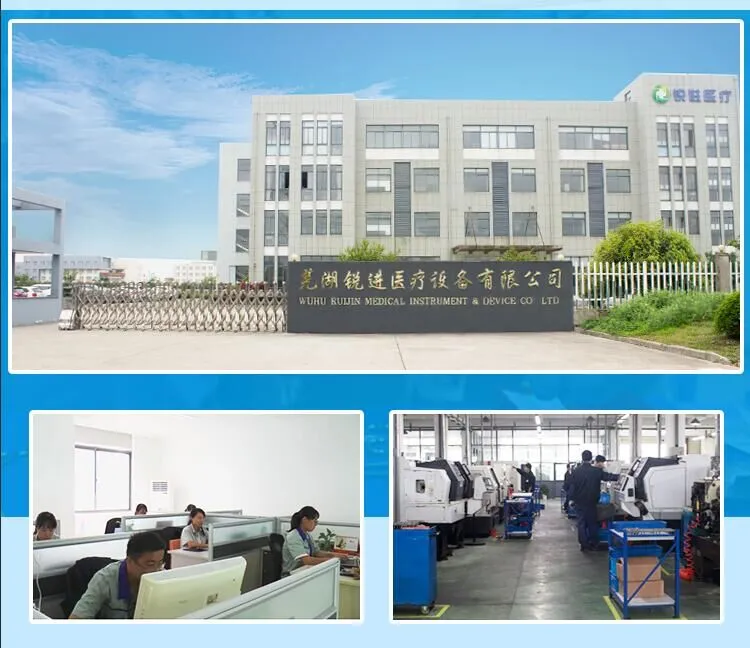

Established in 2007, we are a medical device manufacturer integrated with R&D, production, and sales. We focus on medical drill series and micro medical electric drill series. Our main products include medical bone drills, multi-functional cannulated drills, oscillating saws, reciprocating saws, and medical electric plaster saws. These instruments are widely used in Trauma Surgery, Thoracic Surgery, Joint Operations, and Veterinary Orthopedic Surgery.

Payment & Delivery

Price Range

FOB USD 800-2000 / Set

MOQ

1 Piece

Payment Terms

T/T in advance or Western Union

Delivery Time

Within 3 days after payment

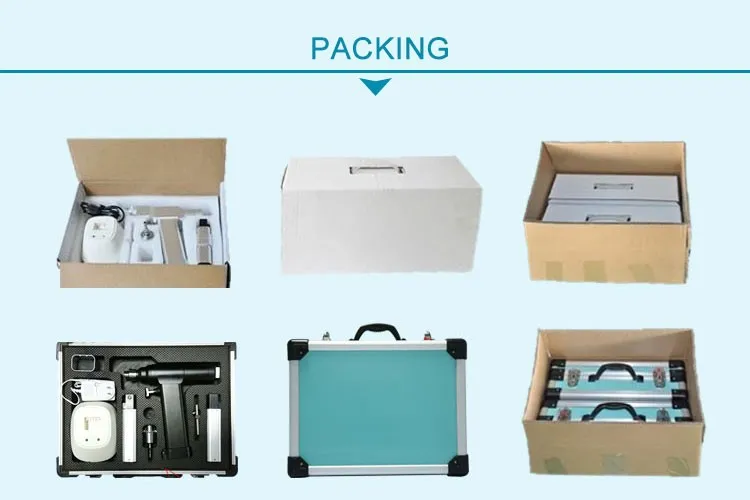

Packaging Details: One set packed in an aluminum alloy box (38cm x 28cm x 13cm), then placed in a carton (41cm x 32cm x 15cm).

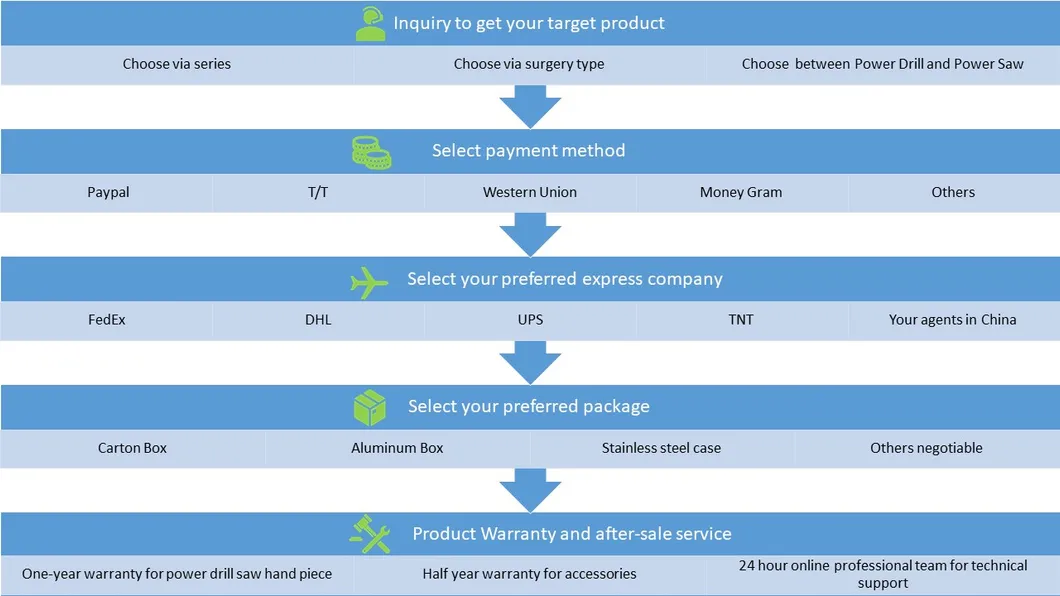

Ordering Process

Attention & Maintenance

1. Device must not be dismantled by non-professionals.
2. Compatible with power sources 110V/60Hz - 220V/50Hz.
3. Remove battery from the handpiece when not in use to prevent discharge.
4. Batteries cannot be disinfected; ensure battery compartment is dry after sterilization.
5. Clean saw blades and drill bits with purifier and dry immediately after operation.
6. Sterilization temperature must be below 135°C to avoid motor damage.

1. Device must not be dismantled by non-professionals.

2. Compatible with power sources 110V/60Hz - 220V/50Hz.

3. Remove battery from the handpiece when not in use to prevent discharge.

4. Batteries cannot be disinfected; ensure battery compartment is dry after sterilization.

5. Clean saw blades and drill bits with purifier and dry immediately after operation.

6. Sterilization temperature must be below 135°C to avoid motor damage.

Frequently Asked Questions

Q1: What is the primary material used in these surgical instruments? A: The instruments are made from high-quality Medical Stainless Steel, ensuring durability and safety for orthopedic procedures.

Q2: What is the maximum sterilization temperature for the power drill? A: The sterilization temperature must be kept lower than 135 degrees Celsius. Exceeding this temperature may cause damage to the motor.

Q3: How long does it take to fully charge the battery? A: It takes approximately 3 hours to achieve a full charge for the 7.2V Ni-MH battery.

Q4: Can the battery be sterilized along with the handpiece? A: No, the battery cannot be disinfected. It should be removed before the sterilization process, and the battery space must be kept dry.

Q5: What is the warranty period for this orthopedic power system? A: We provide two years of free technical support for the power drill saw handpiece and six months of free support for accessories.

Q6: What types of surgeries is this multi-function tool suitable for? A: It is highly versatile and suitable for Trauma Surgery, Thoracic Surgery, Joint Operations, and Veterinary Orthopedic Surgery.
