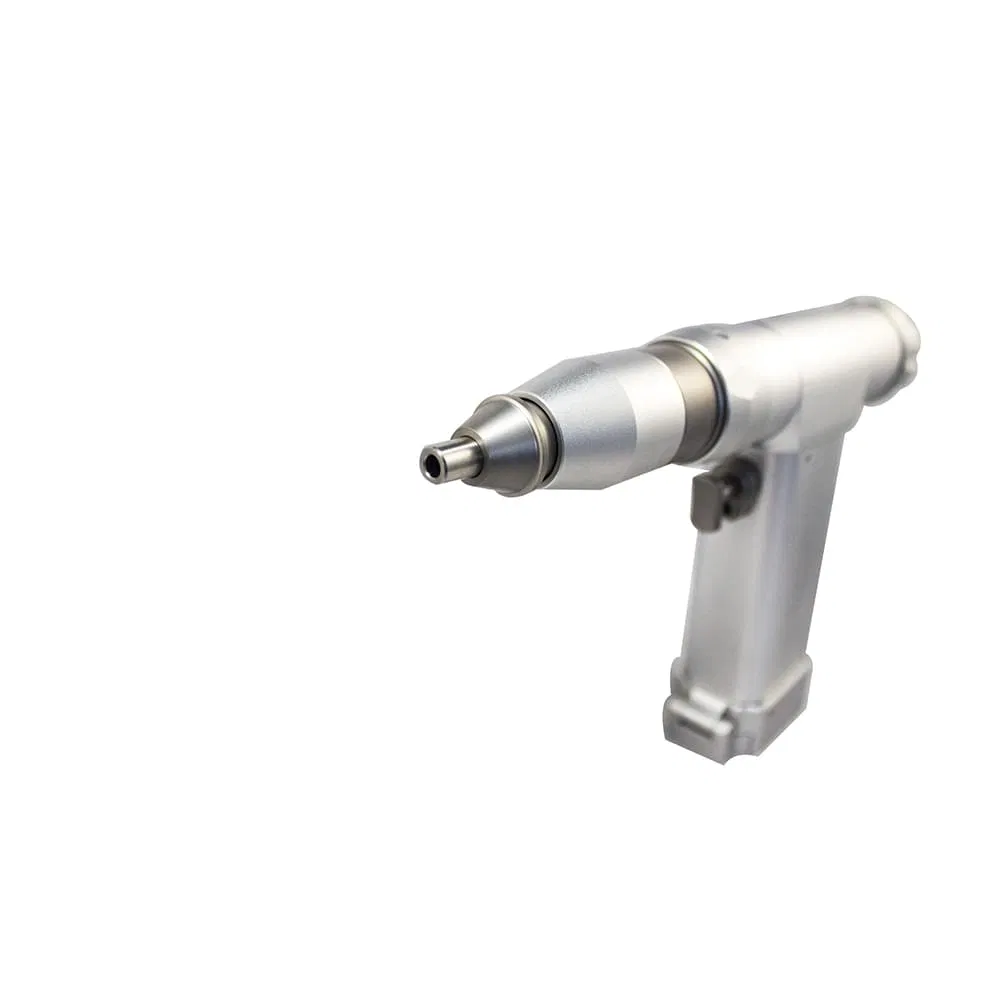

Autoclavble Orthopedic Micro Multifuctional Bone Drill and Saw System
Autoclavble Orthopedic Micro Multifuctional Bone Drill and Saw System
Autoclavble Orthopedic Micro Multifuctional Bone Drill and Saw System
Autoclavble Orthopedic Micro Multifuctional Bone Drill and Saw System
Autoclavble Orthopedic Micro Multifuctional Bone Drill and Saw System
1 / 5
Autoclavble Orthopedic Micro Multifuctional Bone Drill and Saw System
Autoclavble Orthopedic Micro Multifuctional Bone Drill and Saw System
Autoclavble Orthopedic Micro Multifuctional Bone Drill and Saw System
Autoclavble Orthopedic Micro Multifuctional Bone Drill and Saw System
Autoclavble Orthopedic Micro Multifuctional Bone Drill and Saw System

Autoclavble Orthopedic Micro Multifuctional Bone Drill and Saw System

Customization: Available
Type: Surgical Drill Saw System
Application: Orthopedic
Send Inquiry

Product Description

Basic Specifications

Model NO.
NM-300
Material
Medical Stainless Steel
Feature
Reusable
Certification
CE, ISO13485
Properties
Orthopedic Surgical Instruments
Rated Voltage
220V/50Hz
Cannula Diameter
4.2mm
Working Voltage
14.4V
Non-Load Noise
63dB
Transport Package
Aluminum Case
HS Code
9018909000
Production Capacity
10000 Pieces Per Month

Autoclavable Orthopedic Micro Multifunctional System

Bone Drill and Saw System Advantages:

  • No Minimum Order Quantity (MOQ) required.
  • Guaranteed timely delivery for clinical needs.
  • Comprehensive after-sales service system.
  • 24-hour online professional technical team.
  • Multiple patented technologies ensuring premium quality.
  • Two years free handpiece technical support and six months free accessory support.

Technical Parameters

Component Parameter Value
Hand PieceWorking Voltage14.4V
Hand PieceOutput Power20W
Hand PieceUnit Temperature Rise≤25°C
ChargerInput PowerAC 220V, 50Hz
ChargerOutput Power7.2V, 700mA
BatteryVoltage7.2V
BatteryCharging TimeApprox. 3 Hours

Core Technical Merits

  • High Precision: Axial run-out of concentricity is within 0.05mm.
  • Optimal Speed: 1100 rpm rotating speed suited to medical standards.
  • Strong Torque: Rotated torque of 3.3N/m for efficient operation.
  • Compatibility: Supporting various brand product interfaces.
  • Ergonomic Design: Semi-luser surface treatment for comfortable handling.
  • Versatility: Multipurpose interface designed for clinic ease of use.
  • Advanced Battery: Ni-MH battery without memory environment issues.

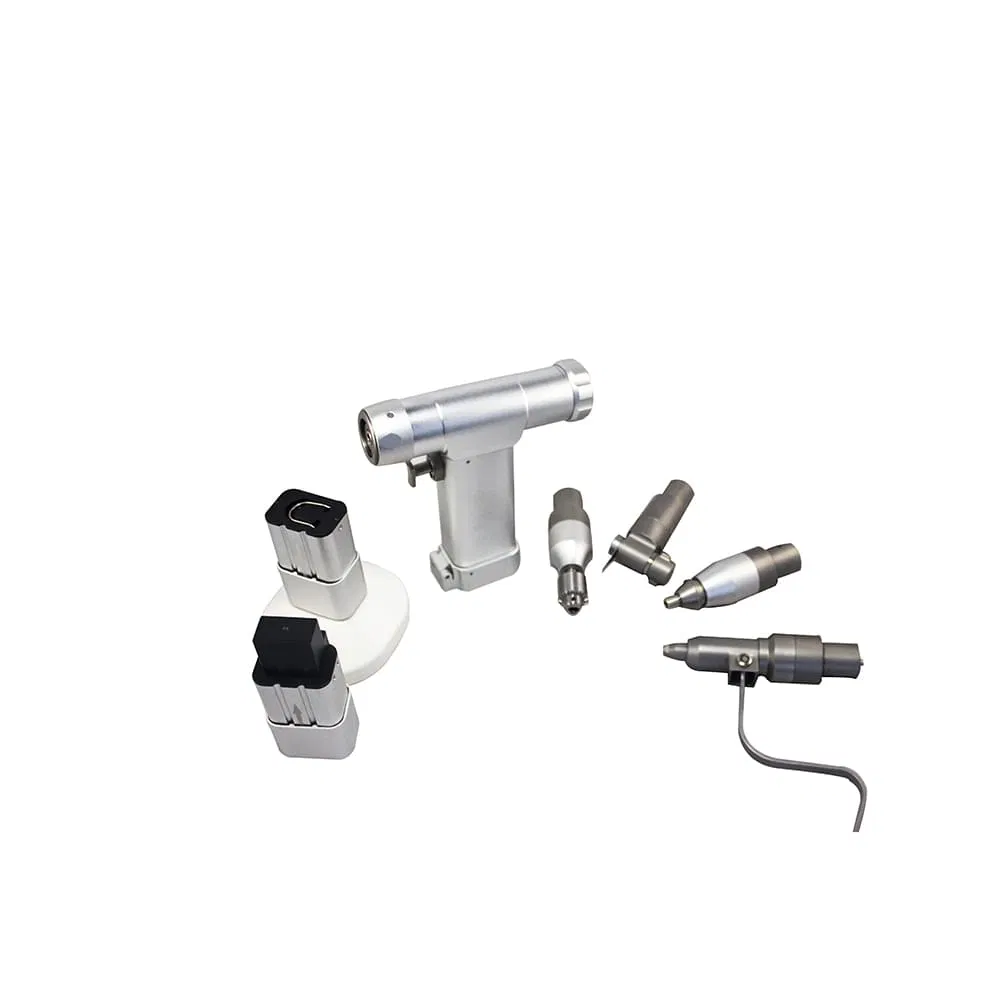

Standard Configuration

One HandpieceOne Charger
One Bone Drill AttachmentOne Drill Chuck
One Oscillating Saw AttachmentOne Aluminum Alloy Box
Two BatteriesTwo Sterilizing Channels
Two Mini Saw Blades

Product Gallery

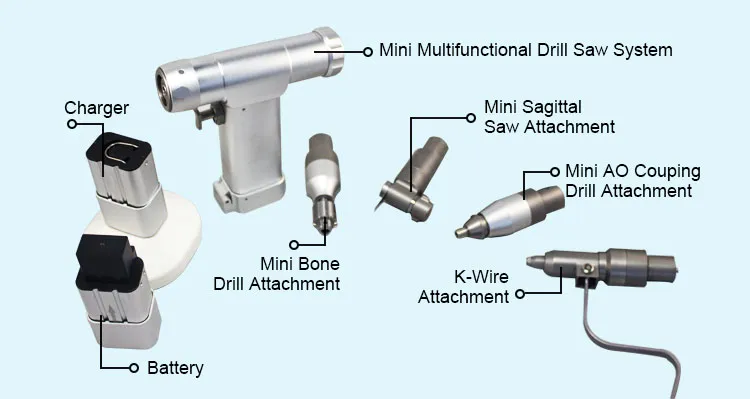

Orthopedic Drill Main View

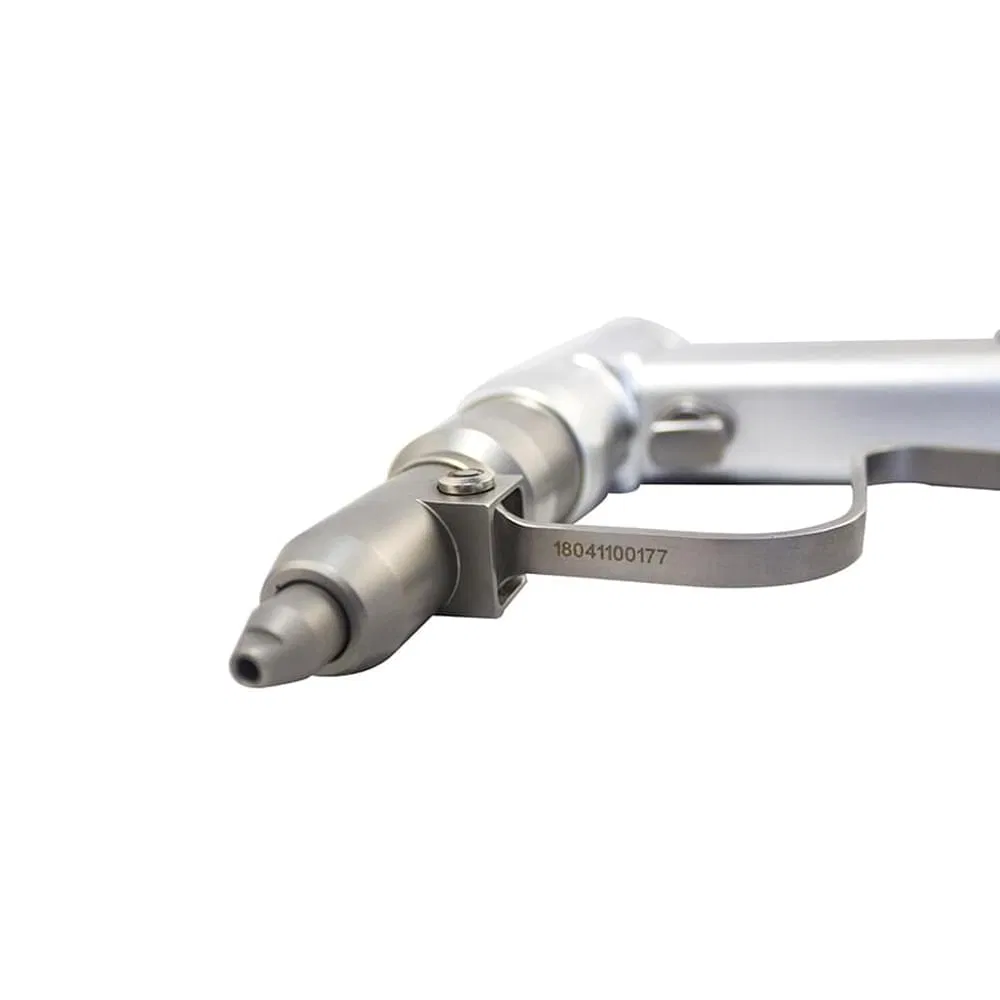

Multi Attachment View 1

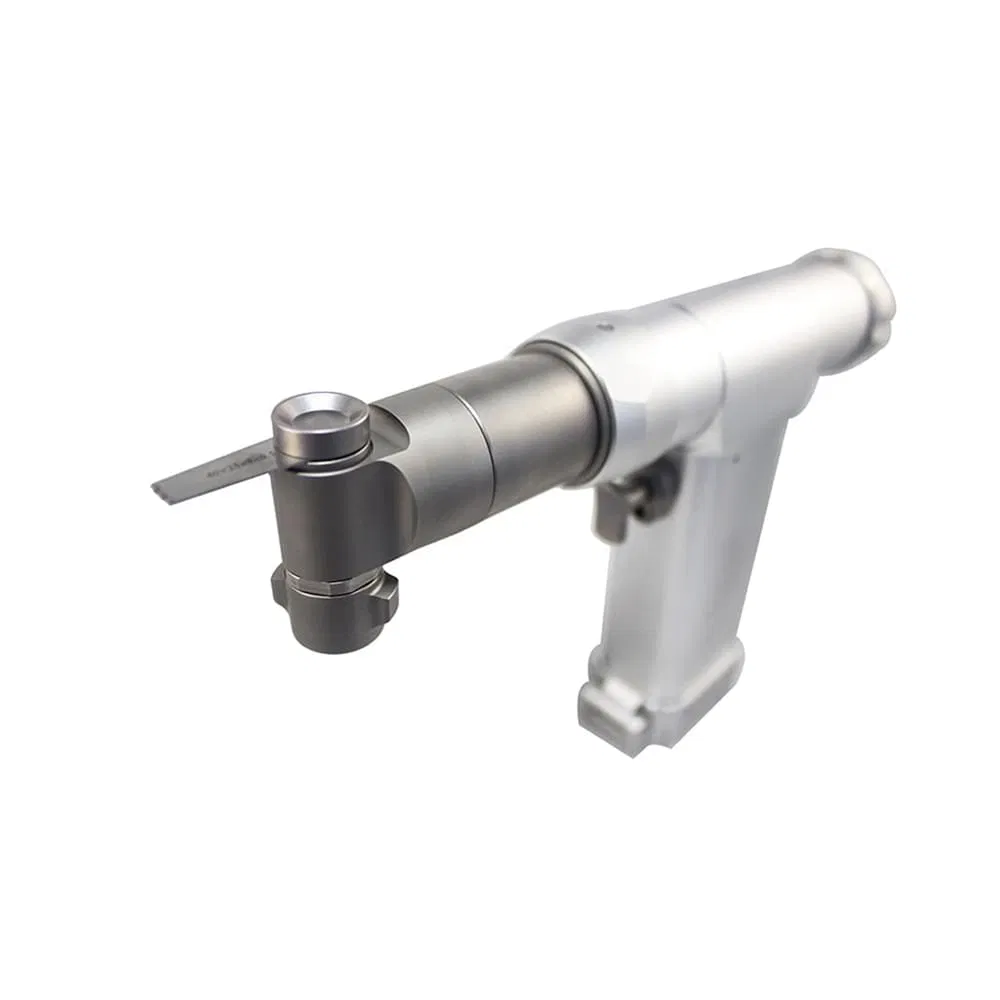

Multi Attachment View 2

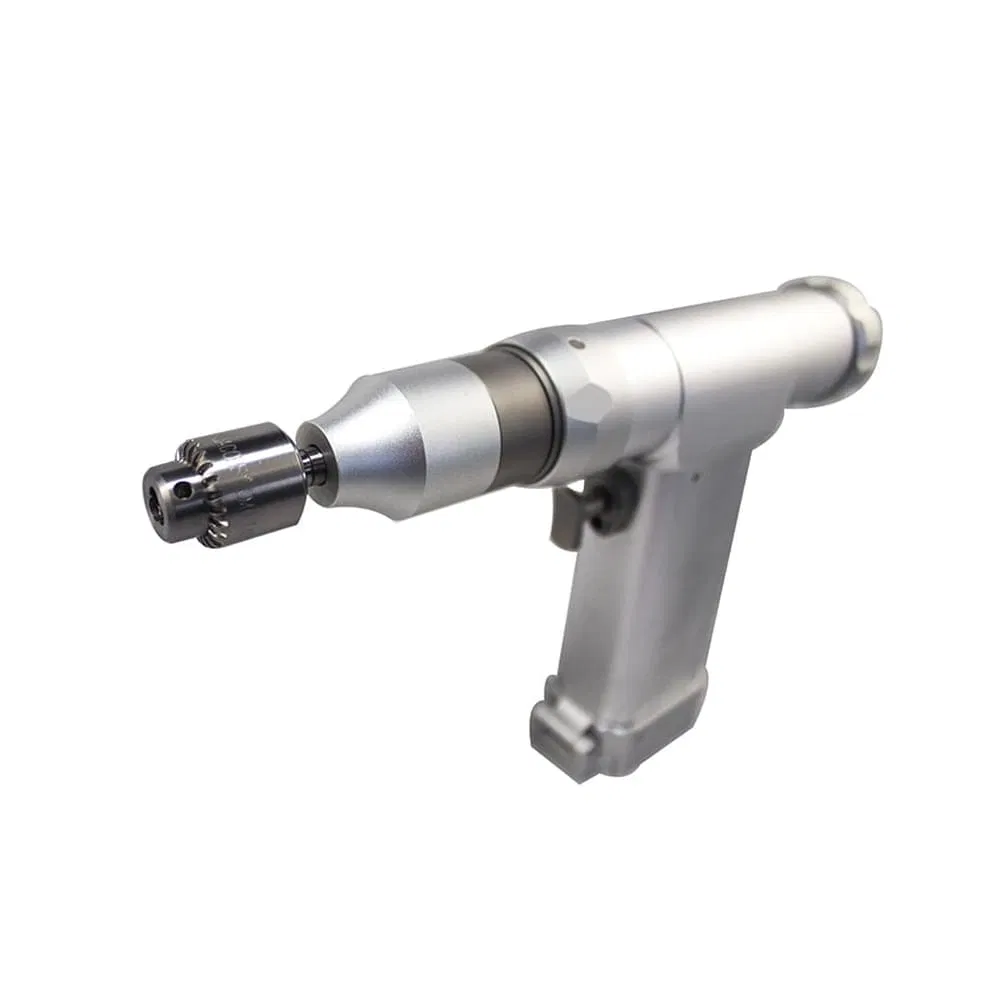

Component Detail 1

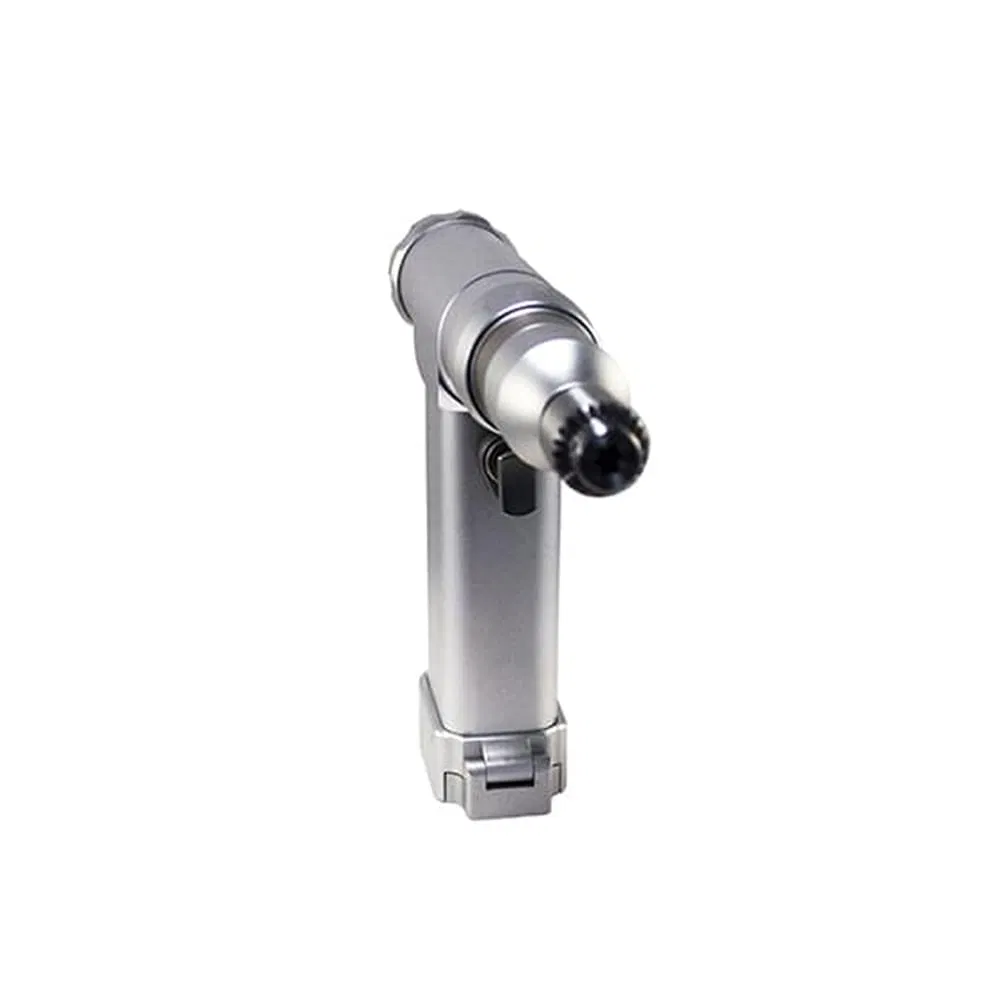

Component Detail 2

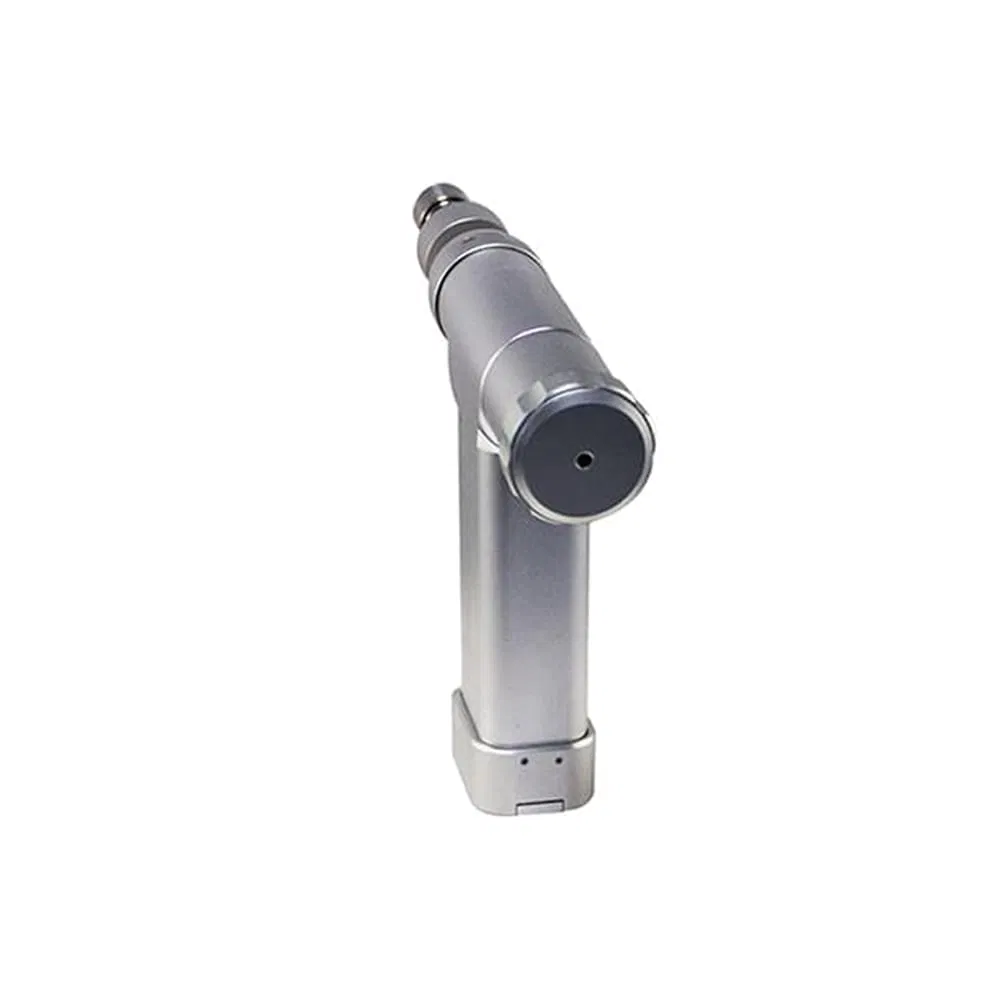

Component Detail 3

Quality Assurance & Logistics

Certification

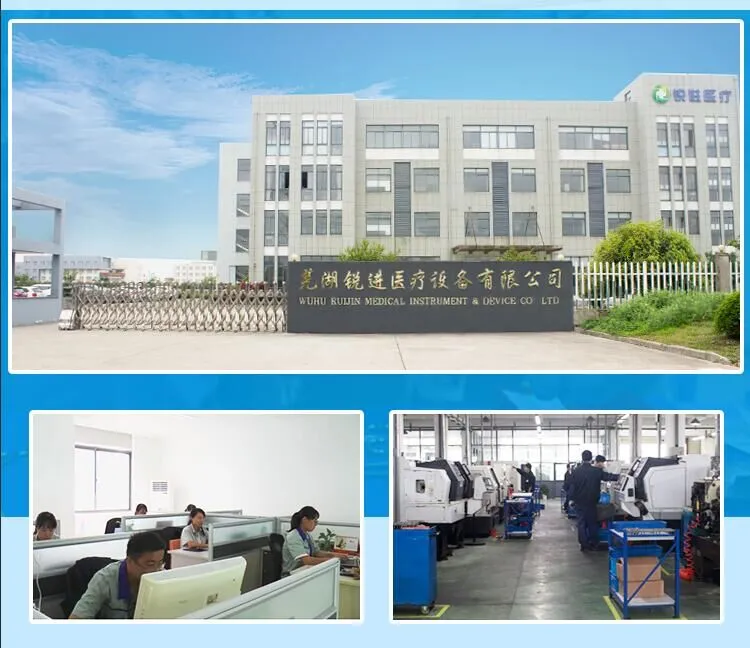

Production Facility 1

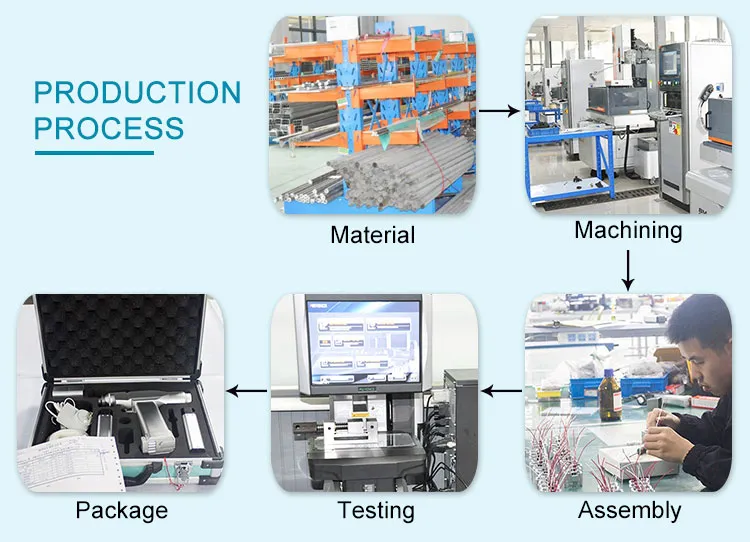

Production Facility 2

Ordering & Packing Process:

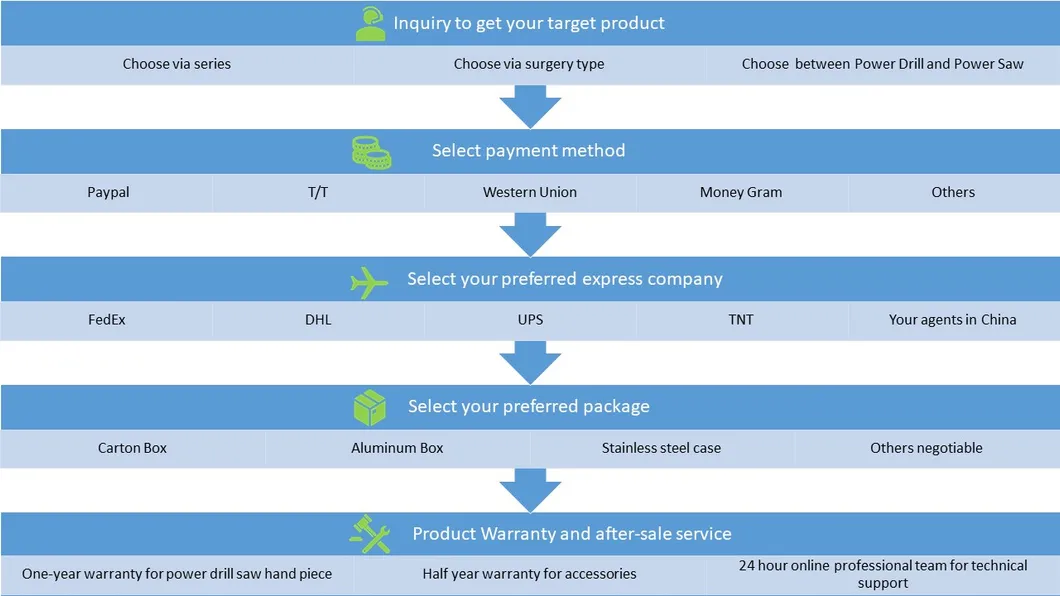

Packing Detail 1 Packing Detail 2 Order Flow

Operating Attention & Notes

  • Professional repair only; do not demolish the device independently.
  • Power compatibility: Supports 110V/60Hz to 220V/50Hz.
  • Battery maintenance: Remove battery from handpiece when not in use to prevent discharge.
  • Sterilization: Battery cannot be disinfected. The battery compartment must be dry after sterilization.
  • Cleaning: Saw blades and drill bits must be cleaned with a purifier and kept dry post-operation.
  • Temperature Limit: Sterilization temperature must be below 135°C to avoid motor damage.

Frequently Asked Questions

What is the primary material of the surgical system?
The system is constructed from high-quality Medical Stainless Steel, ensuring durability and reusability for orthopedic procedures.
What is the maximum sterilization temperature?
The maximum sterilization temperature is 135 degrees Celsius. Exceeding this temperature may cause damage to the internal motor.
Is there a minimum order quantity (MOQ) for this product?
No, we have no MOQ requirement; we accept orders starting from 1 piece/set.
How long does the battery take to charge?
The Ni-MH battery requires approximately 3 hours for a full charge, providing efficient power for clinical use.
What kind of surgeries can this system be used for?
It is designed for Trauma Surgery, Thoracic Surgery, Joint Operation, and Veterinary Orthopedic Surgery.
What is the warranty and support period?
We offer two years of free technical support for the power drill saw handpiece and six months of free support for accessories.
