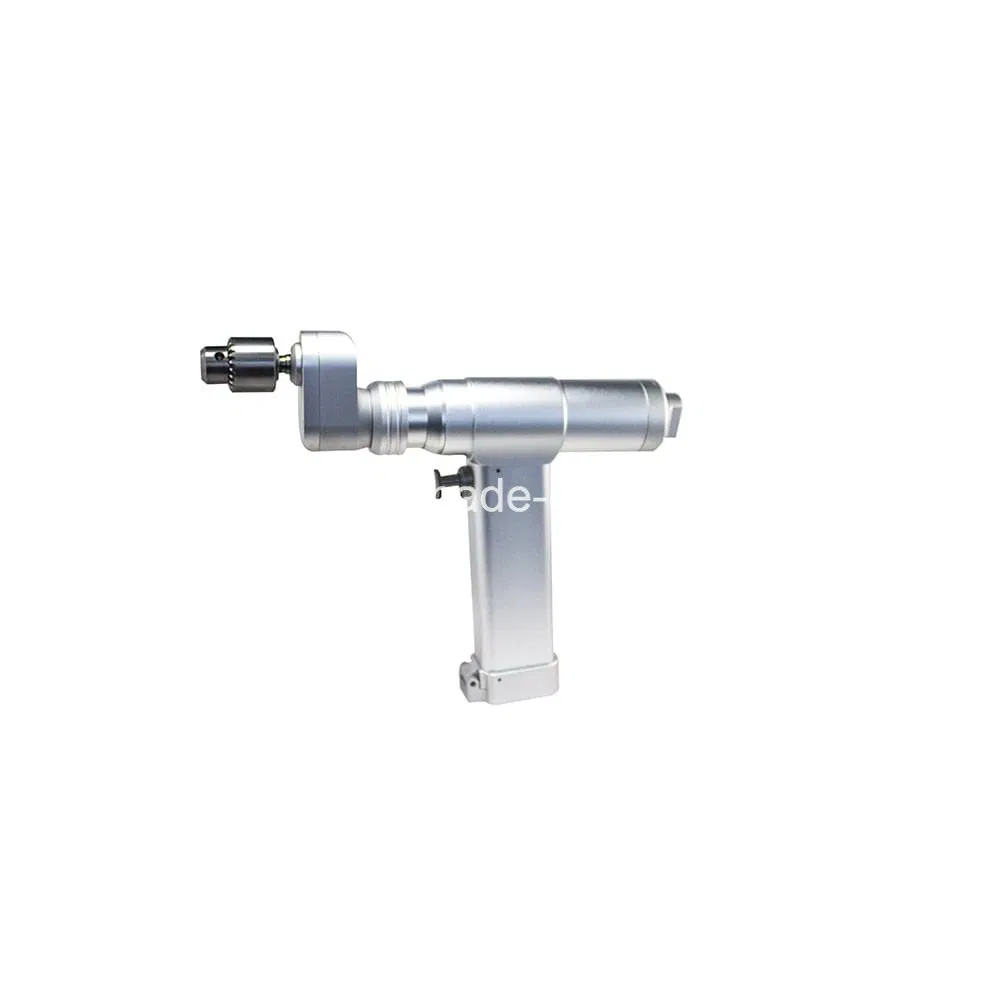

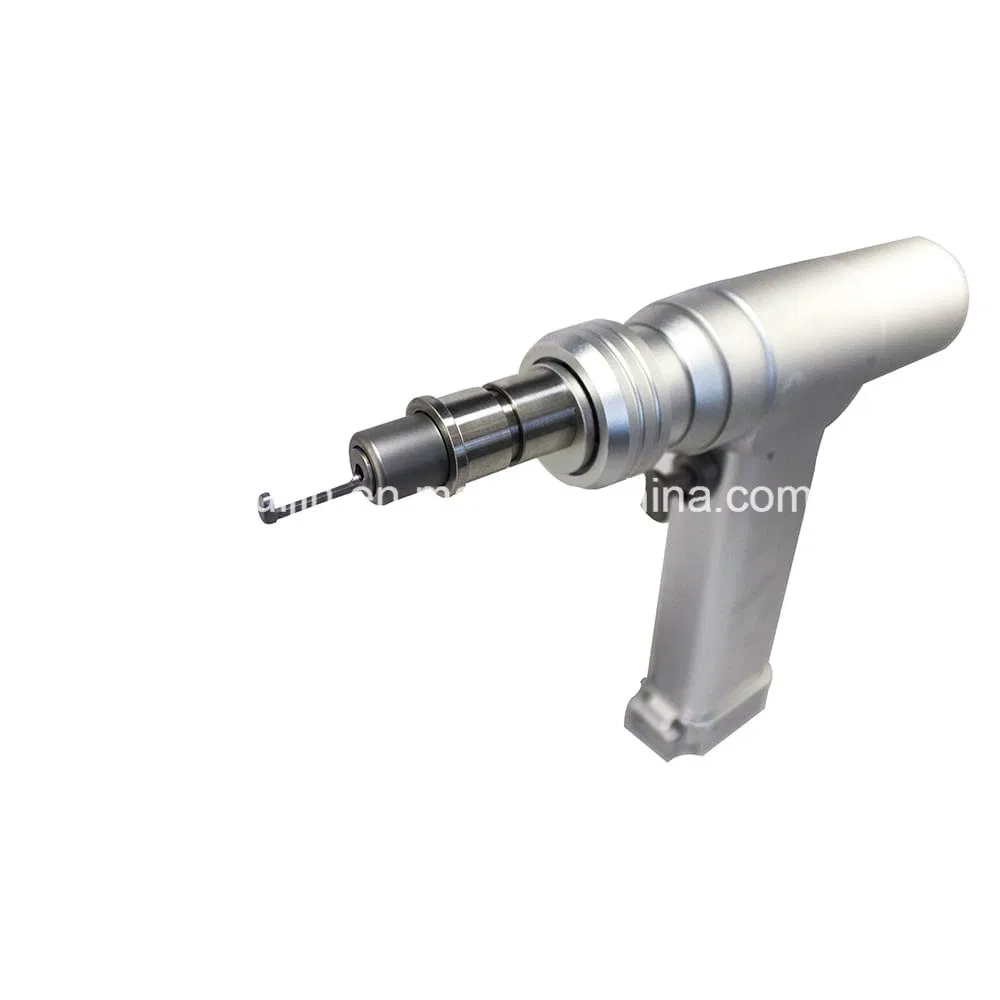

Medical Orthopedic Multi-Functional Drill and Saw System
Medical Orthopedic Multi-Functional Drill and Saw System
Medical Orthopedic Multi-Functional Drill and Saw System
Medical Orthopedic Multi-Functional Drill and Saw System
Medical Orthopedic Multi-Functional Drill and Saw System
1 / 5
Medical Orthopedic Multi-Functional Drill and Saw System
Medical Orthopedic Multi-Functional Drill and Saw System
Medical Orthopedic Multi-Functional Drill and Saw System
Medical Orthopedic Multi-Functional Drill and Saw System
Medical Orthopedic Multi-Functional Drill and Saw System

Medical Orthopedic Multi-Functional Drill and Saw System

Customization: Available
Type: Orthopedic Drill Saw
Application: Orthopedic, Neurosurgery, Craniotomy
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
NM-100
Material
Stainless Steel
Feature
Reusable
Certification
CE, ISO13485
Rated Voltage
220V/50Hz
Battery
Rechargeable
Properties
Neurosurgery Instruments
HS Code
9018909000
P

Medical Orthopedic Multi-Functional Drill and Saw System

Medical Orthopedic Multi-Functional Drill and Saw System
C

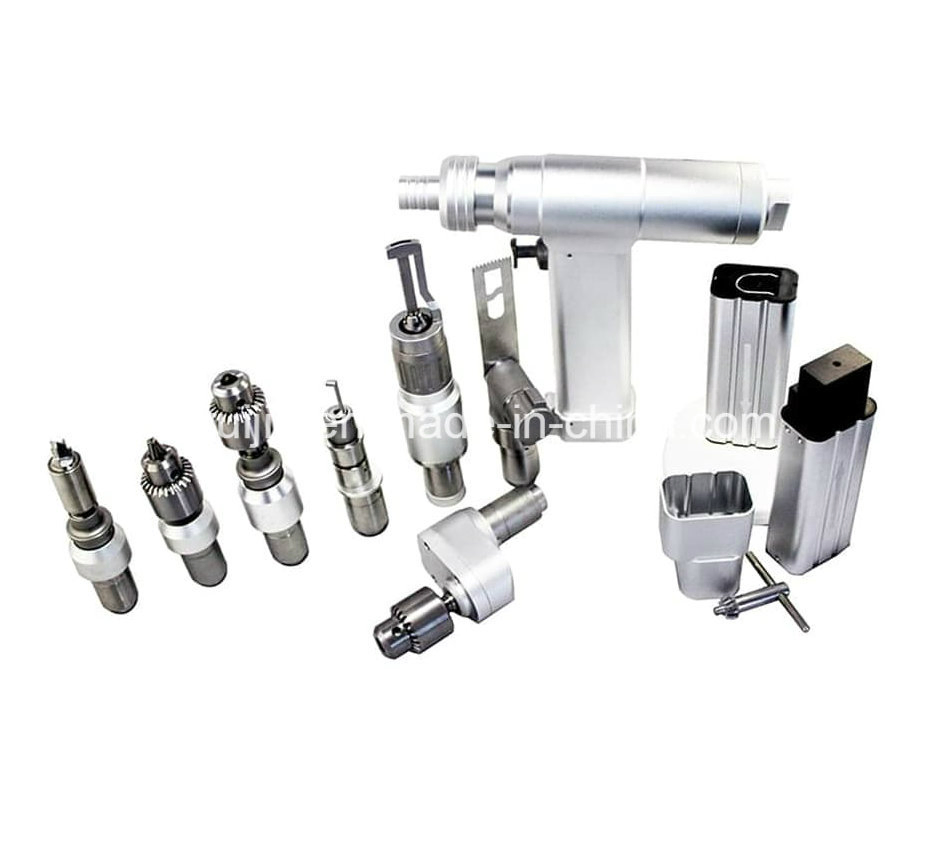

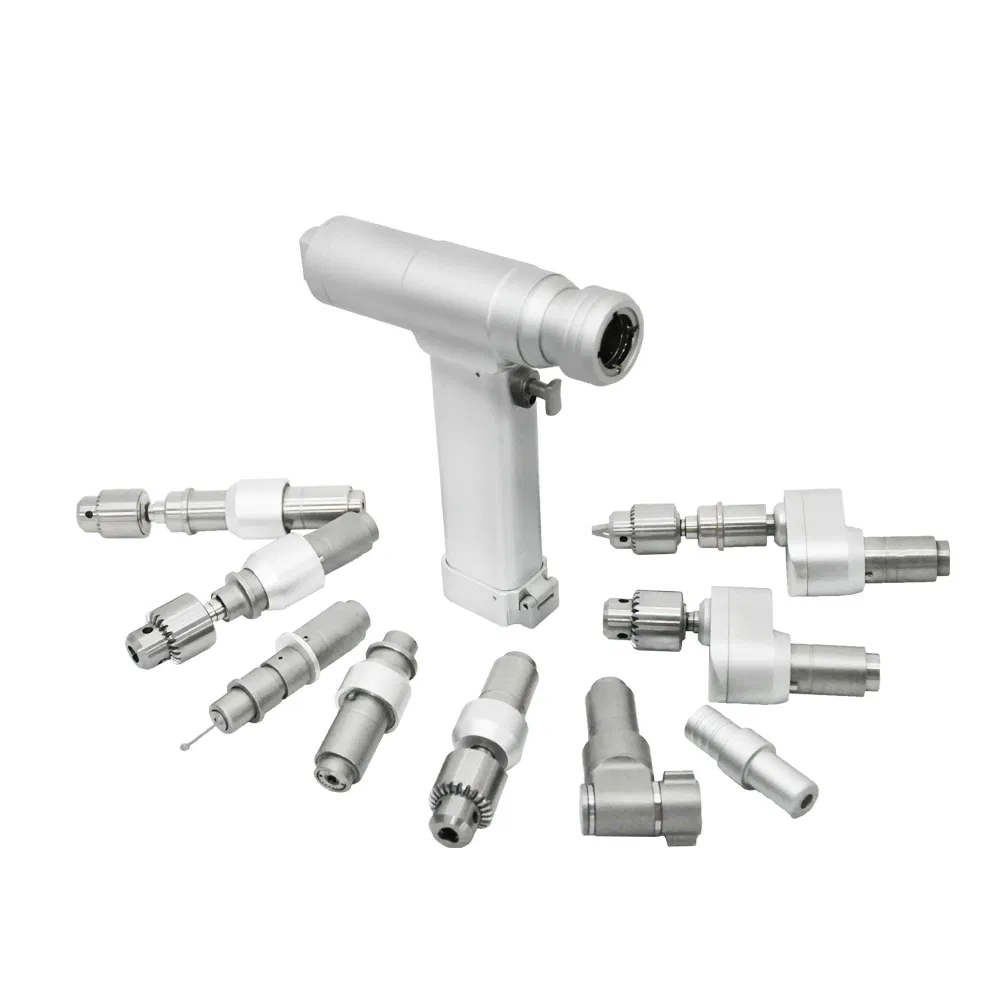

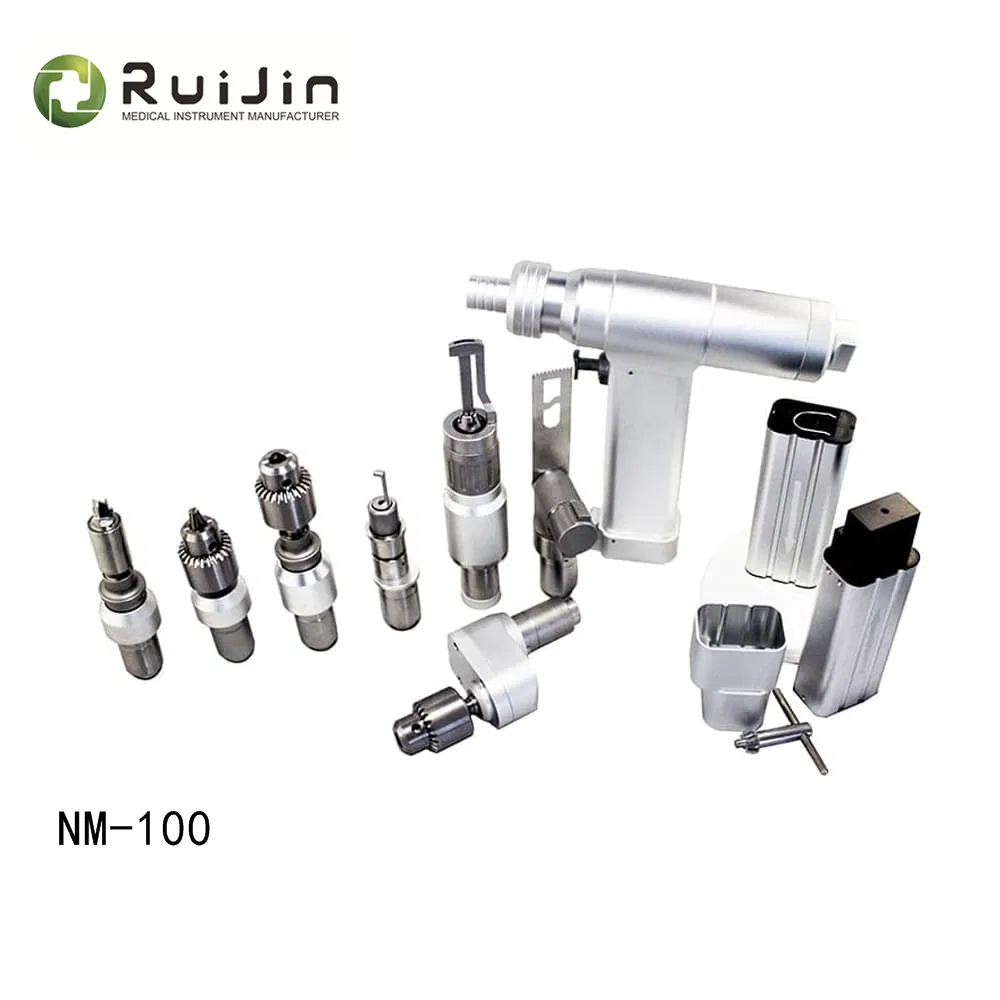

Main Components

Components Quantity
Multifunctional mainframe1
Quick chuck1
Oscillating saw attachment1
Canulate drill attachment1
Acetabulum burnishing drill attachment1
Cranial drill attachment1
Cranial mill attachment1
Sternum Saw attachment1
Battery2
Sterilizing channel1
Sterilization tray1
Aluminum alloy carrying box1
High temperature plug1
F

Product Features

Professional surgical power tools manufacturer.
The single trigger modular handpiece can be autoclaved.
Comprehensive range of quick change attachments.
The ingenious handpiece is equipped with a powerful motor for precise performance.
Ergonomic design offers comfortable grip and convenient manipulation.
D

Product Display

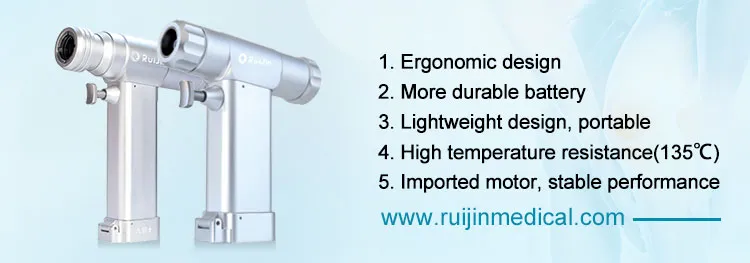

Display 1

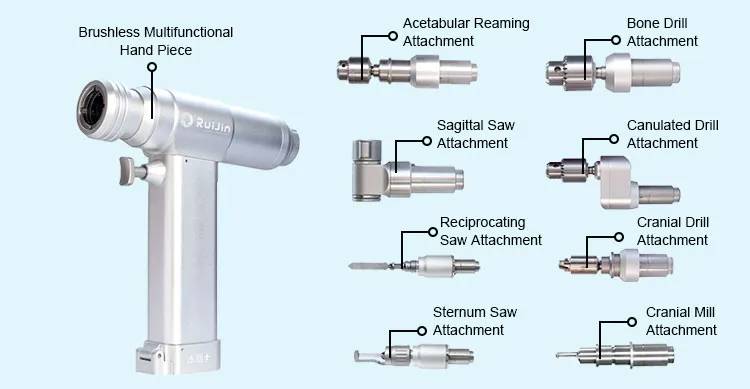

Display 2
O

Order Process & Workflow

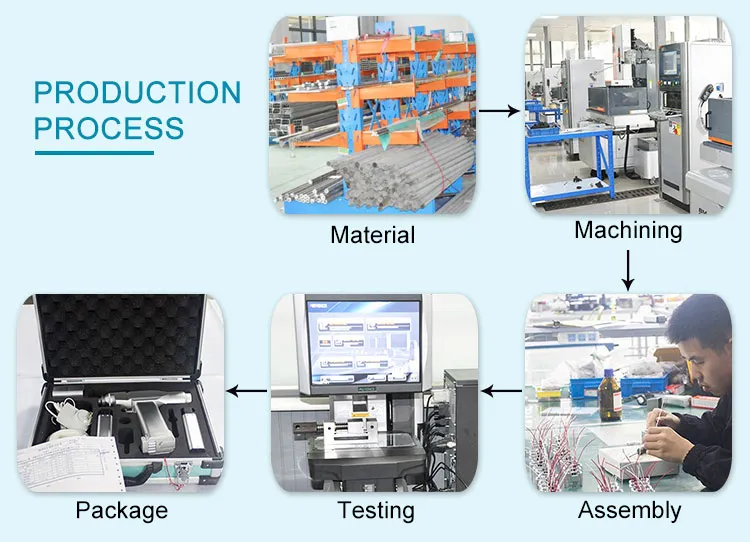

Process 1

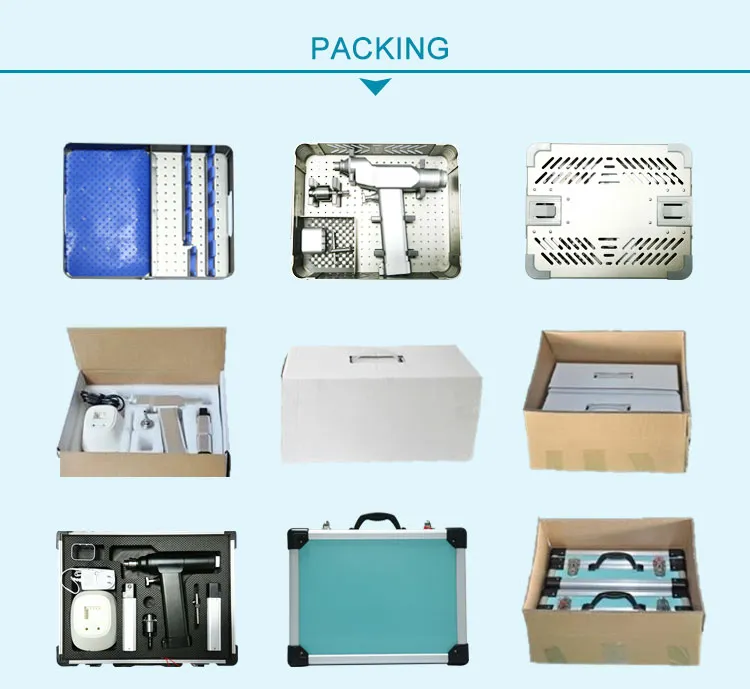

Process 2
Process 3

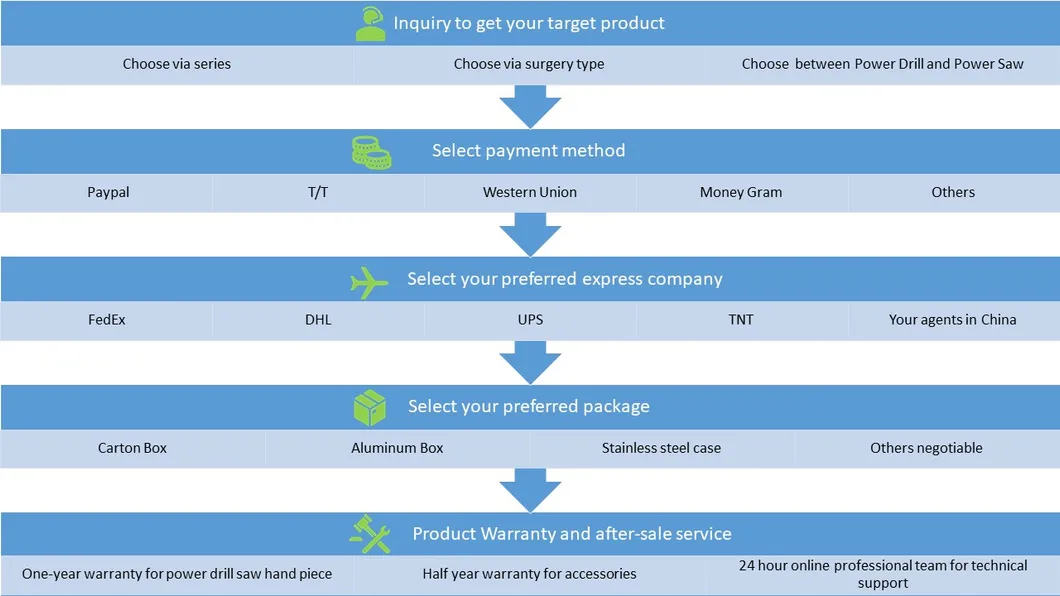

Process 4
T

Technical Data

Hand PieceWorking Voltage14.4V
Output Power≥20W
Unit rise in temperature≤25°C
ChargerInput PowerAC 220V, 50Hz
Output Power14.4V, 700mA
Input Power30VA
BatteryVoltage14.4V
Charging timeAbout 3 hours
K

Key Performance Points

  • Quick chuck: Imported chuck ensures outstanding performance.
  • Sternum saw: 360° Rotating head and blade guard protect soft tissue.
  • Cranial drill: Auto-pause after perforation ensures safety in neurosurgery.
  • Cranial mill: 0-40000rpm rates ensure high efficiency and speed.
  • Oscillating saw: 360° rotating head applicable to any surgical sites.
  • Reamer: High-torque, ideal for acetabulum or medullary operations.
Detail 1
Detail 2
Detail 3
Detail 4
A

About the Equipment

The medical device series is integrated with R&D, production, and sales, focusing on medical drill and micro medical electric drill series. Main products include medical bone drills, multi-functional cannulated drills, oscillating saws, reciprocating saws, and medical electric plaster saws. These are widely used in Trauma Surgery, Thoracic Surgery, Joint Operation, and Veterinary Orthopedic Surgery.

?

Frequently Asked Questions

1. What material is the NM-100 system made of?
The system is constructed from high-quality Stainless Steel, ensuring durability and reusability for medical procedures.
2. Is the handpiece autoclavable?
Yes, the single trigger modular handpiece is designed to be autoclaved, meeting strict medical sterilization requirements.
3. How long does it take to charge the battery?
The rechargeable battery typically requires about 3 hours for a full charge.
4. What safety features does the cranial drill have?
The cranial drill is equipped with an auto-pause function that activates after perforation to ensure maximum safety during neurosurgery.
5. What surgeries can this system be used for?
This multi-functional system is suitable for Trauma Surgery, Thoracic Surgery, Joint Operations, and Veterinary Orthopedic Surgery.
6. What is the rotation speed of the craniotomy mill?
The craniotomy mill operates at a high-efficiency rate of 40,000 rpm for fast and safe performance.
