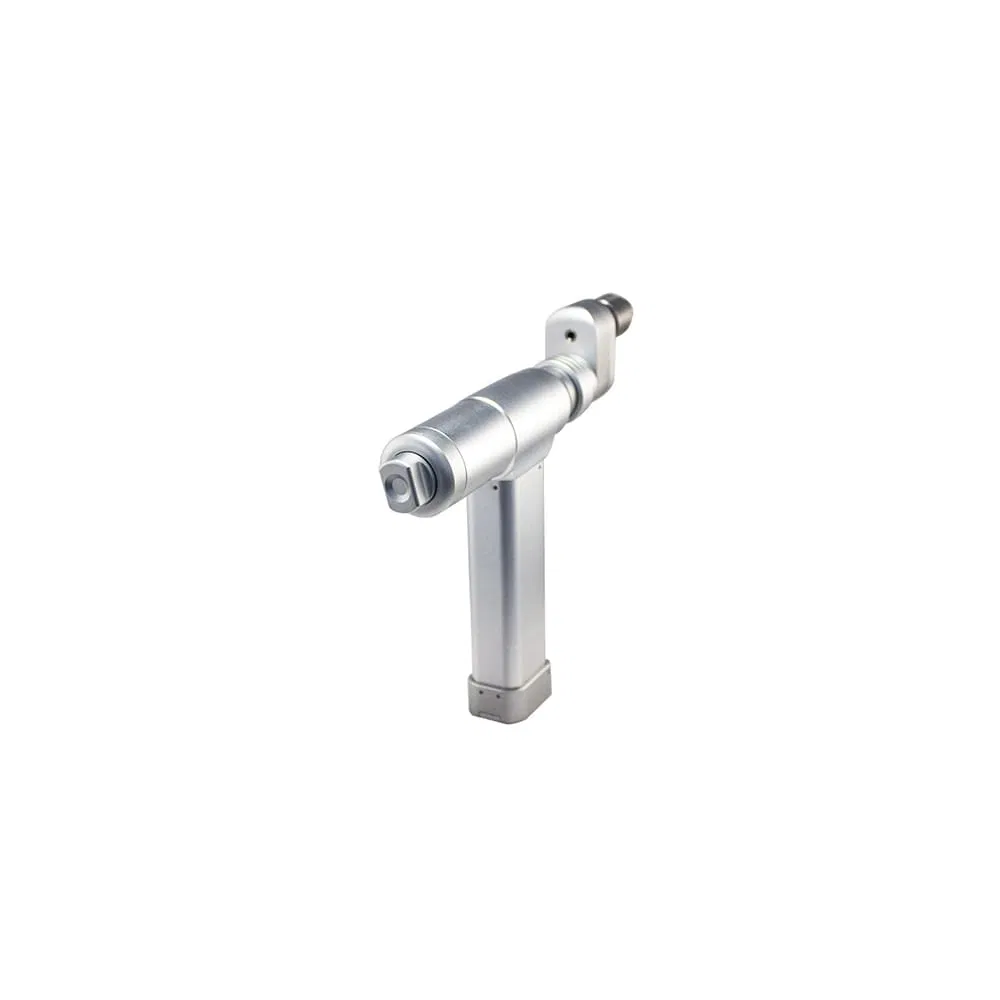

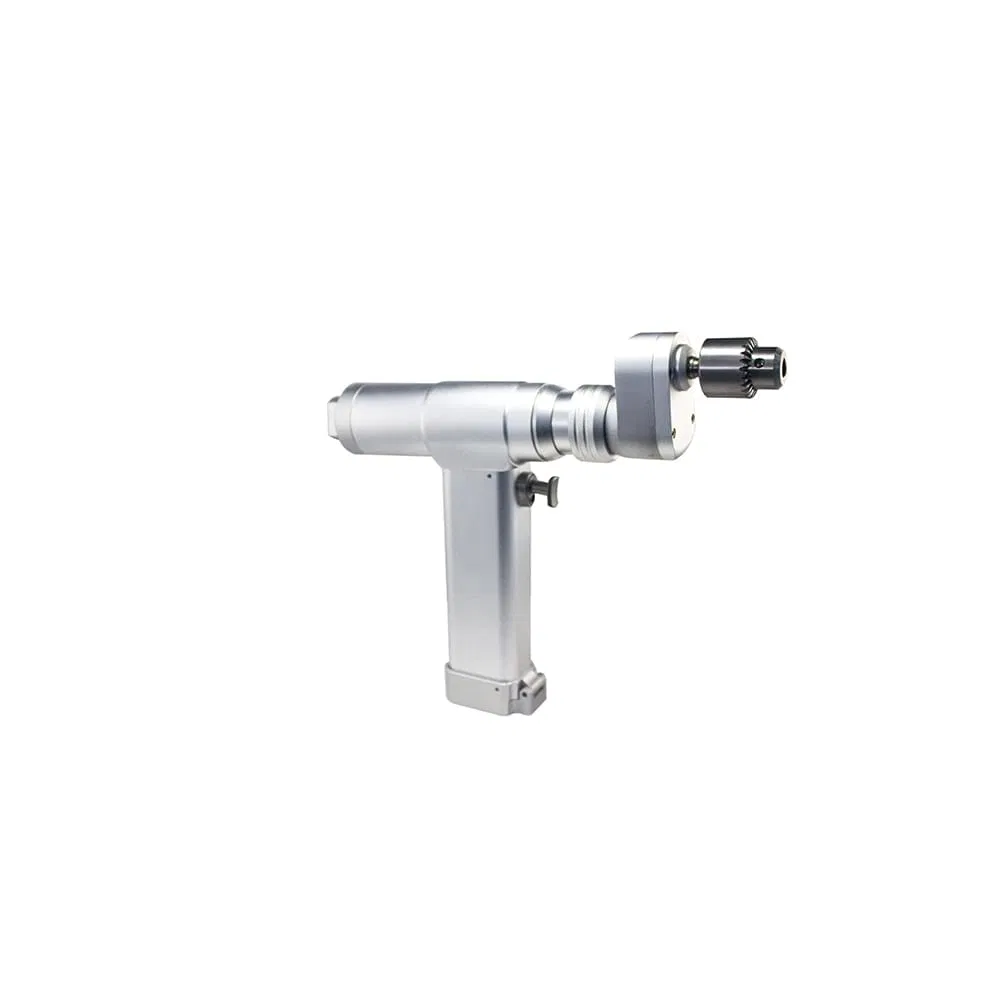

Orthopedic Multi-Functional Drill and Saw System with Factory Price and Best Quality
Orthopedic Multi-Functional Drill and Saw System with Factory Price and Best Quality
Orthopedic Multi-Functional Drill and Saw System with Factory Price and Best Quality
Orthopedic Multi-Functional Drill and Saw System with Factory Price and Best Quality
Orthopedic Multi-Functional Drill and Saw System with Factory Price and Best Quality
1 / 5
Orthopedic Multi-Functional Drill and Saw System with Factory Price and Best Quality
Orthopedic Multi-Functional Drill and Saw System with Factory Price and Best Quality
Orthopedic Multi-Functional Drill and Saw System with Factory Price and Best Quality
Orthopedic Multi-Functional Drill and Saw System with Factory Price and Best Quality
Orthopedic Multi-Functional Drill and Saw System with Factory Price and Best Quality

Orthopedic Multi-Functional Drill and Saw System with Factory Price and Best Quality

Customization: Available
Type: Awl
Application: Orthopedic, Neurosurgery
Send Inquiry

Product Description

Basic Specifications

Model NO.
NM-100
Material
Stainless Steel and Aluminium
Feature
Reusable
Certification
CE, ISO13485
Properties
Orthopedic Surgical Instruments
Bone Drill Speed
0-1300 Rpm
Canulate Drill Speed
0-600rpm
Oscillating Saw
0-18000 O.P.M
Acetabular Bone Drill
0-300 Rpm
Craniotomy Drill
0-900rpm
Craniotomy Mill
0-40000 Rpm
Sternum Saw
0-15000rpm
Noise Level
60dB
Transport Package
Aluminum Box & Carton
Specification
44*28*17 cm
Production Capacity
100000 PCS/Year

Product Description

Orthopedic Multi-Functional Drill and Saw System

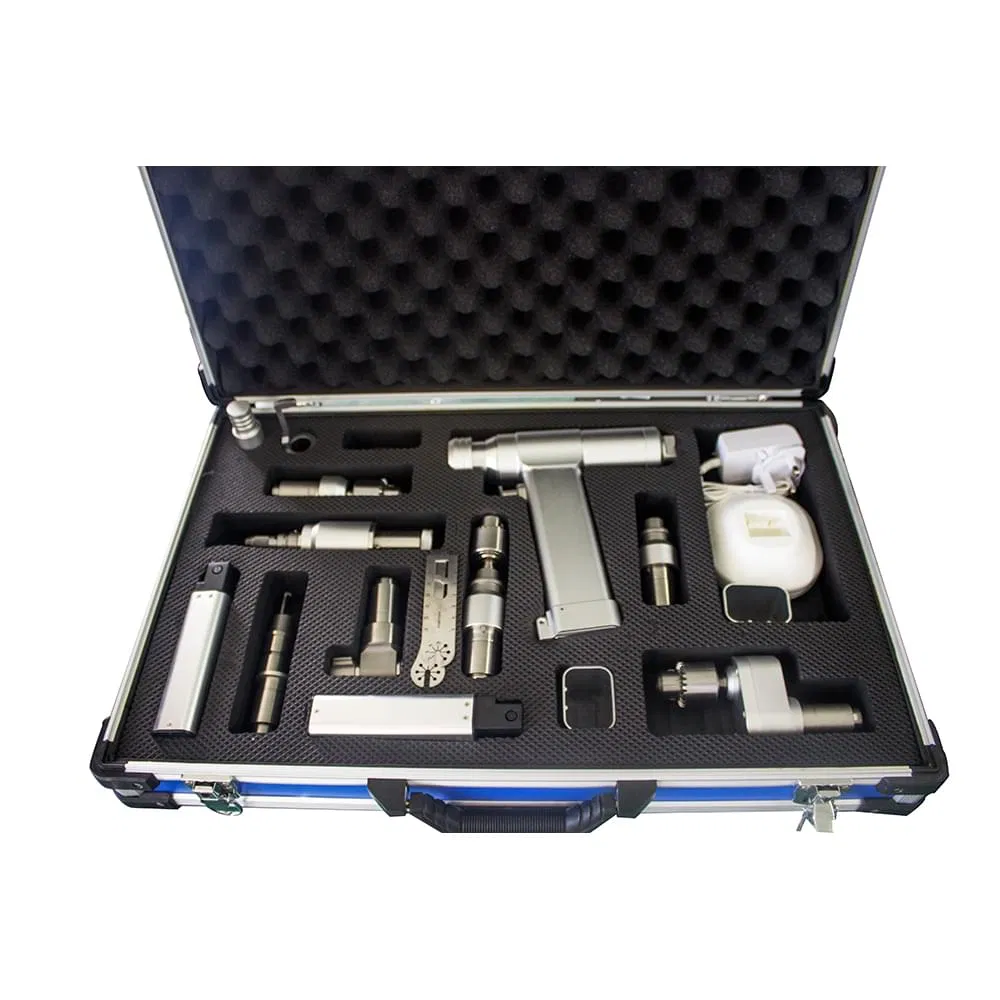

Main Components

ComponentsQuantity
Multifunctional mainframe1
Quick chuck1
Oscillating saw attachment1
Canulate drill attachment1
Acetabulum burnishing drill attachment1
Cranial drill attachment1
Cranial mill attachment1
Sternum Saw attachment1
Battery2
Sterilizing channel1
Sterilization tray1
Aluminum alloy carrying box1
High temperature plug1

Key Features

Professional surgical power tools manufacturer performance.
The single trigger modular handpiece can be autoclaved.
Comprehensive range of quick change attachments.
Equipped by powerful motor providing precise and stable performance.
Ergonomic design offers comfortable grip and convenient manipulation.

Technical Data

CategoryParameterValue
Hand PieceWorking Voltage14.4V
Output Power≥20W
Unit rise in temperature≤25°C
ChargerInput PowerAC 220V, 50Hz
Output Power14.4V, 700mA
Input Power (Total)30VA
BatteryVoltage14.4V
Charging timeAbout 3 hours

Attachment Rotation Speeds

Attachment TypeRotate Speed
1) Quick chuck (bone drill)0-1100rpm
2) Oscillating saw0-16000rpm
3) Acetabulum Reamer0-300rpm
4) Wire and pin chuck (canulate drill)0-1100rpm
5) Cranial drill900rpm
6) Craniotomy mill40000rpm
7) Sternum saw15000rpm

Product Gallery

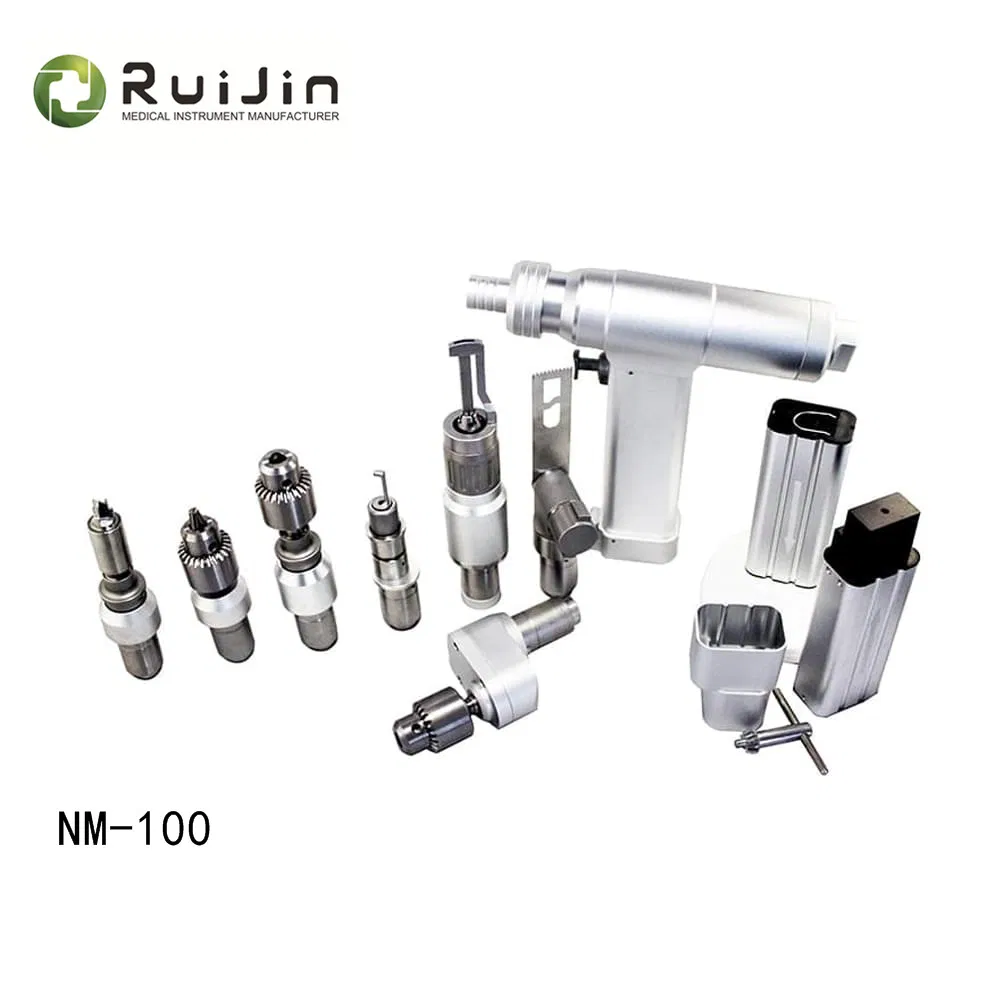

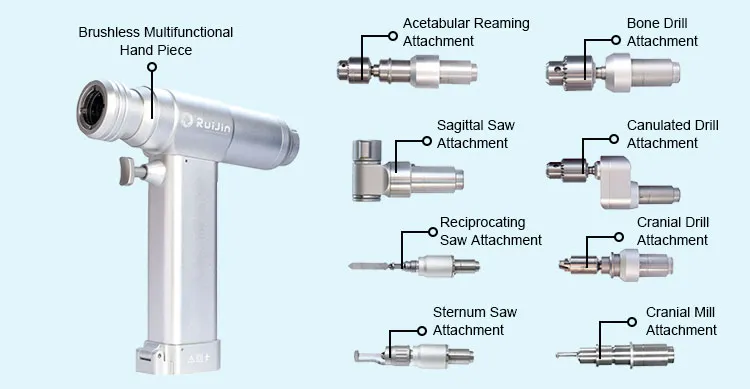

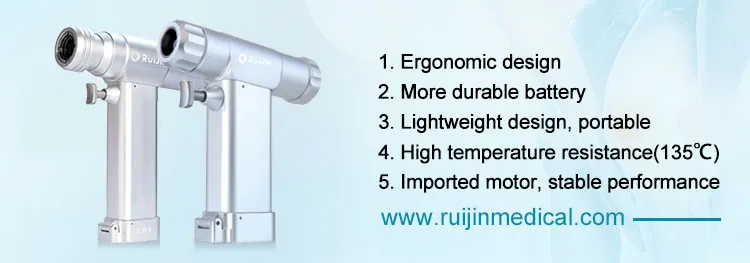

Orthopedic Drill Main Component 1 Component 2

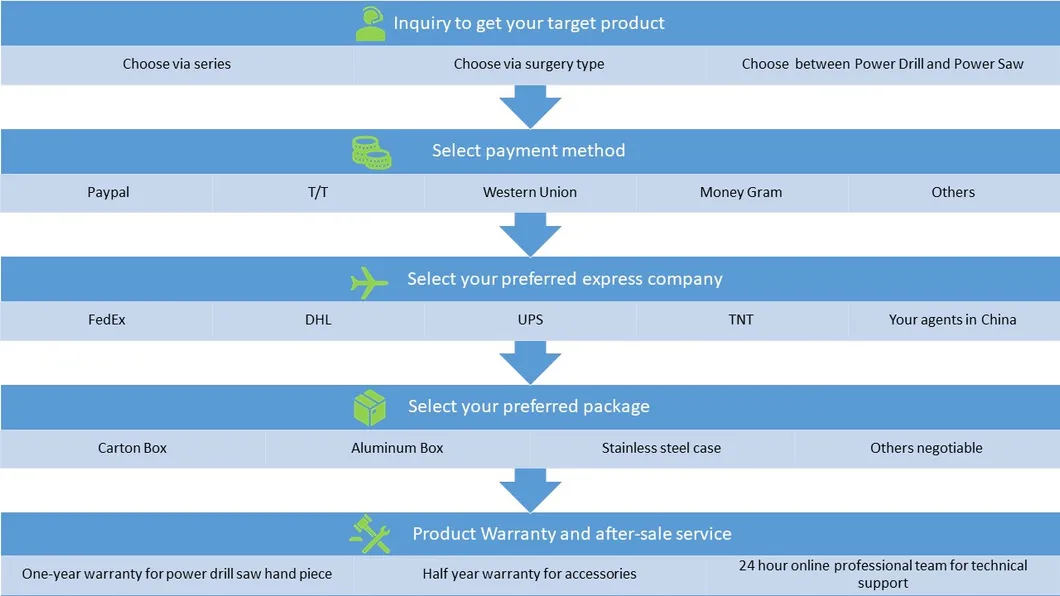

Order Process & Workflow

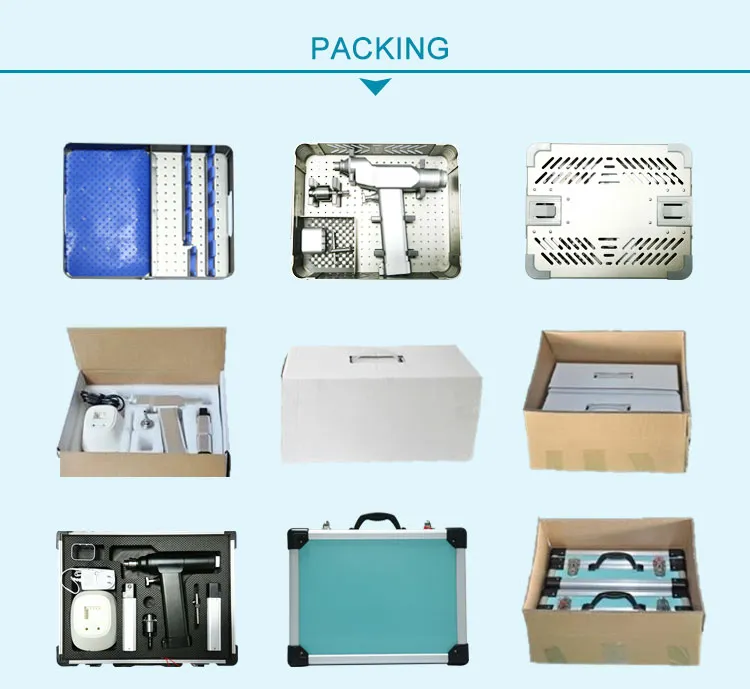

Process 1 Process 2 Process 3
System Overview

Functional Highlights

Quick Chuck: Imported chuck ensures outstanding performance during operation.
Sternum Saw: 360° Rotating head and blade guard protect soft tissue.
Cranial Drill: Auto-pause after perforation ensures safety in neurosurgery.
Cranial Mill: 0-40000rpm burr rates ensure high efficiency and safety.
Oscillating Saw: 360° rotating head for any surgical site; easy load/unload blades.
Reamer: High-torque design, ideal for acetabulum or medullary operations.

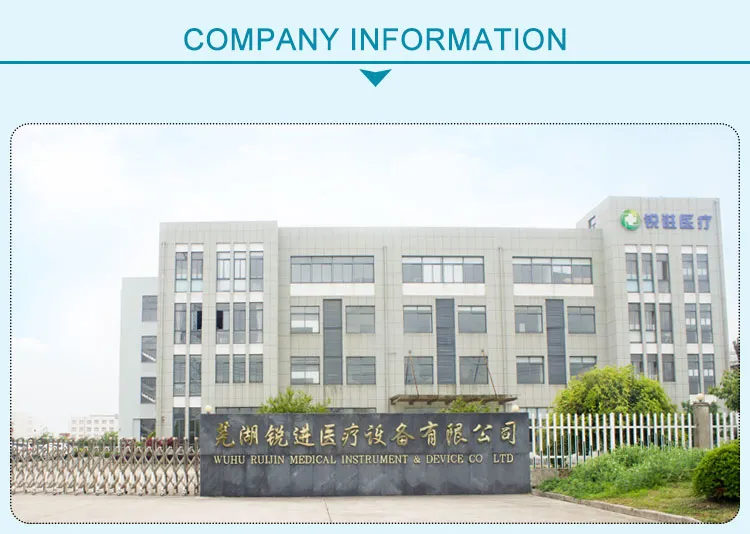

Detail 1 Detail 2 Detail 3
Product Case

Payment & Terms

Price Range
USD 0-3600 / Set
MOQ
1 Set
Payment
T/T in advance or Western Union
Delivery
5 days after deposit

Frequently Asked Questions

What materials are used in the construction of the NM-100?
The system is constructed using high-quality Stainless Steel and Aluminium for durability and medical-grade safety.
Is the handpiece autoclavable?
Yes, the single trigger modular handpiece is designed to be autoclaved for repeated clinical use.
How long does it take to fully charge the battery?
A full charge typically takes about 3 hours using the standard 14.4V charger.
What safety features does the cranial drill include?
The cranial drill features an auto-pause function after perforation to ensure maximum safety during neurosurgical procedures.
What is the standard delivery time after placing an order?
Standard delivery is approximately 5 days after the receipt of the deposit.
What certifications does the product hold?
The NM-100 system is fully certified with CE and ISO13485 standards.
