Orthopedic Small Sagittal Saw for Animal Ns-2012

1 / 4

Orthopedic Small Sagittal Saw for Animal Ns-2012

Customization:	Available
Type:	Autoclavable Orthopedic Power Tools Micro Oscillat
Application:	Orthopedic

Send Inquiry

Product Description

Basic Specification

Model NO.

NS-2012

Material

Stainless Steel

Feature

Reusable / Autoclavable

Certification

CE, ISO13485

Input Power

110V/60Hz~220V/50Hz

No-Load Speed

0-18000r/Min

Noise

≤ 63dB

Weight

1700g

Properties

Orthopedic Power Tools Micro Oscillat

Dimensions

40*15*29 CM

Our Core Advantages

📦 No MOQ
Small orders welcome

⚡ Fast Delivery
Timely shipment

🛡️ After-Sales
Comprehensive support

🎓 Technology
Patented Quality

Product Features

Fully sterilizable up to 135ºC (Autoclavable)
High-performance motor imported from Germany
Strong power output with low noise and minimal vibration
Enhanced surgical accuracy with variable speed and lightweight design
Ideal torque for joint, prosthesis surgery, and osteotomies procedures

Technical Data

Parameter Item	Specification
Hand Piece Working Voltage	14.4V
Hand Piece Output Power	20W
Unit Temperature Rise	≤ 25°C
Charger Input Power	AC 220V, 50Hz / 110V, 60Hz
Battery Charging Time	Approx. 3 hours
Non-loaded Speed	18000r/min
Oscillating Amplitude	5°
Radial Run-out	≤ 0.5mm

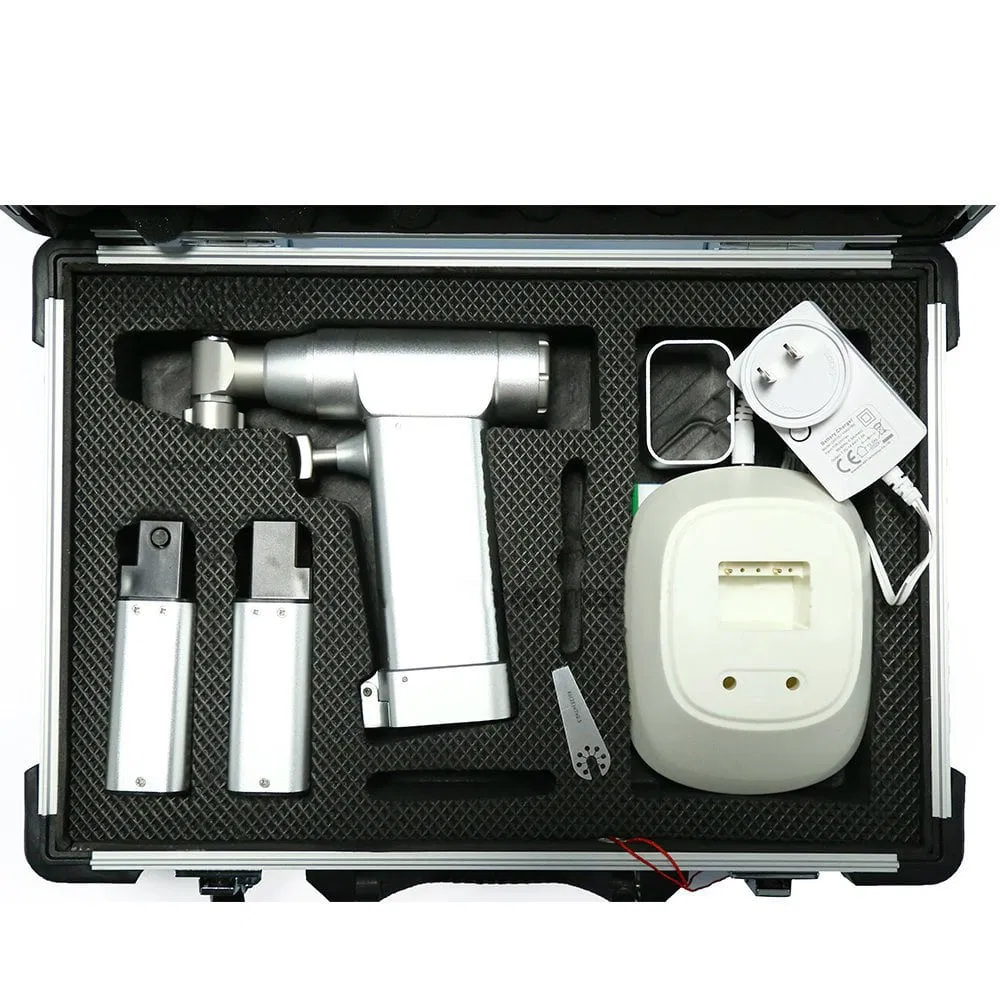

Standard Configuration

1x Mainframe (Handpiece)
1x Charger
1x Battery
1x Sterilizing Channel
2x Saw Blades (Customizable sizes)
1x Aluminum Alloy Carrying Case

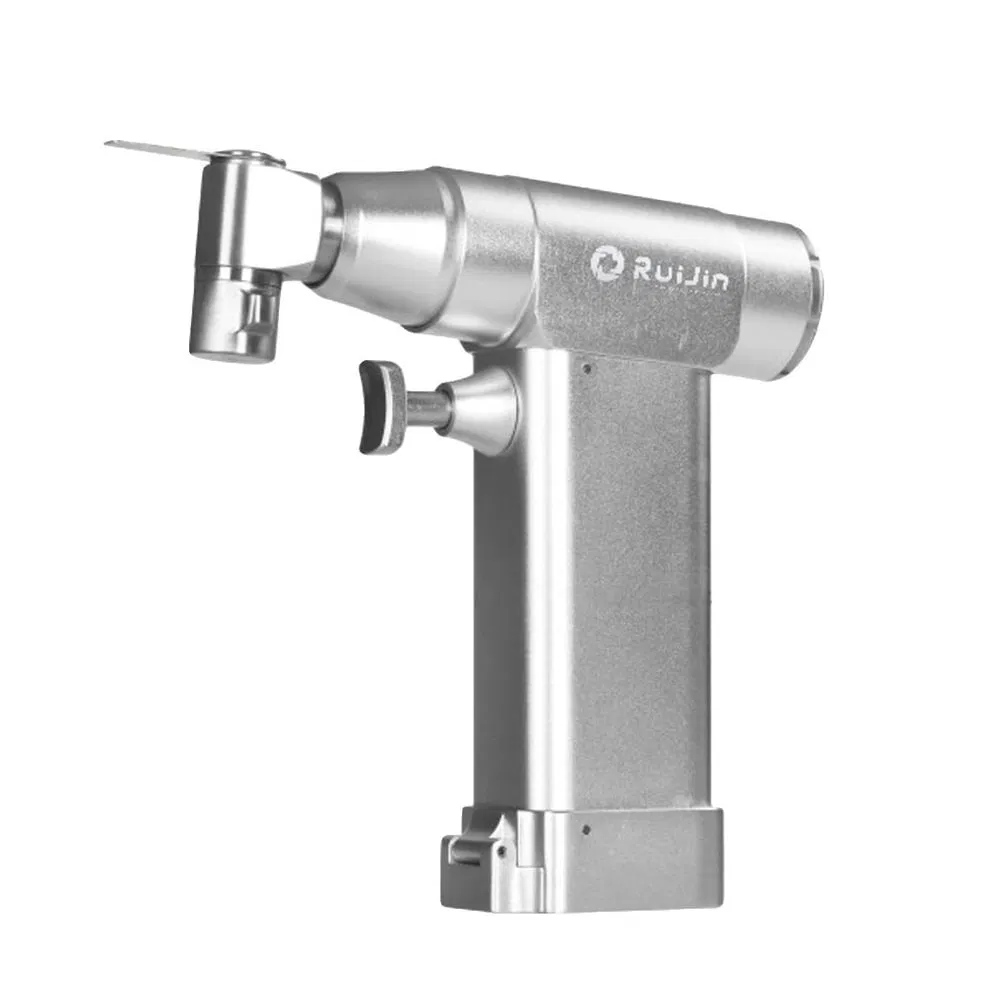

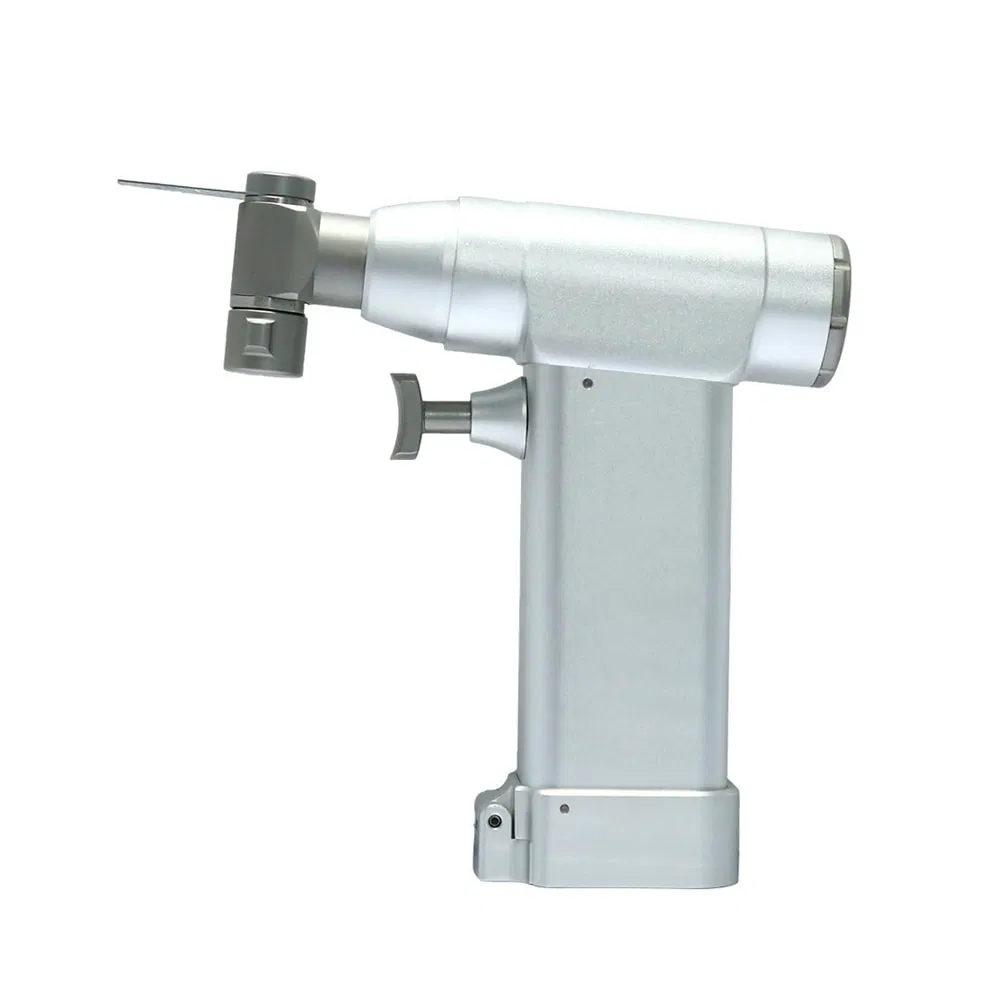

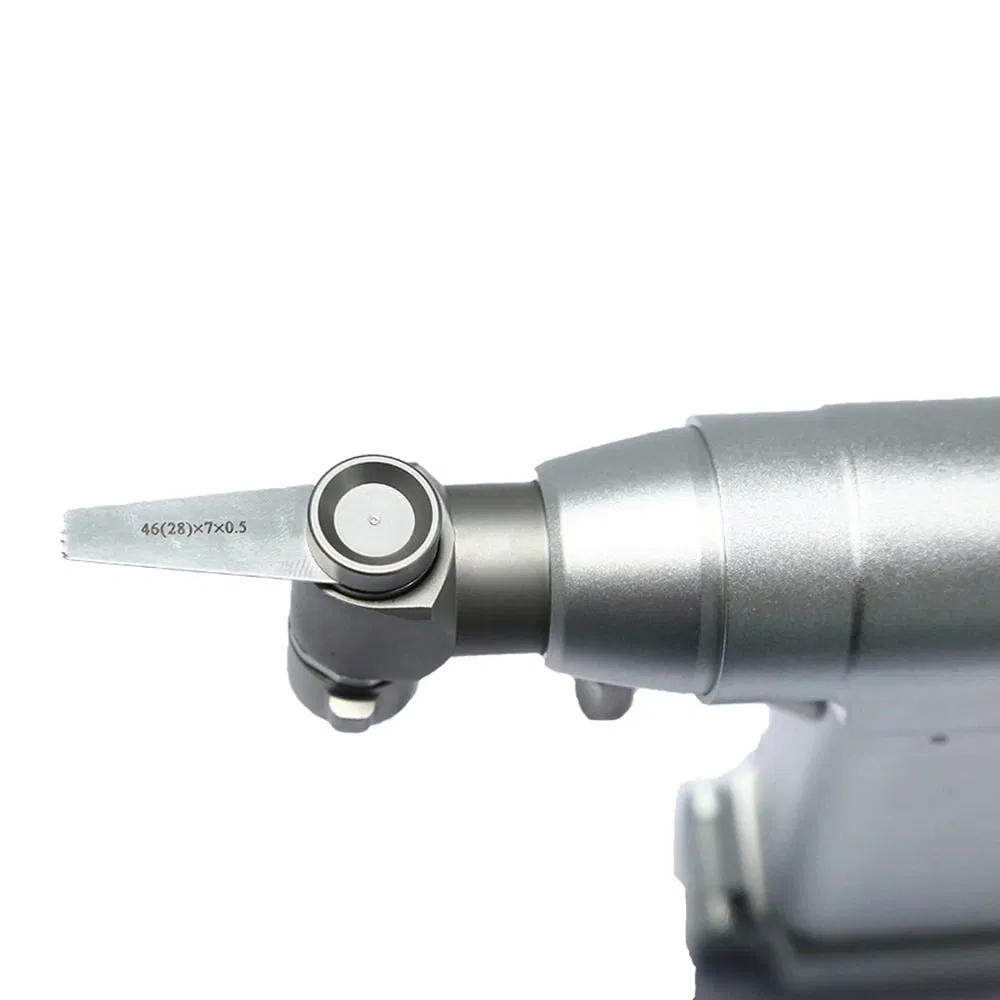

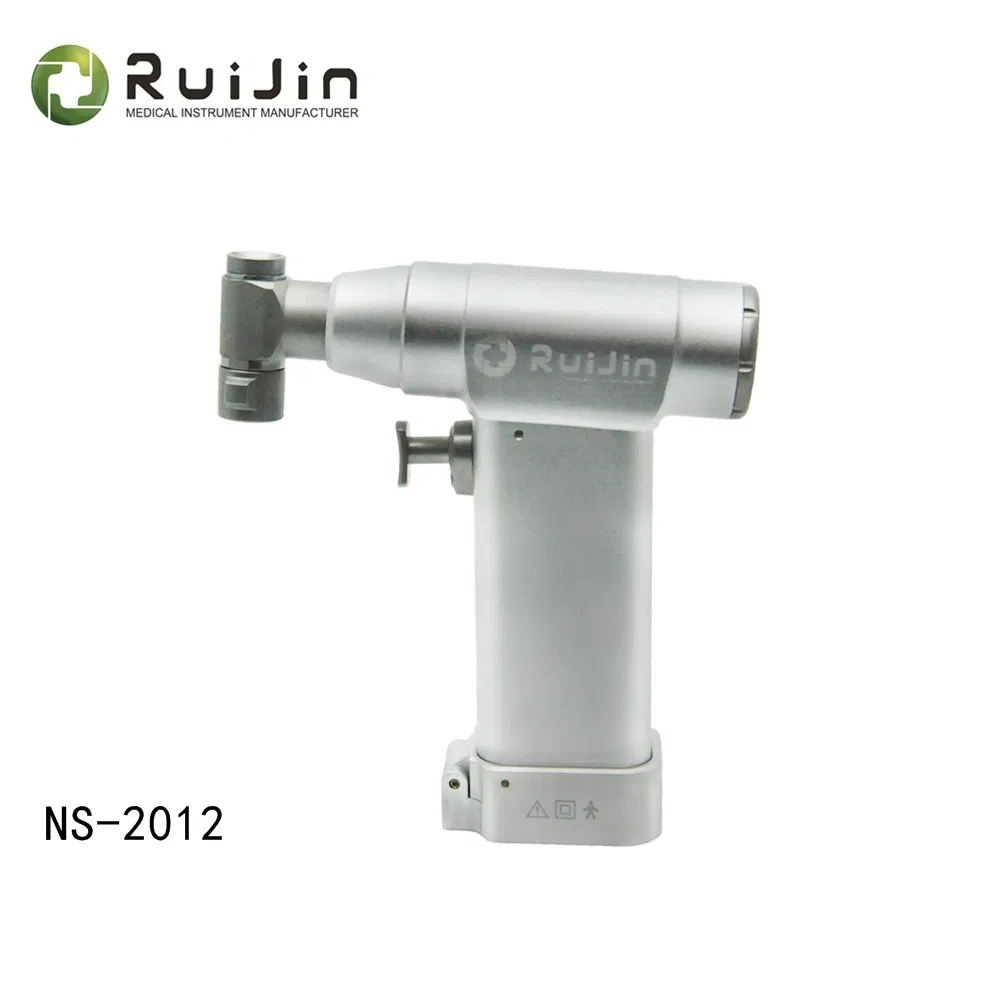

Product Display

Certificates & Packaging

Attention & Safety Notes

1. Sterilization: The maximum sterilization temperature is 135°C. Exceeding this may damage the motor.

2. Battery Care: Do not disinfect the battery. Remove the battery from the handpiece when not in use to prevent discharge.

3. Maintenance: Clean the saw blade and drill bit with a purifier and ensure they are dry after operation.

4. Power Source: Compatible with 110V/60Hz and 220V/50Hz power sources.

Frequently Asked Questions

Q1: Can the NS-2012 sagittal saw be fully autoclaved? A: Yes, the handpiece is designed to withstand sterilization temperatures up to 135ºC. However, the battery must not be disinfected.

Q2: What is the primary use for this small sagittal saw? A: It is specifically designed for small animal orthopedic surgeries, joint procedures, and osteotomies.

Q3: How long does the battery take to charge? A: A full charge takes approximately 3 hours using the standard charger provided in the configuration.

Q4: Is the motor loud during surgery? A: No, the device features a high-quality imported German motor that operates at a noise level ≤ 63dB for a quieter surgical environment.

Q5: What is included in the standard kit? A: The kit includes one mainframe, one charger, one battery, one sterilizing channel, two saw blades, and a protective aluminum alloy carrying case.

Q6: Is the speed of the saw adjustable? A: Yes, it features gearless variable speed control, allowing for better accuracy and maneuverability during delicate procedures.
