O-arm G arm C arm Jackson table Spine Wilson Table System orthopedic spine operating table
Our latest modular table platform offers enhanced safety features, improved setup workflows, and increased weight capacity.

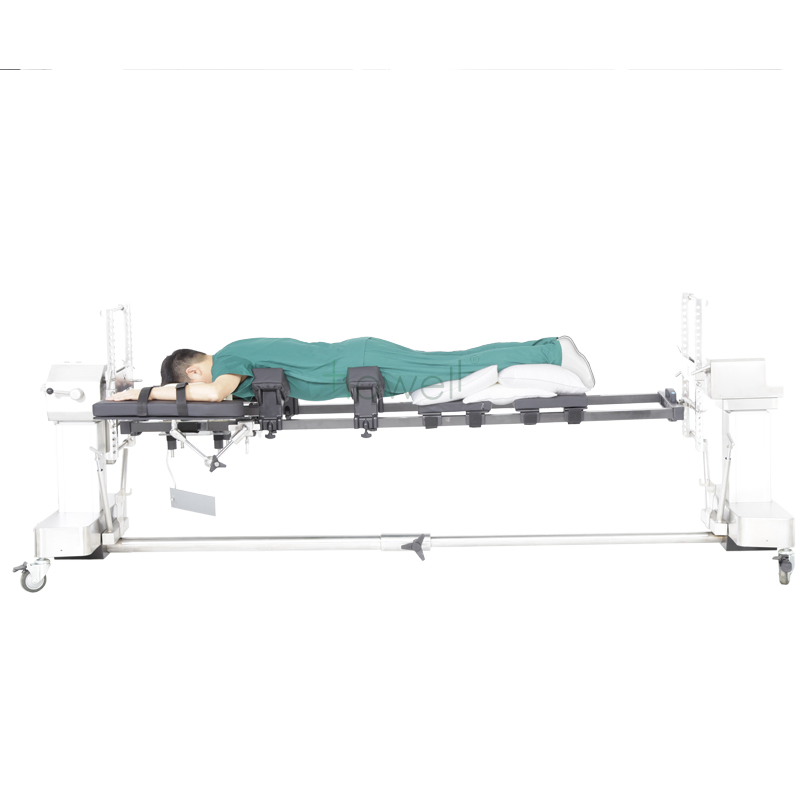

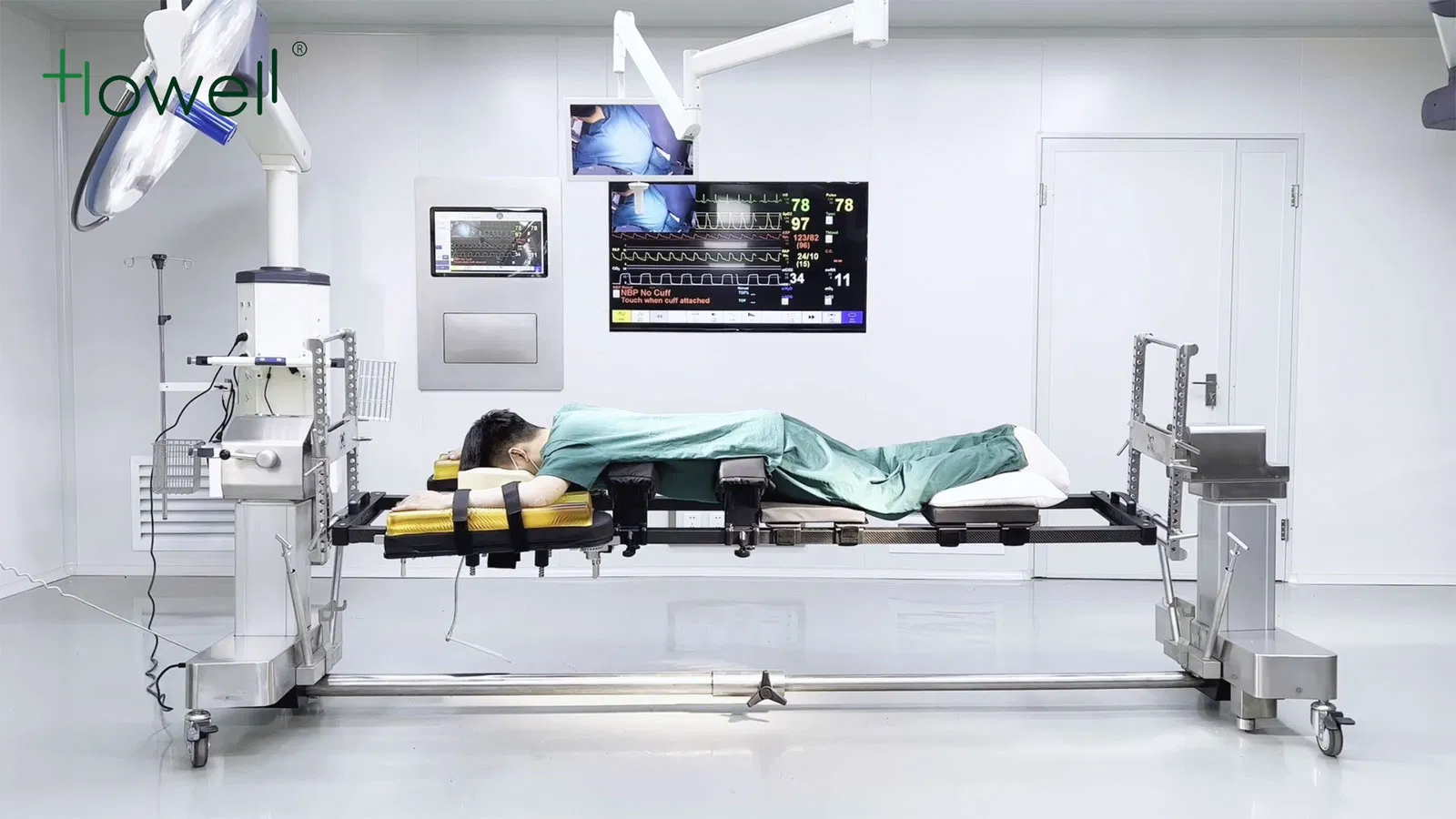

This modern system features a dual-column modular platform known for its interchangeable patient positioning for the spine, imaging, and orthopedic trauma procedures. It features a unique tabletop mounting interface that keeps the tabletop locked in place, single push electronic floor locks and a streamlined 180° patient rotation mechanism. Simple to set up and intuitive to use, it simplifies your workflow and minimizes human error.

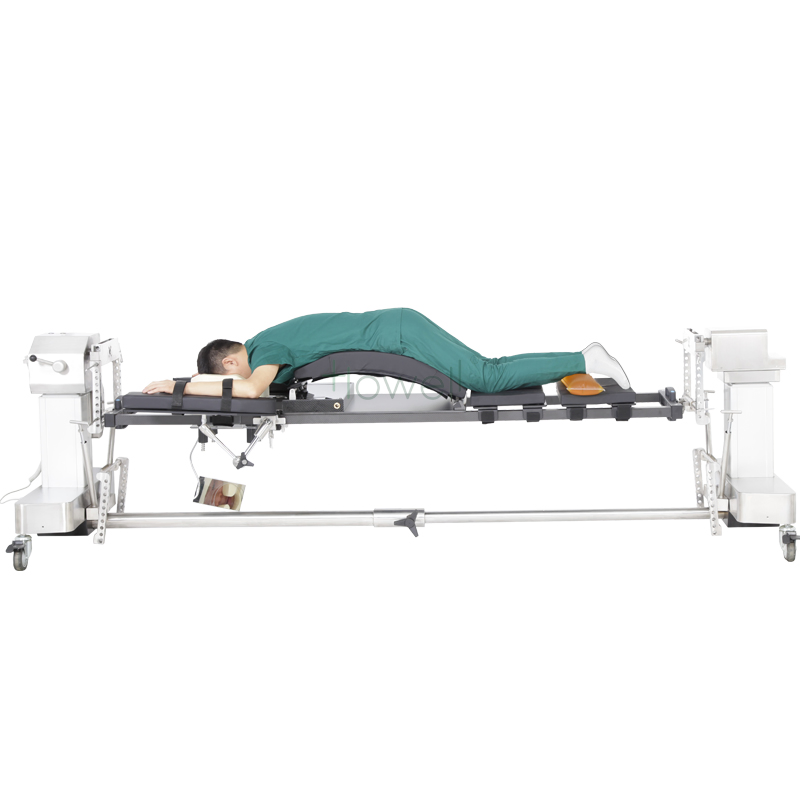

Open spine frame reduces vena cava compression, minimizes epidural venous bleeding and improves visualization at the surgical site.
Supports supine or lateral positions. Fully radiolucent, carbon fiber table top with pressure equalization pad.
Modern table top with Traction Arc attachment. Provides constant and anatomically correct traction for various trauma procedures.
Spinal Surgery Top with Radiolucent Imaging Top
| Table Total Length | 3120mm |
| Table Total Width | 850mm |
| Tabletop Size | 2250*450mm |
| Tabletop Height Adjustment | 510-1234mm |
| Table Lift Stroke (Electric) | 500mm |
| Table Lift Stroke (Manual) | 224mm |

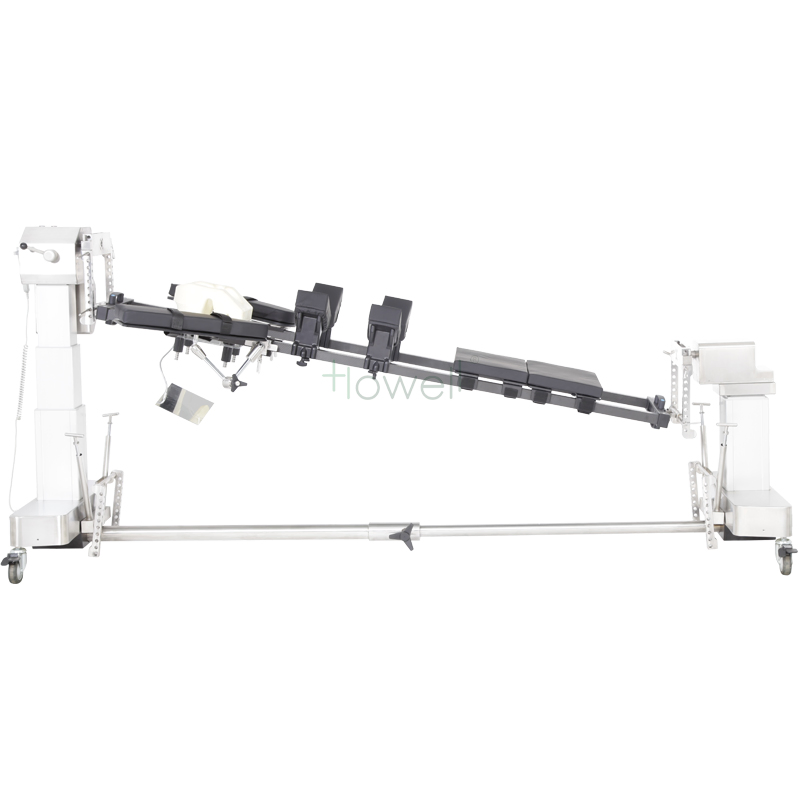

| Trendelenburg/Reverse Trendelenburg | 15º/15º |
| Left/Right Tilt | 25º/25º |
| Patient Weight Capacity | 260kg |
| Table Top Rotation | 180° |
