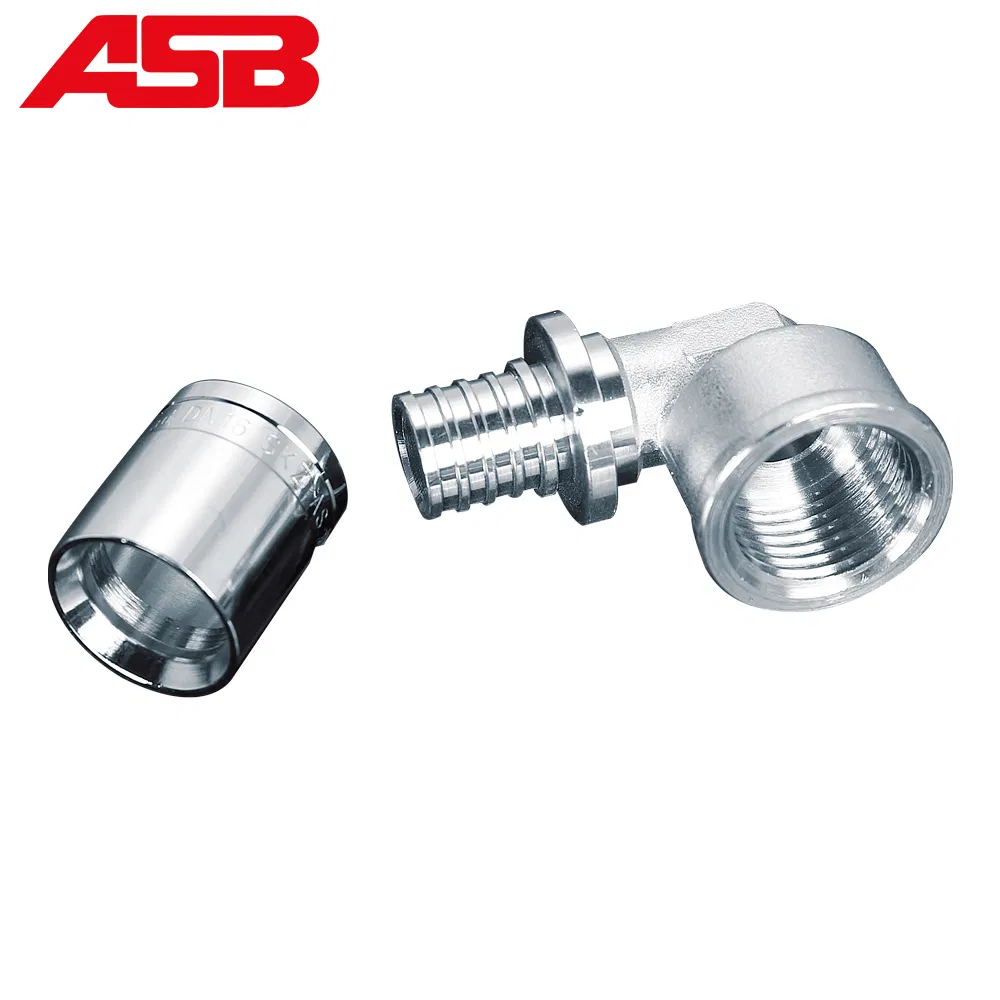

Premium Nickle Cw617n Heating Radiator for Pexalpex Systems

1 / 5

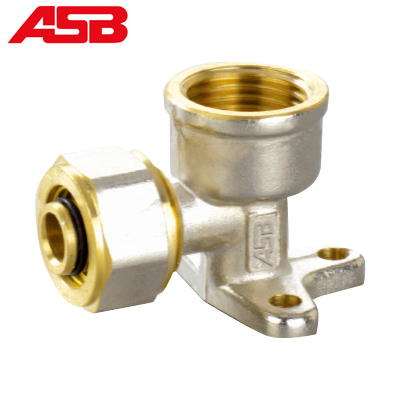

Premium Nickle Cw617n Heating Radiator for Pexalpex Systems

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO.:Compression Type

Head Code:Round

Thread:Internal Thread

Surface:Nickel

Material:Brass

Technics:Forged

Application:Water Heating-Gas

Warranty:5 Years

Size:16mm-63mm

Main Market:Europe/Asia/American

Capacity:10ton/Day

Origin:China

Product Description

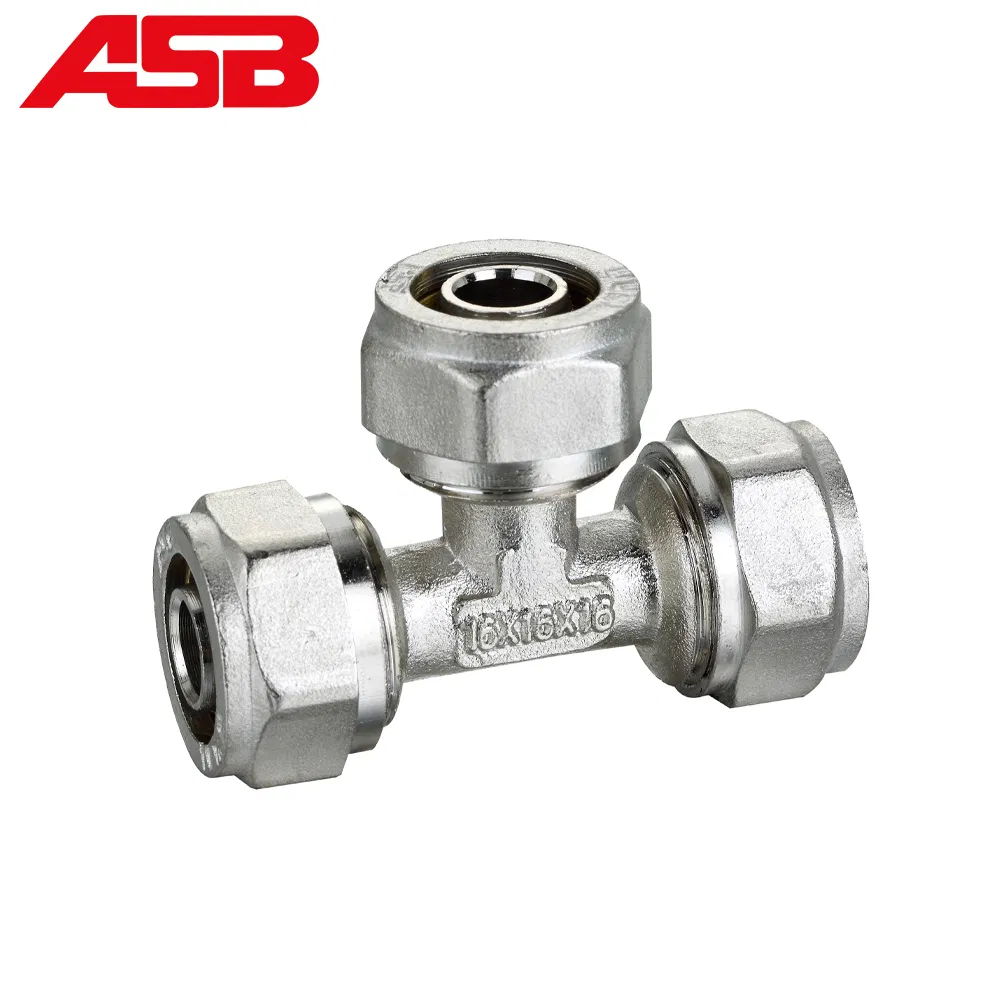

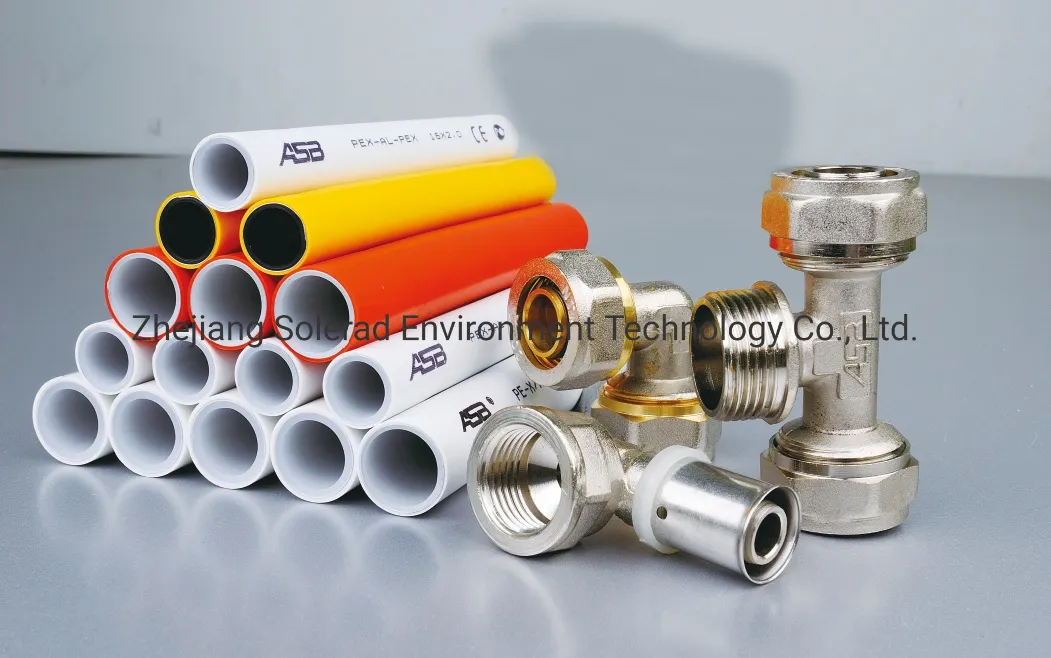

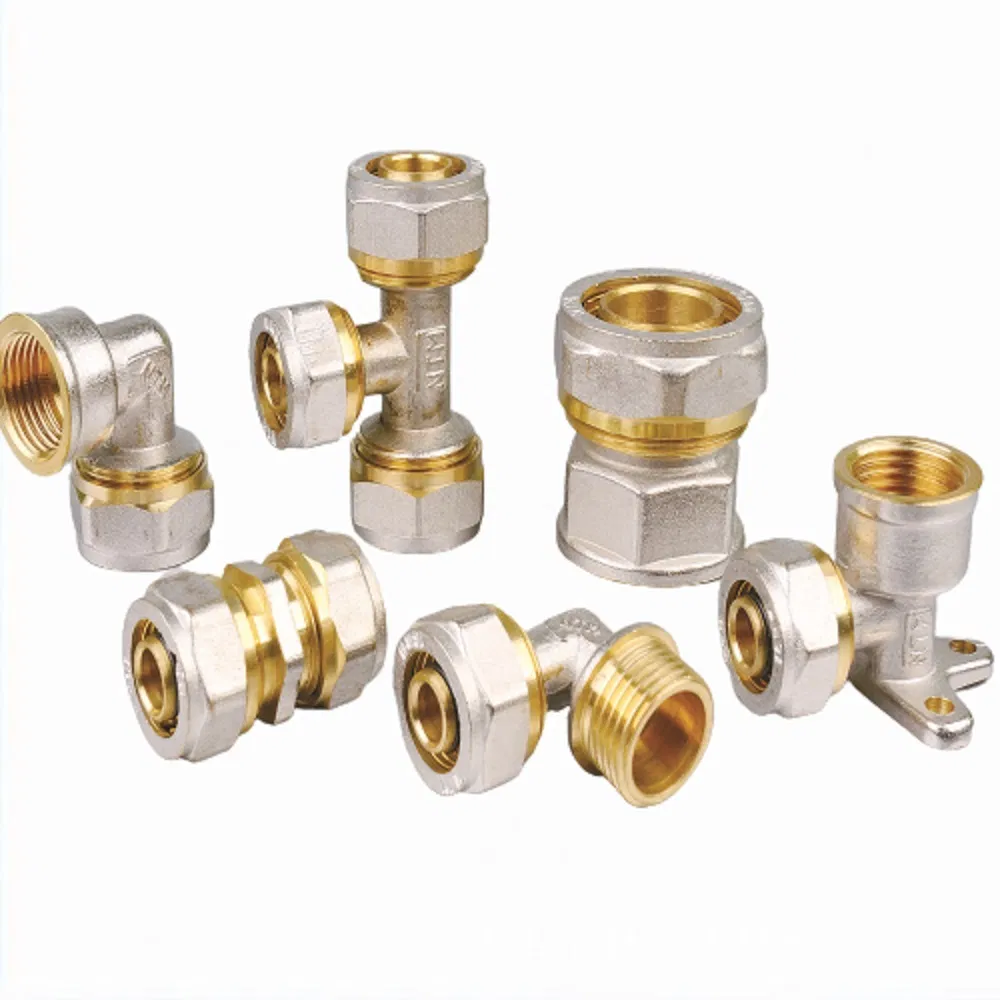

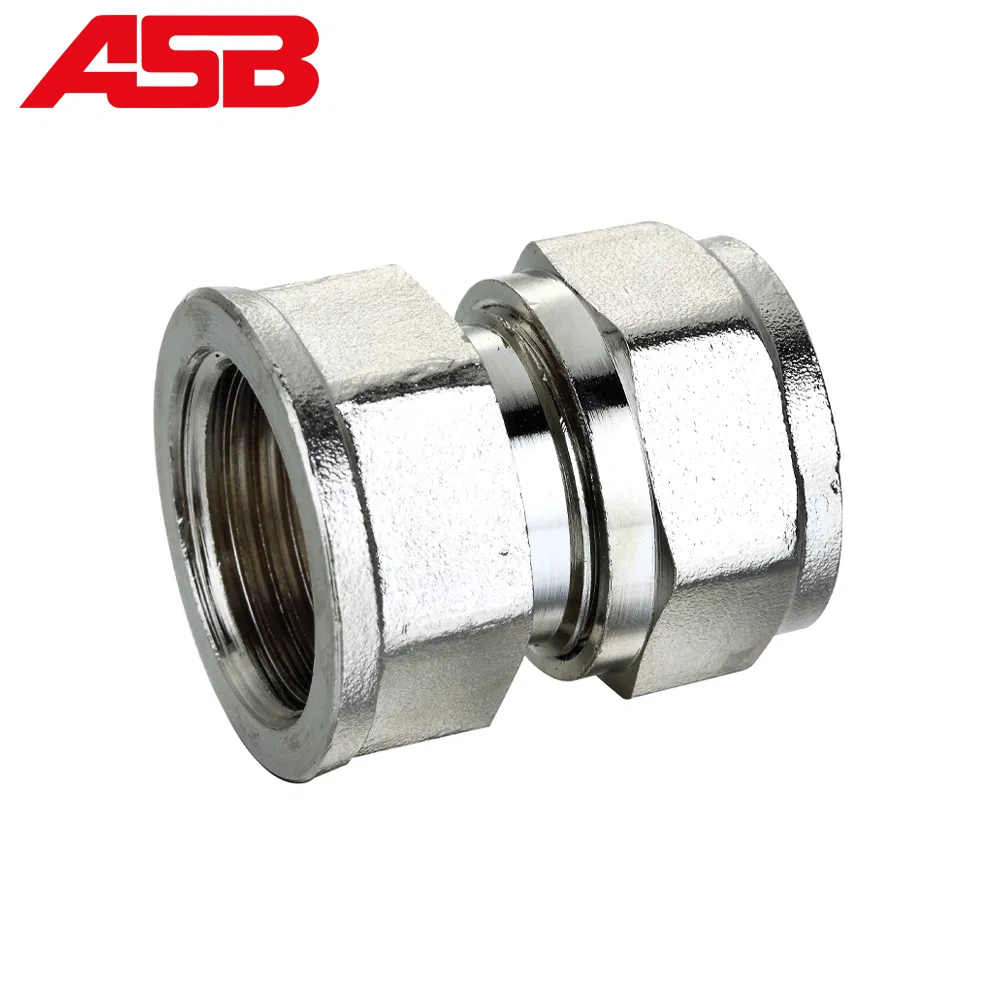

The compression fittings (brass PEX fitting) are among the most popular fittings for PEX pipe or PEX-AL-PEX pipes. This tubing usually comes with two rubber O-rings positioned over the barbs. Each one comes with an insert that goes inside the tubing, a compression ring that is split diagonally, and a compression nut.

This is a form of PEX fitting that does not require special compression tools. All you have to do is use a wrench or pliers and tighten the nut over the compression ring. As the ring is tightened, the diagonal cut closes, forming a compressed ring.

Product Specification

Product Name	Brass PEX Fittings
Materials	Nut, Body, Cut-ring: CW617N or HPb 58-3A Brass
Materials	O-ring: EPDM
Color	Natural Brass / Nickel Plated / Part Nickel Plated
Size	16mm, 18mm, 20mm, 25mm, 26mm, 32mm

Name	Type of Fittings
Brass PEX Fittings	Brass crimp style fittings
	Poly or plastic crimp style fittings
	Push-fit fittings
	Press PEX fittings
	Expansion PEX fittings
	PEX compression fittings

Advantages

✔ Specially designed for multilayer pipes.
✔ Artistic design with high-pressure and corrosion resistance.
✔ High-quality EPDM O-ring for superior sealing.
✔ Easily installed and disassembled with a simple spanner.
✔ Effective design to prevent liquid or gas leaking.
✔ Recyclable materials to save resources.
✔ Improved nut design and wall thickness for a favorable quality-price ratio.

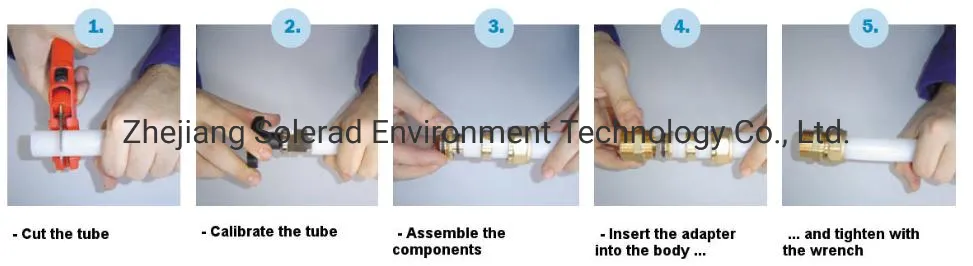

Installation Illustration

Packing and Shipping

1. Exportation standard box in plain color
2. Customized per clients' design

Frequently Asked Questions

Q1: What types of pipes are these brass compression fittings compatible with? A: These fittings are specifically designed for PEX pipes and PEX-AL-PEX multilayer pipes.

Q2: Do I need special tools for the installation? A: No, these compression fittings can be easily installed and tightened using standard tools like a wrench or pliers.

Q3: What materials are used in the construction of these fittings? A: The nuts, body, and cut-rings are made of high-quality CW617N or HPb 58-3A brass, with O-rings made of EPDM for leak prevention.

Q4: Are these fittings suitable for gas applications? A: Yes, they are designed for water heating and gas systems, featuring high-pressure and corrosion resistance.

Q5: What sizes are available for these brass fittings? A: We offer a full range of sizes including 16mm, 18mm, 20mm, 25mm, 26mm, and 32mm to meet different system requirements.

Q6: Are the fittings available in different finishes? A: Yes, they are available in natural brass, nickel-plated, or partially nickel-plated finishes.
