| Model NO. | CTP-200P | Connection Port | 1 Serial Port |
|---|---|---|---|
| Testing Method | Low Frequency | Calibration Accuracy | 0.05% |
| Testing Object | Protection and Measuring CT and PT | Remote Control | Win 7/ Win10 Available |
| Specification | 340*300*150mm³ | Trademark | HME/OEM |
| Origin | Hubei China | Production Capacity | 1000set/Month |

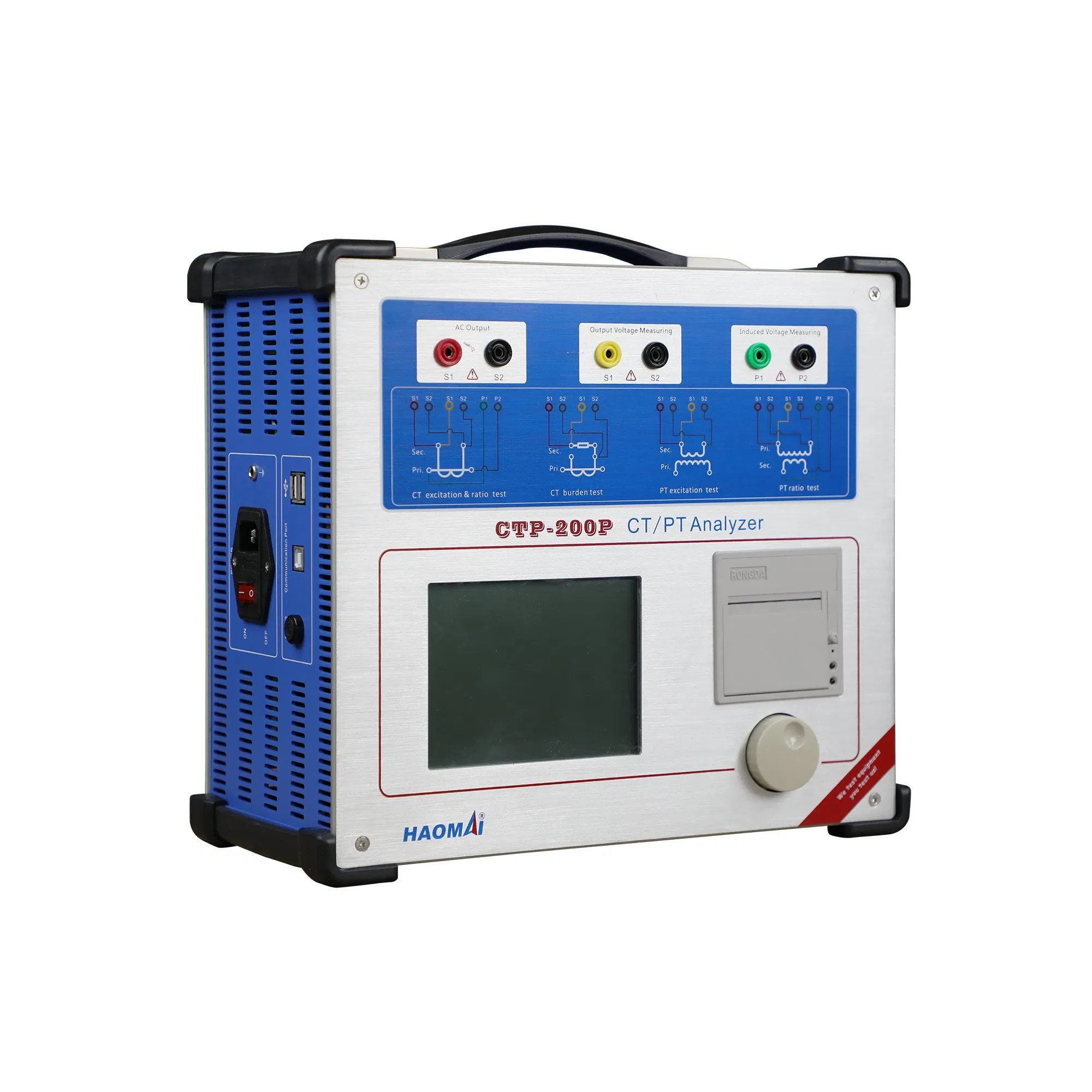

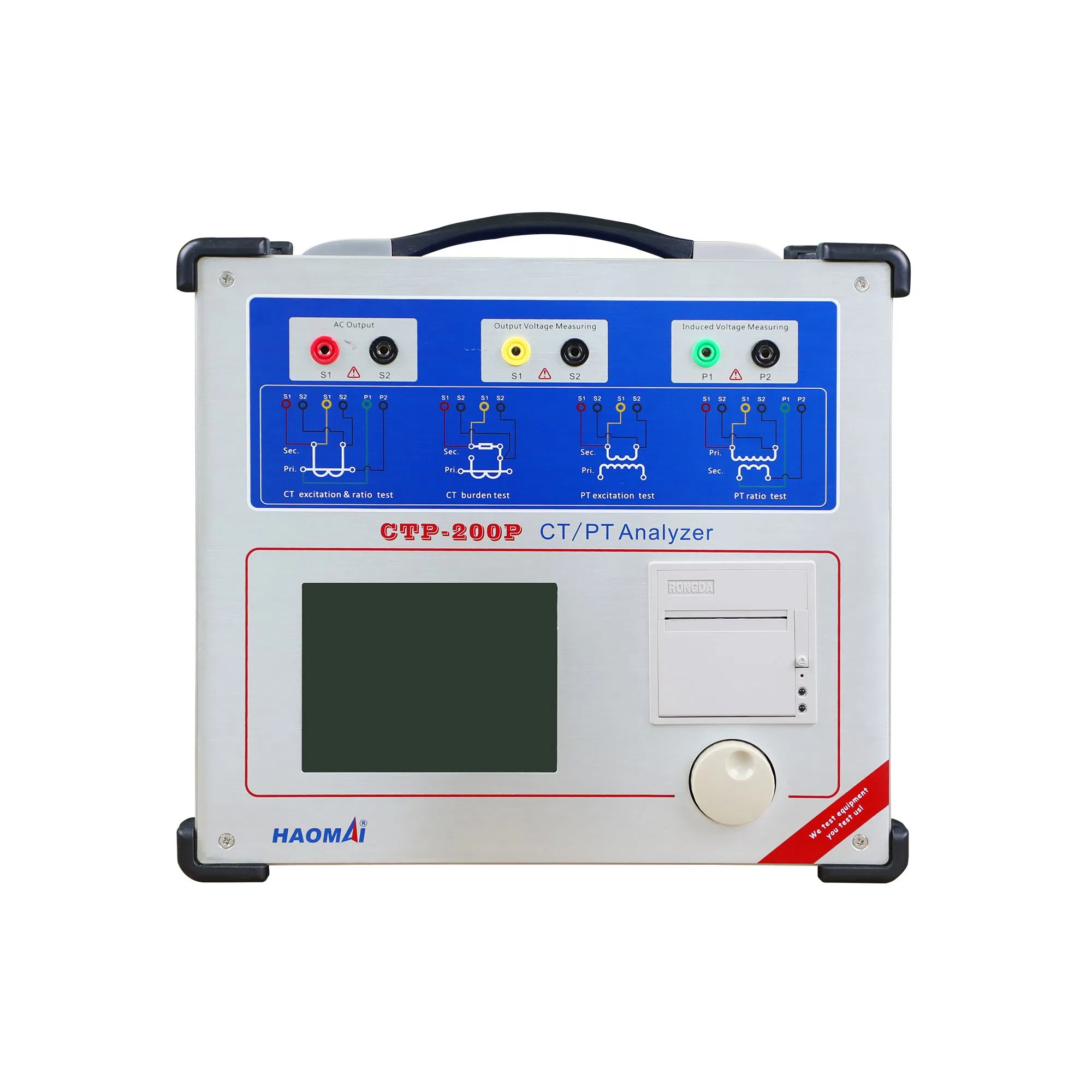

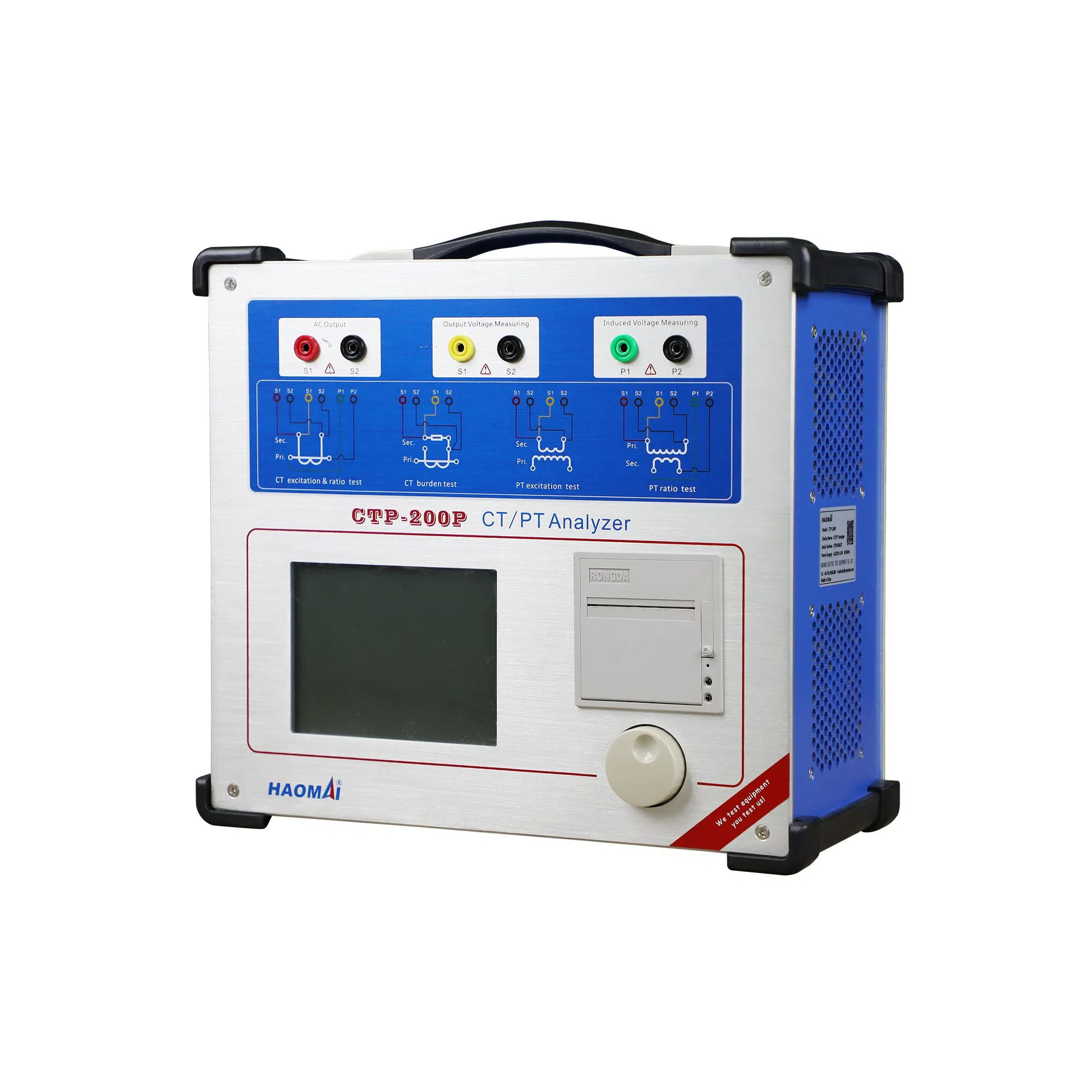

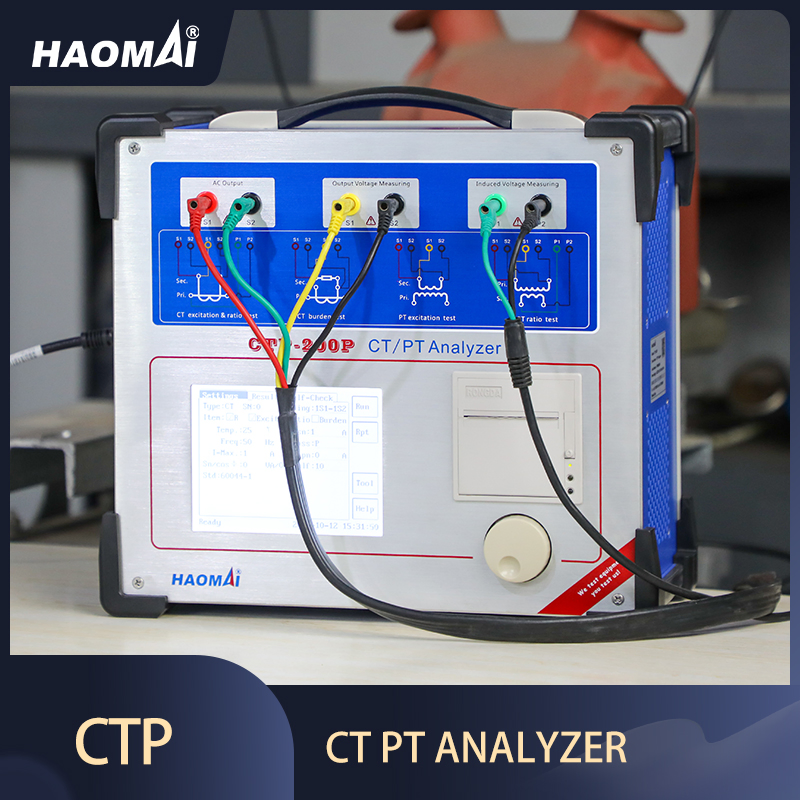

The CT and PT Tester is a revolutionary testing system for various CTs and PTs according to standards IEC61869-2 (IEC60044-1, 60044-6), IEC61869-3 (IEC60044-2), and IEEE/ANSI C57.13. The Analyzer can automatically complete tests within seconds with one click of the patented multifunctional rotary mouse. It allows testing of knee-point voltages up to 40kV on-site or in production facilities.

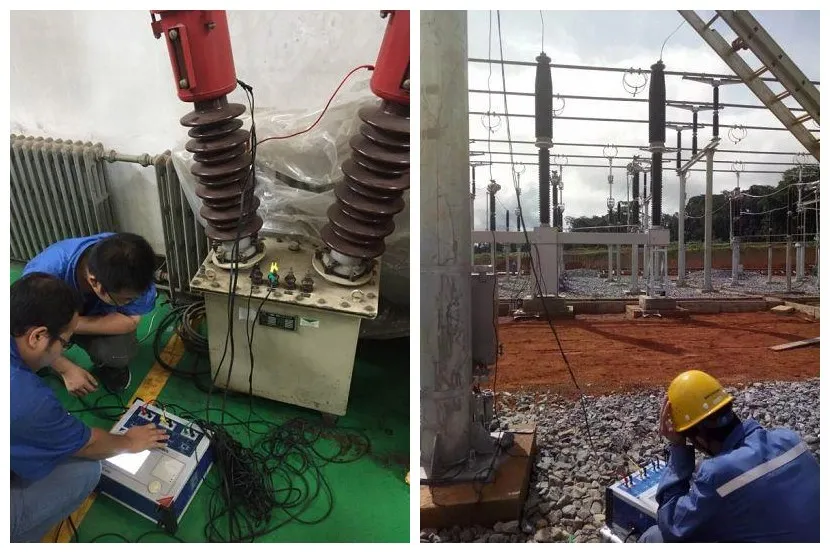

Weight: 9kg (19.84 lbs) - highly portable for field testing.
| Parameter | Range / Value | Accuracy |
|---|---|---|
| Maximum Knee Voltage | 40kV | ±0.05% |
| CT Ratio Measurement | 1 ~ 30,000 | ±0.05% |
| PT Ratio Measurement | 1 ~ 10,000 | ±0.05% |
| Phase Measurement | Res: 0.01min | ±2min |
| Winding Resistance | 0 ~ 300Ω | 0.1% ± 1mΩ |
| Burden Measurement | 0 ~ 300VA | 0.1% ± 0.1VA |
| Input Voltage | AC 220V/230V/120V/127V ±10% |
| Operation Temp | 0 ... +50 °C |
| Humidity | 5 ... 95 % RH, Non-Condensing |
| Weight / Dimensions | 9kg / 340×300×150mm |
The tester calculates ratio and phase angle errors by measuring turns ratio (Np/Ns) and excitation loss (Iex). Turns ratio is obtained by applying voltage to the secondary side under no-load conditions.

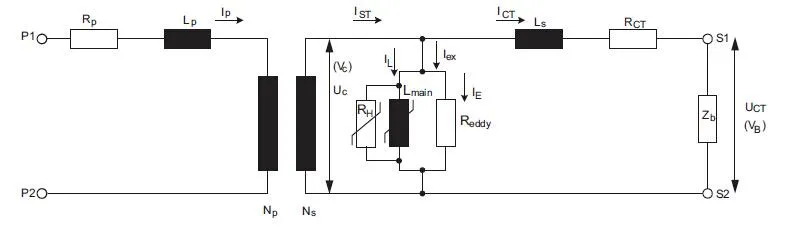

Figure 1: CT's equivalence principle diagram

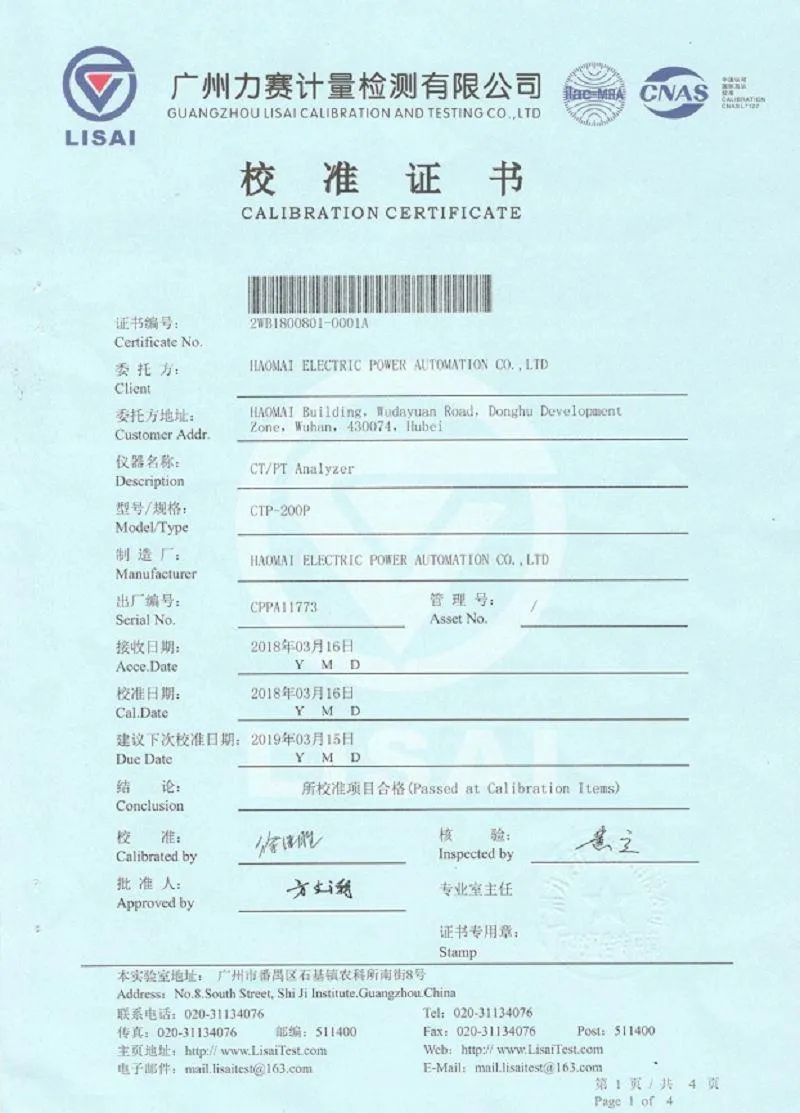

Our equipment is calibrated in third-party laboratories accredited under ISO/IEC 17025, ensuring global standards of reliability and precision.
Established in 1999, our enterprise specializes in developing and manufacturing electrical power test and measurement instruments. Our products are widely utilized in power grids, petrochemistry, metallurgy, and research institutes. We focus on providing high-quality solutions for Protection Relay Testing, CT/PT Analysis, and Transformer Testing.
We are certified by ISO 9001:2015, ISO 14001:2015, and OHSAS 18001:2007, maintaining standardized processes for continuous growth and innovation.
