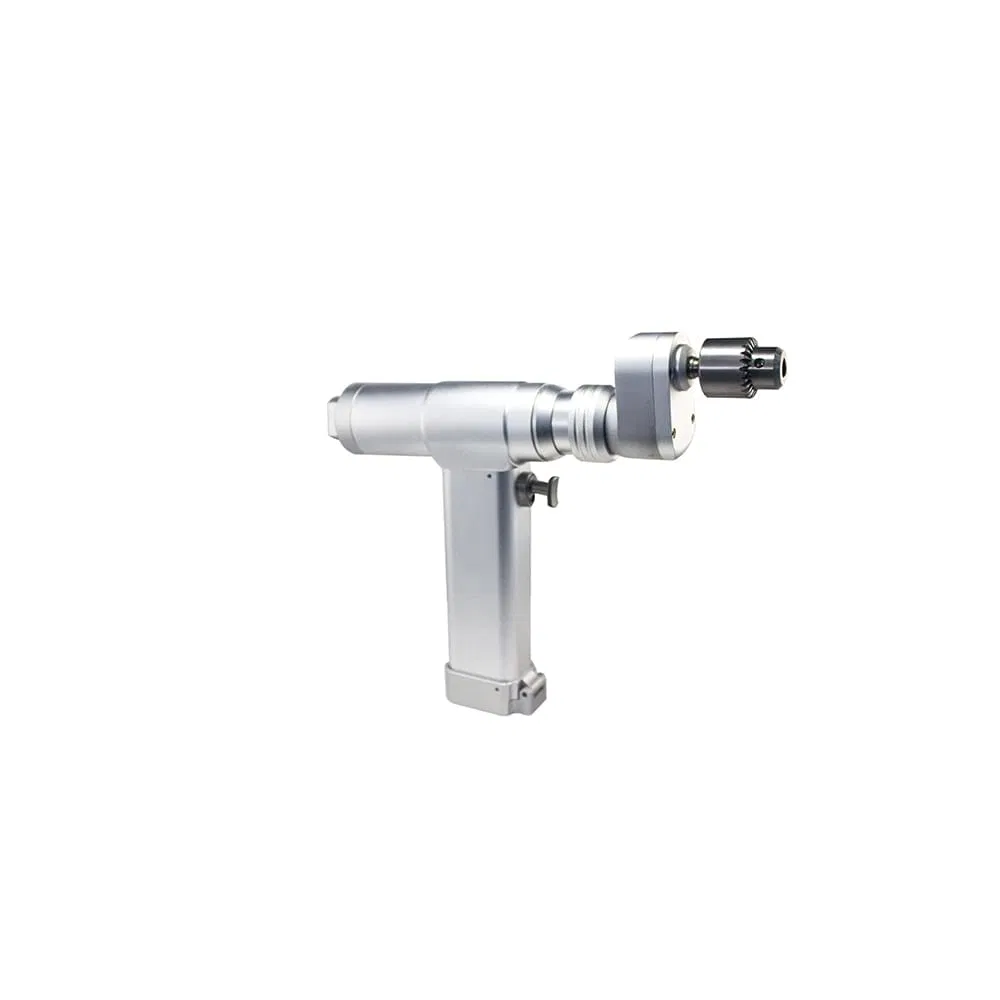

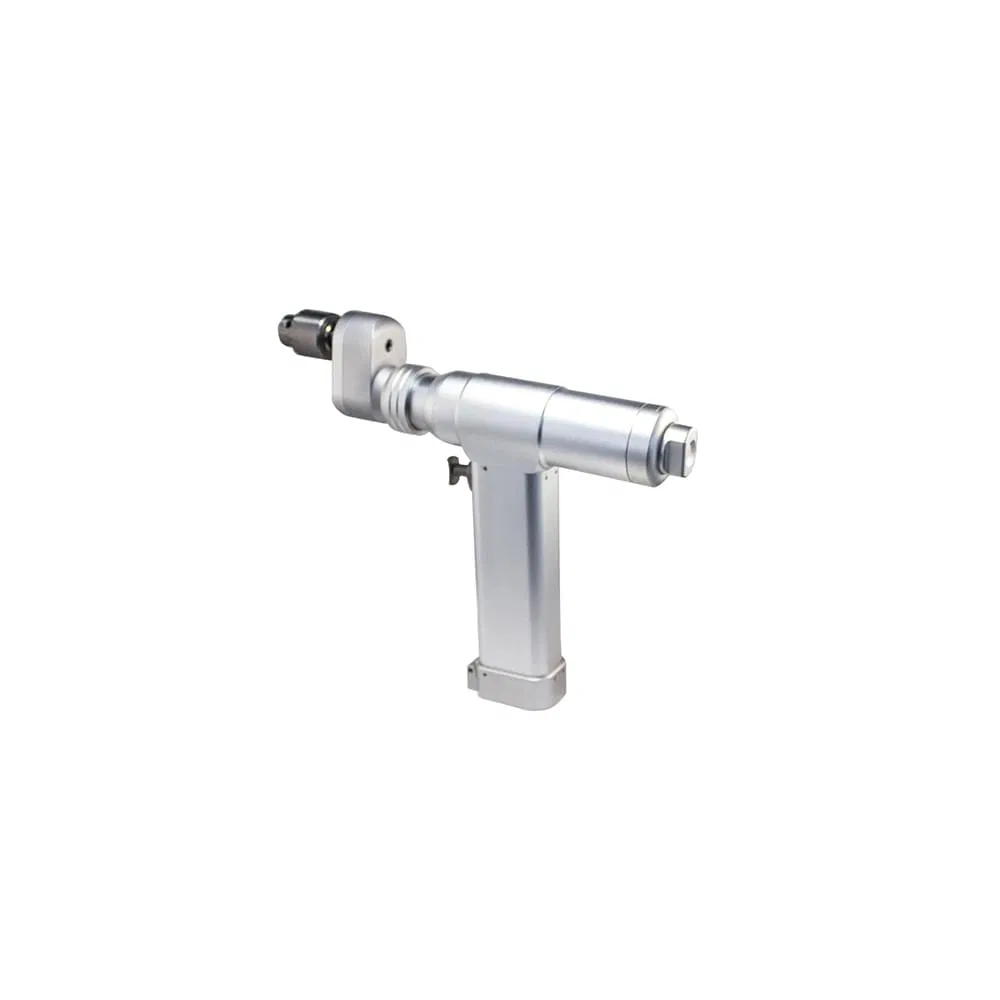

Ruijin Orthopedic Multifuctional Drill and Saw System with Cordless Battery

1 / 5

Ruijin Orthopedic Multifuctional Drill and Saw System with Cordless Battery

Customization:	Available
Type:	Drill & Saws
Application:	Orthopedic, Neurosurgery, Microsurgery

Send Inquiry

Product Description

Basic Specifications

Model NO.

NM-100

Material

Stainless Steel

Feature

Reusable

Certification

CE, ISO13485

Group

Adult

Color

Silver

Power Voltage

220V/50Hz or 110V/60Hz

Type

Autoclavable

HS Code

9018909000

Drill Chuck

0.6mm--6mm / 0.6mm--8mm

Product Description

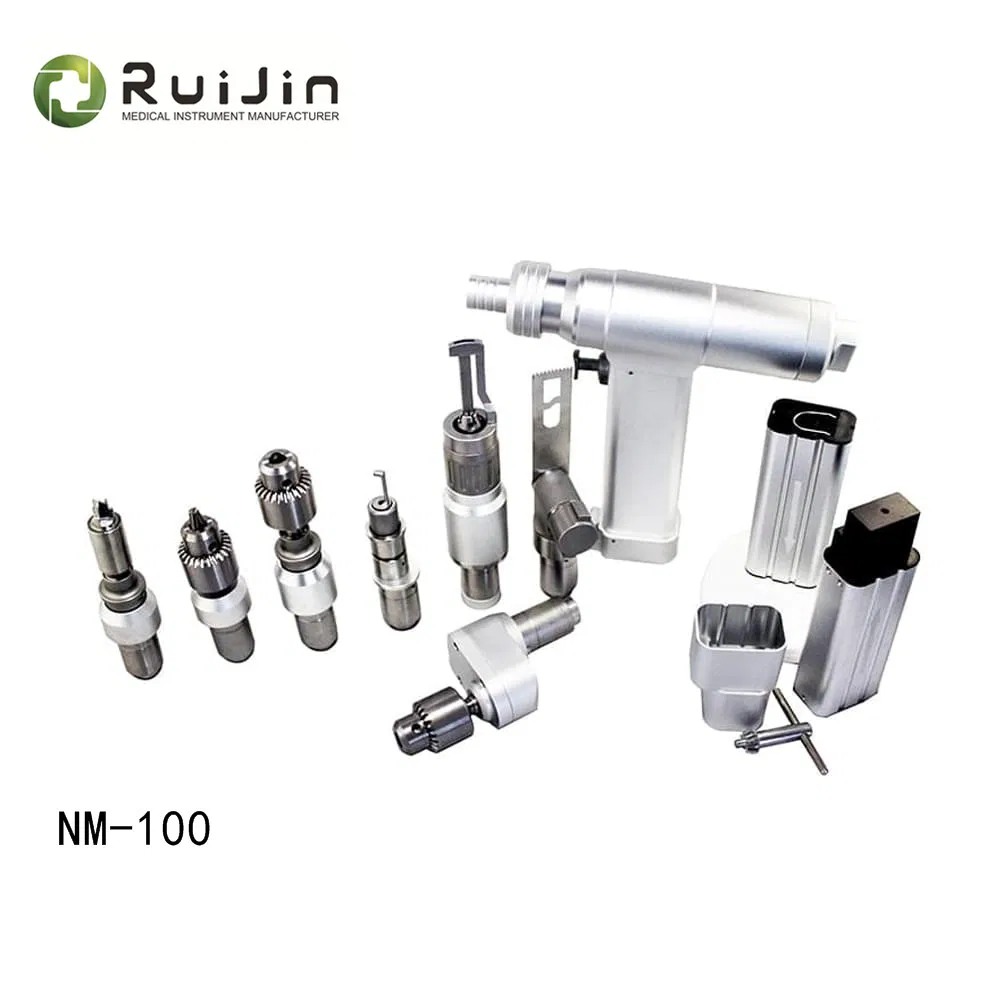

Orthopedic Multifunctional Drill and Saw System with Cordless Battery

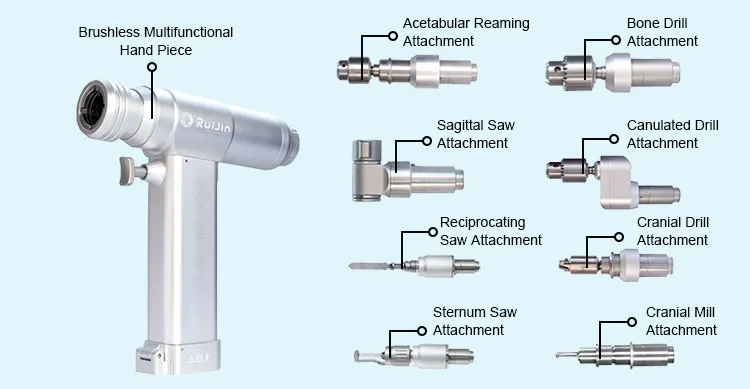

Main Components

Components	Quantity
Multifunctional mainframe	1
Quick chuck	1
Oscillating saw attachment	1
Canulate drill attachment	1
Acetabulum burnishing drill attachment	1
Cranial drill attachment	1
Cranial mill attachment	1
Sternum Saw attachment	1
Battery	2
Sterilizing channel	1
Sterilization tray	1

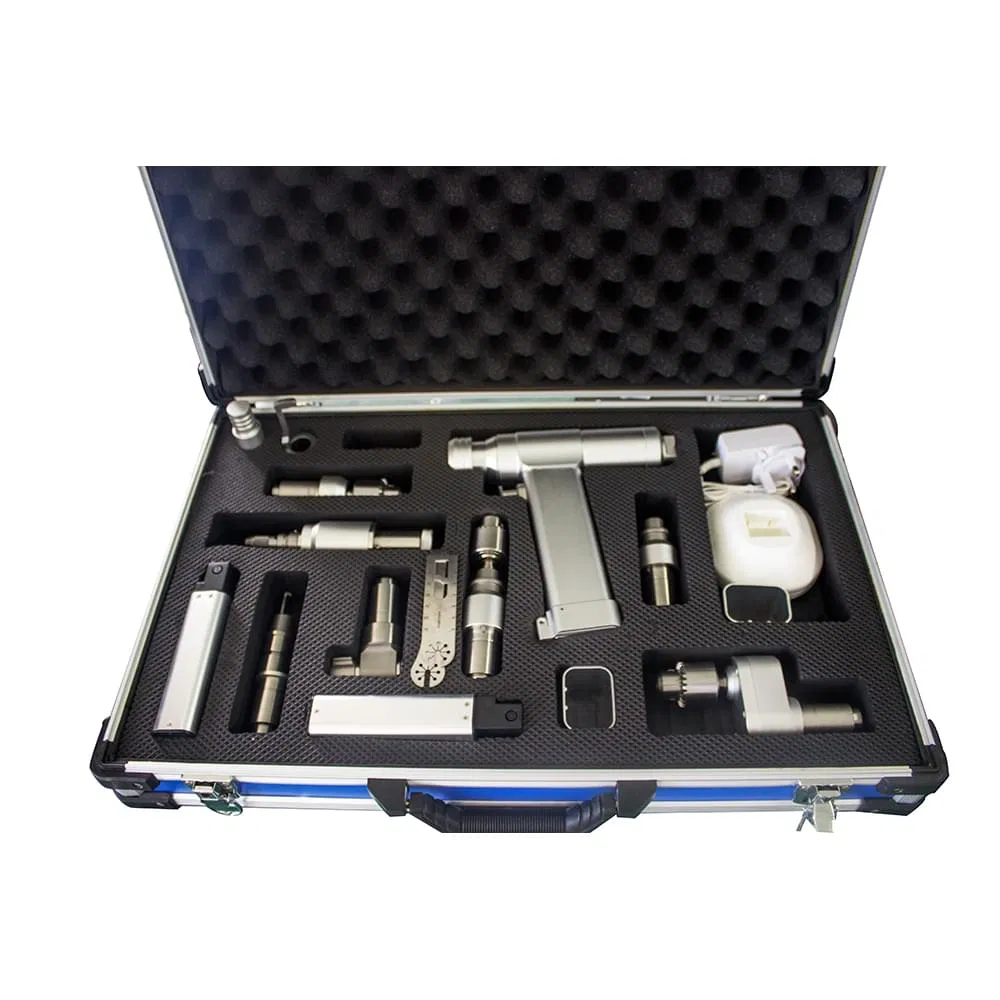

Aluminum alloy carrying box	1
High temperature plug	1

Product Features

Professional surgical power tools technology

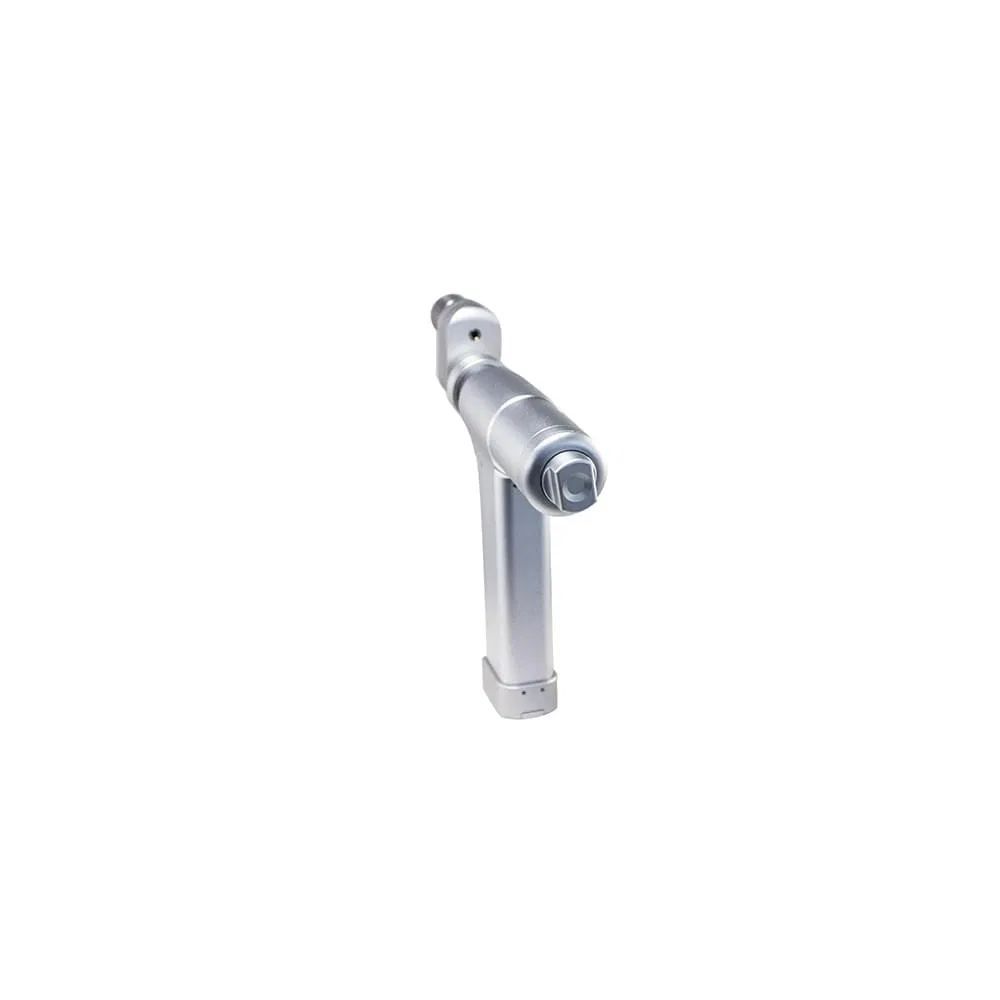

The single trigger modular handpiece can be autoclaved
Comprehensive range of quick-change attachments
Powerful motor provides precise and stable performance
Ergonomic design offers comfortable grip and convenient manipulation

Product Display

Technical Data

Parameter		Value
Hand Piece	Working Voltage	14.4V
	Output Power	≥20W
	Unit rise in temperature	≤25°C
Charger	Input Power	AC 220V, 50Hz
	Output Power	14.4V, 700mA
	Input Power	30VA
Battery	Voltage	14.4V
Battery	Charging time	About 3 hours

Attachment Speeds

Attachment Type	Rotate Speed
Quick chuck (bone drill)	0-1100r/m
Oscillating saw	0-16000r/m
Acetabulum Reamer	0-300r/m
Wire and pin chuck (canulate drill)	0-1100r.m.p
Cranial drill	900r.m.p
Craniotomy mill	40000r/m
Sternum saw	15000r/m

Operation Highlights

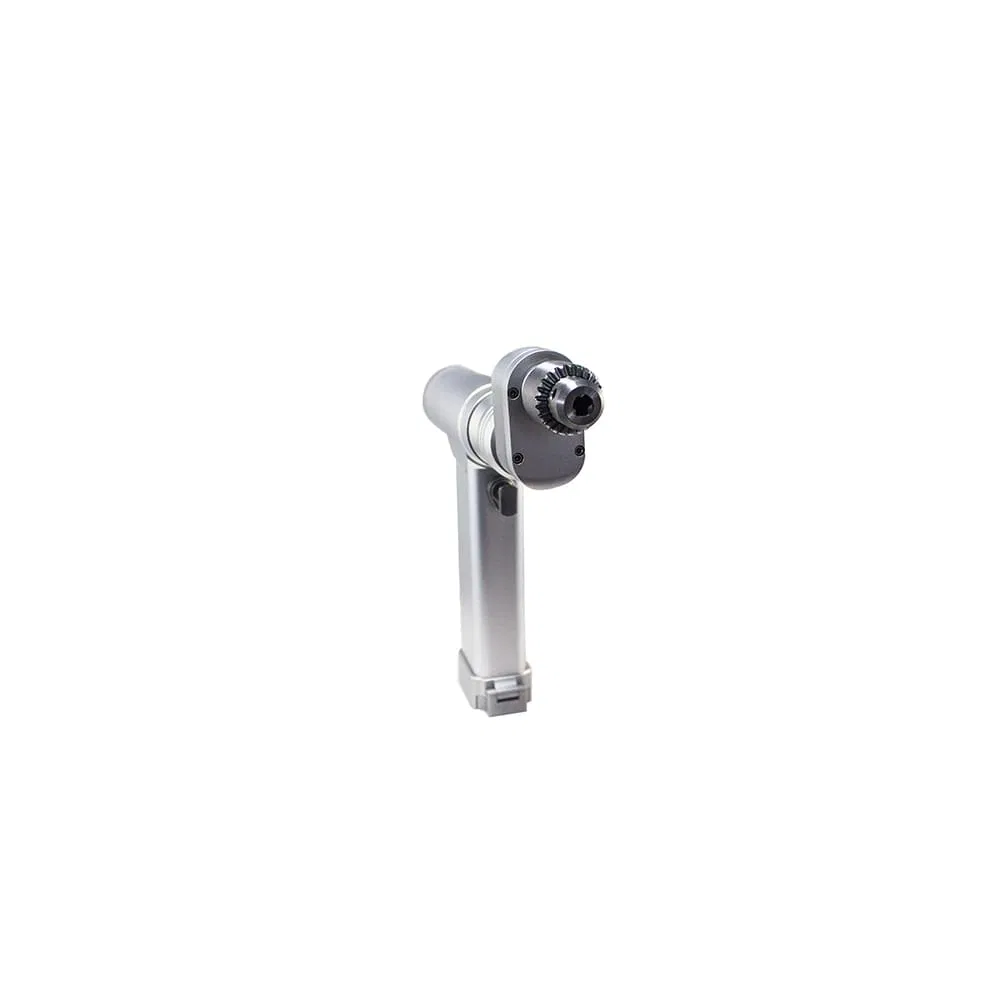

Quick chuck: Imported chuck ensures outstanding performance during operation.
Sternum saw: 360° Rotating head and blade guard protect soft tissue.
Cranial drill: Auto-pause after perforation ensures safety in neurosurgery.
Cranial mill: 0-40000rmp ensures high efficiency and safety.
Reamer: High torque, ideal for acetabulum or medullary operation.

Frequently Asked Questions

Q1: Can the multifunctional handpiece be sterilized? A: Yes, the single trigger modular handpiece is designed to be autoclavable for high-temperature sterilization.

Q2: How long does it take to fully charge the battery? A: The charging time for the 14.4V battery is approximately 3 hours.

Q3: What types of surgeries can this system be used for? A: It is suitable for various procedures including Trauma Surgery, Thoracic Surgery, Joint Operations, and Veterinary Orthopedic Surgery.

Q4: Is there a safety feature for cranial drilling? A: Yes, the cranial drill includes an auto-pause function after perforation to ensure safety during neurosurgical procedures.

Q5: What is the material of the main components? A: The system is primarily constructed from high-quality Stainless Steel for durability and hygiene.

Q6: What certifications do your medical power tools hold? A: Our products are certified with CE and ISO13485 standards, ensuring compliance with international medical device requirements.
