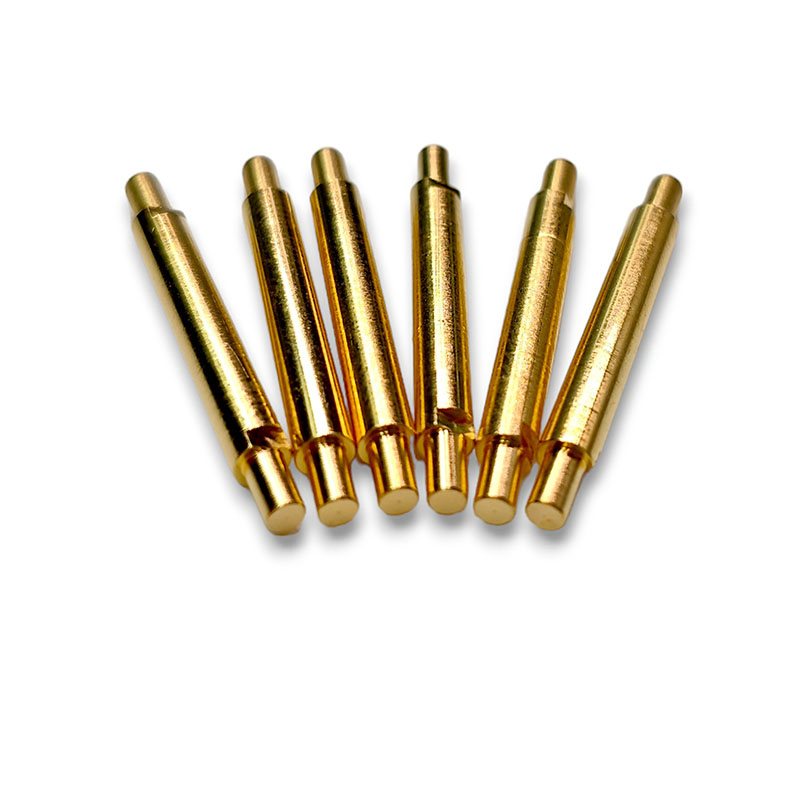

Stainless Steel Cylindrical/Straight/Standard Tapered Locating Pins

Basic Information

Model NO.:Turned Parts

Surface:Electroplating

Method:CNC Turning

Material:Steel, Brass, Alloy, Aluminum

Usage:Alignment and Fixation

Equipment:CNC Machining Centres

Package Size:8.00cm * 8.00cm * 8.00cm

Gross Weight:1.000kg

Product Description

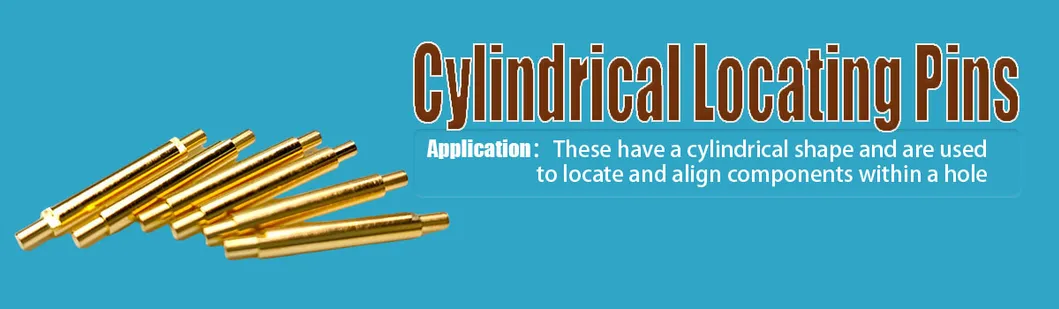

Straight Locating Pins are essential mechanical components designed to ensure precise positioning and alignment of parts during machinery assembly.

Alignment and Fixation: Crucial for equipment requiring high accuracy.
Torque & Load Transmission: Provides stability and support under operational loads.
Simplified Assembly: Enables quick and accurate placement without extensive measurements.
Efficiency: Reduces errors and repetitive adjustments during production.

Production Description	CNC Lathe Machining Services, Turning, Milling Steel Parts, Prototyping Service
Available Materials	Aluminum (6061, 7075), Stainless Steel (304, 316), Steel (4140, Q235), Titanium, Brass, Copper
Surface Finish	Anodizing, Sandblasting, Polishing, Plating (Zinc/Nickel/Chrome/Gold), Powder Coating, Passivation
Tolerance	Minimum tolerance +/- 0.05mm (+/- 0.0005")
Surface Roughness	Ra 0.1~3.2
Testing Equipment	CMM, Height gauge, Caliper, Hardness tester, Projector machine
Application	Automation, Medical device, Consumer Electronics, Security, IoT, Energy

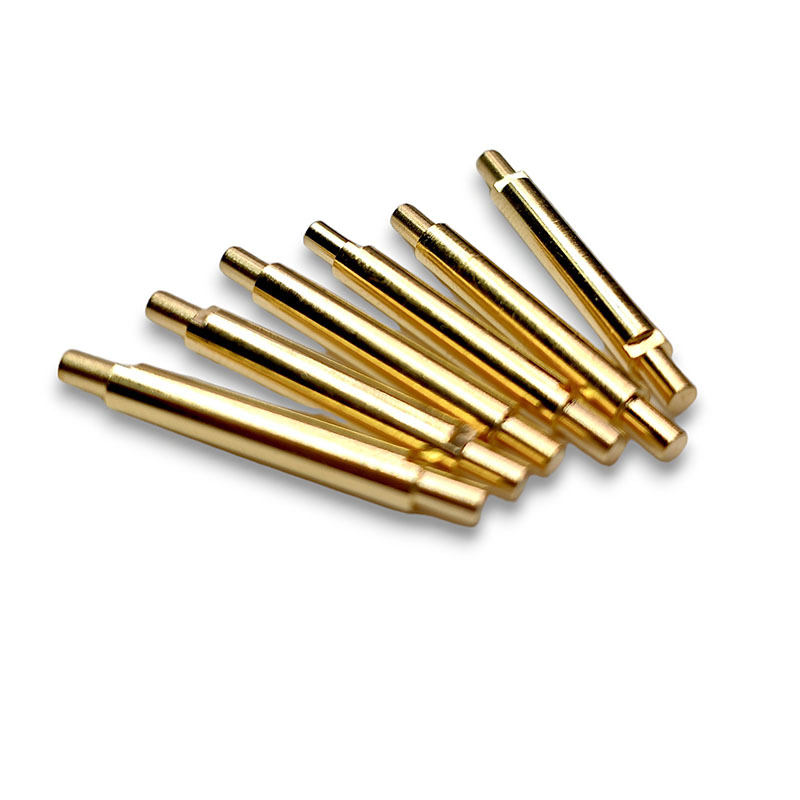

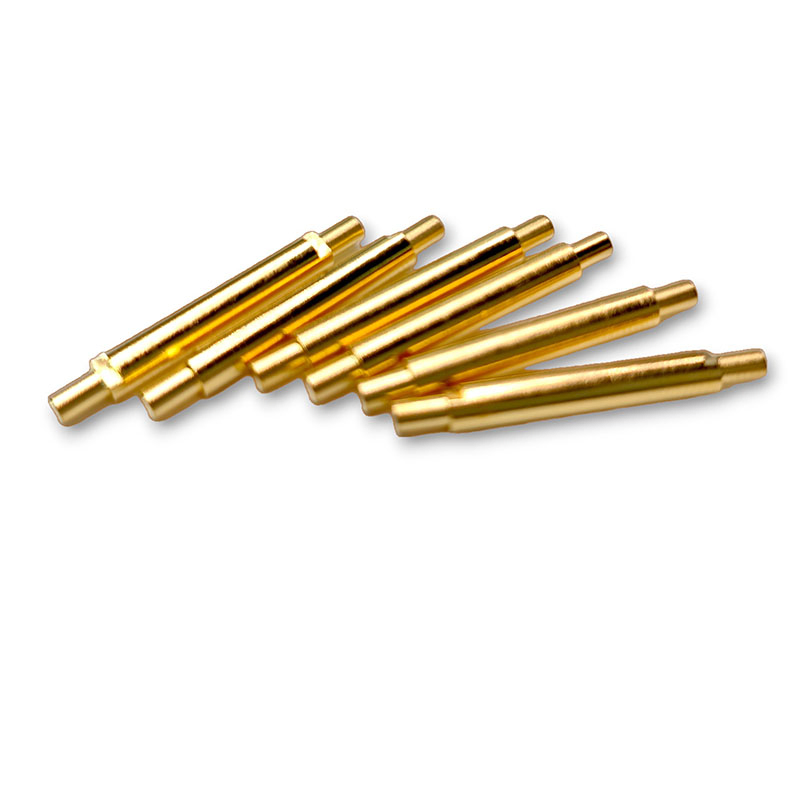

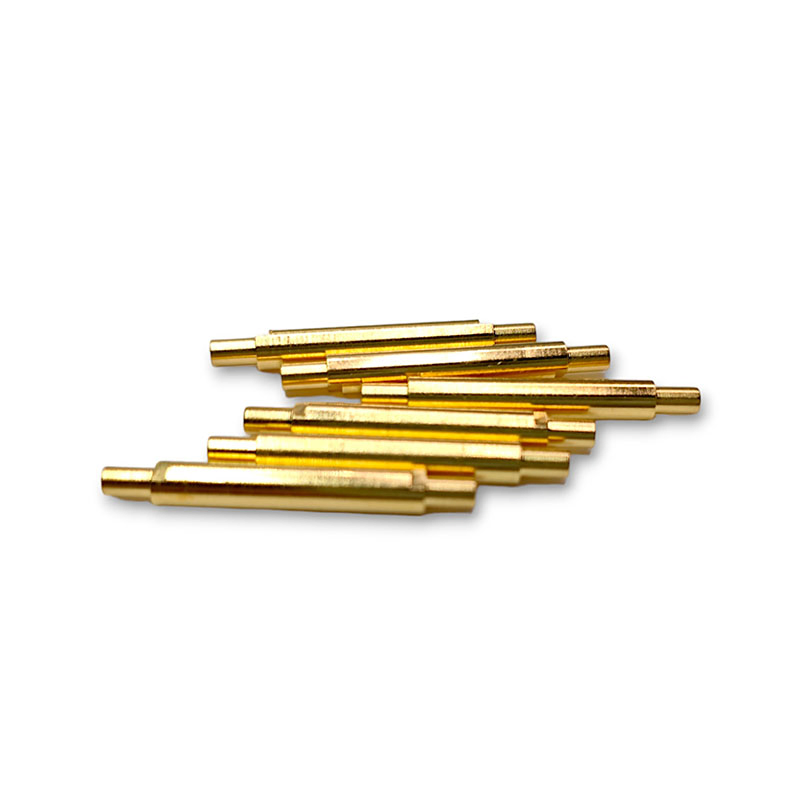

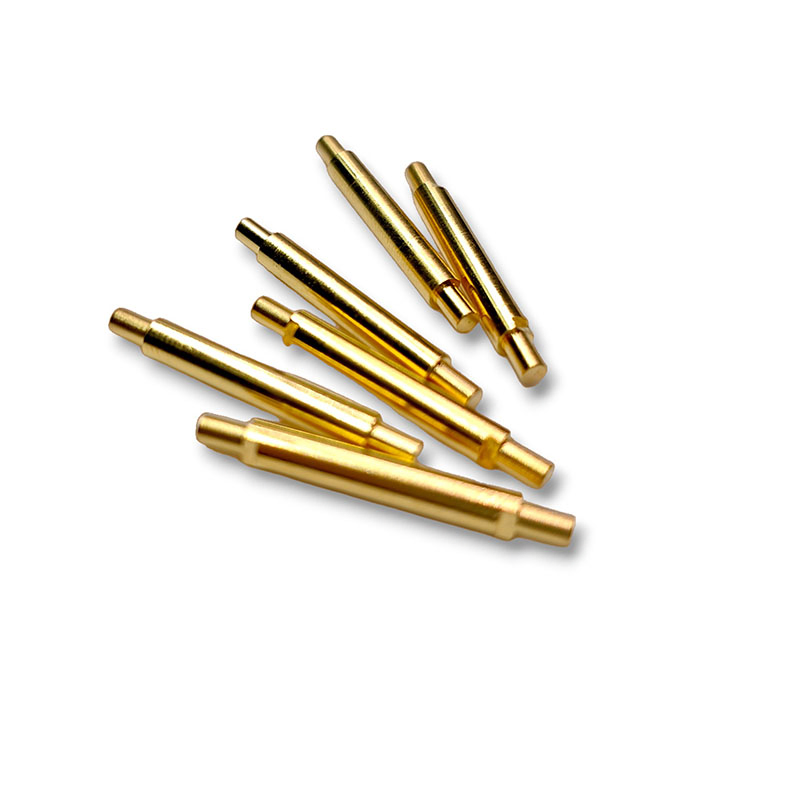

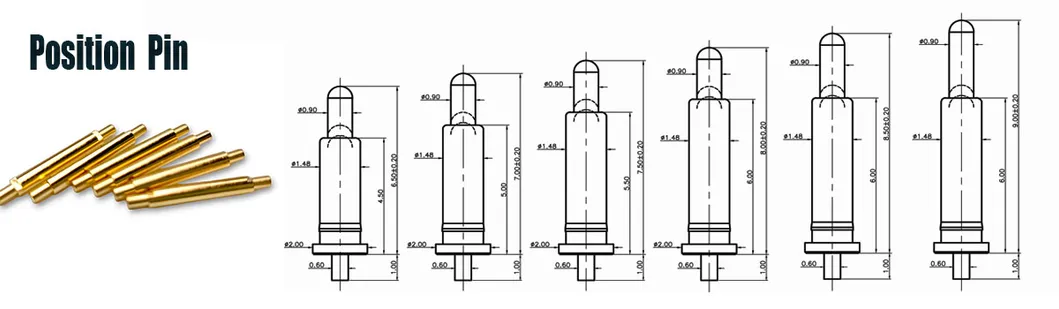

Detailed Photos

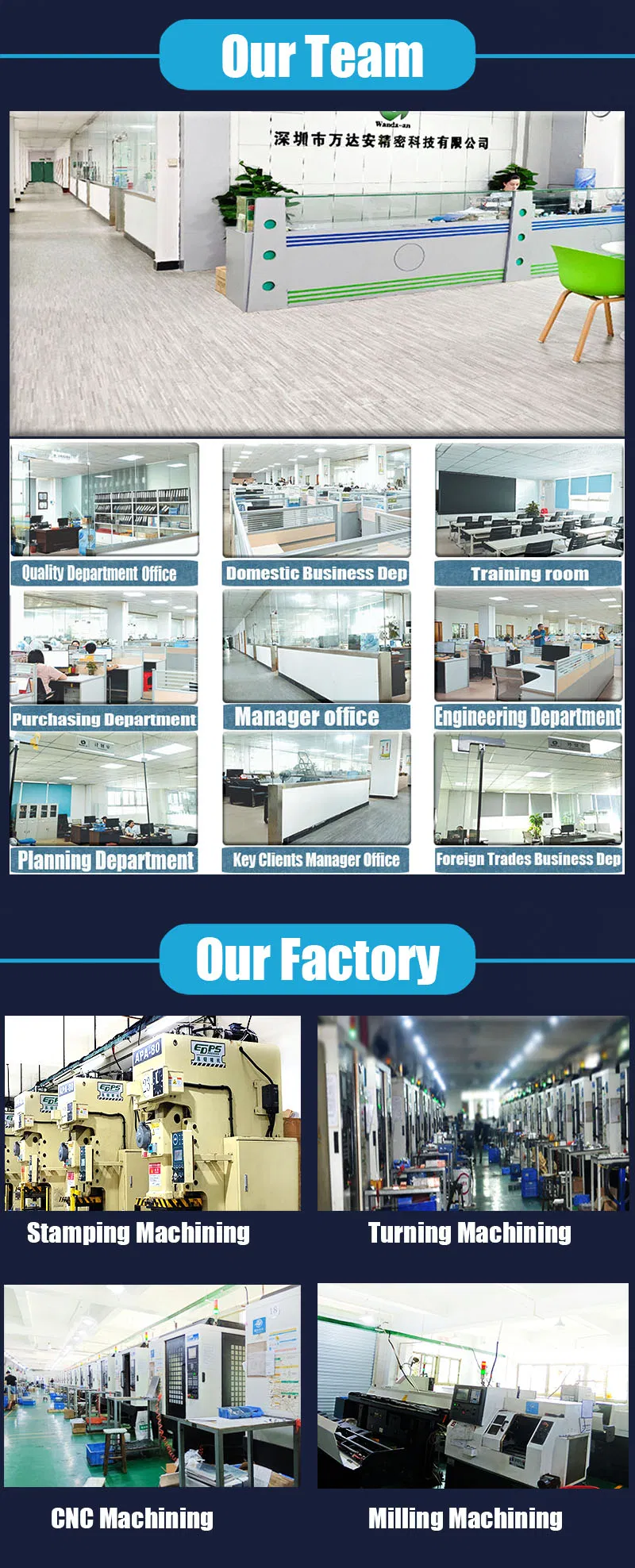

Our Advantages

Precision Engineering components that meet exact customer expectations through advanced technology.

Innovation Continuous improvement of processes by embracing technological advancements.

Customization Tailored solutions to meet unique specifications and application requirements.

Rapid Prototyping Fast turnaround for product development and testing phases.

Packaging & Shipping

Frequently Asked Questions

1. What kind of manufacturing services do you provide?

We specialize in OEM sheet metal stamping and fabrication, CNC milling and turning, as well as stamping die design and manufacturing.

2. What information is required for a quotation?

Please provide detailed drawings (STEP, CAD, PDF, etc.), material requirements, surface treatment specifications, and your required quantity.

3. Can you help if I don't have technical drawings?

Yes, you can send your physical sample to our factory. We can copy it or provide optimized solutions, including creating CAD/3D files for your order.

4. How do you ensure product quality?

We operate under ISO 9001 and IATF 16949 systems. Inspection reports (IQC, IPQC, FQC, QA) are available upon request to ensure high quality standards.

5. How can I track the progress of my order?

We provide detailed production schedules and send weekly reports including photos or videos showing the current machining progress.

6. What are your payment and after-sale terms?

For orders over 1000USD, we require 40% T/T in advance and the balance before shipment. If quality issues arise, we provide immediate replacements or refunds based on test reports.
