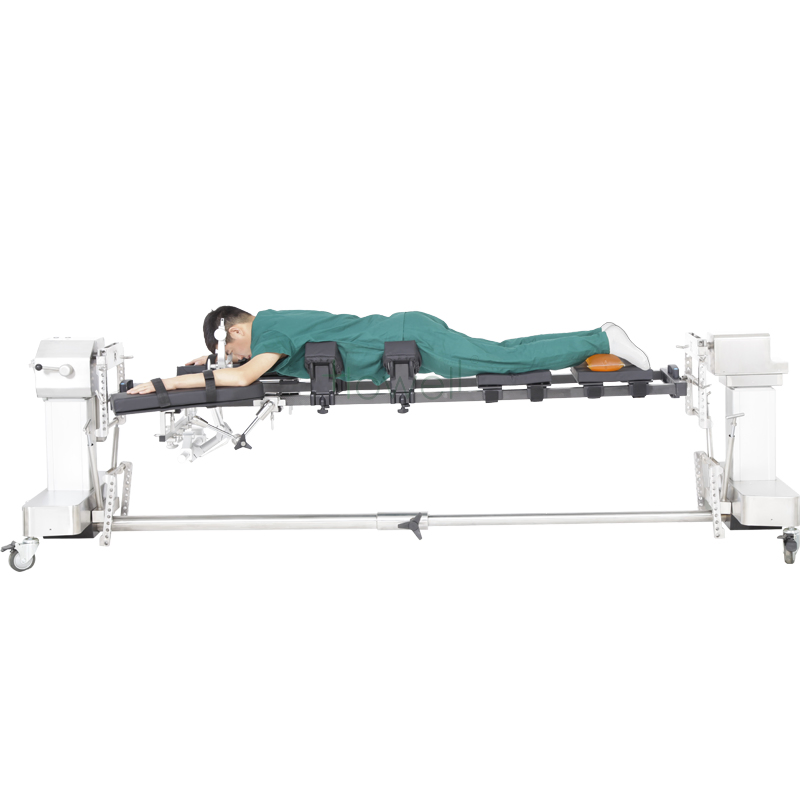

Operating Table Surgical Navigation System Dual Column Spine Surgery Frame Jackson Table

Basic Information

Model NO.

HE-508-E

Certification

CE, ISO13485

Group

Adult

LCD Display

Without LCD Display

Application

Spine Surgery

Material

Carbon Fiber

Power

Electric

Warranty

1 Year

After-Sales

Online Technical Support

MOQ

1set

Transport Package

Wooden Case

HS Code

9402900000

Production Capacity

500 Sets/Month

Product Description

Operating Table Surgical Navigation System Dual Column Spine Surgery Frame Jackson Table

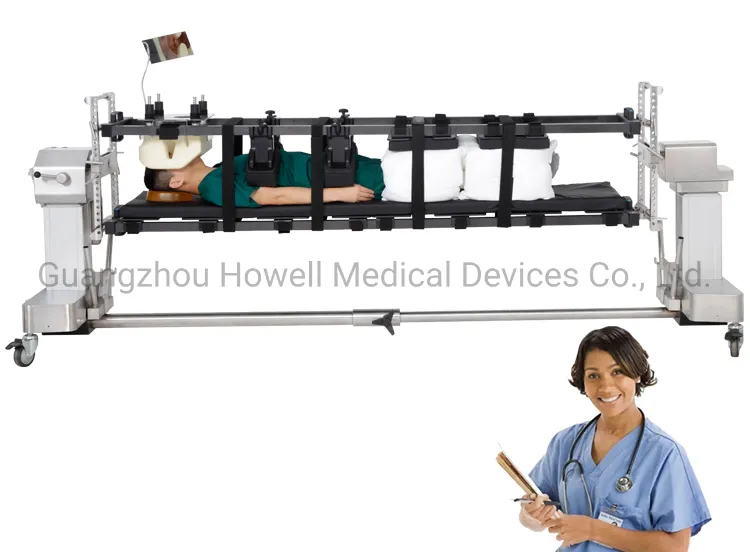

Our latest modular table platform, offers enhanced safety features, improved setup workflows, and increased weight capacity. Enhanced patient positioning for spine, imaging, and orthopedic trauma.

Key System Features

Tower and ratchet system providing unique tabletop mounting interface for secure connection.
Adjustable tabletop height before and after patient transfer.
Carbon fiber construction for complete radiolucency, allowing unrestricted C-arm and O-arm access.
Streamlined 180° patient rotation mechanism.
Customizable pad and component placement for individual patient needs.
Single push electronic floor locks for stability.

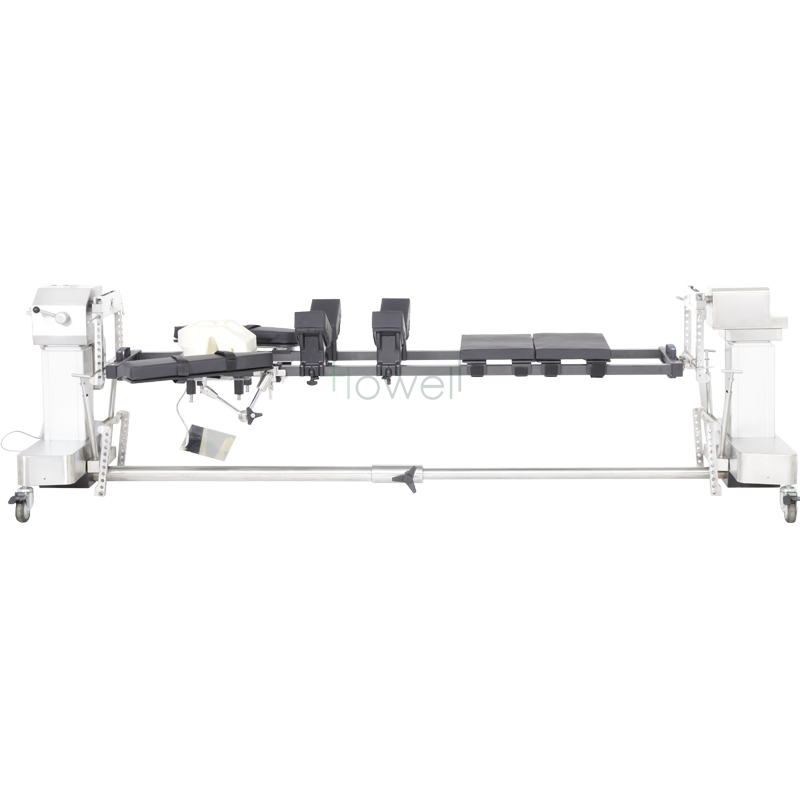

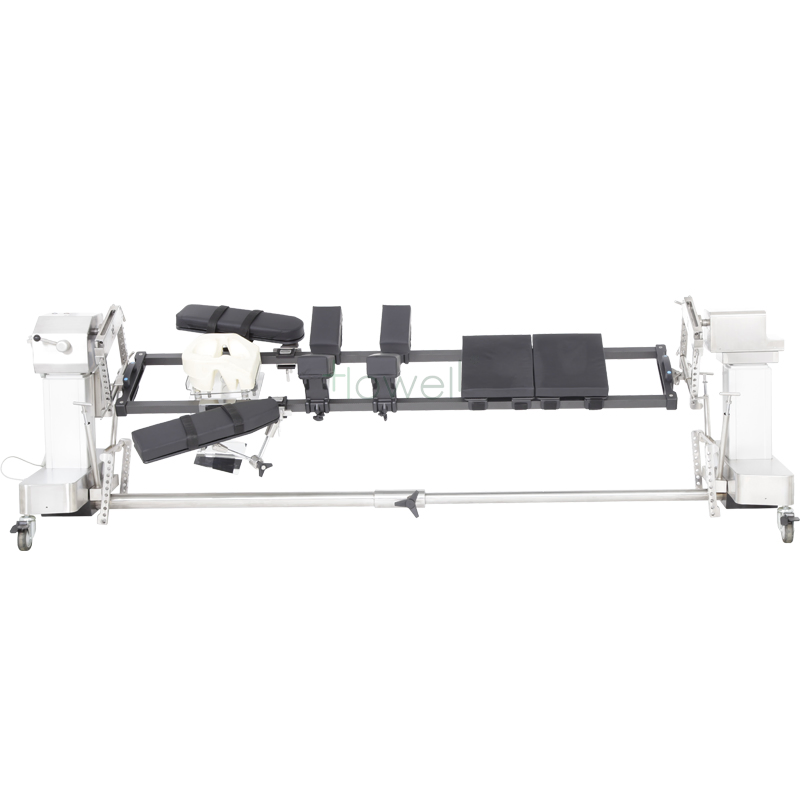

Spinal Surgery Top: Open spine frame reduces vena cava compression, minimizes epidural venous bleeding and improves visualization at the surgical site.

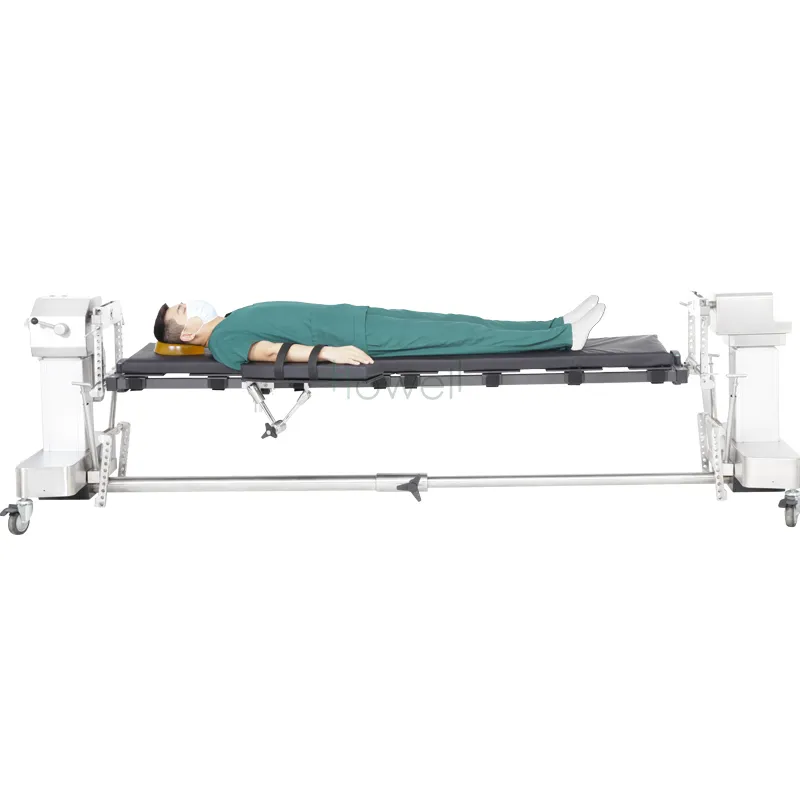

Radiolucent Imaging Top: Supports supine or lateral positions. Fully radiolucent, carbon fiber table top with pressure equalization pad.

Orthopedic Trauma Top: Modern table top with Traction Arc attachment features providing constant and anatomically correct traction.

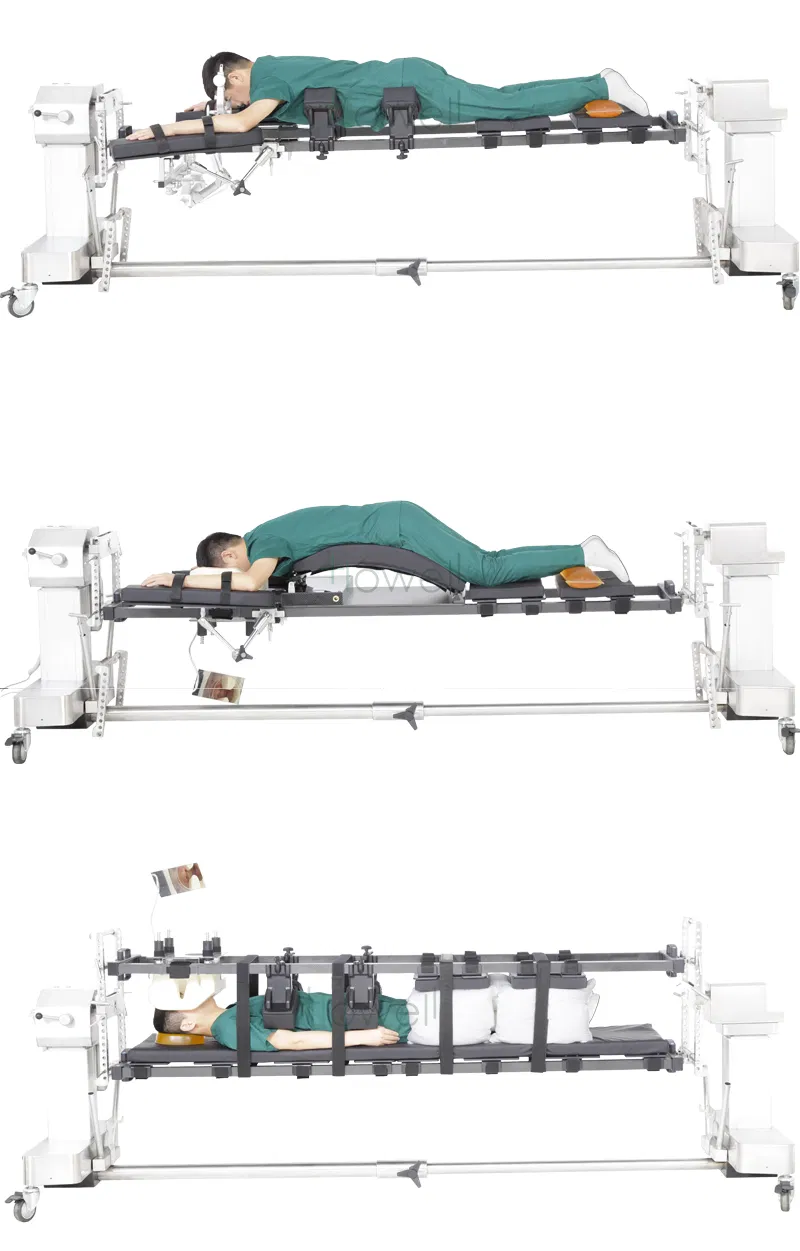

Detailed Photos

Technical Parameters

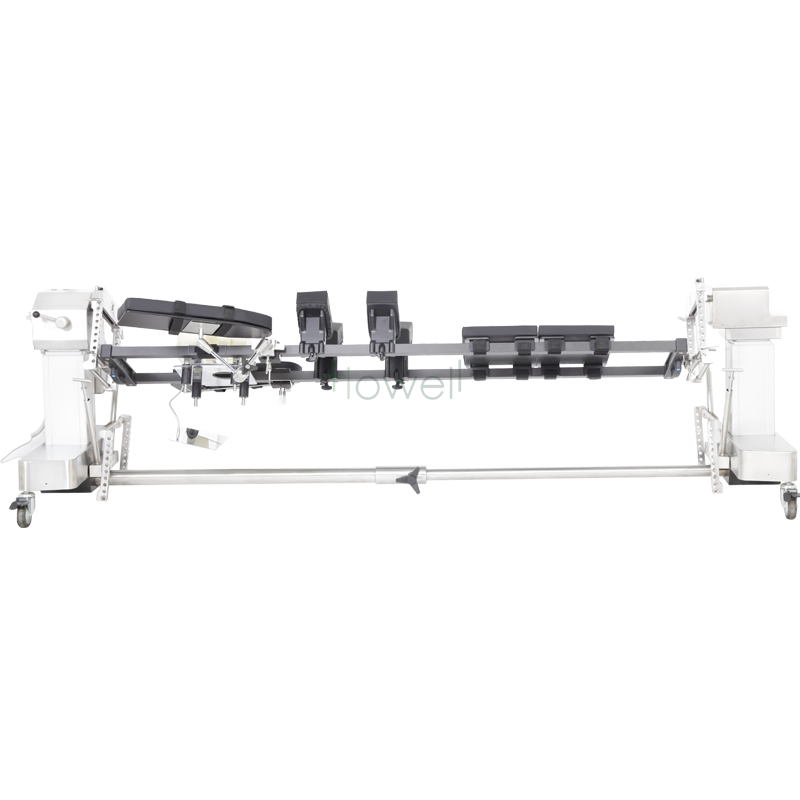

Configuration: Spinal Surgery Top with Radiolucent Imaging Top

Table Total Length	3120mm
Table Total Width	850mm
Tabletop size	2250*450mm
Tabletop Height adjustment	510-1234mm
Table lift stroke (electric)	500mm
Table lift stroke (manual)	224mm
Trendelenburg/Reverse Trendelenburg	15º/15º
Left/Right tilt	25º/25º
Patient Weight Capacity	260kg
Table Top Rotation	180 °
