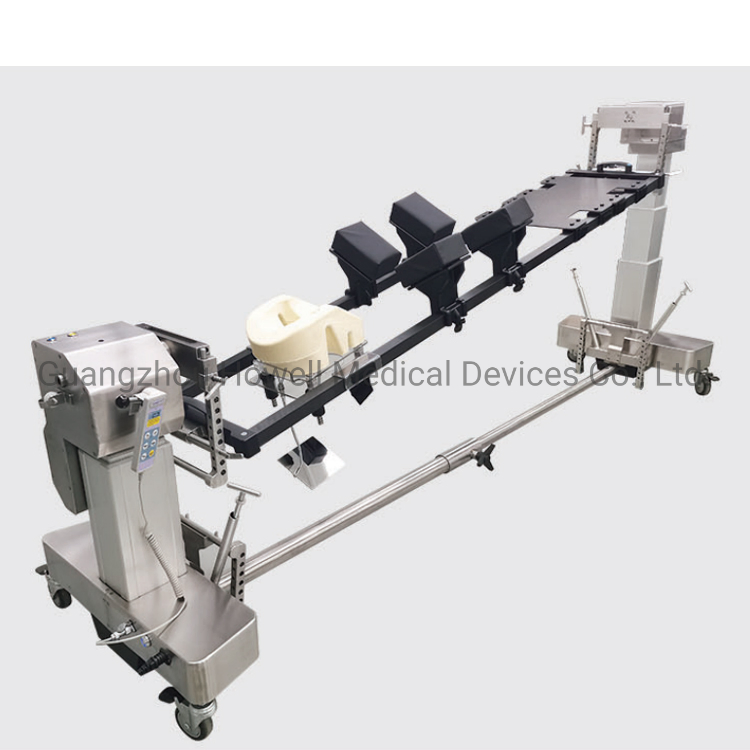

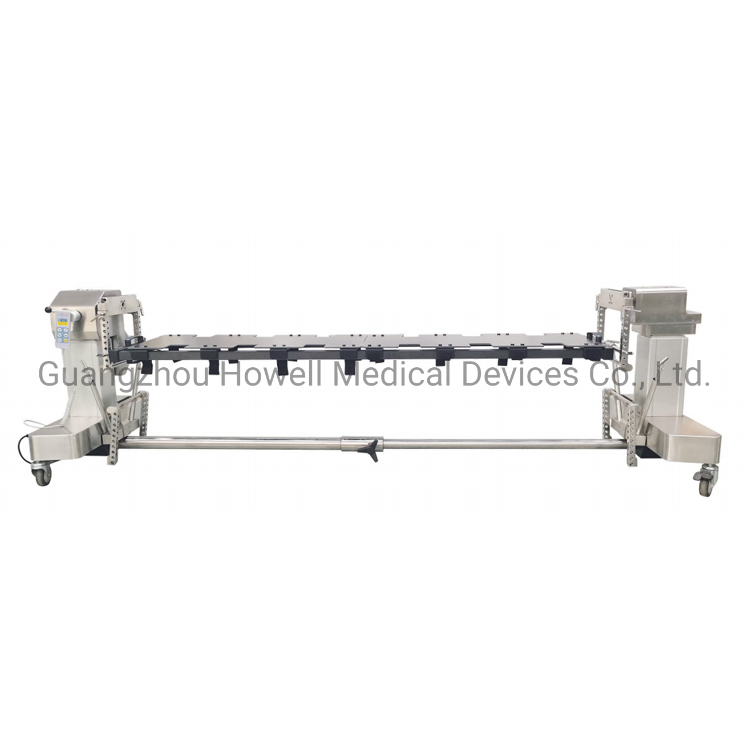

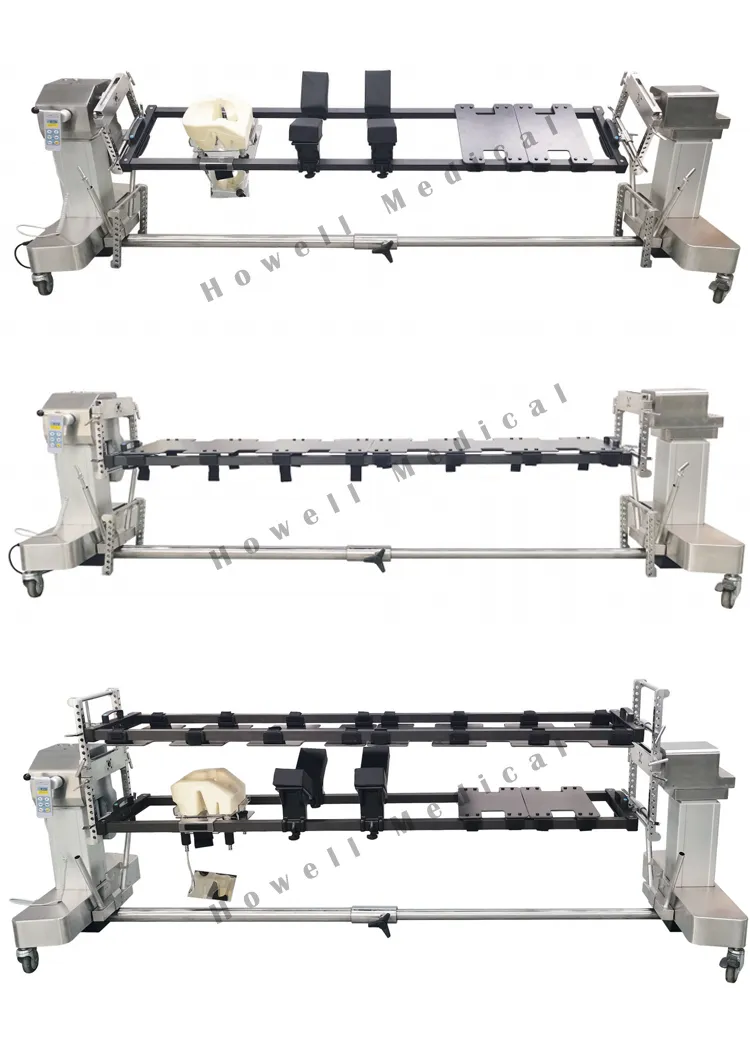

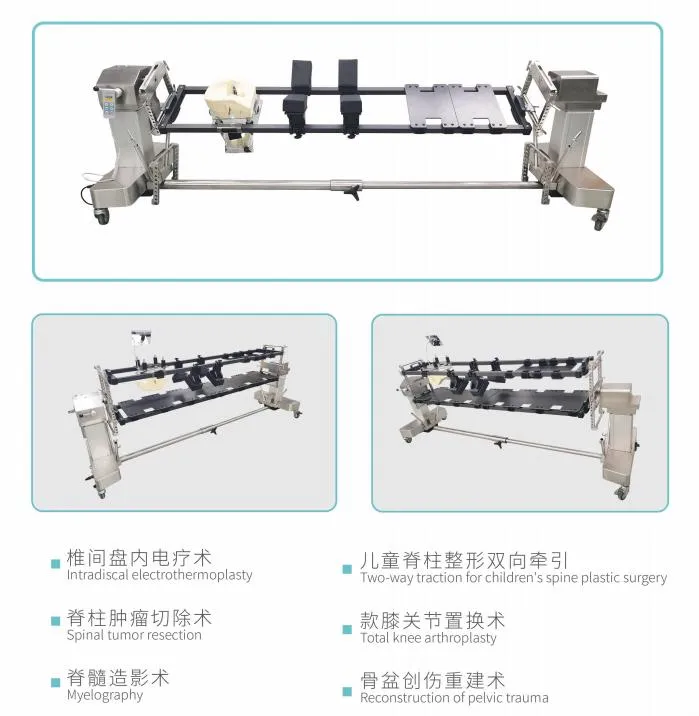

Our latest modular table platform offers enhanced safety features, improved setup workflows, and increased weight capacity. It is designed for enhanced patient positioning for spine, imaging, and orthopedic trauma procedures.

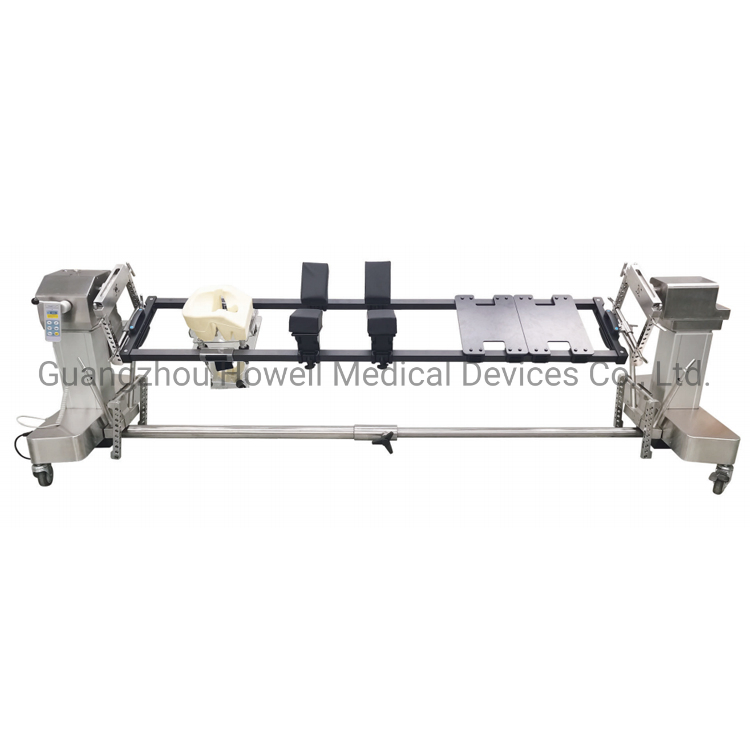

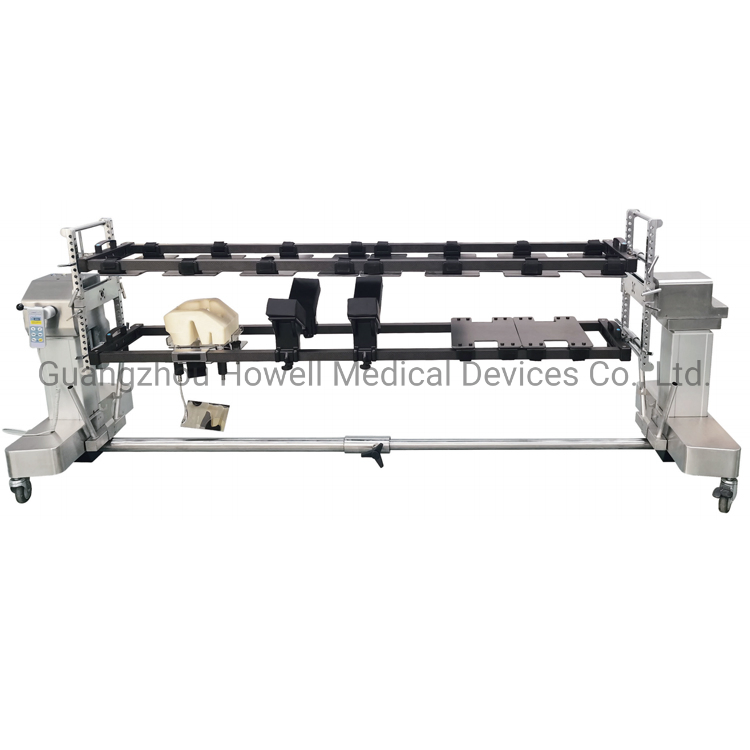

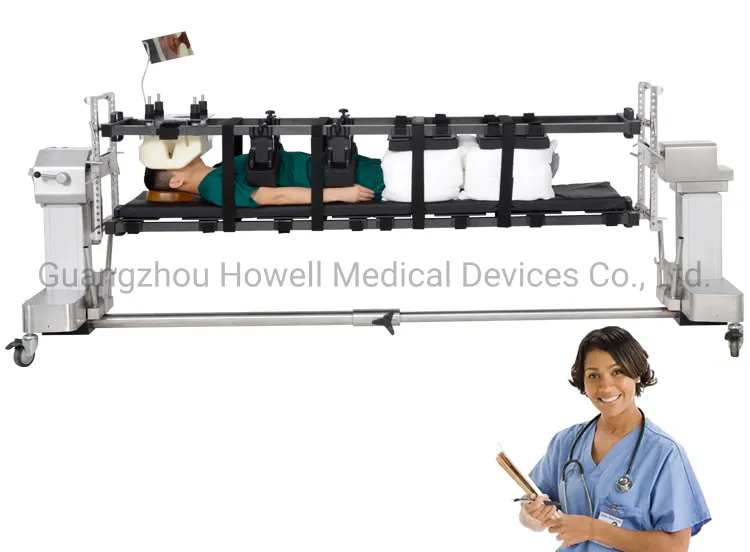

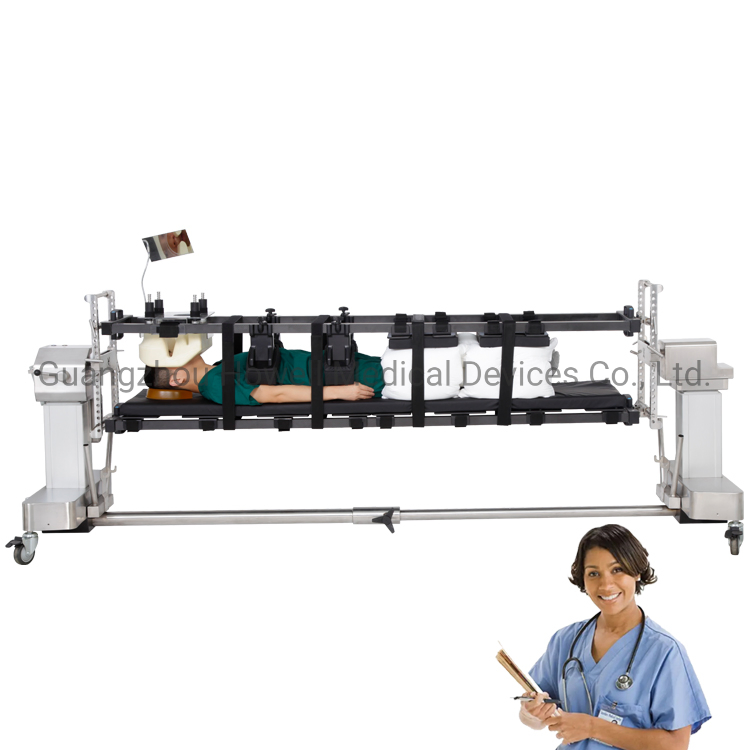

Spinal Surgery Top: Open spine frame reduces vena cava compression, minimizes epidural venous bleeding, and improves visualization at the surgical site.
Radiolucent Imaging Top: Supports supine or lateral positions with a fully radiolucent carbon fiber table top and pressure equalization pad.
Orthopedic Trauma Top: Features Traction Arc for constant and anatomically correct traction, providing flexibility for skin or skeletal traction.
| Technical Parameter | Specification (Spinal & Imaging Top) |
|---|---|
| Table Total Length | 3120mm |
| Table Total Width | 850mm |
| Tabletop Size | 2250*450mm |
| Tabletop Height Adjustment | 510-1234mm |
| Table Lift Stroke (Electric) | 500mm |
| Table Lift Stroke (Manual) | 224mm |
| Trendelenburg/Reverse Trendelenburg | 15º/15º |
| Left/Right Tilt | 25º/25º |
| Patient Weight Capacity | 260kg |

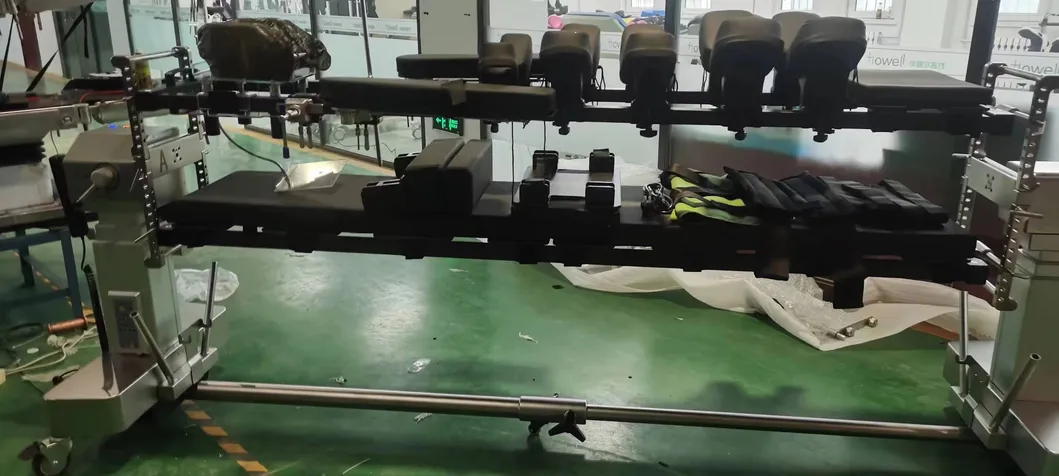

| Table Top Rotation | 180° |
