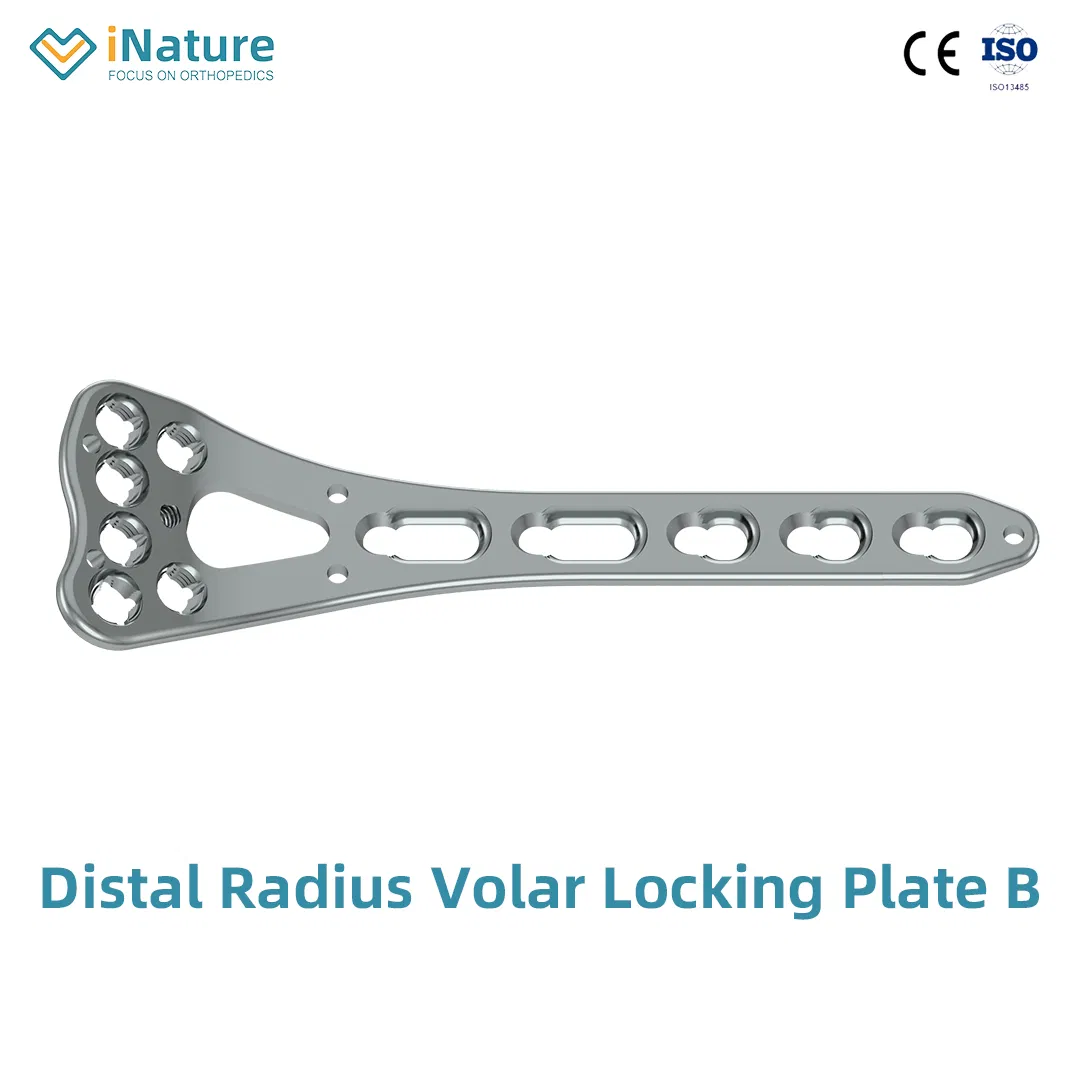

Distal Radius Volar Locking Plate B
Thickness: 2.0mm
Holes Spacing: 8.5mm
Material: Titanium, Stainless steel
Note: choose HC2.9, HA2.7 screws, used for distal radius fixation.

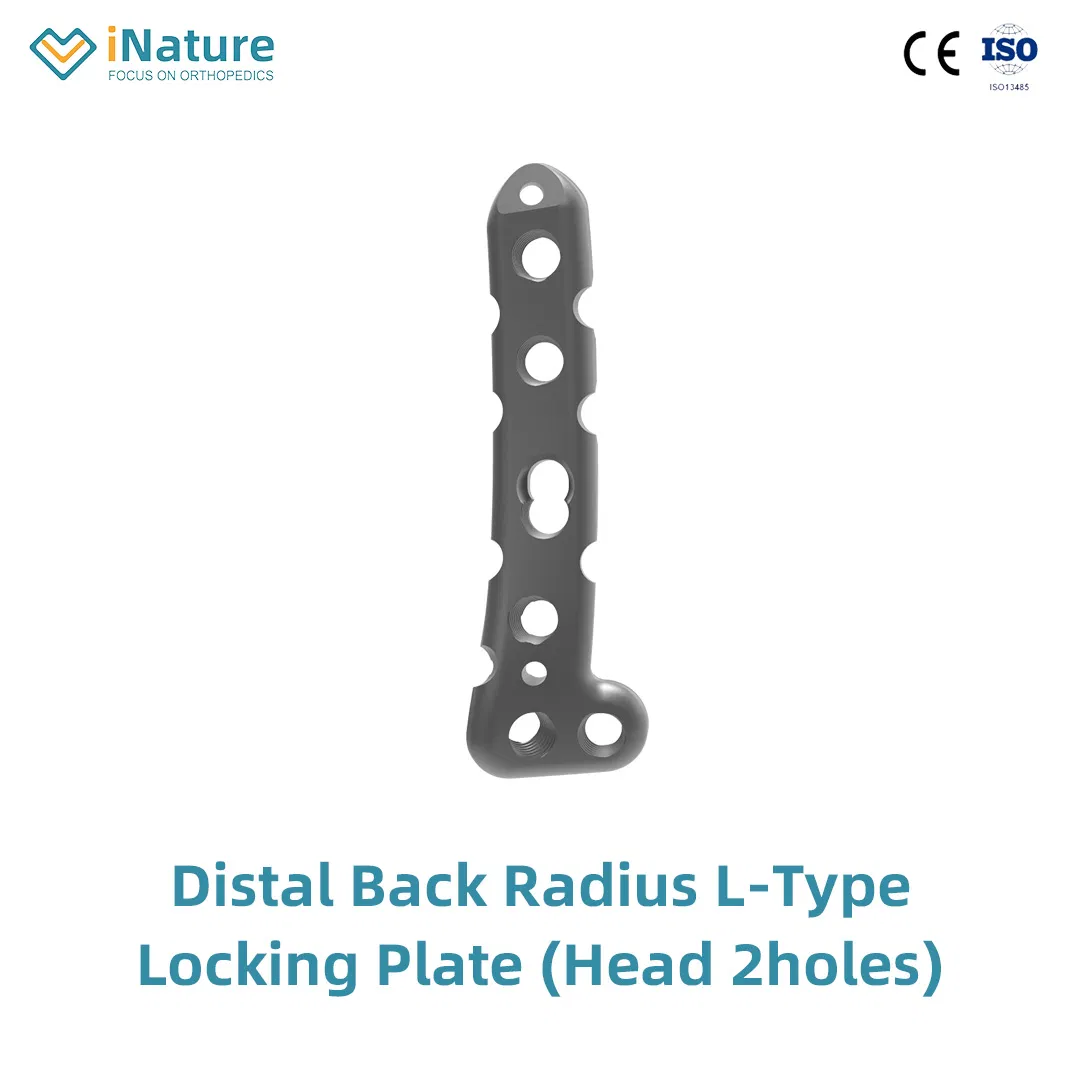

Distal Back Radius L-Type Locking Plate (Head 2 holes)
Code: 251704XXX
Width: 7mm | Thickness: 2.5mm | Material: TA3
Screw size: HC2.4/2.7, HA2.5/2.7
Based on three column theory of distal radius
- Excellent anatomic pre-shaped design is better to fit the bone surface
- Double plates with angular fixation, reliable fixation
- More suitable for the fracture of distal radius with dorsal sift

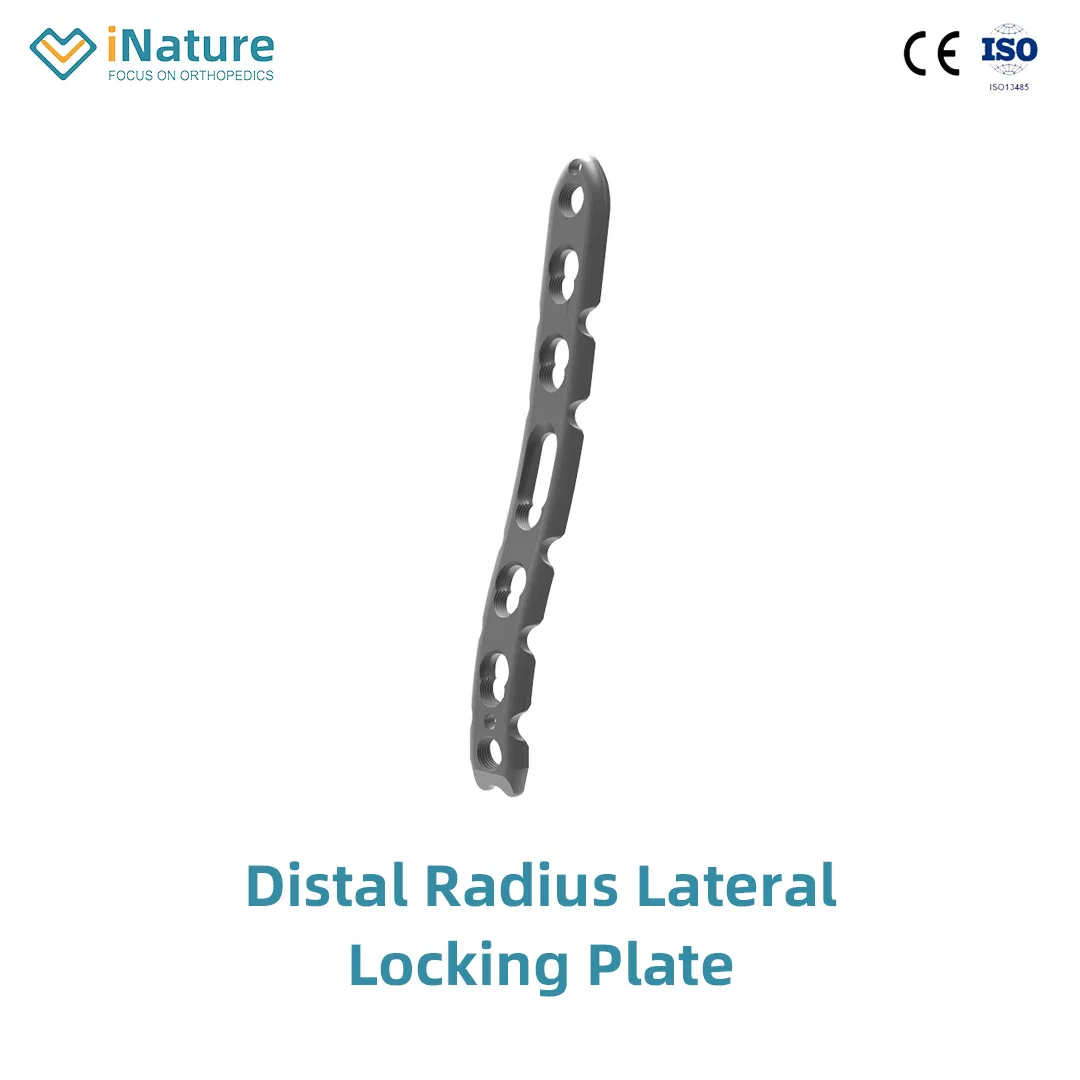

Distal Radius Lateral Locking Plate
Code: 251705XXX
Width: 7mm | Thickness: 1.6mm | Material: TA3
Screw Size: HC 2.4/2.7, HA 2.5/2.7
Based on three column theory of distal radius
- Excellent anatomic pre-shaped design is better to fit the bone surface
- Double plates with angular fixation, reliable fixation
- More suitable for the fracture of distal radius with dorsal sift

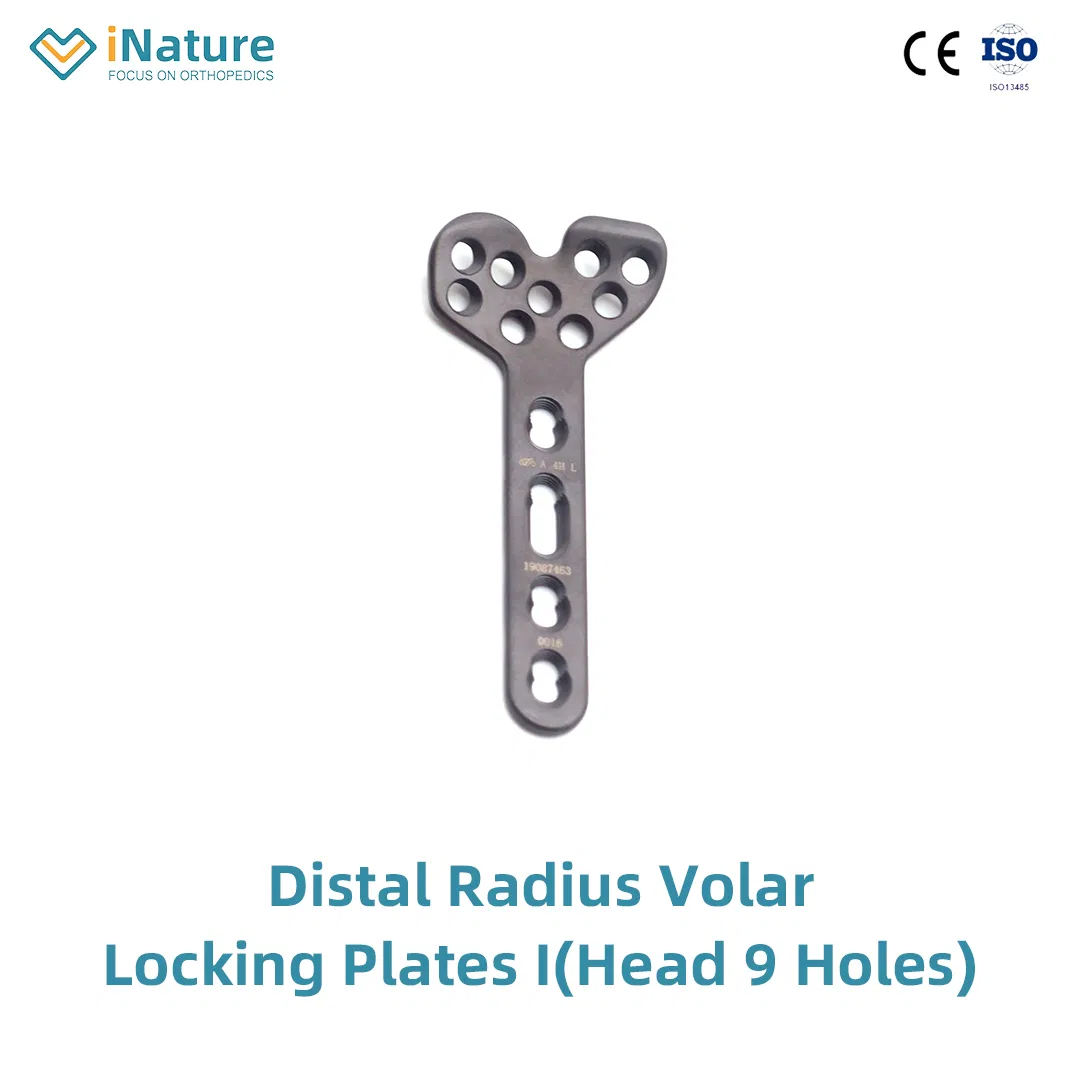

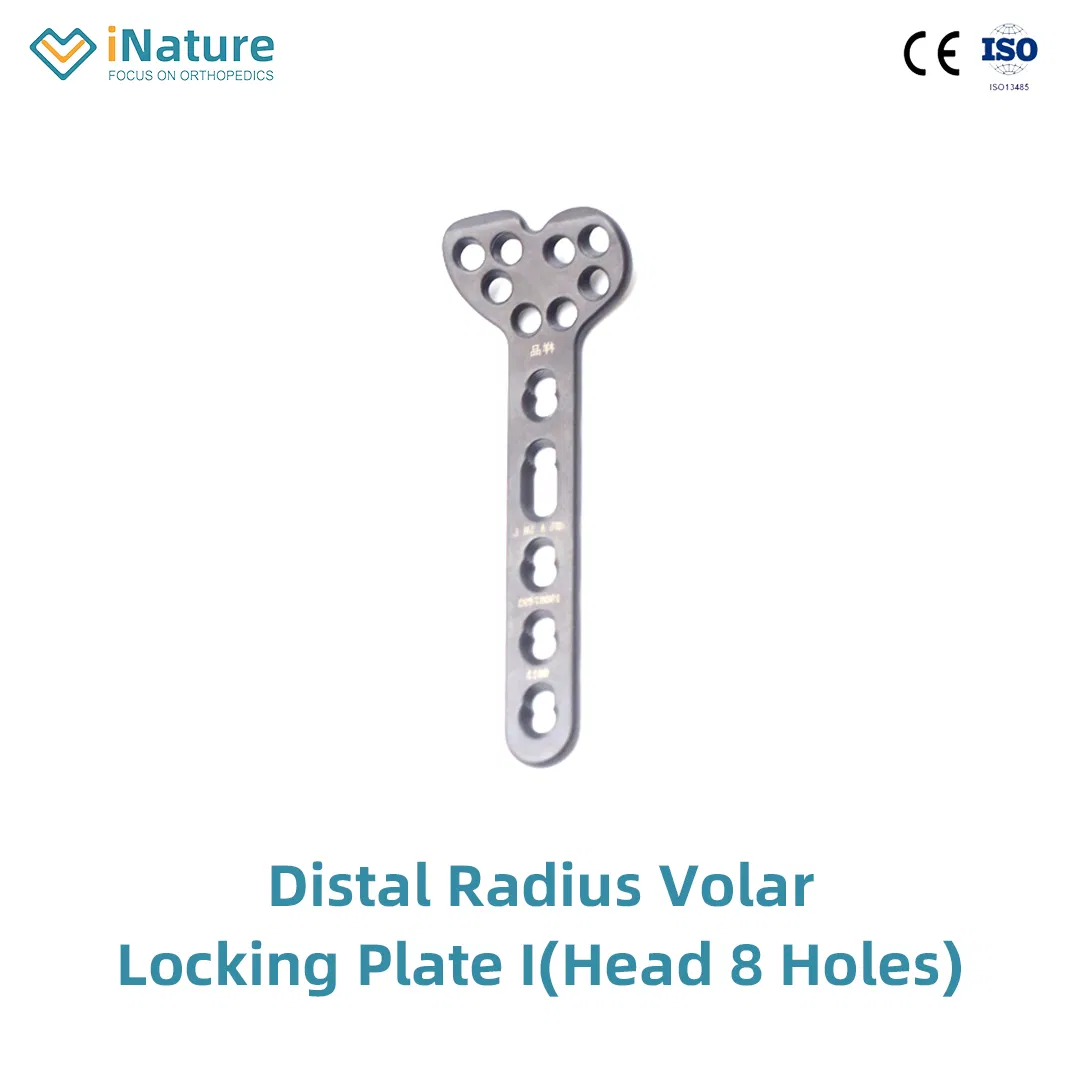

Distal Radius Volar Locking Plate I (Head 8/9 Holes)
Code: 251702XXX / 251701XXX
Width: 9mm | Thickness: 2mm | Material: TA3
Screw Size: HC 2.4/2.7, HA 2.5/2.7
Excellent anatomical design:
- The distal end more closer to the joint surface
- Reduce irritation to the soft tissue
- Precise screw distribution effectively supports the ulnar/radius joint, lunate joint surface and radius styloid
- The angular screw design ensures stable fixation suitable for osteoporotic bone

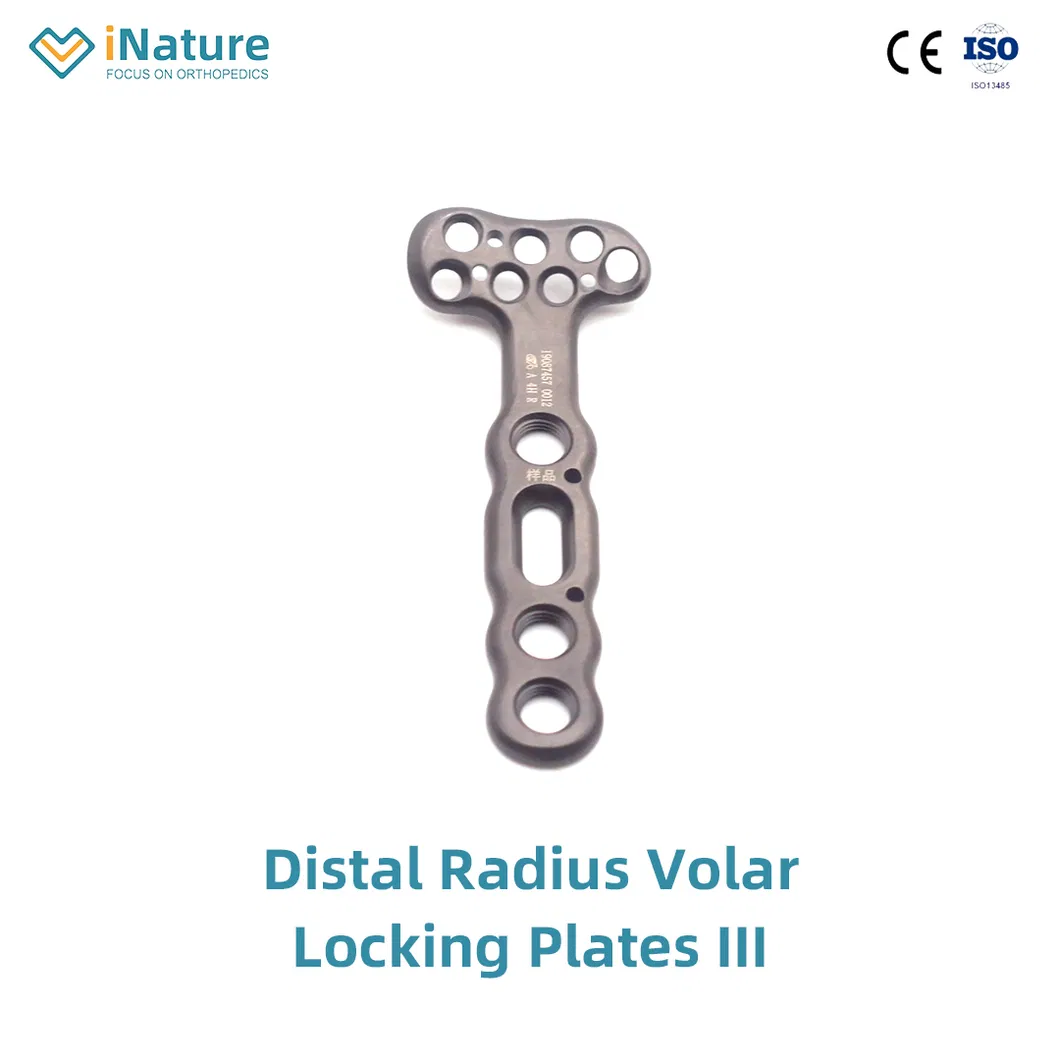

Distal Radius Volar Locking Plates III
Code: 251700
Width: 11mm | Thickness: 2.5mm | Material: TA3
Screw Size: Head: HC 2.4/2.7 | Body: HC 3.5, HA3.5, HB4.0
- Precise anatomic design: The distal end fits watershed tightly
- Low-profile design to provide intraoperative reference for fracture reduction
- Double row screw design creates a triangle structure for strong support

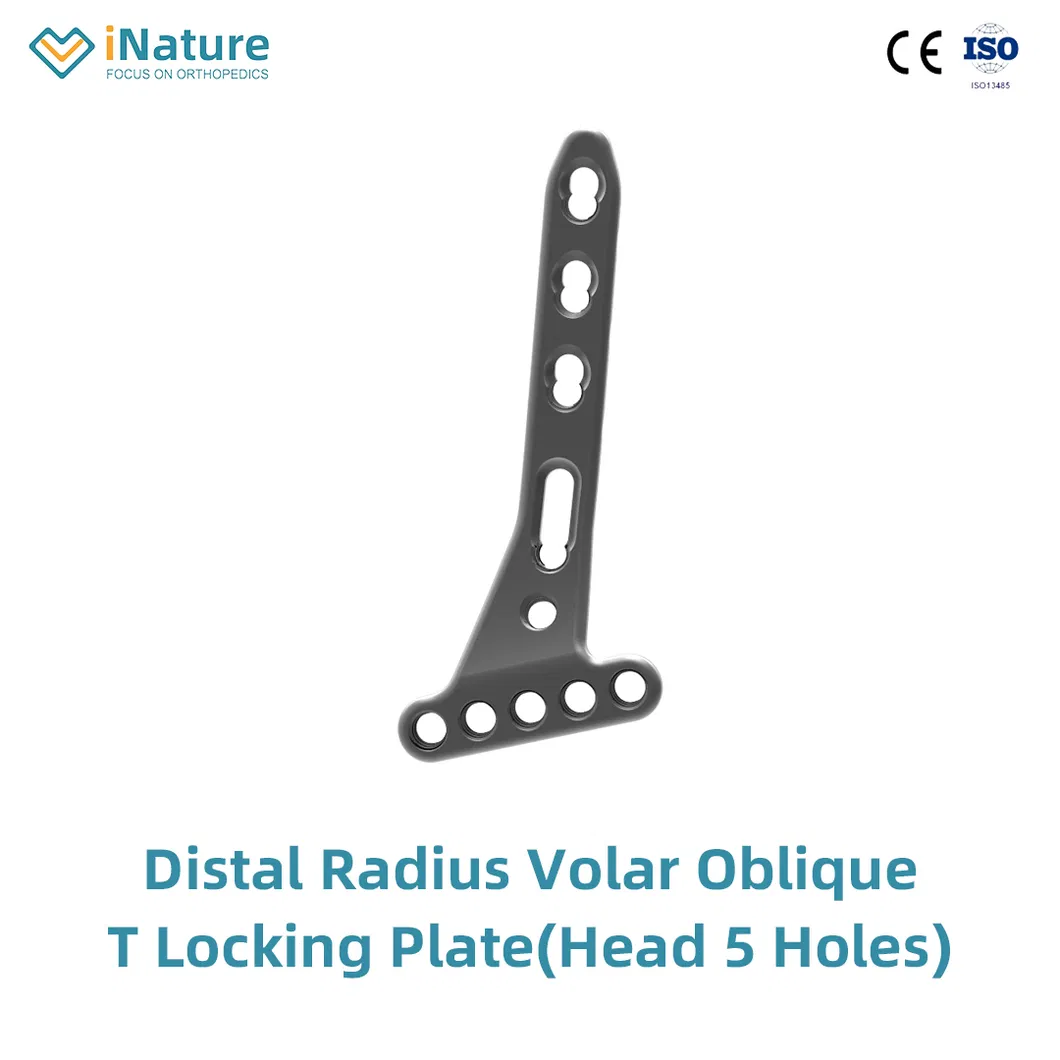

Distal Radius Volar Oblique T locking Plate (Head 5 Holes)
Code: 251703XXX
Width: 7.4mm | Thickness: 1.8mm | Material: TA3
Screw Size: HC 2.4/2.7, HA 2.5/2.7
- Excellent anatomic pre-shaped design closer to the palmar joint surface
- Distal 5pcs screw parallel placement can effectively support the joint surface

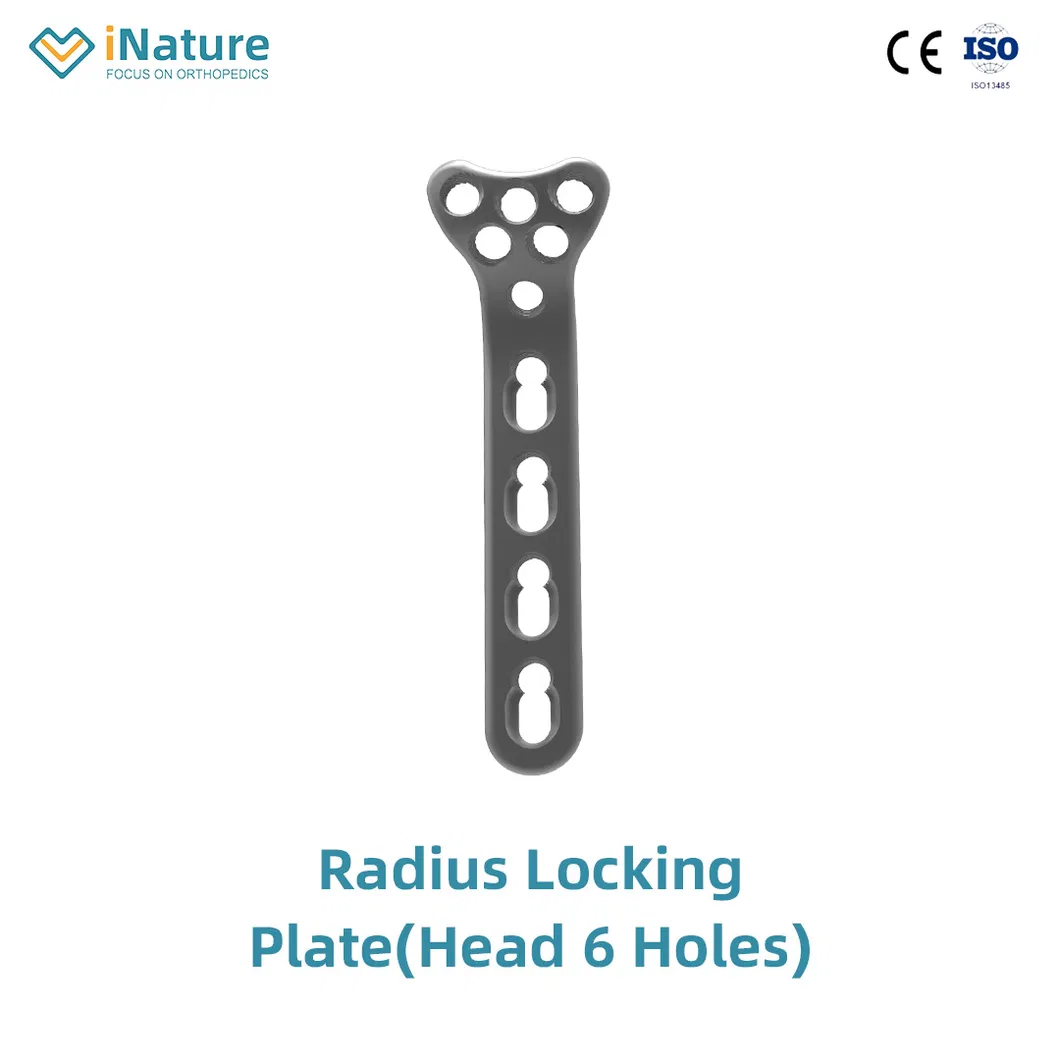

Radius Locking Plate (Head 6 Holes)
Code: 251709 | Width: 8.5mm | Thickness: 1.7mm | Material: TA3
Screw Size: HC 2.4/2.7, HA 2.5/2.7
| Specification | Size | Left & Right | Material |
| Thickness | 1.7mm | 2/3/4 holes | Pure Titanium |
| Width | 8.5mm | Screws | Titanium alloys |
| Length | 36-55mm | HC2.4/2.7 HA2.5/2.7 | - |
