Overview
Printer Material
Plastic, Metal
Operating System
Windows 10

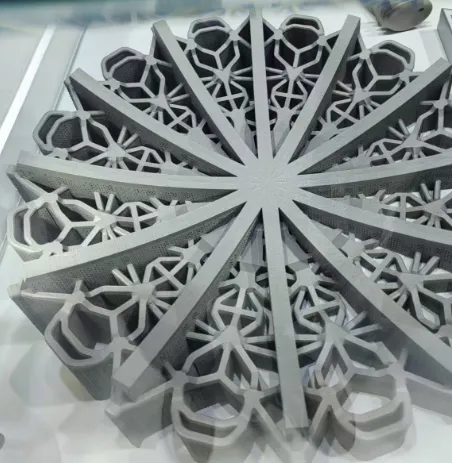

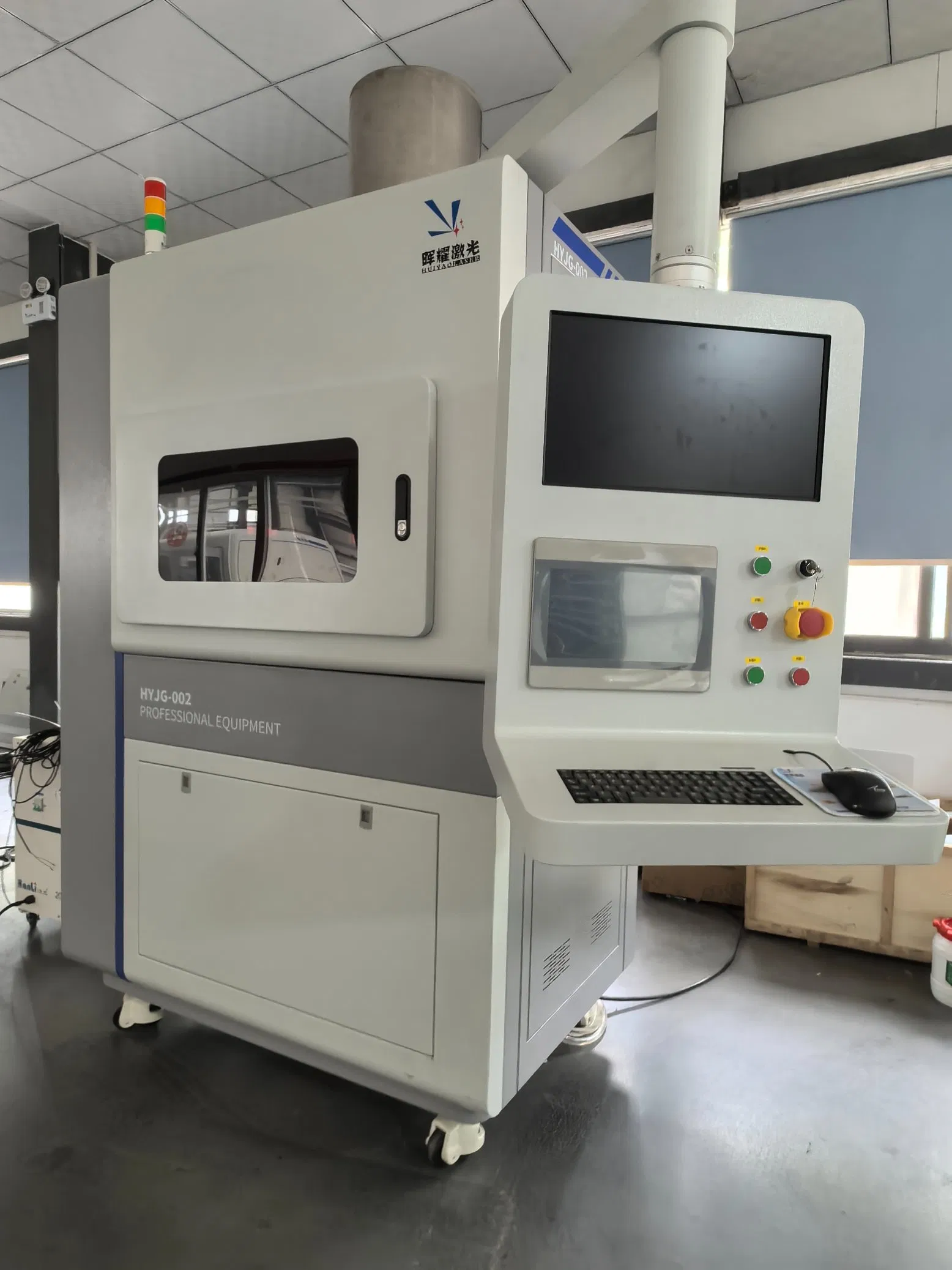

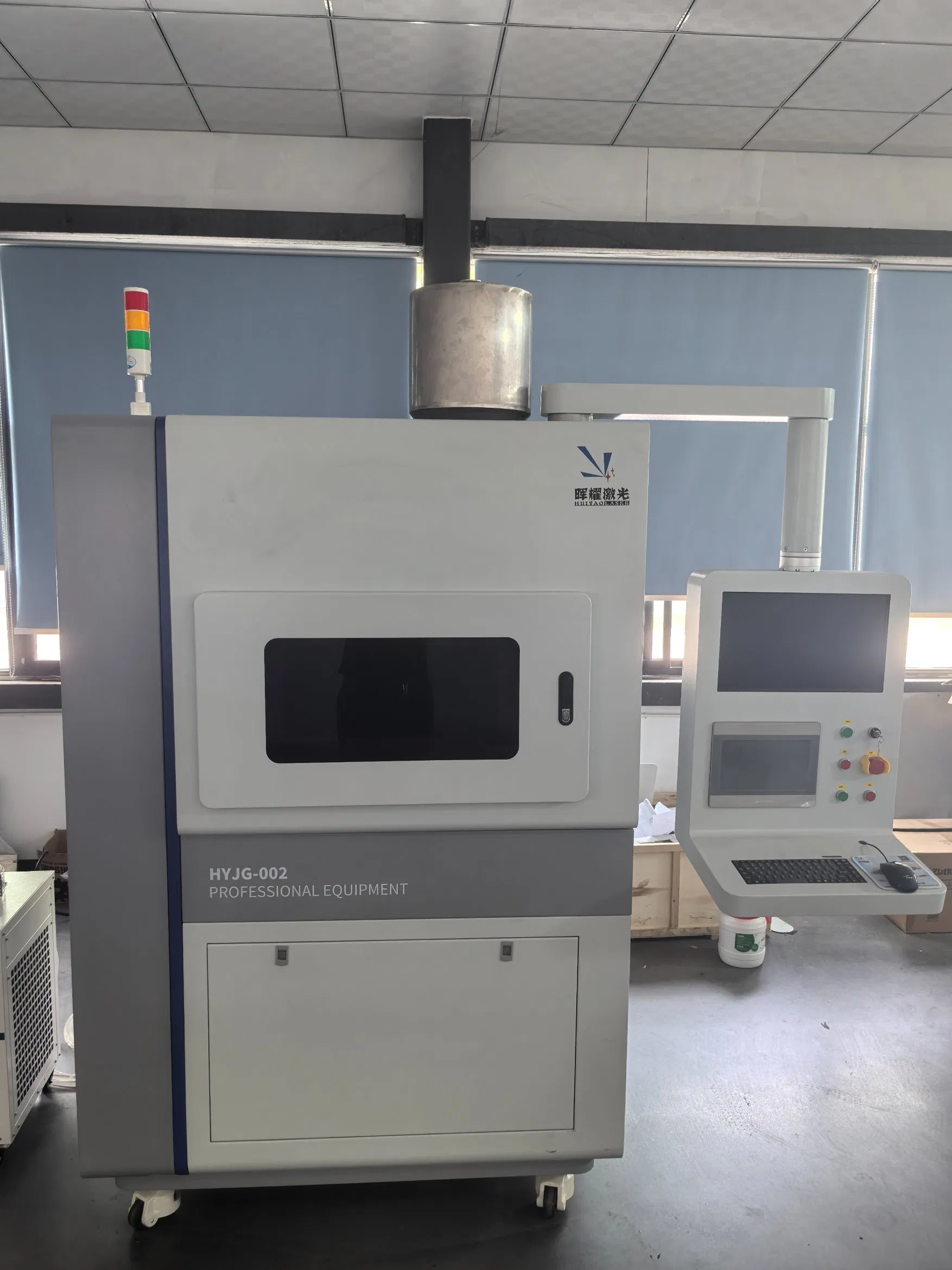

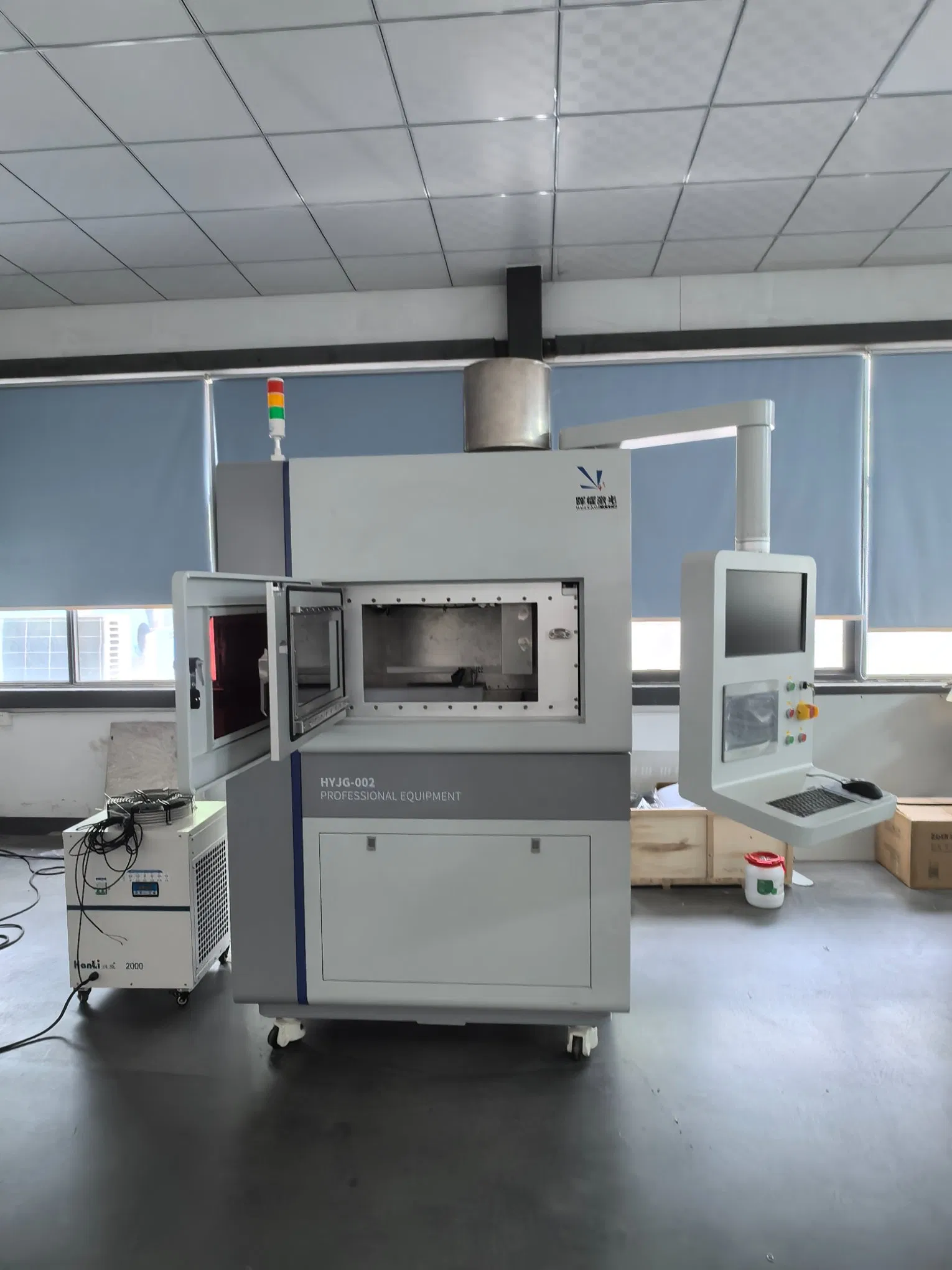

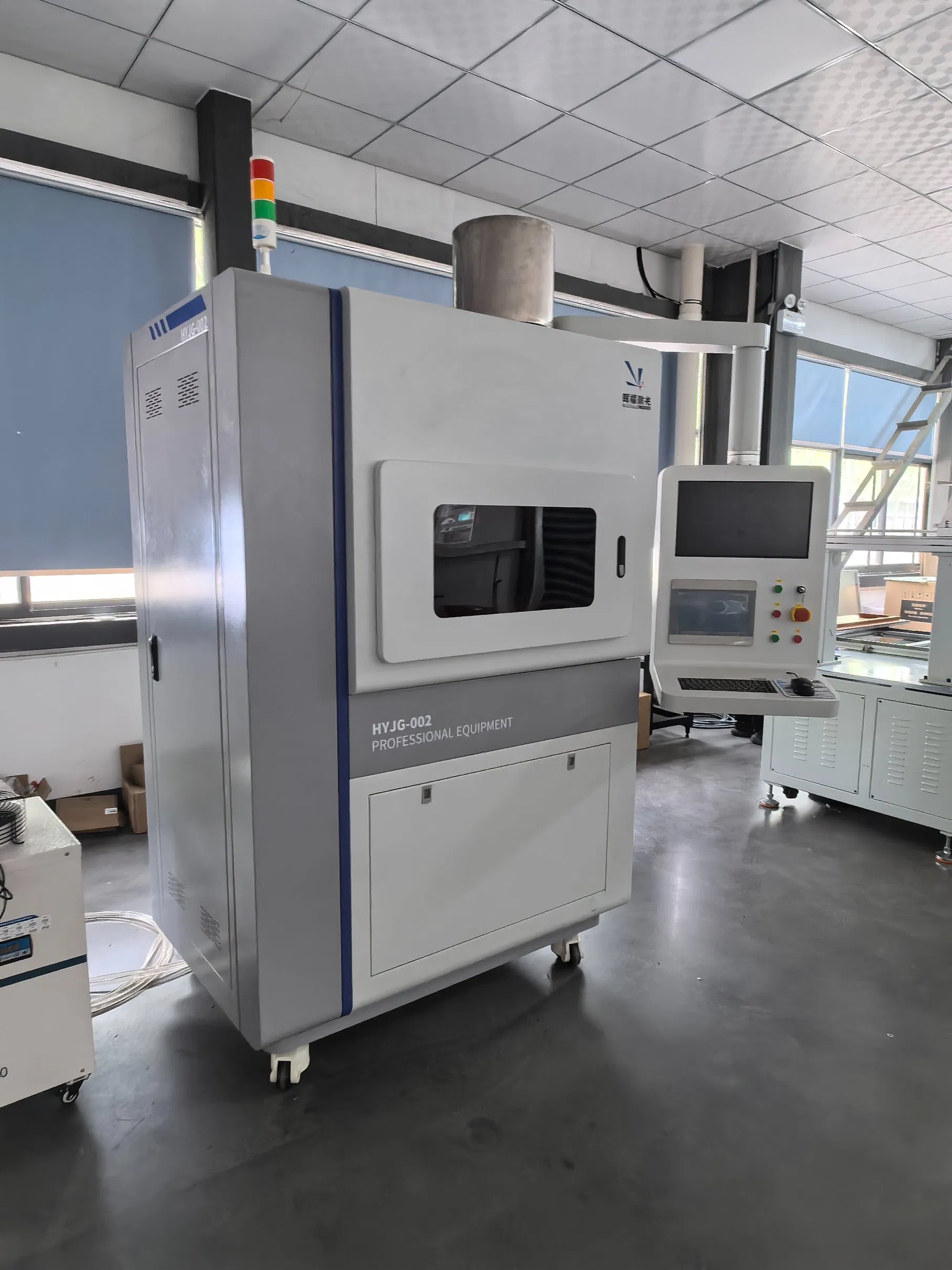

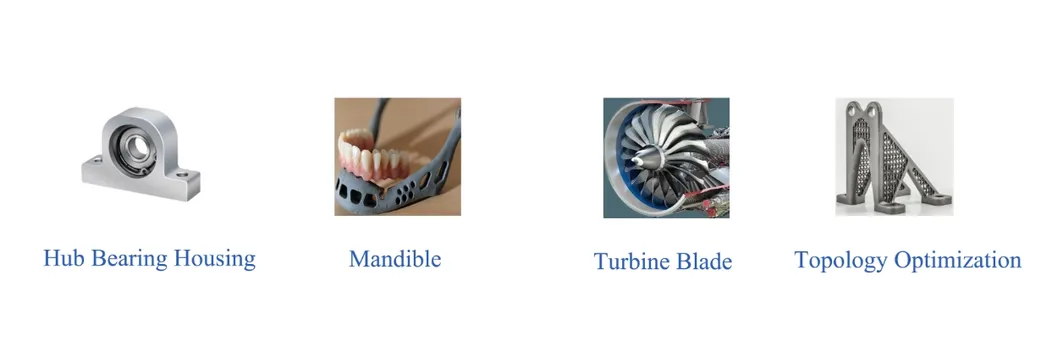

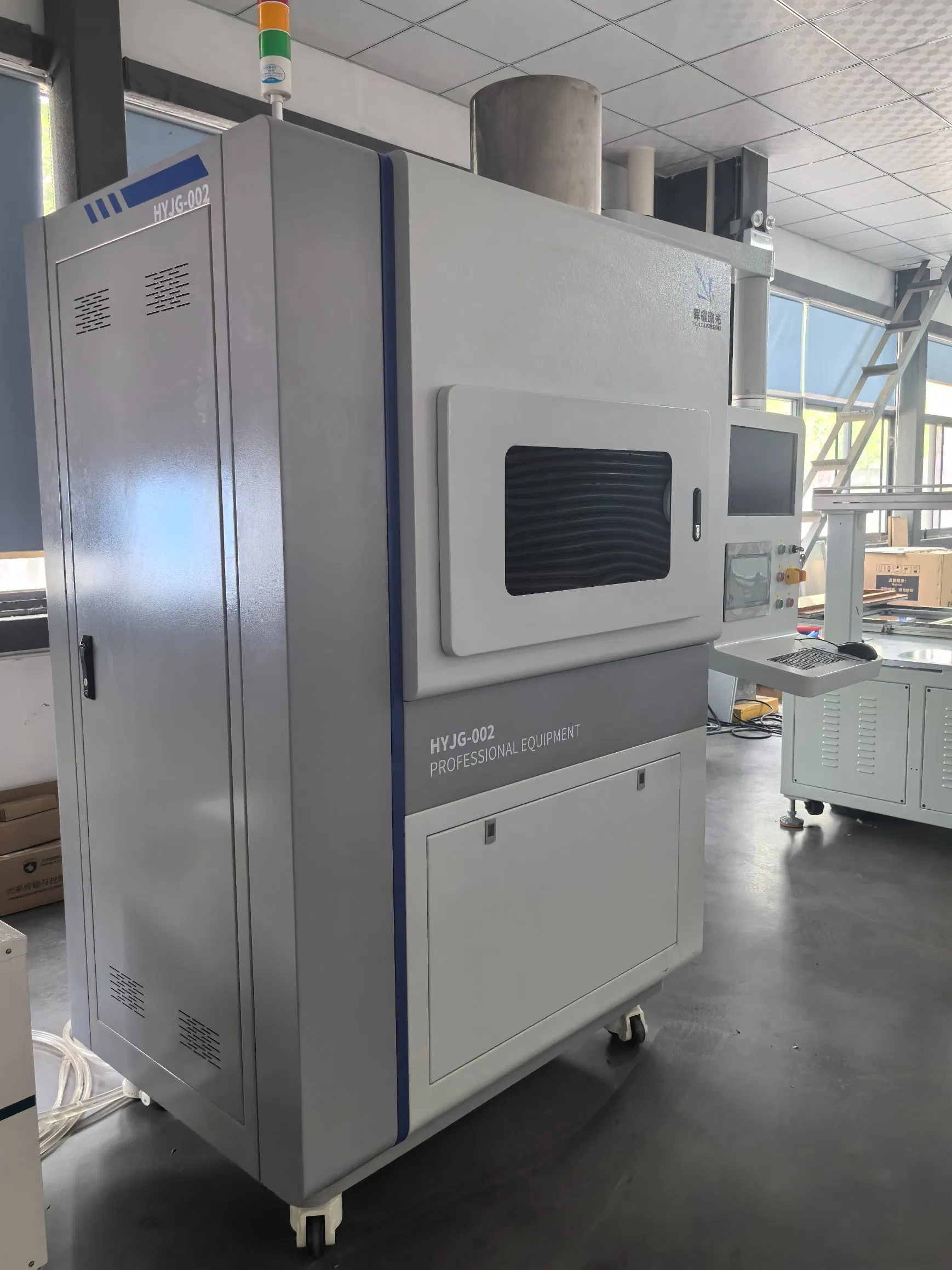

The SLM Dual-Laser Metal 3D Printer is a high-efficiency, intelligent, and customized industrial-grade additive manufacturing system specifically designed for aerospace, medical implants, and precision tooling. By integrating dual-laser dynamic coupling technology, closed-loop powder management, and intelligent quality monitoring, the system reliably produces titanium alloy orthopedic implants and nickel-based superalloy turbine blades.
Key Features

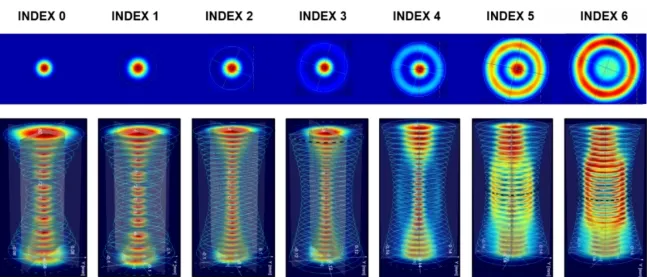

Adjust the laser spot from 35-80μm to optimize energy distribution for diverse materials. Smaller spots (35-50μm) enable ultra-fine details, while larger spots (60-80μm) boost efficiency for bulk components.

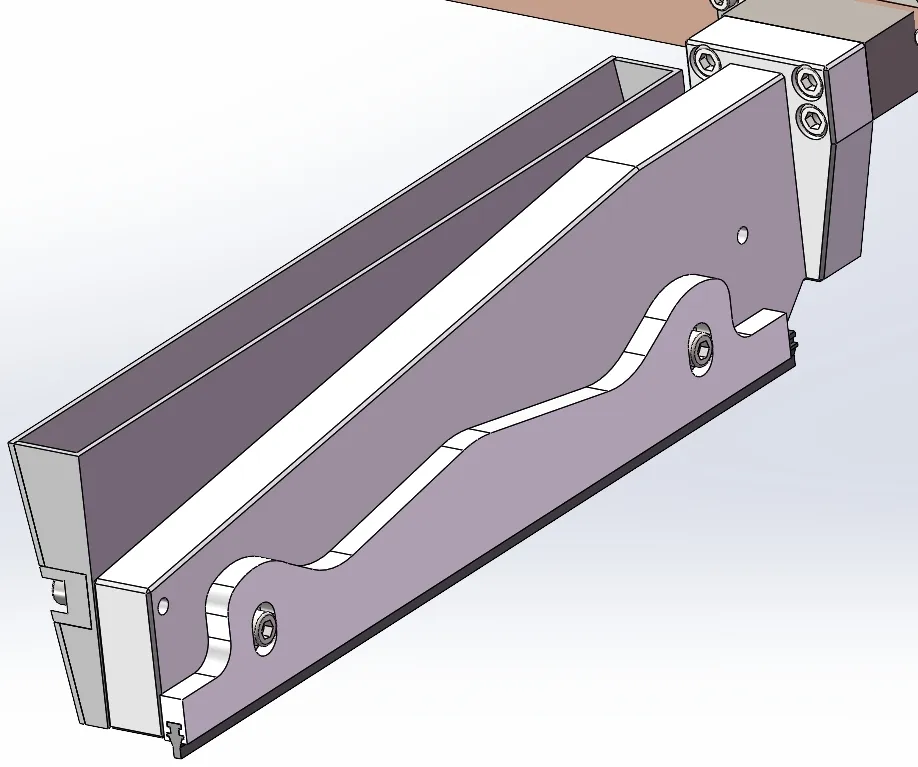

Equipped with soft/hard dual scrapers to ensure printing accuracy and prevent thin-walled part jamming during the additive process.
Layer thickness 0.02-0.05mm, density up to 99%-100%, and surface roughness Ra6-15 μm for superior mechanical performance.
Packaging & Shipping

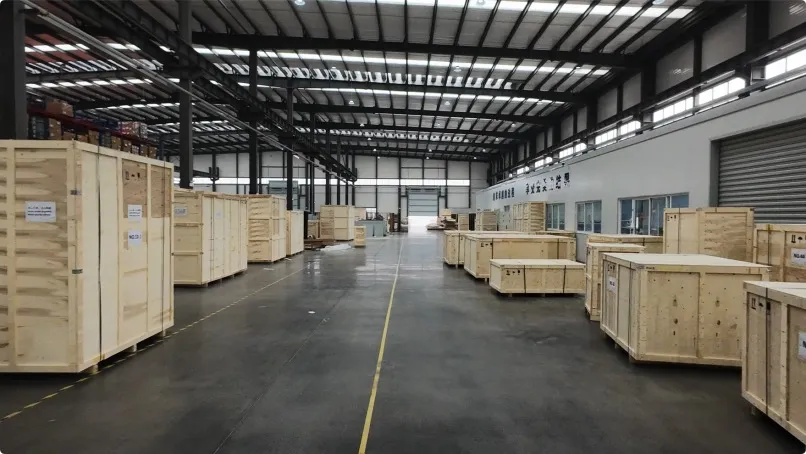

Every system is meticulously packaged in heavy-duty wooden crates with anti-vibration reinforcement. Our logistics network ensures 99.9% damage-free delivery to 50+ countries.
Manufacturing Capability
An industry-leading manufacturer of intelligent equipment and SLM dual-laser 3D printing systems, dedicated to providing innovative turnkey solutions for metal additive manufacturing. With a focus on precision, efficiency, and Industry 4.0 integration, our equipment empowers next-generation intelligent manufacturing.
Frequently Asked Questions
What checks are required before starting the equipment?
Ensure sufficient inert gas supply (oxygen level <100ppm), verify powder filling meets requirements (min 30% of chamber capacity), and calibrate scraper leveling (±0.01mm).
How to extend the lifespan of the laser system?
Regularly clean laser optics every 200 hours, avoid full-power operation (keep below 80%), and maintain stable cooling at 20±2ºC.
How to maintain the powder recycling system?
Clean the sieve after each print, inspect delivery pipes monthly, and replace powder filters every 500 hours or 200kg of powder.
How to handle abnormal alarms during operation?
Record the alarm code, check the status of oxygen/temp/pressure sensors, and refer to the operation manual or contact technical support with log files.
How to ensure consistent print quality?
Regularly calibrate the laser beam path every 100 hours and use standard test pieces to verify mechanical properties and melt pool stability.
What should be considered for long-term shutdown?
Empty and clean the powder chamber, disconnect power, drain the cooling system, and perform a monthly self-check start.
