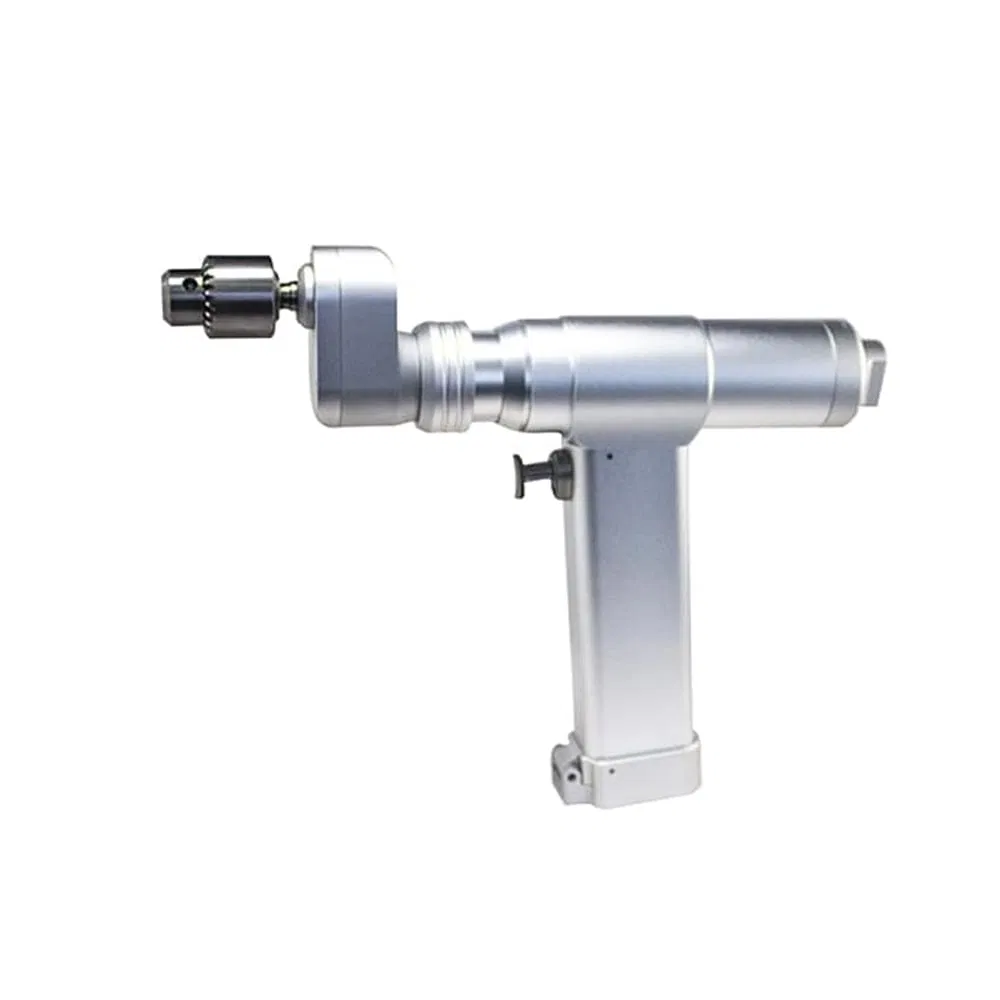

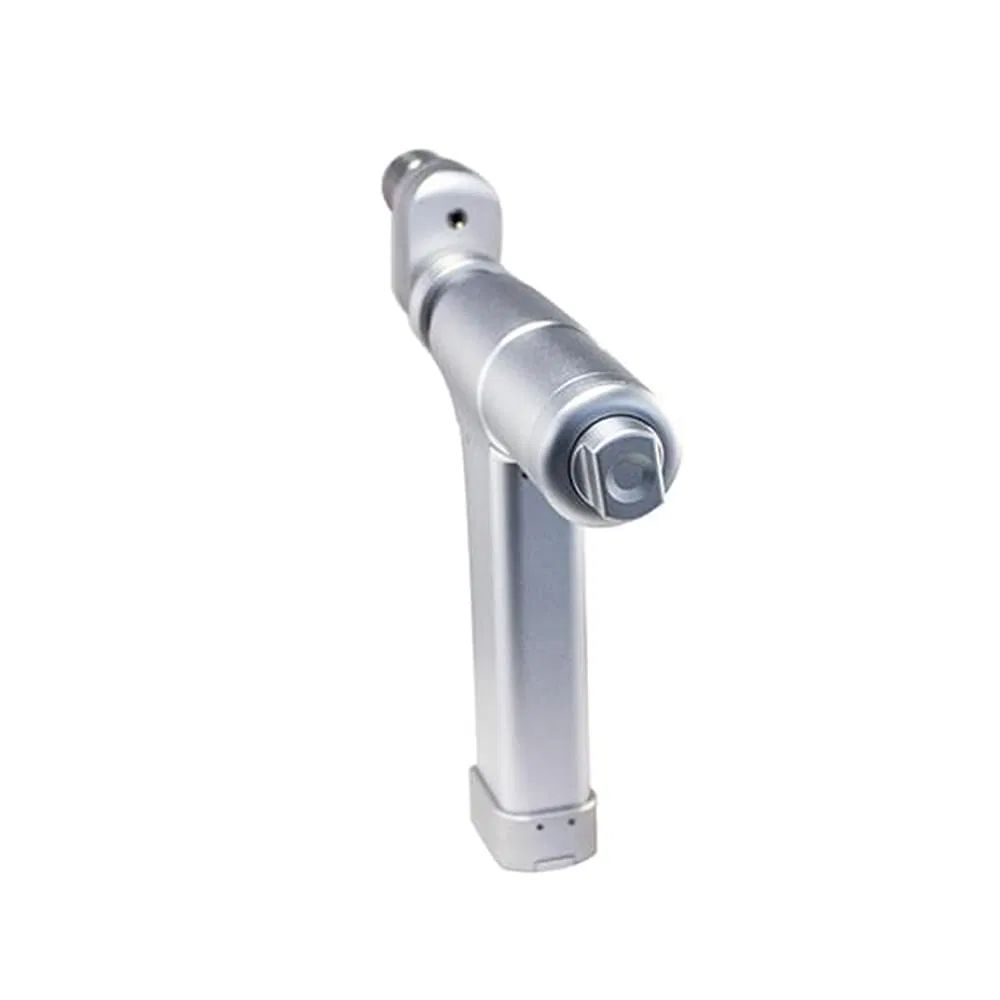

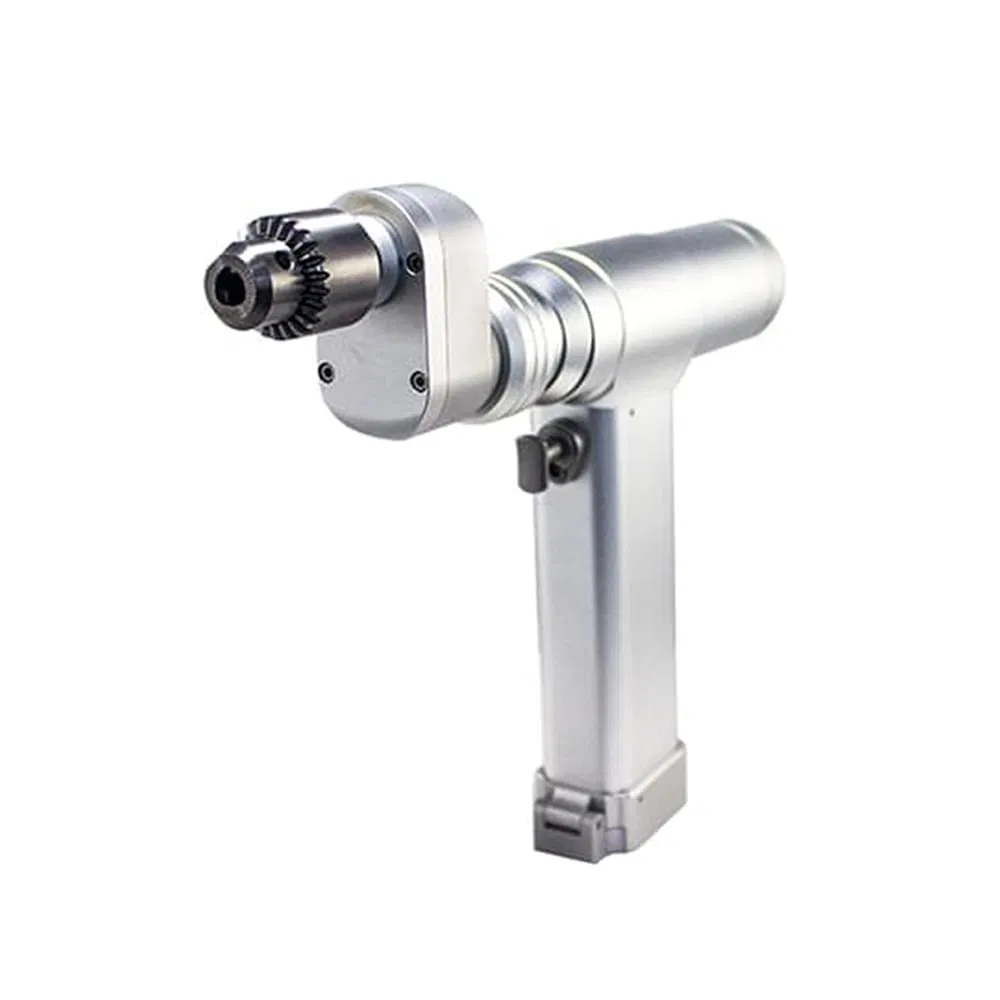

Veterinary Instrument Orthopedic Battery Operated Tplo Saw

Customization: Available
Type: Veterinary Instrument
Syringe: /

Product Description

Basic Specifications

Model NO.
NM-100
Advantage
Can Drive Different Drill Saw Attachments
Application
Veterinary Instrument
Certificate
ISO, CE Marked
Weight
5kg/Set
Warranty
2 Years
Charging Time
3 Hours
Color
Silver
Transport Package
Aluminum Box Packing
Specification
44*28*17 cm
Origin
China(Mainland)
Production Capacity
10,000,000 PCS/Year

Veterinary Orthopedic Battery Operated TPLO Saw

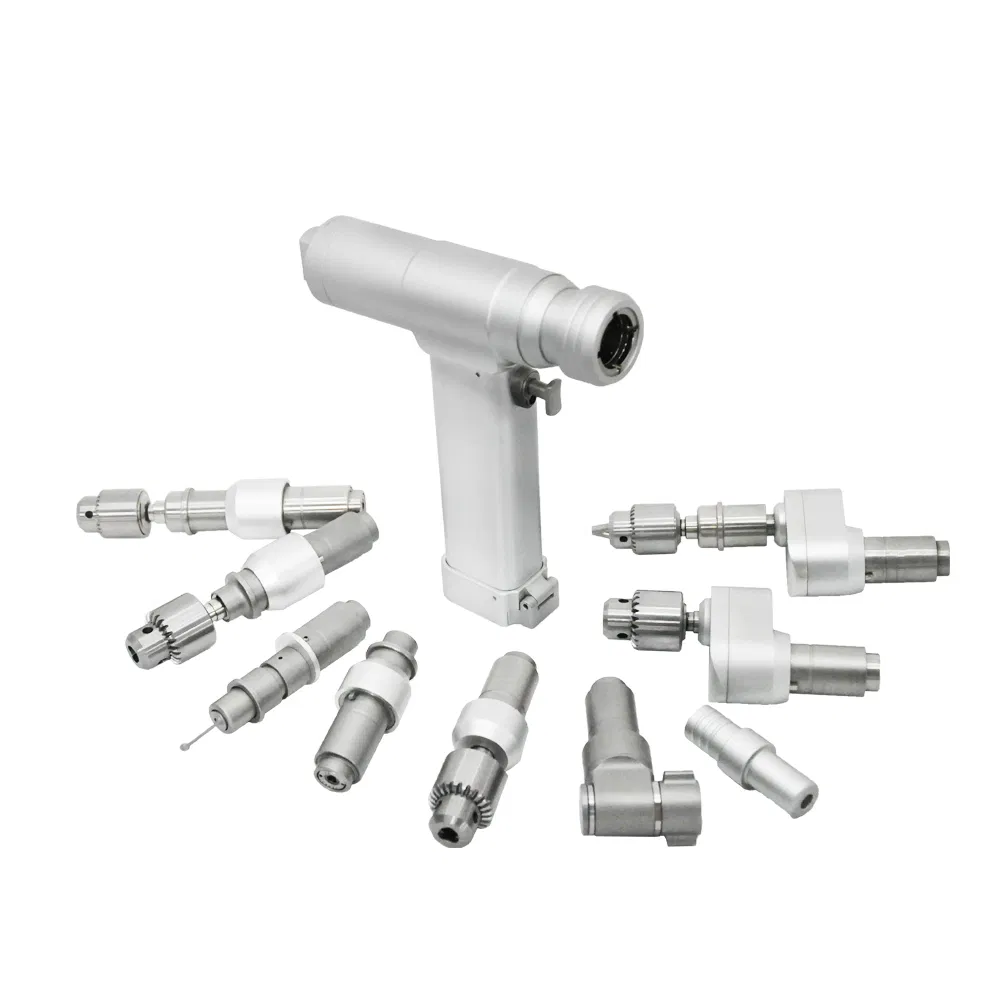

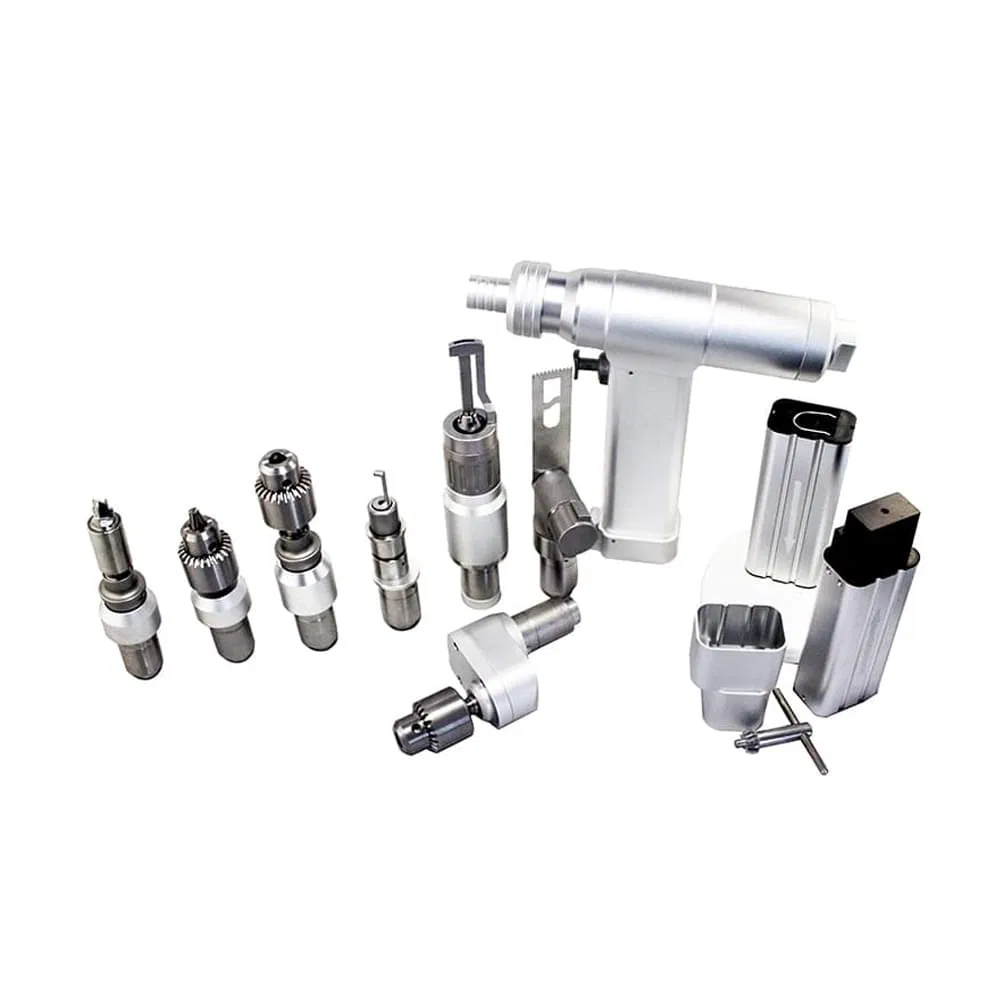

Main Components

Components Quantity
Multifunctional mainframe1
Quick chuck1
Oscillating saw attachment1
Canulate drill attachment1
Acetabulum burnishing drill attachment1
Cranial drill attachment1
Cranial mill attachment1
Sternum Saw attachment1
Battery2
Sterilizing channel1
Sterilization tray1
Aluminum alloy carrying box1
High temperature plug1

Product Features

  • Professional surgical power tools manufacturer
  • The single trigger modular handpiece can be autoclaved
  • Comprehensive range of quick change attachments
  • The ingenious handpiece is equipped with a powerful motor for precise performance
  • Ergonomic design offers comfortable grip and convenient manipulation

Technical Data

Module Parameter Value
Hand PieceWorking Voltage14.4V
Output Power≥20W
Unit rise in temperature≤25°C
ChargerInput PowerAC 220V, 50Hz
Output Power14.4V, 700mA
Input Power30VA
BatteryVoltage14.4V
Charging timeAbout 3 hours

Attachment Speeds

Attachments Rotate Speed
Quick chuck (bone drill)0-1100r/m
Oscillating saw0-16000r/m
Acetabulum Reamer0-300r/m
Wire and pin chuck (canulate drill)0-1100r.p.m
Cranial drill900r.p.m
Craniotomy mill40000r/m
Sternum saw15000r/m

Key Operational Points

  • Quick chuck: Imported chuck ensures outstanding performance during operation.
  • Sternum saw: 360° Rotating head and blade guard protect soft tissue.
  • Cranial drill: Auto-pause after perforation ensures safety in neurosurgery.
  • Cranial mill: 0-40000rpm ensures high speed and safety.
  • Oscillating saw: 360° rotating head applicable to any surgical sites with fast blade loading.
  • Reamer: High-torque, ideal for acetabulum or medullary operations.
  • Wire and pin chuck: Applied to various intramedullary pin or Kirschner's wire fixing.

Product Display

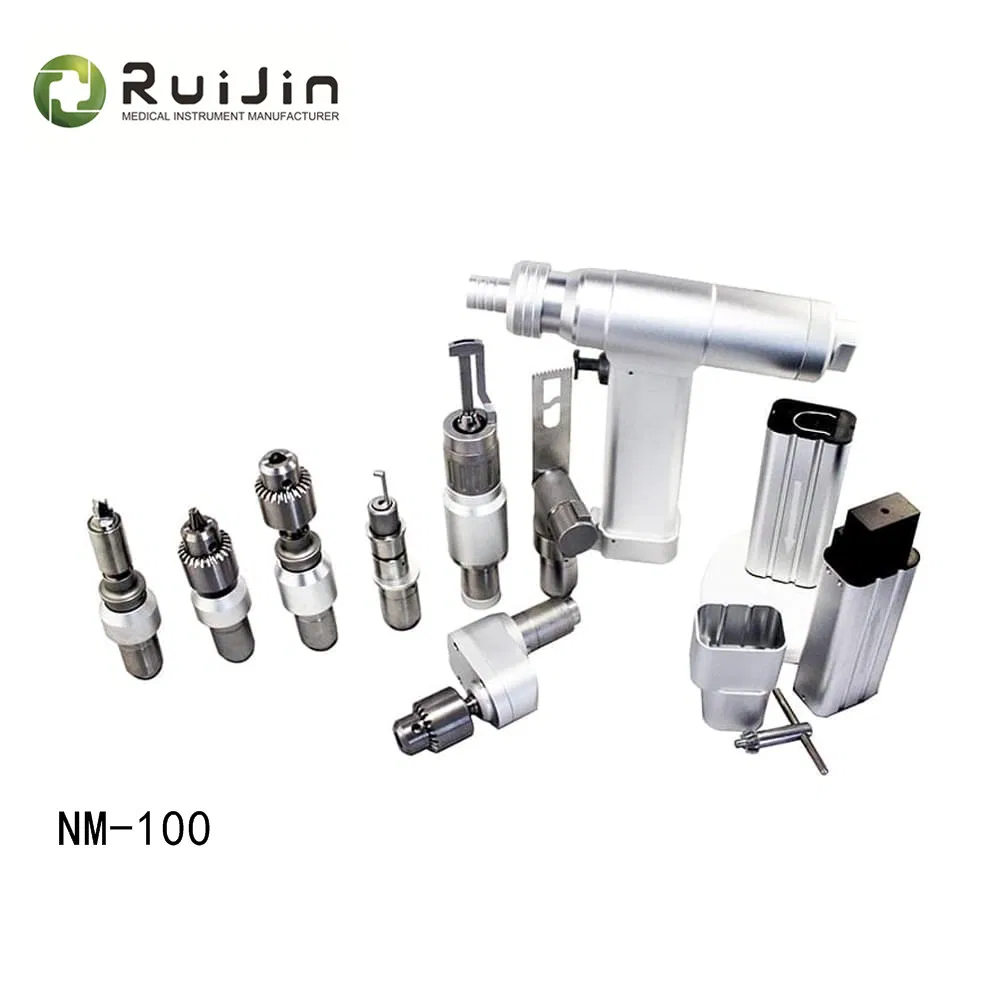

TPLO Saw Display

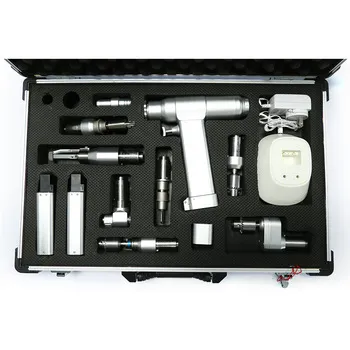

TPLO Saw Unit
Components

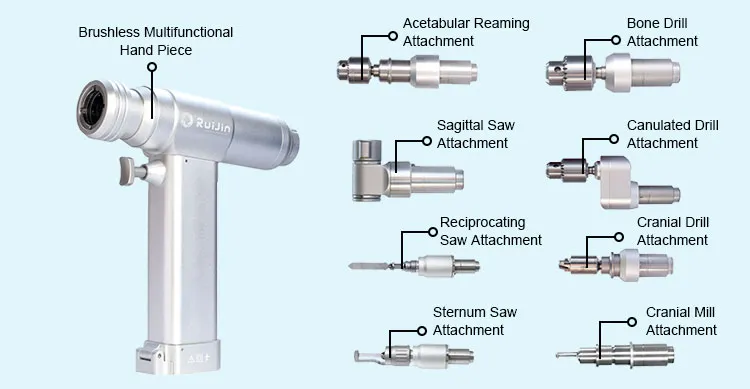

Attachment Detail

Process and Quality

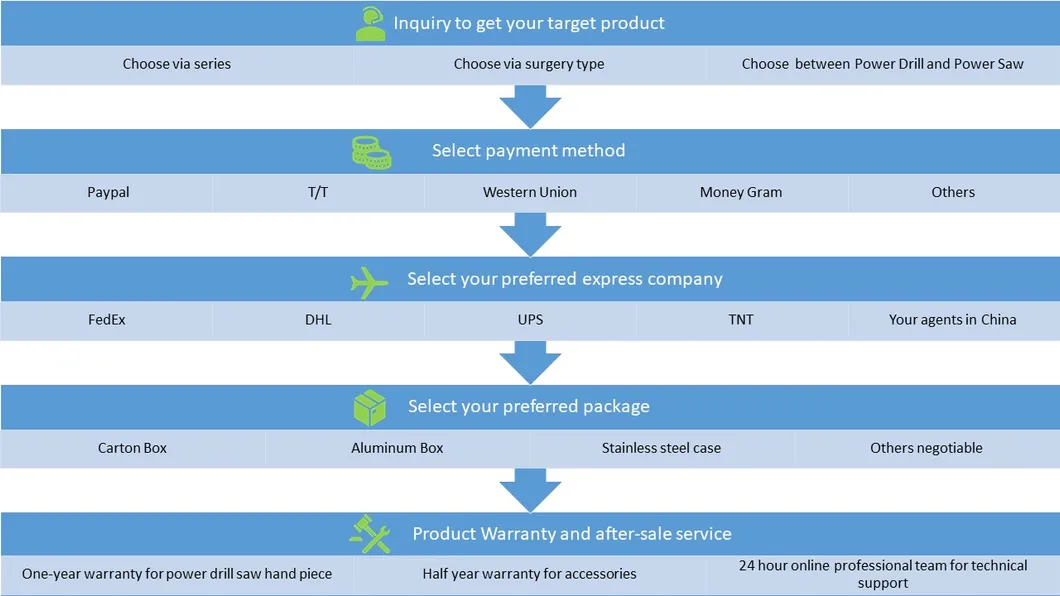

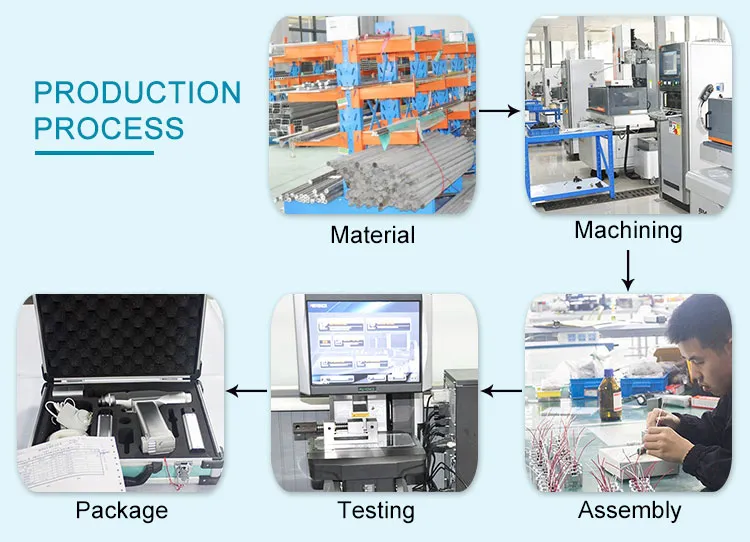

Process Order
Workflow

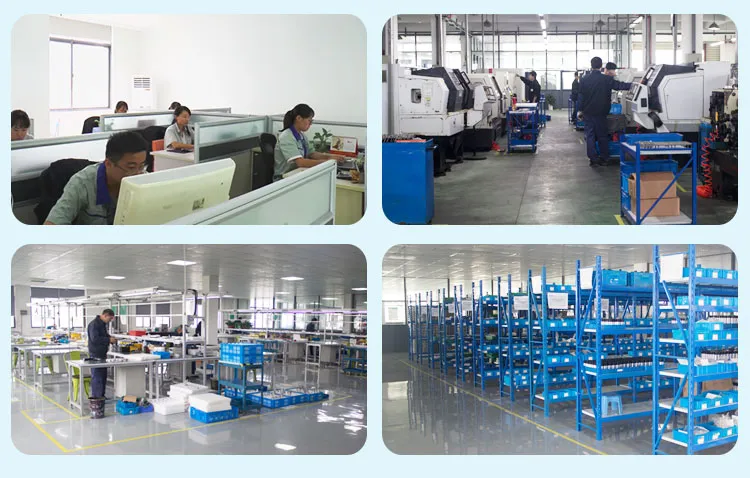

Production
Large Display

Order & Payment Terms

Price Range
USD 0-3600 / Set FOB Shanghai
Minimum Order (MOQ)
1 Set
Payment Terms
T/T in advance or Western Union
Delivery Lead Time
5 days after receiving deposit

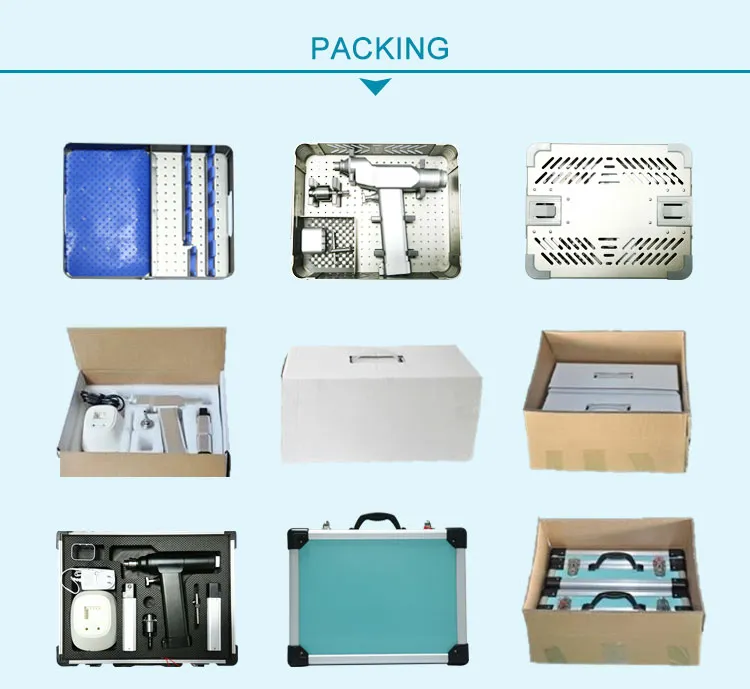

Packaging
Aluminum Box
Shipping Case
Final Product

Frequently Asked Questions

Q: What surgical procedures is the NM-100 suitable for? A: It is designed for various surgeries including Trauma Surgery, Thoracic Surgery, Joint Operation, and especially Veterinary Orthopedic Surgery like TPLO.
Q: Can the handpiece be sterilized? A: Yes, the modular handpiece is designed to be autoclaved for professional surgical sterilization requirements.
Q: How many batteries are included in one standard set? A: Each standard set includes 2 batteries to ensure continuous operation during surgical procedures.
Q: What is the warranty period for this veterinary instrument? A: The product comes with a 2-year warranty, ensuring reliable long-term use.
Q: How long does the battery take to fully charge? A: It takes approximately 3 hours to achieve a full charge for the 14.4V battery.
Q: What attachments are available for the multifunctional mainframe? A: The system supports multiple attachments including a quick chuck bone drill, oscillating saw, acetabulum reamer, canulate drill, cranial drill, and sternum saw.
