Medical Power Tool Veterinary Tplo Saw for Equipment Orthopedic Clinic

Customization:	Available
Type:	Veterinary Sugery Tool
Package Size (Cm):	403014

Send Inquiry

Product Description

Basic Information

Model NO.DS-0810

Transport Packageby Air or by Sea

OriginChina

HS Code9018909919

Package Size1.00cm * 1.00cm * 1.00cm

Package Gross Weight1.000kg

Product Description

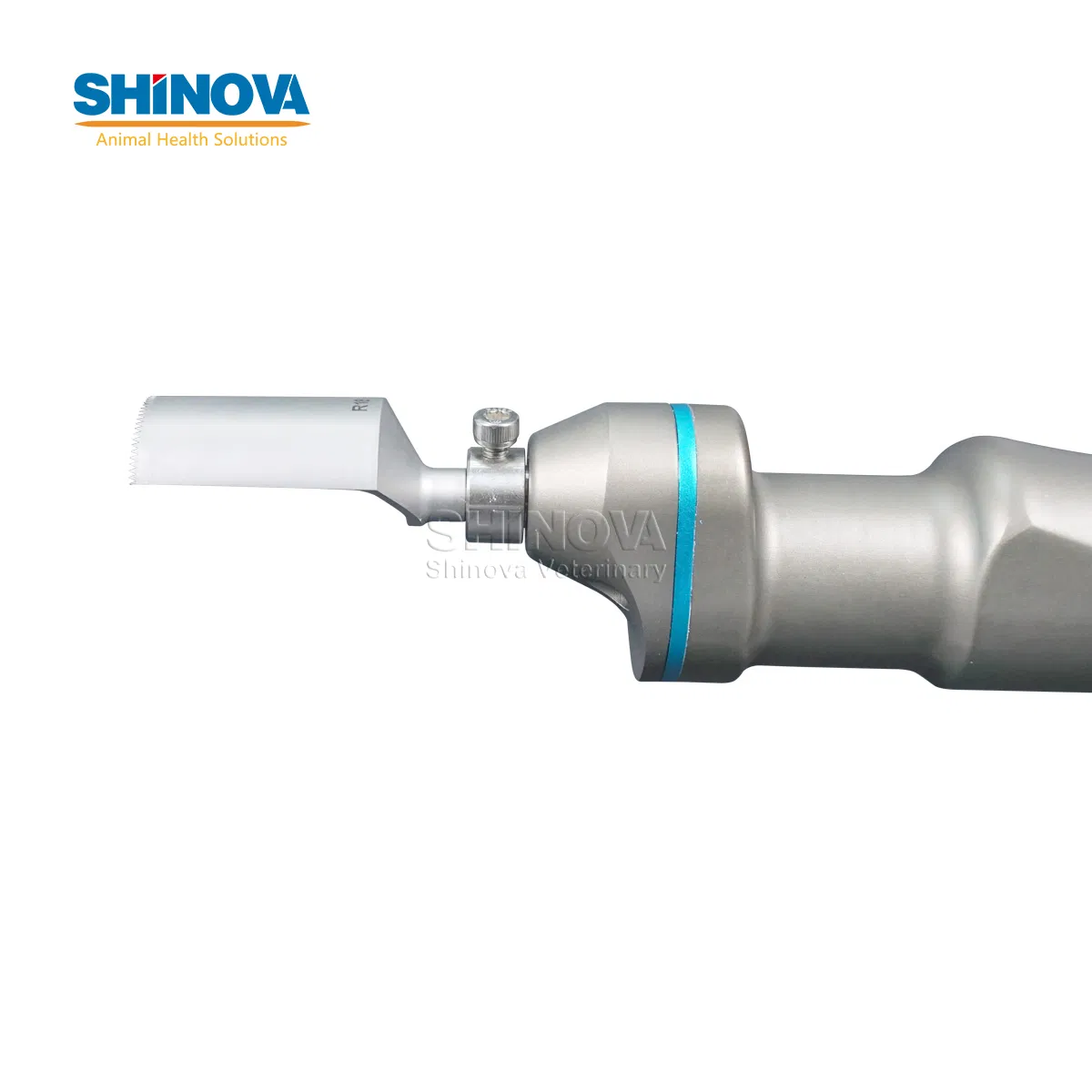

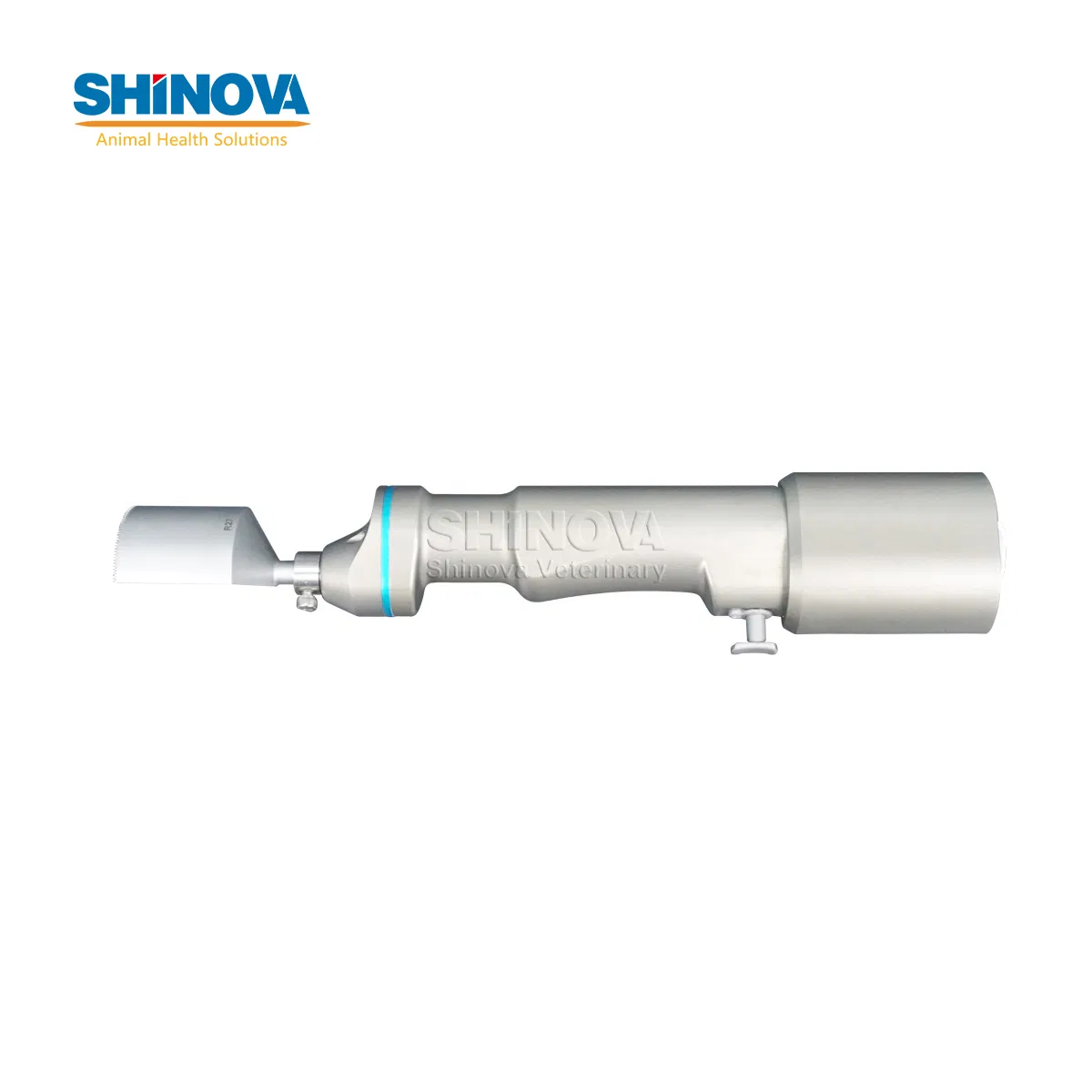

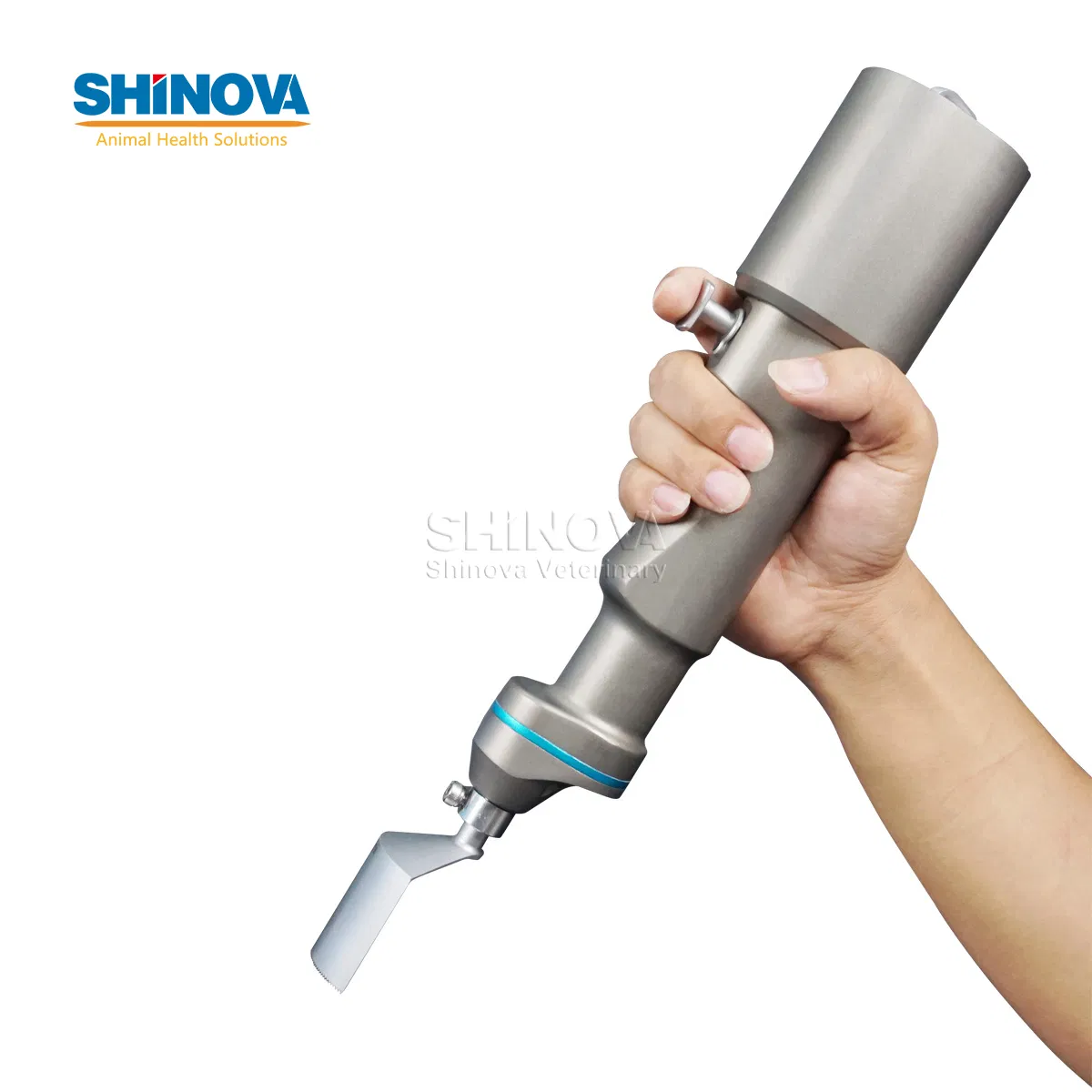

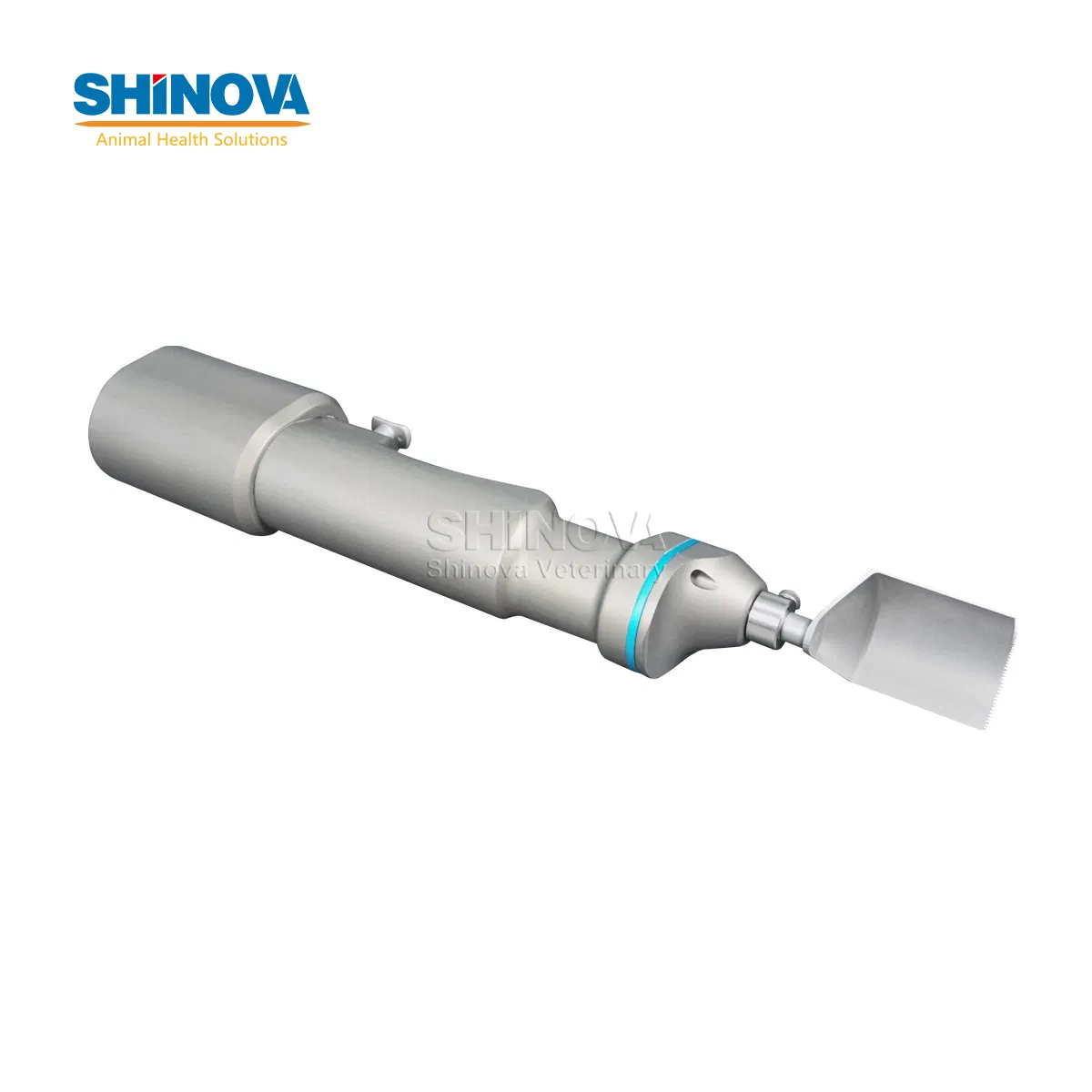

Veterinary TPLO Saw (Model: DS-0810)

TPLO surgery (Tibial-Plateau-Leveling Osteotomy) is performed on dogs to stabilize the stifle joint after ruptures of the cranial cruciate ligament.

Key Features

High-strength stainless steel shell to ensure the intraoperative safety for dogs.
Blade thickness and a variety of common knee prosthesis to match with the template, forming an osteotomy is perfect fit prosthesis, it brings you more accurate and rapid surgical procedures.
Specially designed saw tooth ensures very small contact pressure to achieve accurate and neat osteotomy, so it greatly reduces the generated heating when cutting that possibly leads to the risk of osteonecrosis.

Specifications

Frequency	0-16000Hz
Swing angle	11.5°
5-minute temperature	≤25ºC
Noise	≤75dB
Sterilization temperature	≤135ºC
Operation voltage	12V
Battery type	NI-MH Battery
Battery Voltage	9.6V~14.4V
Charging time	2 hours
Discharge time/1A	≥30min
Charger input voltage	AC 100-240V, 50/60Hz
Charger output power	7.2V-16.8V
Net weight	1.5KG

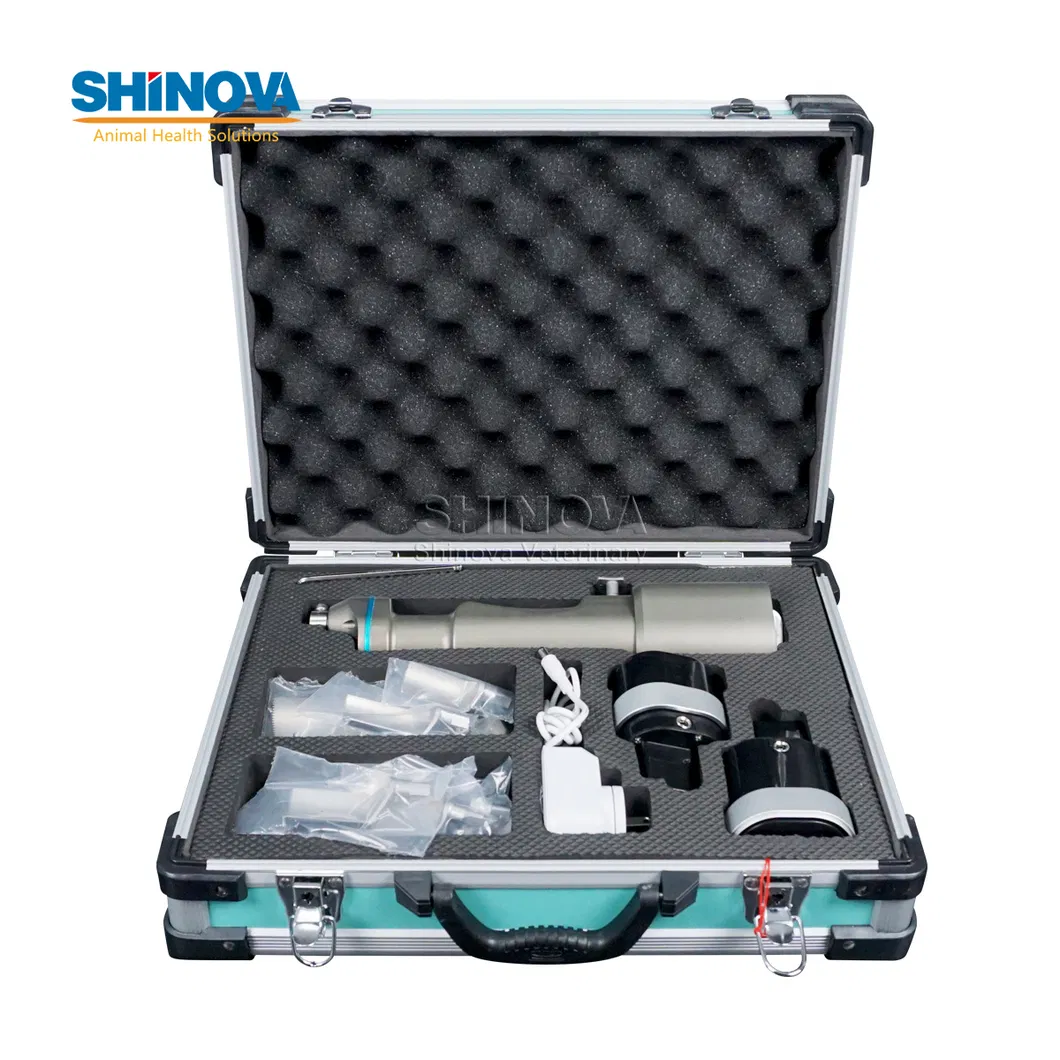

Configurations

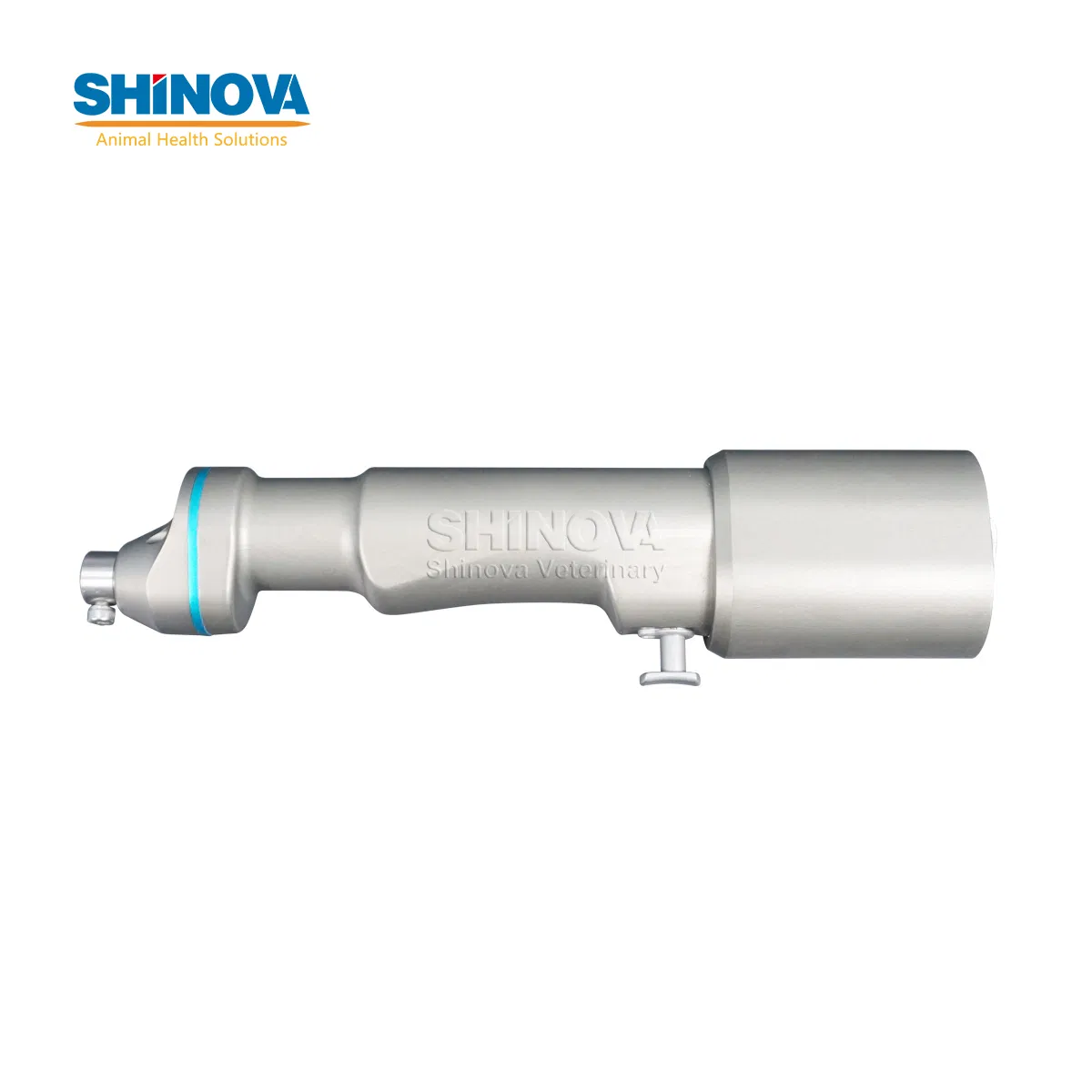

• Main engine * 1pc

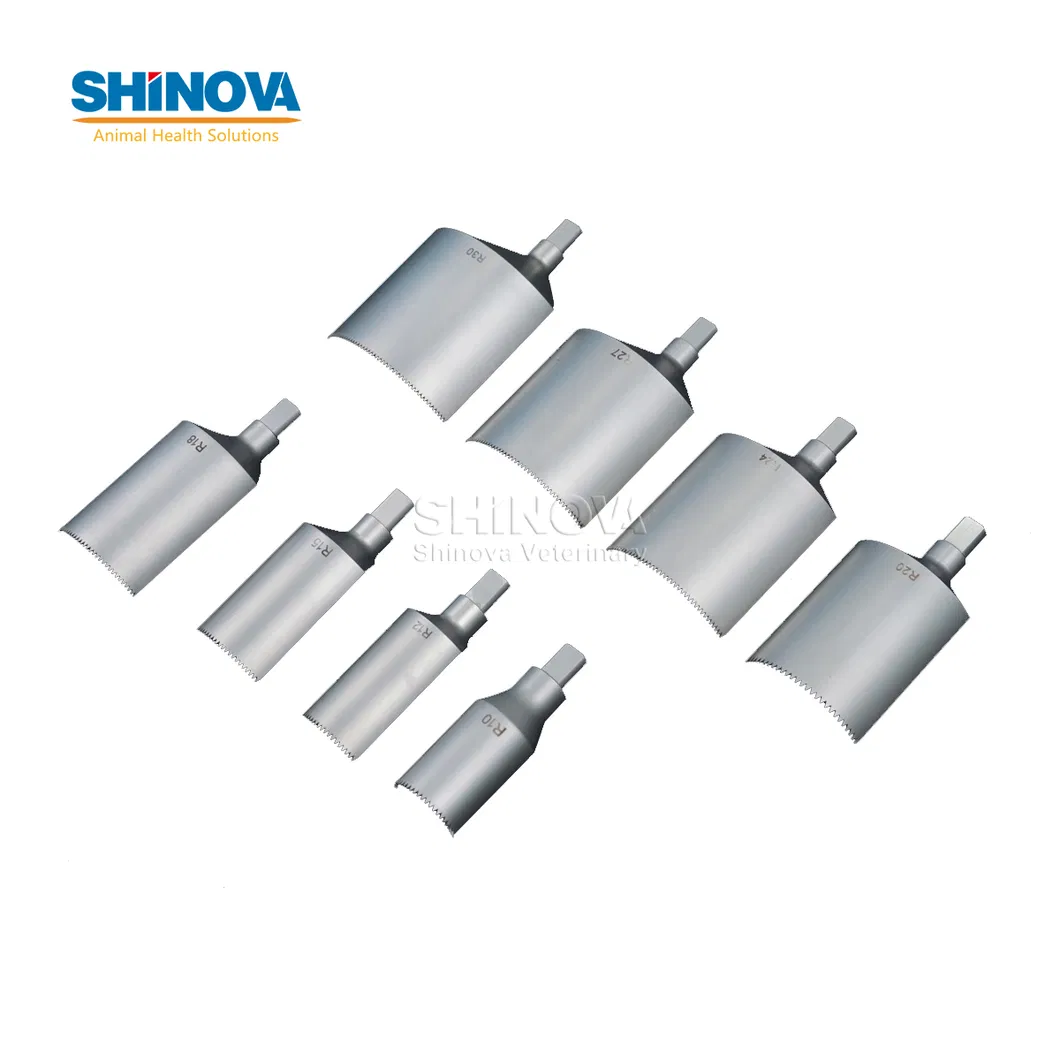

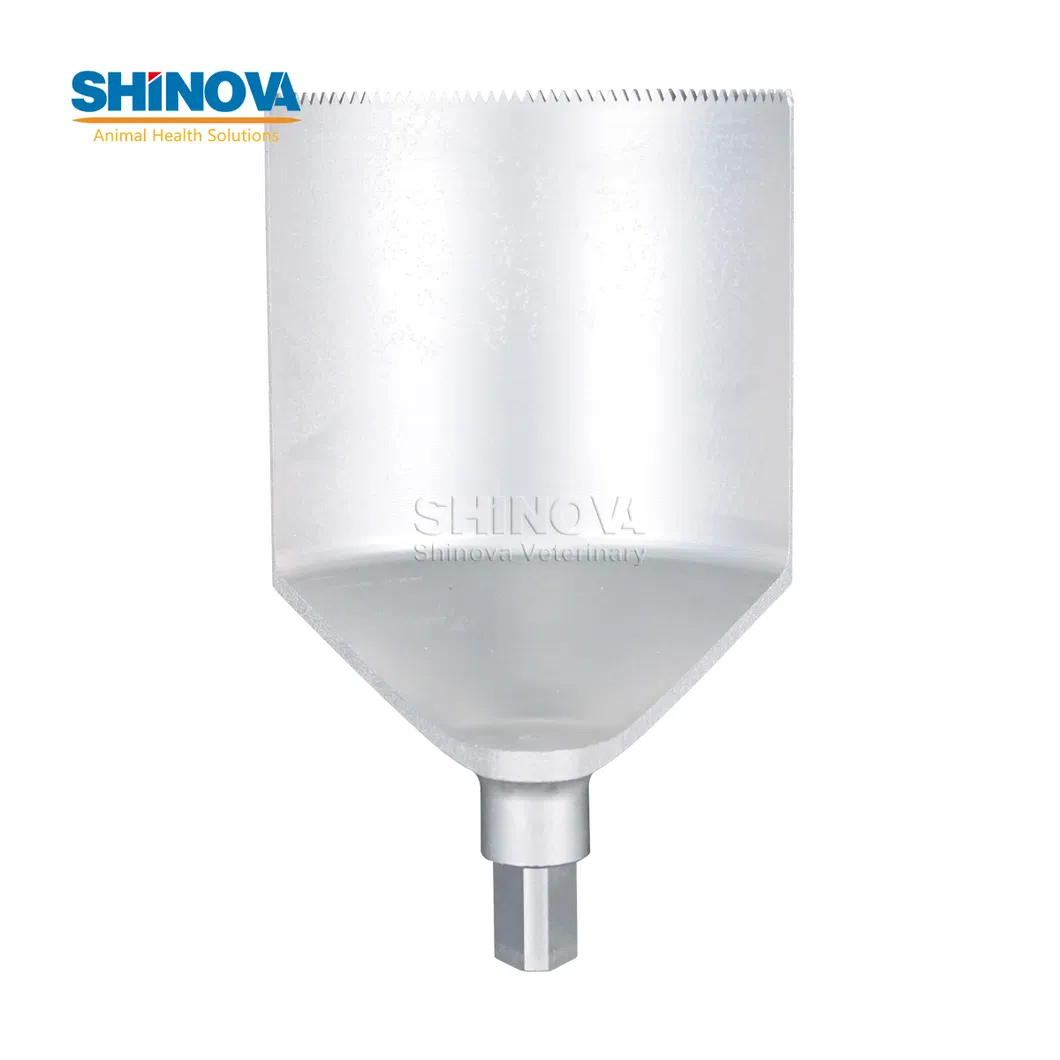

• Saw blade * 1pc (R10/R12/R15/R18/R20/R24/R27/R30mm, choose one of them)

• Charger * 1pc

• Batteries * 2pcs

• Battery sterilization channels * 2pcs

• Internal hexagon spanner * 1pc

• Carrying case * 1pc

About the Provider

Incorporated in October 2005, we are a professional veterinary equipment manufacturer and veterinary solutions provider primarily for animal hospitals and clinics.

With leading research, design, operation and service capabilities, we devote ourselves to providing advanced veterinary techniques for veterinarians to solve all the diagnostic and treatment difficulties of animal care.

Our Purpose: Improve the pet's life quality and create the customer's long-term value.

Frequently Asked Questions

Q1: What is the primary use of the DS-0810 TPLO Saw? A1: It is specifically designed for Tibial-Plateau-Leveling Osteotomy (TPLO) surgery in dogs to stabilize the stifle joint following a cranial cruciate ligament rupture.

Q2: How long does it take to fully charge the batteries? A2: The charging time for the NI-MH batteries is approximately 2 hours, providing a discharge time of 30 minutes or more at 1A.

Q3: Is the equipment autoclavable? A3: Yes, the saw is designed to withstand sterilization temperatures up to 135ºC, and it includes dedicated battery sterilization channels.

Q4: What saw blade sizes are compatible with this model? A4: It is compatible with multiple blade sizes including R10, R12, R15, R18, R20, R24, R27, and R30mm. One blade is typically included in the standard configuration.

Q5: Does the saw generate high heat during cutting? A5: No, the specially designed saw teeth ensure minimal contact pressure, which significantly reduces heat generation and the risk of osteonecrosis.

Q6: What is the noise level of the device during operation? A6: The device operates at a noise level of ≤75dB, ensuring a relatively quiet surgical environment.
